USER MANUAL 1870 Tennsco

ASSEMBLY INSTRUCTIONS & PARTS MANUAL

Deluxe Storage Cabinet Unassembled Models 1870 & 2470

tennsco®

Storage Made Easy

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE

Exterior view of a beige metal cabinet with two doors open, showing shelves and door handles (no text or symbols visible)

UNIT SIZE	WEIGHT CAPACITY
36w x 18d	200 lbs.
36w x 24d	200 lbs.

GENERAL SAFETY INFORMATION

Some parts may have sharp edges. CARE must be taken when handling various pieces to avoid injury. For safety, wear a pair of work gloves when assembling or performing any maintenance on products.

LIMITED WARRANTY

Tennisco warrants goods purchased hereunder to be free of defects in materials and workmanship for a period of one (1) year from the date of shipment, hereunder. This warranty shall not apply in the event goods are damaged as a result of misuse, abuse, neglect, accident, improper application, modification or repair by persons not authorized by Seller, where goods are damaged during shipment, or where the date stamps on the goods have been defaced, modified or removed. UNLESS CONSIDERED UNENFORCEABLE OR UNLAWFUL UNDER APPLICABLE LAW:

a. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXCLUDED:
b. BUYERS REMEDY, IF ANY, FOR ANY DEFECTIVE GOODS SHALL BE LIMITED TO A REFUND BY SELLER OR REPLACEMENT OF THE GOODS AT SELLER'S OPTION, AND SHALL IN NO EVENT INCLUDE DAMAGES OF ANY KIND, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.

NO GOODS ACCEPTED FOR RETURN WITHOUT PRIOR APPROVAL. Seller shall have the right to inspect any goods claimed to be defective at Buyers place of business or require Buyer to return the goods to Seller for inspection on Seller's premises. Transportation charges covering returned goods will be borne by Seller only if such goods are proven to be defective, are covered by this warranty and are returned within the warranty period stated above.

ASSEMBLY OF 1870 OR 2470 CABINET

Tools Needed: A free 11/32" nut driver is included with each Tennisco cabinet.

Two people are recommended for assembly. Approximate assembly time: 20-30 minutes.

1. The reference numbers used throughout this sheet refer to the illustration on the back cover. This is to help you to identify the various parts as they are mentioned.

2. Place the cabinet back (Ref. No. 1) on a protected surface to prevent scratching the paint. The flange on the bottom of the back should be facing upward.

e facing upward. Flange faces upward.

NOTE: When bolting the unit together, leave the bolts slightly loose until Step 10, unless otherwise specified.

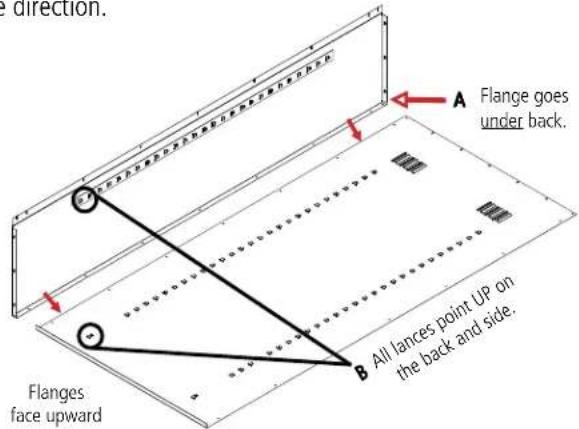

1. Attach the left side (Ref. No. 2) to the back by placing flange (A) around the back and bolting it together with seven bolts and nuts Ref. Nos. 15 & 16). Be sure that the lances on all shelf adjustment strips (B) point in the same direction.

direction. A Flange goes under back. B Flanges face upward All lances point UP on the back and side.

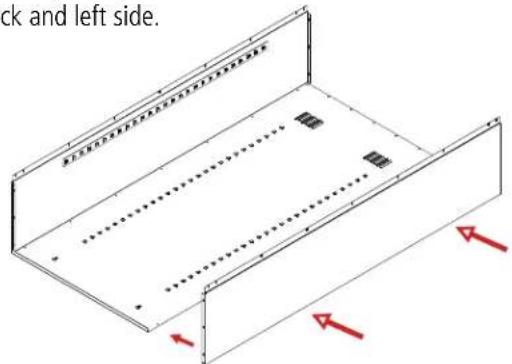

1. Attach the right side (Ref. No. 3) to the back in the same manner as in step 3, again making sure that the flange is around the back and that the lances on the shelf adjustment strips are pointed in the same direction as those on the back and left side.

ck and left side.

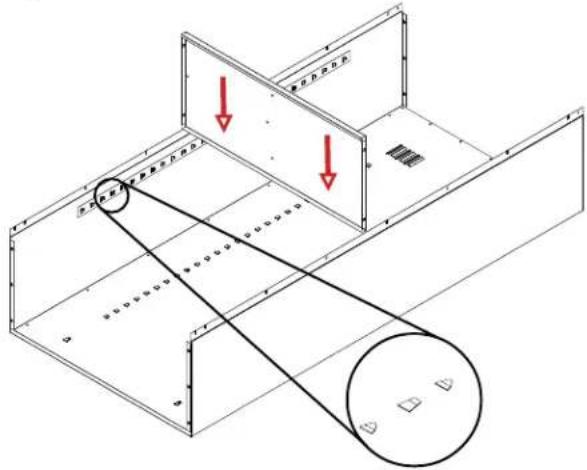

1. Insert one shelf (Ref. No. 4) into the approximate center of the unit, inserting the shelf edges into the lances on all four shelf adjustment strips. Be sure that the channeled edge of the shelf is toward the cabinet front.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

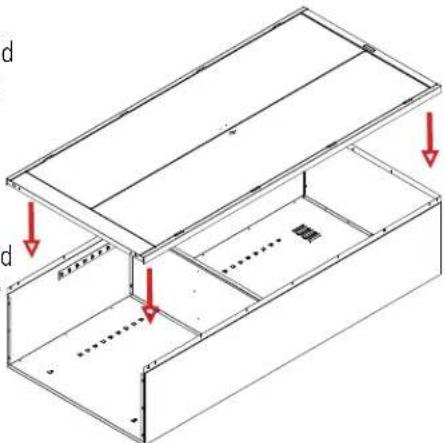

1. Place the top (Ref. No. 5) onto the unit. Be sure that the flanges tuck inside the cabinet sides and back. Secure with eleven nuts and bolts. The front part of the top will bolt into place in step 8.

lace in step 8.

1. With both doors in the closed position, lift the door and frame assembly (Ref. No. 6) and place it over the cabinet body. Be aware that the door latches have not yet been attached,

so the doors could potentially swing open if the door frame is held in an upsidedown position. The door frame should cover the outside edges of the entire storage cabinet front.

d d RIZILA

1. With the door and frame assembly in place, attach it

securely to the unit by opening each

door, one at a time, and securing

the frame assembly using

two bolts and twenty

nuts. This will

require attaching nuts to the

nine pre-welded studs along

each side, plus

two bolts and

nuts along the top.

by opening each and securing using ty

1. Place the bottom (Ref. No. 7) in the lowest notch of the shelf adjusting strips on the back. Make sure the flange with two holes faces the front, and that it is over the flange of the

frame sill. If necessary, you may push out on the side walls to enable the bottom to more easily slide into position. Attach the shelf securely by bolting the bottom to the frame sill with two bolts and nuts. Two holes must be in front. Insert shelf into bottom lances.

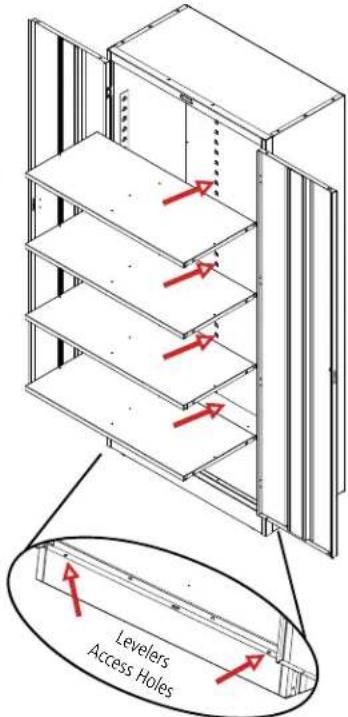

1. Using two people, set the unit upright and tighten all nuts around the entire unit. Insert the remaining shelves at your desired levels. The shelf you inserted earlier may also be moved to a different level if desired.

NOTE: In order to place the shelves, you must first tilt the shelf slightly to the left or right before inserting it into the unit.

1. The cabinet must be level in order for the doors to close properly. Levelers may be adjusted by placing the nut driver through the hole in each end of the sill and adjusting the leveling screw.

Levelers Access Holes

Handle/Locking System Installation

Simple line drawing of a door handle with arrows indicating direction (no text or symbols)

1. Place the locking handle (Ref. No. 9) on the right hand door and fasten with two #8-32 X 1/4 hex-head bolts and lock washers, provided with the handle.

2. Turn the handle to the open position and place the locking cam (Ref. No. 10) over the square shank of the door handle. The latch must be facing downward as shown. Then place the locking cotter pin (Ref. No. 12) through the hole of the square shank.

Technical diagram showing a hand tool interacting with a lock and a wrench, with red arrows indicating direction of movement.

1. With the handle still in the open position, hook the locking bars (Ref. No. 8) to the locking cam (see "A" at left). Once in position, slowly rotate the door handle to the closed position so the lock bars prot rude from the holes at the top and bottom of the door (shown at right, below).

Pure mechanical part diagram without any text, numbers, or symbols

Line drawing of a door handle with lever and handle (no text or symbols)

Line drawing of a door with a handle and label B, no text or symbols present

1. Slide the nylon lock bar guide inserts (Ref. No. 11) over the lock bar ends and through the door slots (see "B" at right). Push down firmly until the guides snap into place.

2. Attach the "dummy" handle (Ref. No. 13) using two #8-32 X 1/4 hex-head bolts and lock washers.

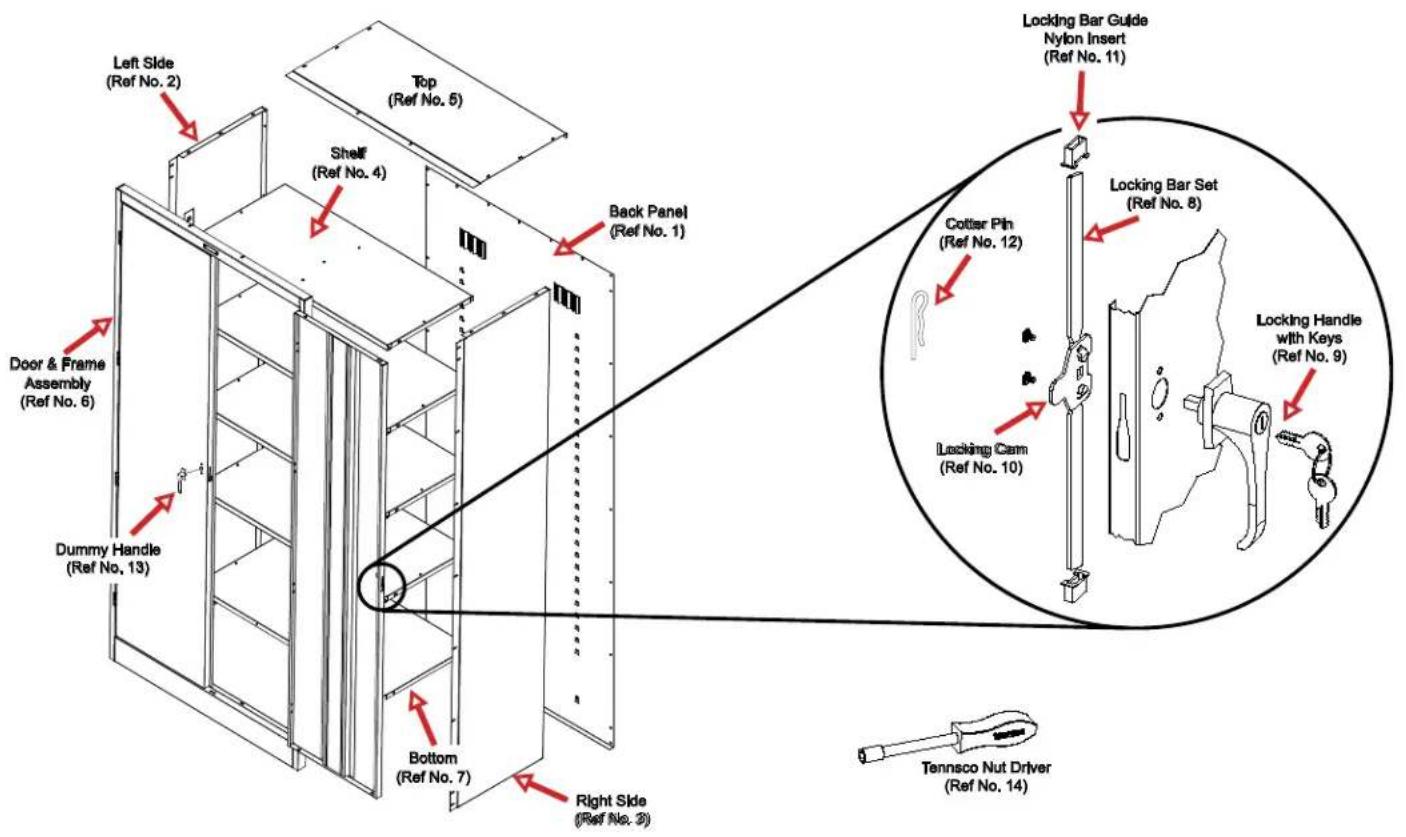

REPLACEMENT PARTS

Left Side (Ref No. 2) Top (Ref No. 5) Shelf (Ref No. 4) Back Panel (Ref No. 1) Door & Frame Assembly (Ref No. 6) Dummy Handle (Ref No. 13) Bottom (Ref No. 7) Right Side (Ref No. 3) Locking Bar Guide Nylon Insert (Ref No. 11) Cotton Pin (Ref No. 12) Locking Bar Set (Ref No. 8) Locking Cam (Ref No. 10) Locking Handle with Keys (Ref No. 9) Tennsco Nut Driver (Ref No. 14)

REF. NO.	DESCRIPTION	1870 (18"D Cabinet)		2470 (24"D Cabinet)
		QTY.	PART NO.	QTY.	PART NO.
1	Back Panel	1	043BA	1	043BA
2	Left Side	1	043LS	1	044LS
3	Right Side	1	043RS	1	044RS
4	Shelf	4	301	4	302
5	Top	1	043TO	1	044TO
6	Door & Frame Assembly	1	043DA	1	043DF
7	Bottom	1	043BO	1	044BO
8	Locking Bar Set	1	043LB	1	043LB
9	Locking Handle w/keys & hardware	1	043LH	1	043LH
10	Locking Cam*	1	944LC	1	944LC
11	Locking Bar Guide Insert (Nylon)*	2	944GI	2	944GI
12	Cotter Pin*	1	CTRPN	1	CTRPN
13	Dummy Handle*	1	043DH	1	043DH
14	Tennsco Nut Driver	1	TOOL-2	1	TOOL-2
15	#8-32 x 3/8" bolts (not shown above)	31	**	31	**
16	#8-32 nuts (not shown above)	47	**	47	**

*Included in Ref. No. 9, locking handle with keys and hardware (Part No. 043LH).
**Available Locally
NOTE: Additional hardware may be included for replacement purposes.
