USER MANUAL LV-D4-5MDIV-312 Linear PRO Access

Close-up of a white surveillance camera with a circular lens and multiple LEDs (no visible text or symbols)

Instruction Manual

English Version 1.0

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER. NO USER SERVICABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Thelightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF THE PLUG TO THE WIDE SLOT AND FULLY INSERT.

Important Safeguards

In addition to the careful attention devoted to quality standards in the manufacturing process of your video product, safety is a major factor in the design of every instrument. However, safety is your responsibility too. This sheet lists important information that will help to assure your enjoyment and proper use of the video product and accessory equipment. Please read them carefully before operating and using your video product.

Installation

1. Read and Follow Instructions - All the safety and operating instructions should be read before the video product is operated. Follow wall operating instructions.

2. Retain Instructions- The safety and operating instructions should be retained for future reference.

3. Heed Warnings - Comply with all warnings on the video product and in the operating instructions

4. Polarization- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prompt. The wide blade or the third prong are provided for your safety. If the provided plug does not fit in consult an electrician for replace obsolete outlet.

1. Power Sources - This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your location, consult your video dealer or local power company. For video products intended to operate from battery power or other sources, refer to the operating instructions.

2. Overloading - Do not overload wall outlets of extension cords as this can result in the risk of fire or electric shock. Overloaded AC outlets, extension cords, frayed power cords, damaged or craded wire insulation, and broken plugs are dangerous. They may result in a shock or fire hazard. Periodally examine the cord, and if its appearance indicates damage or deteriorated insulation, have replaced by your service technician.

3. Power Cord Protection -Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the video product.

4. Ventilation - Slots and openings in the case are provided for ventilation to ensure reliable operation of the video product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the video equipment on a bed, sofa, rug, or other similar surface. This video product should never be placed near or over a radiator or heat register. This video product should not be placed in a built-in installation such as ablockcase crack unless proper ventilation is provided or the video product manufacturer's instructions have been followed.

5. Attachments- Do not use attachments unless recommended by the video product manufacturer as they may cause a hazard.

6. Camera Extension Cables - Check the rating of your extensionable(s) to verify compliance with your local authority regulations prior to installation.

7. Water and Moisture - Do not use this videoproduct near water. For example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a well basement, near a swimming pool and thelike. Caution: Maintain electrical safety. Powerline operated equipment or accessories connected to this unit should bear the ULlisting mark of CSA certification mark on the accessory itself and should not be modified so as to defeat the safety features. This will help avoid any potential hazard from electrical shock or fire, if it doubt, contact qualified service personnel.

8. Access of this -Do not place this video equipment on an unstable cart, stand, tripod, or table. The video equipment may fall, causing serious damage to the video product. Use the video product only with a cart, stand, tripod, bracket, or tablet recommendations by the manufacturer or sold with the video product. Any mounting of the product should follow the manufacturer's instructions and use amounting accessory recommended by the manufacturer.

Service

1. Servicing - Do not attempt to service this video equipment yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Conditions Requiring Service - Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

- When the power supply cord or plug is damaged.

- If liquid has been spilled or objects have fallen into the video product.

- If the video product has been exposed to rain or water.

- If the video product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other models may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.

• If the video product has been dropped or the cabinet has been damaged.

- When the video product exhibits a distinct change in performance. This indicates a need for service.

1. Replacement Parts - When replacement parts are required, have the service technician verify that the replacements used have the same safety characteristics as the original parts. Use of replacements specified by the video product manufacturer can prevent fire, electric shock or other hazards.

2. Safety Check- Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks recommended by the manufacturer to determine that the video product is in safe operating condition.

3. Wall or Ceiling Mounting -The cameras provided should be mounted to a wall or ceiling only as instructed in this guide, using the provided mounting brackets.

4. Heat -The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Use

1. Cleaning - Unplug the video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

2. Product and CartCombination - Videos and cart combination should be moved withc are,Quick stops,excessive force,anduneven surfaces may cause the video product and cart combination to overturn.

3. Object and Liquid Entry - Never push objects of any kind into this video product through openings as they may touch dangerous voltage points or short-outparts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.

4. Lightning - For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna arc e system. This will prevent damage to the video product due to lightning and power line surges.

General Precautions

1. All warnings and instructions in this manual should be followed.
2. Remove the plug from the outlet before cleaning. Do not use liquid aerosol detergents. Use a water dampened cloth for cleaning.
3. Keep enough space around the unit for ventilation. Slots and openings in the storage cabinet should not be blocked.
4. During lightning storms, or when the unit is not used for all ong time, disconnect the power supply, antenna, and cables to protect the unit from electrical surge.

FCC CLASS A NOTICE

NOTE

This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

This equipment has been certified and found to comply with the limits regulated by FCC, EMC, and LVD. Therefore, it is designated to provide reasonable protection against interference and will not cause interference with other appliance usage.

However, it is imperative that the user follows the guidelines in this manual to avoid improper usage which may result in damage to the unit, electrical shock and fire hazard injury.

In order to improve the feature functions and quality of this product, the specifications are subject to change without notice from time to time.

Features

Close-up of a white surveillance camera with a circular lens and multiple records (no visible text or symbols)

• HD CMOS Progressive Scan
- 720p or 1080p models with real-time (25/30 fps)
• 3Mega Pixel 2048x1536 or 5 Mega Pixel 2592x1920 Models
- Triple-streaming (H.264/MJPEG)
- Future proof ONVIF 2.1 compliance (1.02 backwards compatible)
- Compatible with popular third party VMS software*
• Power-over-Ethernet (PoE) operation, 14Watt max/12V operation
- Backup options: micro SD card, FTP, NAS, local
- Mobile Apps: iPhone®, iPad®, Android™
• Supports two-way audio
• 2.8-12mm Varifocal MegaPixel lens
- 65ft (20m) IR Night Vision, TrueDay/Night (TDN)
- IP66 Weatherproof and IK10 Vandal Resistant
- Multi-browser support: IE, Firefox, Safari, Chrome
• 3 Axis Design for wall/ceiling mount

TABLE OF CONTENTS

1. Getting Started.... 1

1.1 Default Camera Username, Password, and Ports 1

1.2 Camera Interior Overview 2

1.3 ONVIF Compatibility and Included Software Overview ..... 3

1.3.1 NVMS 3

1.3.2 CD Contents 3

2. Connection 4

3. Camera Installation 5

4. Junction Box Plate 10

4.1 Junction Box Plate Dimensions and Fitting 10

5. Junction Box Installation Types 11

5.1 Two Gang Fitting (Recommended) 11

5.2 4S Fitting 11

5.3 Octagon Fitting 11

6. Finding the Camera'sIP Address 12

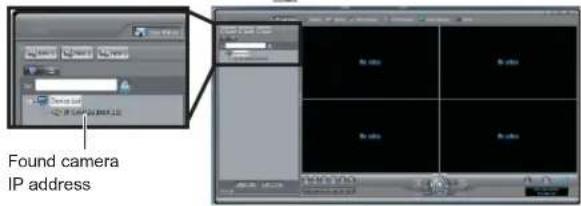

6.1 Finding the Camera's IP Address Using NVMS 12

6.2 Finding the Camera's IP Address using UPnP in Windows® 7 ....13

6.3 Finding the Camera's IP Address using Bonjour® in Mac OS®... 14

6.4 Finding the Camera IP using the BNC Test Cable ..... 15

7. Configuring Remote Connection 16

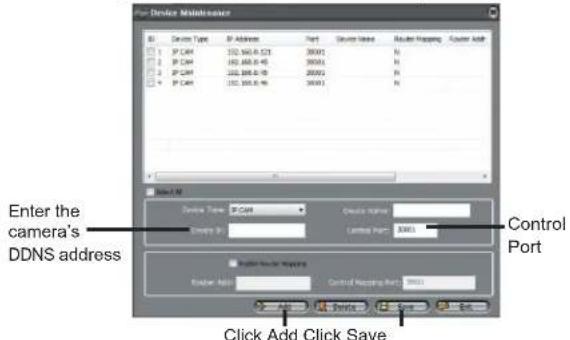

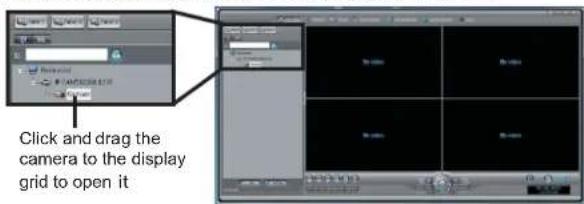

7.1 Connecting to a DDNS address using NVMS 19

8. Web Configuration 21

8.1 Supported Browsers 21

8.2 Chrome, Firefox, and Safari Setup 21

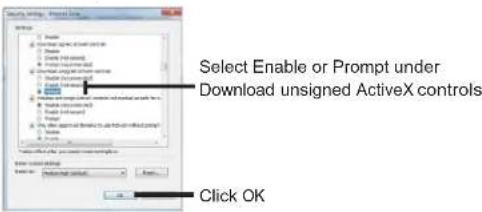

8.3 Internet Explorer® Setup 22

8.4 Web Interface/Live Video Overview 25

8.4.1 Live Video Menu 25

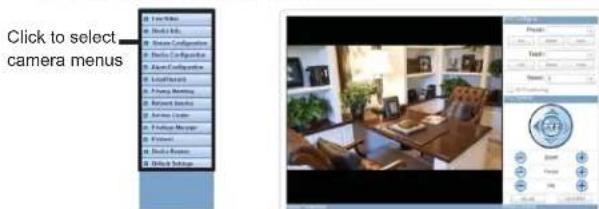

8.4.2 Configuring Camera Settings 26

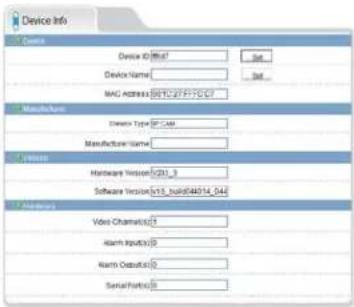

8.5 Device Info 27

8.6 Stream Configuration 28

8.7 Device Configuration 29

8.7.1 Local Network 30

8.7.2 Device Port 31

8.7.3 Camera 32

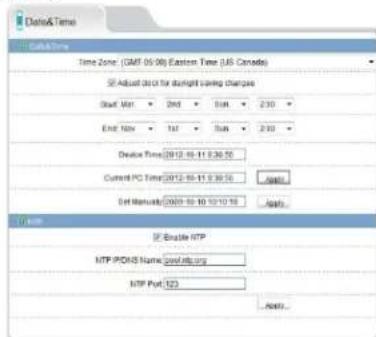

8.7.4 Date & Time 32

8.7.5 OSD 34

8.7.6 Microphone 35

8.7.7 BNC Video Output 36 8.7.8 Language 36

8.8 Alarm Configuration 37

8.8.1 Disk Alarm 37

8.8.2 Motion Alarm 38

8.9 Local Record 40

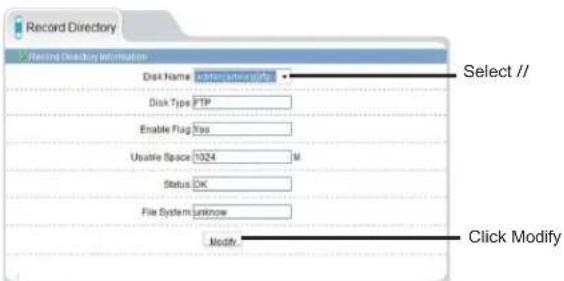

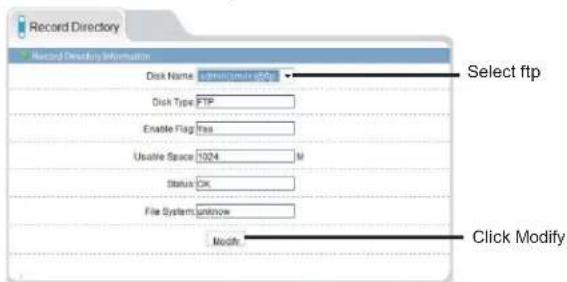

8.9.1 Record Directory 40

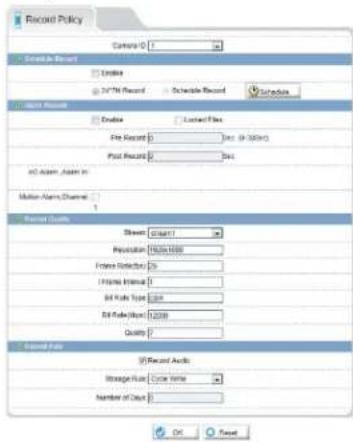

8.9.2 Record Policy 45

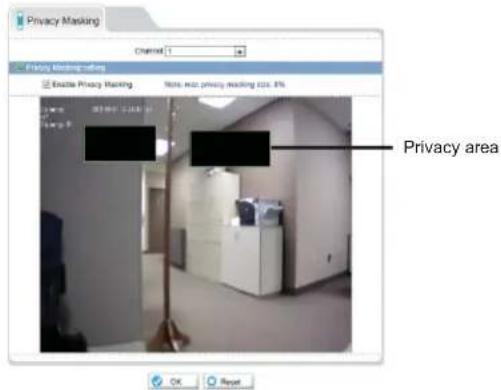

8.10 Privacy Masking 47

8.11 Network Service 48

8.11.1 DDNS 48

8.12 Service Center 49

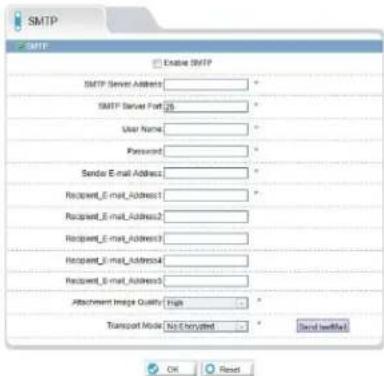

8.12.1 SMTP (Email Alert Setup) 49

8.13 Privilege Manager 50

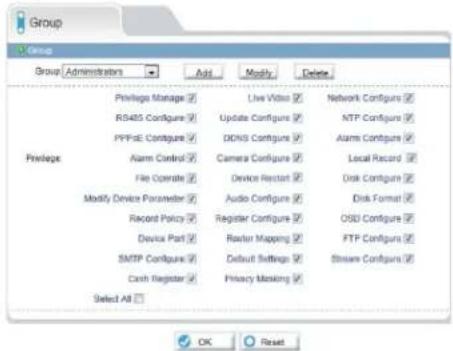

8.13.1 Group 51

8.13.2 User 52

8.13.3 Unlocking User Accounts 53 8.14 Protocol 54

8.14 Protocol 54

8.14.1 Protocol 54 8.15 Device Restart 54

8.16 Default Settings 55

8.17 Sensor Configuration 55

8.17.1 Image Adjust 56

8.17.2 Shutter Control 56

8.17.3 Gain Mode 57

8.17.4 Day/Night Mode 57 8.17.5 Auto Iria 59

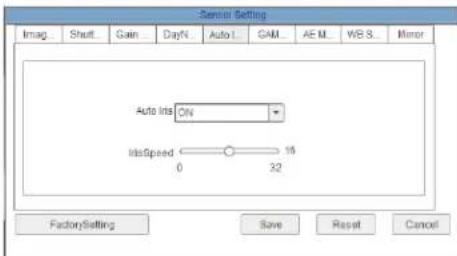

8.17.5 Auto Ins 56 8.17.6 Consumer 59

8.17.6 Gamma 58 8.17.7 AF Meter Mode 59

8.17.8 WDR 59

8.17.9 WB Setting 60

8.17.10 Mirror 61

8.17.11 Noise Filter 61

9. Resetting to Factory Defaults 62

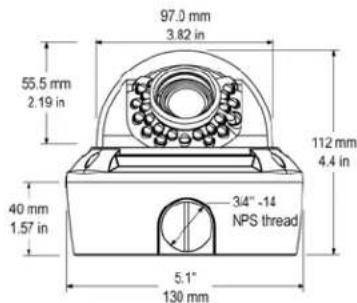

10. Dimensions 64

11. Troubleshooting 65

Getting Started

1. GETTING STARTED

The system comes with the following components:

• 1 x Camera
• 6 x Camera locking screws(3x inside camera; 3x spare)
• 1 x Surface mounting template
• 1 x Junction box plate and screw kit
• 1 x Mounting screw kit
• 1 x Allen key
• 1 x Conduit key
• 1 x RJ45 coupler
• 1 x BNC test cable
• 1 x Instruction Manual
• 1 x Quick Start Guide
  • 1 x Software/Documentation CD

1.1 Default CameraUsername, Password, and Ports

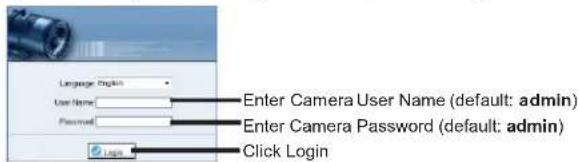

Username: admin

Password: admin

Mounting Screw Kit:

• 3 x 2.8in/70mm screws
• 3 x 1.2in/30mm screws
• 3 x 1.6in/40mm anchors

Junction Box Plate

Conduit Key

Allen Key

RJ45 Coupler

BNC Test Cable

Ports: 80 (HTTP), 30001 (Control/Streaming), 8080 (RTMP), 554 (RTSP)

IP Address: DHCP Enabled by Default (Router will automatically assign IP address)

NOTE: Once you have completed the basic setup of the camera, it is recommended to configure a static IP address. This will prevent the camera IP address changing in the event of a power failure. For details, see "8.7.1 Local Network" on page 30.

Getting Started

1.2 Camera Interior Overview

Front of Camera Zoom IR LED's Camera Lens CdS Sensor Focus Rear of Camera BNC analog output Reset button Termination cables microSD card slot (max. 64GB supported; SanDisk™/Kingston™ brand memory cards recommended)

Camera Installation

1.3 ONVIF Compatibility and Included Software Overview

This camera is ONVIF v2.1 compliant. It is designed for interoperability with popular VMS's and NVR's*, with backwards compatibility to ONVIF v.1.02. For more information on ONVIF, visit www.onvif.org

NOTE: Provided software is PC compatible only; Mac OS® access to the cameras is available via Safari® browser only.

1.3.1 NVMS

• NVMS is a client-only solution that supports up to 36 IP cameras. NVMS is a free software provided on the CD.
• NVMS supports all the features of the camera. It can access microSD/ SD card recordings and camera setup over a local network.
  • NVMS manual is provided on the CD.

1.3.2 CD Tools

• CD contents Folders

IP Search ; Search find IP Cameras and set IP address and gateway

NTP Service Tool ; Time Sync Application: IP devices match one PC system time. FTPUpdater ; Firmware Update tool

IP Support Help Files ; Website support help documents for common problems.

RTSP Tool ; provides RTSP string command f. e.g VLC or Quick-time use SD Driver ; Ext2 driver for Windows XP to read sd Memory card on PC

Onvif Help ; documents on Onvif specifications

Open the NTP service ; Windows XP only enables NTP time to be enabled.

Adobe Flash Player ; Flash Video player for Windows IE plugin and Apple Mac OS

Adobe AcrobatReader ; Windows and Max OS Acrobat Reader v10

Files:

IP series bitrate calculator.htm ; Simple storage calculator for IP devices

NVMS Install.exe : NVR Software installation for PC

NVMS Manual 1.7.pdf ; Guide to use the NVMS Software

SNMedia_Player.exe ; File Player for recorded files / backup files from devices / NVMS.

Camera Installation

Connection

2. CONNECTION

The camera has the following termination cables:

Close-up of four black USB connectors with labeled labels (1–4), no text or symbols on the cables themselves.

1. RJ45 Network Interface: Connect to a router or switch on your network using RJ45 Ethernet cable (Cat5e or better). 100Mhz connection. PoE supported (class 3 PoE switch required).

NOTE: Use the included RJ45 coupler to connect to male end of RJ45 Ethernet cable.

RJ45Coupler

1. Audio Input (RCA): Connect to a self-powered microphone for listen-in audio.
2. Audio Output (RCA): Connect to an amplifier or self-powered speaker for intercom/2-way audio.
3. DC12V (1A): 12V DC power input terminal. Make sure to follow correct polarity (+/-) marked on the power connector when connecting to power.

• Minimum Power Requirement: 550mA / 6.6W.

Camera Installation

3. CAMERA INSTALLATION

Make sure to follow the correct polarity if connecting the camera to DC power. Polarity is marked on the power connector.

Technical line drawing of a mechanical component with no visible text or symbols

All Installation Methods

1. Loosen the three tamper screws using the provided allen key. Lift the dome cover.

NOTE: If you plan to use conduit fitting, remove conduit cap using the provided conduit key.

Allen Key Conduit Key Mounting Template

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Method 1 - Direct Attach Install

2a. Use the included mounting template (Installation Option 2) to mark and pre-drill the required holes.

Remove 2 of the 3 base locking screws. Use 2pc of the 2.8" screws to mount the camera directly to the mounting surface.

Remove the 3rd base locking screw and install the 3rd 2.8" screw.

Go to step 4 to complete installation.

Camera Installation

Method 2 - Camera Base Install

2b. Use the included mounting template (Installation Option 1) to mark and pre-drill the required holes.

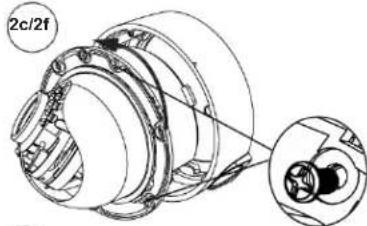

2c/2f

2c. Remove the camera base by unscrewing the 3 base locking screws, and turn camera module approx. 5 degrees counterclockwise to detach camera base from the camera module.

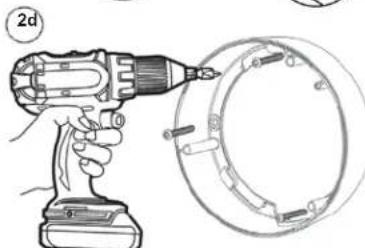

2d. Install the base to the correct holes as indicated on the mount template using the 1.2" screws.

Go to step3a to complete installation.

Illustration of a hand using a drill bit to lift a circular component (no text or symbols)

Method 3 - Junction Box Install

2e. Attach provided fitting plate to junction box (see "5. Junction Box Installation Types" on page 11).

2f. Remove the camera base by unscrewing the 3 base locking screws, and turn the camera module approx. 5 degrees counterclockwise to detach camera base from camera module.

2g. Install the base to the junction box plate using the base fitting screws.

Go to step3a to complete installation.

Camera Installation

Technical diagram of a mechanical assembly with labeled parts 3a and 3b, showing internal components and motion indicators.

Reattaching the Camera Module 3a. Reinsert camera module into camera base by aligning the arrow notches on the edge of the camera module and the camera base (label on edge of camera module indicates the location of the arrow notch), and turning camera module clockwise to lock into place.

3b. Use the 3 base locking screws to secure camera base to camera module.

Go to step 4 to complete installation.

4 Arrow

1. Remove camera cover by squeezing the back and front of the cover (as indicated by the arrow indicators) at the same time and lifting it up and away from the lens.

Test cable terminals

1. Insert a video test cable into the video test cable terminals and connect to a test monitor to set up camera.

Video Test Cable

Camera Installation

Thumb Screw

6a. Adjust camera viewing angle and secure into place by tightening thumb screw using a flat head screwdriver.

Avoid pointing the camera lens in angles where the IRLEDs are blocked by the camera cover or dome cover. If IRLEDs are blocked, it may result in an unclear nighttime image.

Zoom Focus 6b 6c

microSD card

6b. Adjust zoom and focus as required.

NOTE: Lens adjustment levels are by default in the locked position. Turn counterclockwise to unlock. Tighten levers to secure lens setting.

6c. (Optional) Insert a microSD card into the camera. To enable recording, you must format the microSD card and configure microSD recording (see "8.9.1 Record Directory" on page 43).

NOTE: The camera supports microSD cards up to a maximum size of 64GB. SanDisk™ or Kingston™ brand microSD cards are recommended.

6d. Re-attach the camera cover, using the thumb screw as a guide, until it snaps into place.

Technical diagram of a mechanical component with numbered annotation and directional arrows

Correct Arrow Alignment

Camera Installation

1. Re-attach the dome cover.

Align the arrows as shown in the diagram to ensure a

waterproof seal. Use the allen key to tighten the tamper screws.

NOTE: Make sure dome cover cord does not get caught in the rubber seal.

Junction Box Plate

4. JUNCTION BOX PLATE

Junction box plate is used to install camera into standard 4S and Octagon junction boxes. Junction box plate screw kit contains the following accessories:

• 3 x Base fitting screws (PWM3 Type)
• 4 x 2S / 4S plate screws (KM3.5 Type)
• 2x Octagon fitting screws (KM4 Type)

Base Fitting Screw

Octagon Screw

2S / 4S Screw

4.1 Junction Box Plate Dimensions and Fitting

80.9 mm 3.5 in 46.0 mm 1.8 in 63.3 mm 3.28 in Screw hole overview Base Fitting Screw Camera base fitting illustration Junction box fitting plane attached to camera

Junction Box Installation Types

5. JUNCTION BOX INSTALLATION TYPES

5.1 Two Gang Fitting (Recommended)

Twogang fitting requires 4x 2S/4S screws.

NOTE: Two gang fitting provides the most robust installation.

5.2 4S Fitting

4S fitting requires 2x 2S/4S screws.

Screws Cable Entry

5.3 Octagon Fitting

A 4" Octagon fitting requires 2x Octagon screws.

NOTE: Screws used for the octagon fitting are larger compared to those used for the 2S/4S (M4 type).

Screw Cable Entry

Finding the Camera's IP Address

6. FINDING THE CAMERA'S IP ADDRESS

Use the steps below to find the camera's IP address and connect to the camera over the local area network (LAN) using NVMS, UPnP on Windows® 7, or Bonjour® in Mac OS®.

6.1 Finding the Camera's IP Address Using NVMS

1. Install NVMS from the CD. Now Double-click the NVMS icon ( ) on the Desktop. The log in screen appears.
2. Under User Name and Password, enter the default NVMS user name (admin) and password (admin). Click Login.

Network Video Manual Square Enter Admin Enter Admin Click Login

1. NVMS opens and scans the local network for connected camera as. Detected camera IP addresses on the LAN appear in the Device List on the left side of the screen with a icon.

Found camera IP address

Finding the Addresses IP

1. Click on a camera IP address in Device List to login.
2. Under User Name, enter the user name for the camera (default: admin). Under Password, enter the password for the camera (default: admin). Click Continue.

Device Login Config Please input the user name and password: User Name: Password: Use for default login config Continue Cancel Enter Camera User Name (default: admin) Enter Camera Password (default: admin) Click Continue to login

1. The camera appears under the camera IP address. Click and drag the camera to the display grid to open it.

Click and drag the camera to the display grid to open it

NOTE: For detailed instructions on using NVMS, see the NVMS manual on the CD.

6.2 Finding the Camera's IP Address using UPnP in Windows® 7

NOTE: To use this method, your router must support UPnP and the camera and computer must be on the same network. UPnP is enabled in the camera by default, and can be enabled/disabled using NVMS (check the NVMS manual for details).

Finding the Address's IP

1. Click Start>Computer>Network. The camera's IP address appears under Network Infrastructure.

Network Network and Sharing Center Add to printer File in software settings Camstrate (1) Computer (2) Network Infrastructure (3) 50.046.5.09 180.046.5.09 50.046.5.09 Double-click to open the camera Network 8 Points

1. Double-click the camera to open it in your default browser.
2. Under User Name and Password enter the camera's User Name (default: admin) and Password (default: admin) and click Login.

Language: English Enter Camera User Name (default: admin) User Name Password Enter Camera Password (default: admin) Login Click Login

6.3 Finding the Camera's IP Address using Bonjour® in Mac OS®

NOTE: To use this method, the camera and computer must be on the same network. Bonjour® is enabled by default, and can be enabled/disabled using NVMS (check the NVMS manual for details).

1. Open Safari® browser and click the Bookmarks button (回).

Finding the Addresses IP

1. Click Bonjour. The camera's IP address appears in the Bonjour Devices list.
2. Double-click the camera to open it in Safari®.

Bookmarks button Bonjour Bonnour about blank Google Apple Yahoo! Google Maps YouTube Wikipedia News (207) * Bonjour COLLECTIONS History Bookmarks Bar (207) Bookmarks Menu Address Book Bonjour All RSS Feeds Search Bookmark About Bonjour [14-168.5.11] Double-click the camera's IP address

1. Under User Name and Password, enter the camera's UserName (default: admin) and Password (default: admin) and click Login.

Language: English User Name: Password: Enter Camera User Name (default: admin) Enter Camera Password (default: admin) Click Login

6.4 Finding the Camera IP using the BNC Test Cable

When the BNC test cable is connected to the camera, the IP address is shown on the test monitor. The camera must be connected to power to use the BNC test cable.

NOTE: The default IP address of 192.168.0.120 is shown if the camera cannot obtain an IP address from the router. Check the Ethernet/power connections and router configuration.

Configuring Renovation

7. CONFIGURING REMOTE CONNECTION

Follow the steps below to configure your camera for connections over the Internet using a web browser, NVMS, or other VMS software.

Step 1 of 6: Locate the camera's local IP address:

• See "4. Finding the Camera's IP Address" on page 12

Step 2 of 6: PortForward your router:

You need to enable port forwarding for the following ports on your router to the camera's local IP address:

• HTTP Port (default: 80)
• Control Port (default: 30001)

NOTE: If you are configuring multiple IP cameras for individual remote access, you must change the ports for each camera. Two cameras cannot use the same port number.

NOTE: Port forwarding theRTSP and RTMP ports is not necessary unless your installation has special requirements.

There are two methods for port forwarding:

- You can manually port forward your router. See yourrouter's user manual for details. An example of a port forwarding screen is shown below.

Port Range
Application	Start	End	Protocol	IP Address	Enable
HTTP	80 to	80	Both	192.168.1. 100
Control	30001 to	30001	Both	192.168.1. 100

Configuring Demonstration

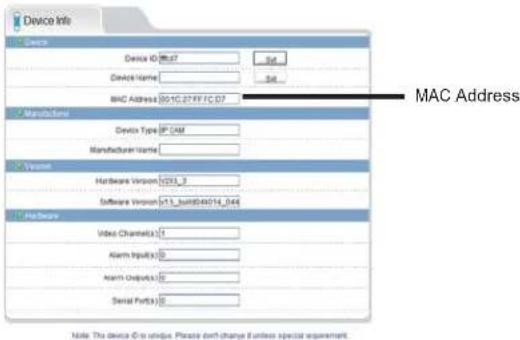

Step 3 of 6: Locate your camera's MAC address:

1. Open a web browser and enter the camera's IP address in the address bar in the following format:

http:// http://192.168.0.120:80 IPaddress Colon HTTP port number

1. Under User Name and Password enter the camera's User Name (default: admin) and Password (default: admin) and click Login.

2. Click Device Info and write down the MAC Address.

Device Info Device Device ID: 06.07 Device Name: MAC Address: 091C27FF1C.07 MAC Address Device Type: IP.CAM Manufacturer Name: Vendor Hardware Version: CD3_3 Software Version: CD1_build(04014_044) Hardware Video Channel(s): 1 Alarm Input(s): 0 Alarm Output(s): 0 Serial Port(s): 0 Note: This device C to unique. Please change if unless special requirement.

Step 4 of 6:Register for DDNS:

Register for one of the DDNS services which are currently supported for use with your IP camera. A DDNS account allows you to set up a web site address that points back to your local network. The following outlines how to set up your free DDNS account.

NOTE: Your router must support UPnP to enable DDNS.

NOTE: You may use the same DDNS account for multiple IP cameras on the same LAN.

Configuring Renovation

Step 5 of 6:Enable DDNS on the camera:

1. Enter the camera's IP address in your web browser. Log in and then click Network Service>DDNS.
2. Check Enable DDNS.

3. Configure the following:

4. Provider: Select the ddns service you use..

5. Domain Name: Enter the Domain Name you received from the confirmation email you received after you created your DDNS account (e.g. mycamera.dyndns.org).
6. User Name: Enter the User Name.

7. Password: Enter the account name Password

8. Click OK to save settings.

Step 6 of 6:Connect to thecamera's DDNS address:

1. Enter the camera's DDNS address in your web browser in the following format:

http:// http://mycamera.dyndns.org:80 DDNS address Colon HTTP port number

1. Under User Name and Password, enter the camera's User Name (default: admin) and Password (default: admin) and click Login.

Once you have logged into your system using your DDNS address, you can connect to the IP camera from a remote location using a web browser, NVMS.

Configuring Genmotion

7.1 Connecting to a DDNS address using NVMS

NOTE: Complete all the steps above before performing the following method.

1. Open NVMS and click Device Manager>Video Device Manager.
2. Click Manager The Device Maintenance window opens.

Enter the camera's DDNS address Click Add Click Save

1. Under Device IP, enter the Domain Name from the confirmation email. For example, enter mycamera.dyndns.org.
2. Under Control Port, enter the camera's control port (default: 30001).
3. (Optional) Under Device Name, enter a name for the camera.
4. Click Add to add the camera to the Device List.
5. Click Save to save changes, Click OK.

Configuring Renovation

1. Close Device Maintenance and Device Manager, and return to the Live Video screen. The newly added camera will appear in Device List.

Found camera

NOTE: A room is shown for all cameras outside of the LAN. This does not affect your ability to connect to the camera remotely.

1. Click on the camera in Device List to login. Enter the User Name (default: admin) and Password (default: admin) and then click Continue.

Device Login Config Please log the user name and password: Enter Camera User Name (default: admin) Password: Enter Camera Password (default: admin) Use for default login config Click Continue

1. Click and drag the camera to a display grid screen to open it.

Click and drag the camera to the display grid to open it

NOTE: For detailed instructions on using NVMS, see the NVMS manual on the CD.

Web Configuration

The camera includes a built-in web interface that can be accessed using a web browser.

8.1 Supported Browsers

• GoogleChrome, Mozilla Firefox, and Apple Safari® (via Adobe Flash Player)
• Microsoft Internet Explorer® 7.0 or later, 32-bit version (via ActiveX®)

8.2 Chrome, Firefox, and Safari Setup

1. Connect the camera to your local network and find the camera's IP address. See "6. Finding the Camera's IP Address" on page 12
2. Open your browser and enter the camera's IP address in the address bar in the following format:

http:// http://192.168.0.120:80 Camera IP address Colon HTTP port number

NOTE: You can also connect to the camera using a DDNS address (DDNS setup and port forwarding required; see "7. Configuring Remote Connection" on page 16 for details).

1. Under User Name and Password, enter the camera's UserName (default: admin) and Password (default: admin) and click Login.

Language: English Enter Camera User Name (default: admin) User Name: Password: Enter Camera Password (default: admin) Login Click Login

Web Configuration

1. The main screen for the camera web interface opens. From here you can view and configure the camera.

NOTE: If you do not see video from the camera, make sure your computer has the latest version of Adobe Flash Player installed (visit http://www.adobe.com/ to download the latest version). After installing Flash Player, restart your browser and reconnect to the camera.

8.3 Internet Explorer® Setup

Step 1 of 2:Change Internet Explorer security settings for ActiveX®:

1. Open Internet Explorer and open the Security tab.

- Internet Explorer 8: Click Tools > Internet Options and select the Security tab.

- Internet Explorer 9: Click > Internet Options and select the Security tab.

1. Click Custom Level.

Click Custom level Click Custom Level

Web Configuration

3. Under Download unsigned ActiveX controls, click Prompt (recommended) or Enable.

Select Enable or Prompt under Download unsigned ActiveX controls Click OK

1. Click OK. Click OK again to save changes.

Step 2 of 2:Log into camera:

1. Connect the camera to your local network and find the camera's IP address. See "6. Finding the Camera's IP Address" on page12.
2. Enter the camera's IP address in the address bar in the following format:

http:// http://192.168.0.120:80 IP address Colon HTTP port number

NOTE: You can also connect to the camera using a DDNS address (DDNS setup and port forwarding required; see "7. Configuring Remote Connection" on page 16 for details).

1. Under User Name and Password, enter the camera's User Name (default: admin) and Password (default: admin) and click Login.

Language: English User Name: Password: Enter Camera User Name (default: admin) Enter Camera Password (default: admin) Click Login

Web Configuration

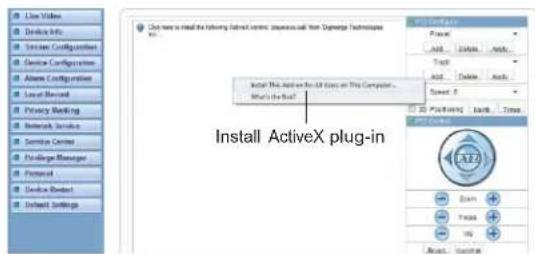

1. If your computer has Flash Player installed, the main screen for the camera web interface opens. From here you can view and configure the camera.

NOTE: The ActiveX plug-in may provide smoother video performance than Flash Player. To use ActiveX, click the message above the video window. Then click inside the video area, select Install this Add-on for all users on this computer, and follow the prompts.

Install ActiveX plug-in

NOTE: If your computer does not have Flash Player ins tallled, you will be prompted to select if you would like to use ActiveX or FlashPlayer to connect to the camera:

• Click to play live video with ActiveX control to reduce latency (recommended): Uses an ActiveX plug-in to connect to the camera. To install the plug-in, click on the video area, and select Install thisAdd-on for all users on this computer, and follow the prompts.
• Click to download the latest version of Flash Player to play live video: Opens a link to download Flash Player from Adobe's website. After completing the installation, restart your browser and reconnect to the camera.

Can't play live video • Click to download the latest version of Flash Player to play live video! • Click to play live video with ActiveX control to reduce latency! Select ActiveX or Flash Player

Web Configuration

8.4 Web Interface/Live Video Overview

Camera configuration menus

Click and drag to zoom in. Right-click and select ZoomOut to zoom out.

Double-click inside window for full-screen

Screenshot of a photo editing software interface showing a real estate room with furniture and a dialog box for adjusting image properties.

Select Stream

TIP: Select stream2 for better performance for remote connections. Stream2 has a lower resolution than stream1.

The Live video page appears when you log into the camera. Live video requires an ActiveX® plug-in or Adobe Flash Player.

You can right-click on the live video area to bring up the Live Video Menu.

Add Users Remove Family Remove Add Users Remove Delete Add Users Remove Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users Add Users

Right-click on the video area to open the Live Video Menu

Web Configuration

The Live Video Menu contains the following options:

• Full Screen: Open the video in full screen. Press ESC to exit full screen.
- Sensor Config: Configure the camera sensor settings. See "8.17 Sensor Configuration" on page 55.
- ZoomIn: Zoom in one level.
- ZoomOut: Zoom out one level.
- Restore Panorama: Zoom out all the way.

8.4.2 Configuring Camera Settings

- Click the options on the left to configure camera settings. Setting options are detailed in the remainder of this section.

Click to select camera menus

TIP: Some sub-menus have a Reset button. This button will reset the sub-menu options to factory defaults. You then have to click OK to save changes.

Web Configuration

8.5 Device Info

Device Info Device ID:00047 Device Name: MAC ADDRESS:0010-8771-5207 Manufacturer Device Type:SP-CAM Manufacturer Name: Hardware Version:0201_3 Software Version:015_100040014_044 Server Video Channel:021 Alarm Input:03 Alarm Output:03 Serial Portion:03

Note: The device © is unique. Please don't change it unless special enforcement.

The Device Info page shows information about your IP camera, such as the Device Name (which appears in the Device List in NVMS), firmware version, MAC address, and camera inputs and outputs. You can also configure the Device Name for your camera.

ATTENTION: The device ID is unique. Do not change it unless your installation has special requirements.

To configure the Device Name:

1. Click Device Info.
2. Under Device Name, enter the desired device name and then click Set.

Web Configuration

8.6 Stream Configuration

Stream Configuration Console 1 Stream 2 Name Stream Video Encode Type: HDMI Audio Modbus Audio Encode Type: GIFL-3/48 Reserve: DVD/1000 Home Connection ID iFrame Splitter 3 Bit Radius/Space: CM 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Quality 7

OK Reset

The Stream Configuration page allows you to configure the camera's video streams. The camera supports three different video streams. This allows you to have a high quality recording stream (stream1), a lower quality stream (stream2) to preserve bandwidth for remote connections, and an MJPEG stream for applications requiring MJPEG.

To configure video streaming settings:

1. Click Stream Configuration. Under Stream ID, select the stream you would like to configure.

2. Configure the following:

3. Video Encode Type: Select the Video Encoding type for the stream. Stream1 and stream2 can be configured for H.264 High Profile, H.264 Main Profile, or H.264 Base Profile. Stream3 supports MJPEG only.
   • Audio Encode Type: Select the Audio Encoding type for the stream: G711_ALAW, G711_ULAW, or RAW_PCM.

4. Resolution: Select the resolution for the stream. Stream1 and stream3 can be set to 1920x1080 or 640x360. Stream2 can only be set to 640x360. Stream3 can only be set to 1920x1080.

Web Configuration

- Frame Rate: Select the frame rate for the stream up to maximum of 30FPS for stream1 or stream2 or 12FPS for stream3.

NOTE: Frame rate may be automatically adjusted to account for bandwidth limitations.

- I Frame interval: Select the interval for I frames: 1, 2, or 3. The default value of 2 should be used unless there are special requirements. The I Frame interval does not apply to stream3.

- Bit Rate: For stream1 or stream2, select CBR (Constant Bit Rate) or VBR (Variable BitRate). Enter the desired bit rate below in kbps. Stream3 only supports VBR.

• Quality: Select the video quality between 1 (lowest) and 9 (highest).

TIP: A quality of 7 provides a good picture. It is not recommended to set a high quality value with a small VBR bit rate.

1. Click OK to apply changes.

8.7 Device Configuration

Device Configuration contains the following sub-menus:

• Local Network
  • Device Port
• Camera
• Date & Time
• OSD
• Microphone
  • BNC Video Output
  • Language
  • Multicast (Not supported)
  • Dome PTZ (Not supported)

Web Configuration

8.7.1 Local Network

Local Network IP Address: IP IP Address: IP address: ip@ntpmntc Domain use including IP address IP Address: IP_100.0.17 Subnet mask: IP_100.0.1 Default gateway: IP_100.0.1 DHCP_P DHCP_P Preferred DNS Server: IP_100.0.1 Alternate DNS Server: IP_100.0.2 OK Finish

The Local Network page shows the camera's current IP address and network parameters if DHCP is enabled. It also allows you to set a static IP address for the camera (see below), set the networking parameters, and to select IPv4 or IPv6.

NOTE: DHCP is disabled by default. When DHCP is enabled, the IP address is shown under DHCP IP. Use the IPScan tool on CD to configure a static IP address. This will prevent the camera IP address changing in the event of a powerfailure.

To configure the camera's networking parameters:

1. Click Device Configuration>Local Network.

2. Under IP Protocol, selectIPv4 or IPv6. If you would like to use IPv6, make sure it is supported on your network. You may need to contact your network administrator or ISP for details.

3. Select Device obtain an IP address automatically to use DHCP or Device use the following IP address to set a static IP address for the camera. If you are using a static IP address, configure the following:

4. IPAddress: Enter the IP address you would like to assign to the camera. Make sure the IP address is available on your network.

5. Subnet Mask: Enter the subnet mask.
6. PreferredDNS Server/Alternate DNSServer: Enter desired DNS servers.

Web Configuration

1. Click OK to save changes. The camera will restart with the new IP address.

8.7.2 Device Port

Device Port Control Port (0001) Http Port (0) RTSP Port (004) RTNF Port (006) OK Reset

The Device Port page (Device Configuration>Device Port) allows you to configure the camera's port configuration. The camera has the following ports:

• Control port: The default is 30001. Enables video streaming.
• HTTP Port: The default is 80. Enables web access. Please note that if the HTTP is port is anything other than 80, you must enter http:// before the camera's IP address and colon (:) and the HTTP port after the IP address when connecting using an Internet browser (e.g. if the HTTP port is 85, enter http://192.168.x.x:85).
• RTSP Port: Default is 554. Only used for special applications requiring RTSP streaming, such as VLC player or quicktime movie.
  • RTMP Port: Default is 8080. Only used for special applications.

NOTE: If you are configuring multiple IP cameras for individual remote access (without an NVR or server), you must change all the ports for each camera. Twocameras cannot use the same port number.

To change camera ports:

1. Configure the camera ports as required and then click OK.
2. Click Device Configuration>Device Port.

Web Configuration

8.7.3 Camera

Camera Camera 1 Channel Name (English) View Video System: Camera Transmission Video System: 100% Source Resolution: 100% 50000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

The Camera page (Device Configuration>Camera) allows you to configure the Channel Name, which appears on the camera OSD and the video system frequency.

To change the Channel Name:

- Configure the Channel Name as needed and then click the Set button next to Channel Name.

To change the video system frequency:

- Select the desired setting under Video System and then click the Set button next to Source Resolution.

8.7.4 Date & Time

Data&Time DATATime Time Zone: (GMT 05:08) Eastern Time (US Canada) Adjust data for darklight saving charges Start: Win 243 Sub 230 End: Nov Jul Sub 230 Device Time(2012-10-11 0:30:50) Current PC Time(2012-10-11 0:30:50) Auto... Edit Manual(2009-10-10 10:10:50) Auto... Enable NTP NTP PODS Name: #e#ffrl.org NTP Port: 123 Auto...

The Date & Time page allows you to configure the camera's date and time.

Web Configuration

You can set the camera's date and time the following ways:

• Using an NTP server (recommended)
• Using your computer's system time
- Manually

The camera is configured to use NTP by default, but you must set the time zone and Daylight Savings Time settings to ensure accurate time. After a power failure, the camera is configured to connect to an NTP server and automatically update the time when power is restored. If using another method to set the camera clock, time must be manually updated after a power failure.

To set the camera's date and time using an NTP server:

1. Click Device Configuration>Date & Time.
2. Under Time Zone, select your time zone.
3. If your region observes daylight savings time, check Adjust clock for daylight saving changes.

- Under Start and End, select the start and end times for daylight savings.

1. Next to Current PC Time, click Apply.

To sync the camera's date and time to your computer's system time:

1. Click Device Configuration>Date & Time.
2. Un-check Enable NTP and click Apply at the bottom of the screen.
3. Under Time Zone, select your time zone.
4. If your region observes daylight savings time, check Adjust clock for daylight saving changes.

- Under Start and End, select the start and end times for daylight savings.

1. Click Apply next to Current Computer Time. The Current Device Time updates.

To set the camera's date and time manually:

1. Click Device Configuration>Date & Time.
2. Under Time Zone, select your time zone.

OSD Camera 1 Device Name Row: Column:0 Channel:0 Row: Column:0 Channel Name Row: Column:0 Time Row: Column:1 Video Format: YYYY SSD ED kit mini app sec Custom Row: Column:0 Custom:0.00 OK Reset

Web Configuration

1. Un-check Enable NTP and click Apply at the bottom of the screen.
2. If your region observes daylight savings time, check Adjust clock for daylight saving changes.

- Under Start and End, select the start and end times for daylight savings.

1. Click Set Manually, and use the on-screen calendar to set the time and date.
2. Click Apply. The camera updates to the newly entered time.

8.7.5 OSD

The OSD page allows you to configure the camera's on-screen display text.

To configure the camera OSD:

1. Click Device Configuration>OSD.
2. Check the following options to enable OSD text:

- Device Name: Display the Device Name.

• Channel ID: Show the channel ID number.
• Channel Name: Show the name of the channel set in the Camera menu.
• Time: Show the date and time on the OSD. Select the desired date and time format under Time Format.

Web Configuration

- Custom: Create a custom OSD message. Enter the custom OSD text under Custom OSD.

1. Enter the desired Row and Column for enabled OSD messages. Text on row 0 is shown at the top of the screen, and moves down as the row number increases. Text on column 0 is shown on the left side of the screen, and moves right as the column number increases.

Column 0 Column # increases Row0 IP Camera ch1 ch1 dos dome 15:15:01:47 2012-05-28 Mon our custom OSD message Row # increases

1. Click OK to update the camera OSD.

8.7.6 Microphone

Microphone Camera: 1 Micronone Enable microphone Microphone Type: Line In Microphone Volume: 50 OK Cancel

Web Configuration

Configure microphone settings for listen-in audio. Self-powered microphone required (not included).

To configure microphone settings:

1. Click Device Configuration>Microphone.
2. Check Enable Microphone to enable listen-in audio or un-check to disable.
3. Under Microphone Volume, select the volume for the microphone between 1\~100.
4. Click OK to save changes.

8.7.7 BNC Video Output

BNC Output BNC Output BNC Output On OK Reset

Under BNC Output(Device Configuration>BNC Output), select On to enable analog output or Off to disable and click OK.

8.7.8 Language

System Configuration Language Configuration Language: English OK Reset

Changethe language for the camera OSD display (e.g. time and date display) and email alarms. Supported languages are English, Polish, Russian, and Chinese.

Web Configuration

To change the language for the OSD and email alarms:

1. Click Device Configuration>Language.
2. Under Language, select the desired language then click OK to save changes.

8.8 Alarm Configuration

Alarm Configuration contains the following sub-menus:

• Disk Alarm
• Motion Alarm
  • Alarm I/O (Not supported)
  • I/O Alarm Linkage (Not supported)
  • Alarm Setting (Not supported)

8.8.1 Disk Alarm

Disk Alarm Disk Full Alarm Configur Disk Full Alarm Max Disk Space 50 % Disk Error Alarm Configur Disk Error Alarm OK Reset

The Disk Alarm page allows you to configure alarms if there is an issue with the recording disk. You can configure a Disk Full Alarm or a Disk Error Alarm. A Disk Full Alarm triggers an alarm when the recording disk is full or exceeds a certain percentage. A Disk Error Alarm triggers an alarm if there is an error accessing or writing to the recording disk.

Alarms can be viewed using the Alarm Manager in NVMS (see the NVMS manual on the CD for details).

To configure Disk Alarms:

1. Click Alarm Configuration>Disk Alarm.
2. Check Disk Full Alarm to enable Disk Full Alarms.

Web Configuration

1. Under Max Disk Space, enter the disk full percentage that will trigger an alarm (e.g. a DiskFull Alarm will be triggered when the recording disk is 80% full).
2. Check Disk Error Alarm to enable Disk Error Alarms.
3. Click OK.

8.8.2 Motion Alarm

The Motion alarm page allows you to configure camera motion detection alarm settings. You must enable motion detection to use local (e.g. microSD/SD card or FTP recording) motion detection recording. For instructions on setting up local recording, see "8.9 Local Record" on page 40. For details on motion recording using NVMS, see the NVMS manual on CD.

Motion Alarm Camera ID 1 Output Parameters Enable Schedule Output Area Default Output Channel PT2 Camera ID 1 Type: Preprint Note: Set Clear OK Reset

To configure motion detection:

1. Click Alarm Configuration>Motion Alarm.
2. Check Enable under Motion Parameter.

Web Configuration

1. Click Schedule to configure a motion detection schedule. The Schedule Time Setting menu opens.

NOTE: If the Schedule Time Setting does not open, disable any popup blockers.

1. Configure the weekly schedule. The schedule is divided into 3 periods, and motion detection will be enabled in all times during all 3 periods.

2. Click Motion Area, and configure up to 8 motion detection areas:

3. Select Area Motion or Area Mask to configure motion detection areas.

4. AreaMotion allows you to select areas where motion detection is enabled.

5. Area Mask enables the entire image for motion detection, and allows you to select areas to disable motion detection.
   • Right-click to delete the last created area.

6. Under Sensitivity, select the sensitivity for motion detection: Low, Medium, or High.

Interior view of an office or lab space with desks, chairs, and a monitor (no visible text or symbols)

1. Click OK to save your settings.

Web Configuration

8.9 Local Record

Local Record contains the following sub-menus:

• Record Policy
• Record Directory

8.9.1 Record Directory

Recent Directory Data Name: 1023 Stock Type: 1024 Smarts-Box Type Disable Status: 1712 M Status: 0% File System: 0% (None) Help

Record Directory allows you to configure the microSD/SD memory card, NAS, and FTP storage locations. It also allows you format the microSD/SD card.

IMPORTANT: You must format the microSD/SD card using the camera before you can record to it.

To format the microSD/SD card to enable recording:

NOTE: Formatting the microSD/SD card erases all data on the card.

1. Click Local Record>Record Directory.
2. Make sure to disable all recording types in Record Policy before formatting the microSD/SD card. See "8.9.2 Record Policy" on page 45.
3. Under Disk Name, select SD1.

Web Configuration

1. Click Modify. The Record Disk Path menu opens.

Record Directory Record Directory Information Disk Name: 000 Dress Type: 50 Card Enable Flag: Yes Usable Space: 3712 M Status: OK File System: 50 Video Modify... Select SD1 Click Modify

1. Check Enable.

Recorded Style Check Enable Edit Name: 011 Update Date: 2012 File System: 367485 Format OK Close Click Format

1. Under File System, select SDVideo (recommended) or Ext3.

2. Click Format. A window will appear to show the status of the formatting. Wait for the formatting to complete and then click OK.

NOTE: If the Record Disk Path menudoes not open or formatting does not occur, disable any popup blockers.

To configure FTP storage location:

1. Click Local Record>Record Directory.

Web Configuration

1. Under Disk Name, select ftp.

Record Directory Record Directory Information Disk Name: Internal/Internal/FTP Disk Type FTP Enable Flag Fss Usable Space 1024 M Status OK File System Unknown Modify Select ftp Click Modify

1. Click Modify. The Record Disk Path opens.
2. Check Enable.
3. Configure the following:

• IP: Enter the FTP server address.
• Port: Enter the FTP port number.
• Accounts: Enter the FTP account user name.
- Password/ Confirm Password: Enter the FTP password.
- Free Space: Enter the amount of space (in MB) you would like to make available on the FTP server for recording.

Web Configuration

6. Click OK.

1. Set up recording using the Record Policy sub-menu (see "8.9.1 Record Directory" on page 40). To access your recordings, use NVMS or manually access your FTP server.

NOTE: On theRecord Directory page, Status will be OK when FTP is selected if FTP is accessible and all settings have been entered correctly.

Record Geometry Record Geometry: 20000000000 Description: Size Type: 15 Create Points: Create Points: 36 Status: 0 File Set: Default OK Status OK

To configure a NAS storage location:

1. Click Local Record>Record Directory.
2. Under Disk Name, select //.

Record Directory Setting Directory Information Disk Name: 030000000000000 Disk Type FTP Enable Flag Pass Usable Space: 1324 M Status OK File System: Unknown Modify Select // Click Modify

1. Click Modify. The Record Disk Path menu opens.

Web Configuration

1. Configure the following:

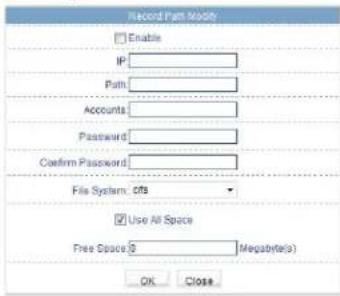

Record Path Modify Enable IP Path Accounts Password Confirm Password File System: cfs Use All Space Free Space: 0 (Megabyte(s) OK Close

• IP: Enter the IP address of the NAS.
- Path: Enter the NAS folder where video files will be saved. NAS folder must be located directly under the root folder of the NAS (e.g./public).
• Accounts: Enter the account user name for the NAS.
- Password/Confirm Password: Enter the account password for the NAS.
- File System: Enter the NAS file system (cifs or nfs).
- Use All Space: Check to enable the camera to record until the NAS is full. Uncheck to limit the amount of spacethe camera can record on andenter the amount of space (in MB) available to the camera under Free Space.

1. Click OK.

Web Configuration

1. Set up recording using the Record Policy sub-menu (see "8.9.1 Record Directory" on page 40). To access your recordings, use NVMS or manually access your NAS device.

NOTE: On the Record Directory page, Status will be OK when NAS is selected if NAS is accessible and all settings have been entered correctly.

Record Directory Data Name: 1102 (16.5 Status) Data Type: No. Access Point: Yes Address Type: Lost or Unknown Status: No. File System: No. Status: OK

8.9.2 Record Policy

Recent Policy Controls: 0 Describe Record Enable 24TH Record Schedule Record Schedule Start Record Enable Locked Fax Fire Record: Inst. (H-3201) Post Record: Pass and Asam, Asam in Motion Alert Channel: 1 Record Quality Shower: Select1 Presension: 0600-1000 Frame Collector: 55 Frames Interval: 1 Bit Rate Type: 0.001 Bit Rate Interval: 12398 Quality: 0 Record Rate Record Accio: Message Rate: Circle Time Number of Cases: 0 OK Cancel

Web Configuration

The Record Policy menu allows you to set the microSD/SD memory card, NAS, and FTP precording parameters. Once configured, the device can record video directly to a microSD/SD card, NAS, and FTP.

To enable recording to microSD/NAS/FTP:

1. Click Local Record>Record Policy.

2. Configure recording storage locations in the Record Directory sub-menu. See "8.9.1 Record Directory" on page 40.

NOTE: The camera will simultaneously record to all storage locations that have been enabled in RecordDirectory

1. To enable scheduled or continuous recording, check Enable under Schedule Record. Select 7*24 H Record to record video continuously at all times, or, select Schedule Record to create a schedule for recording.

- If you select Schedule Record, click Schedule and configure recording times. The schedule is divided into 3 periods, and the camera will record during all selected times in all 3 periods. Click OK when finished configuring the recording schedule.

1. To enable Motion Alarm Recording, check Enable under Alarm Record. Configure Pre-recording and Post-recording times. Check Motion Alarm, Channel.

2. Under Stream, select the stream to use for recording. Stream1 is recommended if you want to record high quality video, stream2 is recommended if you want to save bandwidth or storage space.

3. Check Record Audioto enable audio recording.

4. Under Storage Rule select Cycle Write to enable the camera to overwrite the oldest recorded data once the available space in the storage location is filled. Or, select Save Days to save video for a set

Web Configuration

number of days and enter the Number of Days desired. Note that you must have sufficient storage space to save the number of days entered.

1. Click OK to save changes.

NOTE: To view video from the SD/microSD card, FTP, or NAS, use NVMS's playback features, see the NVMS manual on the CD for details. You can access video saved to FTP or NAS by manually accessing your FTP server or NAS device.

8.10 Privacy Masking

Privacy Masking Channel 1 Privacy Masking Enable Privacy Masking Note: not privacy masking too. 8% Privacy area OK Reset

The Privacy Masking menu allows youto create up to5 privacy areas that will not appear in recordings. You can cover up to 8% of the total image area.

To configure privacy areas:

1. Click Privacy Masking.
2. Check Enable PrivacyMasking.
3. Click and drag inside the video area to configure privacy areas. Privacy areas will be shown as green rectangles. Right-click to delete the last created area.

Web Configuration

1. Click OK. An error message appears if the masks configured exceed 8% of the total image area.

8.11 Network Service

Network Service contains the following sub-menus:

• DDNS
• PPPoE (Not supported)

8.11.1 DDNS

DONS Enable DOS Provider: DONS DomainName: Accounts: Password: OK Reset

The DDNS sub-menu allows you to configure DDNS settings. Before configuring DDNS settings, you must register the camera for a free DDNS account (see "7. Configuring Remote Connection" on page 16).

To configure DDNS settings:

1. Click Network Service>DDNS.
2. Check EnableDDNS.

3. Configure the following:

4. Provider: Select DunDNS or 3322 ddns services as required.

5. Domain Name: Enter the Domain Name for your registered account with either service. This forms part of the prefix name on the domain.

NOTE: Connect to your camera using a web browser by entering http:// the Domain Name, colon, and then the HTTP port. For example, if the Domain Name is mycamera.dyndns.org, use the address http://mycamera.dyndns.org:80.

- User Name: Enter your User Name you registered as

Web Configuration

- Password: Enter the Password you have set on the account.

1. Click OK to save settings.

8.12 Service Center

Service Center contains the following sub-menus:

- SMTP

• Alarm Center (not supported currently)

8.12.1 SMTP (Email Alert Setup)

SMTP Enable SMTP SMTP Server Address: SMTP Server Port: 25 User Name: Password: Sender E-mail Address: Recipient_E-mail_Address1: Recipient_E-mail_Address2: Recipient_E-mail_Address3: Recipient_E-mail_Address4: Recipient_E-mail_Address5: Attachment Image Quality: Highs Transport Mode: No Enabled Send notified OK Cancel

The SMTP sub-menu allows you to configure email alerts when motion alarms occur. Email alerts will include a .jpg snapshot attachment.

Before setting up email alerts you must configure the following:

• Motion alarms must be enabled before the camera will send email alerts. See "8.8.2 Motion Alarm" on page 38.
• A static IP address must be configured for the camera and DNS servers must be entered. See "8.7.1 Local Network" on page 30.

Web Configuration

To enable email alerts:

1. Click Service Center>SMTP.
2. Check Enable SMTP.

3. Configure the following:

4. SMTP ServerAddress: Enter the address for your SMTP server.

5. SMTP Server Port: Enter your server's SMTP port number.
6. User Name: Enter the SMTP account user name.
7. Password: Enter the SMTP account password.
8. SenderE-mail Address: Enter the email address that will be used to send email alerts.
9. Recipient E-mail Address 1\~5: Enter up to 5 email addresses that will receive email alerts.
10. Attachment Image Quality: Select the quality of the image attachments: High, Mid, or Low.

11. Transport Mode: Select the encryption type used by the server (SSL or STARTTLS) or select No encryptedif your server does not use encryption.

12. Click OK to save your settings. Click Send testmail to send a test email alert.

8.13 Privilege Manager

Privilege Manager allows you to configure user accounts and user groups.

Privilege Manager contains the following sub-menus:

• Group
• User

Web Configuration

8.13.1 Group

Group Group Administration Add Modify Delete Privilege Manage Live Video Network Configure RS485 Configure Update Configu S NTP Configure PPPoE Configure DOKS Configure Alarm Configure Privilege Alarm Control Camera Configure Local Record File Compute Device Restart Disk Configure Modify Device Parameter Audio Configure Disk Format Recent Policy Register Configure OSBI Configure Device Port Raster Mapping FTP Configure SMTP Configure Default Settings Stream Configure Cash Register Privacy Masking Select All OK Reset

The Group page (Privilege>Group) allows you to manage permissions for user groups. Users obtain permissions from their group. The Administrators group contains all permissions and cannot be deleted or edited.

To add a user group:

1. Click Add. The Add Group menu appears.

NOTE: If the Add Group menu does not appear, disable any popup blockers.

1. Enter a name for the user group and click OK.

Add Group Group Name: Enter a group name and click OK OK Close

1. Under Group, select the new group.
2. Check the permissions you would like to apply to this user group. You can check or un-check Select All to select all or no permissions.
3. Click OK to save your new usergroup.

To modify a user group:

Web Configuration

1. Under Group, select the group you would like to modify.
2. Click Modify to change the group name if needed, enter a new group name and click OK.
3. Change permissions as needed and click OK.

To delete a user group:

1. Click Delete. The Delete Group menu appears.

NOTE: If the Delete Group menu does not appear, disable any popup blockers.

Delete Group Group: new group Delete Close

1. Select the group you would like to delete and click Delete.

8.13.2 User

User User admin Delete Add Modify Privilege Group Administrators User Status Normal Unlock Multi Log: Yes

The User page (Privilege>User) allows youto manage user accounts. User accounts receive privileges based on their group. The admin account is the system administrator, and has full access to all functions.

Web Configuration

To add a user account:

1. Click Add. The Add User window appears.

NOTE: If the Add User menu does not appear, disable any popup blockers.

Add User User Name: Password: Confirm: Group Administrators ✓ Multi Login OK Close

1. Enter a User Name and Password for the account and repeat the password under Confirm.
2. Under Group, select the desired user group for this account.
3. Check Multi Login to allow the user account to log into the IP camera from multiple location simultaneously or un-check to limit the account to a single location at a time.
4. Click OK to save the new user account.

To modify a user account:

1. Select the user account under User and click Modify.
2. Modify the account details as needed and click OK.

To delete a user account:

- Under User, select the user account and click Delete. Click OK to confirm.

8.13.3 Unlocking User Accounts

The admin account is the only account that can unlock user accounts that have been locked out. User accounts are locked out if the wrong password is entered 3 or more times.

To unlock a user account:

1. Login to the camera as admin.

Web Configuration

2. Click Privilege Manager>User.

User User User: dan Delete Add Remove Select the user Privilege Group: new group User Status: Locked Unlock Multi Login: Yes Click Unlock

1. Under User, select the locked user account.
2. Click Unlock to unlock the account.

8.14 Protocol

Protocol contains the following sub-menus:

• Protocol
  • Security (Not supported)

NOTE: Do not check User Verification in the Security sub-menu, as it may block ONVIF software from detecting the camera.

6.14.1 Protocol

Protocol Info Protocol Protocol Name: Intel Protocol Version: V1.01.14.02 Protocol Software Version: V1.01.14.02 (Version 1.02)

The Protocol page (Protocol>Protocol) allows you to view ONVIF protocol settings.

8.15 DeviceRestart

Click Device Restart. Click Restart then click OK to restart the camera.

Web Configuration

8.16 Default Settings

Click Default Settings. Click Restore then click OK to restore the camera to factory default settings. The camera will reboot.

8.17 Sensor Configuration

The Sensor Configuration menu is used to adjust camera image settings.

To configure camera image settings using the Sensor Configuration menu:

- Log into the camera using a web browser, and from the Live Video page, right-click on the video area and select Sensor Config.

Right-click in the video area and select Sensor Config Sensor Setting Image Shell... Gain... Cash... Auto I... GAM... AE M... WB S... Mine Brightness 0 56 Saturation 0 100 Contrast 0 100 Fasting setting Save Reset Cancel

Web Configuration

• Click Save to save setting changes.
• Click Reset to revert to the last saved changes.
• Click Factory Setting to revert all camera sensor settings to factory defaults.
• Click Cancel to exit.

TIP: Hold the mouse over the tabs to see the full name of the tab.

8.17.1 Image Adjust

Sensor Setting Imag Shift Cash Cash Auto Cash -6 M WB S.More Brightness 50 0 100 Saturation 50 0 100 Contrast 50 0 100 FactorySetting New Reset Cancel

Adjust the Brightness, Saturation, and Contrast settings for the image.

8.17.2 Shutter Control

Sensor Setting Imag Shift... Cans DayN Autol CAM AE M WB R Mirror ShutterMode FiredShutter MacShutter 1/1000 FixedShutter 1/1000 FactorySetting Case Reset Cancel

Adjust the camera shutter settings.

- ShutterMode: Select AutoShutter or FixedShutter.

Web Configuration

• MaxShutter: Sets the upper limit of the shutter speed when AutoShutter is selected.
• FixedShutter: Sets the shutter speed when FixedShutter is selected.

8.17.3 Gain Mode

Send Setting Imag Shut Gain Ga/N Auto I GAM AE M WB S Micro Gain Mode AutoGain MaxGain(dB) 50 FixedGain(dB) 0 FactorySetting Save Reset Cancel

Select gain mode and adjust gain settings.

• Gain Mode: Select AutoGain or FixedGain.
• MaxGain (dB): Select the maximum gain value when AutoGain is selected.
• FixedGain (dB): Select the gain value when FixedGain is selected.

8.17.4 Day/NightMode

Control Settings Imag... Chut... Gain ... Dayt... Auto... CAM... AE M... WE S... Mirror NipMColor Black_White FactorySetting Save Reset Cancel

Configure color settings for night mode.

Web Configuration

- Night Color: Select Black_White to have the camera switch to black and white during night mode or select Multicolor to have the camera remain in color during night mode.

8.17.5 Auto Iris

Sensor Setting Imag. Shut Gain DayN Auto I GAM AE M WB S Minor Auto Ins ON IrisSpeed 16 0 32 FactorySetting Save Reset Cancel

Set Auto Iris settings.

• Auto Iris: Select ON to enable or OFF to disable.
• Iris Speed: If Auto Iris is set to ON, select Auto Iris speed.

8.17.6 Gamma

Sensor Setting Imag... Shut... Gain ... Dan#... Auto I... D## AE M... WB S... Mirror GAMMA Standard FactorySetting Save Reset Cancel

Adjust Gamma.

- Gamma: Select gamma setting: Standard, High, Middle, Low, or Dynamic.

Web Configuration

Set the Auto-Exposure Meter Mode from one of the following:

• Multi-Pattern: When metering light, entire image is metered symmetrically.
• Center-Weighted: When metering light, priority is given to the center of the image.
• Vertical Center-Weighted: When metering light, priority is given to the vertical center of the image.
• Horizontal Center-Weighted: When metering light, priority is given to the horizontal center of the image.

8.17.8 WB Setting

Sensor Setting Imag. Shut. Gain Day# Auto# GAM AC M. WEB S. Mirror WB Mode Auto Manual Mode Overcast Reduzas 0 2 100 BlueGum 0 2 100 Factory/Getting Save Reset Cancel

Adjust White Balance.

Web Configuration

• WB Mode: Select Auto for automatic white balance or Manual to manually set the white balance.
• Manual Mode: Select a mode for the lighting conditions or select Customized and manually adjust the RedGain and BlueGain.

8.17.9 WDR (solution may not feature this setting)

Settings Setting Info Sh Cas Day Alt CA WDR AF RID Mid No. Control Mode: OFF Working Mode: (L) FactorySetting Case Reset Cancel

Configure settings for Digital Wide Dynamic Range.

• Control Mode: Select ON to enable Digital Wide Dynamic Range or OFF to disable.
  NOTE: Enabling Digital Wide Dynamic Rangemay causecolor distortion based on the lighting. If you notice color distortion, it is recommended to turn Control Mode to OFF.
• Working Mode: Select DLO (Digital Side Overflow) for environments with few moving objects. Select MC(Motion Compensation) for environments with multiple moving objects.

Web Configuration

8.17.10 Mirror

Sensor Setting Imag... Shift... Gain... Data... info... CAM... AE ... VB S... Mirror Mirror CLOSE FactorySetting Save Reset Cancel

Enable/disable image mirroring.

- Mirror: Select Horizontal to mirror the image horizontally, Vertical to mirror vertically, or PictureFlip to mirror both horizontally and vertically. Select Close to disable image mirroring.

8.17.11 Noise Filter (solution may not feature this setting)

Send Setting Intra Shut Cai Day Auto GM AE WB Error Not... Route Filter Auto Max Level 50 0 100 Level 50 0 100 FactorySetting Save Reset Cancel

Configure noise filter settings.

• Noise Filter: Select Auto for automatic noise filtering or Manual.
• Max Level: Select the maximum level for automatic noise filtering.
• Level: Select the level for manual noise filtering.

Reset to Factory Defaults

9. RESETTING TO FACTORY DEFAULTS

Follow the steps below to revert all settings to factory defaults. The camera must be connected to power to perform a factory reset.

Technical line drawing of a mechanical component with layered structure and mounting bracket (no text or symbols)

1. Loosen the three tamper screws using the provided allen key. Lift the dome cover.

2 Arrow

1. Remove camera cover by squeezing the back and front of the cover (as indicated by the arrow indicators) at the same time and lifting it up and away from the lens.

③ Reset

1. Press and hold the black reset button for 5 seconds then release the button to reset the camera to factory defaults.

2. Re-attach the camera cover, using the thumb screw as a guide, until it snaps into place.

Resetting to Factory Defaults

5

Arrow on camera base Arrow on camera module (inside camera

1. Re-attach the

dome cover.

Align thearrows

as shown in the

diagram to

ensure a

waterproof seal.

Use the allen key

to tighten the

tamper screws.

NOTE: Make sure

dome cover cord

does not ca rubber seal

Correct Arrow Alignment Arrow on dome cover

Dimensions

10. DIMENSIONS

Camera Dimensions

97.0 mm 3.82 in 55.5 mm 2.19 in 40 mm 1.57 in 3/4"-14 NPS thread 112 mm 4.4 in 5.1" 130 mm

Base Hole Screw Dimensions

Ø 0.1" 3.5 mm 3.4" 87 mm 3.9" 100.0 mm

11. TROUBLESHOOTING

Can't find the camera IP address using NVMS or other software:

• Make sure Ethernet and/or DC power cables are correctly connected to the camera.
• Make sure the PoE switch or DC power source meets the camera's power requirements (class 3 PoE / 450mA / 5.4W/ 12V). If using PoE, make sure the PoE switch is powered on.
• Make sure the PC is on the same network as the camera. Ping the camera's IP address. On your PC, goto Start>Programs >Accessories >Command Prompt. Type ping then the camera's local IP address and press Enter. If you get the message "Request timed out," PC and camera are not on the same network or camera is not connected. Camera is connected if you receive replies.
• Connect the BNC test cable to the camera and the other end to a test monitor. The monitor display shows the camera's IP address. A default IP address of 192.168.0.120 may mean that the camera cannot obtain an IP address from the router. Check the Ethernet/power connections and router configuration.
• Camera set for static IP mode using an incorrect IP address. By default, the camera is set for DHCP mode, which means it will automatically obtain an IP address from your router. Reset the camera to factory default settings by removing the camera cover and pressing the reset button for 5 seconds or more.

Can't connect to the camera on a web browser using local IP address:

• See steps above.
• Verify the camera's local IP address using one of the methods listed in ". Finding the Camera's IP Address" on page 12.

Can't connect to camera on a web browser using a DDNS address:

• Port forwarding not set up. Make sure the HTTP port (default: 80) and Control port (default: 30001) are forwarded on your router to the camera's local IP address.
• Multiple cameras using same port number to connect. Configure each camera to use different ports and port forward the new ports (see "8.7.2 Device Port" on page 31 for details on changing camera ports).

Can't connect to camera video on a web browser:

• If using IE, make sure to install ActiveX plug-in or Adobe Flash Player. For more information, see "8.3 Internet Explorer® Setup" on page 22.
• If using abrowser other than IE (e.g. GoogleChrome, Apple Safari, Mozilla Firefox), make sure latest version of Adobe Flash Player is installed.

Video performs poorly on browser:

• Insufficient bandwidth available for high-quality stream1. Select stream2 under Stream. Stream2 provides a lower-resolution to conserve bandwidth and improve performance on low-bandwidth connections.
• If using IE, click the message above the video area to use ActiveX plug-in instead of Flash Player. ActiveX may provide smoother video performance.

User account is locked:

- User accounts are locked when the password has been incorrectly entered 3 times. To unlock the account, login to the camera web interface as admin. Click Privilege Manager>User. UnderUser, select the locked user account and click Unlock to unlock the account.
