USER MANUAL IZ-9030 Izzy

Exterior view of a white outdoor heater unit with 'izzy' branding and mounting base (no other text or symbols visible)

Technical diagram of a rectangular electronic device with labeled components from 1 to 5

Illustration of hands holding a rectangular device with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with two plates and a textured base (no text or symbols)

Thank you for having chosen an appliance from the IZZY range.

Safety interlocks

Please read these instructions carefully before using the appliance and save them for future reference. Please keep the sales receipt for guarantee purposes (please see below “Guarantee and Customer Service”) Any use which does not conform to the instructions will absolve IZZY from an liability.

• Before connecting the appliance, check if the voltage indicated on the appliance, corresponds with the mains voltage in your home.
  • Always plug your device into an outlet that is earthed. Failure to comply with this requirement may result in electric shock and possible serious injury.
• Never leave the appliance unattended when in operation.
• Close supervision is necessary when your appliance is being used near children. Ensure that they do not play with the appliance.
• This appliance is not intended for use by people with reduced physical, sensory or mental capabilities, children or those with lack of experience and knowledge, unless they have been given supervision or instructic concerning use of the appliance by a person responsible for their safety.

- Disconnect the power cord from the supply mains:

- When you do not use the appliance

- Before assembling or disassembling

- Before cleaning and maintenance operations

- Before you move the appliance

- Always turn the power button to "0" position before plugging it in disconnecting it from the socket.

- Never use the appliance for any other use than indicated.

- The device is intended for indoor use. Do not use the device outdoors.

- Do not use the appliance in the bathroom, in the shower or near swimming pool.

• Do not operate or place the device or parts in places of high humidity or where it may get wet. Do not immerse the appliance in water or any other liquid.
• Do not store the appliance outdoors.
• The device is intended only for domestic use. Any other use will cancel the warranty.
• Check the power cord periodically for possible damages. If the power cord or the plug of the appliance has been damaged, do not use the appliance and contact an authorized BENRUBI Service Center.
• Do not disassemble or replace the power cord.
• Make sure that the power cord does not come into contact with the hot parts of the appliance.
• Do not let the power cord of the appliance hang over the edge of a table or bench top or where a child could grab it. Do not let the power cord to touch any hot surface.

Warning: The outer grid becomes hot during operation.

• Do not cover the appliance. There is a risk of overheating.
• Do not place the device near objects that are sensitive to temperature and in areas with heavy dust.
• Make sure that the power cord is not clamped from any object (e furniture). Never push the power cord and never place it under carpets or floor mats where there is a risk of clicking it. Keep the power cord in a plac where there is no danger of stumbling.
• Do not use extending cord, it might cause damage during operation.
• Do not plug other high-power electrical appliances into the same power outlet.
• Do not place the appliance directly under the socket.
• Before use, place the appliance on a stable, flat, dry surface. Do not place the device on areas where it may fall.
• Do not leave the appliance in operation when you are not at home. Make sure it is switched off and always unplug the power cord.
  • Always keep the appliance within 1.5m at least from furniture, pillows beds, papers, clothes, curtains etc.

Caution: Do not use the appliance on carpets or rugs.

- Do not use the appliance in leaking rooms or other flammable materials such as varnish or glue.

- Do not place fabrics/clothes on the appliance to dry or for any other reason.

• Always keep air ventilators free of any objects at least 1 meter apart.

Caution: To avoid any risk, do not place foreign objects, for example pencils, etc. in the grilles/ventilators of the appliance when it is connected to the socket and when it is in operation.

Caution: Never put your fingers between the grilles of the appliance when it is connected to the socket and when it is in operation.

- Always keep the device clean. Before cleaning, always unplug the appliance.

- Any fault in the connection, cancels the warranty.

- Do not use the device and its accessories for other than the appropriate or recommended use by the manufacturer.

- Never use highly corrosive or abrasive cleaning agents.

- This appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Never leave the power cable wrapped during use. Unwind it completely.

- Never turn the device off or on from the power cord.

- Never pull the cord to disconnect the appliance from the electrical supply. Instead grasp the plug and pull it to disconnect.

- Do not move the appliance when it is in operation.

- Do not touch the appliance with wet or damp hands.

- If the appliance does get wet, immediately remove the power cord from the wall outlet and contact one of the authorized BENRUBI service centers

- In case of a possible damage, do not attempt to repair the appliance by yourself. Please contact one of the authorized BENRUBI service centers.

Any repair made by an unauthorized BENRUBI Service Center CANCELS THE GUARANTEE.

- Any misuse of the device cancels the warranty.

- Only use original spare parts.

- The appliance conforms to EU directive 2014/30/EU on Electromagnetic Compatibility, the 2014/35/EU Low Voltage Directive, the 2011/65/EU RoHS Directive, and the directive 2009/125/ EC for eco-design.

SAVE THESE INSTRUCTIONS

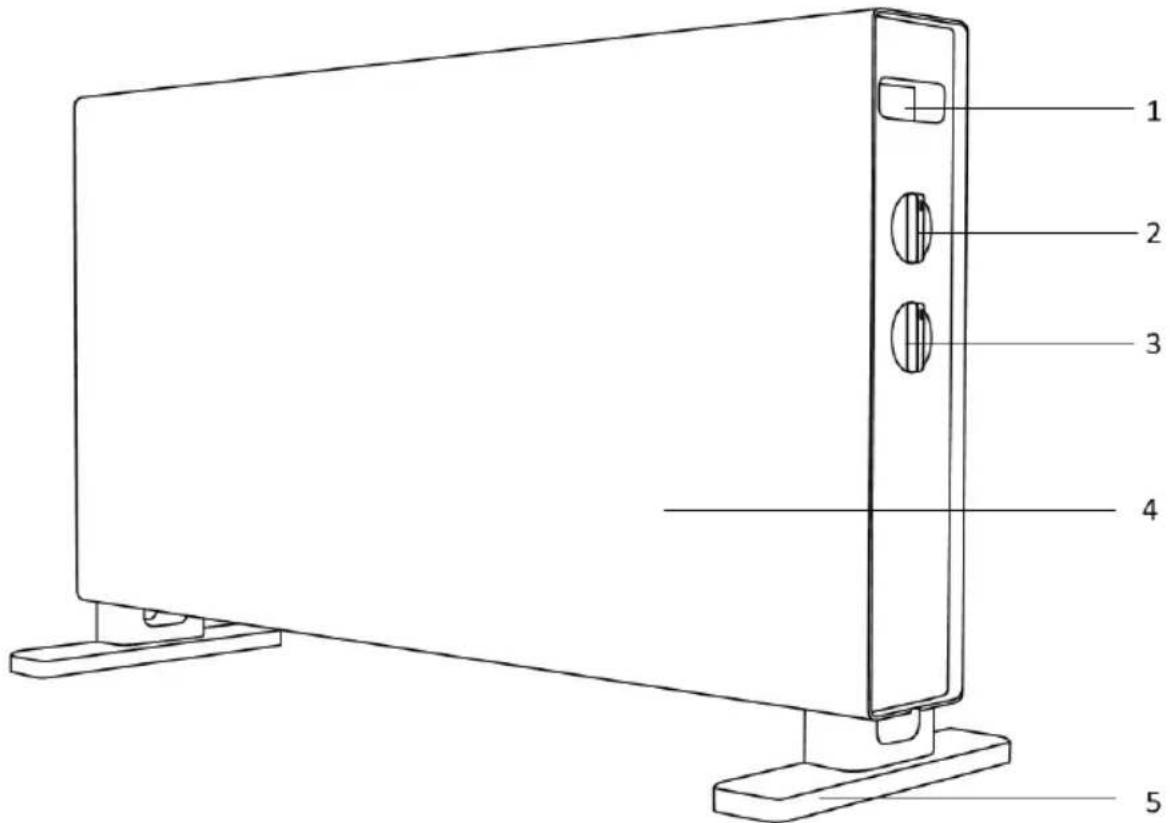

Parts of the Appliance

1 2 3 4 5

1. Carrying handle
2. Thermostat
3. Power button
4. Body
5. Anti-slip base

Base Assembly

Illustration of hands holding a rectangular device with an arrow indicating rotation (no text or symbols)

Technical diagram showing two rectangular components with downward arrows and a grid-patterned base, no text or symbols present.

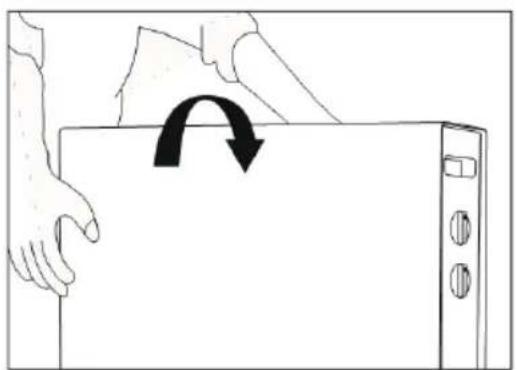

1. Turn the appliance upside-down.

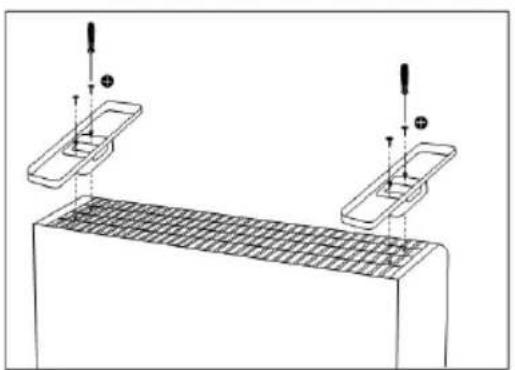

2. Position the base at the bottom of the appliance so as the holes in the base are aligned with the holes in the appliance.
3. Tighten the screws provided on the package.
4. After the assembly is completed, turn the appliance upwards. The appliance is ready for use.

Use of the Appliance

- Before operating the appliance, check for any damage, wear, or breakage to the resistors or power cord.

1. Place the appliance on a stable, flat, dry surface.
2. Plug in the appliance.
3. Turn the thermostat (2) clockwise to "MAX" position.
4. Turn the power button (3) to the desired position I, II or III.
5. I: Low power (max1000W)
6. II: High power (max1600W)

7. III: High power (max2600W)

8. When the room temperature reaches the desired temperature, turn the thermostat (2) counterclockwise to the desired position. The appliance will automatically maintain the selected temperature.

9. When not in use, set the thermostat (2) to “” and the power switch (3) to “0”.

10. Unplug the appliance when not in use.

Note:

- The device has an automatic closing system in case of falling or tilting.

Care and Cleaning

• Before cleaning the appliance, ensure that it is disconnected from the outlet and let the body of your appliance to cool down completely.
• NEVER immerse the appliance and the electric cord into water or any other liquid.
• NEVER use metal cleaners such as wire, brush, and chemical solutions or abrasive clean materials in order to clean your appliance.
• Clean with a dry soft cloth.

Storage

• Always unplug the appliance if not in use.
- Make sure the appliance is clean and dry before storage.
- Store the appliance in a clean, dry and cool place in its packaging or in such manner so that it is protected from the dust.
- Before you use the appliance after a long time period, make sure it is clean and dry and that no objects are stuck in the openings.
- Store the appliance away from the reach of children.

Technical Characteristics

Model: Convector Heater 2600W IZ-9030

Rated Voltage/Frequency: AC 220 - 240 \~ 50-60 Hz

Power: 1000W - 1600W, 2600W

Model: IZ-9030
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P nom	2,2-2,6	kW	Manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P min	1,0	kW	Manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P max, c	2,6	kW	Electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				Fan assisted heat output	No
At nominal heat output	elmax	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	N/A	kW	Single stage heat output and no room temperature control	No
In standby mode	eISB	0	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Remark:This product is only suitable for well insulated spaces or occasional use.

Important Information for Correct Disposal of the Product in Accordance with EC Directive 2002/96/EC

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Guarantee & Customer Service

• BENRUBI Company guarantees its products for any manufacturing defect or defective materials for a period of two (2) years from the date of purchase or delivery by presenting purchase receipt. If your product malfunctions or you find any defects, please revert to the retail location you have purchased it from or contact an authorized BENRUBI Service Centre. To find the nearest authorized BENRUBI Service Centre, visit our website www.benrubi.gr. It is in the discretion of BENRU Company to replace or repair the defective product.
• The warranty does not cover damages resulting from normal wear, breakage, scaling, improper installation or maintenance of the product, mishandling, abnormal working conditions, failure implement the instructions, conversion or repair of the product by an unauthorized technician who does not belong to the BENRUBI Service Centers.

Also, the warranty does not cover the following indicative factors:

• Stains, discoloration or scratches.
- Burns due to exposure to heat or flame.
- Damage from thermal shock (sudden temperature change or change of voltage).

FOR MORE INFORMATION PLEASE CONTACT:

(NEW) H. BENRUBI & FILS SA

27 Aghiou Thoma str, GR15124, Maroussi – Athens,
