User's Guide (Ver. 1.0)

Models: D8HU/D16HU

8/16 Channel Higher MP HD-TVI & IP Full Hybrid DVR

Cautions

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Explanation of Graphical Symbols

This symbol indicates the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

This symbol indicates the presence of "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock, property damage, personal injury, or death.

These precautions MUST be followed for safety reasons

Warning

• Do not use if the unit emits smoke.
• Do not disassemble the unit.
• Do not place any heavy or sharp objects on the unit.
• Do not place on uneven surface.
• Do not expose to shock or vibration.
• Do not move the unit when the unit is powered on.
• Do not block, and allow dust to accumulate in the air vents.
• Do not restrict airflow of the unit; doing so can damage the unit.
• Only qualified and experienced personnel should perform installation and servicing.
• Turn off the power of the HU when connecting Cameras, Audio or Sensor Cables.
• The manufacturer is not responsible for any damage caused by improper use of the product or failure to follow instructions for the product.
• The manufacturer is not responsible for any problems caused by or resulting from the user physically opening the HU for examination or attempting to repair the unit.

Product Components

Please make sure the following components are included as specified below.

DVR UnitDesktop: D8HU / D16HU
Remote Control
Battery 1.5V (AAA x2)	[7W0W]
Quick Setup Guide
Quick User Guide
USB Mouse

Specifications

MODEL NAME D8HU D16HU
Operational Mode (HD-TVI, Analog, IP) Flexible for all channels
Video Input HD-TVI Up to 8 Up to 16
				Analog Up to 8 Up to 16
				IP Camera Highest Resolution	Max. 3840x2160 (8MP) Max. 3840x2160 (8MP)
				Output Main Monitor VGA(Max. 1920x1080) and HDMI (Max. 3840x2160)
				Sub Monitor CVBS or SPOT
				HD-TVI, Analog Loop Output	8 16
Audio Input Local Input 8 16
				Remote Input from IP Camera	8 16
				Output Local Output (RCA) 1	1
				Audio Codec	G.711
I/O	Sensor In	Local Input (Terminal Block)		8 16
		Remote Input from IP Camera		8 16
	Alarm Output			2 4
Serial RS-232C None
				RS-485	1
Recording	Compression			H.264
	Local Resolution & Frame Rate		3840x2160	80fps 112fps(Ch1~8),	160fps@QHD (Ch9~16)

	Playback Speed x0.25, x0.5, x2, x4, x8, x16, x32, x64
Backup Media	USB drive, External HDD, Network
	File Format BMP, AVI, Proprietary Format
	Huge Backup Yes (Max. 24 hours)
Storage HDD	Capacity of 1 HDD		8TB
		Internal HDDs 4
		e-SATA 1
	USB Front 2
		Rear 1
User I/F Input	Method Front Buttons, IR, Mouse, Keyboard Controller
Network	Private (IP Camera, Auto Connection)		10/100/1000 Base-TX
	LAN (IP Camera or Remote Access)		10/100/1000 Base-TX
	Dynamic DNS		Yes (Free Speco DDNS)
	Dual Encoding for Network		Yes
Features	Digital Zoom		Yes
	DLS (Day Light Saving)		Yes
	NTP (Network Time Protocol)		Yes
	S.M.A.R.T		Yes
	EZNetwork / EZRecord / EZSearch / EZCopy / EZCamera		Yes
	Internal Beep		Yes
	e-mail Notification		Yes
	Cloud Archiving		Yes
	Twitter Mass Alert		Yes
	HTTPS		Yes

Table of Contents

1. Main Features 9
2. Initial Boot-up Process.... 10

2-1. Initial Boot up and Basic Time Setup....10
2-2. Setting up Daylight Savings Time....11
2-3. Setting NTP (Network Time Protocol)....12
2-4.EZ Setup....15
2-5. IP Camera SETUP (through SpecoTech Web Viewer)....18
2-6. Dual Streaming....18

1. Front and Rear Panels 19

3-1. Front Panel 19
3-2. Rear Panel Connectors....20
3-3. Remote Control....21

1. Setting up the DVR....22

4-0. Setup – Main Live Screen....22
4-1. Setup – IP CAMERA....23
4-2. Setup - SYSTEM....28
4-3. Setup – RECORD Mode 35
4-4. Setup - DEVICE Mode 37
4-5. Setup - DISPLAY Mode 43
4-6. Setup – NETWORK Mode .... 45
4-7. Setup – USER MANAGEMENT Mode .... 48
4-8. Setup - STORAGE Mode 51
4-9. Setup - CONFIG Mode....53
4-9-1. Firmware Upgrade....54

6-1. Still Image Backup onto USB Flash Drive....67
6-2. Video Backup onto USB Flash Drive during playback 68
6-3. EZCopy: Video Backup onto USB Flash Drive during playback....69
6-4. Transferring Still Images or Video from the ARCHIVE List....70
6-5. Playback of Backup Video ....71

1. Network Access Using the Multi-Sites Network Viewer 72

7-1. Overview....72
7-2. PC Requirements....72
7-3. Installation of the Program....73
7-4. Live Window....74
7-5. Search and Playback Window ....76
7-6. Setup of SpecoTech Multi Client....81
7-7. Remote Setup 86
7-8. Operation....93

1. Network Access Using the Web-Browser Viewer.... 102

2. Network Access Using the Smart Phone Viewer.... 104

9-1. App Viewer for iPhone....104
9-2. App Viewer for Android Phone 107

APPENDIX: Network Connection - LAN 110

APPENDIX: Network Connection – Internet and DDNS....112

1. Main Features

■ Easy Record, Copy and Setup
■ Easy Search by Thumbnail Preview
■ Easy Network
■ Easy IP Camera Setup
■ Recording Rate: D16HU: 400fps @ QHD, D8HU: 160fps @ QHD
■ Digital Deterrent, audio message output upon event
■ H.264 High Profile compression saves HDD space
■ Simultaneous live view/playback while continuing to record/network transfer or backup
■ Remote monitoring/recording/playback/configuration and control via internet
■ Audio Recording: D16HU:16 Channels, D8HU:8 Channels
■ Switch between low and high quality stream during simultaneous Continuous + Motion or Continuous + Sensor recording modes for storage optimization

NOTE: Under federal law, The Fourth Amendment to the U.S. Constitution, Title III of the Omnibus Crime Control and Safe Streets Act of 1968, as amended by the Electronic Communications Privacy Act of 1986 (18 U.S.C. § 2510, et seq.), and the Foreign Intelligence Surveillance Act of 1978 (50 U.S.C. 1801, et seq.) permit government agents, acting with the consent of a party to a communication, to engage in warrantless interceptions of telephone communications, as well as oral and electronic communications.

■ Automatic camera detection (Plug & Play)
■ Covert camera operation provides enhanced security and administrator control
■ Dynamically programmable recording priority, motion detection, alarms and scheduling
■ Simple and Easy Graphic User Interface
■ Simple Schedule Recording
■ HDMI Output

2. Initial Boot-up Process

2-1. Initial Boot up and Basic Time Setup

1. During the first boot up, the following logo will be displayed.

speco technologies

1. After the logo, select the language and set date and time as specified below.

Choose Language english Close Change Your Password For Cyber Security ! New select Confirm select Password Match ok

1) User has to set a password before using.

Can not use '1111' when the initial boot up password set.

But user can set '1111' as a password through [Setup > User Management > Password Setup]

2) DVR will not proceed when user put the password '1111'.

2-2. Setting up Daylight Savings Time

To enable Daylight Saving feature/NTP synchronization, take the following steps.

1. Enter the Setup mode. The default Username is "admin" and enter a password set on the initial boot-up process.

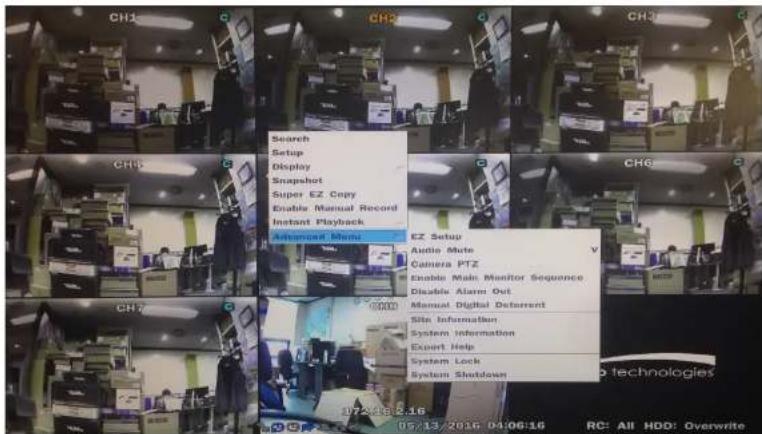

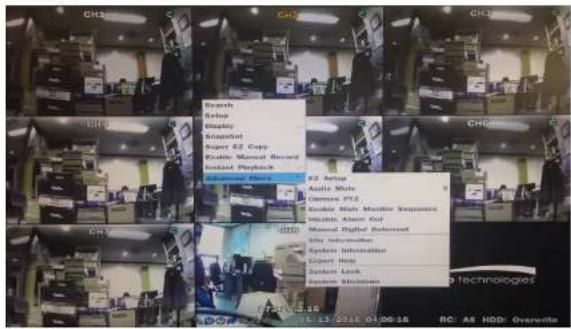

Search Update Update Super EZ Copy Enable Manual Record Instant Playback EZ Audio Audio White German XYZ Graddy Main Monitor Sequence Visuals After Out Manual Digital Ret transform Site Information System Information Copy Help Random Lock System Modulation

Search

Setup

Display

Aspect Ratio

Snapshot

Super EZ Copy

Enable Manual Record

Instant Playback

Advanced Menu

Login - Setup User ID admin Password select ok cancel

1. Go to SETUP > SYSTEM > DATE & TIME SETUP

System Description select Landscape english

3. Select ON from the DAYLIGHT SAVING dropdown menu.

Time Display Format 24-Hour Format Time Zone GMT -5:00 (Montreal/New York) Daylight Saving USA Set Date & Time 2016 / 5 / 13 / 4 / 42 / 18 ok cancel

2-3. Setting NTP (Network Time Protocol)

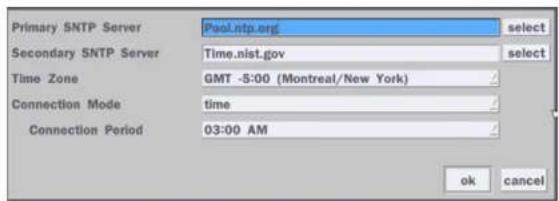

1. SETUP > SYSTEM > NTP SETUP > ON

System Description select Language english Date Display Format mm/dd/yyyy Date & Time Setup select Client Access on NTP Setup on select e-Mail Setup off select Unit Name HYBRID System Restart select System Shutdown select EZ Setup select System Event Notification select Hybrid Setup select Apply Cancel

Table2.3.1. GMT Time Zone

	State Standard Time	Daylight-Saving Time
AL Alabama GMT-6 GMT-5
AK Alaska GMT-9 GMT-8
AK Alaska (Aleutian Islands) GMT-10			NA
AZ Arizona GMT-7			NA
AZ Arizona (Navajo)	GMT-7	GMT-6
AR	Arkansas	GMT-6	GMT-5
CA	California	GMT-8	GMT-7
CO	Colorado	GMT-7	GMT-6
CT	Connecticut	GMT-5	GMT-4
DC	District of Columbia	GMT-5	GMT-4
DE	Delaware	GMT-5	GMT-4
FL Florida	GMT-5	GMT-4
FL	Florida (W)	GMT-6	GMT-5
GA	Georgia	GMT-5	GMT-4
HI	Hawaii	GMT-10	NA
ID	Idaho (N)	GMT-8	GMT-7
ID	Idaho (S)	GMT-7	GMT-6
IL	Illinois	GMT-6	GMT-5
IN	Indiana	GMT-5	GMT-4
IN	Indiana (SW / NW)	GMT-6	GMT-5
IA	Iowa	GMT-6	GMT-5
KS	Kansas	GMT-6	GMT-5
KS	Kansas (W)	GMT-7	GMT-6
NH New Hampshire GMT-5 GMT-4
NJ New Jersey GMT-5 GMT-4
NM New Mexico GMT-7 GMT-6
NY New York GMT-5 GMT-4
NC North Carolina GMT-5 GMT-4
ND North Dakota GMT-6 GMT-5
ND	North Dakota (W)	GMT-7 GMT-6
OH	Ohio	GMT-5 GMT-4
OK	Oklahoma	GMT-6	GMT-5
OR	Oregon	GMT-8	GMT-7
OR Oregon (E) GMT-7 GMT-6
PA	Pennsylvania	GMT-5 GMT-4
RI	Rhode Island GMT-5 GMT-4
SC	South Carolina	GMT-5	GMT-4
SD	South Dakota (E)	GMT-6	GMT-5
SD	South Dakota (W)	GMT-7	GMT-6
TN Tennessee (E) GMT-5 GMT-4
TN	Tennessee (W)	GMT-6	GMT-5
TX	Texas	GMT-6	GMT-5
TX	Texas (W)	GMT-7 GMT-6
UT	Utah	GMT-7 GMT-6
VT	Vermont	GMT-5 GMT-4
VA	Virginia	GMT-5	GMT-4
WA	Washington GMT-8 GMT-7
WV	West Virginia GMT-5 GMT-4

2-4. EZ Setup

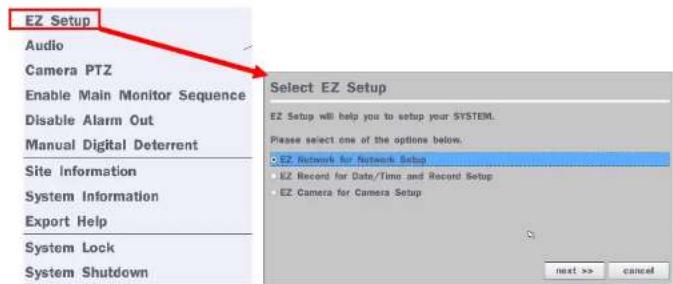

Quick installation Menu for HU and IP Camera Easy installation(Right-Click on the Main Screen)

EZ Setup Audio Camera PTZ Enable Main Monitor Sequence Disable Alarm Out Manual Digital Deterrent Site Information System Information Export Help System Lock System Shutdown Select EZ Setup EZ Setup will help you to setup your SYSTEM. Please select one of the options below. EZ Network for Network Setup EZ Record for Date/Time and Record Setup EZ Camera for Camera Setup next >> cancel

Figure 2.4. EZ Setup Screen

2.4.1. Setup EZ Record, Date & Time, and IP Camera configurations.

Select EZ Setup EZ Setup will help you to setup your SYSTEM. Please select one of the options below: • EZ Network for Network Setup • EZ Record for Data/Time and Record Setup • EZ Camera for Camera Setup next >> cancel EZ Record You are about to start EZ Record. EZ Record will guide you through: • Data/Time Setup • Recording Mode Setup • Recording Video Quality Setup • Network Setup (Optional) Click the 'next' button to start EZ Record. next >> cancel EZ Record Data/Time Setup Data Display Format mm/dd/yyyy Daylight Saving USA EZ Record Recording Mode Setup • Continuous • Motion

EZ Camera Channel IP Camera Info Protocol SPECO Size 0.0.0.0 Port 354 Web Port H1 select ID select Password ***** Name: CHILL Setup select Preview select 7 File Current

IP Address: Smart Port/Week Port MAG Address 172.43.5.219 100 80 00:00:00:00:00 8 %

Figure 2.4.1. EZ Record Setup Procedure

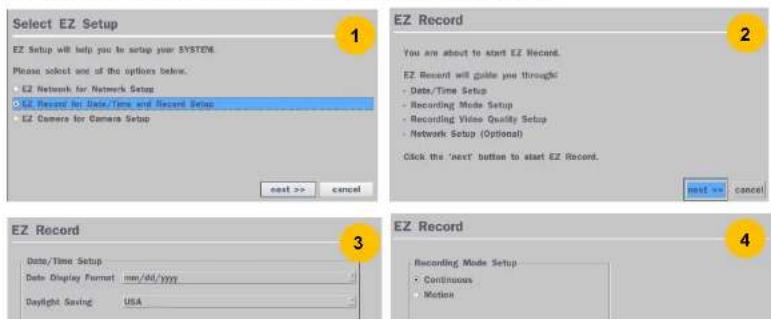

① Select EZ Record for Date/Time and Recording Setup, and click "next" to proceed.
② When the description of EZ Record Setup is displayed, click "next" to proceed.
③ Set up the Date/Time settings and click "next" to get to the recording setup.
④ Select the recording mode and click "next" to get to the record video quality setup.
⑤ After setup the Record Video Quality, click "next" to to proceed.
⑥ To close the setup page click "finish" or "go to ez camera" to set up IP Camera.
⑦ Configure individual cameras in the EZ Camera Setup.

• Select the Channel to configure.

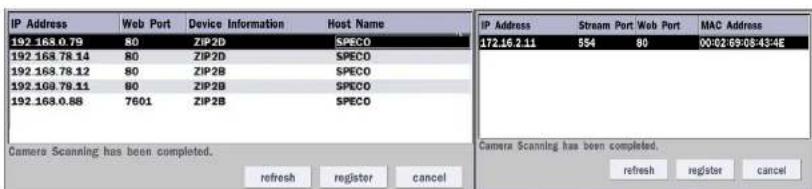

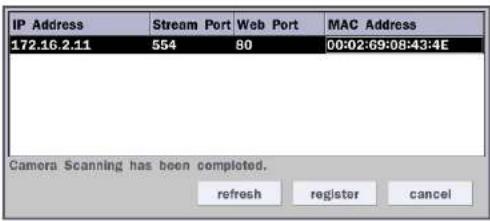

• Select the Camera Protocol, and then click "select" on Scan menu. (This will scan the network for any IP cameras using the specified protocol.)
• Select the desired IP camera from the list, and then click on "register".
• If necessary, click on "Preview" to preview the camera, or Setup to change camera settings.

2.4.2. EZ Network (Using an internet connection)

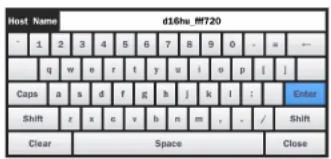

Host Name d16hu_##T20 1 2 3 4 5 6 7 8 9 0 - = -- q w e r t y u i o p i j Caps a s d f g h j k l : Shift z x c v b n m , . / Shift Clear Space Close

DDNS NOTIFY : HOST NAME : d16hu_fff720 STATUS : SUCCESS ok

Figure 2.4.2. EZ Network Setup Procedure

① DVR automatically checking the network and configuration by scanning in few seconds.
② DVR will show the DDNS host name when configuration is finished automatically.
③ If you need to edit the host name please select 'edit' button.
④ Everything is OK, then select 'finish'. Host name and status pop-up screen will be showed.

2-5. IP Camera SETUP (through SpecoTech Web Viewer)

HU Series allows remote access to the IP Cameras through "IP Camera Setup" menu in SpecoTech Web Viewer.

2015-10-14 10:33:28 172.16.2.30 172.16.2.30 172.16.2.30 172.16.2.30 172.16.2.30 172.16.2.30 172.16.2.30 172.16.2.30 172.16.2.30 173.16.2.30 173.16.2.30 173.16.2.30 173.16.2.30 173.16.2.30 173.16.2.30 173.16.2.30 173.16.2.30 173.16-10:33:28 173.16-10:33:28 173.16-10:33:28 173.16-10:33:28 173.16-10:33:28 173.16-10:33:28 173.16-10:33:28 174.16.2.30 174.16.2.30 174.16.2.30 174.16.2.30 174.16.2.30 174.16.2.30 174.16-10:33:28 174.16-10:33:28 174.16-10:33:28 174.16-10:33:28 174.16-10:33:28 174.16-10:33:28 174.16-10:33:28 175.16.2.30 175.16.2.30 175.16.2.30 175.16.2.30 175.16-10:33:28 175.16-10:33:28 175.16-10:33:28 175.16-10:33:28 175.16-10:33:28 175.16-10:33:28 SPS - 29 Off-line 24D Edition Type: Size: Position: Date Time:

99%

99%

99%

99%

99%

99%

99%

99%

99%

99%

99%

99%

99%

99%

99%

99%

99%

99%

99%

99%

99%

① Click the mouse right button
② Select "IP Camera Setup".
③ Select Channel Number.
④ It launches the camera's web setup page.

In order for the web pages to launch from the "IP Camera Setup" menu when accessed from the WAN, Ports 59011 to 59254 on the router must be port forwarded to the HU. The local address of the HU can be found in the system information.

2-6. Dual Streaming

- High Quality (Main Profile) Video Stream is used for both Recording and Live Display.

3. Front and Rear Panels

3-1. Front Panel

HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA HUA F1 - 16 - 21 - 18 - P2 F2 - 16 - 21 - 18 - P3 F3 - 16 - 21 - 18 - P4 F4 - 16 - 21 - 18 - P5 F5 - 16 - 21 - 18 - P6 F6 - 16 - 21 - 18 - P7 F8 - 16 - 21 - 18 - P8 F9 - 16 - 21 - 18 - P9 F10 - 16 - 21 - 18 - P10 F11 - 16 - 21 - 18 - P11 F12 - 16 - 21 - 18 - P12 F13 - 16 - 21 - 18 - P13 F14 - 16 - 21 - 18 - P14 F15 - 16 - 21 - 18 - P15 F16 - 16 - 21 - 18 - P16 F17 - 16 - 21 - 18 - P17 F18 - 16 - 21 - 18 - P18 F19 - 16 - 21 - 18 - P19 F20 - 16 - 21 - 18 - P20 F21 - 16 - 21 - 18 - P21 F22 - 16 - 21 - 18 - P22 F23 - 16 - 21 - 18 - P23 F24 - 16 - 21 - 18 - P24 F25 - 16 - 21 - 18 - P25 F26 - 16 - 21 - 18 - P26 F27 - 16 - 21 - 18 - P27 F28 - 16 - 21 - 18 - P28 F29 - 16 - 21 - 18 - P29 F30 - 16 - 21 - 18 - P30 F31 - 16 - 21 - 18 - P31 F32 - 16 - 21 - 18 - P32 F33 - 16 - 21 - 18 - P33 F34 - 16 - 21 - 18 - P34 F35 - 16 - 21 - 18 - P35 F36 - 16 - 21 - 18 - P36 F37 - 16 - 21 - 18 - P37 F38 - 16 - 21 - 18 - P38 F39 - 16 - 21 - 18 - P39 F40 - 16 - 21 - 18 - P40 F41 - 16 - 21 - 18 - P41 F42 - 16 - 21 - 18 - P42 F43 - 16 - 21 - 18 - P43 F44 - 16 - 21 - 18 - P44 F45 - 16 - 21 - 18 - P45 F46 - 16 - 21 - 18 - P46 F47 - 16 - 21 - 18 - P47 F48 - 16 - 21 - 18 - P48 F49 - 16 - 21 - 18 - P49 F50- F50- F50- F50- F50- F50- F50- F50- F50- F50- F50- F50- F50- F50- F50- F50- F50- F50- F50- F50- F50- F50- F50- F50- F50- F50- N/A

Figure 3.1.1. DVR Front panels

Table 3.1.1. Front LED and Ports of Desktop Models (D16HU/D8HU)

Name Description
POWER	LED light is on when power is applied to the system.
HDD	LED light is on when the system is recording video data.
USB Port	This USB port for archiving footage into a USB device. (USB 2.0 connector)

Table 3.1.2. Front Buttons (D16HU/D8HU)

Name Description
Buttons 1~16	Select a channel from CH1 to CH16
	Buttons from 9 to 16 is used as function keys on PTZ control modeTo escape out of PTZ mode, press the ESC button.
MENU	Goes into the Setup window
COPY	Takes a Screenshot on Live View and Goes into Backup during Playback

3-2. Rear Panel Connectors

• Do not power this system on before all the connections are attached.
• Make sure all the connections are properly secured. Faulty connection may result in the system being damaged.

1 4 8 12 6 3 9 2 5 7 11 10 13 D16HU

1 2 3 4 5 6 7 8 9 10 11 12 13 D8HU

Figure 3.2.1. Connectors

① Ground: Use for ground port.
② VIDEO IN: Video input port.(For HD TVI & Analog 960H cameras)
③ VIDEO OUT: MAIN – Composite Video Output / SPOT – Spot Monitor
④ AUDIO IN & OUT: Connectors for audio input and one connector for audio output

3-3. Remote Control

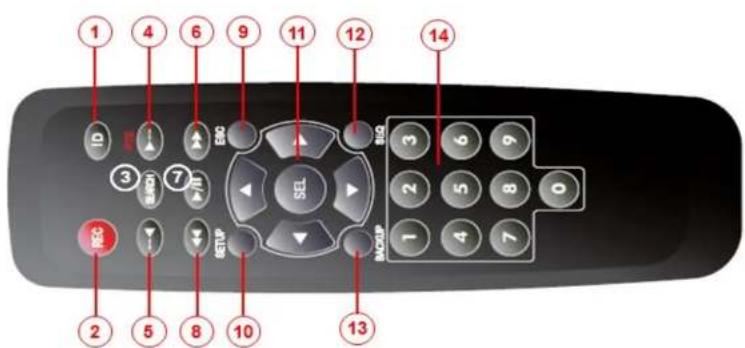

1 4 6 9 11 12 14 ID 3 5 7 8 10 STOP SEL 3 6 9 2 5 8 0 1 4 7 BACKUP 2 5 8 13

Typical Remote Control

① ID: To set the remote control ID.
② REC: To start and stop manual recording
③ SEARCH: To go to SEARCH menu.
④ F/ADV:

• During playback – To move the playback position 60 seconds forward.
• During Pause – To move the playback position moves 1 frame forward

⑤ F/REW:

• During playback – To move the playback position 60 seconds back.
• During Pause – To move the playback position 1 frame back.

⑥ FF: To fast forward the recording

4. Setting up the DVR

The following sections detail the initial setup of the DVR.

Menu screen will close if user response is not received in 5 minutes.

4-0. Setup - Main Live Screen

To enter the setup menu, right click on the mouse and select setup from the submenu or press the setup button on the remote control.

Search Setup Chapter Supervision Super S2 Copy Enable Manual Record Install Playback S2 Setup Audio Mode Connect PS2 Enable Main Monitor Response Enable Alert Out Manual Digital Environment File Information System Information Export Help System Touch System Shutdown

Search

Setup

Display

Aspect Ratio

Snapshot

Super EZ Copy

Enable Manual Record

Instant Playback

Advanced Menu

Figure 4.1 Live Screen and Quick Operation Window

Login - Setup User ID admin Password: 1 2 3 4 5 6 7 8 9 0 - = - 6 w o r t y u l o p l ]

4-1. Setup - IP CAMERA

Press the SETUP button and enter the password. The setup menu is displayed as picture below. Select IP Camera icon and press SEL button to enter the setup menu item.

IP Camera Channel 13 select Protocol SPECO Scan select IP Address 172.16.200.4 Stream Port Web Port 80 User ID admin Password ********** Setup select Apply Cancel

Figure 4.1.1 IP Camera mode setup screen
Table 4.1.1. Menu items in IP Camera mode setup

Item Description

CHANNE To manually connect each camera, click on the "select" to get this window:

IP Address Stream Port Web Port MAC Address 172.16.2.11 554 80 00:02:69:08:43:4E Camera Scanning has been completed. refresh register cancel

IP Address: Enter the address of IP camera to connect, or select from scanned list.

Stream Port: Enter the port number of IP camera to connect

Web Port: Enter the web port number of IP camera to connect

Others: Change the IP camera setting. Double click the empty box and then Log-In box will be pop-up. (Enter ID and PASSWORD of IP Camera)

Protocol Select the protocol for the IP Camera

Scan Automatic IP Camera search on the local network.

IP Set up IP camera address.

Address

Stream Set up the RTSP port of the IP Camera (default: 554)

Port

Web Port Set up the web port of IP Camera (default: 80)

User ID Enter ID of IP Camera

Password Enter the Password of IP Camera

Setup Set up Video, Network and System of IP Camera

4-1-1. Scan Menu

Scan for IP Camera on network using SPECO/ONVIF/HIKVISION protocols.

IP Camera Channel 1 -select Protocol Onvif Scan select IP Address 172.16.2.6 Web Port 80 User ID adults Password ****** Profile Profile0 Onvif Setup select Apply Cancel IP Camera Channel 1 -select Protocol SPEED Scan select IP Address 172.16.2.6 Stream Port 554 Web Port 80 User ID adults Password ****** Setup select Apply Cancel

Figure 4.1.2 IP Camera Setup Screen

IP Address 192.163.0.79 80 ZIP2D SPECO 192.163.78.14 80 ZIP2D SPECO 192.163.78.12 80 ZIP2B SPECO 192.163.78.11 80 ZIP2B SPECO 192.163.0.88 7601 ZIP2B SPECO Camers Scanning has been completed. refresh register cancel IP Address 172.16 2.11 554 80 90:02 69:08 43:4E Camera Scanning has been completed. refresh register cancel

Figure 4.1.3 Left Image using ONVIF Protocol Scan, Right Image using SPECO Protocol Scan

Profile Name	Resolution	Frame Rate	Bit Rate	I-Frame Interval	H264 Profile
Profile1	3840 X 2160	30	6000	30	Main
Profile2	640 X 360	15	1000	15	Main

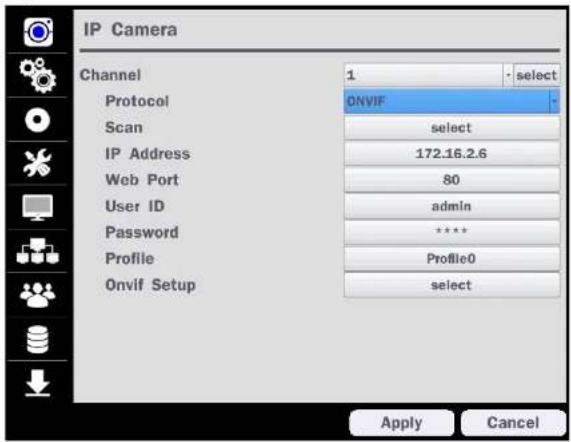

4-1-2. ONVIF Setup Menu

IP Camera Channel 1 select Protocol ONVIF Scan select IP Address 172.16.2.6 Web Port 80 User ID admin Password **** Profile Profile0 Onvif Setup select Apply Cancel

Figure 4.1.2 IP Camera Setup Screen (ONVIF)
The NS Series can search for IP Cameras that are conformant to ONVIF (Open Network Video Interface Forum).

In order to search for ONVIF Cameras, the field associated with VENDOR has to be set to ONVIF.
Click on the Box associated with Scan to scan the networks for ONVIF Conformance cameras.

IP Address	Web Port	Device Information	Host Name
172.18.7.11	60	IPC
172.15.200.4	60	IMH-181	NOBRAND_IMH-181
172.10.200.12	60	IMH-181	NOBRAND_IMH-181

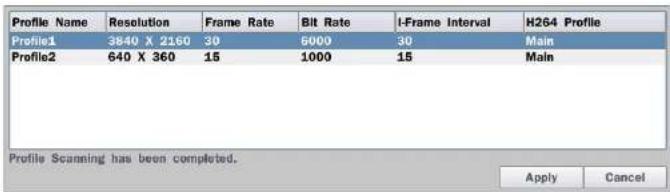

Profile Name Resolution Frame Rate Bit Rate I-Frame Interval H264 Profile Profile1 3840 X 2160 30 6000 30 Main Profile2 640 X 360 15 1000 15 Main Profile Scanning has been completed. Apply Cancel

Figure 4.1.5 ONVIF Profile Scan Window

① Select ONVIF for Vendor and click the SCAN button.
② Select the camera on the list and then click the register button.
③ Then, PROFILE and ONVIF setting button will be displayed on the menu. Click PROFILE button and then the detail information of ONVIF will be searched and listed. (If there is not one listed, the ONVIF protocol of IP CAM is not compatible with Hybrid DVR and therefore not supported.)

④ Double click the listed profile to apply.

⑤ Enter ID and PASSWORD of IP CAM. Registration is .completed.

Video select Network select System select ok

Figure 4.1.6 ONVIF Setup Window

Under ONVIF Setup. the following can be viewed and changed: VIDEO. NETWORK. SYSTEM settings.

Network Interface Name sth0 Interface Type dhcp IP select Subnet Mask 0.0.0.0 Gateway 172.16.1.254 Rtsp Port 554 select Web Port 80 select Https 0 apply cancel

SYSTEM

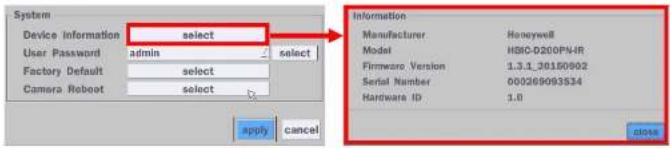

System information and change your password, factory reset and the camera is rebooting.

System Device Information select User Password admin select Factory Default select Camera Reboot select Information Manufacturer Honeywell Model HBO-D200PN-IR Firmware Version 1.3.1_30150902 Serial Number 000269093S34 Hardware ID 1.0 apply cancel close

4-2. Setup - SYSTEM

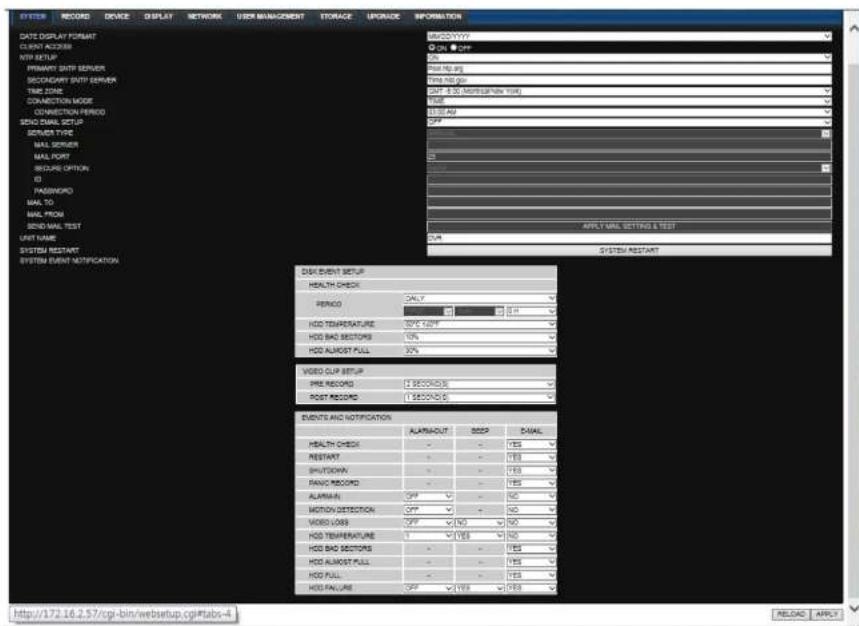

In the SETUP menu, select the SYSTEM tab. Then, the SYSTEM menu is displayed as pictured below. Navigate through the menu items using the mouse or the remote control and change the value of the menu.

System Description select Language english

Table 4.2.1. Menu Items in SYSTEM Setup Screen

Item Description
DESCRIPTION	Press the button to view the system information. (Software Version, Storage Size, IP Address, MAC Address and DDNS Status)

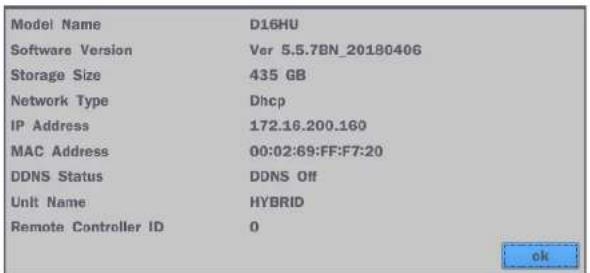

	Model Name D16HUSoftware Version Ver 5.5.7BN_20180406Storage Size 435 GBIP Address 172.16.200.146MAC Address 00:02:69:FF:F7:20DDNS Status Ready - d16hu_ff720ok
LANGUAGE	Select the display language using the mouse or the remote control. Once a language is selected, the display language will change.
DATE DISPLAY FORMAT	Select the date display format using the mouse or the remote control. Options are:MM/DD/YYYY, YYYY/MM/DD, DD/MM/YYYY, YYYY-MM-DD, MM-DD-YYYY, DD-MM-YYYY
DATE&TIME SETUP	Select the display date and time using the mouse or the remote control and press OK button to set the present date and time.

Select DAVLIGHT SAVING using the mouse or the remote control and select the

over variable-latency data networks.

Primary SNTP Server Pool.ntp.org select Secondary SNTP Server Time.nist.gov select Time Zone GMT -5:00 (Montreal/New York) Connection Mode time Connection Period 03:00 AM ok cancel

PRIMARY SNTP SERVER: Input the address of the primary NTP time-server.

SECONDARY SNTP SERVER: Input the address of the secondary NTP time-server.

TIME ZONE: NTP synchronizes with GMT (Greenwich Mean Time) regardless of geography, user must set their own time difference.

CONNECTON MODE: Select the NTP time-server connection mode from TIME, INTERVAL, and ONCE.

CONNECTION PERIOD

• TIME – Refresh the time at the designated time (e.g. 1AM)
• INTERVAL – Every 1 hour \~ 24 hours
• ONCE – Synchronizes time only once. NTP will not synchronize unless the Connection Mode is changed.

Sends E-MAIL Notification when the NTP server time is faster than the system time with bellow message.

"NTP server time is faster than the system time.

In this case, NTP server time is ignored to protect the user data.

User must set the time manually.

SYSTEM TIME: Mon Oct 10 13:46:49 2011

SERVER TIME: Mon Oct 10 13:33:12 2011

	MAIL PORT: Assign Mail Port number.SECURE OPTION: Select the secure mail server connection method. (SSL or TLS)ID: Enter the appropriate mail server ID.PASSWORD: Enter the appropriate mail server PASSWORDMAIL TO: Enter the appropriate email address to enable sending e-mail reports using a virtual keyboard.MAIL FROM: To set the email address sent to the destination host.TEST : E-mail settings sent a test mail to the registered account
UNIT NAME	Name the HYBRID (e.g. Factory, Library, Store, Location etc)This is to used to identify the name of each DVR under the same network.
SYSTEM RESTART	Restart the system
SYSTEM SHUTDOWN	Shut down the system
EZ SETUP	Helps user to easily setup NETWORK, RECORDING and IP CAMERA
SYSTEM EVENT	Disk Event Setup

HEALTH CHECK - OFF, ON

(Allows the user to set MAIL STATUS periodically) : DAILY or WEEKLY or MONTHLY

Period daily first sun 0 h ok cancel

VIDEO CLIP SETUP: Setup the duration of video clip for PRE RECORD and POST RECORD.

EVENT AND NOTIFICATION - OFF, ON

(Allows the user to set EVENT NOFICIATION ON or OFF)

HEALTH CHECK / RESTART / SHUTDOWN / PANIC RECORD

- Enable Email Notification in the event a problem occurs with the VS. ALARM-IN – Enable Email Notification when the camera detects sensor. MOTION DETECTION – Enable Email Notification when the camera detects motion.

VIDEO LOSS – Enable Email, Beep and Alarm output Notification when the camera signal is lost.

HDD TEMPERATURE – Enable Email, Beep and Alarm output Notification when the HDD temperature.

HDD BAD SECTORS – Enable Email Notification when the HDD has bad Sectors.

HDD ALMOST FULL – Enable Email Notification when the HDD is almost full HDD FULL – Enable Email Notification when the HDD is full

HDD FAILURE – Enable Email, Beep and Alarm output Notification when the HDD fails.

1-4) Set Video clip duration

Disk Event Setup Health Check select HDD Bad Sectors 10% HDD Temperature 60°C (140°F) HDD Almost Full 90% Video Clip Setup Pre Record 2 second(s) Post Record 1 second(s) Event And Notification Alarm-Out Beep e-Mail SNS select Cloud select Health Check - - yes - - Restart - - yes yes - Shutdown - - yes yes - Panic Record - - yes yes - Alarm-In no - no no no - Motion Detection no - no no no Video Loss no no no no - HDD Temperature Over 1 yes no no - HDD Bad Sectors Over - - yes yes - HDD Almost Full Over - - yes yes HDD Full - - yes yes - HDD Failure no yes yes yes ok cancel

2) How to playback

2-1) Playback through PC

: Log in Google Drive and select a file and playback

2-2) Playback through Mobile device

: Use 'SpecoPlayer'

Notice – Support iOS from '1.5.8_150316', Android from '3.2.2.7_150316'

How to use 'SNS'

• Notice : User have to make an Twitter account for DVR in order to follow the Twitter followers.
• DVR send event message to Twitter followers when EVENT Triggered.

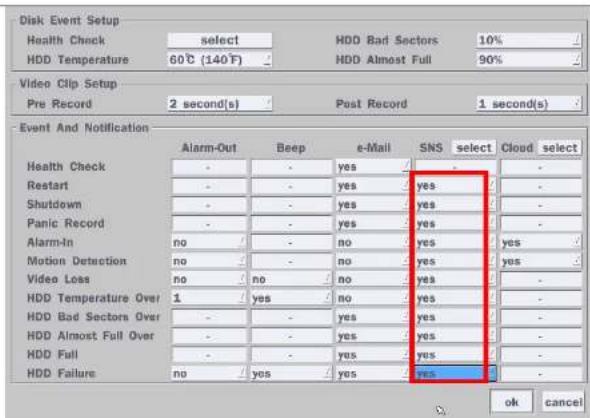

1) How to set (Setup - System - System Event Notification - SNS)

Disk Event Setup Health Check select HDD Bad Sectors 10% HDD Temperature 60°C (140°F) HDD Almost Full 90% Video Clip Setup Pre Record 2 second(s) Post Record 1 second(s) Event And Notification Alarm-Out Beep e-Mail SNS select Cloud select Health Check - - yes - - Restart - - yes yes - Shutdown - - yes yes - Panic Record - - yes yes - Alarm-In no - - no yes yes - Motion Detection no - - no yes yes - Video Loss no - no no yes - HDD Temperature Over 1 yes no yes - HDD Bad Sectors Over - - yes yes - HDD Almost Full Over - - yes yes - HDD Full - - yes yes - HDD Failure no yes yes yes ok cancel

1) Message receiving (Following)
2) Message receiving (Following)

2-1) Follow the DVR twitter account
2-2) Followers can see received messages

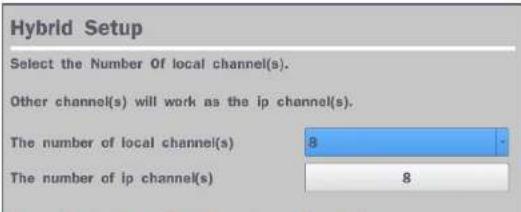

HYBRID SETUP

Hybrid Setup Select the Number Of local channel(s). Other channel(s) will work as the ip channel(s). The number of local channel(s) 8 The number of ip channel(s) 8

4-3. Setup - RECORD Mode

In the SETUP menu, select the RECORD tab. Then, the RECORD menu is displayed as pictured below.

Navigate through the menu items or change the settings using the mouse or the remote control.

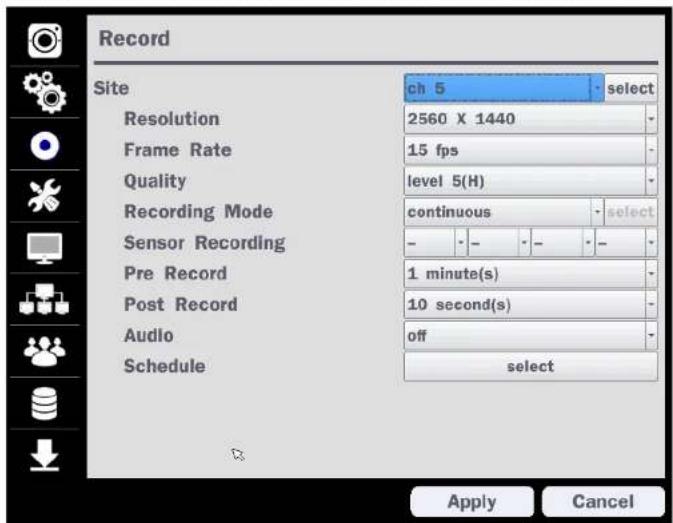

Record Site ch 5 select Resolution 2560 X 1440 Frame Rate 15 fps Quality level 5(H) Recording Mode continuous select Sensor Recording - - - - - - Pre Record 1 minute(s) Post Record 10 second(s) Audio off Schedule select Apply Cancel

Figure 4.3.1. RECORD Setup Screen
Table 4.3.1. Menu Items in RECORD Setup Screen
Menu Item Description

SITF

Select a channel for applying the following settings using the mouse or the remote

RESOLUTION	Select HD TVI or 960H for analog cameras using the mouse or the remote control.
FRAME RATE	Set the frame rate for the specified channel. The sum of the frame rate values from each channel cannot exceed the maximum frame rates for a specific recording resolution.
QUALITY	Select the recording quality for the selected channel. Options are:Level 1 (Low), Level 2, Level 3, Level 4, and Level 5 (High)
RECORDING MODE	Assign the recording mode for the selected channel. Options are: Continuous, Motion, Sensor, Schedule, Disable and Smart Recording (c + m : continuous & motion, c + s : continuous & sensor). When Motion Recording is selected, Continuous + Motion recording option can be used.
SENSOR RECORDING	Select the sensor setting for the selected channel.
PRE RECORD	Enable/disable pre-event recording. Pre-event recording is limited to 20 minutes.
POST EVENT RECORD	Set the post event recording time duration for the specified channel.(10~60 seconds)
AUDIO	Enable/disable audio recording for the specified channel.
SCHEDULE	To setup a recording schedule, select SCHEDULE in the RECORD menu. Navigate through the menu items or change the settings using the mouse or the remote control. Select CHANNEL > select NONE, CONTINUOUS, MOTION or SENSOR > Highlight area. To copy a schedule to a different channel, select the channel from

• NONE: Disable recording during selected timeframe (Highlighted in White)
  • CONTINUOUS: CONTINUOUS recording (Highlighted in Green)
  • MOTION: MOTION recording (Highlighted in Yellow)
  • SENSOR: SENSOR recording (Highlighted in Red)
  • CLEAR: Clears the schedule

4-4. Setup - DEVICE Mode

In the SETUP menu, select the DEVICE tab. Then, the device menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control.

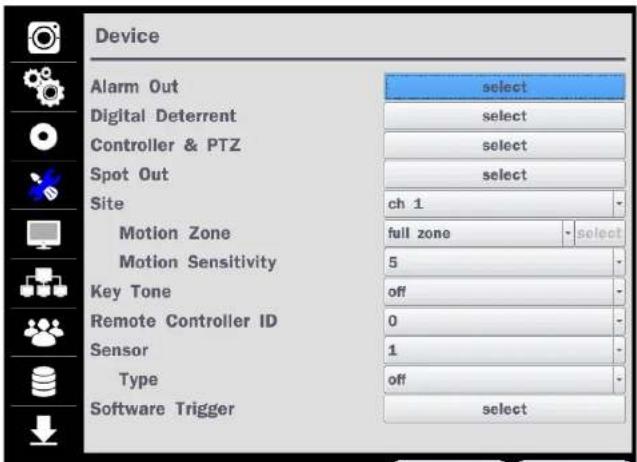

Device Alarm Out select Digital Deterrent select Controller & PTZ select Spot Out select Site ch 1 - Motion Zone full zone - select Motion Sensitivity 5 - Key Tone off - Remote Controller ID 0 - Sensor 1 - Type off - Software Trigger select

SITE	Select specified channel for motion zone setup.
MOTION ZONE	Select either Full Zone or Partial Zone for motion detection.
MOTION SENSITIVITY	Set the motion sensitivity for the selected channel.Control the motion sensitivity from 1 to 9.(9 – Highest sensitivity, 1 – Lowest sensitivity)
KEY TONE	Enable/disable key tone from front panel usage.
REMOTE CONTROL ID	Set the remote control ID.1. Select ID.2. Input the remote control ID number.3. An icon will indicate on the Live Screen if the remote control ID is synchronized.The options are from 0 to 99
SENSOR	Select the type of each sensor.Option is Off, Normal Open or Normal Close.
SOFTWARE TRIGGER	Remote trigger channels. User can set the channels that want to make a sensor recording through remotely with Software record mode.

4-4-1. Digital Deterrent

Trigger audio message via motion detection or sensor

Select the play button to hear message after export.

Channel ch 1 From 5 / 16 / 2016 / 0 / 58 / 22 / To 05/16/2016 00:58:32 Duration 10 second(s) File Name sound_1 start close

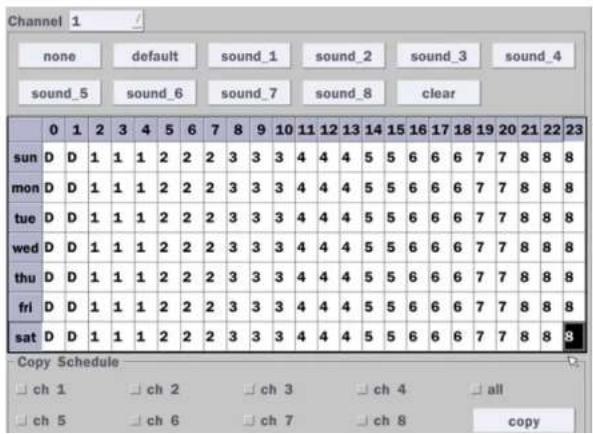

SCHEDULE

Schedule the sound file considering the expected situation.

Channel 1 none default sound_1 sound_2 sound_3 sound_4 sound_5 sound_6 sound_7 sound_8 clear 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 sun D D 1 1 1 2 2 2 3 3 3 4 4 4 5 5 6 6 6 7 7 8 8 8 mon D D 1 1 1 2 2 2 3 3 3 4 4 4 5 5 6 6 6 7 7 8 8 8 tue D D 1 1 1 2 2 2 3 3 3 4 4 4 5 5 6 6 6 7 7 8 8 8 wed D D 1 1 1 2 2 2 3 3 3 4 4 4 5 5 6 6 6 7 7 8 8 8 thu D D 1 1 1 2 2 2 3 3 3 4 4 4 5 5 6 6 6 7 7 8 8 8 fri D D 1 1 1 2 2 2 3sat D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D Copy Schedule ch 1 ch ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch Ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch ch CH copy

4-4-2. Keyboard Controller & PTZ Setup

To control the PTZ functions of the camera, connect the PTZ controller to the RS-485 port on the back of the chassis with CAT5 (or equivalent) cable.

① Connect the RS-485 cables of PTZ camera to the RS-485 port on the rear panel.

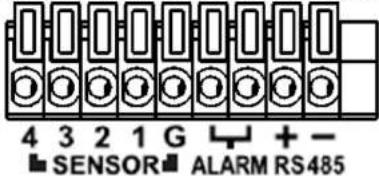

4 3 2 1 G + - ■ SENSOR ■ ALARM RS485

Figure 4.4.2.1. Device Mode Setup Screen

② Open the PTZ sub menu by selecting the submenu button.

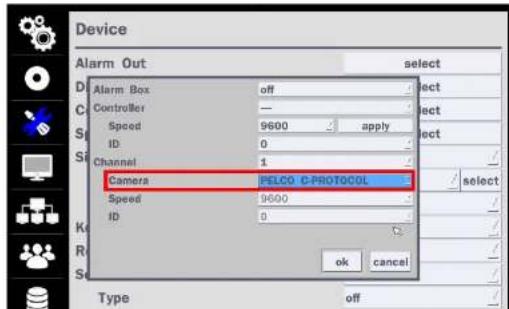

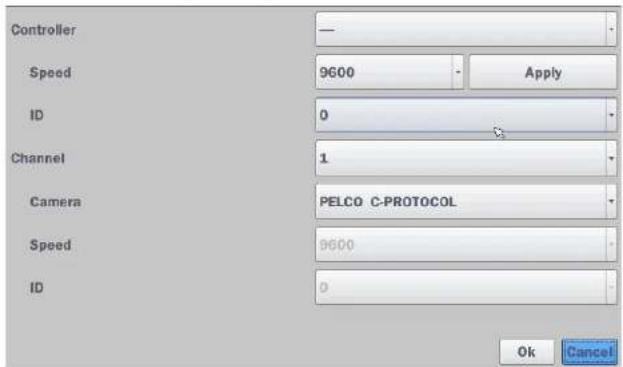

Controller Speed 9600 - Apply ID 0 Channel 1 Camera PELCO C-PROTOCOL Speed 9600 ID 0 Ok Cancel

Controller Speed ID Channel Camera Speed ID VC PROTOCOL WTX-1200A KB-100 WTX-1300 TB-CN3R1 0 ok cancel

Figure 4.4.2.3 Controller Selection Screen

◆Notice: DxxHU series can use UTC feature.

: UTC(Up The Coax) allows for control of the camera OSD menu via the coax cable. User does not need extra connection via RS-485 to control the camera OSD menu - How to set (Setup > Device > PTZ & Controller > PELCO C-PROTOCOL)

Device Alarm Out select Alarm Box off Controller — Speed 9600 apply ID 0 Channel 1 Camera PELCO C-PROTOCOL Speed 9600 ID 0 OK Cancel Type off

Table 4.4.3. Menu Item in SPOT-OUT Setup Screen

Item Description
SPOT ON EVENT	Enable/disable channel change if an event occurs on a channel.
SPOT EVENT	Set the dwell time for the display of the event activated channel.
DWELL TIME	(3-10sec)
SEQUENCE	Enable/disable sequential display of spot channel in full screen.If select ON, the selected channel will be displayed on the monitor periodically.
SEQUENCE	Set the dwell time for the spot channel display. (3-10sec)
DWELL TIME
SPOT CHANNEL	Select a channel for spot monitoring using the mouse or the remote control and press OK button.

4-4-4. Motion Zone Setup

Select MOTION ZONE using the mouse or the remote control and select either PARTIAL ZONE or FULL ZONE using the mouse control. The default value is FULL ZONE.

If FULL ZONE is selected, the motion zone grid screen is not displayed. Only set the level of sensitivity for MOTION SENSITIVITY.

FULL ZONE: The motion sensor is active on the whole screen.

PARTIAL ZONE: The motion sensor is active in the set detection frame.

Select the motion detection position using the mouse or the remote control. Then left click on the mouse or left click and drag the mouse pointer to select or deselect the area. Highlighted area indicates the partial motion detection zone. Press the ESC button or right click on the mouse to return to the previous menu.

Interior architectural view of a modern building with diagonal lighting and window grilles (no visible text or symbols)

4-5. Setup - DISPLAY Mode

In the SETUP menu, select the DISPLAY tab. Then, the DISPLAY menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control. To return to the previous setup menu screen, press the Cancel button.

Display OSD select OSD Contrast 100 Main Monitor Sequence on select Sequence-Dwell Time 3 second(s) Site ch 1 Name CH1 Covert off Color Tuning select Video Output (HDMI) 3840 x 2160 Sub Monitor Output cvbs Apply Cancel

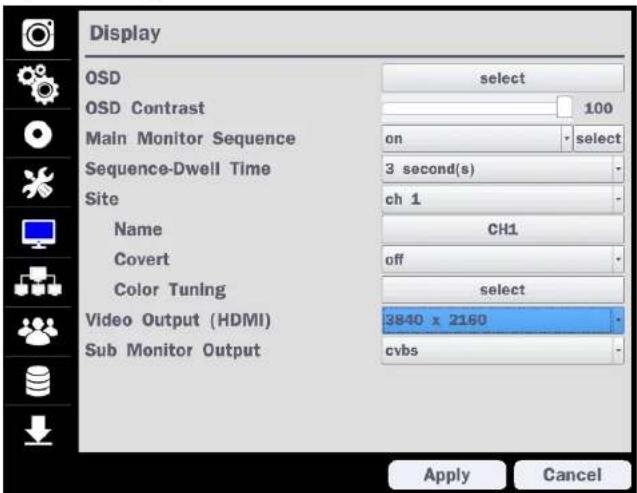

Figure 4.5. DISPLAY Setup Screen
Table 4.5. Menu Items in DISPLAY Setup Screen

Item Description

Sequence Channel 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 ok cancel

SEQUENCE DWELL TIME	Set the dwell time of each, single channel display in sequential display mode (3~60seconds)
SITE	Select a channel to apply the name and covert settings change using the mouse or the remote control.Select a channel to apply the following settings using the mouse.
NAME	Set the channel name. Press the right square button and set the channel name and select OK using the mouse.The name can be made up to 36 characters.
COVERT	Enable/disable display of the specified video channel in live display.
COLOR TUNING

4-6. Setup - NETWORK Mode

Select the NETWORK tab. Then, the network menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control.

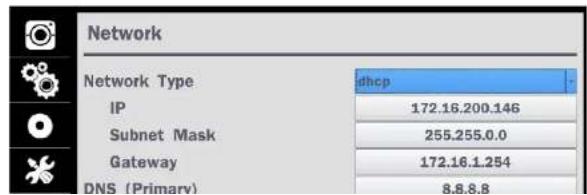

Network Network Type IP Subnet Mask Gateway DNS (Primary) DNS (Secondary) DDNS Network Video Port Network Audio Port Web Port Network Stream dhcp 172.16.200.146 255.255.0.0 172.16.1.254 8.8.8.8 168.126.63.1 select 5445 5446 80 443 select Apply Cancel

Figure 4.6. NETWORK Setup Screen
Table 4.6. Menu Items in NETWORK Setup Screen

Item Description

NETWORK TYPE DHCP·DVR will automatically retrieve an IP address

WEB PORT/	Enter the port number for connection using web.
HTTPS PORT	(Default web port : 80, Default https port : 443)
NETWORK	Sets the camera display settings for network streaming.
STREAM

4-6-1. Network Types

4-6-1-1. DHCP

An IP address is automatically assigned by the DHCP server, which automatically assigns the IP address and other parameters to new devices.

4-6-1-2. STATIC

IP address, Subnet Mask, Gateway, and DNS are manually assigned by the user.

• IP ADDRESS: The fixed IP address of the DVR unit.
• SUBNET MASK: The subnet mask for the LAN.
  • GATEWAY: The IP address of the Gateway.
  • DNS (PRIMARY) The primary address of Domain Name Server
  • DNS (SECINDARY): The secondary address of Domain Name Server

NOTE

Unless DNS is properly set, the DDNS and the e-mail features will not work.

4-6-2. DDNS

DDNS (Dynamic Domain Name System) allows a DNS name to be constantly synchronized with a dynamic IP address. It allows using a dynamic IP address to be associated with a static domain name.

Once the setting is completed, the DDNS address will be:

http://hostname.ddns.specoddns.net

Table 4.6.2. DDNS

Item Description
ENABLE DDNS	Turn DDNS on/off
HOST NAME	This item allows the user to setup a domain name manually, using virtual keyboard displays as shown.
SUBMIT/UPDATE	When manual host name input is done, move the cursor to this item and select ON to submit the settings.
ezDDNS	Enable/disable ezDDNS to register the host name automatically.

4-6-3. Network Port and Web Port

Connecting DVR/DVRs through a common IP sharing device, each DVR must be assigned a unique TCP port number for access from outside the LAN. This port number is displayed on NETWORK>NETWORK PORT Setup MENU.

NOTE:

If you access the DVR only within the same LAN, the TCP port number does not need to be changed.

Network access beyond a router

To access DVR beyond a router (firewall), you must open the proper TCP ports for live/playback streaming, for commands, for remote backup, and for audio streaming. If these ports are not opened properly, can't access the DVR beyond a router.

you

For live/playback streaming, for commands, for remote backup: Open the port number on NETWORK>NETWORK PORT menu. The default port number is 5445.
For bi-directional audio: Open the port number on NETWORK AUDIO PORT. The default port number is [NETWORK PORT number + 1].
- For web viewer downloading and remote firmware upgrading: Open the port number on

	Net Resolution	Frame Rate	Net Quality
All	640x360	15 fps	level 5(H)
1	640x360	15 fps	level 5(H)
2	640x360		level 5(H)
3	640x360		level 5(H)
4	640x360		level 5(H)
5	640x360		level 5(H)
6	640x360		level 5(H)
7	640x360		level 5(H)
8	640x360		level 5(H)
9	640x360		level 5(H)
10	640x360		level 5(H)
11	640x360		level 5(H)
12	640x360		level 5(H)
13	640x360		level 5(H)
14	640x360		level 5(H)
15	640x360		level 5(H)
16	640x360		level 5(H)
			okcancel

Figure 4.6.4. NETWORK Setup Screen – Network Stream

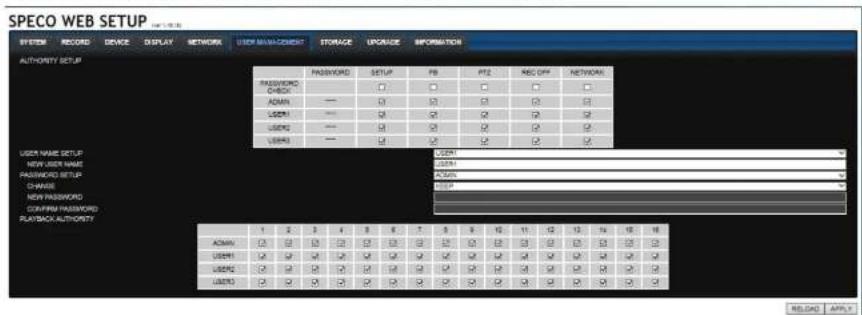

4-7. Setup - USER MANAGEMENT Mode

In the SETUP menu, select the USER MANAGEMENT tab. Then, the USER MANAGEMENT menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control.

Table 4.7. Menu Items in USER MANAGEMENT Setup Screen

Item Description

AUTHORITY

SETUP

Only the Admin will have access to the menu.

PASSWORD CHECK: Select the Checkbox to enable the functions or leave the Checkbox blank to disable the functions.

- SETUP: Enable/Disable of access to Setup

- PB: Enable/Disable of access to Playback

- PTZ: Enable/Disable of access to PTZ Control

• REC OFF: Enable/Disable of manual Record

• NETWORK: Enable/Disable of access to Network

Selected Checkbox: The DVR will ask for a password when the given function is selected for all users.
Blank Checkbox: The DVR will not ask for a password when the given function is selected for all users.

	Password	Setup	PB	PTZ	Rec Off	Network
Password Check		✘	✘	✘	✘	✘
ADMIN		✘	✘	✘	✘	✘
USER1	1111	✘	✘	✘	✘	✘
USER2	1111	✘	✘	✘	✘	✘
USER3	1111	✘	✘	✘	✘	✘
USER4	1111	✘	✘	✘	✘	✘
USERS	1111	✘	✘	✘	✘	✘
USER6	1111	✘	✘	✘	✘	✘
USER7	1111	✘	✘	✘	✘	✘
USER8	1111	✘	✘	✘	✘	✘
USER9	1111	✘	✘	✘	✘	✘

"PASSWORD CHANGED" is displayed.

It is highly recommended to assign a new password to protect the system.

AUTHORITY OF

Set authority level of playback on each user.

PLAYBACK

Checked box: authorized to playback. Blank check box: no authority.

	1	2	3	4	5	6	7	8
ADMIN	✘	✘	✘	✘	✘	✘	✘	✘
USER1		✘	✘	✘	✘	✘	✘	✘
USER2	✘	✘	✘	✘	✘	✘	✘	✘
USER3	✘	✘	✘	✘	✘	✘	✘	✘
USER4	✘	✘	✘	✘	✘	✘	✘	✘
USERS	✘	✘	✘	✘	✘	✘	✘	✘
USER6	✘	✘	✘	✘	✘	✘	✘	✘
USER7	✘	✘	✘	✘	✘	✘	✘	✘
USER8	✘	✘	✘	✘	✘	✘	✘	✘
USER9	✘	✘	✘	✘	✘	✘	✘	✘
							okcancel

REMOTE

Disconnect the remote playback after the specific time (Disable, 5min, 10min, 15 min, 30min, 60min.

PLAYBACK

TIMEOUT

IMPORT

Upload https certificate through USB

CERTIFICATATE

FROM USB

ADVANCED

Send IP address and ports information to the control center

SETUP

DEBUG PORT

Open or Close the ports for remote checking

Network

Shows the current network connection status (User, IP Address, Date/Time).

Connection

And do disconnect the user's network connection to click 'disconnect' button

Network User Limits

User can select network access user number (4 users of 12 users). DVR system will be restarted if user change this network user numb

Network User Limits Network User Limit 4 users Selecting '4 users' enables Multi-Streaming. If you change the setting, the system will restart. apply cancel

4-8. Setup - STORAGE Mode

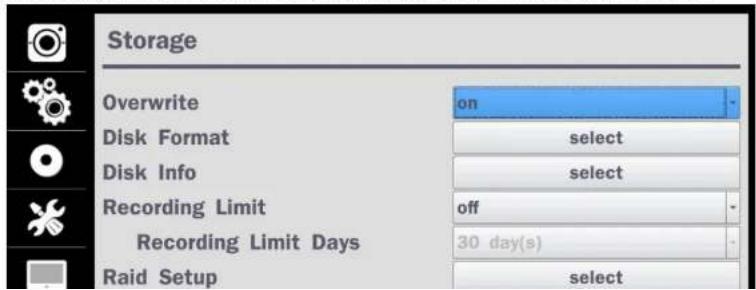

In the SETUP menu, select the STORAGE tab. Then, the STORAGE menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control.

Storage Overwrite on Disk Format select Disk Info select Recording Limit off Recording Limit Days 30 day(s) Raid Setup select

Table 4.8. Menu Items in STORAGE Setup Screen

Item Description
OVERWRITE	When enabled, the DVR will continue recording and overwrite the oldest existing recorded data once the hard drive is full. When disabled, recording will stop once the hard drive is full.
DISK FORMAT	You will have an option of YES or NO for formatting the Hard Drive. After formatting HDD, the DVR will reboot.
	Caution: It is recommended to archive any data that you may need in the future before formatting the hard drive.
DISK INFO	Hard drive information. Displays the following information;
	HDD Size : 1740 GB (Free : 722 GB)HDD Last Time : 05/25/2016 17:22:00
		Model Name	Temperature Health(Good/Normal/Bad)
	HDD 1	WDC WD20PURX-64P6ZY0	39 °C (102 °F) Good
	HDD 2

	Model Name	Temperature	Health(Good/Normal/Bad)
HDD 1	WDC WD20PURX-64P6ZY0	39 °C (102 °F)	Good
HDD 2

4-9. Setup - CONFIG Mode

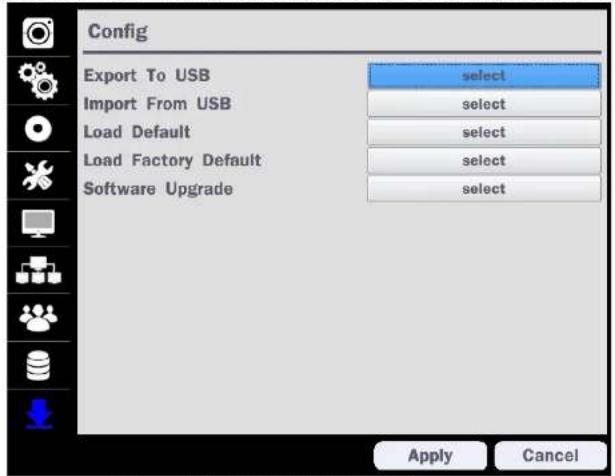

In the SETUP menu, select the CONFIG tab. Then, the configuration menu is displayed as pictured below.

Navigate through the menu items or change the settings using the mouse or the remote control.

Config Export To USB select Import From USB select Load Default select Load Factory Default select Software Upgrade select Apply Cancel

Figure 4.9.1. CONFIGURATION Setup Screen

Table 4.9.1. CONFIGURATION Setup

Item Description
EXPORT TO USB	User can save the current configuration (Setting values) of the DVR to the USB flash drive. Plug in the USB flash on the front panel and press the button to start the saving process.

4-9-1. Firmware Upgrade

1. Create a new folder named "upgrade" in the USB flash drive root directory.
2. Create sub-folder for each model under "upgrade" folder and copy each firmware.

- For D16HUModels:

• Folder name - "d16hu
• File name - "main_D16HUspeco_.*.*_201****".bin

- For D8HU Models:

Folder name - "d8hu

- File name - "main_D8HUspeco_.*.*_201****".bin

1. Plug in the USB flash drive on the rear panel.
2. Navigate to CONFIG menu of SETUP.
3. Select SOFTWARE UPGRADE.

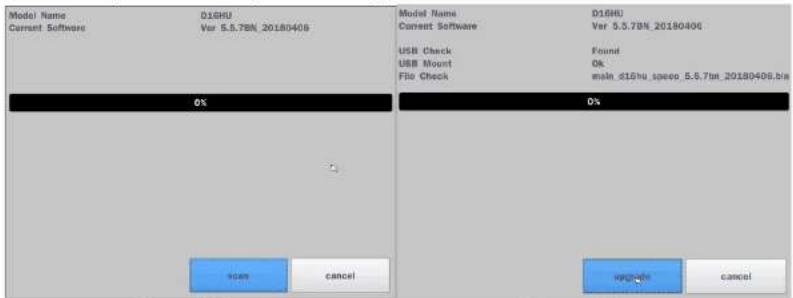

4. Follow the procedure from Figure 4.9.2 to Figure 4.9.4.

Model Name Current Software D16HU Var 5.5.7bn_20180406 Model Name Current Software D16HU Var 5.5.7bn_20180406 USB Check Found USB Mount Ok File Check main_d16hu_speeo_5.5.7bn_20180406.bra 0% 0% scan cancel upgrade cancel

Figure 4.9.2
Figure 4.9.3

5. Live, Search and Playback

5-1. Live View

In the Live screen, video inputs from the cameras are displayed as they are configured in the Display Setup screen. When the mouse is right clicked, and the quick operation window will be displayed as below.

Search Setup Display Snapshot Super EZ Copy Enable Manual Record Instant Playback Add Menu EZ Setup Audio Mode Camera PTZ Enable Main Monitor Sequence Disable Alert Out Manual Digital Deterrent Site Information System Information Expert Help System Lock System Shutdown

Figure 5.1.1. Live Screen and Quick Operation Window

On the bottom of the screen, various On-Screen Display (OSD) symbols, which indicate the status of the DVR, are described in Table 5.1.1.

2009/04/14 17:23:40

Indicates that sequencing mode is enabled.

Displays the current date and time.

RC: ALL Remote control ID display. If a remote ID is not set, the message "ALL" is displayed.

15% When Overwrite is not enabled, this displays the percent of the hard disk usage from 0-99%.

When Overwrite is enabled, the Bar will indicate with Overwrite

Continuous recording in progress.

Manual recording in progress. To set the Manual recording mode, press the Record button on the front panel.

Motion alarm recording in progress.

Sensor recording in progress.

Table 5.1.2. Menu Items in Quick Operation Window

Icon Description
Search Select this option to enter the Search menu.
Setup Select this option to enter the Setup menu.
Display	Display layout. Select between different multi-view display formats.D8HU: 1x1, 2x2, 3x3; D16HU: 1x1, 2x2, 3x3, 4x4
Aspect Ratio Select 'Auto Stretch' or 'Pass Through'
Snapshot	Click this option to create a snapshot of selected channel image.

Digital Deterrent "Right now it just says "use".

Manual Digital Deterrent Select Digital Deterrent Source Source Name Default ok close

Site Information

Press the button to view the record setting of a selected channel.

System Information

Press the button to view the system information.

Model Name D16HU Software Version Ver 5.5.7BN_20180406 Storage Size 435 GB Network Type Dhcp IP Address 172.16.200.160 MAC Address 00:02:69:FF:F7:20 DDNS Status DDNS Off Unit Name HYBRID Remote Controller ID 0 ok

Export Help Displays window with instructions for exporting video.

System Lock Locks the DVR from user access.

System Shutdown Click this button to shutdown system.

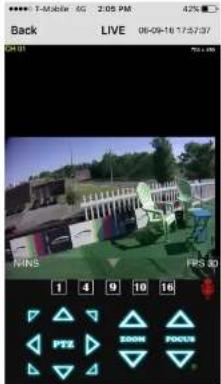

5-1-1. PTZ Control

Table 5.1.3. Menu Items in PTZ Control Window

	AUTOSCAN	Press the right key(▶) to start auto scan. Press the left key (◀) to stop auto scan.
	PRESET	Select PRESET, then press the left key(◀). A number input window will appear. Set the number (3digits) using the number key, then press the SEL to confirm the preset number for the current position. Press the right key (▶) and enter the number (3digits) to go to the preset position.
	TOUR	Select TOU and press the right (▶) key. A number input window will open. Select a number (1digit) using a number key, then press SEL to start the tour. Press the left (◀) key to stop the tour.Preset the number of the tour group in the OSD menu.
	NUMBER	For the TOUR and PRESET menu.
		Press ESC to return to the main menu

5-2. Digital Zoom in Live and Playback Screen

HU series supports Digital Zoom feature during live and playback mode.

1. Double click the target channel.

CH2 CH6 CH6

5-3. Search Screen

To enter the search screen menu, select Search menu on the screen using the mouse or press Search icon on live screen.

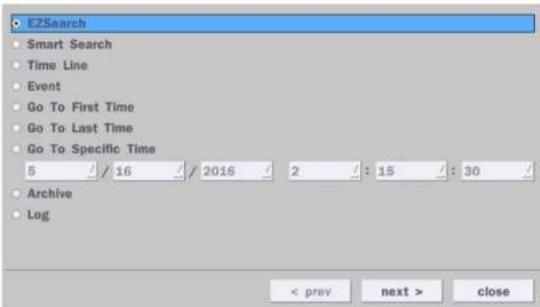

EZSearch Smart Search Time Line Event Go To First Time Go To Last Time Go To Specific Time 5 / 16 / 2016 2 : 15 : 30 Archive Log < prev next > close

Figure 5.3.1. Search Screen
There are 7 options in the Search Menu, they are: EZSearch, Smart Search, Time Line (Calendar), Event, Go To First Time, Go To Last Time, Go To Specific Time, Archive list, and Log list on the screen.

5-3-1. EZSearch

The EZSearch window is used to find stored video with ease using the thumb nail playback screen.

Sun	Mon	Tue	Wed	Thu	Fri	Sat
	1	2	3	4	5	6
7	8	9	10	11	12	13
14	15	16	17	18	19	20
21	22	23	24	25	26	27

CH2 NO DATA CH3 CH4 NO DATA NO DATA

Figure 5.3.4. Second Thumbnail Screen

When the EZSearch menu is selected, a calendar is displayed that highlights dates with recorded data.

1. Select a specific date on the calendar.
2. Select a channel from Channel Selection Screen.

Then the Thumbnail Search screen displays 24 thumbnails, one for each hour of the day.

1. Second step shows every 2 minutes and 30 seconds screen.
2. Playback the selected image.

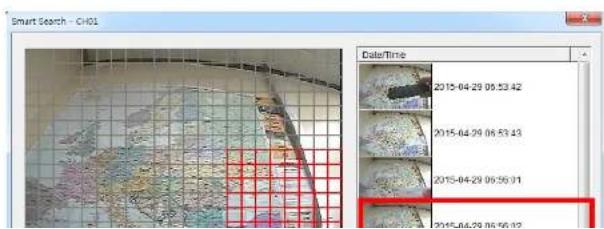

5-3-2. Smart Search

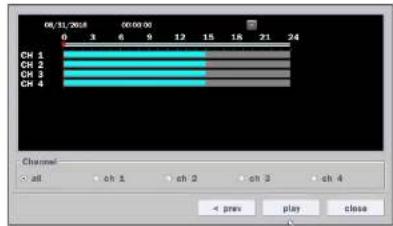

Smart Search is search the selected area quickly. User can search need to know area.

Sun	Mon	Tue	Wed	Thu	Fri	Sat
	1	2	3	4	5	6
7	8	9	10	11	12	13
14	15	16	17	18	19	20
21	22	23	24	25	26	27

08/31/2016 09:48:00 Start 8 31 2018 9 : 48 : 0 End 8 31 2016 14 : 16 : 0 Zone full select Sensitivity: 5 Interval 1 sec export e-mail No. / Date restart search close

1) Select the start time and End time that user want to search
2) Set Zone as 'Partial' or 'Full'
3) Partial zone can select the area that user want.

World map displayed in a grid with a date stamp overlay on the right side.

08/31/2016 10:07:06 Start 8 / 31 / 2016 9 : 48 : 0 / End 8 / 31 / 2016 14 : 16 : 0 / Zone full select Sensitivity 5 Interval 1 sec export e-mail

No.	Date
111	08/31/2016 10:07:01
112	08/31/2016 10:07:02
113	08/31/2016 10:07:03
114	08/31/2016 10:07:04
115	08/31/2016 10:07:06
116	08/31/2016 10:07:07
117	08/31/2016 10:07:08
118	08/31/2016 10:07:09
119	08/31/2016 10:07:10
120	08/31/2016 10:07:11
121	08/31/2016 10:07:13
122	08/31/2016 10:07:14
123	08/31/2016 10:07:15
124	08/31/2016 10:07:16
125	08/31/2016 10:07:17
126	08/31/2016 10:07:22
127	08/31/2016 10:07:23
128	08/31/2016 10:07:24
129	08/31/2016 10:07:25
130	08/31/2016 10:07:26
131	08/31/2016 10:07:27
132	08/31/2016 1:07:28
133	08/31/2016 10:07:29
134	08/31/2016 10:07:31

7) Click the list that user want to playback.

World map displayed in a room with Chinese text labels and a small inset image showing a list of items.

No.	Date
111	06/31/2016 10:07:01
112	06/31/2016 10:07:02
113	06/31/2016 10:07:03
114	06/31/2016 10:07:04
115	06/31/2016 10:07:06
116	06/31/2016 10:07:07
117	06/31/2016 10:07:08
118	06/31/2016 10:07:09
119	06/31/2016 10:07:10
120	06/31/2016 10:07:11
121	06/31/2016 10:07:13
122	06/31/2016 10:07:14
123	06/31/2016 10:07:15
124	06/31/2016 10:07:16
125	06/31/2016 10:07:17
126	06/31/2016 10:07:22
127	06/31/2016 10:07:23

Sun 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 < prev next > close

Figure 5.3.7. Calendar Screen

08/11/2018 00:00:00 21 24 CH 1 CH 2 CH 3 CH 4 Channel • alt • ch 1 • ch 2 • ch 3 • ch 4 < prev play close

Figure 5.3.8. Time-Line Search Screen

When the Timeline menu is selected, the user can see a calendar, which displays recorded dates with highlights. Select a specific date and time. Click and drag the red time indicator bar to the desired hour. User can select a specific minutes using a button in the above red box. Press the "play" button after selecting the specific time. Press the "prev" to return to the Search window.

5-3-4. Event Search

The Event Search window is used to find stored video.

Channel |CH1|CH2|CH3|CH4 Event |Motion|Sensor|Manual|Continuous|Software select Channel Log Data CH2 Continuous 08/31/2016 00:00:01 CH3 Continuous 08/31/2016 00:00:01 CH4 Continuous 08/31/2016 00:00:01 CH2 Continuous 08/31/2016 01:00:01 CH3 Continuous 08/31/2016 01:00:01 CH4 Continuous 08/31/2016 01:00:01 CH2 Continuous 08/31/2016 02:00:01

Channel All CH1 CH2 CH3 CH4 Event All Motion Sensor Manual Continuous Software ok cancel

Figure 5.3.10. Event Search Screen

5-3-5. Go To First Time

You can access the oldest recorded data on the DVR hard drive by selecting Go To First Time on the Search window. Press the "prev" to return to the Search window.

5-3-6. Go To Last Time

You can access the latest recorded data on the DVR hard drive by selecting Go To Last Time on the Search window. Press the "prev" to return to the Search window.

5-3-7. Go To Specific Time

User can search for video data from a specific instance by setting the date and time in the GO SPECIFIC TIME menu. Use the mouse or the remote control to change the date and time value and press the PLAY button after setting. If there is no video data in the set date and time, No Data Exist message displays.

5-3-8. Archive List

The ARCHIVE Search window is used to find previously stored video or images.

5-3-9. Log List

You can access the LOG list search screen by selecting LOG on the SEARCH window.

Log Date NTP : Keep(earlier than system time) 08/31/2016 04:00:00 System Start : [25] Software Upgrade 08/31/2016 13:58:33 Video In : CH1 08/31/2016 13:58:34 Video In : CH2 08/31/2016 13:58:34 Video In : CH3 08/31/2016 13:58:34 Video In : CH4 08/31/2016 13:58:34 NTP : Keep(earlier than system time) 08/31/2016 13:59:00 7 log(s) found backup < prev next > close

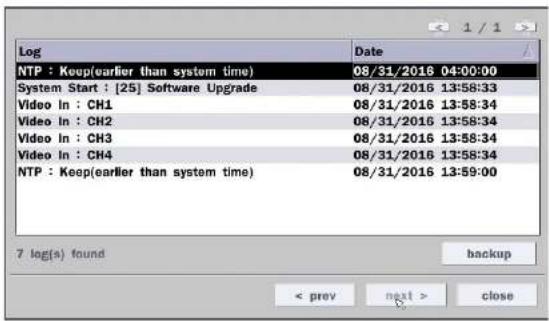

Figure 5.3.12. Log List Screen

When the Log menu is selected, the user can see a calendar, which has a log data. Select a specific date and press NEXT button, and then the log data will be displayed. Press the SAVE button to save the data and then the data is saved as a text file format.

5-4. Play Mode

During playback of a recorded event, the mode changes from SEARCH to PLAY. While in PLAY mode, you may return to the SEARCH screen by pressing the X button on the status bar.

Interior ceiling view with recessed lighting and ventilation grilles (no text or symbols visible)

Jump/Step backward. The playback position moves 60 seconds backward.

Press to play or pause recorded video.

Jump/Step forward. Playback position moves 60 seconds forward.

• 2x, 4x, 8x, 16x for D8HU

- 2x, 4x, 8x for D16HU

Single Channel forward playback speed 1x, 2x, 4x, 8x, 16x, 32x, 64x

Slow Mode play. Forward playback speed x1/4, x1/2

Press to back up the video. User can select archive file formats (Still image, NSF, AVI and EXE).

EZCopy button. User can copy video data as NSF, AVI and EXE format.

Return to the previous menu screen, search window, or exit from the Menu.

6. Export and Back Up

6-1. Still Image Backup onto USB Flash Drive

Still images can be captured and archived onto a USB flash drive or an USB external hard drive in live mode or while playing back recorded video.

1. Select a specific channel, which wants to back up on live screen.
2. When you press "Snapshot" button on Quick operation window, the media selection window screen will display.

Search Setup Display Aspect Ratio Snapshot Super EZ Copy Enable Manual Record Instant Playback Advanced Menu Please Select Media Type USB Drive < prey start close

1. Once you press "start" button, the system will capture a still image and archive onto a USB flash drive.

NOTICE

USB Flash Drive must be in FAT32 file format.

6-2. Video Backup onto USB Flash Drive during playback

Video can be captured and archived onto the USB flash drive or a hard drive while playing back the

recorded video. In playback mode, press the "Export" button to launch the backup function.

1. When you press "Export" button on the selected channel or all channels, the DVR will ask whether to archive a Still Image, NSF, AVI or EXE and select the proper media type.

Please Select Archive Media Type • STILL Image • NSF - Proprietary Format • AVI - Separated Subtitle, Mac Compatible • EXE - Single EXE File Format calculation < prev next > close

Please Select Media Type • USB Drive calculation < prev start close

1. Select USB Drive (Flash Drive) to back up less than an hour. Select USB HDD (Large Backup) to back up from 1 hour to 24 hours. (Only for NSF type)

Please Select Media Type • USB Drive • USB HDD (Large Backup) calculation < prev next > close

1. Once you select the channel and duration, the system will start to archive the data to the USB drive.

Channel all ch 1 ch 2 ch 3 ch 4

1. The following shows the image to complete the backup. Select lose to return to the previous screen.

100% COMPLETE calculation < prev start close

6-3. EZCopy: Video Backup onto USB Flash Drive during playback

Using EZCopy feature, Video can be easily archived onto the USB flash drive or a hard drive.

In playback mode, press the "EZ Copy" button to launch the backup function.

1. Press "EZCopy" button on the selected channel or all channels.

1/4 EZ

1. Then, EZCopy START time will display.

I N N 2014/03/04 03:33

1. EZCopy window will display. The DVR will ask whether to archive a NSF, AVI or EXE.

EZCopy 2016/08/31 14:24:30 ~ 2016/08/31 14:54:41 Select File Format • NSF - Proprietary Format • AVI - Separated Subtitle, Mac Compatible • EXE - Single EXE File Format calculation < prev next > close

1. After backup format is selected, also select media type and channel(s) to archive the data to the media.

6-4. Transferring Still Images or Video from the ARCHIVE List

The stored data in the hard drive can be found in the ARCHIVE list in the SEARCH window.

User can back up still images or video into the storage device from the ARCHIVE list.

1. Select the date to begin searching and navigate through the days using the mouse or the remote control.
2. Once you have selected the date, press the NEXT button to open the list of stored data.
3. Use the mouse or the remote control to scroll through the archive list.
4. Select a list of stored events in the archive list.
5. Once the desired event has been selected, press the DISPLAY button to view the still image or the first frame of the selected video.

6-5. Playback of Backup Video

6-5-1. AVI Format

AVI format: AVI format video can be played back by Window Media Player™ or other media player that is compatible with AVI format video.

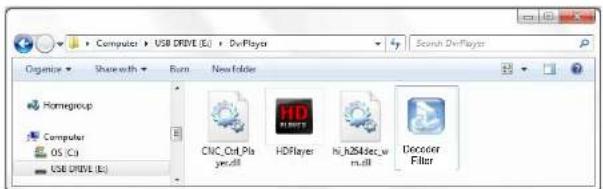

1. Please install the Decoder Filter that the DVR copies "DvrPlayer" folder on USB flash drive with the video. Decoder Filter is exported to the "/DvrPlayer" folder of the USB drive.

Computer > USB DRIVE (E) > DevPlayer Organize > Share with > Run > New Folder Homegroup Computer OS (C:) USB DRIVE (E:) CIVC_Oct Player.dll HDPlayer hi_h264sec_wm.dll Decoer Filter

1. Otherwise, the video and time stamp over video can't be properly played back and won't be displayed on Window Media Player™.

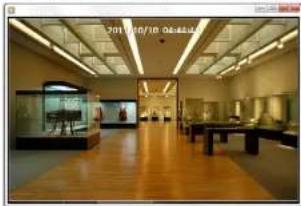

Interior view of a museum or exhibition hall with wooden flooring, display cases, and ceiling lighting (no visible text or signage)

Timestamp On AVI. The subtitle is embedded to the video clip file.

The subtitle is embedded to the AVI file. To display a subtitle, user should install a special filter called "Decoder Filter".

6-5-2. NSF Format

7. Network Access Using the Multi-Sites Network Viewer

7-1. Overview

The SpecoTech Multi Client is a multiple site monitoring client software with video, audio, and alarm signals from the DVRs over the network. The SpecoTech Multi Client does not limit the number of DVR units to register.

The program displays up to 16 DVRs and supports dual monitors.

On the program, user may control PTZ cameras on the DVRs. By attaching a microphone and speaker system to devices on site, the user may make bi-directional audio communication over the network.

7-2. PC Requirements

Minimum PC Requirements

CPU Intel Core	3
	1.8Ghz
Memory 2GB DDR2
VGA 512MB
Resolution 1280x720
Disk Space 1GB
OS	Windows 2000, XP Professional, XP Home, Vista, 7 (NOTE: Not all versions of Vista and 7 are supported)
Network	10/100Base T
Others	Direct X 9.0c or Higher

Recommended PC Requirements

CPU Intel Core i5

2Ghz or higher.

7-3. Installation of the Program

1. Insert the provided CD in the CD drive and double-click "SpecoTech Multi Client (XXXX).exe"

1. Select a destination folder and click "Next".

InstallShield Wizard Choose Destination Location Select folder where Setup will install files. Setup will install SpecoTech Multi Client in the following folders. To install to this folder, click Next. To install to a different folder, click Browse and select another folder. Destination Folder C:\...\Speco Technologies\SpecoTech Multi Client Browse... < Back Next > Cancel

1. Select the program folder and click "Next".

InstallShield Wizard Select Program Folder Please select a program folder. Setup will add program icons to the Program Folder listed below. You may type a new folder name, or select one from the existing folders list. Click Next to continue. Program Folders: Created each Multi-Card Existing Folders:

7-4. Live Window

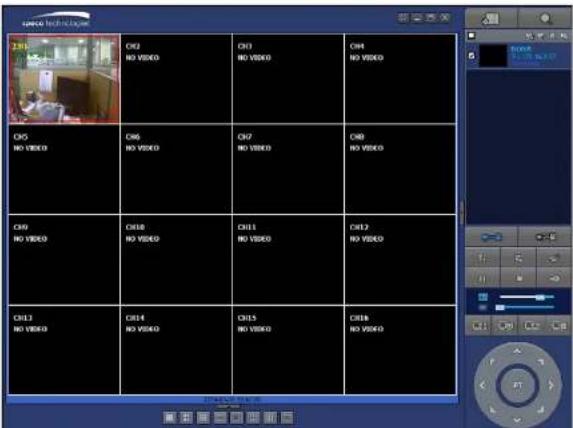

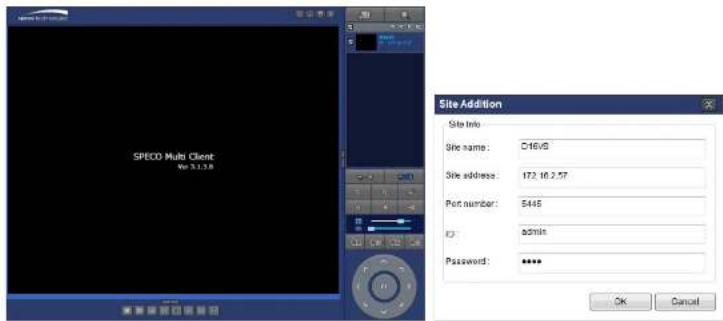

When installation is completed, double click the "SpecoTech Multi Client" icon on your desktop to start the program.

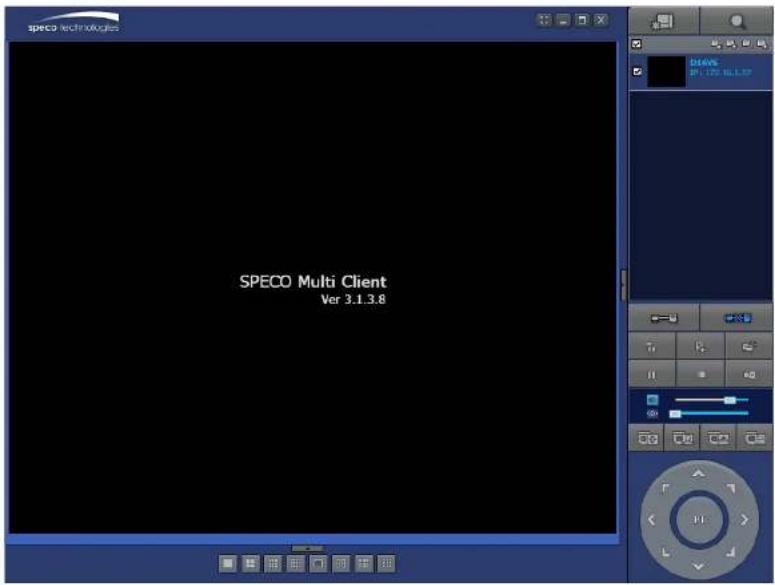

7-4-1. Main User Interface

SPECO Multi Client Ver 3.1.3.8

7-4-2. Control Buttons

Button Description
	LOCAL PLAYBACK	Click this icon to run a playback window to search and play videos that are recorded in the local PC.
	REMOTE PLAYBACK	Click this icon to run a playback window to search and play videos that are recorded in the remote DVR.
SITE MANAGEMENT		THUMBNAIL REFRESH: Click this icon to refresh and renew thumbnail image of the connected sites.SITE ADDITION: Click this icon to open 'Site Addition' window.SITE DELETE: Click this icon to delete site from the index window, after disconnect a site.NET FINDER: Select the site from the index window and click this icon to modify the information of specific site.
	CONNECT	Click this icon to connect the selected site/sites.
	DISCONNECT	Click this icon to disconnect the selected site/sites.
	SETUP	Click this icon to setup configuration of SpecoTech Multi Client.
	CAPTURE	Click this icon to capture a still image.
	EVENT LIST	Opens list of events logged by the SpecoTech Multi Client.
	PAUSE	Click this icon to play/pause live video.

7-5. Search and Playback Window

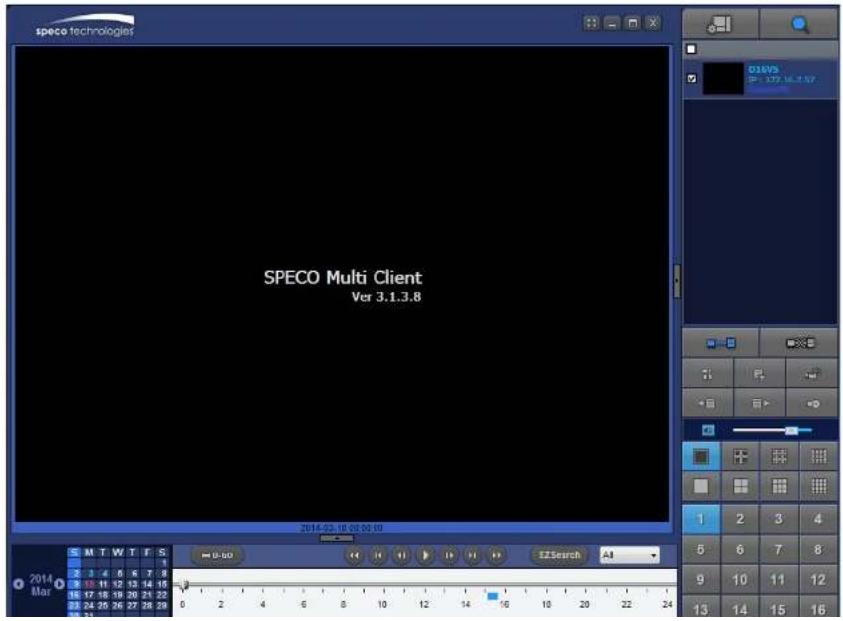

7-5-1. Main User Interface

You can access to search window by clicking the search icon (Local Playback / Remote Playback) on the upper right of the Live Window.

speco technologies SPECO Multi Client Ver 3.1.3.8 2014-02.18 26:00:19 M T W T F S 2 3 4 5 6 7 8 8 13 11 12 13 14 15 8 17 16 18 20 21 22 8 24 25 26 27 28 29 0 2 4 6 8 10 12 14 16 18 20 22 24 E2Search A3 2014 Mar

7-5-2. Main Control Panel

Button Description
LOCAL PLAYBACK	Click this icon to run a playback window to search and play videos that are recorded in the local PC.
REMOTE PLAYBACK	Click this icon to run a playback window to search and play videos that are recorded in the remote DVR.
	Display the site information and the connection status.
CONNECT	Click this icon to connect the selected site/sites.
DISCONNECT	Click this icon to disconnect the selected site/sites.
SETUP	Click this icon to setup configuration of SpecoTech Multi Client.
CAPTURE	Click this icon to capture a still image.
EVENT LIST	Opens list of events logged by the SpecoTech Multi Client.
EZCopy Start	Click this icon to set the beginning time for backup of the recorde video in AVI format.
EZCopy End	Click this icon to set the ending time for backup of the recorded video in AVI format.
	Click this icon to back up the recorded video in AVI format.
	To change a timeline scale from 24 hours to 60 minutes.The timeline shows recorded data in color on the bar. You can adjust the timeline scale and move it to the time you wish to playback. Then click the play icon to display the recorded video.
	Playback buttons.
	EZSEARCH: Thumbnail search over the network.- Shows 24 thumbnail images, one for each hour from 00:00 to 23:00.- Each hour is further broken up 24 segments; each is 150sec.- Then select the tile to play* Click the "PREVIOUS" button to go the previous step.
	Digital Zoom Window in Live and Playback. (Only available in Single Channel Viewing)

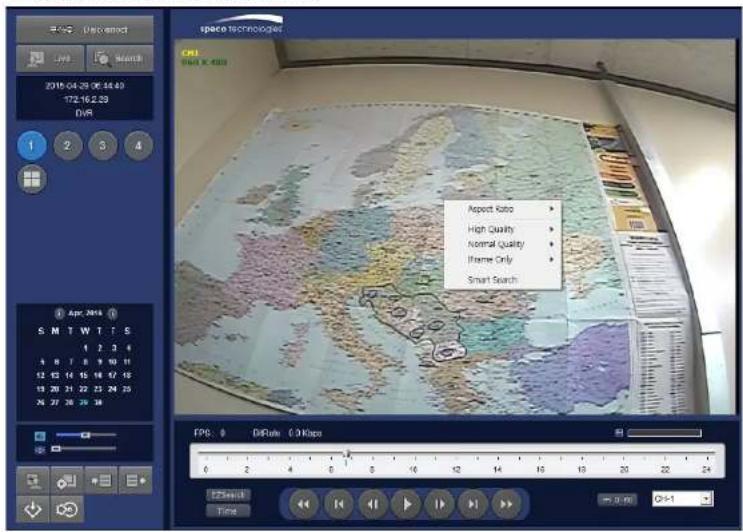

7-5-3. SMART SEARCH

1) User can search with selected area
2) Click right mouse button when playback

space technology CX1 WAT X 480 Aspect Ratio High Quality Normal Quality Interface Only Smart Search EPS: 0 DiRate 0.0 Kbps 0 2 4 6 8 10 12 14 16 18 20 22 24 E:\Snut Time 0-100% 0-100%

Aspect Ratio	▶
High Quality	▶
Normal Quality	▶

Smart Search - Ch01 Moussa Rutoo - Left(Select), Right(Unselect) Sensitivity Low —— High Interval 1 set Thumoral Size Option DateTime Format YYYY.MM-DO Time Start 2015-04-29 2.75 6:42:43 End 2015-04-29 2.75 6:52:43 0.0% Date/Time Start Stop

Smart Search - Ch01 Date/Time 2015-04-29 05:53:42 2015-04-29 06:53:43 2015-04-29 06:56:01 2015-04-29 06:56:02

7-6. Setup of SpecoTech Multi Client

Click the setup icon

window is displayed as below.

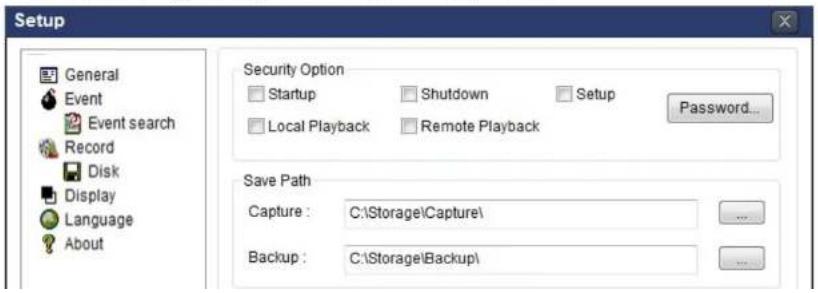

7-6-1. General

Security Option: Set a password for security options. Select security options and set a password.

Then when you access any of selected functions, you need to enter the password.

You can also set the save path for capturing and backup.

Save Path: Specify the location to save captured still image for Capture and Backup data.

Miscellaneous

Automatic Reconnection: If enabled, the software will automatically try to reconnect to the last successful IP address. But, when CLIENT ACCESS is OFF on the DVR, the software will not try to reconnect even if it is enabled.

Always On Top: If enabled, the software display will be continuously on the top of other windows.

Time Format: Change the way the Client software displays the time.

Setup General Event Event search Record Disk Display Language About Security Option Startup Shutdown Setup Local Playback Remote Playback Password... Save Path Capture : C:\Storage\Capture\ Backup : C:\Storage\Backup\

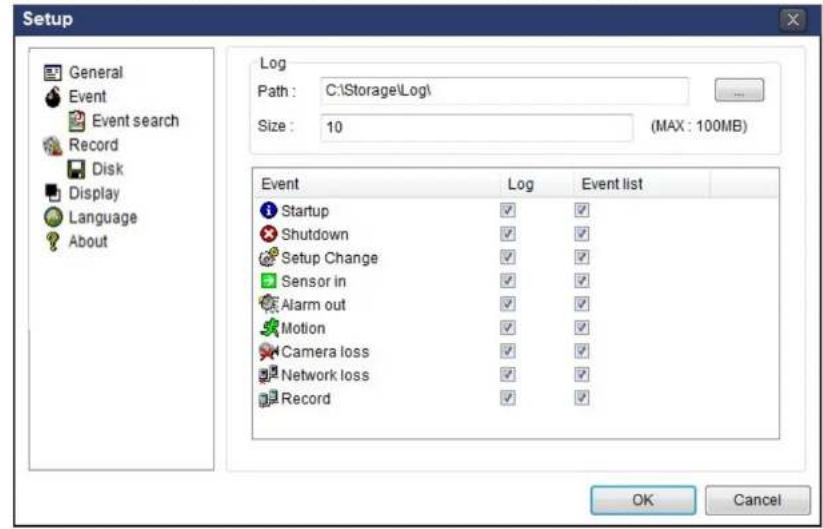

7-6-2. Event

Event log can be archived and searched.

Event Log: Specify the location to save event logs and select event to archive.

Setup General Event Event search Record Disk Display Language About Log Path : C:\Storage\Log\ Size : 10 (MAX : 100MB) Event Log Event list Startup ✓ ✓ Shutdown ✓ ✓ Setup Change ✓ ✓ Sensor in ✓ ✓ Alarm out ✓ ✓ Motion ✓ ✓ Camera loss ✓ ✓ Network loss ✓ ✓ Record ✓ ✓ OK Cancel

Event Search: Event log can be searched from the selected time.

Setup General Event From: First 2011-04-26 12:00:00 AM To: Last 2011-04-26 7:48:54 PM Find

7-6-3. Record

Record Setup: You can set the recording conditions as the following; Always, Event, or Auto record. And you can also select target DVR/DVRs and channel/channels. When you set the recording condition to event, you can set event for motion or alarm with duration.

Setup General Event Event search Record Disk Display Language About Record Condition Always Event Auto record Event Motion Alarm Duration: 5 Sec Channel Site : Site 1 All site All NO. CH 1 Channel 1 2 Channel 2 3 Channel 3 4 Channel 4 5 Channel 5 6 Channel 6 OK Cancel

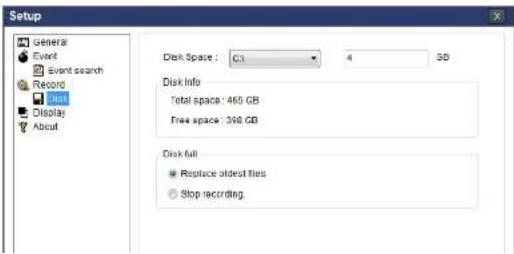

Record Local Storage Setup: You can select the local disk to record and the amount of disk space you want to allow the program to use for recording. You can also select the option to overwrite data or stop recording when the maximum amount of disk space is full.

Setup

7-6-4. Display

You can select the OSD (On Screen Display) to be displayed.

Setup General Event Event search Record Disk Display Language About OSD Site : Site 1 All site Info Display network statistics Date/Time Event ✓ Alarm ✓ Motion ✓ Sensor ✓ Record ✓ Video Loss Display Secondary monitor image correction Please use this option only on the PC when having a shattered image on the secondary monitor during use of multi monitor. If option is enabled, the performance of the program may drop. OK Cancel

7-6-5. Language

English, French and Spanish is selectable.

Setup General

7-6-6. About

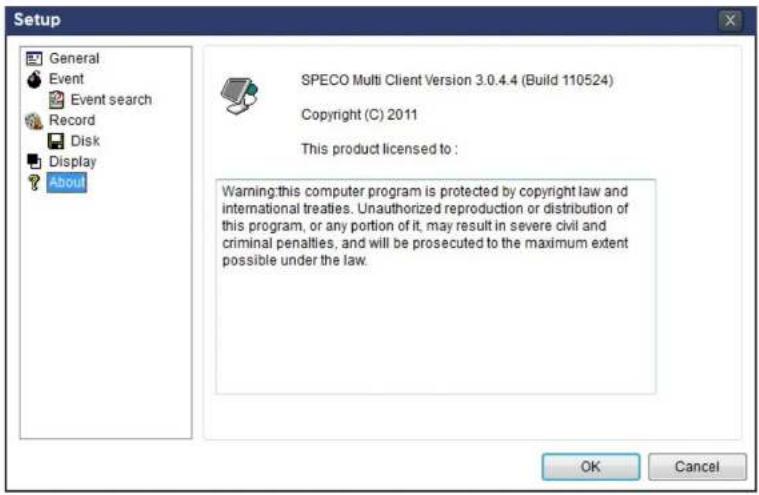

"About" provides network client version information.

Setup General Event Event search Record Disk Display About SPECO Multi Client Version 3.0.4.4 (Build 110524) Copyright (C) 2011 This product licensed to : Warning: this computer program is protected by copyright law and international treaties. Unauthorized reproduction or distribution of this program, or any portion of it, may result in severe civil and criminal penalties, and will be prosecuted to the maximum extent possible under the law. OK Cancel

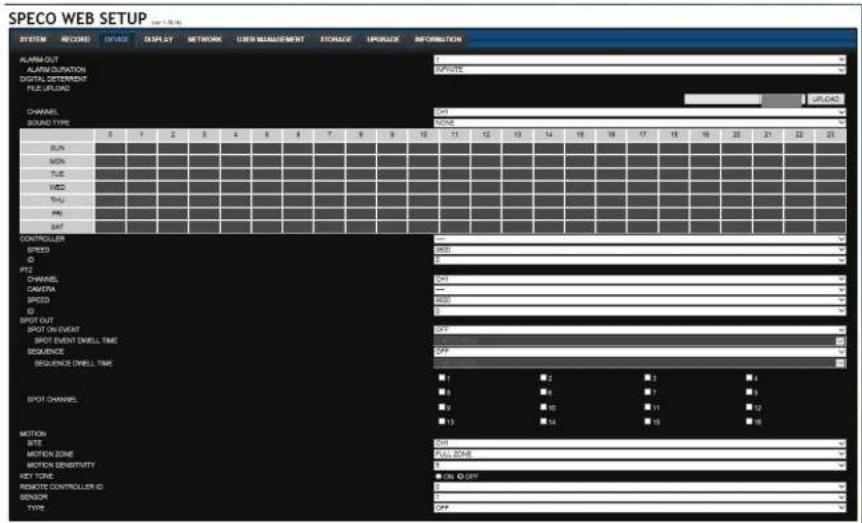

7-7. Remote Setup

The menu settings for the DVR unit can be set over network.

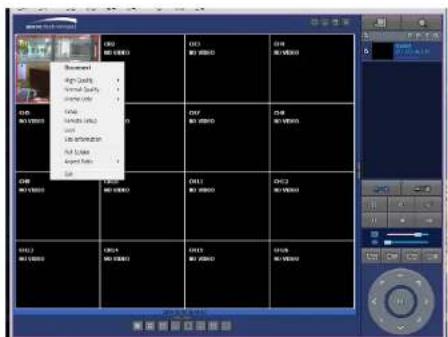

Put the cursor of the mouse on the channel, which is connected to the site and right click on the mouse to open the submenu. Then the following window is displayed as below. Select the REMOTE SETUP.

Image from image Ch12 NO VIDEO Ch13 NO VIDEO Ch14 NO VIDEO Ch15 NO VIDEO Ch16 NO VIDEO Ch17 NO VIDEO Ch18 NO VIDEO Ch19 NO VIDEO Ch20 NO VIDEO Ch21 NO VIDEO Ch22 NO VIDEO Ch23 NO VIDEO Ch24 NO VIDEO Ch25 NO VIDEO Ch26 NO VIDEO Ch27 NO VIDEO Ch28 NO VIDEO Ch29 NO VIDEO Ch30 NO VIDEO Ch31 NO VIDEO Ch32 NO VIDEO Ch33 NO VIDEO Ch34 NO VIDEO Ch35 NO VIDEO Ch36 NO VIDEO

Then the setup window is displayed. The specified menu screen is displayed on the upper left of the screen.

Enter the password of the DVR when prompted. (NOTE: The password is same with DVR setup password.)

Setting is the same as with the DVR menu setting. Refer to the corresponding pages for details on the setting items.

7-7-1. System

Select System to set system and time settings.

SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGUDE INFORMATION DATE DISPLAY FORMAT CLIENT ACCESS TCP SETUP PRIMARY STOP SERVER SECONDARY STOP SERVER TIME ZONE CONNECTION MODE CONNECTION PERSO SEND MAIL SETUP SERVER TYPE MAIL SERVER MAIL PORT CREATE OPTION ID PASSING NO MAIL TO MAIL PRIOR SEND MAIL TEST UNIT NAME SYSTEM RESTART SYSTEM EVENT NOTIFICATION MACD/CNTY/Y OK OFF 5% Post Up reg Temp Mid reg OFF 30 (Meters/Year Year) 1ST AM OFF APPLT MAIL SETTING & TEST SUN SYSTEM RESTART DATA EVENT SETUP HEALTH CHECK PERIOD ONLY HDD TEMPERATURE 20% CUPF HDD BAD SECTORS 10% HDD ALMOST FULL 30% VIDEO DUP SETUP PRE RECORD (2 SECONDS) POST RECORD (1 SECONDS) EVENTS AND NOTIFICATION ALARMOUT COVID DIAL HEALTH CHECK - - YES - NEUTANT - - YES - SPOTOWN - - YES - PANO RECORD - - YES - ALMAN OFF - NO - MOTION DETECTION OFF - NO - VIDEO LOSS OFF NO NO - HDD TEMPERATURE 1 YES NO - HDD BAD SECTORS - YES YES - HDD ALMOST FULL - YES YES - HDD FULL - YES YES - HDD FAILURE OFF YES YES http://172.16.2.57/cgi-bin/webstartup.cp#tabs-4 NEJMACI APPLY

• DATE DISPLAY FORMAT: Select the date display format.
- CLIENT ACCESS: Enable/Disable remote access through network client software.

o SEND MAIL TEST: Examine the function with registered information.

• USER NAME: Name the DVR
• SYSTEM RESTART
  • SYSTEM EVENT NOTIFICATION

Allows the user to set EVENT NOFICIATION ON or OFF

- HEALTH CHECK

(Allows the user to set MAIL STATUS periodically) : DAILY or WEELY or MONTHLY

○ HDD TEMPERATURE
- HDD BAD SECTOR
- HDD ALMOST FULL
o VIDEO CLIP SETUP: Setting the duration for pre and post recording.
- EVENTS AND NOTIFICATION
- HEALTH CHECK / RESTART / SHUTDOWN / PANIC RECORD

Enable Email Notification in the event a problem occurs with the HU.

• ALARM-IN : Enable Email Notification when the camera detects sensor
• MOTION DETECTION : Enable Email Notification when the camera detects motion
  o VIDEO LOSS: Enable Email, Beep and Alarm output Notification when the camera signal is lost.
  o HDD TEMPERATURE : Enable Email Beep and Alarm output Notification when the HDD reaches the maximum temperature
• HDD BAD SECTOR: Enable Email Notification when the HDD has bad sectors.
• HDD ALMOST FULL: Enable Email Notification when the HDD is almost full.
  o HDD FULL: Enable Email Notification when the HDD is full.
• HDD FAILURE: Enable Email, Beep and Alarm output Notification when the HDD fails.

7-7-2. Record

Select RECORD tab to set the recording conditions.

SYSTEM SECOND DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGRADE INFORMATION SITE RESOLUTION FRAME RATE QUALITY RECORDING MODE SENSOR RECORDING PFE RECORD POST EVENT RECORD AUDIO SCHEDULE SENSOR CH1 D1 30 FPS LEVEL 5(H) MOTION 1 MINUTE(S) 10 SECONDS(S) ON OFF SUN MON TUE WED THU FRJ SAT E:\Program\RESOLUTION FRAME RATE QUALITY RECORDING DAYS TO RECORD 30 FPS LEVEL 5(H) MOTION 29 DAYS(5) 7 HOUR(S)

These settings apply to the specified channel only.

- Recording Setup

o RESOLUTION: Sets the resolution for the recordings. The value applies to an individual channel.
o FRAME RATE: Sets the recording rate.
o QUALITY: Sets the image quality in 5 levels.
o RECORDING: Sets the recording mode.
o RECORDING MODE: CONTINUOUS. SCHEDULE. MOTION. SENSOR

7-7-3. Device

Select Device to set Spot Out, Enable/Disable CVBS Out, motion zone.

SPECO WEB SETUP SYSTEM RECORD DATA DISPLAY NETWORK USER MANAGEMENT STORAGE UPDRACK INFORMATION ALARM OUT ALARM DURATION DIGITAL DETERMNT FILE: UPLOAD CHANNEL SQUAD TYPE 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 RUN MON TUE WED THU PRL SHT CONTROLLER CHANNEL CANDA SPEED ID SHOT OUT SHOT ON EVENT SHOT EVENT DWELL TIME SEQUENCE SEQUENCE DWELL TIME SPOT CHANNEL MOTION SITE MOTION ZONE MOTION SENSITIVITY KEY TONE REMOTE CONTROLLER ID GENIOR TYPE OPEN PRIVATE UPLOAD CH NONE GROSS 0 CH 0 GFF 0 GFF 0 GFF 0 GFF 0 GFF 0 GFF 0 GFF 0 GFF 0 GFF 0 GFF 0 GFF 0 GFF 0 GFF 0 GFF 0 GFF 0 GFF 0 GFF 0 GFF 0 GFF 0 GFF 0 GFP GFP GFP GFP GFP GFP GFP GFP GFP GFP GFP GFP GFP GFP GFP

RELOAD APPLY

• ALARM OUT: Set the alarm out duration.
- DIGITAL DETERRENT: Set the schedule of digital deterrent function and upload the sound file to DVR.
• CONTROLLER: Set the controller baud rate and ID.
• PTZ: Set the PTZ baud rate. protocol. and ID.

7-7-4. Display

Select the DISPLAY tab to set the DISPLAY conditions.

SYSTEM RECORD DEVICE DISPLAY NETWORK RIGHT MANAGEMENT STORAGE UPPULSE INFORMATION USB CHANNEL NAME VIDEO LOSS STATUS SANIT EXON USB CONTAINER MAIN WINDOW REFERENCE SCIENCE-CELL TIRE SAMS BANZ COAST RICHNESS CONTAINER RUE SATURATION 00 00.00 00.00 00.00 00.00 00.00 00.00 00.00 00.00 00.00 00.00 00.00 00.00 00.00 00.00 00.00 00.00 00.00 SAMS BANZ COAST RICHNESS CONTAINER RUE SATURATION

These settings apply to all channels.

• OSD: Sets whether to display or not, the date and time as well as channel number on the screen.
• OSD CONTRAST: Adjust the character contrast on the screen.
  • MAIN MONITOR SEQUENCE: Setting for automatically switching the displayed video.
  SEQUENCE DWELL TIME: Sets the interval for automatically switching the screens.
  • SITE: Name, Covert, Brightness, Contrast, Hue, Saturation
  These settings apply to the specified channel only.

7-7-5. Network

SYSTEM RECEIVED DEVICE DISPLAY NETWORK TYPE IP COUNT MAC GNTWAY DNS (EINRANT) DNS (SECONDARY) DONE DOUBLE COLD HOST NAME SUBSTOPATE ALDORS NETWORK PORT NETWORK AUDIO PORT STORAGE UPDRUM INFORMATION

7-7-6. User Management

Select the USER MANAGEMENT tab to set the DISPLAY conditions.

SPECO WEB SETUP SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGAGE INFORMATION AUTHORITY SETUP PASSWORD CHECK ADMIN USER1 USER2 USER3 PASSWORD SETUP PB PTZ REC OFF NETWORK USER1 USER2 USER3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 ADMIN USER1 USER2 USER3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 ADMIN USER1 USER2 USER3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 USER1 USER2 USER3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 USER2 USER3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 USER3 READS APPLY

7-7-7. Storage

Select Storage to configure continued recording settings by overwriting the hard disk and the storage period for the recording data.

SPECO WEB SETUP SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE SPONSUE INFORMATION COMNTS CCK INFO: HOLD NET: HOLD LAST TIME: HOLD MODEL NAME TEMPERATURE EADTY (RCDON/OFFAL/AGS) REALICATED SECTORS CURRENT PENDING SECTORS UNDEFINED/INTABLE SECTORS SPIN/RETRY SECTORS RECOPIED UNIT: RECOPIED LIMIT DAYS OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OCT OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK

• OVERWRITE: Continues recording by writing over previous recordings when HDD is full.
- DISK INFO: Shows the information of HDD installed in DVR

7-8. Operation

7-8-1. Addition, Delete, and Modify of DVR Sites

7-8-1-1. Addition of Sites

1. Click SITE ADDITION button. And then the following window will be displayed as below.

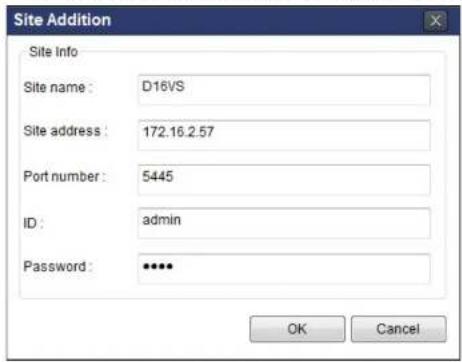

Site Addition Site Info Site name : D16VS Site address : 172.16.2.57 Port number : 5445 ID : admin Password : ****. OK Cancel

Site Name: Input a name that properly describes a site.
IP Address: Input IP address (Public IP address of a router that DVR is connected.) or Domain name
- Port Number: Default Port Number is "5445".
ID: Input ID of DVR. Default ID is "admin".
- Password: Input network password of DVR that is same with DVR setup password.

1. Click OK button. And then the registered site is added on the directory window.

7-8-1-3. Modify of Sites

1. Select the site/sites to modify from the directory window.

1. Click NET FINDER button. And then the following window will be displayed as below.

Net Finder Name Address D:\16\VS 172.16.2.57 Address Port No. Mac Model Add Modify Delete Find IP Change Close

1. Click MODIFY button. And then the modified information is displayed as below.

7-8-2. Connect and Disconnect

7-8-2-1. Connect

1. Select site/sites to connect from the directory window.

1. Click CONNECT button, and then site/sites displays/display as connected.

Document High Quality Normal Quality Normal Quality Noise Audio Audio Level Noise Audio Information Hot Sound Audio Ratio Color Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Effect Multi-Object

7-8-2-2. Disconnect

1. Select site/sites to disconnect from the directory window.

7-8-3. Still-image Capture During Live

1. Double-click a channel to capture from the display screen. (Otherwise all channels will be captured.).

Side-by-side comparison of a road scene before and after transformation, showing original vs. corrected views with no visible text or symbols.

1. Click CAPTURE button. And then a Capture window will be displayed as below.

Capture Save Path: s\martin\Documents\Speco\Capture\D16VS File name: 2014-03-10-163522 File Format: BITMAP(*.BMP) Browse OK Cancel

1. Set Save Path, File Name, and File Format. And then click OK button.
2. Still image is saved as set in Capture window.

Storage > Capture > DAYS Organize > Include in library > Share with > Slide show > Burn > New folder Documents Music Pictures Videos

7-8-4. Recording Video on Local PC During Live

1. Click SETUP button. And then a setup window will be displayed as below.
2. Select Record and set the values.

Setup General Event Event search Record Disk Display About Record Condition Always Event Auto record Event Motion Alarm Duration: 5 Sec Channel Site : Site 1 All site All NO. CH 1 Channel 1 2 Channel 2 3 Channel 3 4 Channel 4 5 Channel 5 6 Channel 6 OK Cancel

1. Select Disk and set the values.

Setup General Event Event search Record 2011 Display About Disk Space: C:\ 4 SD Disk Info Total space: 465 GB Free space: 398 GB Disk full Replace oldest files Stop recording

7-8-5. Local Playback and Remote Playback

7-8-5-1. Playback of Recorded Video on a Local PC

1. Click LOCAL PLAYBACK. And then Playback Window will be displayed over the Live

Window.

SPECO Multi Client w 2.0.4.6

1. Select site/sites to connect from the directory window.

2. Click CONNECT button. And then Green bar displays on Search calendar and timeline scale window.

2013 April 0:00 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

1. Move the marker on the timeline scale to where there is video data and press the PLAY button.

7-8-5-2. Playback of Recorded Video on Remote DVR

1. Click REMOTE PLAYBACK. And then Playback Window will be displayed.

SPECO Multi Client Vol 3.1.2.8

1. Select the site to connect from the directory window.

2. Click CONNECT. And then Green bar displays on Search calendar and timeline scale.

2011 Apr S M T W T F S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 0 2 4 6 8 10 12 14 16 18 20 22 24

1. Move the marker on the timeline scale to where there is video data and press the PLAY button.

7-8-6. AVI Backup during Playback

You can back up the recorded videos in AVI format during playback.

1. Double-click the target channel to backup.
2. Select the beginning time by using the search calendar and timeline scale bar.

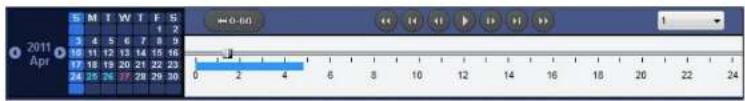

2011 Apr S M T W T F S 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 0 2 4 6 8 10 12 14 16 18 20 22 24

1. Click EZCOPY START button on the timeline scale to select the beginning point of the backup.

0 10 20 30 40 50 60

1. Click EZCOPY END button on the timeline scale to select the ending point of the backup. Then, the selected starting point and the ending point on the timeline scale bar will be marked in green.

0 10 20 30 40 50 60

1. Click BACKUP. And then the BACKUP window will be displayed as below.

Backup Selected Channels CH 1 CH 2 CH 3 CH 4 All Setting Start Time: 01 17.18 End Time: 01.19.43 File Path: C:\Backup\Backup\+ File format: A0 7.6% OK Cancel

1. AVI video data is recorded as selected in AVI Backup window. AVI format video can be played back by using Window Media Player™ or other media player that is compatible with AVI format video.

Exterior view of a rural road with buildings and trees, no visible text or signage

8. Network Access Using the Web-Browser Viewer

The DVR provides a live remote monitoring feature by web-browser viewer. (NOTE: Web-Browser is only available for Internet Explorer)

1. Check the IP address of the DVR from SETUP>SYSTEM>DESCRIPTION>IP ADDRESS or
2. Input the IP address or Domain name address that you pre-registered.

Address http://172.16.1.52 Go

1. Click this bar. Then the dialog box is displayed.

1. Click "Install" to download and install the ActiveX control.

User Account Control Do you want to allow the following program to make changes to this computer? Program name: SpecoTech-WebViewer(ver1.4.8.7) Verified publisher: Speco Technologies File origin: Downloaded from the Internet Show details Yes No Change when these notifications appear

1. The Web Browser Viewer will be displayed as below after the ActiveX installation

2011-04-26 2:13:27 Space Technology

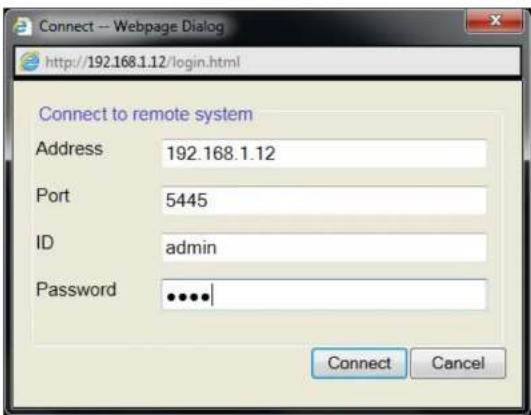

Connect -- Webpage Dialog http://192.168.1.12/login.html Connect to remote system Address 192.168.1.12 Port 5445 ID admin Password •••••| Connect Cancel

• Site Name: Input a name that properly describes a site.

• IP Address: Input IP address (Public IP address of a router that DVR is connected.) or Domain name
  • Port Number: Default Port Number is "5445".
  • ID: Input ID of DVR. Default ID is "admin".

• Password: Input network password of DVR that is same with DVR setup password.

• Then the cameras connected to the DVR are displayed on the screen.
• Use mouse scroll to digitally zoom in and out from a single channel display.

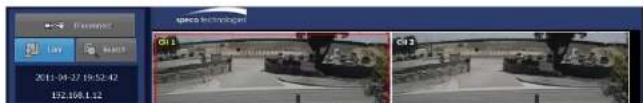

Transport Lay 8:30:17 2011-04-27 19:52:42 172.106.1.22 G1.1 G1.2

9. Network Access Using the Smart Phone Viewer

Notice

Data Usage applied without Wi-Fi connection. Please check with your Phone Carrier.

9-1. App Viewer for iPhone

1. Enter the Apple App Store.

1. Search "Speco Player" in the App Store.

Notice

SPECO Player is for the HU, VX, VT, HT, HS, ZS, NS, DS, RS, WRS and HD series DVRs. SPECO VIEWER is not compatible with the T Series DVR's (TH, TN or TL) or

9-1-1. Live

1. Open the installed "Speco Player" App and click action to add a remote device.
2. Enter the site name, IP or DDNS address, Network Port number (default 5445), ID(default admin) and Password that is same with DVR setup password. Then, click "Save" button.

About	Device List	+
Demo DS		>
Demo HS		>
Demo NSP		>

1. The app will display the selected channel(s). Double tap the channel screen to switch 1 channel display to 4, 8, 10, 16 channels split display depending on the DVR.

Back LIVE 06-09-16 17:57:07 CH 01 2:04 PM 42% → NANS FPS 21 Back LIVE 06-09-16 17:57:26 CH 01 2:04 PM 42% → NANS FPS 30

1. To select the display mode(1, 4, 9, 10 or 16 split display), tap the arrow menus button

Outdoor scene with a large building and outdoor furniture, no visible text or symbols

9-1-2.PTZ Control

To control the PTZ functions of the camera, tap the menu button. Then PTZ menu icons will display. Using the PTZ icon on the screen, can control PTZF functions.

T-Mobile 6G 2:05 PM 42% Back LIVE 08-09-18 17:57:37 PIWS PIWS 3D 1 4 9 10 16 PTS ZOOM FOCUS

9-1-3. Playback

1. Select mode as 'Playback' 📄 and click 'Connect' button. Then select Date & Time and click 'Connect' button.

Device List Demo HS Edit Connect Device List Demo NSP Edit Connect

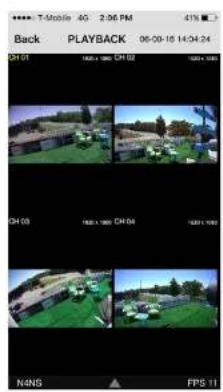

Back PLAYBACK 06-09-18 14:04:24 CH 07 HAC 1 000 CH 02 HAC 1 000 CH 03 HAC 1 000 CH 04 HAC 1 000 NANS FPS 11

→

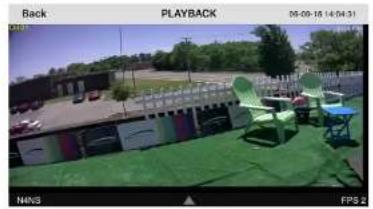

Outdoor scene with green chairs and a building, no visible text or symbols

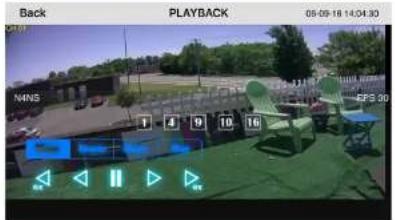

1. Tap the menu button. Then Playback menu icons will display.


Back PLAYBACK 05-09-18 14:04:30 NWS 1 4 9 10 16 EPS 20

9-2. App Viewer for Android Phone

1. Enter the Android Play Store.

specó player Main menu Live View / Product1 Simmitoh User Speco Player speco technikoget

Delete NGP Delete NS

Device Name: Administrator: Font: User Name: Riscount: Link Type: Speed Channel: OK Cancel Help OK Cancel Help OK Cancel Help Start

1. The app will display the selected channel(s). Double tap the channel screen to switch 1 channel display to 4 channels split display.

Four-panel collage showing outdoor scenes with buildings, greenery, and a bridge under different lighting or sky conditions (no visible text or symbols)

1. The app will display the selected channel(s). Double tap the channel screen to switch 1 channel display to 4 channels split display.

0x1 0x2 0x4 0x5 0x6 0x7 0x8 0x9 0x10 0x11 0x12 0x13 0x14 0x15 0x16 0x17 0x18 0x19 0x20 0x21 0x22 0x23 0x24 0x25 0x26 0x27 0x28 0x29 0x30 0x31 0x32 0x33 0x34 0x35 0x36 0x37 0x38 0x39 0x40 0x41 0x42 0x43 0x44 0x45 0x46 0x47 0x48 0x49 0x50 0x51 0x52 0x53 0x54 0x55 0x56 0x57 0x58 0x59 0x60 0x61 0x62 0x63 0x64 0x65 0x66 0x67 0x68 0x69 0x70 0x71 0x72 0x73 0x74 0x75 0x76 0x77 0x78 0x79 0x80 0x81 0x82 0x83 0x84 0x85 0x86 0x87 0x88 0x89 0x90 0x91 0x92 0x93 0x94 0x95 0x96 0x97 0x98 0x99 12s 8s 6s 4s 2s 1s 3s 2s 1s 4s 3s 2s 1s 3s 2s 1s 4s 3s 2s 1s 4s 3s 2s 1s 4s 3s 2s 1s 4s 3s 2s 1s 4s 3s 2s 1s 4s 3s 2s 1s 4s 3s 2s 1s 4s 3s 2s 1s 4s 3

9-2-3.PTZ Control

To control the PTZ function of the camera, tap the channel screen, and then the channel name will be highlighted in Light Green. Using the PTZ menu icons on the screen, control PTZF.

Two-panel image showing a 3D-rendered building with green roof and blue windows, alongside a person in a blue shirt (no visible text or symbols)

APPENDIX: Network Connection - LAN

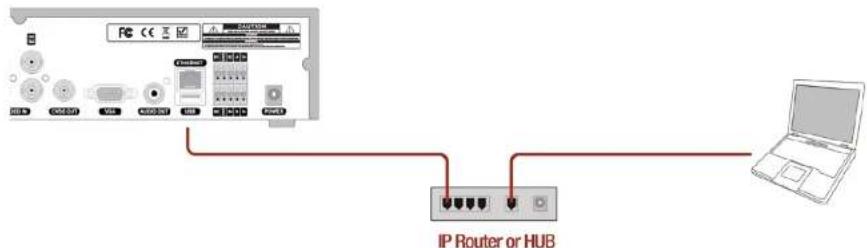

IP Router or HUB

1. Install the network client software from the supplied CD.
2. Check the IP address from SETUP > SYSTEM > DESCRIPTION or SETUP > NETWORK of DVR.

Model Name	D16HU
Software Version	Ver 5.5.7BN_20180406
Storage Size	435 GB
IP Address	172.16.200.146
MAC Address	00:02:69:FF:F7:20
DDNS Status	Ready - d16hu_fff720

1. Run the network client software.

CN1 CN2 CN3 CN4 CN5 CN6 CN7 CN8 CN9 CN10 CN11 CN12 CN13 CN14 CN15 CN16 CN17 CN18 CN19 CN20 CN21 CN22 CN23 CN24 CN25 CN26 CN27 CN28 CN29 CN30 CN31 CN32 CN33 CN34 CN35 CN36 CN37 CN38 CN39 CN40 CN41 CN42 CN43 CN44 CN45 CN46 CN47 CN48 CN49 CN50 CN51 CN52 CN53 CN54 CN55 CN56 CN57 CN58 CN59 CN60

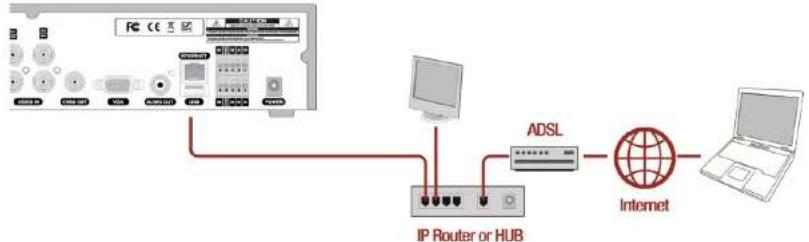

APPENDIX: Network Connection – Internet and DDNS

Dynamic Domain Name System (DDNS) allows a domain name to be constantly synchronized with a dynamic IP address. A current dynamic IP address is being associated with a static domain name.

1. Go to SETUP>NETWORK>DDNS and set the DDNS SERVER to ON.

Enable DDNS on Host Name d15hu MT20 Submit/Update on ezDDNS off Apply Close

If you set ezDDNS to ON, the host name is automatically generated and registered.

1. Go to SETUP>NETWORK>DDNS>HOST NAME. Manually enter a domain name using the virtual

2. When DDNS setting is done, click the APPLY button. Otherwise DDNS setting will not be applied.

3. When you exit SETUP menu, DDNS NOTIFY window will pop up.

1. DDNS registration status can be checked from SYSTEM INFORMATION or SETUP>SYSTEM>DESCRIPTION>DDNS STATUS

Model Name D16HU Software Version Ver 5.5.7BN_20180406 Storage Size 435 GB IP Address 172.16.200.146 MAC Address 00:02:69:FF:F7:20 DDNS Status Ready - d16hu_ff720 ok

1. Check the NETWORK PORT (Default: 5445), WEB PORT (Default: 80), and the IP Address of the DVR from SETUP>NETWORK.

Network Network Type IP Subnet Mask Gateway DNS (Primary) dhcp 172.16.200.146 255.255.0.0 172.16.1.254 8.8.8.8

1. Run the network client software.

SPECO Multi Client: Wv 3.1.5.8 Site Addition Site Info Site name: C16V6 Site address: 172.10.2.57 Port number: 5445 admin Password: **** OK Cancel

1. Input Site Name, Site Address (IP address), Port No., and Password on the connect window.

2. Site Name: Input a name that properly describes a site.
   • IP Address: Domain name or Public IP address of a router that DVR is connected.
   • Port Number: Default Port Number is "5445".
   • ID: Input ID of DVR. Default ID is "admin".

3. Password: Input network password of DVR that is same with DVR setup password.

4. And select the OK button. Then, press button after checking the left check box.

CHJ NO VIDEO CHS NO VIDEO CHN NO VIDEO
