HRN (6/12/24 Channel DVR) User Manual

Notes

• Please read this user manual carefully to ensure that you can use the device correctly and safely.
• The contents of this manual are subject to change without notice.
• Do not install this device near any heat sources such as radiators, heat registers, stoves or other devices that produce heat.
• Do not install this device near water. Clean only with a dry cloth.
• Do not block any ventilation openings and ensure proper ventilation around the machine.
• Do not power off the device at normal recording condition.
• This machine is for indoor use only. Do not expose the machine in rain or moist environment. In case any solid or liquid get inside the machine's case, please turn off the device immediately and get it checked by a qualified technician.
• Do not attempt to repair this device yourself.

Contents

1 Introduction .... 1

1.1 Welcome....1
1.2 Features....I
1.3 Front Panel Descriptions .... 3
1.4 Rear Panel Descriptions .... 3
1.5 Connections .... 3

2 Basic Operation Guide ....4

2.1 Startup & Shutdown 4

2.1.1 Startup....4

2.1.2 Shutdown 4

2.2 Remote Control 4

2.3 Mouse Control 5

2.4 Text-input Instruction....6

2.5 Common Button Operation 6

3 EZ Setup & Main Interface....7

3.1 EZ Setup 7

3.2 Main Interface ....11

3.2.1 Main Interface Introduction....11

3.2.2 Setup Panel 13

3.2.3 Main Functions....14

4 Camera Management....16

4.1 Camera Signal 16

4.2 Add/Edit Camera 16

4.2.1 Add Camera....16

4.2.2 Edit Camera....17

5 Live View Introduction....19

5.1 Live View Interface Introduction 19

Notes& Contents

DVR User Manual

7.1.1 Mode Configuration 34
7.1.2 Advanced Configuration 35

7.2 Encode Parameters Setting 36

7.3 Schedule Setting 37

7.3.1 Add Schedule....37
7.3.2 Record Schedule Configuration 39

7.4 Record Mode 40

7.4.1 Manual Recording 40
7.4.2 Timing Recording....40
7.4.3 Motion Based Recording....40
7.4.4 Sensor Based Recording....40
7.4.5 Analytics Recording 40

7.5 Disk 40

7.5.1 Disk Management....40
7.5.2 Storage Mode Configuration....41
7.5.3 View Disk and S.M.A.R.T. Information 41

8 Playback& Backup....43

8.1 Instant Playback....43
8.2 Playback Interface Introduction 43
8.3 Smart Playback....45
8.4 Record Search, Playback & Export 47

8.4.1 EZ Search 47
8.4.2 Museum Search 49
8.4.3 Time Search....50
8.4.4 Event Search 50
8.4.5 Bookmark Search ....51
8.4.6 Snapshots 51
8.4.7 View Export Status....52

9 Alarm Management....53

9.1 Sensor Alarm....53
9.2 Motion Alarm ....54

Notes& Contents

DVR User Manual

9.7 View Alarm Status 62

10 Account & Permission Management 63

10.1 Account Management....63

10.1.1 Add User....63

10.1.2 Edit User....64

10.2 User Login & Logout 65

10.3 Permission Management 65

10.3.1 Add Permission Group 65

10.3.2 Edit Permission Group 66

10.4 Block and Allow List....66

10.5 Preview On Logout....66

10.6 Password Security 67

10.7 View Online User....67

11 Device Management 68

11.1 Network Configuration....68

11.1.1 TCP/IP Configuration....68

11.1.2 Port Configuration 68

11.1.3 PPPoE Configuration....70

11.1.4 DDNS Configuration....70

11.1.5 E-mail Configuration 70

11.1.6 UPnP Configuration 71

11.1.7 802.1X 72

11.1.8 NAT Configuration 72

11.1.9 View Network Status....73

11.2 Basic Configuration....73

11.2.1 General Configuration 73

11.2.2 Date and Time Configuration....74

11.2.3 Recorder OSD Settings....75

11.3 Factory Default....75

Notes& Contents

DVR User Manual

Appendix C Specifications....90

1 Introduction

1.1 Welcome

Thank you for purchasing this DVR.

If technical assistance is needed, please contact Speco Technologies Technical Support.

Phone: [phone] option 3

Email: [e-mail]

1.2 Features

Basic Functions

● Supports network device access including IP camera/dome and the Onvif IP cameras
● The DVR supports the H.265 and H.264 IP cameras
● Supports standard ONVIF protocol
● Supports dual stream recording of each camera
● Supports IP cameras to be added quickly or manually
● Supports collective or individual configuration of the cameras' OSD, video parameters, mask, motion and so on
● Supports a maximum of 8 user permission groups Including Administrator, Advanced and Common which are the default permission groups of the system
- Supports a maximum of 16 users to be created, multiple web client login by using one username at the same time and the user's permission
control to be enabled or disabled
- Supports multiple web client's login at the same time

Live View

● Supports 4K×2K/1920×1080/1280×1024 HDMI and 1920×1080/1280×1024 VGA high definition synchronous display
● Supports multi-screen modes such as 1/4/6/8/16
- Supports auto adjustment of the camera's image display proportion
● Supports audio monitoring of the camera to be enabled or disabled
● Supports manual snapshot of the camera
● Supports display mode to be added and saved and the saved modes can be called directly
● Supports quick tool bar operation of the preview window
● Supports scheme view in sequence, quick sequence view and sequence interval setting
● Supports motion detection and video mask
● Supports multiple popular P.T.Z. control protocol and setup of the preset and cruise

Introduction

DVR User Manual

● Supports pre recording and delay recording configuration of the event recording

Record Playback

● Supports time scale operation in quick playback and the playback date and time can be set randomly by scrolling the mouse; the time interval of the time scale can be zoomed

● Supports record searching by time slice/time/event/tag

● Supports time view and camera view in searching by EZ mode

● Supports EZ search by month, by day, by hour and by minute and time slice to be displayed with camera thumbnail

● Supports a maximum of 16 cameras to be searched by time

● Supports event search by manual/motion/sensor/intelligent events

● Supports bookmark search by the manual added bookmarks

● Supports instant playback of the selected camera in the live view interface

● Supports a maximum of 16 synchronous playback cameras

● Supports acceleration (maximum 32 times of the normal speed), deceleration (minimum 1/32 times of the normal speed) and 30s' addition or reduction to current playing time

Record Export

● Supports record to be exported through USB (U disk, mobile HDD).

● Supports record to be exported by time/event/image search

● Supports record cutting for exporting when playing back

● Supports a maximum of 10 export tasks in background and export status viewing

↓ Alarm Management

● Supports alarm schedule setting

● Supports enabling or disabling of the motion detection, external sensor alarm input, intelligence alarm and exception alarms including IP address conflict alarm, disk IO error alarm, disk full alarm, no disk alarm, illegal access alarm, network disconnection alarm, IPC offline alarm and so on, alarm trigger configuration supportable

● Supports IPC offline alarm trigger configuration of PTZ, snapshot, pop-up video, etc.

● Supports event notification modes of alarm-out, pop-up video, pop-up message box, buzzer, e-mail and so on

● The captured images can be attached into the e-mail when alarm linkage is triggered

● Supports alarm status view of alarm-in, alarm-out, motion detection and exception alarm

● Supports alarm to be triggered and cleared manually

● Supports system auto reboot when exception happens

Network Functions

● Supports TCP/IP and PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP protocol and so on

● Supports allow and block list function and the allow and block IP address/IP segment address can be set

● Supports multiple browsers Including IE8/9/10/11, Firefox, Opera, Chrome (available only for the versions lower than 45) and Safari in MAC system

Introduction

DVR User Manual

- Press and hold the right mouse button for 5 seconds in any Interface to switch the output to VGA and the DVR will display the video at the lowest resolution which the DVR supports

1.3 Front Panel Descriptions

The following descriptions are for reference only.

Name	Descriptions
REC	When recording, the light is blue
Net	When access to network, the light is blue
Power	Power indicator, when connection, the light is blue

1.4 Rear Panel Descriptions

To quickly get started, connect the following to your recorder in the following order, please refer to the following figure (H24HRL shown for reference).

Diagram of a server rack with labeled ports, indicator lights, and control panel

1. Connect analog cameras to the video input ports (BNC) of the recorder.
2. Connect a monitor to the recorder via VGA or HDMI cable (not included).
3. Connect the included optical mouse into any USB port of the recorder.
4. Connect the power adapter to the recorder and plug power cord into a 120VAC 50/60Hz outlet.

2 Basic Operation Guide

2.1 Startup & Shutdown

Please make sure all the connections are done properly before you power on the unit. Proper startup and shutdown are crucial to extending the life of your device.

2.1.1 Startup

① Connect the output display device to the VGA/HDMI interface of the DVR.
② Connect with the mouse and power. The device will boot and the power LED would turn blue.
③ EZ setup window will pop up (you should select the display language the first time you use the DVR).
Refer to 3.1 EZ Setup for details.

2.1.2 Shutdown

You can power off the device by using remote control or mouse.

By remote control:

① Press Power button. This will take you to a shutdown window. The unit will power off after a while by clicking the "OK" button.
② Disconnect the power.

By mouse:

① Click Start→Shutdown to pop up the Shutdown window. Select "Shutdown" in the window. The unit will power off after a while by clicking the "OK" button.
② Disconnect the power.

2.2 Remote Control

① It uses two AAA size batteries.
② Open the battery cover of the remote control.
③ When adding batteries check for the polarity (+ and -).

Basic Operation Guide
DVR User Manual

REC SEARCH MENU ENTER POP HKEY I K MUST NEXT INFO

Button	Function
RFC	Record manually
Search	To enter search mode
MENU	To enter menu
Exit	To exit the current interface
ENTER	To confirm the choice or setup
Direction button	To move cursor in setup
ZOOM	To zoom in
PIP	No function temporarily
	To control playback, Play (Pause)/Next Frame/SpeedUp/Stop/Previous Frame/Speed Down
Multi	To choose multi screen display mode
Next	To switch the live image
SEQ	To go to sequence view mode
INFO	Get information about the device

1 2 3 4 5 6 7 8 9 → 0 Fn 1 Multi Next SEQ Auto SPOT ENTER

Button	Function
Power Button	Switch off—to stop the device
Record Button	To start recording
-/- /0-9	Input number or choose camera
Fn1 Button	Unavailable temporarily
Multi Button	To choose multi screen display mode
Next Button	To switch the live image
SEQ	To go to sequence view mode
Audio	To enable audio output in live mode
Switch	No function temporarily
Direction button	To move cursor in setup or pan/title PTZ
Enter Button	To confirm the choice or setup
Menu Button	To go to menu
Exit Button	To exit the current interface
Focus/IRIS/Zoom/PTZ	To control PTZ camera
Preset Button	To enter into preset setting in PTZ mode
Cruise Button	To go to cruise setting in PTZ mode

Basic Operation Guide

DVR User Manual

In the live display & playback interface, if the interfaces display is in full screen, move the mouse to the bottom of the interface to pop up a tool bar. The tool bar will disappear automatically after you move the mouse away from it for some time; move the mouse to the right side of the interface to pop up a panel and the panel will disappear automatically after you move the mouse away from it.

➢ Mouse control in text-input

Move the mouse to the text-input box and then click the box. The input keyboard will pop up automatically.

Note: Mouse is the default tool for all operations unless an exception as indicated.

2.4 Text-input Instruction

1 2 3 4 5 6 DEL 7 8 9 0 - 1 2 3 4 5 6 7 8 9 0 g w e r t 1 y u i o p a s d f g h j k l X z x c v b n m EN/CN @ #7

The system includes two input boxes. Refer to the above pictures. The left box is the number input box and the right box is the input box which provides inputs of numbers, letters and punctuation characters. The introductions of keys on the input boxes are shown below.

Button	Meaning	Button	Meaning
	Backspace key		Switch key of punctuation character
	Delete Key		Enter key
	Switch key between upper and lower letter		Space key
	Switch key of language

2.5 Common Button Operation

Button	Meaning

3 EZ Setup & Main Interface

3.1 EZ Setup

The disk icons will be shown on the top of the startup interface. You can view the number and status of each disk quickly and conveniently through these icons (no disk; : unavailable disk; : RW available disk).

You must configure the wizard if you start the DVR for the first time (or click "Skip" to cancel the EZ Setup next time).

EZ Setup Admin Password Setup Username New Password Confirm Password Display Password Log In Automatically Pattern Lock Enable Edit 1.8 to 16 characters 2. Contains numbers/lovercase/lovercase letters/symbols of three or more. Next

System Login. Set your own password when you use the wizard for the first time; select the login username and enter the corresponding password next time.

Enable pattern lock and click "Edit" to set the pattern lock.

EZ Setup & Main Interface

DVR User Manual

Setup OK Enable FZ setup next time. Stop

Click "OK" to start wizard. The EZ Setup steps are as follows.

① System Login. Set your own password when you use the wizard for the first time (the default username of the system is admin); select the login username and enter the password you set by yourself.

EZ Setup Admin Password Setup Username: New Password: Confirm Password: Display Password: Log In Automatically Edit Security Questions Next Cancel

Click "Next" to continue or click "Cancel" to exit the wizard.

EZ Setup EZ Setup * Universal Port 1 (Down) ✓ Open an IP address (Automatically Load DHCP) Address Server Mask SLA ✓ Open UNS automatically Default FTP Absolute Left HTTP Port 36 HTTP Port 442 HTTP Port 454 Server Port 408 Preview Next Cancel

③ Other Network Settings.

UPnP settings: Check "Enable" in the interface and enter the port of external and then click "Test". If the UPnP status were "Invalid UPnP", the port number may be wrong. Click to modify the port until the UPnP status turns to "Valid UPnP". Refer to the following picture. You can view the external IP address of the DVR. Enter the external IP address plus port in the address bar of your browser to access the DVR. (Please see 11.1.6 UPnP Configuration for details).

DDNS Settings: Check "Enable" and then select the DDNS type. Enter the server address, domain name, username and password according to the selected DDNS type. And then click "Register" or "Test" to test the effectiveness of the domain name. If it is effective, you can enter the domain name in the address bar of your browser to access the DVR. (Please see 11.1.4 DDNS Configuration for details).

Note: Make sure the router supports UPnP function and the UPnP is enabled in the router. Set the DVR's IP address, subnet mask and gateway and so on corresponding to the router.

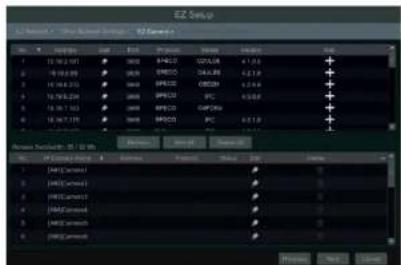

EZ Setup File Edit View Insert Modify Name: 10.0.0.01 类型: 所有 文件名: 10.0.0.02 大小: 10.0.0.03 颜色: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB 通道: RGB Channel Select: 10.0.0.01 名称 类型 格式 大小 大小 确定 取消 帮助

Click edit the searched IP camera as shown on the below left. Enter the new IP address, subnet mask, gateway, username and the password of the camera. You can check "Sync to IPC" to modify the IP address of the IPC via different network segments for being in the same network segment with the DVR. Click "OK" to save the settings.

Edit IP MTC Admin Authors 100 168 2 209 Broadcast Bits 256 254 258 8 Camera 100 168 2 1 Lock Frame 30000 Parameters OK Cancel

Edit Camera Camera Name: IP Camera Address: 12345678000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Print: Printout: Hotel: Username: Printset: Prints: OK Cancel Finish

Click edit the added camera as shown on the above right. Enter the new camera name, IP address, port username and the password of the camera. You can click "Test" to test the effectiveness of the input

E2 Setup Show: • Image Record • Image Record • Image Record - Color Record • Continuous Record - Media Record • Continuous Record - Upper Record • Continuous Record - Media Record - Lower Record • Continuous Record - Medium Record - Upper Medium Record • Continuous Record - Upper Medium Record - Lower Medium Record

Scheduled: Set the "Sensor Record", "Motion Record" and "Schedule Record" of each camera. Click "OK" to save. See 7.1.1 Mode Configuration for details.

EZ Setup File Options - File Server Pack - CI Camera - GB Range - EZ Pack - Body Options Camera Series Server Pack + Mobile Pack + Console Pack - Options Pack Options Options Options Options

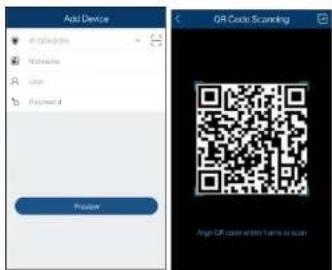

⑦ QR Code. Enable the NAT function in the interface or set it in the network configuration after exiting the wizard (please refer to 11.1.8 NAT Configuration for details). You can scan the QR Code through the Speco Blue App available for iOS and Android to easily and securely view your cameras. Please refer to 12.1 Mobile Client Surveillance for details. Click "OK" to save the settings.

3.2 Main Interface

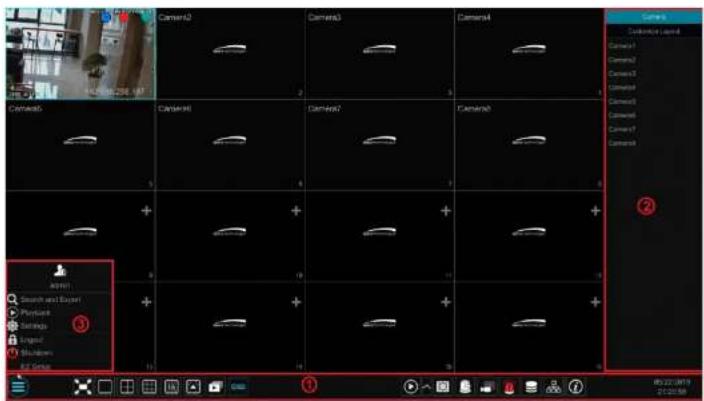

Camera0 Camera1 Camera2 Camera3 Camera4 Camera5 Camera6 Camera7 Camera8 Camera9 Camera10 Camera11 Camera12 Camera13 Camera14 Camera15 Camera16 Camera17 Camera18 Camera19 Camera20 Camera21 Camera22 Camera23 Camera24 Camera25 Camera26 Camera27 Camera28 Camera29 Camera30 Camera31 Camera32 Camera33 Camera34 Camera35 Camera36 Camera37 Camera38 Camera39 Camera40 Camera41 Camera42 Camera43 Camera44 Camera45 Camera46 Camera47 Camera48 Camera49 Camera50 Camera51 Camera52 Camera53 Camera54 Camera55 Camera56 Camera57 Camera58 Camera59 Camera60 Camera61 Camera62 Camera63 Camera64 Camera65 Camera66 Camera67 Camera68 Camera69 Camera70 Camera71 Camera72 Camera73 Camera74 Camera75 Camera76 Camera77 Camera78 Camera79 Camera80 Camera81 Camera82 Camera83 Camera84 Camera85 Camera86 Camera87 Camera88 Camera89 Camera90 Camera91 Camera92 Camera93 Camera94 Camera95 Camera96 Camera97 Camera98 Camera99 Camera100

The buttons in area ① are introduced in the table below.

Button	Meaning
	Start button. Click it to pop up area 3.
	Full screen button. Click it to show full screen; click it again to exit the full screen.
	Screen mode button.
	Sequence button (see 5.2.2 Quick Sequence View and 5.2.4 Scheme View in Sequence for details).
	Click it to enable OSD; click again to disable OSD.
	Click to set the default playback time before starting instant playback (8.1 Instant_

Click "Camera" to view all the added cameras in the camera list. Select one camera window on the left side of the interface and then double click one camera in the list to preview the camera image in the selected window.

Click "Customize Layout" to view all the display modes in the display mode list (refer to 5.2.1 Display Mode for detail configuration of the display mode). Double click one display mode in the list to switch to the display mode for previewing.

Introduction of area ③:

Icon / Button	Meaning
	It shows the current login user.
	Click to go to record search and export interface, see 8.4 Record Search..Playback & Export for details.
	Click to go to playback interface (click ▼ in the tool bar at the bottom of the live view interface to set the default playback time), see 8.2 Playback Interface Introduction for details.
	Click to pop up the setup panel, see 3.2.2 Setup Panel for details.
	Click to log out the system.
	Click and then select "Logout", "Reboot" or "Shutdown" in the popup window.
	Click to go to the EZ setup.

3.2.2 Setup Panel

Click Start→Settings to bring up the setup panel as shown below.

The setup panel includes seven modules. Each module provides some function entries with links for convenient operation.

Here we take Camera module as an example. The Camera module provides convenient links such as "Add Camera", "Edit Camera", "Image Settings", "Motion", "Intelligence Analytics" and "PTZ". Click Camera to go to the camera management interface as shown below.

Manage Camera Camera Signal / Alt Camera Image Auto Settings Camera Name Camera Name Photo Play Status Preview Match Preview Exit Upgrade Save 1 Alt Camera1 2 Alt Camera1

There are some function items on the left side of the camera management interface. Click each item to go to corresponding interface or window. For instance, click "Add Camera" to pop up the window as shown below.

Add Camera File Edit View Insert Tools Help Tools Help Features Help No Access Print Edit Select Mode Format Mixed 1 172.10.28.28 88 88.83 SPECD CUSPS Add: 6.1 Remove Add Remove Add File Edit Options Help Adjust Project Status Edit Delete 1 (A)C(Current) 2 (A)C(Current) 3 (A)C(Current) 4 (A)C(Current) 5 (A)C(Current) 6 (A)C(Current) 7 (A)C(Current) Software: Webpage 10.10.00 Advanced Cancel

EZ Setup & Main Interface

DVR User Manual

The module covers the functions such as Encode Parameters and Record Schedule and so on. Please see Chapter 7 Record & Disk Management for details.

> Alarm

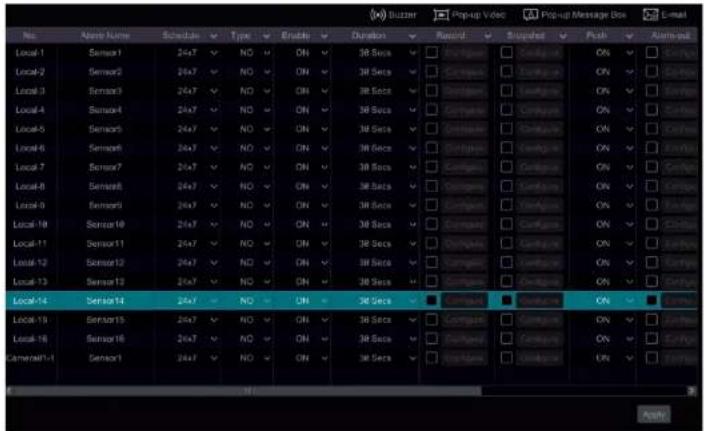

The module covers the functions such as Sensor and Motion Alarm Handling and Alarm Out Settings. Please see Chapter 9 Alarm Management for details.

Disk

The module covers the functions such as Disk Management, Storage Mode and Disk Information and so on. Please see Chapter 7 Record & Disk Management for details.

Network

The module covers the functions such as TCP/IP, DDNS, Port, E-mail and Network Status and so on. Please see 11.1 Network Configuration for details.

Account and Authority

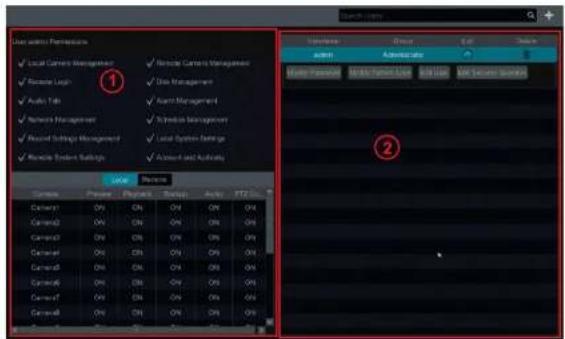

The module covers the functions such as Account Management (see 10.1 Account Management for details) and Permission Management (see 10.3 Permission Management for details) and so on.

System

The module covers the functions such as Basic Configuration (see 11.2 Basic Configuration for details), Device Information (see 11.8 View System Information for details), Log Information (see 11.7 View Log for details) and Configuration File Import & Export (see 11.5 Backup and Restore for details) and so on.

4 Camera Management

4.1 Camera Signal

Click Start→Settings→Camera→Manage Camera→Camera Signal to go to the interface as shown below. Some models may support analog signal switching to IP signal, which means decreasing (or increasing) the number of analog channels will accordingly increase (or decrease) the number of IP channels. The DVR device supports hybrid access of TVI, and CVBS high definition cameras. If the TVI high definition camera is accessed to the DVR, you should select TVI/CVBS in the following interface to show the camera image normally; if you select AHD/CVBS, then there will be no image or the image has no color. The default selection of the camera signal is Auto. If you select Auto, the image of the camera will be shown normally regardless of the camera type.

文件名 文件名 类型 备注 类型 备注 [04]1 文件 Auto/THE/AD/CD/CD OFF 文件 [04]2 文件 Auto/THE/AD/CD/CD OFF 文件 [04]3 文件 Auto/THE/AD/CD/CD OFF 文件 [04]4 文件 Auto/THE/AD/CD/CD OFF 文件 [04]5 文件 Auto/THE/AD/CD/CD OFF 文件 [04]6 文件 Auto/THE/AD/CD/CD OFF 文件 [04]7 文件 Auto/THE/AD/CD/CD OFF 文件 [04]8 文件 Auto/THE/AD/CD/CD OFF 文件 [04]9 文件 Auto/THE/AD/CD/CD OFF 文件 [04]10 文件 Auto/THE/AD/CD/CD OFF 文件 [04]11 文件 Auto/THE/AD/CD/CD OFF 文件 [04]12 文件 Auto/THE/AD/CD/CD OFF 文件 [04]13 文件 Auto/THE/AD/CD/CD OFF 文件 [04]14 文件 Auto/THE/AD/CD/CD OFF 文件 [04]15 文件 Auto/THE/AD/CD/CD OFF 文件 [04]16 文件 Auto/THE/AD/CD/CD OFF 文件 [04]17 文件 Auto/THE/AD/CD/CD OFF 文件 [04]18 文件 Auto/THE/AD/CD/CD OFF 文件 [04]19 Ctrl+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Ctrl+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift+Shift + Shift+F IF Document No. Number: 9. The action accounts shall be found to switch the action button. If an external channel (AD/C/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D/D(D)... <|vision_start|> these values are estimated based on the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of the output of this.

Note: You can enable "Lite" in the interface if the DVR supports "Lite" recording. It will lower the recording resolution and increase the recording frame rate. Please enable or disable the Lite as needed.

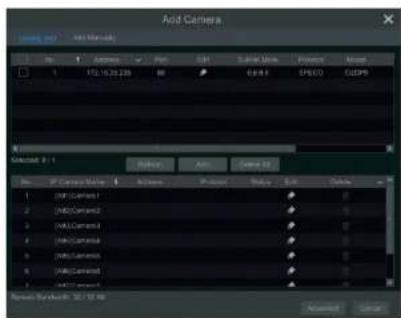

Add Camera Add Manual 1 173.028.258 60 4.8.9.7 SPDCD CODPS Adduct 0:1 Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Remove Breakthrough: 32 / 38 V6

> Quickly Add

Check the cameras and then click "Add" to add cameras. Click 📋 to edit the camera's IP address, username and password and so on. Click "Default Password" to set the default username and password of each camera.

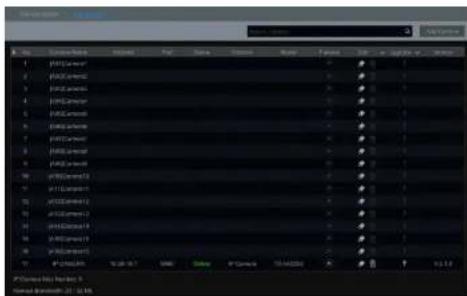

Add Camera Drawing Edit View Help Actions Plan Lockments Password Printed Tout Delete 4000 5000 actions Name Space Size Auto Direct ID File Edit Camera Name 4 Actions Protator Setup Alt Cancel 1 [AVT/Cancel] 2 [AVT/Cancel] 3 [AVT/Cancel] 4 [AVT/Cancel]

Live View Introduction

DVR User Manual

Password" to pop up a window (check the IPCs in the window, set the new password and then click "OK" button; only the online IPCs' passwords can be modified and a batch of IPCs' passwords can be modified at the same time). Click ↑ to upgrade an online IPC (or click √ in the "Upgrade" header line and then click "IPC Batch Upgrade" to upgrade a batch of IPCs), select the device which stores the upgrade file in the "Device Name" item of the popup window and the upgrade file in the list(you should select the upgrade IPC model in the window if a batch of IPCs' passwords need to be modified) and then click "Upgrade" button to start upgrading(the IPC will restart automatically after the upgrade is completed successfully).

Refer to the interface as shown below, drag one camera in the preview window to another window for camera window exchanging.

The record symbols with different colors in the live view window refer to different record types when recording: green stands for manual record, red stands for sensor based record, yellow stands for motion based record, blue stands for schedule record and cyan stands for intelligence record.

Camera1 Camera2 Camera3 Camera4 Camera5 Camera6 Camera7 Camera8 Camera9 Camera10 Camera11 Camera12 Camera13 Camera14 Camera15 Camera16 Camera17 Camera18 Camera19 Camera20 Camera21 Camera22 Camera23 Camera24 Camera25 Camera26 Camera27 Camera28 Camera29 Camera30 Camera31 Camera32 Camera33 Camera34 Camera35 Camera36 Camera37 Camera38 Camera39 Camera40 Camera41 Camera42 Camera43 Camera44 Camera45 Camera46 Camera47 Camera48 Camera49 Camera50 Camera51 Camera52 Camera53 Camera54 Camera55 Camera56 Camera57 Camera58 Camera59 Camera60 Camera61 Camera62 Camera63 Camera64 Camera65 Camera66 Camera67 Camera68 Camera69 Camera70 Camera71 Camera72 Camera73 Camera74 Camera75 Camera76 Camera77 Camera78 Camera79 Camera80 Camera81 Camera82 Camera83 Camera84 Camera85 Camera86 Camera87 Camera88 Camera89 Camera90 Camera91 Camera92 Camera93 Camera94 Camera95 Camera96 Camera97 Camera98 Camera99 46:22:00:10 21:02:00

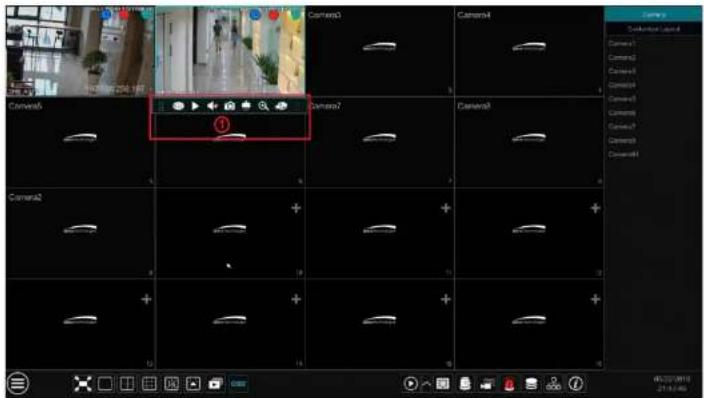

Click the preview window to show the tool bar as shown in area ①; right click the preview window to show the menu list. The tool bar and menu list are introduced in the table below.

Live View Introduction

DVR User Manual

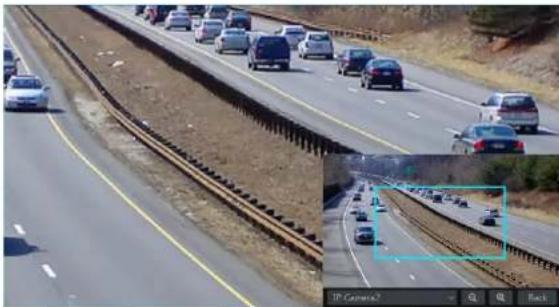

The single channel zoom interface is as shown below. Press and drag the blue box to select the zoom in area.

Click 🔒 to zoom the image. Click the camera selection box to select other cameras for amplification. Click "Back" to return to the live view interface.

Highway traffic scene with multiple cars on elevated tracks and a close-up of a highway segment showing a vehicle (no visible text or symbols)

5.2 View Mode

5.2.1 Display Mode

Set different screen modes and cameras' display sequences as needed and then save the display modes classified by surveillance areas, priorities and so on. Refer to the picture below. Double click one display mode in the display mode list to view the live images in this mode.

06/25 09:19 13:11 13 06/25 09:20 13:21 13 Camera Control Panel

Live View Introduction

DVR User Manual

① Click "Customize Layout" in the above interface and then set the screen mode.
② Add the cameras and adjust the cameras' display sequence as needed.
③ Click under the display mode list and then enter the display mode name in the popup window, click the "OK" button to save the current display mode.

Method Two:

① Click Start→Settings→System→Basic→Output Settings to go to the interface and then set the screen mode.
② Double click the camera or camera group in the list to add them to the selected window.
③ Click to save the current display mode (refer to 5.2.4 Scheme View In Sequence for detail configurations). The display mode will be saved and displayed in the display mode list in the live view interface.

Edit Display Mode

Click "Customize Layout" tab in the live view interface and then select one display mode in the list. Click

to edit the display mode name; click delete the display mode.

5.2.2 Quick Sequence View

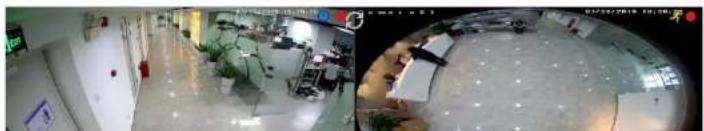

You can start quick sequence view if the scheme has not been created. If the scheme has been created, please refer to 5.2.4 Scheme View in Sequence for details.

Interior view of a modern office or gas station with visible plants and workstations (no readable text or symbols)

Live View Introduction

DVR User Manual

mode. Double click the sequence view interface to pause the view; double click again to restore the view.

Click to stop the view.

5.2.3 Scheme View In Sequence

Click Start→Settings→System→Basic→Output Settings to go to the interface as shown below.

Area ① displays all the sequence schemes; area ② shows the detailed information of the scheme; area ③ displays all the cameras and groups; area ④ is the tool bar (☐: clear button; ★: favorite button, click it to pop up a window, enter the display mode name in the window and then click "OK" to save the current display mode; other buttons are screen mode buttons).

Main Output Output2 System1 ① ② ③ Camera Camera1 Camera2 Camera3 Camera4 Camera5 Camera6 Camera7 Camera8 Camera9 Camera10 Camera11 Camera12 Camera13 Camera14 Camera15 Camera16 Camera17 Camera18 Camera19 Camera20 Camera21 Camera22 Camera23 Camera24 Camera25 Camera26 Camera27 Camera28 Camera29 Camera30 Camera31 Camera32 Camera33 Camera34 Camera35 Camera36 Camera37 Camera38 Camera39 Camera40 Camera41 Camera42 Camera43 Camera44 Camera45 Camera46 Camera47 Camera48 Camera49 Camera50 Camera51 Camera52 Camera53 Camera54 Camera55 Camera56 Camera57 Camera58 Camera59 Camera60 Camera61 Camera62 Camera63 Camera64 Camera65 Camera66 Camera67 Camera68 Camera69 Camera70 Camera71 Camera72 Camera73 Camera74 Camera75 Camera76 Camera77 Camera78 Camera79 Camera80 Camera81 Camera82 Camera83 Camera84 Camera85 Camera86 Camera87 Camera88 Camera89 Camera90 Camera91 Camera92 Camera93 Camera94 Camera95 Camera96 Camera97 Camera98 Camera99 Photo

Go to the live view interface and then click 📄 open a window. Set the sequence interval in the window

and then click 📄 start scheme view in sequence. Double click the sequence view interface to pause the

view; double click again to restore the view. Click stop the view.

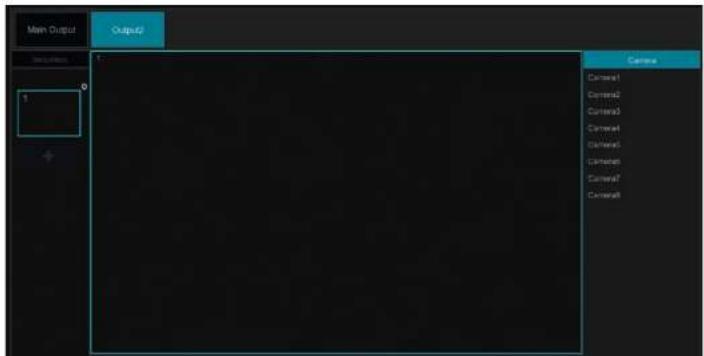

5.2.4 Spot View

Click Start→Settings→System→Basic→Output Settings→Output 2 to go to the interface as shown below.

Click + the left to create a new scheme. Each scheme can only add one analog camera. Select a scheme on the left and then double click or drag a camera on the right to the scheme window in the middle of the interface. After finishing the settings of all the schemes, select the sequence interval and click "Apply" to start playing the schemes in sequence in output 2.

Main Output Output2 Camera Camera1 Camera2 Camera3 Camera4 Camera5 Camera6 Camera7 Camera8 Camera9

Live View Introduction

DVR User Manual

Control Camera Camera Name: Control1 Name GPS: CN Time GPS: 100 Close Format: Monthly/Year New Format: 24 MHz USB Control Mode: Fixed Mode Control Camera Camera0 Camera1 Camera2 Camera3 Camera4 Camera5 Camera6 Camera7 Camera8 Camera9 Camera10 Camera11 Camera12 Camera13 Camera14 Camera15 Camera16 Camera17 Camera18 Camera19 Camera20 Camera21 Camera22 Camera23 Camera24 Camera25 Camera26 Camera27 Camera28 Camera29 Camera30 Camera31 Camera32 Camera33 Camera34 Camera35 Camera36 Camera37 Camera38 Camera39 Camera40 Camera41 Camera42 Camera43 Camera44 Camera45 Camera46 Camera47 Camera48 Camera49 Camera50 Camera51 Camera52 Camera53 Camera54 Camera55 Camera56 Camera57 Camera58 Camera59 Camera60 Camera61 Camera62 Camera63 Camera64 Camera65 Camera66 Camera67 Camera68 Camera69 Camera70 Camera71 Camera72 Camera73 Camera74 Camera75 Camera76 Camera77 Camera78 Camera79 Camera80 Camera81 Camera82 Camera83 Camera84 Camera85 Camera86 Camera87 Camera88 Camera89 Camera90 Camera91 Camera92 Camera93 Camera94 Camera95 Camera96 Camera97 Camera98 Camera99 Camera100

5.3.2 Image Settings

Click Start→Settings→Camera→Image→Image Settings to go to the following interface. Select the camera and then set the brightness, contrast, saturation and hue of the camera. Click "Advanced" button or in the camera list on the right side of the interface to pop up "Image Adjust" interface and then set the relevant setting items. Please refer to 5.4.5 Image Adjustment for detailed introductions of these items.

You can click "Default" to restore the image settings to the default factory settings.

Channel Name Frequency Control Adjustment View Reference 4V01 00 50 50 50 4V02 00 50 50 50 4V03 00 50 50 50 4V04 00 50 50 50 4V05 00 50 50 50 4V06 00 50 50 50 4V07 00 50 50 50

Live View Introduction

DVR User Manual

Camera Name Mask Color Camera1 ON Black Camera2 OFF Black Camera3 OFF Black Camera4 OFF Black Draw Delete Camera Camera1 Mask ON Apply

5.3.4 Water Mark Settings

Click Start→Settings→Camera→Image→Water Mark Settings to go to the interface as shown below. Select the camera and enable water mark and then enter the water mark information. Click "Apply" to save the settings.

Camera Name Water Mark Information Camera1 ON XXXXX Camera2 OFF Camera3 OFF Camera4 OFF Camera Camera1 Water Mark ON

Screenshot of a highway traffic monitoring system interface showing video editing controls and a highway photo with vehicles.

Image Adjustment

Select the camera and then click "Image Adjustment" to go to image adjustment tab. Refer to the above picture. Drag the slider to set the camera's brightness, contrast, saturation and hue value. Check sharpen, wide dynamic and denoise and then drag the slider to set the value. Click "Default" button to set these parameters to default values.

The introductions of these parameters are as follows:

Parameter	Meaning
Brightness	It is the brightness level of the camera's image.
Contrast	It is the color difference between the brightest and darkest parts.
Saturation	It is the degree of color purity. The color is purer, the image is brighter.
Huc	It relates to the total color degree of the image.
Sharpen	It relates to the resolution level of the image plane and the sharpness level of the image edge.
Wavelength	The wide dynamic range (WDR) function helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously

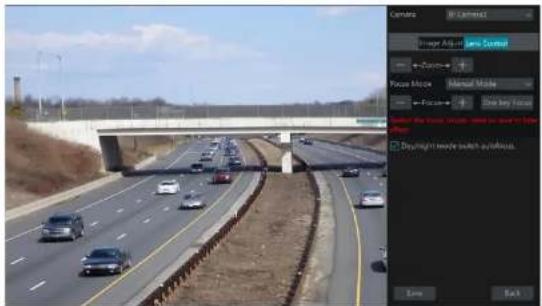

Select the camera and then click "Lens Control" to go to lens control tab. Click - or + to adjust the zoom and focus parameters of the camera's lens. Click "Save" to save the settings.

Camera Linear Adjust Auto Control +/-- Place Mode Manual Mode +/-- Switch: The Route, Version 1, Window to Start at System - Deynight mode switch audiovisual. Save Back

The introductions of these parameters and buttons are as follows.

Button/Parameter	Meaning
	Click "to zoom out the image.
Focus Mode	If manual mode is selected, focus button & "One Key Focus" & "Day/night mode switch autofocus" will be available; if auto mode is selected, the time interval setup will be available.
	Click "to increase decrease the focal length.
One key focus	Click it to focus instantly.
Day/night mode	If checked, the lens will focus automatically when the camera is switching day/night

6 PTZ

6.1 PTZ Control Interface Introduction

You can control the IP dome or PTZ which connects to the IP camera for PTZ control.

Click the tool bar at the bottom of the live view window to go to the PTZ control interface as shown below. You can select another IP dome or PTZ which connects to the IP camera on the top right of the interface for PTZ control.

Analog-Myristick Camera | Camera1 Preset Cruise Preset Preset Name Call 1 preset1 2 preset2 Add Delete Save Protocol Zoom Focus Irr Speed

Introductions of the buttons on the bottom right of the interface:

Button Meaning Click / / / / / / / / /

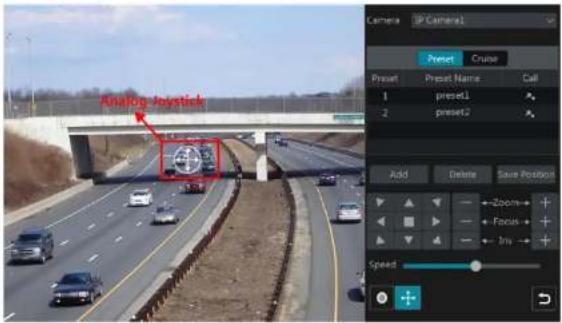

3D Control

Click the camera image on any area and then the image will be centered on the clicked point.

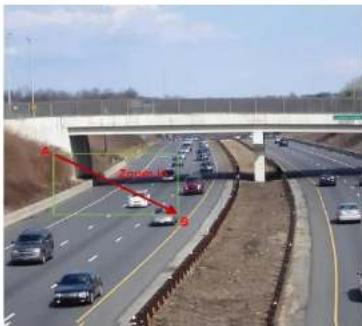

Refer to the picture as shown below. Drag the mouse from A to B to get a green rectangle and the rectangle area will be zoomed in.

Street photo of a multi-lane highway with visible lane markings and traffic flow, including red arrows and a 'Spare Life' sign.

Camera Preset Crude Preset Preset Name Call 1 preset1 2 preset2 Add Delete Save Position Speed ←Zoom→ ←Focus→ ←Ins→

Refer to the picture as shown below. Drag the mouse from C to D to get a green rectangle and the rectangle area will be zoomed out.

Exterior view of a sports field with trees and lampposts under a clear sky (no signage or text visible)

> OSD Setting

Go to PTZ protocol setting interface and then set the protocol before you bring up the OSD. Click "OSD Menu" to go to camera OSD setting interface. Click ■ to start OSD setting. The meanings of the buttons are shown in the table below.

Button	Meaning
	Click it to call main menu or enter the sub menu or confirm the settings.
	Click it to call main menu or enter the sub menu or confirm the settings.
	Click it to change the menu mode or decrease the menu value.
	Click it to change the menu mode or increase the menu value.
	Click it to go to the previous menu.
	Click it to go to the next menu.

Preset Setting

Click "Preset" to go to preset operation tab and then click "Add" button to pop up a window as shown below. Select the preset and then enter the preset name in the window; finally click "OK" button to save the settings. You can add 255 presets for each dome at most.

Click "Cruise" to go to cruise operation tab and then click "Add" button to pop up a window as shown below left. You can add 8 cruises for each dome at most.

Add Cruise Cruise Name: cruise2 Preset Preset Name Speed Time Off Collapse 1 preset 5 Speed 0 Speed Add Cruise Add Cancel

① Enter the cruise name in the "Add Cruise" window and then click "Add preset" to pop up the "Add Preset" window (Before adding preset to the cruise, please add preset of the dome first).

② In the "Add Preset" window, select the preset name, preset time and preset speed and then click "OK" button.

⑤ In the "Add Cruise" window, you can click 📋 to reselect the preset, then change the preset time and speed. Click 🔒 to delete the preset. Click "Add" button to save the cruise.

Click → start the cruise and click to stop the cruise in the cruise list of the cruise operation tab; click "Delete" button to delete the selected cruise.

You can also go to cruise setting interface for cruise setting, see 6.3 Cruise Setting for details.

6.2 Preset Setting

Click Start→Settings→Camera→PTZ→Preset to go to the interface as shown below.

Frame Cruise JP Camera1 Number of Preset ( 1 )

Select camera and then click "Add" button to add preset; or click in the camera list on the right side of the interface to display the preset information of the dome and then click preset. The operations of the "Add Preset" window is similar to that of the PTZ control interface; please see 6.1 PTZ Control Interface Introduction for details.

Edit preset

Select camera and preset. You can enter the new name of the preset and then click to save the new preset name. Adjust the rotating speed, position, zoom, focus and iris of the preset and then click "Save Position" to save the preset.

Delete Preset

Select camera and preset and then click "Delete" to delete the preset.

6.3 Cruise Setting

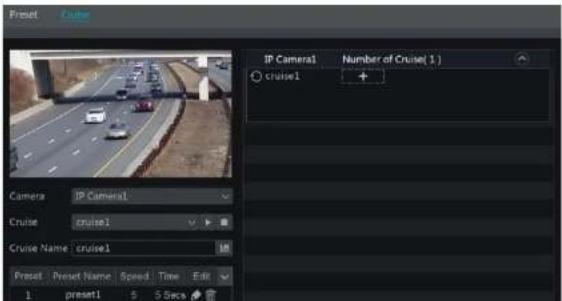

Click Start→Settings→Camera→PTZ→Cruise to go to the interface as shown below.

Preset Cruise IP Camera1 Number of Cruise(1) cruise1 + Camera IP Camera1 Cruise cruise1 Cruise Name: cruise1 10 Preset Preset Name Speed Time Edit 1 preset1 5 5 Secs

Click the camera list on the right side of the interface to display the cruise information of the dome and then click the top right corner of the cruise to delete the cruise.

7 Record& Disk Management

7.1 Record Configuration

7.1.1 Mode Configuration

Please format the HDDs before recording (refer to 7.5 Disk Management for details). Click

Start→Settings→Record→Mode Settings to go to the mode settings interface. You can set the record time under the "Manual Record Settings" and then click "Apply" to save the settings. There are two record

modes: auto mode and manual mode.

Record Marks Main Motion Reward Sensor Record Motion Record Sensor Record Continuous Record-Mirror Record Continuous Record-Discer Record Continuous Record-Mirror Record-Discer Record Continuous Record-Mirror Record-Discer Record Record Record Record Settings Record Time Manual Apply

Auto Mode

Motion Record: Motion alarm record will be enabled when motion alarm happens.

Sensor Record: Sensor alarm record will be enabled when sensor alarm happens.

Motion Record + Sensor Record: Motion/sensor alarm record will be enabled when motion/sensor alarm

L

Custom Record Mode Motion Record Sensor Record Continuous Record Analytics Record Add Cancel

Select one auto mode to pop up the corresponding window. Set the encode, GOP, resolution, FPS, bitrate type, quality, max bitrate and audio of each camera and then click "OK" to save the settings. Please adjust the parameters according to the actual condition.

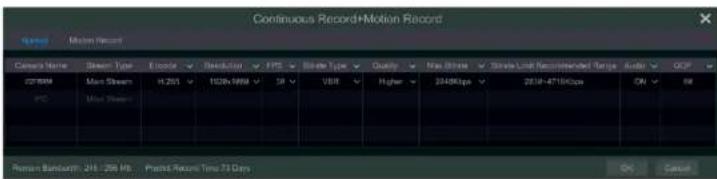

Continuous Record+Motion Record Name: Motion Record Camera Name Stream Type Encoder Resolution FP6 Radio Type Quality Max Rate Video Load Rec/Standard Ratio Audio OFF CSTRM Miss Stream H205 102kV/800 34 VEE Higher 2248Kbps 2014-47194Cbps ON 88 FPC Miss Stream Person Bandwidth: 244 - 296 Mb Practr Record Time: 73 Days OK Cancel

Video Encode: the available options will be H.265 and H.264 if the connected IP camera supports H.265, or the option will be H.264 only.

GOP: group of pictures.

Resolution: the higher the resolution is, the clearer the image is.

FPS: the higher the frame rate is, the more fluency the video is. However, more storage room will be taken up.

Dituate Tung: CDD and VDD are optional. CDD means that no matter how much change is seen in the video

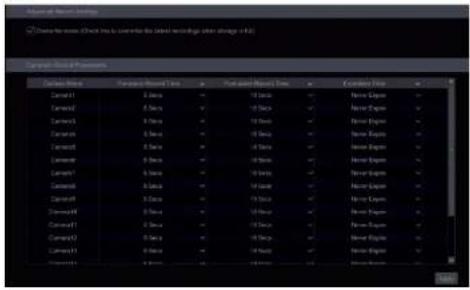

Set the pre-alarm record time, post-alarm record time and expiration time of each camera and then click "Apply" to save the settings.

Formula 1 Formula 2 Formula 3 Formula 4 Formula 5 Formula 6 Formula 7 Formula 8 Formula 9 Formula 10 Formula 11 Formula 12 Formula 13 Formula 14 Formula 15 Formula 16 Formula 17 Formula 18 Formula 19 Formula 20 Formula 21 Formula 22 Formula 23 Formula 24 Formula 25 Formula 26 Formula 27 Formula 28 Formula 29 Formula 30 Formula 31 Formula 32 Formula 33 Formula 34 Formula 35 Formula 36 Formula 37 Formula 38 Formula 39 Formula 40 Formula 41 Formula 42 Formula 43 Formula 44 Formula 45 Formula 46 Formula 47 Formula 48 Formula 49 Formula 50 Formula 51 Formula 52 Formula 53 Formula 54 Formula 55 Formula 56 Formula 57 Formula 58 Formula 59 Formula 60 Formula 61 Formula 62 Formula 63 Formula 64 Formula 65 Formula 66 Formula 67 Formula 68 Formula 69 Formula 70 Formula 71 Formula 72 Formula 73 Formula 74 Formula 75 Formula 76 Formula 77 Formula 78 Formula 79 Formula 80

Pre-alarm Record Time: set the time to record before the actual recording begins. Post-alarm Record Time: set the time to record after the actual recording is finished

Expiration Time: set the expiration time for recorded video. If the set date is overdue, the recorded data will be deleted automatically.

7.2 Encode Parameters Setting

Click Start→Settings→Record→Encode Parameters to go to the interface as shown below. Set the encode, resolution, FPS, GOP, bitrate type, quality, max bitrate and audio of main stream for each camera in "Event Recording Settings" and "Schedule Recording Settings" interfaces. Click "Apply" to save the settings. You can set the record stream of each camera one by one or batch set them for all cameras.

Location Name

Sample Type

Exposure

Exposure (μg)

p-value

Exposure (μg)

p-value

Exposure (μg)

p-value

Exposure (μg)

p-value

Exposure (μg)

p-value

Carnesil

Sun Stem

4,200

7500–8000

76

1.4

0.98

Higher

3520 μg

11m-90 μg/m2

Carnesil

Sun Stem

4,200

7500–8000

76

1.4

0.98

Higher

3520 μg

35m-440 μg/m2

Carnesil

Sun Stem

4,200

7500–8000

76

1.4

0.98

Higher

3520 μg

85m-340 μg/m2

Carnesil

Sun Stem

4,200

7500–8000

76

1.4

0.98

Higher

3520 μg

35m-440 μg/m2

Carnesil

Sun Stem

4,200

7500–8000

76

1,4

0.98

Higher

3520 μg

35m-440 μg/m2

Carnesil

Sun Stem

4,200

7500–8000

76

1.4

0.98

Higher

3520 μg

35m-440 μg/m2

Carnesil

Sun Stem

4,200

7500–8000

76

7.4

0.98

Higher

3520 μg

35m-440 μg/m2

Carnesil

Sun Stem

4,200

7500–8000

76

1.4

0.98

Higher

3520 μg

35m-440 μg/m2

Carnesil

Sun stem

4,200

7500–8000

76

1.4

0.98

Higher

3520 μg

35m-440 μg/m2

Carnesil-1

Sun stem

4,200

7500–8000

76, 1.4

Carnesil-2

Sun stem (1)

4,200

7500–8000

76, 1.4

Carnesil-3

Sun stem (2)

4,200

7500–8000

76, 1.4

Carnesil-4

Sun stem (3)

4,200

7500–8000

76, 1.4

Carnesil-5

Sun stem (4)

4,200

7500–8000

76, 1.4

7.3 Schedule Setting

7.3.1 Add Schedule

Click Start→Settings→Record→Record Schedule→Edit Schedules to go to the interface as shown below. "24×7", "24×5" and "24×2" are the default schedules; you cannot edit or delete "24×7" while "24×5" and "24×2" can be edited and deleted. Click the schedule name to display the detailed schedule information on the left side of the interface. The seven rows stand for the seven days in a week and each row stands for 24 hours in a day. Blue stands for the selected time and gray stands for unselected time.

Audio (V) Base Audio Tens Dial Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Auction Auction Auction Auction Auction Auction Auction Auction Auction Auction Auction Auction Auction Auction Auction

Record & Disk Management

DVR User Manual

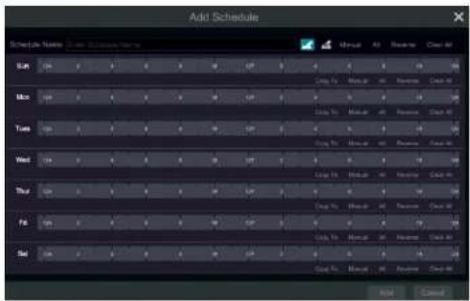

Add Schedule Schedule Name: 12.000 Subscale Name: Sun Sun Time Wed Thu Fri Sat Add Remove Edit Cancel

Set the schedule name and schedule time and then click "Add" to save the schedule. You can set day schedule or week schedule. Add button; : delete button.

Set Day Schedule

Click and then drag the cursor on the time scale to set record time; click and then drag the cursor on the time scale to delete the selected area.

You can manually set the record start time and end time. Click 📄 or 📄 and then click "Manual" on each day to pop up a window as shown below. Set the start and end time in the window and then click "OK" to save the settings.

Copy To Mon Tues Wed Thur Fri Sat OK Cancel

Set Week Schedule

Click 📄 or 📋 and then click "Manual" beside 📋 to set the week schedule. Refer to the picture below. Set the start and end time, check the days in the window and then click "OK" to save the settings.

Added time manually Start Time 19.45 End Time 20.45 Run Main Turns Wed Thar Fe Set OK Cancel

Click "All" to set all week recording; click "Reverse" to swap the selected and unselected time in a week; click "Clear All" to clear all the selected area in a week.

7.3.2 Record Schedule Configuration

Click Start→Settings→Record→Record Schedule→Schedule Configuration to go to the interface as shown below. Set the schedule of sensor record, motion record, timed record and intelligence record. Click "None" in the drop-down menu to clear the schedule. Click "Apply" to save the settings.

7.4 Record Mode

7.4.1 Manual Recording

Method One: Click 📄 on the tool bar at the bottom of the live view interface to enable recording of the

camera.

Method Two: Go to the live view interface and then click the right-click menu "Manually Record On" in the camera window or click on the tool bar under the camera window to start recording.

Note: Click Start → Settings → Record → Mode Settings and then set the manual record time in the

• • • • • • • •

7.4.2 Timing Recording

Timing Recording: the system will record automatically according to the schedule.

Set the timing record schedule of each camera. See 7.3 Schedule Setting for details.

7.4.3 Motion Based Recording

Motion Based Recording: the system will start motion based recording when the motion object appears in the setup schedule. The setup steps are as follows:

① Set the motion based recording schedule of each camera. See 7.3 Schedule Setting for details.
② Enable the motion and set the motion area of each camera. See 9.2.1 Motion Configuration for details.
The camera will start motion based recording once you finish the above settings.

7.4.4 Sensor Based Recording

① Set the sensor based recording schedule of each camera. See 7.3 Schedule Setting for details.
② Set the NO/NC type of the sensor, enable the sensor alarm and then check and configure the "Record".

See 9.1 Sensor Alarm for details.

7.4.5 Analytics Recording

Record & Disk Management

DVR User Manual

Disk Configuration Disk Capacity(200) Free Storage (35) Disk Secret No Disk Model Share Type Discharge mode Record Period Disk1 465 398 WC-VMAVNOCHYMB WDC WD06MMVDS-4 RW Ordinary PL ON 89/5/2019-45/22/2019

7.5.2 Storage Mode Configuration

Click Start→Settings→Disk→Storage Mode to go to the interface as shown below.

1 2 3 4 Video 1 Comma 1 Comma 2 Comma 3 Comma 4 Comma 5 Comma 6 Comma 7 Comma 8 Comma 9 Comma 10 Comma 11 Comma 12 Comma 13 Comma 14 Comma 15 Comma 16 Comma 17 Comma 18 Comma 19 Comma 20 Comma 21 Comma 22 Comma 23 Comma 24 Comma 25 Comma 26 Comma 27 Comma 28 Comma 29 Comma 30 Comma 31 Comma 32 Comma 33 Comma 34 Comma 35 Comma 36 Comma 37 Comma 38 Comma 39 Comma 40 Comma 41 Comma 42 Comma 43 Comma 44 Comma 45 Comma 46 Comma 47 Comma 48 Comma 49 Comma 50 Comma 51 Comma 52 Comma 53 Comma 54 Comma 55 Comma 56 Comma 57 Comma 58 Comma 59 Comma 60 Comma 61 Comma 62 Comma 63 Comma 64 Comma 65 Comma 66 Comma 67 Comma 68 Comma 69 Comma 70 Comma 71 Comma 72 Comma 73 Comma 74 Comma 75 Comma 76 Comma 77 Comma 78 Comma 79 Comma 80 Comma 81 Comma 82 Comma 83 Comma 84 Comma 85 Comma 86 Comma 87 Comma 88 Comma 89 Comma 90 Comma 91 Comma 92 Comma 93 Comma 94 Comma 95 Comma 96 Comma 97 Comma 98 Comma 99 Comma 100

There are four disk groups. By using disk group, you can correspond the camera to disk (the record data of the camera in the group will be stored into the disks in the same group). The DVR with e-SATA interface supports e-SATA recording.

The added disks and cameras will be added into group one automatically. The disks and cameras in the groups can be deleted except group one (select a disk group and then click 📄 the top right corner of the added disk or camera to delete it from the group). The deleted disks and cameras will be moved into group one automatically.

Each group can add the disks and cameras from other groups. Each disk and camera can only be added into one group. Select a disk group and then click disk or camera row to pop up a window. Check the disks or cameras in the window and then click "Add".

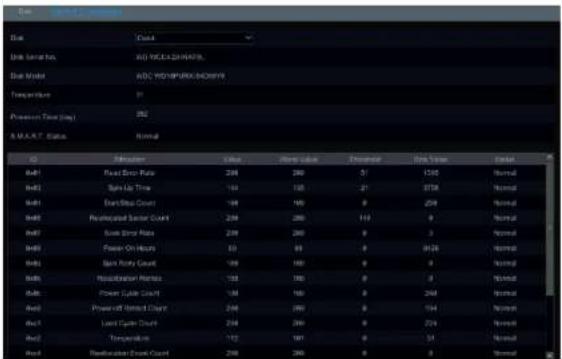

Size Model: Tread Model name: WD NOCA20040000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Model Model: WD NOCA200400045879 Temperature: 12 Pressure Time (sec) S.M.A.R.T. Status: Normal ID: Number Value Number Value Percentile Rate/Year Endset Model: Fixed Base Rate 298 386 51 155 Normal Model: Split Life Time 144 155 27 878 Normal Model: Start Step Count 144 166 9 259 Normal Model: Reconstructed Sample Count 298 286 113 9 Normal Model: Scale Size Rate 298 286 9 3 Normal Model: Power On-Heats 33 39 9 9126 Normal Model: Spin Force Count 158 166 9 9 Normal Model: Respiration Radius 158 166 9 9 Normal Model: Power Split Count 158 166 9 248 Normal Model: Power off Rated Count 298 286 9 154 Normal Model: Load Split Count 298 286 9 224 Normal Model: Temperature -172 161 9 31 Normal Model: Reconstructed Count Count 298 286 9 9 Normal

8 Playback& Backup

8.1 Instant Playback

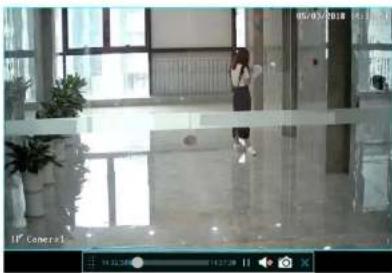

Click ▶ the tool bar at the bottom of the preview camera window to play back the recorded video (click ▶ on the tool bar at the bottom of the live view interface to set the default playback time). Refer to the picture below. Drag the playback progress bar to change the playback time. You can also click the right-click menu "Instant Playback" in the camera window and then set the instant playback time to play back the record.

Interior view of a modern office lobby with glass flooring and potted plants (no visible text or symbols)

8.2 Playback Interface Introduction

Click 📄 on the tool bar at the bottom of the live view interface or click Start→Playback to go to the playback interface as shown below (click 📄 on the tool bar at the bottom of the live view interface to set the default playback time).

Interior view of a modern office hallway with glass doors and decorative plants (no visible text or signage)

cameras in the window and then click "Add" to add playback camera. The system supports a maximum of 16 synchronous playback cameras.

The buttons on the tool bar (area ①) at the bottom of the playback interface are introduced in the table below.

Button	Meaning
	Start button. Click it to pop up area 2.
	Full screen button. Click it to show full screen; click it again to exit the full screen.
	Screen mode button.
	OSD ON button. Click it to enable OSD; click it again to disable OSD.
	Stop button.
	Rewind button. Click it to play video backward.
	Play button. Click it to play video forward.
	Pause button.
	Deceleration button. Click it to decrease the playing speed.
	Acceleration button. Click it to increase the playing speed.
	Previous frame button. It works only when the forward playing is paused in single screen mode.
	Next frame button. It works only when the forward playing is paused in single screen mode.
	Click step backward 30s and click to stop forward 30s.
	Click it to show the water mark on the image; click inside the water mark.
	Event list/tag button. Click it to view the event record of manual/schedule/sensor/motion and the tag information.
	Backup button. Drag the mouse on the time scale to select the time periods and cameras, and then click the button to back up the record.
	Backup status button. Click it to view the backup status.
	Back button. Click it to return.

Button	Menu List	Meaning
	--	Move tool. Click it to move the tool bar anywhere.
	Enable Audio	Click it to enable audio. You can listen to the camera audio by enabling audio.
	Snapshot	Click it to snap.
	Zoom In	Click it to go to the room in interface. The room in interface is similar to that of the camera window in the live view interface.Clickto pause the record playing click to play in record. When the record is paused in forward playing mode, you can clicknew the previous frame and click toview the next frame.
	Add Tag	Click it to add tag. You can play back the record by searching the added tag. Click it and then enter the tag name in the popup window. Click "Add" to add tag.
	Switch Camera	Click it to switch the playback camera. Click it and then check the camera in the popup window. Click "OIC" to change the camera.
	Close Camera	Click it to close the playback camera.

Introduction of area ④:

You can check the record type as required for record playback; first you should click 📄 on the tool bar at the bottom of the interface to clear all the playback camera, then check the record type ( manual record;

: sensor based record; motion based record; : schedule record; : analytics record; and finally click the playback window to add camera for playback (the record time scale will show the record data of the checked record type only after the above operations).

Introduction of the record time scale (area ⑤):

Click 📄 set the date; click to 📄 the time and then the playback camera will play the record from the time you set.

A tool bar will appear after moving the mouse to the record time scale. Click 📄 / 🔒 to zoom the timeline; click 🔒 to recover the timeline to 24 hours' ratio. Drag the timeline or slide the scroll wheel of the mouse on the time scale to show the hidden time on the top or bottom of the timeline. You can also

Alarm Management

DVR User Manual

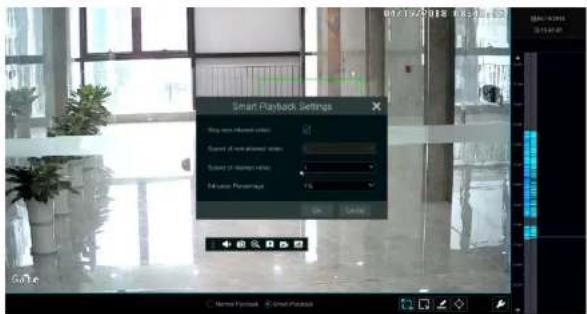

Smart Playback Settings View new output file Export of new output file Export of output file Export to Image file Import Parameters OK Cancel

● Smart Playback by Drawing Rectangle

Street photo with visible store signboards and a person walking through an indoor lobby

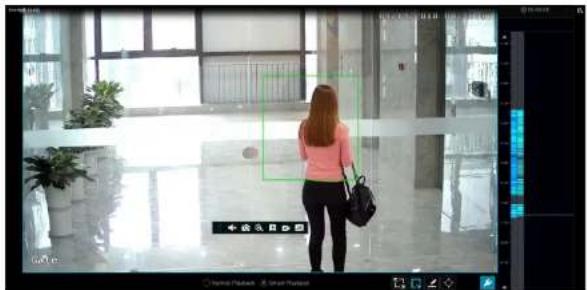

Click and draw a rectangle in the desired area. Then the system will automatically search the record files of this area. The even blocks indicate that there are intelligent recording files. Move the cursor to such block

Alarm Management

DVR User Manual

Street photo with visible store signboards and a person walking in an office hallway

● Smart Playback by Drawing Quadrilateral

Click and draw a quadrangle in the desired area. Then the system will automatically search the record files of this area. The cyan blocks indicate that there are intelligent recording files. Move the cursor to such block and click to play the record.

Street photo with visible store signboards and a green overlay on a glass interior

Alarm Management

DVR User Manual

② Select one camera in the interface and then click "Open" button.

③ Click the image box to play the record in the small playback box on the left side of the interface (the box which has image inside indicates that the record data exist).

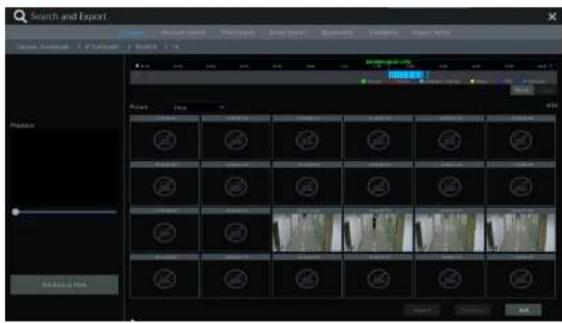

④ Refer to the picture below. Drag the color blocks on the time scale to select the record data and then click "Export" button to pop up the "Record Backup" window as shown below. Select the device name, backup format and path and then click "Export" button to start the backup.

Record Backup Device Name: QianmaStorage 0558-4A24 Refresh Free: 28.96 GB/48.26 GB Name Type Size Modify Date Backup Directory 8:00 KB 2019/11/03 18:58:13 Format Private New Folder Delete Export Cancel

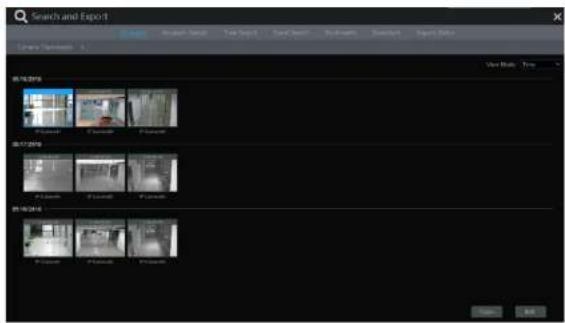

Search and Export General Interface - 3.0 Software - 1.0 File Edit View Help Tools Help Add Tools Build Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tots Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools Help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools helps Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tools help Add Tots Help Add Tots Help Add Tots Help Add Tots Help Add Tots Help Add Tots Help Add Tots Help Add Tots Help Add Tots Help Add Tots Help Add Tots Help Add Tots Help Add Tots Help Add Tots Help Add Tots Help Add Tots Help Add Tots Help Add Tots Help Add Tots Help Add Tots Help Add Tots help Add Tots help Add Tots help Add Tots help Add Tots help Add Tots help Add Tots help Add Tots help Add Tots help Add Tots help Add Tots help Add Tots help Add Tots help Add Tots help Add Tots help Add Tots help Add Tots help Add Tots help Add Tots help Add Tots help Add Tots helps

Time Slice Search:

Method One: Click "Year", "Month" or "Day" button under the record time scale to select the time slice mode. In "Day" mode, click ▶ / ▶ on the left/right side of the time scale to view the record of the last/next day; click "Minute" in the "Picture" option under the time scale to select "Minute" mode (in "Minute" mode, click the time scale to change the time of the 60 display windows) and click "Hour" to select "Hour" mode.

Method Two: Click → beside "Camera Thumbnail" on the left top corner of the interface to select the time slice mode.

Method Three: Right-click the mouse on any area of the time-sliced interface to go back to the upper interface.

8.4.2 Museum Search

① Click Start→Search and Export→Museum Search to go to the following tab as shown below. Behavior Detection: when you select the smart playback mode, the system will analyze the video containing the object detection, exception, tripwire and intrusion detection.

② Click "Behavior". Set the searching time period and you will search the channel which has the intelligence detection period.

Alarm Management

DVR User Manual

8.4.3 Time Search

① Click Start→Search and Export→Time Search to go to the "Time Search" tab as shown below.
② Click + on the bottom of the interface to add playback camera. A maximum of 16 cameras can be added for playback. Click "Modify" on the top right corner of the camera window to change the camera and click "Clear" to remove the camera.
③ Click the camera window to play the record in the small playback box on the left side of the interface. You can set the date on the top left of the interface, check the event type as required and click the time scale or click order the time scale to set the time. The camera window will play the record according to the time and event type you set.
④ Drag the color blocks on the time scale to select the record data (or click "Set Backup Time" button on the bottom left corner of the interface to set the backup start time and end time) and then click "Export" button for record backup. Click "Playback" button to play the record in the playback interface.

Search and Export File Edit View Insert Tools Help Window Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tots File Edit View Insert Tools Help Window Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tots File Edit View Insert Tools Help Window Help Tools Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time Help Time

8.4.4 Event Search

① Click Start→Search and Export→Event Search to go to "Event Search" tab as shown below.

Alarm Management

DVR User Manual

④ Check cameras on the left side of the interface or check "All" to select all the cameras and then click to search the record. The searched record will be displayed in the list.

⑤ Click ▶ in the list to play back the record in the popup window. Click ▶ to back up one record data or check multiple record data in the list and then click "Backup" button for record batch backup.

⑤ Select one record data in the list and then click "Playback" button to play the record in the playback interface.

8.4.5 Bookmark Search

Only if you add the tags can you play the record by tag search. Click Start→Playback to go to the playback interface and then click 📂 the bottom of the camera window to add bookmarks when you want to mark the playback time point of the selected camera.

Click Start→Search and Export→Bookmarks to go to "Bookmarks" tab.

Search and Export No. Name Search Name Run Print Edit View 1 IP Command_2018051940042 IP Command 6/5/2018 02:53:41 PM 2 IP Command2018051940044 IP Command 6/5/2018 02:53:41 PM 3 IP Command2018051940045 IP Command 6/5/2018 02:53:41 PM

Click the interface to play the record. Click to e the tag name. Click to delete the tag.

8.4.6 Snapshots

Click Start→Search and Export→Snapshots to go to "Snapshots" tab. The system will display all the captured images automatically in the list.

Search and Export No. Cancel Name Inspection Name Exposure Type Discrits Biores Export Cancel 1 IP-Cancel01 National 85 10/28/16 25 01:24 PM enter National 2 IP-Cancel02 National 85 10/28/16 25 01:23 PM enter enter enter enter National 3 IP-Cancel03 National 85 10/28/16 25 01:24 PM enter aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper aper /pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa PA Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa Pa.kp Pa.kp Pa.kp Pa.kp Pa.kp Pa.kp Pa.kp Pa.kp Pa.kp Pa.kp Pa.kp Pa.kp Pa.kp Pa.kp Pa.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.kp.ko P

Alarm Management

DVR User Manual

View images Close Image: P91 Time: 11/02/2018 13:54:02 Circut: P91 11/28/2018 13:54:02 IP Camera:01

8.4.7 View Export Status

Click Start→Search and Export→Export Status or click 🔒 on the tool bar at the bottom of the playback interface to view the export status.

9 Alarm Management

9.1 Sensor Alarm

To complete the entire sensor alarm settings, you should enable the sensor alarm of each camera and then set up the alarm handling of each camera.

① Click Start→Settings→Alarm→Sensor Alarm to go to the following interface.

Add Menu Sensor1 Sensor2 Sensor3 Sensor4 Sensor5 Sensor6 Sensor7 Sensor8 Sensor9 Sensor10 Sensor11 Sensor12 Sensor13 Sensor14 Sensor15 Sensor16 Sensor17 Sensor18 Sensor19 Sensor20 Sensor21 Sensor22 Sensor23 Sensor24 Sensor25 Sensor26 Sensor27 Sensor28 Sensor29 Sensor30 Sensor31 Sensor32 Sensor33 Sensor34 Sensor35 Sensor36 Sensor37 Sensor38 Sensor39 Sensor40 Sensor41 Sensor42 Sensor43 Sensor44 Sensor45 Sensor46 Sensor47 Sensor48 Sensor49 Sensor50 Sensor51 Sensor52 Sensor53 Sensor54 Sensor55 Sensor56 Sensor57 Sensor58 Sensor59 Sensor60 Sensor61 Sensor62 Sensor63 Sensor64 Sensor65 Sensor66 Sensor67 Sensor68 Sensor69 Sensor70 Sensor71 Sensor72 Sensor73 Sensor74 Sensor75 Sensor76 Sensor77 Sensor78 Sensor79 Sensor80 Sensor81 Sensor82 Sensor83 Sensor84 Sensor85 Sensor86 Sensor87 Sensor88 Sensor89 Sensor90 Sensor91 Sensor92 Sensor93 Sensor94 Sensor95 Sensor96 Sensor97 Sensor98 Sensor99 Sensor100

② Select schedule and the alarm type (NO or NC) according to trigger type of the sensor.
③ Enable the sensor alarm of each camera.
④ Check the "Duration", "Record", "Snapshot", "Push", "Alarm-out" and "Preset" and enable or disable the "Buzzer", "Pop-up Video", "Pop-up Message Box" and "E-mail" as required.
⑤ Click "Apply" to save the settings

Alarm Management

DVR User Manual

is triggered. You need to set the delay time and the schedule of the alarm outputs. See 9.5.1 Alarm-out for details.

Preset: check it and then the "Trigger Preset" window will pop up automatically. Configure the trigger preset of each camera. To add presets, please see 6.2 Preset Setting for details.

Buzzer: if enabled, the system will begin to buzz when the sensor alarm is triggered. To set the delay time of the buzzer, please see 9.5.4 Buzzer for details.

Pop-up Video: After camera setting, the system will pop up the corresponding video automatically when the sensor alarm is triggered. To set the duration time of the video, please see 9.5.3 Display for details.

Pop-up Message Box: if enabled, the system will pop up the corresponding alarm message box automatically when the sensor alarm is triggered. To set the duration time of the message box, please see 9.5.3 Display for details.

E-mail: if enabled, the system will send an e-mail when the sensor alarm is triggered. Before you enable the email, please configure the recipient's e-mail address first (see 11.1.5 E-mail Configuration for details).

9.2 Motion Alarm

Motion Alarm: when the motion object appears in the specified area, it will trigger the alarm. You should enable the motion of each camera first and then set the alarm handling of the camera to complete the whole configuration of the motion alarm.

9.2.1 Motion Configuration

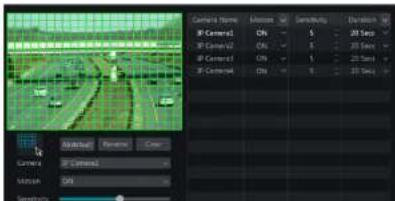

① Click Start→Settings→Camera→Motion to go to the following interface.

Camera Scope Lock: 50 Speed: 100 Duration: 20 sec IF Camera1 Off S IF Camera2 Off S IF Camera3 Off S IF Camera4 Off S IF Camera5 Off S IF Camera6 Off S IF Camera7 Off S IF Camera8 Off S IF Camera9 Off S IF Camera10 Off S IF Camera11 Off S IF Camera12 Off S IF Camera13 Off S IF Camera14 Off S IF Camera15 Off S IF Camera16 Off S IF Camera17 Off S IF Camera18 Off S IF Camera19 Off S IF Camera20 Off S IF Camera21 Off S IF Camera22 Off S IF Camera23 Off S IF Camera24 Off S IF Camera25 Off S IF Camera26 Off S IF Camera27 Off S IF Camera28 Off S IF Camera29 Off S IF Camera30 Off S IF Camera31 Off S IF Camera32 Off S IF Camera33 Off S IF Camera34 Off S IF Camera35 Off S IF Camera36 Off S IF Camera37 Off S IF Camera38 Off S IF Camera39 Off S IF Camera40 Off S IF Camera41 Off S IF Camera42 Off S IF Camera43 Off S IF Camera44 Off S IF Camera45 Off S IF Camera46 Off S IF Camera47 Off S IF Camera48 Off S IF Camera49 Off S IF Camera50 Off

Alarm Management

DVR User Manual

9.2.2 Motion Alarm Handling Configuration

① Click Start→Settings→Alarm→Motion Alarm to go to the following interface.

Camera Name Camera1 Camera2 Camera3 Camera4 Camera5 Camera6 Camera7 Camera8 Camera9 Camera10 Camera11 Camera12 Camera13 Camera14 Camera15 Camera16 Camera17 Camera18 Camera19 Camera20 Camera21 Camera22 Camera23 Camera24 Camera25 Camera26 Camera27 Camera28 Camera29 Camera30 Camera31 Camera32 Camera33 Camera34 Camera35 Camera36 Camera37 Camera38 Camera39 Camera40 Camera41 Camera42 Camera43 Camera44 Camera45 Camera46 Camera47 Camera48 Camera49 Camera50 Camera51 Camera52 Camera53 Camera54 Camera55 Camera56 Camera57 Camera58 Camera59 Camera60 Camera61 Camera62 Camera63 Camera64 Camera65 Camera66 Camera67 Camera68 Camera69 Camera70 Camera71 Camera72 Camera73 Camera74 Camera75 Camera76 Camera77 Camera78 Camera79 Camera80 Camera81 Camera82 Camera83 Camera84 Camera85 Camera86 Camera87 Camera88 Camera89 Camera90 Camera91 Camera92 Camera93 Camera94 Camera95 Camera96 Camera97 Camera98 Camera99 Camera100

② Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm handling settings of motion alarm the same as the sensor alarm (see 9.1 Sensor Alarm for details).

③ Click "Apply" to save the settings. You can click "Motion Settings" to go to the motion configuration interface.

9.3 Smart Event

9.3.1 Object Detection

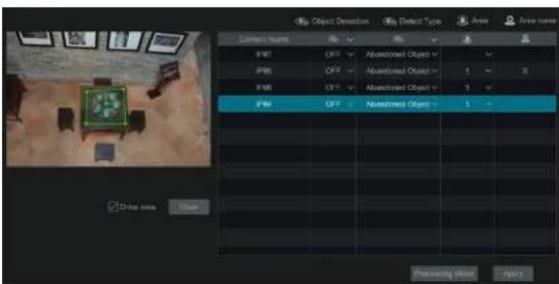

Object Detection Configuration:

① Click Start→Settings→Camera→Intelligent Analytics→Object Detection to go to the following interface.

② Select the camera, enable the object detection and set the detect type. There are two detect types: Abandoned object and missing object.

Abandoned object: Alarms will be triggered if there are articles left in the pre-defined detection area. Missing object: Alarms will be triggered if there are articles missing in the detection area drawn by the users. Select the alarm area. A maximum of 4 alarm areas can be set.

Alarm Management

DVR User Manual

Object Detection Object Type Area Area Name Current Name FRT OFF Abandoned Object FMS OFF Abandoned Object FMB OFF Abandoned Object FMS OFF Abandoned Object 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 40000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Object Detection Alarm Handling Configuration:

① Click Start→Settings→Alarm→Intelligence Alarm→Object Detection to go to the following interface.

Cluster Pre-up View E-mail Event Name Record Spread Post Attack out Preview FIF1 Contingent OFF On Contingent Contingent OFF Contingent OFF On Contingent Contingent OFF Contingent OFF On Contingent Contingent OFF

② Enable or disable "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm handling setting of object detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).
③ Click "Apply" to save the settings. You can click "Object Config" to go to the object detection configuration interface.

9.3.2 Tampering

Tampering Configuration:

① Click Start→Settings→Camera→Intelligent Analytics→Tampering to go to the following interface.

Alarm Management

DVR User Manual

Exception Alarm Handling Configuration:

① Click Start→Settings→Alarm→Intelligence Alarm→Exception to go to the interface.

Forming Items Process Recorded Match Sortout Power Help Command4 Command5 OFF ON Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel OK Cancel Ok

② Enable or disable "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm handling setting of exception detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).

③ Click "Apply" to save the settings. You can click "Exception Config" to go to the exception detection configuration interface.

9.3.3 Tripwire

Line Crossing Configuration:

Alarms will be triggered if someone or something crosses the pre-defined alarm line.

① Click Start→Settings→Camera→Intelligent Analytics→Tripwire to go to the following interface.

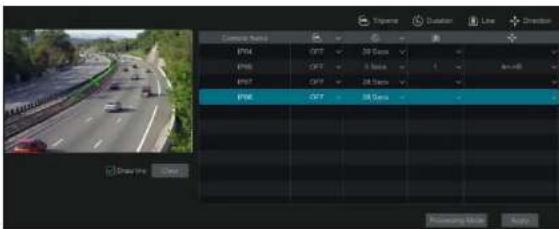

Vigence Duration Line Direction Compass Ratio IPM OPT 30 fps - IPMS OPT 5 fps - IPPT OPT 28 fps - IPW OPT 30 fps - Show line Show Rendering Mode Apply

② Select the camera. enable the line crossing detection.

Alarm Management

DVR User Manual

Camera Litter Control1 Control2 Control3 Control4 Control5 Control6 Control7 Control8 Control9 Control10 Control11 Control12 Control13 Control14 Control15 Control16 IF CANADA OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

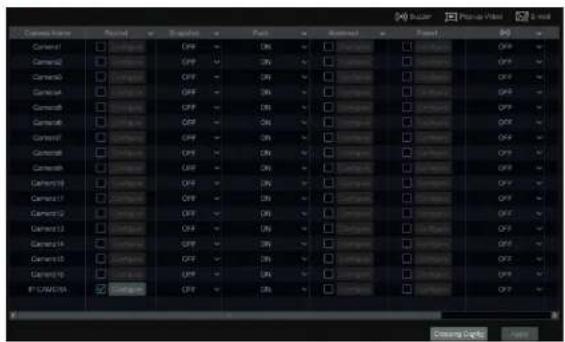

② Enable or disable "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm handling setting of line crossing alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).
⑤ Click "Apply" to save the settings. You can click "Crossing Config" to go to the line crossing configuration interface.

9.3.4 Intrusion Detection

Intrusion Configuration:

Alarms will be triggered if someone or something intrudes into the pre-defined area.

① Click Start→Settings→Camera→Intelligent Analytics→Intrusion Detection to go to the following interface.

Channel Name Channel1 Channel2 Channel3 Channel4 Channel5 Channel6 Channel7 Channel8 Channel9 Channel10 Channel11 Channel12 Channel13 Channel14 Channel15 Channel16 Channel17 Channel18 Channel19 Channel20 Channel21 Channel22 Channel23 Channel24 Channel25 Channel26 Channel27 Channel28 Channel29 Channel30 Channel31 Channel32 Channel33 Channel34 Channel35 Channel36 Channel37 Channel38 Channel39 Channel40 Channel41 Channel42 Channel43 Channel44 Channel45 Channel46 Channel47 Channel48 Channel49 Channel50 Channel51 Channel52 Channel53 Channel54 Channel55 Channel56 Channel57 Channel58 Channel59 Channel60 Channel61 Channel62 Channel63 Channel64 Channel65 Channel66 Channel67 Channel68 Channel69 Channel70 Channel71 Channel72 Channel73 Channel74 Channel75 Channel76 Channel77 Channel78 Channel79 Channel80 Channel81 Channel82 Channel83 Channel84 Channel85 Channel86 Channel87 Channel88 Channel89 Channel90 Channel91 Channel92 Channel93 Channel94 Channel95 Channel96 Channel97 Channel98 Channel99 Channel100

② Enable or disable "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm handling setting of intrusion detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).

③ Click "Apply" to save the settings. You can click "Intrusion Config" to go to the intrusion detection configuration interface.

9.4 Exception Alarm

9.4.1 IPC Offline Settings

① Click Start→Settings→Alarm→Exception→IPC Offline Settings to go to the interface as shown below.
② Enable or disable "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video", "Pop-up Message Box" and "E-mail". The IPC Offline Settings are similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).
③ Click "Apply" to save the settings.

Alarm Management

DVR User Manual

② Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video", "Pop-up Message Box" and "E-mail". The Video Loss Settings are similar to that of the sensor alarm (see9.1 Sensor Alarm for details).
③ Click "Apply" to save the settings.

9.4.3 Warning Handling Settings

① Click Start→Settings→Alarm→Exception→Warning Handling Settings to go to the interface as shown below.
② Enable or disable "Push", "Alarm-out", "Buzzer", "Pop-up Message Box" and "E-mail". The exception handling settings are similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).
③ Click "Apply" to save the settings.

Event Type Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count Event Count

9.5 Alarm Event Notification

9.5.1 Alarm-out

① Click Start→Settings→Alarm→Event Notification to go to the following interface.

File Edit Menu File Name View Browse Find 1 AudioOut 10 Sacs 24/7 Total 2 AudioOut 10 Sacs 24/7 Total 3 General1_AnnOut 10 Sacs 24/7 Total 4 General1_AnnOut 10 Sacs 24/7 Total 5 General1_AnnOut 10 Sacs 24/7 Total

Alarm Management

DVR User Manual

Popup Index Duration 10 Seconds Output Math Output Popup Message Blur Don't show later Duration 10 Seconds Apply

9.5.4 Buzzer

Click Start→Settings→Alarm→Event Notification→Buzzer to go to the buzzer configuration interface. Set the delay time of the buzzer and then click "Apply" to save the setting. You can click "Test" to test the buzzer.

9.5.5 Push Message

Click Start→Settings→Alarm→Event Notification→Push Message to go to the interface as shown below. Check "Enable" and then click "Apply" button to save the settings. If Push Server is online, it will push messages to the mobile clients.

Alarm Management

DVR User Manual

Server Server Enerate Server Address: Server Business Port: Server Port Protocol: XML Send Headset Internal Data: 0 Test Apply

9.6 Manual Alarm

Click 🔒 on the tool bar at the bottom of the live view interface to pop up a window. Click "Trigger" to start alarm. Click "Clear" to stop alarm.

9.7 View Alarm Status

Click Start→Settings→Alarm→Alarm Status or click □ on the tool bar at the bottom of the live view interface to view the alarm status.

Structure Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry

Click "Clear" button to stop the buzzer when the buzzer alarm happens. Click ▼ to view the detail

10 Account & Permission Management

10.1 Account Management

Click Start→Settings→Account and Authority→Account→Edit User to go to the interface as shown below.

Local System Parameters ✓ Local Camera Management ✓ Remote Camera Management ✓ Remote Light ✓ Data Management ✓ Audio Tools ✓ Asset Management ✓ Network Management ✓ Software Management ✓ Record Settings Management ✓ Local System-Bridge ✓ Remote Event Settings ✓ Account and Accounts Local Remote Camera Pressure Physics Backup Audio FTZ Control ON ON ON ON ON Camera1 ON ON ON ON ON Camera2 ON ON ON ON ON Camera3 ON ON ON ON ON Camera4 ON ON ON ON ON Camera5 ON ON ON ON ON Camera6 ON ON ON ON ON Camera7 ON ON ON ON ON Camera8 ON ON ON ON

Area ① displays the user permissions. Area ② displays the user list. Click the user in the list to display its user permissions in area ①.

There are three default permission groups ("Administrator", "Advanced" and "Common") available when adding accounts. You can manually add new permission group (see 10.3.1 Add Permission Group for details). Only admin and the users that have the "Account and Authority" permission can manage the system's accounts. Group "Administrator" owns all the permissions displayed in area ① except "Account and Authority" and its permissions cannot be changed while the permissions of "Advanced" and "Common" can be changed.

10.1.1 Add User

② Set the username, password and group. User can also set the pattern lock here. The e-mail address is optional. Click "Add" to add the user.

10.1.2 Edit User

Click Start→Settings→Account and Authority→Account→Edit User and then click in the user list or double click the user to edit the user information. Click to delete the user (the user admin cannot be deleted).

Username admin Group Administrator Modify Password Modify Pattern Lock Edit User Edit Security Question 1 Administrator Edit User Recover Password

Edit Security Question

You can set password security only for admin. Click "Edit Security Question" and then set questions and answers in the popup window. If you forget the password for admin, please refer to Q4 in Appendix A FAQ for details. The passwords of other users can be recovered by admin or the users that have the "Account and Authority" permission.

Modify Password

Only the password of admin can be modified. Click "Modify Password" to pop up a window. Enter the current password and then set new password. Click "OK" to save the settings.

Modify Pattern Lock

Some models may not support this function. Click "Modify Pattern Lock" to pop up a window.

Edit User

Click "Edit User" to pop up the window as shown below. The admin is enabled, its permission control is closed and permission group cannot be changed by default. You can enable or disable other users (if disabled, the user will be invalid), open or close their permission control (if closed, the user will get all the permissions which admin has) and set their permission groups. Click "OK" to save the settings.

Edit User □ Enable Username admin □ Open Permission Control □ Alone Modify Password E-mail Group Administration OK Cancel

Edit User Enable Username 1 Close Permission Control Allow Modify Password E-mail: Group Administrator OK Cancel

10.2 User Login & Logout

Login: Click Start→Login or directly click the preview interface and then select username and enter the password in the popup window. Click "Login" button to log in the system.

Logout: Click Start→Logout or click Start→Shutdown to pop up the "Shutdown" window. Select "Logout" in the window and then click "OK" button to log out the system.

10.3 Permission Management

10.3.1 Add Permission Group

Click Start→Settings→Account and Authority→Account→Edit Permission Group to go to the interface as shown below.

Account & Permission Management

DVR User Manual

Add Permission Group Group Name: Total Permission Group Names Local Camera Management Remote Camera Management Task Management Audio Talk Remote System Settings Audio Management Record Settings Management Local System Settings Record System Settings Account and Authority Local Remote Camera Preview Playback Backup Audio XYZ Control Camera1 OFF OFF OFF OFF OFF OFF OFF Camera2 OFF OFF OFF OFF OFF OFF Camera3 OFF OFF OFF OFF OFF OFF Camera4 OFF OFF OFF OFF OFF OFF Camera5 OFF OFF OFF OFF OFF OFF Camera6 OFF OFF OFF OFF OFF OFF Camera7 OFF OFF OFF OFF OFF Add... Delete

10.3.2 Edit Permission Group

Go to "Edit Permission Group" interface and then click in the group list to edit the permission group (the operations of the "Edit Permission Group" are similar to that of the "Add Permission Group", please see 10.3.1 Add Permission Group for details). Click to save the group as another group. Click to delete the permission group. The three default permission groups ("Administrator", "Advanced" and "Common") cannot be deleted.

10.4 Block and Allow List

① Click Start→Settings→Account and Authority→Security to go to the following interface.

Add IP Create Print Options Add IP Create Print

Account & Permission Management

DVR User Manual

Set a camera and then enable or disable the preview permission on logout as required. If a camera's preview permission on logout is "ON", you can view the live image of the camera when the system is logged out, or the live image of the camera cannot be seen when logged out.

Channel Name IF Channel IF Channel(G) IF Channel(D) CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR DAR

10.6 Password Security

Click Start→Settings→Account and Authority→Security→Password Security to go to the following interface.

Password security Level: Weak Expiration Time: Never Expiry External networks access restrictions (administrators use the default password to preenter only the field when it is logged in terms of external networks) Note

In this interface, you can set the level and expiration time of the password.

10.7 View Online User

Click Start→Settings→Account and Authority→User Status to view the online user information (you can view the online user name, login type, IP address and login time; click pop up a window showing the preview occupied channel number and playback occupied channel number).

11 Device Management

11.1 Network Configuration

11.1.1 TCP/IP Configuration

Click Start→Settings→Network→TCP/IP to go to the following interface. Check "Obtain an IPv4 address automatically", "Obtain an IPv6 address automatically" and "Obtain DNS automatically" to get the network addresses automatically, or manually enter the network addresses. You can modify the MTU value according to the network condition (MTU, Maximum Transmission Unit, can be modified according to network condition for higher network transmission efficiency). Click "Apply" to save the settings.

Internet Provider Internet Port | Online | Options on IPv address automatically Options on IPv address automatically Address: 100 Sub-Link Mask 200 Germany 300 ATV1 1000 Options Length Germany Options XML automatically Preferred DNS Microsoft DNS Browse... Browse...

11.1.2 Port Configuration

Click Start→Settings→Network→Port to go to the interface as shown below. Enter the HTTP port, HTTPS port, server port and RTSP port of the DVR, enable "Anonymous" as needed and then click "Apply" button to save the settings.

② Install a certificate.

* You can create a private certificate here. Click the "Create" button to create a private certificate. Enter the country (only two letters available), domain (DVR's IP address/domain), validity date, password, province/state, region and so on. Then click "OK" to save the settings.

* If there is a signed certificate, click "Browse" to select it and then click "Install" to install it.

* Click "Create a certificate request" to enter the following interface.

Enable Installation type Have signed certificate, install directly Create a private certificate Create a certificate request Create a certificate request Create Download Delete

Click "Create" to create the certificate request. Then download the certificate request and submit it to the trusted certificate authority for signature. After receiving the signed certificate, import the certificate to the device.

Certificate installation Certificate installation Create a private certificate Sign a certificate's name or address, install directly Create a certificate request. Create a certificate request. Certificate request download Certificate request delete Install the generated certificate Browse Browse Browse

11.1.3 PPPoE Configuration

Click Start→Settings→Network→PPPoE to go to the Interface as shown below. Check "Enable" in "PPPoE Settings" and then enter the username and password obtained from the dealer. Click "Apply" to save the settings.

FPPoE Settings Enable Username abc Password ******** Apply

11.1.4 DDNS Configuration

The DDNS is used to control the dynamic IP address through domain name. Speco Technologies provides free DDNS service with US-based servers. You can access the DVR easily if the DDNS is enabled and configured. Click Start→Settings→Network→DDNS to go to the interface as shown below. The default DDNS type will be "specoddns.net". The default domain name will be shown. You can use this for your domain name or enter your own. If invalid or taken, please select another domain name. Click on test to check if ok. If so, you may now go to [your domain name].specoddns.net with Internet Explorer and access your recorder remotely.

DDNS Enable DDNS Type specodins.net Server Address spec08DBA6 Domain Name spec08DBA6 specodins.net

Sender Sender Name: [e-mail] Email Address: xxx SMTP Server SMTP Port: MIE Security: SSL Attaching Image: No Anonymous Login Username: xxx Password: User Password Set Properties: Test Apply

Click "Edit Recipient" to go to the following interface.

E-mail Notification Sender [e-mail] Edit Sender No. Recipients Schedule Delete 1 [e-mail] 24x7 2 [e-mail] 24x5 Add Apply

Click "Add" and then enter the recipient's e-mail address and select the schedule (if a schedule is selected, the system will send the alarm email and the recipient will receive it only in the selected schedule time) in the popup window. Click "Add" in the window to add the recipient. You can also change the recipient's receiving schedule by clicking √ in the "Schedule" column. Click ☐ to delete the recipient in the list. Click "Apply" to save the settings. Click "Edit Sender" to go to the e-mail configuration interface of the sender.

USB Source New Type: New user Port Type: External Port External IP Address Port Upt# Status RUI H1TP Port 80 38 162 MHz H2TP Port 443 442 96 MHz Server Port H50N 000K 96 MHz H3TP Port 00A 354 96 MHz Next Next

11.1.7 802.1X

If it is enabled, the DVR data can be protected. When the DVR is connected to the network protected by the IEEE 802.1X, user authentication is needed.

892.1x Enable Protocol EAP MDS Eapol Version 1 Username Enter Username Password Enter Password Apply

To use this function, the DVR shall be connected to a switch supporting 802.1x protocol. The switch can be considered as an authentication system to identify the device in a local network. If the DVR connected to the network interface of the switch has passed the authentication of the switch, it can be accessed via the local network.

Device Management

DVR User Manual

NAT Enable Access Type: NATI email.specitech cloud Visit Address: connect.specitech cloud NAT Status: Success Apply Please use mobile client to scan QR code for adding device AN10A2E85693

11.1.9 View Network Status

Click Start→Settings→Network→Network Status to view the network status or click on the tool bar at the bottom of the live view interface to view network status conveniently.

11.2 Basic Configuration

11.2.1 General Configuration

Click Start→Settings→System→Basic→General Settings to go to the following interface. Set the device name, device No., language, video format and main output. Enable or disable wizard, "Log In Automatically", "Log Out Automatically" (if checked, you can set the wait time), "App Live Self-Adaption" and "Sequence Automatically" (if checked, you can set the wait time). Click "Apply" to save the settings.

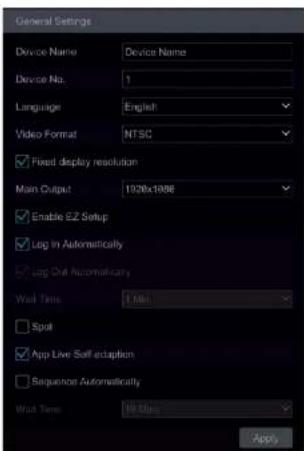

General Settings Device Name Device Name Device No. 1 Language English Video Format NTSC ✓ Fixed display resolution Main Output 1926x1986 ✓ Enable EZ Setup ✓ Log In Automatically ✓ Log Out Automaticity Wall Time 1 Min □ Spot ✓ App Live Soft adoption □ Sequence Automatically Wall Time 10 Min Apply

Device Name: The name of the device. It may display on the client end or CMS that help user to recognize the device remotely.

Video Format: Two modes: PAL and NTSC. Select the video format according to the camera.

Sequence Automatically: Check it and set "wait time". The system will sequence automatically if it is not operated during the time you set.

11.2.2 Date and Time Configuration

Click Start→Settings→System→Basic→Date and Time to go to the interface as shown below.

Set the system time, date format, time format and time zone of the DVR. The default time zone is filled in

Device Management

DVR User Manual

Date and Time System Time 83/24/2919 11:39:35 PM Date Format Month/Day/Year Time Format 12-Hour Sync Time With Network Synchronous Manual NTP Server the windows layer Time Zone / DST Time Zone GMT-85 New York, Toronto, Wash DST Enable

11.2.3 Recorder OSD Settings

Click Start→Settings→System→Basic→Recorder OSD settings to go to the following interface. Name, icon and address OSD can be enabled here.

Recorder QSD Settings Name Enabled ON Icon Enabled ON Address Enabled ON

Device Management

DVR User Manual

③ Click Start→Settings→System→Maintenance→Upgrade to go to "Upgrade" interface. Select the USB device in "Device Name" option and go to the path where the upgrade software exists. Select the upgrade software and then click "Upgrade". The system may automatically restart during upgrading. Please wait for a while and do not power off the DVR during upgrading.

Note: The file system of the USB mobile device which is used for upgrading, backing up and restoring should be FAT32 format.

- Flash Upgrade

The upgrade steps are as follows:

① Copy the flash upgrade files into the USB storage device.
② Insert the USB storage device into the USB interface of the DVR.
⑤ Restart the DVR. Then the system will automatically upgrade.

11.5 Backup and Restore

You can back up the configuration file of the DVR by exporting the file to other storage devices; you can recover the configuration to other DVRs which are of the same model with the DVR by importing the configuration file to other DVRs for time saving.

Insert the USB storage device into the USB interface of the DVR and then click

Start→Settings→System→Maintenance→Backup and Restore to go to the interface.

- Backup

Select the USB device in "Device Name" option; go to the path where you want to store the configuration backup file and then click "Backup" button; finally click "OK" button in the popup window.

- Recover

Select the USB device in "Device Name" option; find the configuration backup file and then click "Recover" button; finally click "OK" button in the popup window.

11.7 View Log

Click Start→Settings→System→Maintenance→View Log to go to the log view interface. Select the log main type, click 🔒 to set start time and end time and then click "Search" button. The searched log files will be displayed in the list.

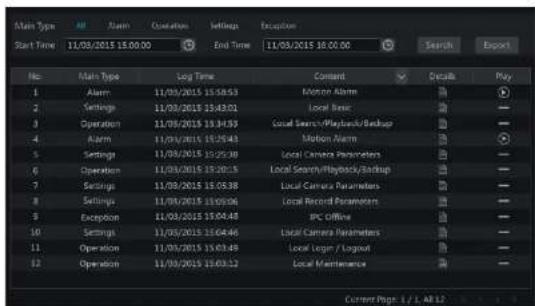

Main Type Start Time 11/03/2015 15:00:00 Main Type Log Time End Time 11/03/2015 15:00:00 No. Main Type Comment Details Play 1 Alarm 11/03/2015 15:58:53 Motion Alarm 2 Settings 11/03/2015 15:43:01 Local Basic 3 Operation 11/03/2015 15:34:53 Local Search/Playback/backup 4 Alarm 11/03/2015 15:25:43 Motion Alarm 5 Settings 11/03/2015 15:25:38 Local Camera Parameters 6 Operation 11/03/2015 15:20:18 Local Search/Playback/backup 7 Settings 11/03/2015 15:05:38 Local Camera Parameters 8 Settings 11/03/2015 15:05:06 Local Record Parameters 9 Exception 11/03/2015 15:04:48 IPC Offline 10 Settings 11/03/2015 15:04:46 Local Camera Parameters 11 Operation 11/03/2015 15:03:49 Local Logon / Logout 12 Operation 11/03/2015 15:03:12 Local Maintenance Current Page 1 / 1, AB 12

Choose the log file in the list and then click "Export" button to export the log file. Click ▼ on the "Content" title bar to pop up a menu list. Check contents in the menu list and then the log list will show the checked log contents only. Click ▶ play the video log.

11.8 View System Information

Click Start→Settings→System→Information and then click the corresponding menu to view the "Basic", "Camera Status", "Alarm Status", "Record Status", "Network Status" and "Disk" information of the system.

Remote Surveillance

DVR User Manual

12 Remote Surveillance

12.1 Mobile Client Surveillance

① Enable NAT in the DVR. Refer to 11.1.8 NAT Configuration for details.
Scan the QR Code through the Speco Blue App available for iOS and Android to easily and securely view your cameras.
③ Run the mobile client, go to the "Add Device" interface and then click ☐ to scan the QR Code of the DVR (Go to Start→Settings→System→Information→Basic to view the QR Code of the DVR).
④ After scanning the QR Code successfully, enter the login password to log in mobile client.

Add Device QR Code Scanning File Edit View Tools Help Password User Password Prevent High OP color filter frames to scan

12.2 Web LAN Access

① Click Start→Settings→Network→TCP/IP to go to the "TCP/IP" interface. Set the IP address, subnet mask, gateway, preferred DNS and alternate DNS of the DVR.
② Open the web browser on your computer, enter the IP address of the DVR in the address bar and then press enter to go to the login interface as shown below. You can change the display language on the top right corner of the login interface. Enter the username and password of the DVR in the interface and then click "Login" to go to the live view interface.

Remote Surveillance

DVR User Manual

② Click Start→Settings→Network→NAT to go to the interface for NAT configuration and check "Enable". Click "Apply" to save the settings and make note of the QR code number under the QR code. Via Internet Explorer, go to connect.specotech.cloud, input the QR code number, your username and password to login.

speco technologies Giving You More. QR code number Enter Your Username Enter Your Password Login

PPPoE Access

① Click Start→Settings→Network→PPPoE to go to the "PPPoE" interface. Check "Enable" in the "PPPoE settings" and then enter the username and password you get from your ISP. Click "Apply" to save the settings.
② Click Start→Settings→Network→Network Status to view the IP address of the DVR.
⑤ Open the web browser on your computer, enter the IP address of the DVR like http://210.21.229.138 in the address bar and then press enter to go to the login interface. Enter the username and password of the DVR in the interface and then click "Login" to go to the live view interface.

Router Access

① Click Start→Settings→Network→TCP/IP to go to the "TCP/IP" interface. Set the IP address, subnet mask, gateway, preferred DNS and alternate DNS of the DVR.
Set the HTTP port (it is suggested to modify the HTTP port because the default HTTP port 80 might be taken up) and enable UPnP function in both the DVR and the router. If the UPnP function is not available in the router, you need to forward the LAN IP address, HTTP port and server port of the DVR to the router. Port mapping settings may be different in different routers, so please refer to the user manual of the router for details.
③ Get the WAN IP address of the DVR from the router. Open the web browser on your computer, enter the WAN IP address plus HTTP port like http://116.30.18.215:100 in the address bar and then press enter to go

Remote Surveillance

DVR User Manual

Modify Password: click it to change the password of the current login user. Enter the current password and then set a new password in the popup window. Click "OK" button to save the new password.

Local Settings: click it to change the local settings. Set the snapshot number and click "Browse" to set the snapshot path and record path as shown below. Click "Apply" button to save the settings.

Snapshots number: 5 Save Snapshot to: UniversityPictures Save record file to: UniversityVideo Browse Browse Apply

12.4.1 Remote Preview

Click "Live View" in the remote interface to go to the live view interface. The live view interface consists of the four areas marked in the following picture.

speco technologies Live View Playback Export Settings Camera 01/20 Left Panel Camera Current Layer Preview Area Right Panel Camera Current Layer All Main Stream All Sub Stream Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Geometry Theta

➢ Tool Bar Introduction

Button	Meaning
	Screen mode button.
	Click it to disable OSD. Click to enable OSD.
	Click it to show full screen. Right click on the full screen to exit full screen.
All Main Stream All Sub Stream	Click "All Main Stream" or "All Sub Stream" to set the stream of all the cameras.
	Manual alarm button. Click it to pop up a window and then trigger and clear the alarm out in the window manually.
	Click it to preview all cameras.
	Click it to close all the preview cameras.
	Click it to start recording for all cameras to computer. Click to stop recording.
	Click it to start manual record for all cameras to the DVR. Click to stop manual record for all cameras.
	Click it to enable talk with the DVR.

Right Panel Introduction

Click on the right panel to show the panel and click to hide the panel. Click at the bottom of the panel to go to "PTZ" panel. Click Loss Control to go to "Lens Control". Click Operation to go to "Operation" panel.

Operation PTZ Zoom Focus In

	The 3D zoom in function is designed for P.T.Z. Click it and then drag the image to zoom in or zoom out the image; click the image on different areas to view the image of the dome omni-directionally.
	Click it to start record to the DVR
	Click it to close the preview camera.
	Click it to enable audio and then drag the slider bar to adjust the volume. You can listen to the camera audio by enabling audio.

PTZ panel introduction:

Button	Meaning
	Click // // // // // // to rotate the dome; click // // //
	Drag the slider to adjust the rotating speed of dome.
	Click // // // // out camera image.
	Click // // // // decrease the focal length.
	Click // // // decrease the iris of the dome.
	Click it to view the preset list and then click the button in the list to call the preset.
	Click it to view the cruise list and then click the corresponding buttons in the list to start or stop the cruise.

12.4.2 Remote Playback

Click "Playback" in the remote interface to go to the playback interface.

① Check the record event types and cameras on the left panel. Set the record date on the calendar beside the time scale.

② Click to search the record data and then click or directly click the time scale to play the record

Remote Surveillance

DVR User Manual

Button	Meaning
	Click to step backward 30s and click to step forward 30s.
	Backup start time button. Click the time scale and then click it to set the backup start time.
	Backup end time button. Click the time scale and then click it to set the backup end time.
	Export button.
	Backup tasks button. Click it to view the backup status.
	Event list button. Click it to view the event record of manual/schedule/sensor/motion.

12.4.3 Remote Export

Click "Export" in the remote interface to go to the export interface. You can export the record by event search or by time search.

Event Search

Check the record type on the left side of the interface and then click to set the start time and end time; check the cameras and then click on the right side to search the record (the searched record data will be displayed in the list); check the record data in the list and then click "Export" button to export the record.

Time Search

Click to set the start time and end time on the left side of the interface; check the cameras and then click on the right side to backup the record.

Snapshots

The system will display all the captured images automatically in the list. Click 📄 to delete the image. Click 📄 to pop up the "Export" window. Click 📄 to pop up the "View Image" window. Click 📄 to export the image.

View Export Status

Click "Export Status" to view the export status. Click "Pause" to stop the export; click "Resume" to continue the export; click "Delete" to delete the task.

Remote Surveillance

DVR User Manual

Appendix A FAQ

Q1. Why can't I find the HDD?

a. Please check the power and SATA data cables of the HDD to make sure they are well connected.
b. For some DVRs with the 1U or small 1U case, the power of the adapter may be not enough for operating them. Please use the power adaptor supplied along with the DVR.
c. Please make sure the HDDs are compatible with the DVR. See Appendix C Compatible Device List for details.
d. The HDD could have gone bad.

Q2. Why are there no images output in some or all of the camera windows?

a. Please make sure the resolutions of the cameras are supported by the DVR.
b. Please make sure the network cables of the IP camera and DVR are both connected properly and the network parameters are set correctly.
c. Please make sure the analog camera is connected properly.
d. Please make sure the network and the switch both work normally.

Q3. The screen has no output after booting the DVR normally.

a. Please make sure the screen, HDMI or VGA cables are good and well connected.
b. Please make sure the screen supports the resolution of 1280*1024, 1920*1080 or 3840*2160 (4K*2K).
The DVR cannot self-adapt to the screen of which the resolution is lower than 1280*1024, and then the screen will remind you that the screen resolution is not supported by the DVR or just have no display. Please change a screen at 1280*1024, 1920*1080 or 3840*2160 resolution before booting the DVR.

Q4. Forget your passwords?

a. The password for admin can be reset through "Edit Security Question" function. Click "Edit Security Question" button in the login window and then enter the corresponding answer of the selected question in the popup window, the password for admin will be reset. If you forget the answer of the question, this way will be invalid, please contact your dealer for help.

b. The passwords of other users can be reset by admin, please refer to 10.1.2 Edit User for details.

Q6. The system is not recording, why?

a. Make sure the HDD was formatted prior to use.
b. The record schedule has not been set in manual record mode. Please refer to 7.3.2 Record Schedule Configuration for details.
c. Maybe HDD is full and thus the DVR is not able to record. Check HDD information from Disk Management and if required, please enable the recycle function (please see 7.1.2 Advanced Configuration for details).
d. There is no disk but cameras in the disk group, so please add at least one disk to the group. Refer to 7.5.1 Storage Mode Configuration for details.
e. The HDD could have gone bad. Please contact tech support.

Q7. Fail to access the DVR remotely through IE.

a. Please make sure the IE version is IE8 or above.
b. Please check whether the PC has enabled the firewall or installed the antivirus software. Please try to access the DVR again after you disable the firewall and stop the antivirus software.
c. Allow & block list may have been set in Account and Authority setting. The PC of which the IP address is in the block list or out of the allow list cannot access the DVR remotely.

Q8. ActiveX control cannot be downloaded. What can I do?

a. IE browser blocks ActiveX control. Please do setup as per the steps mentioned below.

① Open IE browser. Click → Internet Options.

Print File Zoom (100%) Safety Add site to Start menu View downloads Ctrl+J Manage add-ons F12 Developer Tools Go to pinned sites

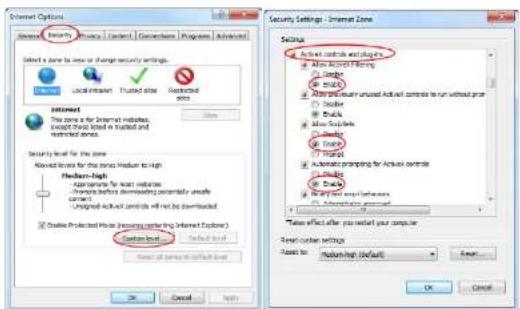

Security Options Select a zone to use or change security settings. Local Intranet Trusted site Restricted sites Internet This zone is for Internet Hububs, except this limited in trusted and restricted sites. Security level for the zone Advanced levels for the zones: Medium to High Default-high Parameters for most users Promote before removing potentially unsafe Current Unassigned Active controls will not be downloaded ■ Create Protected Home (Improving user for Internet Explorer) Custom Level Default Level Security Settings - Internet Zone Details Active controls and plugins Allow Active Filtering Linking Allow non-secure unused Active controls to run without prior Linking Linking Allow Puzzle Linking Linking Allow new explicit linkages Automatic prompting for Active controls Linking Allow new explicit linkages Automotive protocol Take effect after you secret your computer Power control settings Used to: Medium High (Default) Cancel OK Cancel

Fig 10-1
Fig 10-2

Q9. How to play the backup file?

a. Record backed up by DVR: insert the USB device in which the record backup files is saved to the USB interface of the PC and then open the USB device path. The record can be backed up in the private format and AVI format by DVR.

- If you select the private format when backing up record by DVR, a RPAS (Recording Player Application Software) compression package will be backed up to the USB device automatically along with the record data. Uncompress the "RPAS.zip" and then click "RPAS.exe" to set up RPAS. After the setup is completed, open RPAS player and then click "Open Folder" button in the middle of the interface to select the record data. Refer to Fig 11-1.

Select camera in the resource tree on the left side of the interface to play the camera record. Click the tool bar under the camera image to enable audio. Refer to Fig 11-2.

Note: The record will not have audio output if you disable the audio when recording by DVR. Please see 7.1.1 Mode Configuration and 7.2 Encode Parameters Setting for details.

- If you select the ΔVI format when hacking up recorded video by DVR, the recorded video can be played by

DVR User Manual

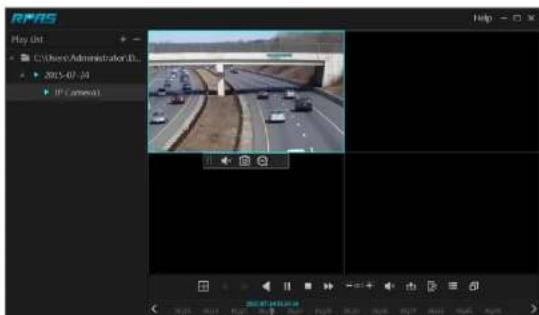

RPAS Play List + - RPAS Open Folder CPU 6% RPAS 40% 2023/7/10 15:00:51

Fig 11-1

Play Unit C:\Users\Administrator\IL... 2015-07-14 IP Camera1 Help -

Appendix B Calculate Recording Capacity

The recording capacity is mainly up to the record resolution, record stream and bitrate. Different image quality parameters decide different disk capacity occupation in equal times. The bigger the record resolution, record stream and record bitrate is, the more disk capacity is taken up in equal times. The calculation format of recording capacity is shown as below.

Recording Capacity (MB) = Bitrate (Kbps) ÷ 1024 ÷ 8 × 3600 × Recording hours per day × Record Storage Days × channel numbers

3600 means record for an hour(1TB=1024GB, 1GB=1024MB, 1MB=1024KB, 1Byte=8bit).

Record Bitrate (kbps)	Used Space (MB/H)	Used Space (MB/D)
10240	4500	108000
8192	3600	86400
6144	2700	64800
4096	1800	43200
3072	1350	32400
2048	900	21600
1024	450	10800
768	337.5	8100
512	225	5400
384	168.75	4050
256	112.5	2700

The table below shows the recording capacity requirements for record storage in 30 days.

Record Bitrate (Kbps)	Recording Capacity (TB)
	1CH	4CH	8CH	16CH	32CH	64CH
10240	3.09	12.36	24.72	49.44	98.88	197.76
8192	2.48	9.89	19.78	39.56	79.11	158.21

Appendix C Specifications

Model		H6HRN	H12HRN	H24HRN
System	Compression	Standard H.264/H.265
	OS	Embedded Linux
Video	Analog Input	BNC ×4	BNC ×8	BNC ×16
	IPC Input	2CH	4CH	8CH
	Network Access & Transfer Bandwidth	16/40Mbps	32/60Mbps	32/96Mbps
	Network Access Format	Up to 5MP@25/30fps
	Output	HDMI×1: 1920x1080/1280x1024/1024x768VGA×1: 1920x1080/1280x1024/1024x768BNC×1: CVBS (used as the main or spot output)
Audio	Input	RCA×4	RCA×8	RCA×8
	2-way Audio	Take up channel one audio input
	Local Output	RCA×1
Record	Record Stream	Dual stream recording
	Resolution	5MP Lite/4MP Lite/1080P/1080PLite/720P/WD1/D1
	Frame Rate	Analog Channel:5MP@10fps (PAL/NTSC)4MP Lite/1080P@12fps (PAL)/15fps (NTSC)1080P Lite/720P/WD1/D1@25fps (PAL)/305fps (NTSC)IP Channel:25fps (PAL)/30fps (NTSC)
	Bit Rate	32~4Mbps	32~4Mbps	32~5Mbps
	Mode	Manual, schedule, motion, sensor, intelligence
IP Input	Resolution	5MP/4MP/3MP/1080P/960P/720P@25fps/30fps

Specifications
DVR User Manual

Network	Interface	RJ45 10M/100Mbps×1		RJ4510M/100M/100Mbps×1
	Protocol	TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPS, RTSP
	Web Client	Max. 5 online users monitoring
Mobile Device	OS	Speco Blue iOS, Android
Storage	HDD	SATA×1, max 14TB per HDD	SATA×1, max 14TB per HDD	SATA×2, max 14TB per HDD
	E-SATA	/	E-SATA×1	E-SATA×1
Export	Local	By U disk, USB mobile HDD
	Network	Yes
Interface	USB	USB2.0×2
	RS485	Yes(half-duplex)
	Remote Controller	Yes
Others	Power Supply	DC12V/2A	DC12V/3A	DC12V/4A
	Power Consumption	≤10W (without HDD)		≤15W (without HDD)
	Dimensions(W×D×H)	11.8" x 9.8" x 1.8"(300mm×248mm×45mm)		15" x 10.6" x 1.8"(380mm×268mm×45mm)
	Working Environment	-4~122F (-10~50°C) 10%~90% (humidity)

Android is a trademark of Google LLC.

Model: H6HRN/H12HRN/H24HRN

Federal Communications Commission (FCC) Statements

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must present any interference received, including
