FHC39N-08H-LAA - Unspecified Panduit - Free user manual and instructions

Brand	Panduit
Model	FHC39N-08H-LAA
Product Type	HD Flex Fiber Cassette Enclosure
Fiber Count	12 fibers
Connector Type	LC
Configuration	FAP (Fiber Adapter Panel) or Preloaded Splice Cassette (Discrete or Ribbon Pigtail)
Fiber Color Coding	Telcordia Standard: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Maximum Patch Cord Jacket Diameter	2.0 mm
Maximum Connector Length (ferrule to boot)	2.0 inches (50.8 mm)
Maximum Incoming Cable Diameter	7.4 mm
Incoming Cable Strip Length	20 inches (508 mm)
Fiber Coating Strip Length (for splicing)	35 mm
Fiber Cleave Length	10 mm
Splice Sleeve Length (Discrete)	40 mm
Splice Sleeve Length (Ribbon)	40 mm
Includes	Pan-Ty Cable Ties, splice sleeves, pigtails (depending on configuration)
Compatibility	HD Flex Fiber Cassette Enclosure (see FS111 installation instructions)
Installation	Refer to Panduit FS117 instructions; requires field splicing for pigtail versions
Cleaning	Use lint-free tissue with isopropyl alcohol for fiber ends
Safety	Wear eye protection when cleaving fibers; handle splicing with care

Frequently Asked Questions - FHC39N-08H-LAA Panduit

What is the Panduit FHC39N-08H-LAA?

The FHC39N-08H-LAA is a fiber optic cassette enclosure from Panduit, part of the HD Flex series, designed for 12-fiber LC connectivity.

What types of cassettes are available for this enclosure?

Two variants: FAP (Fiber Adapter Panel) for pre-terminated assemblies and preconfigured splice cassettes with either discrete pigtails or ribbon pigtails.

How do I install patch cords in the FAP cassette?

Remove the cover and internal dust caps. Use patch cords with max diameter 2.0mm and connector length 2.0 inches. Route cables as shown in the manual.

What is the fiber color code?

Telcordia standard: Fiber 1 Blue, 2 Orange, 3 Green, 4 Brown, 5 Slate, 6 White, 7 Red, 8 Black, 9 Yellow, 10 Violet, 11 Rose, 12 Aqua.

What are the splicing steps for the pigtail cassette?

Strip outer jacket 20 inches, secure with cable ties, slide splice sleeve onto fiber, strip 35mm coating, clean with isopropyl alcohol, cleave to 10mm, then splice.

What is the maximum incoming cable diameter?

The maximum field cable diameter is 7.4mm.

Can I use this cassette with single-mode fibers?

Yes, there are OS2 versions available (e.g., FHS9N-12-10P). Check the part number for fiber type.

How do I clean the fiber ends before splicing?

Wipe bare fiber with a lint-free tissue soaked with isopropyl alcohol.

Where can I find full installation instructions?

Visit www.panduit.com and search for FS111 for complete HD Flex Fiber Cassette Enclosure installation.

What safety precautions should I take?

Always wear eye protection when cleaving fibers. Handle fusion splicers as per manufacturer instructions. Keep work area clean.

USER MANUAL FHC39N-08H-LAA Panduit

© Panduil Corp. 2015

INSTALLATION INSTRUCTIONS

FS117

For complete HD Flex Fiber Cassette Enclosure installation instructions, visit www.panduit.com and search FS111*.

Part Numbers

Product Family	Cassette Part Number	Cassette Description
12-Fiber LC Splice/FAP Cassette (LC pigtails not included)	FHSXN-12-10N FAP (Fiber Adapter Panel) Cassette w/ Aqua Zirconia Adapters
	FHS9N-12-10N FAP (Fiber Adapter Panel) Cassette w/ Blue Zirconia Adapters
12-Fiber LC Splice Cassette (Pre-loaded with Discrete Pigtails)	FHSXO-12-10P 12-Fiber OM3 LC Discrete Pigtails; Optimized IL
	FHSZO-12-10P 12-Fiber OM4 LC Discrete Pigtails; Optimized IL
	FHSZA-12-10P 12-Fiber OM4 LC Discrete Pigtails; Ultra IL
	FHS9N-12-10P 12-Fiber OS2 LC Discrete Pigtails; Standard IL
12-Fiber LC Splice Cassette (Pre-loaded with Ribbon Pigtail)	FHSXO-12-10R 12-Fiber OM3 LC Ribbonized Pigtail; Optimized IL
	FHSZO-12-10R 12-Fiber OM4 LC Ribbonized Pigtail; Optimized IL
	FHSZA-12-10R 12-Fiber OM4 LC Ribbonized Pigtail; Ultra IL
	FHS9N-12-10R 12-Fiber OS2 LC Ribbonized Pigtail; Standard IL

General Information and Contents

1. HD Flex LC Fiber Adapter Panel (FAP)
2. Configured to accommodate pre-terminated cable assemblies.
3. HD Flex LC Preconfigured Splice Cassette – Available in 2 Configurations:
4. Configured with 12 Discrete Pigtails, (12) 40mm Discrete Splice Sleeves, and 2 Pan-Ty Cable Ties.
5. Configured with a 12-Fiber Ribbon Pigtail, (1) 40mm Ribbon Splice Sleeve, and 2 Pan-Ty Cable Ties.

Fiber Color Coding – Telcordia (Standard)

(Front of Cassette)

Fiber Color Key

Fiber 1 – Blue Fiber 7 – Red

Fiber 2 – Orange Fiber 8 – Black

Fiber 3 – Green Fiber 9 – Yellow

Fiber 4 – Brown Fiber 10 – Violet

Fiber 5 – Slate Fiber 11 – Rose

Fiber 6 – White Fiber 12 – Aqua

FAP Termination – Fiber Adapter Panel Cassette

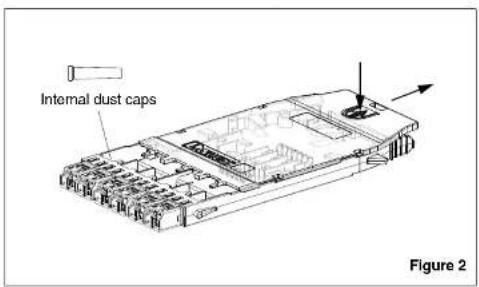

Remove cover and internal dust caps.

It is recommended to use Panduit cable assemblies. Note: When using jacketed patch cords, use maximum cable diameter of 2.0mm and maximum connector length of 2.0 inches (from end of ferrule to end of boot).

Install patch cords and route cables as shown.

Pigtail Termination – LC Splice Cassettes

Remove the cover.

Pre-loaded pigtail fibers are shown as grey dashed lines.

Strip incoming field cable outer jacket 20 inches. Secure with Pan-Ty Cable Ties, and Kevlar with screw (optional). Max cable diameter: 7.4mm

Expose all fiber ends for splicing. Slide a splice sleeve onto either the (pigtail or field) fiber. Strip off approximately 35mm of coating from each fiber. Wipe the bare fiber with a lint-free tissue soaked with isopropyl alcohol. Cleave the fiber so that 10mm
