USER MANUAL KEMC308KWH KITCHENAID

For questions about features, operation/performance, parts accessories or service, call: 1-800-422-1230

In Canada, call for assistance 1-800-461-5681, for installation and service, call: 1-800-807-6777 or visit our website at...

www.kitchenaid.com or www.KitchenAid.ca

Table of Contents....2

Black and white line drawing of a stylized animal or creature with flowing lines (no text or symbols)

TABLE OF CONTENTS

OVEN SAFETY 3

PARTS AND FEATURES .... 5

ELECTRONIC OVEN CONTROL....6

Display(s) 6

Start 6

Lower Oven Cancel....6

Clock 6

Tones....7

Fahrenheit and Celsius....7

Timer....7

Control Lock....8

Oven Temperature Control 8

OVEN USE....8

Aluminum Foil....8

Positioning Racks and Bakeware 8

Bakeware....9

Oven Vent....9

Baking and Roasting....9

Broil Maxi/Econo....10

Convection Cooking....11

Convection Bake....11

Convection Roast....11

Convection Broil....13

Convect Full Meal 13

EasyConvect™ Conversion 14

Sabbath Mode....15

Dehydrating....16

Proofing Bread 16

Temperature Probe 16

Timed Cooking....18

OVEN CARE....19

Self-Cleaning Cycle....19

General Cleaning....20

Oven Lights 21

Oven Door 21

TROUBLESHOOTING 22

ASSISTANCE OR SERVICE....23

OVEN SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or

"WARNING." These words mean:

! DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical shock, injury to persons, or damage when using the oven, follow basic precautions, including the following:

■Proper Installation – Be sure the oven is properly installed and grounded by a qualified technician.
■Never Use the Oven for Warming or Heating the Room.
■Do Not Leave Children Alone – Children should not be left alone or unattended in area where oven is in use. They should never be allowed to sit or stand

■Use Care When Opening Door – Let hot air or steam escape before removing or replacing food.
■Do Not Heat Unopened Food Containers – Build-up of pressure may cause container to burst and result in injury.
■Keep Oven Vent Ducts Unobstructed.
■Placement of Oven Racks – Always place oven racks in desired location while oven is cool. If rack must be moved while oven is hot, do not let potholder contact hot heating element in oven.

IMPORTANT SAFETY INSTRUCTIONS

For self-cleaning ovens:

■Do Not Clean Door Gasket – The door gasket is essential for a good seal. Care should be taken not to rub, damage, or move the gasket.
■Do Not Use Oven Cleaners – No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven.

■Clean Only Parts Listed in Manual.
■Before Self-Cleaning the Oven – Remove broiler pan and other utensils.

SAVE THESE INSTRUCTIONS

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the State of California to cause cancer, birth defects, or other reproductive harm, and requires businesses to warn of potential exposure to such substances.

WARNING: This product contains a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm.

This appliance can cause low-level exposure to some of the substances listed, including benzene, formaldehyde, carbon monoxide, and toluene.

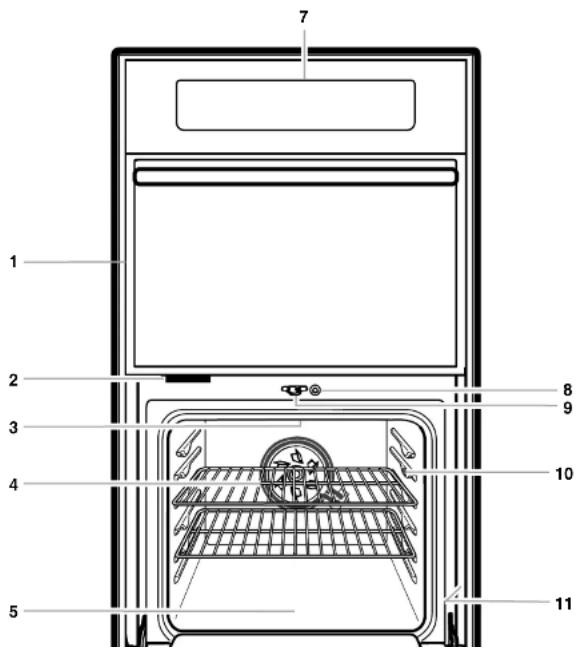

PARTS AND FEATURES

This manual covers different models. The oven you have purchased may have some or all of the items listed. The locations and appearances of the features shown here may not match your models.

1 2 3 4 5 7 8 9 10 11

ELECTRONIC OVEN CONTROL

1 888 ON BATHROOM ORDER ORDER CHECKED SHEET ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER ORDER Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Order Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/Inner/ BAKE BROLL CLEAN BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS BREADS SAGE As 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 KITCHEN AID SAGE As 111 OQUANTITY O V LARGO MILE NUTTER MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCH MULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULCHMULL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILU CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILL CHILLA UNTER CREAM MILK CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESECHEECE EVE CREAM MILK CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESE CHEESENUTER CREAM MILK CHEESENUTER CREAM MILK CHEESENUTER CREAM MILK CHEESENUTER CREAM MILK CHEESENUTER CREAM MILK CHEESENUTER CREAM MILK CHEESENUTER CREAM MILK CHEESENUTER CREAM MILK CHEESENUTER CREAM MILK CHEESENUTER CREAM MILK CHEESENUTER CREAM MILK CHEESENUTER CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILK CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILk CREAM MILl CREAM MILl CREAM MILl CREAM MILl CREAM MILl CREAM MILl CREAM MILl CREAM MILl CREAM MILl CREAM MILl CREAM MILl CREAM MILl CREAM MILl CREAM MILl CREAM MILl CREAM MILl CREAM MILl CREAM MILl CREAM MILl CFrame Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inlet Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset Inset InSet in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in Set in End Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Choll Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill Chill ChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilChilCLOCK SET START INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INSET INETINUTER CONUCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINER CONUCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINER CONUCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINER CONUCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINER CONUCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINER CONUCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINER CONUCT FUEL MINN QUANTITY O VLOWY LIGHTON TINER CONUCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINER CONUCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINER CONUCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINER CONUCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINER CONUCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINER CONUCT FUEL MINN QUANTITY O VLOW Y Light ON TINER CONCT FUEL MINN QUANTITY O VLOW Y Light ON TINER CONCT FUEL MINN QUANTITY O VLOW Y Light ON TINER CONCT FUEL MINN QUANTITY O VLOW Y Light ON TINER CONCT FUEL MINN QUANTITY O VLOW Y Light ON TINER CONCT FUEL MINN QUANTITY O VLOW Y Light ON TINER CONCT FUEL MINN QUANTITY O VLOW Y Light ON TINERA UNTER CONCT FUEL MINN QUANTITY O VLOW Y Light ON TINERA UNTER CONCT FUEL MINN QUANTITY O VLOW Y Light ON TINERA UNTERA UNTERA CONCT FUEL MINN QUANTITY O VLOW Y Light ON TINERA UNTERA UNTERA CONCT FUEL MINN QUANTITY O VLOW Y Light ON TINERA UNTERA UNTERA CONCT FUEL MINN QUANTITY O VLOW Y Light ON TINERA UNTERA UNTERA CONCT FUEL MINN QUANTITY O VLOW Y Light ON TINERA UNTERA UNTERA CONCT FUEL MINN QUINTURE OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVINATION OF NOVITEM OUTPER PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFORM PERFINUTER CONUCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINER CONCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINER CONCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINER CONCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINER CONCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINER CONCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINER CONCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINERA UNTER CONCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINERA UNTER CONCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINERA UNTERA UNTERA CONCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINERA UNTERA UNTERA CONCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINERA UNTERA UNTERA CONCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINERA UNTERA UNTERA CONCT FUEL MINN QUANTITY O VLOWY LIGHT ON TINERA UNTERA UNTERA CONCT FUEL MINN QU Quantity O VLOWY LIGHT ON TINERA UNTERA UNTERA CONCT FUEL MINN QU Quantity O VLOWY LIGHT ON TINERA UNTERA UNTERA CONCT FUEL MINN QU Quantity O VLOWY LIGHT ON TINERA UNTERA UNTERA CONCT FUEL MINN QU Quantity O VLOWY LIGHT ON TINERA UNTERA UNTERA CONCT FUEL MINN QU Quantity O VLOWY LIGHT ON TINTERA UNTERA UNTERA CONCT FUEL MINN QU Quantity O VLOWY LIGHT ON TINTERA UNTERA UNTERA CONCT FUEL MINN QU Quantity O VLOWY LIGHT ON TINTERA UNTERA UNTERA CONCT FUEL MINN QU Quantity O VLOWY LIGHT ON TINTERA UNTERA UNTERA CONCT FUEL MINN QU Quantity O VLOWY LIGHT ON TINTERA UNTERA UNTERACONCT FUEL MINN QUANTITY O VLOWYLIGHT ON TINTERA UNTERA UNTERA CONCT FUEL MINN QUANTITY O VLOWYLIGHT ON TINTERA UNTERA UNTERA CONCT FUEL MINN QUANTITY O VLOWYLIGHT ON TINTERA UNTERA UNTERA CONCT FUEL MINN QUANTITY O VLOWYLIGHT ON TINTERA UNTERA UNTERA CONCT FUEL MINN QUANTITY O VLOWYLIGHT ON TINTERA UNTERA UNTERA CONCT FUEL MINN QUANTITYO VLOWYLIGHT ON TINTERA UNTERA UNTERA CONCT FUEL MINN QUANTITYO VLOWYLIGHT ON TINTERA UNTERA UNTERA CONCT FUEL MINN QUANTITYO VLOWYLIGHT ON TINTERA UNTERA UNTERA CONCT FUEL MINN QUANTITYO VLOWYLIGHT ON TINTERA UNTERA UNTERA CONCT FUEL MINN QUANTITYO VLOWYLIGHT ON TINTIRA UNTERA UNTERA CONCT FUEL MINN QUANTITYO VLOWYLIGHT ON TINTIRA UNTERA UNTERA CONCT FUEL MINN QUANTITYO VLOWYLIGHT ON TINTIRA UNTERA UNTERA CONCT FUEL MINN QUANTITYO VLOWYLIGHT ON TINTIRA UNTERA UNTERA CONCT FUEL MINN QUANTITYO VLOWYLIGHT ON TINTIRA UNTERA UNTERA CONACT FUEML CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUMCAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAP RUMCAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUM CAPRUSCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPRUMCAPIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPRIIAPPIIIAPRIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPPIIIAAPP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIIP IIILABP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBF IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBP IIIIBPIII IIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIFII IIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIF IIIFII IIF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I IF I88888888888888888888888888888888888888888888888888

1. Lower Oven Display
2. Lower Oven Start and Cancel
3. Number Pads
4. Control Lock

5. Upper Oven Display, Time of Day/Timer Display

6. Timer

7. Clock

8. Lower Oven Setting Selectors

9. EasyConvect™ Conversion

10. Timed Cooking

11. Convect Full Meal

12. Lower Oven Light

13. Upper Oven Control (see separate Use and Care Guide)

Display(s)

When power is first supplied to the appliance, everything on the display(s) will light up for 5 seconds. Then, "PF id = 27" or "PF id = 30" will appear. Press LOWER OVEN CANCEL to clear display(s).

Any other time "PF id = 27" or "PF id = 30" appears, a power failure occurred. Press LOWER OVEN CANCEL and reset the clock if needed.

Lower Oven Display (combination oven models)

When the lower oven is in use, this display shows the lower oven temperature, heat source(s) and start time.

Start

The START pad begins any lower oven function except the Timer. If not pressed within 5 seconds after pressing a pad, "START?" will appear on the lower oven display as a reminder. If not pressed within 4 minutes after pressing a pad, the oven display will return to inactive mode (blank) and the programmed function will be canceled.

Lower Oven Cancel

The LOWER OVEN CANCEL pad stops any lower oven function except for the Clock, Timer and Control Lock.

Tones

Tones are audible signals, indicating the following:

One tone

■Valid pad touch

■Oven is preheated

■Function has been entered

Three tones

■Invalid pad touch

Four tones

■End-of-cycle

■Reminder, repeating each minute after the end-of-cycle tones

All Tones (combination oven models only)

All of the above tones are preset on, but can be turned off.

To Turn Off/On: Touch and hold STOP TIME for 5 seconds. A tone will sound and "Snd oFF" will appear on the lower oven display for 3 seconds. Repeat to change back to "Snd on."

Tone Volume

The volume is preset at high, but can be changed to low. To Change: Touch and hold the number pad "7" for 5 seconds. A tone will sound and "Snd Lo" will appear on the lower oven display for 3 seconds. Repeat to change back to "Snd HI."

REMINDER TONES

The Timer and Timed Cooking reminder tones are preset on, but can be turned off. Reminder tones do not include end-of-cycle tones. On combination oven models, if "All Tones" have been turned off, the reminder tones cannot be independently turned on.

Timer

To Turn Tones Off/On: Touch and hold TIMER SET • START until a tone sounds. Repeat to turn back on.

Timed Cooking (combination oven models only)

To Turn Tones Off/On: Touch and hold COOK TIME until a tone

The temperature is preset in Fahrenheit, however it can be changed to Celsius.

To Change: Press and hold BROIL/MAXI//ECONO for 5 seconds. Depending on your model, a tone will sound and "C" or "C" will appear on the display for 3 seconds, or until you press CANCEL. Repeat to change back to Fahrenheit.

When in Fahrenheit, "F" follows the oven temperature.

When in Celsius, only “0” follows the oven temperature.

Timer

The Timer can be set in minutes and seconds or hours and minutes, and counts down the set time. The Timer does not start or stop the oven.

To Set

1. Touch TIMER SET • START.

Touch again to switch between MIN/SEC and HR/MIN. If no action is taken after one minute, the display will return to the time of day mode.

1. Touch the number pads to set length of time.

2. Touch TIMER SET • START or EASY MINUTE START. If not touched within 5 seconds, the display will return to the time of day mode and the programmed function will be canceled. When the set time ends, if enabled, end-of-cycle tones will sound, then reminder tones will sound every minute.

3. Touch TIMER CANCEL anytime to cancel the Timer and/or stop reminder tones.

Remember, touching the OFF/CANCEL pad(s) will turn the respective oven(s) off.

The time can be reset during the countdown by repeating the above steps.

Control Lock

The Control Lock shuts down the control panel pads to prevent unintended use of the oven(s).

When the control is locked, only the CLOCK SET • START, TIMER SET • START and TIMER CANCEL pads will function.

The Control Lock is preset unlocked, but can be locked.

To Lock/Unlock Control: Before locking, make sure the oven(s), Timer and Timed Cooking are off. Touch and hold the number pad 3 CONTROL LOCK until "CONTROL LOCK" and a picture of a lock appear on the display, about 3 seconds. Repeat to unlock and remove "CONTROL LOCK" from the display.

Oven Temperature Control

IMPORTANT: Do not use a thermometer to measure oven temperature because opening the oven door and element or burner cycling may give incorrect readings.

The oven provides accurate temperatures; however, it may cook faster or slower than your previous oven, so the temperature calibration can be adjusted. It can be changed in Fahrenheit or Celsius.

A minus sign means the oven will be cooler by the displayed amount. No sign means the oven will be warmer by the displayed amount. Use the following chart as a guide.

ADJUSTMENT °F(ADJUSTMENT °C)	COOKS FOOD
5° to 10°F (3° to 6°C)	...a little more
15° to 20°F (9° to 12°C)	...moderately more
25° to 35°F (15° to 21°C)	...much more
-5° to -10°F (-3° to -6°C)	...a little less
-15° to -20°F (-9° to -12°C)	...moderately less
-25° to -35°F (-15° to -21°C)	...much less

To Adjust Oven Temperature Calibration:

1. Drape and hold RAKE until the lower oven display shows the

OVEN USE

Odors and smoke are normal when the oven is used the first few times, or when it is heavily soiled.

IMPORTANT: The health of some birds is extremely sensitive to the fumes given off. Exposure to the fumes may result in death to certain birds. Always move birds to another closed and well ventilated room.

Aluminum Foil

IMPORTANT: Do not line the oven bottom with any type of foil, liners or cookware because permanent damage will occur to the oven bottom finish.

■Do not cover entire rack with foil because air must be able to move freely for best cooking results.

■To catch spills, place foil on rack below dish. Make sure foil is at least 1 in. (2.5 cm) larger than the dish and that it is turned up at the edges.

■Do not cover food with aluminum foil when convection cooking (on some models).

Positioning Racks and Bakeware

IMPORTANT: Never place food or bakeware directly on the oven door or bottom. Permanent damage will occur to the porcelain finish.

RACKS

Position racks before turning the oven on. Do not move racks with bakeware on them. Make sure racks are level. To move a rack, pull it out to the stop position, raise the front edge, then lift out. Use the following illustration and chart as a guide.

BAKEWARE

To cook food evenly, hot air must be able to circulate. Allow 2 in. (5 cm) of space around bakeware and oven walls. Use the following chart as a guide.

NUMBER OF POSITION ON RACK PAN(S)

1 Center of rack.

2 Side by side or slightly staggered.

3 or 4 Opposite corners on each rack. Make sure that no bakeware piece is directly over another.

Bakeware

The bakeware material affects cooking results. Follow manufacturer's recommendations and use the bakeware size recommended in the recipe. Use the following chart as a guide.

BAKEWARE/RESULTS	RECOMMENDATIONS
Light colored aluminum■Light golden crusts■Even browning	■Use temperature and time recommended in recipe.
Dark aluminum and other bakeware with dark, dull and/or non-stick finish■Brown, crisp crusts	■May need to reduce baking temperatures 25°F (15°C).■Use suggested baking time.■For pies, breads and casseroles, use temperature recommended in recipe.■Place rack in center of oven.
Insulated cookie sheets or baking pans...	■Place In the bottom third of oven.■May need to increase baking time.

Oven Vent

1 2 3

1. Upper oven
2. Oven vent
3. Lower oven

The oven vent should not be blocked or covered since it allows the release of hot air and moisture from the oven. Doing so will cause poor air circulation, affecting cooking and cleaning results. Never set plastics, paper or other items that could melt or burn near the oven vent.

Baking and Roasting

1. Broil elements
2. Bake element (hidden in floor panel)

During baking or roasting, the bake and broil elements will cycle on and off in intervals to maintain the oven temperature.

If the lower oven door is opened during baking or roasting, the broil elements will turn off immediately and the bake element will turn off in 2 minutes. They will come back on once the door is closed.

To Bake or Roast:

Before baking and roasting, position the racks according to the "Positioning Racks and Bakeware" section. When roasting, it is not necessary to wait for the oven to preheat before putting food

Broil Maxi/Econo

Two black square panels with wavy lines and numbered labels 1 and 2, no text or symbols present.

1. Broil Maxi 2. Broil Econo

Broiling uses direct radiant heat from the broil element(s) to cook food. During maxi broiling, both the inner and outer broil elements heat. During econo broiling, only the inner broil element heats. The element(s) cycle on and off in intervals to maintain the oven temperature.

If the lower oven door is opened during broiling, the broil element(s) will turn off immediately and come back on once the door is closed.

■Use only the broiler pan and grid provided with the appliance. It is designed to drain juices and help prevent spatter and smoke.

■For proper draining, do not cover the grid with foil. The bottom of the pan may be lined with aluminum foil for easier cleaning.
■Trim excess fat to reduce spattering. Slit the remaining fat on the edges to prevent curling.
■Pull out oven rack to stop position before turning or removing food. Use tongs to turn food to avoid the loss of juices. Very thin cuts of fish, poultry or meat may not need to be turned.
■After broiling, remove the pan from the oven when removing the food. Drippings will bake on the pan if left in the heated oven, making cleaning more difficult.

To Broil:

Before broiling, position rack according to the Broiling Chart. Changing the temperature when broiling allows more precise control when cooking. The lower the temperature, the slower the

BROILING CHART

For best results, place food 3 in. (7 cm) or more from the broil elements, rack position 4 is recommended. For diagram, see the "Positioning Racks and Bakeware" section.

A temperature of 500°F (260°C) is recommended.

Times are guidelines only and may need to be adjusted for individual foods and tastes.

FOOD COOK
TIME minutes
Beef

Steak
1 in. to 1 14 in.
(2.5 to 3 cm) thick
medium-rare	12-14
medium	14-16
well done	18-22

Pork

Pork chops1 in. (2.5 cm) thickmedium 16-18

Lamb

Lamb chops
1 in. (2.5 cm) thick
medium-rare	10-12
medium	11-13

Ground Meats

*Ground beef, pork or lamb patties3/4 in. (2 cm) thickwell-done 16-18

Chicken

Chicken
bone-in pieces (2 to 21⁄2 in., 5 to 6.3 cm)	25-35
boneless pieces (4 oz., 113 g)	12-15

Convection Cooking

(on some models)

In a convection oven, the fan-circulated hot air continually distributes heat more evenly than the natural movement of air in a standard thermal oven. This movement of hot air maintains a consistent temperature throughout the oven, cooking foods more evenly, crisping surfaces while sealing in moisture and yielding crustier breads.
Most foods can be cooked by lowering cooking temperatures 25°F to 50°F (14°C to 28°C) and cooking time can be shortened by as much as 30 percent, especially for large turkeys and roasts.
■It is important not to cover foods so that surface areas remain exposed to the circulating air, allowing browning and crisping.
- Keep heat loss to a minimum by only opening the oven door when necessary.
■Choose cookie sheets without sides and roasting pans with lower sides to allow air to move freely around the food.
■Test baked goods for doneness a few minutes before the minimum cooking time with an alternative method such as a toothpick.
■Use a meat thermometer or the temperature probe to determine the doneness of meats and poultry. Check the temperature of pork and poultry in two or three places.

Convection Bake

1. Convection element heat and fan

Convection baking can be used for baking delicate cakes and pastries, as well as foods on multiple racks. It is helpful to stagger items on the racks to allow a more even flow of heat. If the oven is full, extra cooking time may be needed.

To Convection Bake:

Before convection baking, position the racks according to the "Positioning Racks and Bakeware" section. When using two racks, place them on guides 2 and 4. When using three racks, place them on guides 1, 3 and 5.

1. Press CONVECTION BAKE.

Press the number pads to enter a temperature other than 325^ F ( 163^ C). The convection bake range can be set between 170^ F and 500^ F ( 77^ C and 260^ C).

1. Press START.

“Lo” will appear on the lower oven display if the actual oven temperature is under 170°F (77°C).

When the actual oven temperature reaches 170^ F ( 77^ C), the lower oven display will show the oven temperature increasing in 5^ increments.

When the set temperature is reached, if enabled, one tone will sound.

1. Press LOWER OVEN CANCEL when finished cooking.

Convection Roast

1. Broil heat
2. Convection fan
3. Bake heat

Convection roasting can be used for roasting meats and poultry, or for baking yeast breads and loaf cakes using a single rack. During convection roasting, the bake and broil elements will cycle on and off in intervals to maintain oven temperature, while the fan constantly circulates the hot air.

If the lower oven door is opened during convection roasting, the broil element and fan will turn off immediately and the bake element will turn off in 2 minutes. They will come back on once the door is closed.

To Convection Roast:

Before convection roasting, position the racks according to the "Positioning Racks and Bakeware" section. It is not necessary to wait for the oven to preheat before putting food in, unless recommended in the recipe. Use the roasting rack on top of the broiler pan and grid.

Diagram showing three labeled views of a rectangular tray or container with internal slots, numbered 1, 2, and 3.

1. Roasting rack
2. Broiler grid
3. Broil pan

1. Press CONVECTION ROAST.

Press the number pads to enter a temperature other than 300°F (149°C). The convection roast range can be set between 170°F and 500°F (77°C and 260°C).

2. Press START.

“Lo” will appear on the lower oven display if the actual oven temperature is under 170^ F ( 77^ C).

When the actual oven temperature reaches 170^ F ( 77^ C), the lower oven display will show the oven temperature increasing in 5^ increments.

When the set temperature is reached, if enabled, one tone will sound.

3. Press LOWER OVEN CANCEL when finished cooking.

CONVECTION ROASTING CHART

FOOD/RACK POSITION

COOK TIME (min. per 1 lb [454 g])

OVEN TEMP. INTERNAL FOOD TEMP.

Beef, Rack Position 2

FOOD/RACK POSITION	COOK TIME (mln. per 1 lb [454 g])	OVEN TEMP.	INTERNAL FOOD TEMP.
Veal, Rack Position 2
Loin, Rib, Rump Roast medium well done	25-35 30-40	325°F (163°C)	160°F (71°C) 170°F (77°C)
Pork, Rack Position 2
Loin Roast (boneless)	30-40	325°F (163°C)	160°F-170°F (71°C-77°C)
Shoulder Roast	35-40	325°F (163°C)	160°F-170°F (71°C-77°C)
Ham, Rack Position 2
Fresh (uncooked)	25-35	300°F (149°C)	160°F (71°C)
Fully Cooked	15-20	300°F (149°C)	160°F (71°C)
Lamb, Rack Position 2
Leg, Shoulder Roast medium well done	25-30 30-35	300°F (149°C)	160°F (71°C) 170°F (77°C)
*Chicken, Rack Position 2
Whole 3-5 lbs. (1.5-2.2 kg)	20-25	325°F (163°C)	180°F (82°C)
5-7 lbs. (2.2-3.1 kg)	15-20	325°F (163°C)	180°F (82°C)

*Turkey, Rack Positions 1 or 2

Convection Broil

1. Broil heat
2. Convection fan

During convection broiling, the broil elements will cycle on and off in intervals to maintain oven temperature, while the fan constantly circulates the hot air.

The temperature is preset at 450^ F ( 232^ C), but can be changed to a different temperature. Cooking times will vary depending on the rack position and temperature and may need to be adjusted. If the lower oven door is opened during convection broiling, the broil elements and fan will turn off immediately. They will come back on once the door is closed.

To Convection Broil:

Before convection broiling, see the "Maxi and Econo Broiling" section for general broiling guidelines. Position the rack according to the cookbook supplied with this oven.

Allow the oven to preheat for 5 minutes. Position food on the grid in the broiler pan, then place it in the center of the oven rack with the longest side parallel to the door.

Close the door.

1. Press CONVECTION BROIL.

Press the number pads to enter a temperature other than 450^ F ( 232^ C). The convection broil range can be set between 170^ F and 500^ F ( 77^ C and 260^ C).

1. Press START.

The set oven temperature will appear on the lower oven display until oven is turned off.

1. Press LOWER OVEN CANCEL when finished cooking.

Convect Full Meal

(on some models)

Convect Full Meal lets you choose from 11 preset cooking cycles. A single pad includes an oven setting, an oven temperature, and a cook time or probe temperature. One pad is changeable to allow you to set your own cycle and save it for future use. Use the following chart as a guide.

PAD/ OVEN SETTING	OVEN TEMP.	COOK TIME or PROBE TEMP.	FOOD or MEAL
1 Convection Bake	325°F (163°C)	1 hr. Meat Loaf, Baked Potatoes, Pineapple Upside Down Cake
2 Convection Roast	325°F (163°C)	1 hr. 30 min.	Turkey Breast, Stuffing Casserole, Peach Crisp
3 Convection Roast	350°F (177°C)	40 min. Stuffed Pork Chops, Baked Winter Squash, Bread Pudding
4 Convection Bake	375°F (191°C)	45 min. Oven Fried Chicken Pieces, Scallopod Potatoes, Cherry Pie
5 Convection Bake	425°F (218°C)	20 min. Baked Salmon Steaks, Roasted Vegetable Wedges, Biscuits
6 Convection Roast	325°F (163°C)	140°F (60°C)	Beef, rare
7 Convection Roast	325°F (163°C)	155°F (68°C)	Beef, medium or Pork
8 Convection Roast	325°F (163°C)	165°F (74°C)	Beef, well done

To Use:

Before using Convect Full Meal, place food in oven. If temperature probe is required, insert probe into food and plug probe into jack. See "Temperature Probe" section for diagram.

1. Press CONVECT FULL MEAL.

2. Press pad from chart.

For example, number pads 1 to 0 or CONVECT FULL MEAL.

1. Press START.

The start time, stop time, vertical bar countdown and minute time countdown will appear on the oven display. The stop time will not appear if not set in the changeable cycle.

When the cycle ends, "End" will appear in the oven display. If enabled, end-of-cycle tones will sound, then reminder tones will sound every minute.

1. Press CANCEL OFF or open the oven door when finished cooking to clear the display.

To Set Cycle:

Before setting a cycle, start with the meat or main dish temperature and cook time. Choose baked goods with an oven temperature similar to those of the meat or main dish. Temperatures ranging from plus or minus 25 to 50 degrees and cook times ranging from plus or minus 10 to 15 minutes are acceptable. Choose vegetables and fruits last.

1. Press CONVECT FULL MEAL.
2. Press any oven setting pad, for example BAKE.
3. Press number pads to enter oven temperature.
4. Press COOK TIME.
5. Press number pads to enter length of time to cook in hours and minutes

or Press 0 to do untimed cooking.

1. Press CONVECT FULL MEAL to save or

Press START to save and immediately begin cycle.

EasyConvect™ Conversion

Convection temperatures and times differ from those of standard cooking. The oven can automatically reduce standard recipe temperatures and times for convection cooking.

The conversion may not be exact because foods are grouped in general categories. To ensure optimal cooking results, the oven will prompt a food check at the end of non-delayed Timed Cooking. Use the following chart as a guide.

SETTING FOODS

BAKED GOODS Biscuits, Breads: quick and yeast, Cakes: layer and angel food, Casseroles: including frozen entrées and soufflés, Cookies, Fish

MEATS Baked potatoes, Chicken: whole and pieces, Meat loaf, Roasts: pork, beef and hamTurkey and large poultry are not included because their cook time varies.

OTHER FOODS Convenience foods: french fries,nuggets, fish sticks, pizza,Pies: fruit and custard

To Use

Before using convection temperature conversion for BAKED GOODS and OTHER FOODS, allow the oven to preheat before placing food in the oven.

1. Press BAKED GOODS, MEATS or OTHER FOODS.
2. Press the number pads to enter the standard cook temperature.
3. Press the number pads to enter the standard cook time.
4. Press START.

"CHECK FOOD AT" and the stop time will appear on the lower oven display.

When the stop time is reached, end-of-cycle tones will sound if enabled. Open the door and check food.

1. Press LOWER OVEN CANCEL if food is done to taste.

To Delay Start:

WARNING

Food Poisoning Hazard

Do not let food sit in oven more than one hour before or after cooking.

Doing so can result in food poisoning or sickness.

Before setting delay start, make sure the clock is set to the correct time of day. See "Clock" section. Delay start should not be used for food such as breads and cakes because they may not bake properly.

1. Press BAKED GOODS, MEATS or OTHER FOODS.
2. Press the number pads to enter the standard cook temperature.
3. Press the number pads to enter the standard cook time.
4. Press STOP TIME.
5. Press the number pads to enter the time of day to stop.
6. Press START.

The start time is automatically calculated and displayed.

“DELAY” and the stop time will also appear on the lower oven display. The vertical bar countdown and minute time countdown will appear on the lower oven display.

When the start time is reached, the oven will automatically turn on.

When the stop time is reached, the lower oven will shut off automatically and "End" will appear on the lower oven display.

If enabled, end-of-cycle tones will sound, then reminder tones will sound every minute.

1. Press LOWER OVEN CANCEL or open the lower oven door to clear the display and/or stop reminder tones.

Sabbath Mode

The Sabbath Mode sets the oven to remain on in a bake setting

To Set

Before setting, make sure the oven(s), Timer and Timed Cooking are off.

1. Press BAKE.
   Press the number pads to enter a temperature other than 350°F (177°C). The bake range can be set between 170°F and 500°F (77°C and 260°C).
2. Press START.
3. Press and hold number pad 6 until "SAb ON" appears on the lower oven display, about 5 seconds.
4. Press and hold number pad 6 for 5 seconds any time to turn Sabbath Mode off.

The lower oven display will return to inactive mode (blank).

TEMPERATURE CHANGE

The oven temperature can be changed when the oven is in the Sabbath Mode. No tones will sound and the display will not change. It may take up to one-half hour for the oven to change temperature.
Number pads 1 through 9 represent temperatures. Use the following chart as a guide.

NUMBER PAD OVEN TEMPERATURE

1	170°F (75°C)
2	200°F (95°C)
3	250°F (120°C)
4	300°F (150°C)
5	325°F (163°C)
*6	350°F (177°C)
7	375°F (191°C)
8	400°F (204°C)
9	475°F (245°C)

*Make sure when using the number pad 6, it is pressed only for 1

Dehydrating

Dehydrating dries food. For additional information, refer to a book written specifically about dehydrating or preserving foods. Dehydration racks and an oven door stop are required, but not supplied with this oven. See "Assistance or Service" section to order.

To Dehydrate:

Before dehydrating, prepare the food as recommended in the recipe and arrange on dehydration rack(s). Position the racks according to the following chart. See "Positioning Racks and Bakeware" section for diagram.

NUMBER OF RACKS RACK POSITION(S)

1	3
2	2
3	1

Place the oven door stop over the automatic oven light switch.

1. Oven door stop
2. Automatic oven light switch

1. Press and hold CONVECTION BAKE for 5 seconds.

Press the number pads to enter a temperature other than 140°F (60°C). The dehydrating range can be set between 100°F and 200°F (38°C and 93°C).

1. Press START.
2. Press LOWER OVEN CANCEL when finished dehydrating.

Proofing Bread

(on some models)

Proofing bread prepares the dough for baking by activating the yeast. Follow the recipe directions as a guide.

To Proof:

Before first proofing, place the dough in a lightly greased bowl and cover loosely with wax paper, coated with shortening. Place on rack guide two, then place broiler pan on guide one. See "Positioning Racks and Bakeware" for diagram. Put 2 cups (500 mL) of boiling water in the broiler pan. Close the door.

1. Press and hold BAKED GOODS for 5 seconds.
   The display will show 100°F (38°C).
2. Press START.
   Let the dough rise until nearly doubled in size, checking after 20-25 minutes. Proofing time may vary depending on dough type and quantity.
3. Press LOWER OVEN CANCEL when finished proofing.
   Before second proofing, shape the dough, place it in baking pan(s) and cover loosely with plastic wrap, coated with cooking spray. Follow the same placement, broiler pan and water and control steps above. Before baking, remove the plastic wrap.

Temperature Probe

The temperature probe accurately measures the internal temperature of meat, poultry and casseroles with liquid and should be used in determining the doneness of meat and poultry. It should not be used during maxi and econo broiling, convection broiling, dehydrating or proofing bread.

To Use:

Before using, insert the probe into the center of the thickest portion of meat or into the inner thigh or breast of poultry, away from fat or bone. Do not use the temperature probe if the food is frozen.

Place the food in the oven and connect the temperature probe to the jack. A probe symbol will appear in the lower oven display. Keep the probe as far away from the heat source(s) as possible. Close the oven door.

1. Press the number pads to enter a probe temperature other than 160^ F ( 71^ C). The probe range can be set between 130^ F and 190^ F ( 54^ C and 88^ C).
2. Press BAKE, CONVECTION BAKE or CONVECTION ROAST. Press the number pads to enter a temperature other than the one displayed.
3. Press START.
   The set oven temperature will appear on the lower oven display throughout cooking.
   “Lo” will appear as the probe temperature until the internal temperature of the food reaches 130°F (54°C). Then the display will show the probe temperature increasing in 5° increments.
   When the set probe temperature is reached, the lower oven will shut off automatically and "End" will appear on the lower oven display.
   If enabled, end-of-cycle tones will sound, then reminder tones will sound every minute.
4. Press LOWER OVEN CANCEL or open the lower oven door to clear the display and/or stop reminder tones.

WARNING

Burn Hazard

Use an oven mitt to remove temperature probe. Do not touch broll element.

Failure to follow these instructions can result in burns.

1. Always unplug and remove the temperature probe from the oven when removing food. The probe symbol will remain lit in

To Change Probe Temperature, Oven Setting:

1. Unplug the probe, plug it back in, then close the oven door.

2. Press the number pads to enter a probe temperature other than 160^ F ( 71^ C). The probe range can be set between 130^ F and 190^ F ( 54^ C and 88^ C).

3. Press BAKE, CONVECTION BAKE or CONVECTION ROAST. Press the number pads to enter a temperature other than the one displayed.

4. Press START.

The set oven temperature will appear on the lower oven display throughout cooking.

“Lo” will appear as the probe temperature until the internal temperature of the food reaches 130^ F ( 54^ C). Then the display will show the probe temperature increasing in 5^ increments.

When the set probe temperature is reached, the lower oven will shut off automatically and "End" will appear on the lower oven display.

If enabled, end-of-cycle tones will sound, then reminder tones will sound every minute.

1. Press LOWER OVEN CANCEL or open the lower oven door to clear the display and/or stop reminder tones.

Timed Cooking

WARNING

Food Poisoning Hazard

Do not let food sit in oven more than one hour before or after cooking.

Doing so can result in food poisoning or sickness.

Timed Cooking allows the oven to be set to turn on at a certain time of day, cook for a set length of time, and/or shut off automatically. Delay start should not be used for food such as breads and cakes because they may not bake properly.

To Set a Cook Time:

1. Press BAKE, CONVECTION BAKE or CONVECTION ROAST. Press the number pads to enter a temperature other than the one displayed.
2. Press COOK TIME.
3. Press number pads to enter the length of time to cook.
4. Press START.

The start time, stop time, vertical bar countdown and minute time countdown will appear on the lower oven display.

When the stop time is reached, the lower oven will shut off automatically and "End" will appear on the lower oven display.

If enabled, end-of-cycle tones will sound, then reminder tones will sound every minute.

1. Press LOWER OVEN CANCEL or open the lower oven door to clear the display and/or stop reminder tones.

To Set a Cook Time and Stop Time [Delay Start]:

Before setting, make sure the clock is set to the correct time of day. See "Clock" section.

1. Press BAKE, CONVECTION BAKE or CONVECTION ROAST. Press the number pads to enter a temperature other than the one displayed.
2. Press COOK TIME.
3. Press the number pads to enter the length of time to cook.
4. Press STOP TIME.
5. Press the number pads to enter the time of day to stop.
6. Press START.

The start time is automatically calculated and displayed.

“DELAY” and the stop time will also appear on the lower oven display.

When the start time is reached, the oven will automatically turn on. The vertical bar countdown and minute time countdown will appear on the lower oven display.

When the stop time is reached, the lower oven will shut off automatically and "End" will appear on the lower oven display.

If enabled, end-of-cycle tones will sound, then reminder tones will sound every minute.

1. Press LOWER OVEN CANCEL or open the lower oven door to clear the display and/or stop reminder tones.

OVEN CARE

Self-Cleaning Cycle

(on some models)

WARNING

Burn Hazard

Do not touch the oven during the Self-Cleaning cycle.

Keep children away from oven during Self-Cleaning cycle.

Failure to follow these instructions can result in burns.

IMPORTANT: The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle. Exposure to the fumes may result in death to certain birds. Always move birds to another closed and well ventilated room.

Self-clean the oven before it becomes heavily soiled. Heavy soil results in longer cleaning and more smoke.

Keep the kitchen well-ventilated during the Self-Cleaning cycle to help get rid of heat, odors, and smoke.

Do not block the oven vent(s) during the Self-Cleaning cycle. Air must be able to move freely. See "Oven Vent(s)" section.

Do not clean, rub, damage or move the oven door gasket. The door gasket is essential for a good seal.

Prepare Oven:

■Remove the broiler pan, grid, cookware and bakeware and, on some models, the temperature probe from the oven.

■Remove any foil from the oven because it may burn or melt, damaging the oven.

■Remove oven racks to keep them shiny and easy to slide. See "General Cleaning" section for more information.

■ Hand clean inside door edge and the 1½ in. (3.8 cm) area around the inside oven cavity frame, being careful not to move or bend the gasket. This area does not get hot enough during self-cleaning to remove soil. Do not let water, cleaner, etc. enter slots on door frame. Use a damp cloth to clean this area.

■Wipe out any loose soil to reduce smoke and avoid damage. At high temperatures, foods react with porcelain. Staining, etching, pitting or faint white spots can result. This will not affect cooking performance.

How the Cycle Works

IMPORTANT: The heating and cooling of porcelain on steel in the oven may result in discoloring, loss of gloss, hairline cracks and popping sounds.

The Self-Cleaning cycle uses very high temperatures, burning soil to a powdery ash.

The oven is preset for a 3 hour 30 minute clean cycle, however the time can be changed. Suggested clean times are 2 hours 30 minutes for light soil and between 3 hours 30 minutes to 4 hours 30 minutes for average to heavy soil.

Once the oven has completely cooled, remove ash with a damp cloth. Do not wipe down any inside surfaces until the oven has completely cooled down. Applying a cool damp cloth to the inner door glass before it has cooled completely could result in the glass breaking.

The oven light will not work during the Self-Cleaning cycle.

On combination oven models, the upper oven will not work during the Self-Cleaning cycle.

To Self-Clean:

Before self-cleaning, make sure the door is closed completely or it will not lock and the cycle will not begin.

1. Press CLEAN.

Press the number pads to set a clean time other than 3 hours 30 minutes. The clean time can be set between 2 hours 30 minutes and 4 hours 30 minutes.

1. Press START.

The lower oven door will automatically lock and "DOOR LOCKED," the start time and stop time will appear on the lower oven display. The door will not unlock until the lower oven cools.

When the cycle is complete and the oven cools, "End" will appear on the lower oven display and "DOOR LOCKED" will disappear.

1. Press any pad or open the lower oven door to clear the lower oven display.

To Delay Start Self-Clean:

Before delay starting Self-Clean, make sure the clock is set to the correct time of day. See "Clock" section. Also, make sure the door is closed completely or it will not lock and the cycle will not begin.

1. Press CLEAN.

Press the number pads to set a clean time other than 3 hours 30 minutes. The clean time can be set between 2 hours 30 minutes and 4 hours 30 minutes.

1. Press STOP TIME.

2. Press the number pads to enter the time of day to stop.

3. Press START.

The start time is automatically calculated and displayed. The door will automatically lock and "DOOR LOCKED," "DELAY," and the stop time will also appear on the display. The door will not unlock until the oven cools.

When the start time is reached, the lower oven will automatically turn on.

When the cycle is complete and the oven cools, "End" will appear on the lower oven display and "DOOR LOCKED" will disappear.

1. Press any pad or open the lower oven door to clear the oven

General Cleaning

IMPORTANT: Before cleaning, make sure all controls are off and the oven is cool. Always follow label instructions on cleaning products.

Soap, water and a soft cloth or sponge are suggested first unless otherwise noted.

STAINLESS STEEL (on some models)

Do not use soap-filled scouring pads, abrasive cleaners, Cooktop Polishing Creme, steel-wool pads, gritty washcloths or some paper towels. Damage may occur.

Rub in direction of grain to avoid damaging.

■Stainless Steel Cleaner & Polish (not included): See "Assistance or Service" section to order

■Liquid detergent or all-purpose cleaner: Rinse with clean water and dry with soft, lint-free cloth.

■Vinegar for hard water spots

OVEN DOOR EXTERIOR

■Glass cleaner and paper towels or nonabrasive plastic scrubbing pad:

Apply glass cleaner to soft cloth or sponge, not directly on panel.

CONTROL PANEL

Do not use abrasive cleaners, steel-wool pads, gritty washcloths or some paper towels. Damage may occur.

■Glass cleaner and soft cloth or sponge:

Apply glass cleaner to soft cloth or sponge, not directly on panel.

OVEN CAVITY

Do not use oven cleaners.

Food spills should be cleaned when oven cools. At high

BROILER PAN AND GRID

Do not clean in the Self-Cleaning cycle.

■Mildly abrasive cleanser:

Scrub with wet scouring pad.

■ Solution of 12 cup (125 mL) ammonia to 1 gal. (3.75 L) water: Soak for 20 minutes, then scrub with scouring or steel wool pad.

■Oven cleaner:

Follow product label instructions.

Porcelain enamel only, not chrome

■Dishwasher

TEMPERATURE PROBE (on some models)

■Plastic scouring pad

Oven Lights

The oven lights are 12-volt, 5-watt maximum halogen bulbs. They will come on when the oven door is opened. On double oven models, both upper and lower lights will come on when either door is opened. The oven lights will not work during the Self-Cleaning cycle. When the oven door is closed, press OVEN LIGHT to turn them on or off.

To Replace:

Before replacing, make sure the oven is off and cool.

1. Disconnect power.

2. Remove glass light cover by grasping the front edge and pulling away from oven.

Oven Door

For normal range use, it is not suggested to remove the oven door. However, if necessary, follow these instructions. The oven door is heavy.

To Remove:

1. Open oven door all the way.

2. Flip up the hinge latch on each side.

Illustration of hands performing a manual task with a curved arrow and tool (no text or symbols)

1. Close the oven door as far as it will shut.

2. Lift the oven door while holding both sides.

Continue to push the oven door closed and pull it away from the oven door frame.

To Replace:

1. Insert both hanger arms into the door.

TROUBLESHOOTING

Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.

Nothing will operate

■Has a household fuse been blown or has the circuit breaker been tripped? Replace the fuse or reset the circuit.

■Is the appliance wired properly? See Installation Instructions.

Oven will not operate

■Is the electronic oven control set correctly? See "Electronic Oven Control" section.

■Has a delay start been set? See "Timed Cooking" section.

■On some models, is the Control Lock set? See "Control Lock" section.

■On some models, is the Sabbath Mode set? See "Sabbath Mode" section.

■On double oven models, is one oven self-cleaning? When one oven is self-cleaning the other oven cannot be set or turned on.

■On double oven models, has the correct oven been selected? Choose UPPER OVEN or LOWER OVEN first.

Oven temperature too high or too low

■Does the oven temperature calibration need adjustment? See "Oven Temperature Control" section.

Display shows messages

■ Is the display showing "PF", "PF id=27" or "PF id=30"? There has been a power failure. Clear the display. See

Self-Cleaning cycle will not operate

■Is the oven door open? Close the oven door all the way.

■Has the function been entered? See "Self-Cleaning Cycle" section.

■On some models, has a delay start Self-Clean cycle been set? See "Self-Cleaning Cycle" section.

■Has a delay start been set? See "Timed Cooking" section.

■On double oven models, is one oven self-cleaning? When one oven is self-cleaning, the other oven cannot be set to self-clean.

Oven cooking results not what expected

■Is the appliance level? Level the appliance. See the Installation Instructions.

■Is the proper temperature set? Double-check the recipe in a reliable cookbook.

■Is the proper oven temperature calibration set? See "Oven Temperature Control" section.

■Was the oven preheated? See "Baking and Roasting" section.

■Is the proper bakeware being used? See "Bakeware" section.

■Are the racks positioned properly? See "Positioning Racks and Bakeware" section.

■Is there proper air circulation around bakeware? See "Positioning Racks and Bakeware" section.

■Is the batter evenly distributed in the pan? Check to make sure batter is level in the pan.

■Is the proper length of time being used? Adjust cooking time.

■Has the oven door been opened while cooking? Oven peeking releases oven heat and can result in longer cooking times.

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check "Troubleshooting." It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

If you need replacement parts If you need to order replacement parts, we recommend that you only use factory specified parts. These factory specified parts will fit right and work right because they are made with the same precision used to build every new KITCHENAID® appliance. To locate factory specified parts in your area, call our Customer Interaction Center telephone number or your nearest KitchenAid designated service center.

In the U.S.A.

Call the KitchenAid Customer Interaction Center toll free:

1-800-422-1230.

Our consultants provide assistance with:

■Features and specifications on our full line of appliances.

■Installation information.

■Accessory and repair parts sales.

■Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).

■Referrals to local dealers, repair parts distributors, and service companies. KitchenAid designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States. To locate the KitchenAid designated service company in your area, you can also look in your telephone directory Yellow Pages.

For further assistance

If you need further assistance, you can write to KitchenAid with any questions or concerns at:

KitchenAid Brand Home Appliances Customer Interaction Center 553 Benson Road Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

Accessories U.S.A.

To order accessories, call the KitchenAid Customer Interaction Center toll free at 1-800-442-9991 and follow the menu prompts. Or visit our website at www.kitchenaid.com and click on "Shop-Online," then "Accessories."

Stainless Steel Cleaner & Polish (stainless steel models) Order Part #4396095 Dehydration Kit (includes 3 racks and an oven door) Order Part #4395974A96

In Canada

For product related questions, please call the KitchenAid Canada Customer Interaction Center toll free: 1-800-461-5681 Monday to Friday 8:00 a.m. - 6:00 p.m. (EST). Saturday 8:30 a.m. - 4:30 p.m. (EST).

Our consultants provide assistance with:

■Features and specifications on our full line of appliances.

■Referrals to local dealers.

For parts, accessories and service in Canada

Call 1-800-807-6777. KitchenAid designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.

For further assistance

If you need further assistance, you can write to KitchenAid Canada with any questions or concerns at: Customer Interaction Center KitchenAid Canada 1901 Minnesota Court Mississauga, Ontario 15N 347

KITCHENAID® COOKTOP, BUILT-IN OVEN AND RANGE WARRANTY

ONE-YEAR FULL WARRANTY

For one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, KitchenAid will pay for factory specified parts and repair labor costs to correct defects in materials or workmanship. Service must be provided by a KitchenAid designated service company.

SECOND THROUGH FIFTH YEAR LIMITED WARRANTY ON ELECTRIC ELEMENTS, CERAMIC GLASS COOKTOP, GAS BURNERS, AND SOLID STATE TOUCH CONTROL SYSTEM

On electric ranges and electric cooktops, in the second through fifth years from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, KitchenAld will pay for factory specified parts for any electric element to correct defects in materials or workmanship.

On ceramic glass ranges and ceramic glass cooktops, in the second through fifth years from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, KitchenAid will pay for factory specified parts for the ceramic glass cooktop. KitchenAid warrants that the ceramic glass cooktop will not discolor, the cooktop pattern will not wear off, the rubber seal between the ceramic glass cooktop and porcelain edge will not crack, the ceramic glass cooktop will not crack due to thermal shock and the surface unit elements will not burn out.

On gas ranges and gas cooktops, in the second through fifth years from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, KitchenAid will pay for factory specified parts for any gas burner to correct defects in materials or workmanship.

On ranges and built-in ovens, in the second through fifth years from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product. KitchenAid will pay for factory specified parts for the porcelain oven cavity/inner door if the part rusts through due to defects in materials or workmanship. KitchenAid will pay for factory specified parts for solid state touch control system and Magnetron tube in combination ovens to correct defects in materials or workmanship.

SIXTH THROUGH TENTH YEAR LIMITED WARRANTY ON PRO LINE™ RANGES AND BUILT-IN OVENS PORCELAINOVENCAVITY/INNER DOOR

On PRO LINE™ ranges and built-in ovens only, in the sixth through tenth years from date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, KitchenAid will pay for factory specified parts for the oven cavity/inner door if the part rusts through due to defects in materials or workmanship.

KitchenAid will not pay for:

1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace house fuses or correct house wiring, or to replace owner-accessible light bulbs.
2. Repairs when your appliance is used in other than normal, single-family household use.
3. Pickup and delivery. Your appliance is designed to be repaired in the home.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, improper installation, acts of God or use of products not approved by KitchenAid or KitchenAid Canada.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Replacement parts or repair labor costs for units operated outside the United States or Canada.
7. In Canada, travel or transportation expenses for customers who reside in remote areas.
8. Any labor costs during the limited warranty periods.
