USER MANUAL RETRT700-1 REVO

Technical illustration of a REVO ELITE device component (no text or symbols on the diagram itself)

USER'S MANUAL

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION :

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK),

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL

The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

INFORMATION - This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

USER'S MANUAL

Contents

Camera Features 4

Installing & Adjusting 5

Dimension & Specification 6

OSD Control Button 7

On Screen Dispaly (OSD) Menu 8

Accessing the OSD Menu Settings continued 9

Lens 10

Exposure 10

SSDR 12

White Balance.... 13

BLC 14

DNR3 16

Day/Night 17

Special 18

Image Adjust.... 18

Cam Title 19

Sync 20

11.10

USER'S MANUAL

Camera Features

- Ultra High Sensitivity

The built-in high sensitivity COLOR CCD produces a clear image even in 0.0001Lux(Sens-up x512) lower illumination.

700TV Lines

By adopting a diagonal 6mm(1/3") 520,000(NTSC) pixel, 610,000(PAL) pixel SONY CCD, the camera produces clear picture quality with a horizontal resolution of 700 TV lines for color and a horizontal resolution of 750 TV lines for BW mode.

DNR3

The high-performance SV-V DSP chip effectively removes low-light gain noise and ghosting to provide clear images even in dark environments.

Day&Night

The camera has a function that automatically selects the mode that is appropriate for daytime or night-time conditions. The COLOR mode operates in daytime conditions to provide optimum colors, and BW mode operates in night-time conditions to enhance the definition of the image.

- SSDR

For images with high contrast between bright and dark Areas from difficult lighting conditions such as backlighting, this camera selectively illuminates darker Areas while rataining the same light level for brighter Areas to even out the overall brightness.

USER'S MANUAL

Installing & Adjusting

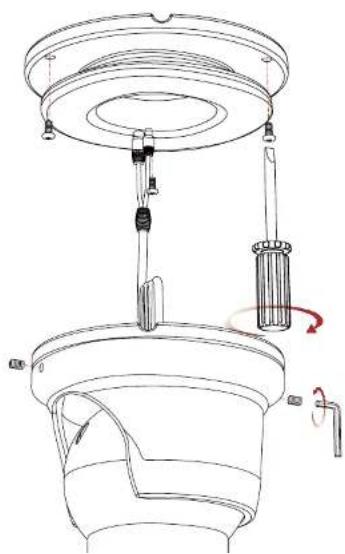

1. Installation

Technical line drawing of a mechanical assembly with no visible text or symbols

• Place the mounting plate on a flat installation surface and mount with the provided screws.
• Feed the cable through the center of the mounting plate.
• Place the camera body in the mounting plate socket and hold.
• Then place the outer plate over the camera body & mounting plate and tighten side screws to lock the camera into place.
• Loosen side screws to adjust camera angle as needed, then tighten the side screws to lock into place.

USER'S MANUAL

Dimension & Specification

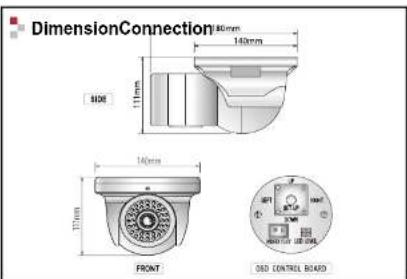

1. Dimension & Connection

DimensionConnection 40mm 140mm 800 111mm 140mm 120mm FRONT SED CONTROL BOARD

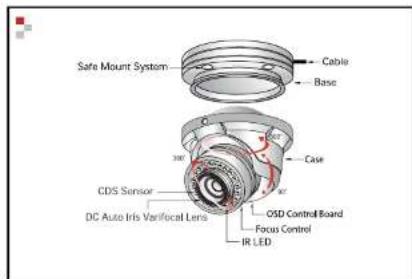

Safe Mount System Cable Base Case CDS Sensor DC Auto Iris Verificat Lens OSD Control Board Focus Control IR LED

WARNING: To prevent electric shock and risk fire hazards, do not use power sources other than that specified.

2. Specification

Image Pick-Up Device	1/3" Sony Super HAD CCD
TV System	NTSC
Total Pixels	976(H) * 508(V)
Effective Pixels	976(H) * 494(V)
Scanning Frequency	15.734KHz(H) & 59.94Hz(V)
Scanning System	2:1 Interlace
Synchronization	Internal / Line-Lock
Resolution	700TVLines
Minimum Illumination	IR LED OFF : 0.15Lux, IR LED ON : 0Lux
S/N Ratio	More than 52dB
Video Output	CVBS: 1.0Vpm / 75P

USER'S MANUAL

OSD Control Button

1. OSD Button could be used when it needs to OSD control.

SET UP VIDEO TEST LED LEVEL

▲ Up button : Moves the cursor upwards. Use this button to select an item or adjust the parameters.

USER'S MANUAL

On Screen Display (OSD) Menu

On Screen Display (OSD) Menu

Camera functions and settings can be adjusted or changed by activating the OSD manu.

When the OSD menu is activated text will display on the monitor. The user can then move the cursor to the desired function to change the setting.

SETUP Menu

LENS	• DC
EXPOSURE	• BRIGHTNESS• SENS-UP	• SHUTTER• RETURN	• AGC
SSDR	• OFF	• ON
WHITE BALANCE	• ATW• MANUAL	• OUTDOOR• ATW → SET	• INDOOR
BACKLIGHT	• OFF	• USER BLC	• HLC
DNR3	• OFF	• ON
DAY/NIGHT	• AUTO• EXTERN	• COLOR	• B/W

USER'S MANUAL

Accessing the OSD Menu Settings continued

1. Press the SETUP button.
2. Settings can now be made. The SETUP menu is displayed on the monitor.

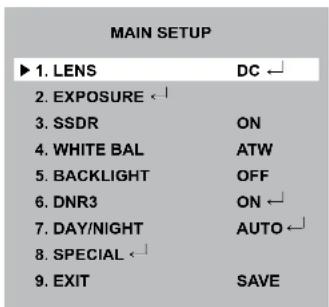

MAIN SETUP ► 1. LENS DC ← 2. EXPOSURE ← 3. SSDR ON 4. WHITE BAL ATW 5. BACKLIGHT OFF 6. DNR3 ON ← 7. DAY/NIGHT AUTO ← 8. SPECIAL ← 9. EXIT SAVE

1. Select a menu item from the list available by using the Up and Down buttons.

2. Functions are selected using up and down buttons.

3. Place the cursor over a desired item, the selected position is displayed.

MAIN SETUP Select the function using the UP or ► 1. LENS DC ← 2. EXPOSURE ← When an arrow is present, press SETUP button to enter sub menu

USER'S MANUAL

■ Lens

Using this function, you can control the screen brightness.

1. When the SETUP menu screen is displayed, select 'LENS' by using the Up and Down buttons so that the arrow indicates 'LENS'.

MAIN SETUP ► 1. LENS DC ← 2. EXPOSURE - ↓ 3. SSDR ON

▶ DC : You can adjust the minimum shutter and maximum value of shutter when DC Lens mode is selected.

1. Press SETUP to choose from the sub menu items as listed below.

▶ BRIGHTNESS : Adjusts the video brightness (selectable from 1 \~ 70).
▶ IRIS SPEED : Adjusts the iris control speed of the DC lens. If the control speed is too slow or fast, use this menu to adjusts the speed.
▶ FOCUS ADJ. : Press SET to enter focus menu. Then to adjust the lens focus correctly, ensure "MODE" is set to 'ON'. After lens focus has been adjusted, set "MODE" to 'OFF'

NOTE

• If color rolling occurs when using a DC lens, set Shutter to ---
• Some lenses may not work properly, depending on the setting of the BRIGHTNESS LEVEL.

USER'S MANUAL

1. Select the desired mode using Up and Down buttons.

EXPOSURE SETUP

▶ 1/1 BRIGHTNESS	25
2. SHUTTER	---
3. AGC	HIGH
4. SENS-UP	OFF
5. RETURN ←

▶ BRIGHTNESS : Adjusts the exposure brightness.
▶ SHUTTER : You can select either auto or manual shutter.

• A.FLK : Select this when you experience picture flicker, which can happen when there is a clash with the frequency of the installed lighting.
• ESC : Select this to control the shutter speed automatically. If ESC is selected, the shutter speed is automatically controlled depending on the ambient illumination of the subject.
• MANUAL: You can control shutter speed manually. (1/60 \~ 1/120,000)
• • • : Shutter speed is fixed at 1/60 sec. (1/50 sec.)

▷ SHUTTER continued

NOTE

• When using a DC lens, set the shutter mode to A.FLK if color rolling occurs.
• When the SHUTTER is set to ESC after selecting Internal Synchronization Type, the picture

USER'S MANUAL

▶ RETURN : Select this to save the changes in the EXPOSURE menu and return to the SETUP menu.

NOTE

• If you press the SET button in 'AUTO' mode, you can adjust brightness by increasing or decreasing the shutter speed. (x2 \~x512)
• Note that the higher the zoom level, the brighter the screen, but the more likely it is that an after-image will appear.
• Although noise, spots and whitish symptoms may occur in SENS-UP operation when the zoom level is increased, this is normal.

■ SSDR (Super Dynamic Range)

SSDR illuminates darker areas of an image while retaining the same light level for brighter areas to even out the overall brightness of images with high contrast between bright and dark areas.

MAIN SETUP
1. LENS	DC
2. EXPOSURE
3. SSDR	ON
4. WHITE BAL	ATW
5. BACKLIGHT	OFF

1. When the SETUP menu screen is displayed, select 'SSDR' by using the Up and Down buttons so

USER'S MANUAL

■ White Balance control

Use the White Balance Function to adjust the screen color.

1. When the SETUP menu screen is displayed, select 'WHITE BAL' by using the Up and Down buttons so that the arrow indicates 'WHITE BAL'.

2. Select a desired mode using the Left and Right buttons.

MAIN SETUP
1. LENS	DC ←
2. EXPOSURE ←
3. SSDR	ON
4. WHITE BAL	ATW
5. BACKLIGHT	OFF

Select one of the following 5 modes, as appropriate for your purpose.

▶ ATW : Select this when the color temperature is between 1,700°K and 11,000°K.
▶ OUTDOOR : Select this when the color temperature is between 1,700°K and 11,000°K. (sodium light inclusion)
▶ INDOOR : Select this when the color temperature is between 4,500°K and 8,500°K.
▶ MANUAL : Select this to fine-tune White Balance manually. Set White Balance first by using the ATW or AWC mode. After that switch to MANUAL mode, fine-tune the White Balance and then press the SET button.
▶ AWC → SET: To fine the optimal luminance level for the current environment, point the camera towards a sheet of white paper and press the Fuction Setup switch. If the environment changes, readjust it.

USER'S MANUAL

■ BLC (Back Light Compensation)

1. When the SETUP menu screen is displayed, select 'BACKLIGHT' by using the Up and Down buttons so that the arrow indicates 'BACKLIGHT'.

MAIN SETUP 1. LENS DC ← 2. EXPOSURE ← 3. SSDR ON 4. WHITE BAL ATW ► 5. BACKLIGHT OFF

1. Select a desired mode using the Left and Right buttons depending on the camera purpose.

▶ USER BLC : Enables a user to select a desired area on a picture and view that area more clearly.

• LEVEL: Adjust level of the HLC function.
• TOP/BOTTOM/LEFT/RIGHT : Adjust the area to be enhanced.

BLC SETUP ► 1. LEVEL MIDDLE 2. TOP 25 3. DOWN 90 4. LEFT 70 5. RIGHT 150 6. RETURN ←

USER'S MANUAL

HLC SETUP

1. LEVEL	MIDDLE
2. LIMIT	NIGHT ONLY
3. MASK COLOR	BLACK
4. MASK TONE	5
5. TOP	10
6. BOTTOM	105
7. LEFT	10
8. RIGHT	210
9. RETURN ←

▷ HLC continued

HLC OFF

HLC ON

▶ OFF : Not being used.
3. Select a desired mode using the Left and Right buttons and press the SET button.
▶ BLC : Select 'BLC' to adjust the area to be enhanced then adjust the level.

BLC SETUP
▶ LEVEL	MIDDLE
TOP	27

▶ HLC : Enable the user to change the level limit, mask color/tone and area.

This function reduces the background noise in a low luminance environment.

1. When the SETUP menu screen is displayed, select 'DNR3' by using the Up and Down buttons so that the arrow indicates 'DNR3'.

MAIN SETUP 1. LENS DC ← 2. EXPOSURE ← 3. SSDR ON 4. WHITE BAL ATW 5. BACKLIGHT OFF ► 6. DNR3 ON ←

1. Select a desired mode using the Left and Right buttons.

▶ OFF : Deactivates DNR3. Noise is not reduced.
▶ ON : Activates DNR3 so that noise is reduced.

1. Set the DNR3 mode to 'ON' and press the SET button. Then you can adjust the noise reduction level.

USER'S MANUAL

■ Day/Night

Yon can display pictures in color or black and white.

1. When the SETUP menu screen is displayed, select 'DAY/NIGHT' by using the Up and Down buttons so that the arrow indicates 'DAY/NIGHT'.

MAIN SETUP
1. LENS	DC ←
2. EXPOSURE ←
3. SSDR	ON
4. WHITE BAL	ATW
5. BACKLIGHT	OFF
6. DNR3	ON ←
7. DAY/NIGHT	COLOR

1. Select a desired mode using the Left and Right buttons according to the picture display you want.

▶ EXTERN : This mode allows you to apply a desired filter to external signals.
▶ COLOR : The picture is always displayed in color.
▶ B/W : The picture is always displayed in black and white.

You can turn on or off the burst signal on B/W mode.

▶ AUTO : The mode is switched to 'COLOR' in a normal environment, but switches to 'B/W' mode when ambient illumination is low. To set up the switching time for AUTO mode, press the SET button. You can turn on or off the burst signal on B/W mode.

AUTO SETUP
▶ 1. BURST MODE	ON

USER'S MANUAL

■ Special

1. When the SETUP menu screen is displayed, select 'SPECIAL' by using the Up and Down buttons so that the arrow indicates 'SPECIAL'. Press SETUP to enter the 'SPECIAL' menu.

MAIN SETUP 1. LENS DC ← 2. EXPOSURE ← 3. SSDR ON 4. WHITE BAL ATW 5. BACKLIGHT OFF 6. DNR3 ON ← 7. DAY/NIGHT COLOR ▶ 8. SPECIAL ←

1. Select a desired mode using the Up and Down buttons.

▶ IMAGE ADJ. :

1) When the SETUP menu screen is displayed, select 'IMAGE ADJ.' by using the Up and Down buttons so that the arrow indicates 'IMAGE ADJ.'. Press SETUP to enter 'IMAGE ADJ.'.

2) Select a desired mode using the Up and Down buttons.

USER'S MANUAL

• PIP (Picture-in-Picture) : Displays a full size image along with the thumbnail to provide more detailed information. The position of the thumbnail is adjustable.
• D-ZOOM: You can use a digital zoom of x1 \~ x16.
• FONT COLOR : You can change the OSD font color.
• LANGUAGE: You can select the menu language.
• NTSC : Korean, English, French, Spanish, Japanese, Portuguese.
• PAL : English, Chinese, German, Italian, French, Spanish, Russian, Serbian, Swedish, Danish, Turkish, Portuguese.
• SHARPNESS: As you increase this value, the picture outline becomes stronger and clearer. Adjust this value appropriately depending on the sharpness of the picture.
• RETURN : Select this to save the settings for the IMAGE ADJ. menu and to return to the SETUP menu.

NOTE

• When the REVERSE mode is enabled, the text on the screen will not flip.
• If you increase the SHARPNESS level too high, the picture may become distorted or noise may appear.

▶ CAM TITLE : If you enter a title, the title will appear on the monitor.

1) If the SPECIAL menu screen is displayed, use the Up and Down buttons so that the arrow indicates 'CAM TITLE'.
2) Set it to 'ON' by using the Left and Right buttons.
3) Press the SET button.
4) Use the 4 direction buttons to move to a desired letter and select the letter by pressing the SET button. Repeat this to enter multiple letters. You can enter up to 15 letters.

NOTE

• When the CAM TITLE menu is 'OFF', on title will be displayed on the monitor screen even if you enter one.
• Only English is available is this mode.
• If you move the cursor to CLR and press the SET button, all the letters are deleted. To edit a letter, change the cursor to the button left arrow and press the SET button. Move the cursor over the letter to be edited, move the cursor to the letter to be inserted and then press the SET button.

▶ SYNC : In areas where the supply is at 60Hz, you can synchronize the output phase of multiple cameras using the power synchronization function (Line-Lock) without using a synchronization signal generator.

• INT : Internal Synchronization Type.
  • L/L : Power Synchronization Type, Line-Lock.

- Press the Function Setup switch.

- You can select a desired phase from 0 to 359 when select 'PHASE'.

SYNC

▶ PHASE 0

Press SET to Return

NOTE

• When using AC power at 60Hz frequency, you can use the L/L type synchronization.
• When the power is DC 12V, or when VPS is set to ON, the SYNC menu is fixed to the 'INT' mode.

USER'S MANUAL

▶ MOTION DET continued

MASK AREA

1. AREA		AREA1
2. MODE		OFF
3. TOP	||||*|||||||||	30
4. BOTTOM	||||*|||||||||	110
5. LEFT	*|||||||||||||	25
6. RIGHT	||||*|||||||||	110
7. RETURN ←

- MASK AREA : Specify a detection exception area to mask. Select a mask area number and specify the size and position.

- AREA : Select up to 4 areas.

- MODE : Turn the selected area ON or OFF.

- TOP/BOTTOM/LEFT/RIGHT : Adjust the size and position of the selected area.

- RETURN : Select this to save the mask area menu setting, and return to the intelligence menu.

• SENSITIVITY: Set the sensitivity of the motion detection. The lower the level means the higher the sensitivity.
• DETECT SIZE : Selects an object size to detection on the screen. The higher the lwwwl means the larger the detection size.
• RETURN: Select this to save the motion menu settings and return to the special menu.

▶ PRIVACY : Mask an area you want to hide on the screen.

1) When the SPECIAL menu screen is displayed, press the Up and Down buttons so that the arrow indicates 'PRIVACY'.

USER'S MANUAL

▶ DIS (Digital Image Stabilizer): This function mitigates any picture movement due to external factors such as wind.

NOTE

• As the DIS function uses the digital zoom, the camera's resolution will decrease.
• DIS doesn't operate when background illumination is low, or then object pattern is monotonic (such as a white wall, or sky).

▶ PROFILE : Profile is a set of predefined settings for various conditions.

1) When the SPECIAL menu screen is displayed, press the Up and Down buttons so that the arrow indicates 'PROFILE'.
2) Set up the mode using the 4 direction buttons.

BASICDAY/NIGHTBACKLIGHTITSINDOORUSER

SHUTTER	---	---	---	MANUAL(1/250)	A.FLK	-
GAIN	HIGH	HIGH	HIGH	HIGH	HIGH	-
WHITE BAL	ATW	ATW	ATW	OUTDOOR	INDOOR	-
BACKLIGHT	OFF	OFF	USER BLC	OFF	OFF	-
SSNR3	ON	ON	ON	ON	ON	-
DAY/NIGHT	AUTO	AUTO	AUTO	AUTO	AUTO	-

• BASIC: Adjusts the settings for the most commonly found environment.
• DAY/NIGHT · Optimizes settings for the respective day/night conditions

USER'S MANUAL

■ Exit

Select a desired EXIT mode using the Left and Right buttons depending on the camera purpose.

▶ SAVE : Save the current settings and exit the MAIN SETUP menu.
▶ NOT SAVE : Do not save the current settings and exit the MAIN SETUP menu.
▶ RESET : Resets the camera settings to the factory defaults. Language and monitor settings are not initialized.

USER'S MANUAL

■ Trouble Shooting

PROBLEM	POSSIBLE CAUSE
Northing appears on the screen.	Check the power cable, power supply output and video connection between the camera and monitor.
The image on the screen is dim.	Are the camera lens or the lens glass dirty?Clean the lens / glass with a soft clean cloth.Adjust the monitor controls, as required.If the camera is facing a very strong light, change the camera position.Adjust the lens focus.
The image on the screen is dark.	Adjust the contrast control of the monitor.If there is an intermediate device, correctly set the 75Ω/Hi-z.
The camera is not working properly and the surface of the camera is hot.	Check the camera is correctly connected to an appropriate regulated power source.
Motion Detection is not activated.	Has MOTION DET been set to ON in the menu?Has MD AREA been properly defined?
The color of the

USER'S MANUAL

USER'S MANUAL

USER'S MANUAL
