USER MANUAL CVM-AD1 Comica

LinkFlex XLR Interface Preamp Audio Adapter (For Camera&Phone)

CoNCA connected audio equipment via cable, no visible text or symbols

User Manual

Foreword

Thanks for purchasing Comica LinkFlex XLR Interface Preamp Audio Adaptor (For Camera&Phons).

This product can help to transfer XLR microphone to smartphone or camera for audio recording. It is designed with functions of supporting adjustable sensitivity, smartphone and camera switch, real-time monitoring, etc. which can bring you better experience and sound quality effect.

Please carefully read this instruction manual before use. The product has been precisely calibrated at the factory, and please do not assemble and disassemble the parts by yourself, or the warranty will be invalid!

Notice

The product supports all XLR dynamic and positive condenser mic, and not support passive condenser mic which need external phantom power.

The product is compatible with IOS and Android systems. When used with Iphone 7 and other new version Iphones with Lightning jack, the original audio cable adapter (3.5mm-Lighting) is needed. While the microphone is used for IOS system phones, it supports both Iphone original audio recording mode and video recording mode.

While the microphone is used for Android System phones, it only supports phone's original audio recording mode but not video mode. you should download 3rd party APP to use while in video shooting mode.

While used for smartphone, please set the smartphone to fly mode to avoid any interference. Please stay away from heat source or interference source when using

⚠️ Please avoid falling, collision or impact when using. ⚠️ Please do not use in rain or humidity, or there will be a risk of shot circuit.

1

Main Functions

For both camera and smartphone. Strong shielding and anti-noise mic Steprees adjustable sensitivity. LED work indicator light.

Package list

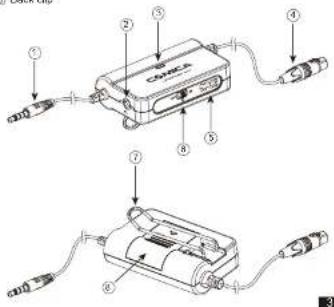

Components

Microphone

① 3.5mm audio output line
② Monitoring jack
② Work indicator light
XLR input jacc
© Gain Control Wheel
① Power / Camera / Smartphone Switch
Back die

Diagram showing exploded view of a CD42C device with labeled components and wiring connections

3

Installation and Use

Before use

Insert the XLR Micraphons into the XLR input interface

microphones into the XL-R input interface

The product supports all XLR dynamic and positive condenser mic, and not support passive condenser mic which need external phantone power.

b. The product is compatible with IOS and Android systems. When used with Iphone 7 and other new version Iphones with Lightning lack the original audio cable adapter (3 mini-Lighting) is priced
c. While used for smartphone, please set the smartphone to fly mode to avoid any interference.
d. While the microphone is used for IOS system phones, it supports both lphone original audio recording mode and video recording mode.
c. While the microphone is used for Android System phones, it only supports phone's original audio recording mode but not video mode, you should download 3rd party APP to use while in video shaping mode.

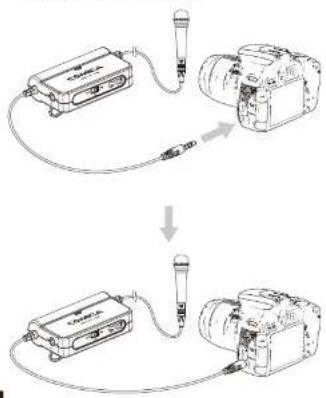

1. Used with camera
   1.1 When used with camera, move the switch to camera, the indicator light turns green

Move to camera on the right side

the indicator light turns green CABCO

1.2 Insert the 3.5mm output connector into the 3.5mm input interface of the camera for recording

Diagram showing two connected devices with labeled components and directional arrows indicating connection or operation.

1. Used with smartphone
   2.1 When used with smartphone, move the switch to smartphone, the indicator light turns green.

Move to smartphone in the middle

the indicator light turns green CONCA

2.2 Insert the 3.5mm output connector into the 3.5mm input interface of the smartphone and used with the recording system of smartphone for recording

Function Description

1. Gain Control Wheel

During the usage, the Gain Control Wheel adjust the output

1. Monitoring jack

Adjustable sensitivity drive plate

You can monitor the recording situation through the 3.5mm monitoring jack

1. On and off function instruction

When the power of the battery is low, the indicator light turns red, and the battery should be replaced. When not in use, please move the switch to OFF, turn off the machine.

Move to power switch on the left side

Specification

Output	3 pin XLR interface
Input	3.5mm connector
Gain Range	Maximum increase -10dB
Frequency Range	20Hz - 20kHz +16B
Distortion + Noise	<0.02%, RL=2x0, F=20-20KHz, V=0.7Vrms
Battery	CR/20Ω 2V
Working Temperature	0°C ~ +50°C
Storage Temperature	-20°C ~ +60°C
