USER MANUAL Barbell Rack Pro TAURUS

Assembly and Operating Instructions

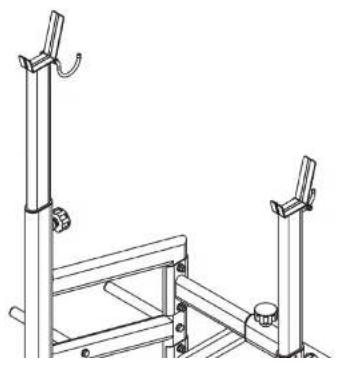

Technical line drawing of a mechanical frame assembly with vertical supports and mounting feet (no text or symbols)

Content

1 GENERAL INFORMATION 7

1.1 Technical Data 7

1.2 Personal Safety 8

1.3 Set-Up Place 9

2 ASSEMBLY 10

2.1 General Instructions 10

2.2 Scope of Delivery 10

2.3 Assembly 13

3 STORAGE AND TRANSPORT 15

3.1 General Instructions 15

4 TROUBLESHOOTING, CARE AND MAINTENANCE 16

4.1 General Instructions 16

4.2 Faults and Fault Diagnosis 16

4.3 Maintenance and Inspection Calendar 17

5 DISPOSAL 17

6 RECOMMENDED ACCESSORIES 18

7 ORDERING SPARE PARTS 19

7.1 Serial Number and Model Name 19

......

Dear customer,

Thank you for choosing a high-quality equipment of the brand Taurus ^4 . Taurus ^® offers sports and fitness equipment for the sophisticated home sport and the equipment of fitness studios and business customers. With Taurus ^® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists. Because athletes know best what makes perfect fitness equipment.

Further information can be found at www.sport-tiedje.com.

Intended Use

The equipment may only be used for its intended purpose.

The equipment is only suitable for home use. The equipment is not suitable for semi-professional (e.g. hospitals, associations, hotels, schools, etc.) and commercial or professional use (e.g. fitness studios).

Legal Notice

Sport-Tiedje GmbH

Europe's No. 1 for home fitness

International Headquarters

Management:

Christian Grau

Sebastian Campmann

Dr. Bernhard Schenkel

ABOUT THIS MANUAL

Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance. In case of doubt, responsible persons must supervise the use of the equipment.

Due to ongoing changes and software optimisations, the manual may have to be updated. If you notice any discrepancies during assembly or use, please refer to the manual uploaded to the webshop. The latest manual is always available there.

This equipment has been manufactured according to the latest safety knowledge. As far as possible, potential safety hazards which could cause injury have been eliminated. Make sure to carefully follow

the instructions and that all parts are securely in place. If required, read through the instructions again to correct any mistakes.

Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions.

The following safety instructions may appear in this manual:

ATTENTION

This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.

CAUTION

This notice indicates potentially hazardous situations which, if not avoided, may result in slight or minor injuries!

1 GENERAL INFORMATION

1.1 Technical Data

Weight and Dimensions

Article weight (gross, incl. packaging): 31 kg

Article weight (net, without packaging): 28 kg

Packaging dimensions (L x W x H): 98 cm x 88 cm x 16 cm

Set-up dimensions (L x W x H): 135-156 cm x 102-164 cm x 77 cm

Maximum

loadability:

200

kg

1.2 Personal Safety

DANGER

+ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. If you are under medical treatment that affects your heart rate, medical advice is absolutely essential.

+ Note that excessive training can seriously endanger your health. Please also note that heart rate monitoring systems can be inaccurate. If you notice any signs of weakness, nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising immediately and seek advice from your doctor if necessary.

WARNING

• This equipment may not be used by children under the age of 14.
• Children should not be allowed unsupervised access to the equipment.
• Persons with disabilities must have a medical license and must be under strict observation when using the equipment.
• The equipment is strictly for use by one person at a time.
• If your equipment provides a safety key, the clip of the safety key must be attached to your clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the equipment can be initiated.
• Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well clear of moving parts.
• During use, wear suitable sports clothing rather than loose or baggy clothing. When wearing sports shoes, make sure they have suitable soles, preferably made of rubber or other non-slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise barefoot.

CAUTION

1.3 Set-Up Place

WARNING

+ Do not place the equipment in main corridors or escape routes.

CAUTION

• Choose a location in which to place the equipment such that there is enough free space/clearance to the front, the rear and to the sides of the equipment.
• The training room should be well ventilated during training and not be exposed to any draughts.
• Choose the place in which to set up the equipment such that there is enough free space/clearance to the front, the rear and to the sides of the equipment.
• The set-up and mounting surface of the equipment should be flat, loadable and solid.

ATTENTION

• The device may only be used in one building, in sufficiently tempered and dry rooms (ambient temperatures between 10°C and 35°C). The equipment should not be used outdoors or in rooms with high humidity (over 70%) like swimming pools.
• A floor protective mat/equipment underlay can help to protect high-quality floor coverings (parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight unevenness.

2 ASSEMBLY

2.1 General Instructions

DANGER

+ Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly.

WARNING

+ Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.

CAUTION

+ Ensure to have sufficient room for movement in each direction during assembly. + The assembly of the equipment must be carried out by at least two adults. If in doubt, seek the help of a third technically skilled person.

ATTENTION

+ To prevent damage to the equipment and the floor, assemble the equipment on a mat or packaging board.

i NOTICE

+ In order to make the assembly as simple as possible, some screws and nuts to be used can already be pre-assembled. + Ideally, assemble the equipment at its later set-up place.

2.2 Scope of Delivery

The scope of delivery consist of the following parts. At the beginning, check whether all parts

NUMBER	DESCRIPTION			QUANTITY
1	RIGHT UPRIGHT SUPPORT			1
2	LEFT UPRIGHT SUPPORT			1
3	BARBELL SUPPORT			2
4	RIGHT JOINT TUBE			1
5	LEFT JOINT TUBE			1
6	PLATE BAR			4
	REINFORCEMENT

11 END CAP 2			2
14 FAST PIN			3
15 BOLT M10*20			4
16 BOLT M10*50			8
17 WASHER 10			20
18 LOCK NUT M8			2
19 LOCK NUT M10			8

2.3 Assembly

Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given.

NOTICE

• First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so.
• If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g. smartphone, tablet or PC). There you have the option of zooming in closer. Please note that the Adobe Acrobat Reader programme must be installed on your end device in order to open the file.

Step 1: Assembly of the Upright Supports and Joint Tubes

1. Attach the end caps (10 & 11) to the right and left upright support (1 & 2).
2. Insert the left joint tube (5) into the right joint tube (4) and secure with one fast pin (14).
3. Attach the right joint tube (4) to the right upright support (1) along with two reinforcement plates (7) with four bolts (16), four washers (10) and four lock nuts (19).
4. Attach the left joint tube (5) to the left upright support (2) along with two reinforcement plates (7) with four bolts (16), four washers (10) and four lock nuts (19).

17 19 10

Step 2: Assembly of Barbell Supports

1. Insert the barbell supports (3) into the right and left upright support (1 & 2) and secure with one fast pin (14) each.
2. Attach the right and left safety hook (8 & 9) to the barbell supports (3) with one lock nut (18) each.
3. Attach a total of four plate bars (6) to the right and left upright support (1 & 2) with a total of four bolts (15) and four washers (17).

The assembly is completed.

18 9 3 14 18 8 3 14

3 STORAGE AND TRANSPORT

3.1 General Instructions

WARNING

• The storage location should be chosen so that improper use by third parties or children can be prevented.
• If your equipment does not have transportation wheels, the equipment must be disassembled before transportation.

ATTENTION

+ Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. The storage location should be dry and well ventilated and have a constant ambient temperature between 10°C and 35°C.

4 TROUBLESHOOTING, CARE AND MAINTENANCE

4.1 General Instructions

WARNING

+ Do not make any improper changes to the equipment.

CAUTION

+ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. The equipment must not be used until it has been repaired. If necessary, use only original spare parts.

ATTENTION

+ In addition to the instructions and recommendations for maintenance and care given here, additional service and/or repair work may be necessary; this must only be carried out by authorised service technicians.

4.2 Faults and Fault Diagnosis

The equipment undergoes regular quality controls during production. Nevertheless, faults or malfunctions may occur. Frequently, individual parts are responsible for these disturbances, an exchange is usually sufficient. Please refer to the following overview for the most common errors and how to correct them. If the equipment still does not function properly, contact your contract partner.

Fault Cause Solution
Squeaking & cracking noises	Screw connections loosened or too tight	+ Check or lubricate screw connections + Check cable routing
Unit wobbles	+ Uneven ground + Loose screw connections	+ Align unit + Tighten screw connections

4.3 Maintenance and Inspection Calendar

To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session.

The following routine tasks must be performed at the specified intervals:

Part Weekly Monthly Quarterly
Screw connections I
Legend: C = clean; I = inspect

5 DISPOSAL

At the end of its operational life, this equipment cannot be disposed of in normal household waste. Instead, it must be disposed of via an recycling centre. Further information can be obtained from your local authority's recycling service.

The materials can be recycled as per their symbols. Through the reuse, recycling of materials or other forms of recovery of old equipment, you make an important contribution to the protection of the environment.

6 RECOMMENDED ACCESSORIES

To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape.

If you have purchased a fitness machine with pulse training and want to train your heart rate, we strongly recommend that you use a compatible chest strap, as this ensures optimum transmission of the heart rate. You may want to buy additional grips or weights for multi gyms.

Our range of accessories offers the highest quality and makes training even better. If you would like to find out more about compatible accessories, please go to the detail page of the product in our webshop (the easiest way is to enter the article number in the search field above) and go to the recommended accessories on this page. Alternatively, you can use the QR code provided. Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you!

7 ORDERING SPARE PARTS

7.1 Serial Number and Model Name

In order to provide you with the best possible service, please have the model name, article number, serial number, exploded drawing and parts list ready. The corresponding contact options can be found in chapter 9 of this operating manual.

i NOTICE

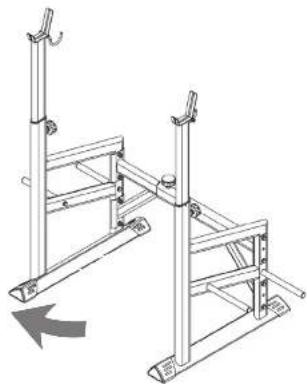

The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration.

Technical line drawing of a mechanical support structure with no visible text or symbols

Enter the serial number in the appropriate field.

Serial number:

7.2 Parts List

No.	Name	Qty.
1	Right upright support 1
2	Left upright support 1
3	Barbell support 2
4	Right joint tube 1
5	Left joint tube 1
6	Plate bar 4
7	Reinforcement plate 4
8	Right safety hook 1
9	Left safety hook 1
10	End cap 1 2
11	End cap 2 2
12	Round plug 4
13	Oval bushing 3
14	Fast pin	3
15	Bolt M10*20	4
16	Bolt M10*50	3
17	Washer 10	20
18	Lock nut M8	2
19	Lock nut M10	3

7.3 Exploded Drawing

Technical diagram of a mechanical assembly with numbered components for identification

8 WARRANTY

Training equipment from Taurus ^® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.

Error Descriptions

Your fitness equipment is developed for long-term, high-quality training. However, should a problem arise, please first read the operating instructions. For further assistance, please contact your contract partner or call our service hotline. To ensure your problem is solved as quickly as possible, please describe the defect as exactly as possible.

In addition to the statutory warranty, we provide a warranty for every fitness equipment purchased from us according to the following provisions.

Your statutory rights are not affected.

Warrantee

The warrantee is the first/original buyer and/or any person who received a newly purchased product as a gift from the original buyer.

Warranty period

The warranty periods, shown on our web shop, begin on delivery of the fitness equipment. The respective warranty periods for your equipment can be found on its product website.

Repair Costs

According to our choice, there will either be a repair, a replacement of individual damaged parts or a complete replacement. Spare parts, that have to be mounted while assembling the equipment, have to be replaced by the warrantor, personally and are not a part of repair. After the expiration of

Warranty Conditions

For the warranty to be valid, the following steps must be taken:

Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance. If the fault is covered by our warranty, you will receive a new or repaired equipment in return.

Warranty claims are invalid in case of damage resulting from:

• misuse or improper handling
• environmental influences (moisture, heat, electrical surge, dust, etc.)
• failure to follow the current safety measures for the equipment
• failure to follow the operating instructions
• use of force (e. g. hitting, kicking, falling)
• interventions which were not carried out by one of our authorized service centres
• unauthorised repair attempts

Proof of Purchase and Serial Number

Please make sure that you are able to provide the appropriate receipt when claiming on your warranty. So that we can clearly identify the model of your equipment, and for the purposes of our quality control, you will need to give the serial number of your equipment, when contacting the service team. Where possible please have your serial number and your customer number ready when you call our service hotline. It will help us to deal with your request swiftly.

If you cannot find the serial number on your fitness equipment, our service team is at your disposal to offer further information.

Service outside of the Warranty Period

We are also happy to issue an individual cost estimate if there is a problem with your fitness equipment after the warranty has expired, or in cases which do not fall under the terms of the warranty, e.g. normal wear and tear. Please contact our customer service team to find a quick and cost-effective
