Phoenix Grill - Sandwich Maker TAURUS - Free user manual and instructions

Product type	Panini press (grill)
Brand	Taurus
Model	Phoenix Grill
Dimensions (L x W x H)	30 x 15 x 10 cm
Weight	1.5 kg
Power supply	220-240 V, 50-60 Hz
Power	900 W
Plate material	Non-stick coating
Number of plates	2 (upper and lower)
Indicator light	Heating indicator (green/red)
Adjustable thermostat	No, fixed optimal temperature
Lock	Locking clip for even cooking
Handle	Heat-insulated, non-slip
Safety	Automatic shut-off after 30 minutes of inactivity
Care and cleaning	Removable plates for washing with soapy water
Included accessories	Recipe book, wooden spatula
Spare parts available	Replacement plates, power cord
Repairability score	7.5/10
Warranty	2 years
Use	Croque-monsieur, paninis, hot sandwiches, grilled vegetables

Frequently Asked Questions - Phoenix Grill TAURUS

How can I clean the plates of my Phoenix Grill?

Unplug the appliance and let it cool down. Remove the removable plates and wash them in hot soapy water with a non-abrasive sponge. Do not put them in the dishwasher. Wipe and reassemble before next use.

What is the power of the appliance?

The Taurus Phoenix Grill has a power of 900 W for fast and even cooking.

Can I use the appliance without the locking clip?

It is recommended to use the locking clip to ensure even pressure on the sandwich, allowing optimal cooking on both sides.

How long does it take to heat up the appliance?

The Phoenix Grill reaches cooking temperature in about 3 to 5 minutes. The green indicator light turns on when the temperature is ready.

Does the appliance turn off automatically?

Yes, for safety reasons, the appliance automatically turns off after 30 minutes of inactivity.

What types of food can I cook with this grill?

You can prepare croque-monsieur, paninis, sandwiches, grilled vegetables and even omelettes. The non-stick plates are suitable for many foods.

Are the plates removable for cleaning?

Yes, the upper and lower plates are removable, making cleaning easier. Follow the manual instructions to remove them safely.

What is the size of the appliance?

The approximate dimensions are 30 x 15 x 10 cm, allowing easy storage in a kitchen.

Can I find spare parts for this model?

Yes, replacement plates and other accessories are available from Taurus after-sales service or authorized dealers.

How can I tell if the appliance is hot enough?

An indicator light shows power on (red) and ready temperature (green). Wait for the green light to be on before starting cooking.

USER MANUAL Phoenix Grill TAURUS

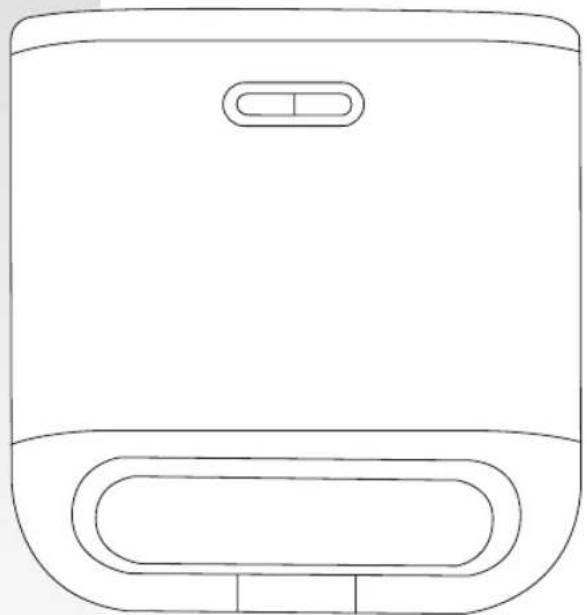

Line drawing of a rectangular electronic device with a central button and rounded side panel (no text or symbols)

Line drawing of a modern kitchen appliance with a handle and side panel (no text or symbols)

Español

Sandwichera

Phoenix / Phoenix Grill / Phoenix Legend

Many thanks for choosing to purchase a TAU-RUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

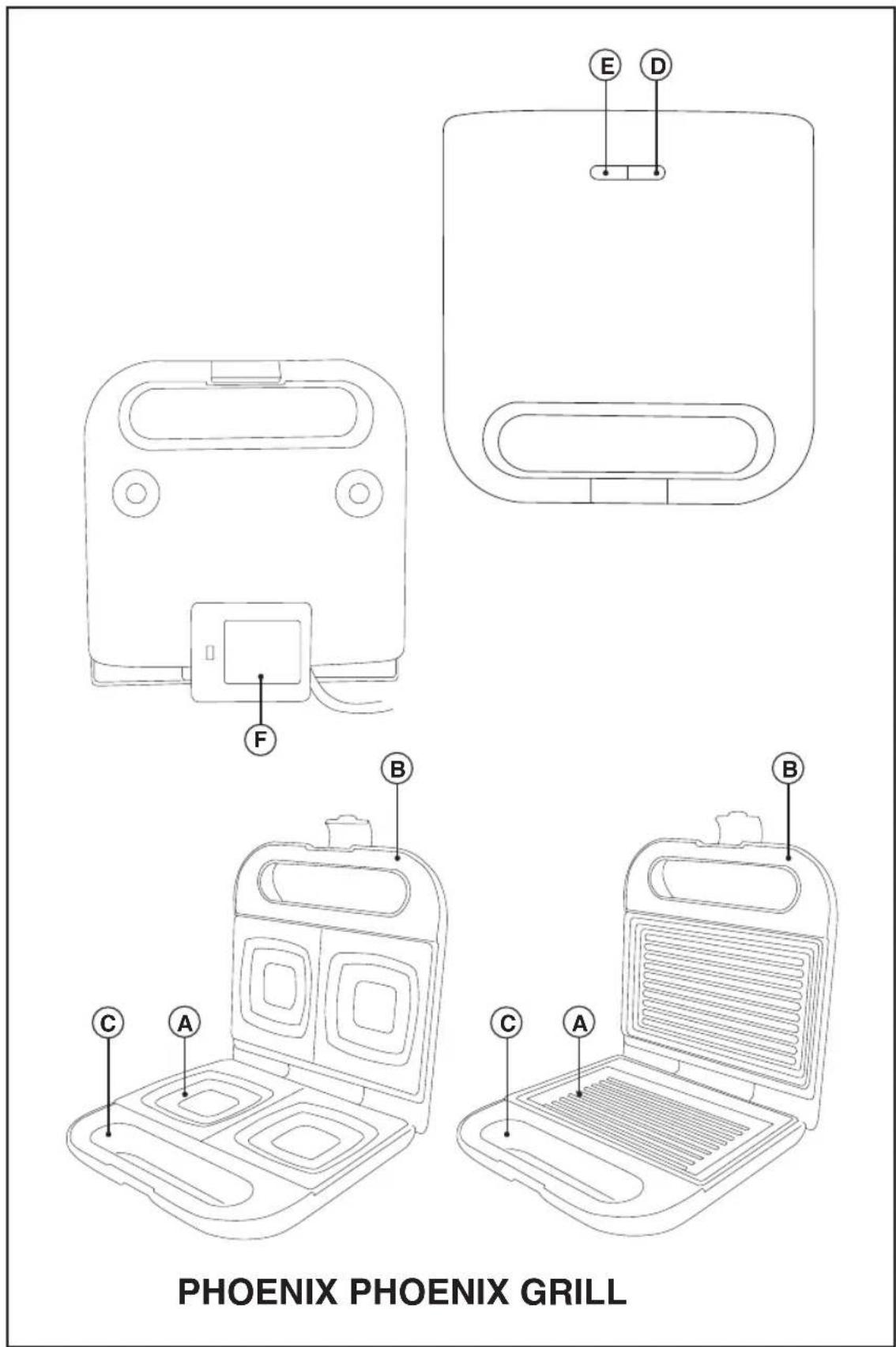

Description

A Heating plate

B Top handle

C Bottom handle

D Green "ON" pilot light

E Blue "Heating" pilot light

F Cable storage

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

- Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

Safety advice and warnings

- This appliance can be used by people unused to its handling, disabled people or children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised - Keep the appliance and its cord out of reach of children less than 8 years of age.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- The temperature of the accessible surfaces may be high when the appliance is in use.

- Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

- Do not use the appliance in association with a programmer, timer or other device that automatically switches it on.

- If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

- Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

- Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.

- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors

- Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.

- Do not wrap the power cord around the appliance.

- Do not clip or crease the power cord.

- Do not allow the power cord to come into contact with the appliance's hot surfaces.

- Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.

- Do not touch the plug with wet hands.

- Do not use the appliance if the cable or plug is damaged.

- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak

- The appliance is not suitable for outdoor use.

- Place the appliance on a horizontal, flat, stable surface.

- Do not touch the heated parts of the appliance, as it may cause serious burns.

Use and care:

• Fully unroll the appliance's power cable before each use.
• Do not move the appliance while in use.
• Use the appliance handle, to catch it or move it.
• To keep the non-stick treatment in good condition, do not use metal or pointed utensils on it.
• Unplug the appliance from the mains when not in use and before undertaking any cleaning task.
• This appliance is for household use only, not professional, industrial use.
• This appliance should be stored out of reach of children and/or the disabled.
• Do not store the appliance if it is still hot.
• Never leave the appliance unattended while in use.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Instructions for use

Before use:

• Remove the appliance's protective film.
• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

Use:

- Unroll the cable completely before plugging it in.

-Lightly grease the plates with a little butter.

- Connect the appliance to the mains.

-The green "ON" pilot light will come on. This light will remain on while the appliance is connected to the mains.

-The blue "Heating" pilot light will switch off when the appropriate temperature is reached.

-Prepare the ingredients you are going to put into the sandwich while the appliance is heating up.

-Open the sandwich maker

-Place the sandwiches on the lower plate.

-Close the sandwich maker by lowering the top plate onto the bread until the closing tab seals the plates.

After a few minutes, open the sandwich maker to see whether the sandwiches are toasted.

-While using the appliance, the green pilot light will connect and disconnect automatically, thus indicating that the heating elements are operating to maintain the temperature.

- When the food is to your taste, remove it from the appliance with the help of a wooden spatula or similar heat resistant implement, do not use utensils that could damage the non-stick coating.

Once you have finished using the appliance:

• Unplug the appliance from the mains.
• Clean the appliance.

Cable compartment

- This appliance has a cable compartment situated on its posterior.

Transportation handle:

-When it is closed, the appliance has a handle on the upper part so it can be transported easily.

Cleaning

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the electrical equipment and the mains connection with a damp cloth and dry. DO NOT IMMERSE IN WATER OR ANY OTHER LIQUID.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• It is advisable to clean the appliance regularly and remove any food remains.

Anomalies and repair

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of Waste from Electric and

Electronic Equipment (WEEE).

This symbol means that surface could to get hot during the use.
