A MESSAGE TO OUR CUSTOMERS

Frank Trulaske began TRUE Fitness ^® over thirty-five year ago with the simple philosophy of delivering superior fitness products, service, and support. Today, TRUE is the global leader in premium fitness equipment for the commercial and residential markets. Our goal is to be the leader in technology, innovation, performance, safety and style. TRUE has received many awards for its product over the years and remains the benchmark for the industry. Fitness facilities and consumers invest in TRUE products for their durable commercial platforms used in all its products, both commercial and residential alike.

The proud manufacturing tradition of quality and the culture of innovation at TRUE have given rise to a full line of extraordinary cardio and strength equipment. As a result, people all over the world are benefiting from the TRUE experience. Innovation across the full product line has made TRUE successful and is a trademark of the TRUE heritage. TRUE's patented Heart Rate Control technology is just one of the remarkable ways we deliver simple and superior performance every user can enjoy, and most importantly, use to achieve personal health and fitness goals.

At the heart of our success is the relentless and systematic life testing of both our products and their components. We have dedicated employees who understand our philosophy is to deliver the best products in the world.

Our goal is to deliver the world's best premium equipment for our customers' health and fitness solutions.

TABLE OF CONTENTS

SAFETY....4

GENERAL CARE AND MAINTENANCE....7

DIMENSIONS AND WEIGHT....8

PREPARATION....9

Box 1 CARTON CONTENTS.... 10

Box 2 CARTON CONTENTS....11

INSTALLATION & ASSEMBLY

STEP 1: ASSEMBLE THE FRAME COMPONENTS.... 12

STEP 2: ASSEMBLE THE ADJUSTMENT PLATE.... 14

STEP 3: ASSEMBLE THE LEFT ARM.... 15

STEP 4: ASSEMBLE THE PADS....16

STEP 5: ASSEMBLE THE CONNECTING PLATE....17

STEP 6: INSTALL THE WEIGHT STACK.... 18

STEP 7A: INSTALL THE CABLES....19

STEP 7B: INSTALL THE CABLES....20

STEP 8: INSTALL THE CAM COVER.... 21

STEP 9: INSTALL THE FRONT SHROUD....22

STEP 10: INSTALL THE REAR SHROUD.... 23

STEP 11: APPLY THE WEIGHT STACK LABEL.... 24

MACHINE LABELS.... 25

SAFETY

FACILITY AND USER SAFETY PRECAUTIONS

1. Review and understand all of the warning labels affixed to this machine and on the facility safety sign.
2. Be certain that the machine operation is understood before it is used. Refer to the instructional Procedure Label affixed to the machine.
3. Make sure all users are properly trained on how to use this equipment. If this machine is being used in a commercial setting, end users may not have access to this Owners Manual. It is the responsibility of the facility to instruct users as to the proper usage of the equipment as well as making them aware of potential hazards. Maximum user weight is 300 lbs (136 kg).
4. Use each machine only for the intended exercise. Do not allow anyone to invent exercises not included on the Instructional Procedure Label or the Intended Use Label.
5. Do not modify the machine.
6. This equipment meets industry safety standards for stability when used for the intended exercise. Do not allow straps, resistance bands or other means to be attached to the framework of this machine to perform stretching or body weight exercises. This can result in machine instability and lead to serious crushing injuries.
7. Keep children away from this equipment. Adults should closely supervise use by teenagers.
8. It is recommended that users receive a thorough medical exam before commencing an exercise program. All medical issues should be reviewed to ensure that weight training will not aggravate pre-existing medical conditions.
9. If the machine appears damaged or inoperable, contact a facility staff member to place an "OUT OF ORDER, DO NOT USE" sign on the machine until it is repaired. Only use TRUE Fitness supplied replacement components to service this machine

SAFETY

12d. This equipment is designed for standard olympic size weight plates with a 50mm bore (1.9").
12e. Do not exceed the maximum weight capacity of the machine. Maximum plate size is 45 lbs. (25 kg.).

1. On Selectorized and Cable equipped machines:

13a. Do not allow users to perform any exercise by holding the end of the cable and/or the cable end fitting. Use only appropriate handles or attachments properly connected to the cable end.
13b. Do not high-pin or double-pin the weight stack. Do not allow the machine to be used if the top plate or weight stack is pinned in a raised position. Use an assistant and carefully return the machine to the proper position with the cap plate resting on the top weight. Inspect the entire length of the cable to ensure that it is properly seated in all of the pulley grooves.
13c. Do not allow the use of weight plates or dumbbells to be used as a means to add additional weight to the weight stacks. Use only the TRUE adder weight system specifically designed for the machine.

INSTALLATION SAFETY PRECAUTIONS

1. Read this Installation Manual entirely before assembling this equipment.
2. Verify that there is adequate space surrounding this piece of equipment for safe access and operation. Installation must meet ADA requirements for accessibility.
3. Install this piece of equipment on a solid level surface that does not deviate more then 1/8" over a 10' distance (or as defined and required by local building and architectural codes.
4. TRUE Fitness strongly recommends that all equipment be anchored to the floor to prevent movement and increase stability.

- Due to the wide variation of flooring on which the unit can be installed, contact - a

SAFETY

MAINTENANCE SAFETY PRECAUTIONS

1. Refer to Maintenance Schedule label on the machine as well as this manual for when to perform maintenance.
2. Check the function of your machine DAILY by verifying the following:
3. Inspect cables and end fittings for any signs of wear. Replace if worn, frayed or damaged with original TRUE replacement components.
4. Verify that all adjustments are possible and carried out with ease. Make sure that each adjustment pin inserts completely into each position without binding.
5. Verify that safety catches and stops are in proper working order and engaged.
6. Verify that the exercise is performed smoothly, free of noise and/or binding.

7. If equipped with a weight stack, verify that the proper weight selector pin is in place.

8. Check the function of your machine WEEKLY by verifying the following:

9. Nuts, Bolts, and Fasteners: Check tightness weekly. If any hardware has become loose, retighten and/or use Loctite™ Threadlocker 242.

10. Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at first signs of wear. Use only TRUE Fitness supplied components.

11. Replace any warning label at first sign of wear. Labels and the Facility Safety Sign may be obtained from TRUE Fitness free of charge.

BOLT LENGTH MEASURING GUIDE

FLAT HEAD SCREW

GENERAL CARE AND MAINTENANCE

IMPORTANT

Preventative maintenance is crucial to maintaining the function and safety of this equipment. Your facility must establish written guidelines for preventative maintenance and keep written or online records of the maintenance performed on these products. As a minimum, the items presented in the SAFETY section of this document and the items that follow here, should be included in your maintenance program.

1. Cables: Inspect end fittings daily for wear. Inspect the entire length of the cable weekly. Replace cables at the first sign of wear and on an annual basis. If the cable tension has been adjusted, be certain that the cable nut is tight.
2. Nuts, Bolts, and Fasteners: Check tightness weekly. If any hardware has become loose, retighten and/or use Loctite™ brand Threadlocker 242. Be sure all hardware is tight before using the machine.
3. Safety Catches: Inspect catches, stop rods and their associated fasteners weekly. Tighten any loose hardware and replace any components at first signs of wear.
4. Frames: Wipe all machines down with a damp cloth and dry completely each day. This includes painted parts, chrome parts and upholstered pads.
5. Painted and chrome plated parts: Use Simple Green or similar cleaner for light dirt and grime. Use Turtle Wax Polishing Compound or a good car polish to remove heavier dirt and grease as well as for polishing. DO NOT use solvents, lacquer thinner, acetone or finger nail polish remover. For scuffs and marks that are not removed by the above methods use a soft scrub cleanser. Make sure all parts are dry upon completion.
6. Weight stack enclosures (shrouds): Wipe down with a damp cloth as needed.
7. Exercise instruction labels: Clean with soap and water as needed.
8. Guide rods: Wipe all dirt and dust from the guide rods before applying a light application of Tri-Flow™ or other teflon spray lubricant. Spray the Tri-Flow™ on a rag and then wipe the guide rods with the rag. DO NOT use oil lubricants such as WD40. Caution: Tri-Flow™ will stain

DIMENSIONS AND WEIGHT

"IN USE" MACHINE DIMENSIONS

60.5° (154 cm) 67.0° (170 cm)

Technical diagram of a vertical cylindrical device with internal components and mounting base (no visible text or symbols)

PREPARATION

REQUIRED TOOLS:

Illustration of five different types of wrenches and tools (no text or labels)

Ratchet Wrench and Sockets: 9/16"

Wrenches: 9/16", 3/4". (or an adjustable crescent wrench).

Rubber Mallet and Steel Hammer

Allen wrenches: (included with the machine)

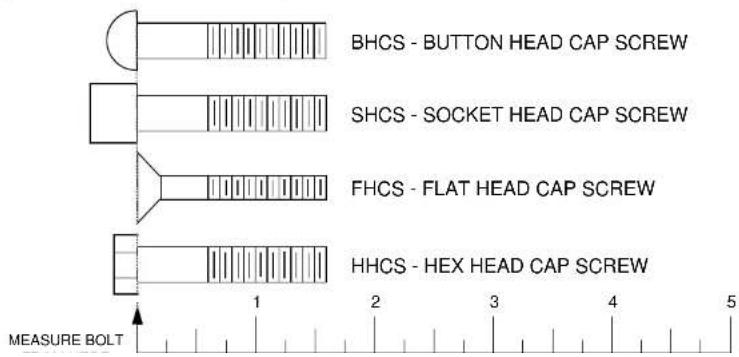

Hardware Measurement Guide:

BHCS - BUTTON HEAD CAP SCREW SHCS - SOCKET HEAD CAP SCREW FHCS - FLAT HEAD CAP SCREW HHCS - HEX HEAD CAP SCREW 1 2 3 4 5 MEASURE BOLT

FS-52 CARTON 1 CONTENTS

1 2 3 4 5 6 7 8 9 10 11 PART NO. DESCRIPTION QTY. 1 FS-CAP-000X TOP UPRIGHT CAP 1 2 FS-GRD-200X GUIDE ROD 2 3 FS-SHD-250X REAR SHROUD 1 4 FS52-SHD-200X FRONT SHROUD 1 5 FS52-UPR-000X UPRIGHT FRAME 1 6 FS-BKT-000 GUIDE ROD BRACKET 2 7 FS-WSB-000 WEIGHT STACK BASE 2 8 FS52-PAD-100X SEAT PAD 1 9 FS-PAD-000X BACK PAD 1 10 FS52-PLY-000 FLOATING PULLEY HOUSING 1 11 FS52-PAD-200X THIGH PAD 2

FS-52 CARTON 2 CONTENTS

13 5 6 7 8 11 4 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

STEP 1: ASSEMBLE THE FRAME COMPONENTS

	ITEM	PART NO.	DESCRIPTION	QTY.
	1 C	445 SCREW, 3/8"-16	X 1" 3
	2 C	450 SCREW, 3/8"-16	X 2-1/2" 2
	3	C 7 4 9	L O C K W A $ H
	4 C	449 SCREW, 3/8"-16	X 2-1/4" 1
	5 C	754C FLAT WASHER	3/8" 8
	6 C	766A LOCK NUT, 3/8"-16 2
	7 C	955A BOLT COVER, BASE 8
	8 C	955S BOLT COVER, SILVER 8
	9 S	550 MOLDED RUBBER FEET 7
	10	FS-CLR-002	COLLAR, 25.4MM	1
	11	FS-PIN-100	ROLL PIN, 8mm X 35mm	1
	12	FS-PIN-200	ROLL PIN, 10mm X 45mm	2
	13	FS52-UPR-000X	UPRIGHT FRAME	1
	14	FS52-MFR-000X	MAIN FRAME	1

Technical diagram of a mechanical assembly with labeled top view (no readable text or symbols)

Make sure the thigh pads can be rotated as shown.

PRE-ASSEMBLE BEFORE INSERTING INTO MAIN FRAME

with pads shown. 16 13 Route the cable before assembling the frame. (FS52-CBL-200X)

E R , 3

STEP 1: ASSEMBLE THE FRAME COMPONENTS

12 12 DETAIL B NOTE: MAKE SURE THIGH PAD PLATE IS ORIENTED AS SHOWN BEFORE INSTALLING RETAINING PIN. 8, 6, 7, 5 DETAIL D 11 10 8, 2, 7, 5, 10

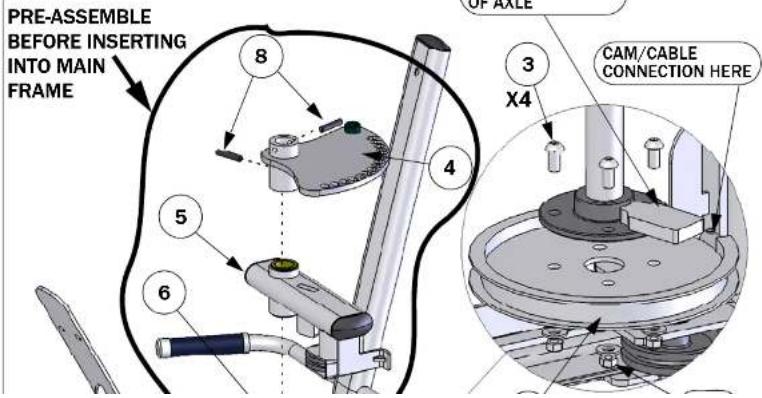

STEP 2: ASSEMBLE THE ADJUSTMENT PLATE

1. Assemble the cam to the axle and tighten the hardware. The cam can only be assemble to the axle in one orientation.
2. Pre-assemble the axle, the Pulley Arm and the adjustment plate. Make to sure orient the adjustment plate as shown and then install the roll pins using a hammer.
3. Insert the axle into the bearing in the main frame.

ITEM	PART NO.	DESCRIPTION	QTY.
1 C	754C FLAT WASHER, 3/8" 4
2 C	766A LOCK NUT, 3/8"-16 4
3 C	911 SCREW, 3/8"-16 X 3/4", BHCS 4
4 FS	52-ADJ-100X ADJUSTMENT PLATE 1
5 FS	52-ARM-200X PULLEY ARM 1
6 FS	52-AXL-100X AXLE, LEFT ARM 1
7 FS	52-CAM-000X CAM 1
8 FS	PIN-300 ROLL PIN, 10mm X 50mm	2
9 FS	STP-001 BUMPER STOP		1

PRE-ASSEMBLE BEFORE INSERTING INTO MAIN FRAME 8 4 5 6 3 X4 OF AXLE CAM/CABLE CONNECTION HERE

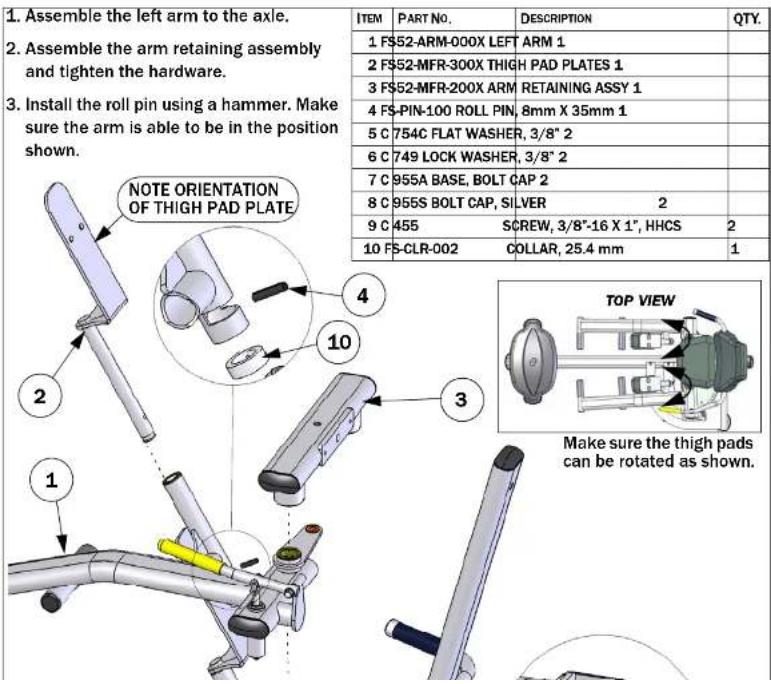

STEP 3: ASSEMBLE THE LEFT ARM

1. Assemble the left arm to the axle. 2. Assemble the arm retaining assembly and tighten the hardware. 3. Install the roll pin using a hammer. Make sure the arm is able to be in the position shown. ITEM PART NO. DESCRIPTION QTY. 1 FS 52-ARM-000X LEFT ARM 1 2 FS 52-MFR-300X THIGH PAD PLATES 1 3 FS 52-MFR-200X ARM RETAINING ASSY 1 4 FS-PIN-100 ROLL PIN, 8mm X 35mm 1 5 C 754C FLAT WASHER, 3/8" 2 6 C 749 LOCK WASHER, 3/8" 2 7 C 955A BASE, BOLT CAP 2 8 C 955S BOLT CAP, SILVER 2 9 C 455 SCREW, 3/8"-16 X 1", HHCS 2 10 FS-CLR-002 COLLAR, 25.4 mm 1 NOTE ORIENTATION OF THIGH PAD PLATE TOP VIEW Make sure the thigh pads can be rotated as shown.

STEP 4: ASSEMBLE THE PADS

1. Assemble the pads and hardware as shown.
2. Tighten ALL the hardware.
3. Note: make sure the thigh pads can be assembled as shown. If they can not, the thigh pad plates have been installed incorrectly. Refer to Steps 1 and 3.

ITEM	PART NO.	DESCRIPTION	QTY.
1 C	451 SCREW, 3/8"	16 X 2-3/4" HHCS 2
2 C	446 SCREW, 3/8"	16 X 1-1/4" HHCS 4
3 C	452 SCREW, 3/8"	16 X 3" HHCS 2
4 C	749 LOCK WASHER	3/8" 8
5 C	754C FLAT WASHER	3/8" 8
6 C	955A BASE, BOLT COVER 8
7 C	955S BOLT COVER, SILVER 8
8 F	52-PAD-100X SEAT PAD 1
9 F	52-PAD-200X THIGH PAD	2
10	FS-PAD-000X	BACK PAD	1

7, 2, 4, 6, 5 NOTE ORIENTATION OF THIGH PADS 9 8 10 7, 1, 4, 6, 5

STEP 5: ASSEMBLE THE CONNECTING PLATE

1. Assemble the connection arm andhardware as shown. The arms willhave to be positioned so thattheplate can be attached2. Tighten the hardware.	ITEM	PART NO.	DESCRIPTION	QTY.
	1 F52-PLT-400X PLATE, ARM CONNECTION 1
	2 C 766A LOCK NUT, 3/8" 16 2
	3 C 754C WASHER, FLAT, 3/8" 2
	4 D83 THRUST WASHER 2

Illustration of a gym rehabilitation machine with adjustable arms and legs (no text or symbols visible)

1

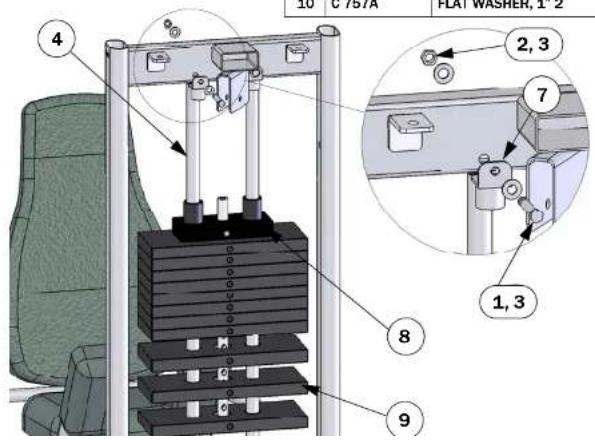

STEP 6: INSTALL THE WEIGHT STACK

1. Place the guide rods in the upright.
2. Install the weight stack base, rubber bumpers, and washers.
3. Install the weight plates.
4. Install the cap plate and attach the cable with the selector pin as shown.
5. Install the Guide rod hubs and tighten the hardware.

ITEM	PART NO.	DESCRIPTION	QTY.
1 C	449 SCREW, 3/8"	-16 X 2-1/4" HHCS 2
2 C	766A LOCK NUT,	3/8" 2
3 C	754C FLAT WASHER,	3/8" 4
4 FS-GRD-200X ASSY, GUIDE ROD 2
5 FS-BMP-001 RUBBER BUMPER 2
6 FS-WSB-000 WEIGHT STACK BASE 2
7 FS-BKT-000 GUIDE ROD BRACKET 2
8 FS-SBR-000X CAP PLATE ASSY 1
9 WHT-PLATE WEIGHT PLATE 10# OR 15# 16
10	C 757A	FLAT WASHER, 1" 2

10 0 107A FLAT WASHER, 1-2 4 2,3 7 1,3 8 9

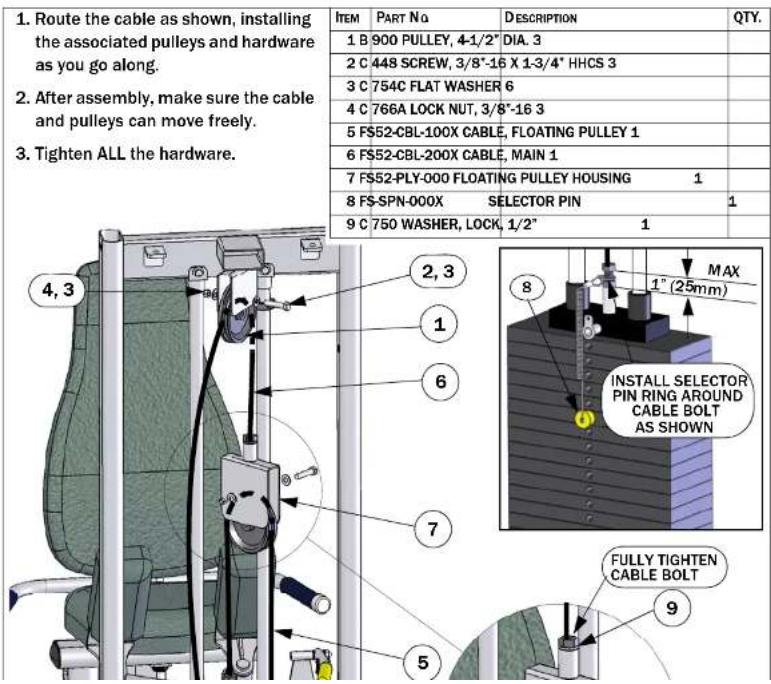

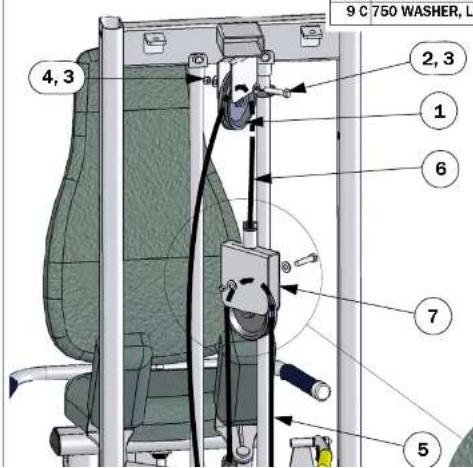

STEP 7A: INSTALL THE CABLES

1. Route the cable as shown, installing the associated pulleys and hardware as you go along. 2. After assembly, make sure the cable and pulleys can move freely. 3. Tighten ALL the hardware. ITEM PART No Description QTY. 1 B 900 PULLEY, 4-1/2" DIA. 3 2 C 448 SCREW, 3/8"-16 X 1-3/4" HHCS 3 3 C 754C FLAT WASHER 6 4 C 766A LOCK NUT, 3/8"-16 3 5 FS52-CBL-100X CABLE, FLOATING PULLEY 1 6 FS52-CBL-200X CABLE, MAIN 1 7 FS52-PLY-000 FLOATING PULLEY HOUSING 1 8 FS-SPN-000X SELECTOR PIN 1 9 C 750 WASHER, LOCK 1/2" 1 4, 3 2, 3 1 6 7 5 INSTALL SELECTOR PIN RING AROUND CABLE BOLT AS SHOWN FULLY TIGHTEN CABLE BOLT 9

9 C750 WASHER, L 4, 3 2, 3 1 6 7 5

8 1" (25mm) INSTALL SELECTOR PIN RING AROUND CABLE BOLT AS SHOWN

STEP 7B: INSTALL THE CABLES

1. Route the cable as shown, installing the associated pulleys and hardware as you go along.
2. After assembly, make sure the cable and pulleys can move freely.
3. Tighten ALL the hardware.

ITEM	PART NO.	DESCRIPTION	QTY.
1 B	900 PULLEY, 4-1	2" DIA. 1
2 C	448 SCREW, 3/8	"16 X 1-3/4" HHCS 1
3 C	802 SCREW, M4	X 20mm PAN HD. 1
4 C	754C FLAT WASHER, 3/8" 2
5 C	766A LOCKNUT,	3/8"-16 1

3 INSTALL BOLT AFTER CABLE

STEP 8: INSTALL THE CAM COVER

1. Place the Cam Cover into place andloosely assemble the hardware.2. Place the Small Cam Cover into placeand loosely assemble the hardware.3. Align the edges and then tighten ALLthe hardware.	ITEM	PART NO.	DESCRIPTION	QTY.
	1 FS52-CVR-100X COVER, CAM 1
	2 FS52-CVR-200X SMALL COVER, CAM 1
	3 C 680A SCREW, BUTTON HD, 1/4"-20 X 1/2" 6
	4 C 749 LOCKWASHER, 3/8" 6
	5 C 754C FLAT WASHER, 3/8" 6
	6 FS-STP-001 STOP, ADJUSTABLE 2

3D technical illustration of a mechanical exercise machine with pipes and control panels (no text or symbols)

STEP 9: INSTALL THE FRONT SHROUD

1. Place the front shroud into position.
2. Align the holes and assemble the hardware.
3. Tighten all the hardware.

ITEM	PART No.	DESCRIPTION	QTY.
1 C	445 SCREW, 3/8"-16 X 1" HHCS 4
2	C 7 4 9	L O C K W A S H
3 C	754C FLAT WASHER 4
4 F$	52-SHD-200X FRONT SHROUD 1

4 1, 2, 3 X4

R 4

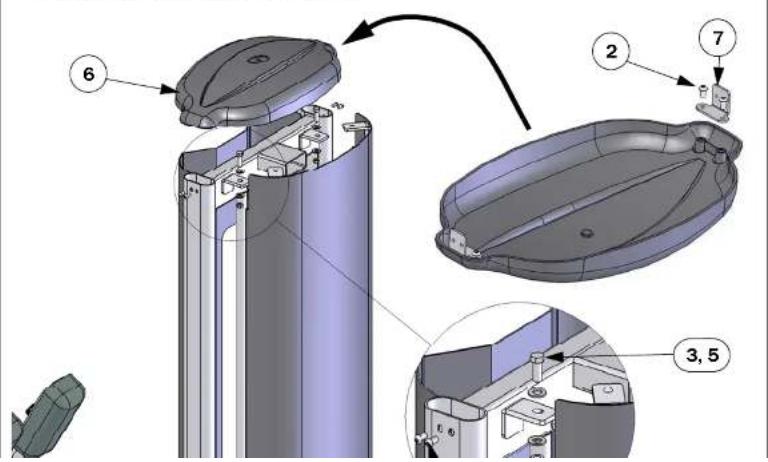

STEP 10: INSTALL THE REAR SHROUD

1. Set the lower screws of the shroud into thelower brackets on the upright frame.	ITEM	PART NO.	DESCRIPTION								QTY.
	1 C	766A LOCKNUT,	3/8"-16 2
2. Then align the holes for the brackets atthe top of the shroud.	2 C	675D SCREW, 1	4"-20 X 1/2" BHCS 8
	3 C	444 SCREW, 3/8"	-16 X 3/4" HHCS 2
3. Assemble all the shroud hardware andtighten.	4 FS	SHD-250X REAR	SHROUD 1
	5 C	754C FLAT WASHER, 3/8" 4
4. Assemble the top cap brackets andtighten.	6 FS	CAP-000X TOP	CAP, UPRIGHT 1
	7	F S - B	K T - 0 0 1 T O P

Technical diagram of a device with numbered components and exploded view, showing internal structure and assembly steps.

CAP.

STEP 11: APPLY THE WEIGHT STACK LABEL

1. Select the appropriate weight stack label(s) according to your order. You can install pound labels, kilogram labels, or both.
2. If you ordered a 170 lb. weight stack, use labels: LBL-WSE-01170 (for pounds) LBL-WSM-01170 (for kilograms).
3. If you ordered a 250 lb. weight stack, use labels: LBL-WSE-01250 (for pounds) LBL-WSM-01250 (for kilograms).
4. Remove the backing from the label to expose the adhesive. Carefully locate the label on the shroud so that it is centered between the edge and the bend. Line up the numbers with their corresponding weight plate. Once the correct position is attained and the label is a uniform distance from the edge, press firmly along the entire length of the label.
5. NOTE: Adhesive takes 24 hours to fully set.

INSTALL LABEL HERE OR HERE

MACHINE LABELS

The following are the Warning labels required for this FS machine. If any of these labels are missing or become damaged, we will replace them free of charge. Note: these labels are not to scale.

WARNING SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT FOLLOW THESE NOTES ARE NOT TO BE USED. I'm unable to use any information on the medical procedure. 1. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 2. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 3. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 4. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 5. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 6. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 7. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 8. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 9. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 10. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 11. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 12. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 13. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 14. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 15. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 16. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 17. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 18. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 19. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 20. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 21. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 22. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 23. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 24. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 25. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 26. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 27. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 28. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 29. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 30. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 31. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 32. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 33. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 34. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 35. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 36. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 37. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 38. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 39. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 40. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 41. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 42. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 43. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 44. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 45. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 46. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 47. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 48. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 49. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 50. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 51. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 52. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 53. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 54. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 55. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 56. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 57. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 58. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 59. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 60. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 61. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 62. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 63. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 64. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 65. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 66. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 67. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 68. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 69. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 70. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 71. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 72. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 73. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 74. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 75. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 76. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 77. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 78. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 79. I don't tell you what's doing it; you should not have a medical device or equipment that is used in your care. 80. I don't tell you what's doing it; you shall not need for help with help from help to help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help help Help WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING Exceptional warning: * 1) Any one of the other people who are sick; * 2) Any one of the other people who are sick; * 3) Any one of the other people who are sick; * 4) Any one of the other people who are sick; * 5) Any one of the other people who are sick; * 6) Any one of the other people who are sick; * 7) Any one of the other people who are sick; * 8) Any one of the other people who are sick; * 9) Any one of the other people who are sick; * 10) Any one of the other people who are sick; * 11) Any one of the other people who are sick; * 12) Any one of the other people who are sick; * 13) Any one of the other people who are sick; * 14) Any one of the other people who are sick; * 15) Any one of the other people who are sick; * 16) Any one of the other people who are sick; * 17) Any one of the other people who are sick; * 18) Any one of the other people who are sick; * 19) Any one of the other people who are sick; * 20) Any one of the other people who are sick; * 21) Any one of the other people who are sick; * 22) Any one of the other people who are sick; * 23) Any one of the other people who are sick; * 24) Any one of the other people who are sick; * 25) Any one of the other people who are sick; * 26) Any one of the other people who are sick; * 27) Any one of the other people who are sick; * 28) Any one of the other people who are sick; * 29) Any one of the other people who are sick; * 30) Any one of the other people who are sick; * 31) Any one of the other people who are sick; * 32) Any one of the other people who are sick; * 33) Any one of the other people who are sick; * 34) Any one of the other people who are sick; * 35) Any one of the other people who are sick; * 36) Any one of the other people who are sick; * 37) Any one of the other people who are sick; * 38) Any one of the other people who are sick; * 39) Any one of the other people who are sick; * 40) Any one of the other people who are sick; * 41) Any one of the other people who are sick; * 42) Any one of the other people who are sick; * 43) Any one of the other people who are sick; * 44) Any one of the other people who are sick; * 45) Any one of the other people who are sick; * 46) Any one of the other people who are sick; * 47) Any one of the other people who are sick; * 48) Any one of the other people who are sick; * 49) Any one of the other people who are sick; * 50) Any one of the other people who are sick; * 51) Any one of the other people who are sick; * 52) Any one of the other people who are sick; * 53) Any one of the other people who are sick; * 54) Any one of the other people who are sick; * 55) Any one of the other people who are sick; * 56) Any one of the other people who are sick; * 57) Any one of the other people who are sick; * 58) Any one of the other people who are sick; * 59) Any one of the other people who are sick; * 60) Any one of the other people who are sick; * 61) Any one of the other people who are sick; * 62) Any one of the other people who are sick; * 63) Any one of the other people who are sick; * 64) Any one of the other people who are sick; * 65) Any one of the other people who are sick; * 66) Any one of the other people who are sick; * 67) Any one of the other people who are sick; * 68) Any one of the other people who are sick; * 69) Any one of the other people who are sick; * 70) Any one of the other people who are sick; * 71) Any one of the other people who are sick; * 72) Any one of the other people who are sick; * 73) Any one of the other people who are sick; * 74) Any one of the other people who are sick; * 75) Any one of the other people who are sick; * 76) Any one of the other people who are sick; * 77) Any one of the other people who are sick; * 78) Any one of the other people who are sick; * 79) Any one of the other people who are sick; * 80) Any one of the other people who are sick; * 81) Any one of the other people who are sick; * 82) Any one of the other people who are sick; * 83) Any one of the other people who are sick; * 84) Any one of the other people who are sick; * 85) Any one of the other people who are sick; * 86) Any one of the other people who are sick; * 87) Any one of the other people who are sick; * 88) Any one of the other people who are sick; * 89) Any one of the other people who are sick; * 90) Any one of the other people who are sick; * 91) Any one of the other people who are sick; * 92) Any one of the other people who are sick; * 93) Any one of the other people who are sick; * 94) Any one of the other people who are sick; * 95) Any one of the other people who are sick; * 96) Any one of the other people who are sick; * 97) Any one of the other people who are sick; * 98) Any one of the other people who are sick; * 99) Any one of the other people who are sick; * 100) Any one of the other people who are sick;

23	22	11	2
40	38	15	14
53	48	22	16
70	58	33	53
94	66	96	27
100	73	49	32
115	89	82	38
130	96	59	41
148	108	68	45
160	118	72	56
178	128	86	54
190	138	88	58
200	148	82	64
210	158	104	66
228	168	107	72
240	178	114	77

LBL-WSE-01170 (170 LB) LBL-WSE-01250 (250 LB) LBL-WSM-01170 (77 KG) LBL-WSM-01250 (114 KG)

LBL-WRN-0002

B2051

B2141C

TRUE INNER / OUTER THIGH 1 Paid all wearing suits. 2 Will appear damaged or injured, do not try to lose or fix. 3 CO NOT call weights are pressed in an advanced position. Seek staff resistance. 4 Choose light/mat professional using machine for first time and time at controlled speed. 5 PS-52 INNER THIGH STARTING NEUTRAL BEET/NEUTRAL UNDER THE LIME OUTER THIGH STARTING NEUTRAL BEET/NEUTRAL UNDER THE LIME INNORTH THIGH ORDER: ALL 2000 SWEET ORDER: ALL 2000 SWEET ORDER: ALL 2000 SWEET ORDER: ALL 2000 SWEET ORDER: ALL 2000 SWEET ORDER: ALL 2000 SWEET ORDER: ALL 2000 SWEET ORDER: ALL 2000 SWEET ORDER: ALL 2000 SWEET ORDER: ONE OVER THE WIRE ORDER: ONE OVER THE WIRE ORDER: ONE OVER THE WIRE ORDER: ONE OVER THE WIRE ORDER: ONE OVER THE WIRE ORDER: ONE OVER THE WIRE ORDER: ONE OVER THE WIRE ORDER: ONE OVER THE WIRE ORDER: ONE OVER THE WIRE ORDER: ONE OVER THE WIRE ORDER: ONE OVER THE WIRE ORDER: ONE OVER THE WIRE ORDER: ONE OVER THE WIRE ORDER:ONE OVER THE WIRE ORDER:ONE OVER THE WIRE ORDER:ONE OVER THE WIRE ORDER:ONE OVER THE WIRE ORDER:ONE OVER THE WIRE ORDER:ONE OVER THE WIRE ORDER:ONE OVER THE WIRE ORDER:ONE OVER THE WIRE ORDER:ONE OVER THE WIRE ORDER:ONE OVER THE WIRE ORDER:ONE OVER THE WIRE ORDER:ONE OVER THE WIRE ORDER:ONE OVER THE WIR ORDER:ONE OVER THE WIR ORDER:ONE OVER THE WIR ORDER:ONE OVER THE WIR ORDER:ONE OVER THE WIR ORDER:ONE OVER THE WIR ORDER:ONE OVER THE WIR ORDER:ONE OVER THE WIR ORDER:ONE OVER THE WIR ORDER:ONE OVER THE WIR ORDER:ONE OVER THE WIR ORDER:ONE OVER THE WIR ORDER:ONE OVER THE WIR ORDER:One OVER THE WIR ORDER:One Over the WIR ORDER:One Over the WIR ORDER:One Over the WIR ORDER:One Over the WIR ORDER:One Over the WIR ORDER:One Over the WIR ORDER:One Over the WIR ORDER:One Over the WIR ORDER:One Over the WIR ORDER:One Over the WIR ORDER:One Over the WIR ORDER:One Over the WIR ORDER:One Over the WIR Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order: Order:

B2065
LBL-PR-FS52A

SERVICE

HOW TO OBTAIN SERVICE

For warranty service, contact an Authorized TRUE Fitness Dealer or a TRUE Fitness Customer Service representative at 1-800-883-8783 or by e-mail at [e-mail]. Before you call, please have the following information ready.

• Model Number: FS-52 INNER/OUTER THIGH
- Serial Number:
- Date of Installation: ____
• A brief description of the problem

The serial number is located on the front of the upright frame at the bottom as shown.

Serial Number

FS BOLT DOWN INSTRUCTIONS

The machines in this product line were designed and tested to meet the ASTM (American) and EN (European) safety standards for stability (without floor anchors) when the machine is used for it's intended purpose as designated by the manufacturer.

However, TRUE Fitness strongly recommends that all equipment be anchored to the floor to prevent movement and increase stability.

• You will need to order an anchoring kit for each machine. This kit will include brackets and instructions for securing the brackets to the machines. Note: the kit does not include the floor anchor bolts. Order part number: FS-BLTDN-000X, 1 kit per FS machine.
• Due to the wide variation of flooring on which the unit can be installed, contact a qualified contractor to determine an appropriate fastening system for your floor.
• Use 3/8" diameter hardware (10 mm) to anchor the machine. Anchors should have a minimum pull out force of 220 lbs (110 kgs) for each position.
• When attaching the machine to the floor, if there is a gap between the machine foot (or bracket) and the floor, do not use the anchor to remove the gap as this can cause the machine frame to deform. Instead, place a shim between the bottom of the foot and the floor, then tighten the anchor.

Floor Anchor Point

Save Time and Register Online!

Activate Multiple Warranties at truefitness.com

All TRUE* Fitness products are distributed by TRUE and are warranted to the original registered product purchaser and the parts of the TRUE product (the "Product") listed below, under normal use and service, shall be free of manufacturing defects in workmanship and materials only for the period of time beginning from the original date of purchase set forth below:

Frame* 10 Years
Parts
Bearings, Bushings, and Weight Plates	5 Years
Guide Rods and Pulleys	5 Years
Cables and Belts	1 Year
Cosmetics, Coatings, Grips, and Upholstery	3 Months
Labor
Frame	1 Year
Bearings, Bushings, Weight Plates	1 Year
Guide Rods and Pulleys	1 Year
Cables and Belts	1 Year
Cosmetics, Coatings, Grips, and Upholstery	3 Months

NOTE: Warranty valid for USA and Canada only.

NOTE: Failure to register this product will result in no servicing or authorization of parts to be shipped.

NOTE: Buying after-market products from a 3rd party will result in voided warranty.

NOTE: This product is intended for Commercial use. If this

Cosmetics: The FS Strength Line cosmetic parts, coatings, grips and upholstery are warranted for defects in material and workmanship for three months with labor warranty to match the parts warranty period. This limited warranty does not cover damage or equipment failure resulting from or caused by Improper assembly/installation, failure to follow instructions and warnings in owner's manual, accident, misuse, abuse, unauthorized modification, or failure to provide reasonable and necessary maintenance. This limited warranty will apply to, but may not be limited to, plastic covers, shrouds, caps, badges, overlays, paint, coatings, soft step inserts, and grips.

Labor: Labor is covered for a period of one year from the date of purchase unless otherwise expressed within this limited warranty as long as a TRUE authorized service provider performs the service. Service that requires over 50 miles of travel may be subject to additional charges. Reasonable and necessary maintenance guidelines can be found in the owner's manual.

Claims Procedure: TRUE Limited Warranty service may be obtained by contacting the authorized TRUE dealer from whom the Product was purchased. If the dealer from whom the Product was purchased is no longer an authorized TRUE dealer, then TRUE Limited Warranty service may be obtained by contacting TRUE directly using the following contact information:

Save Time and Register Online!

Activate Multiple Warranties at truefitness.com

The above Limited Warranty is subject to and will be in accordance with the conditions set forth below:

1. THIS LIMITED WARRANTY GIVES YOU SPECIAL LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.

2. This Limited Warranty can be processed only if the Warranty Registration Form is completed online, or if the attached form is filled in, signed by the original purchaser, and mailed to TRUE within 30 days of purchaser's receipt of this Product. The serial number must be intact on the Product for this Limited Warranty to be valid.

3. This Limited Warranty applies to the product only while the Product remains in the possession of the original purchaser and is not transferable

4. This Limited Warranty becomes VALID ONLY if the Product is initially assembled/installed by a TRUE authorized dealer/ technician (if anyone other than a TRUE authorized dealer/ technician Initially assembles and Installs the Product, this Limited Warranty will be void unless the written authorization of TRUE is first obtained).

5. This Limited Warranty does not cover damage or equipment failure resulting from or caused by Improper assembly/installation, failure to follow instructions and warnings in owner's manual, accident, misuse, abuse, unauthorized modification, or failure to provide reasonable and necessary maintenance (as referenced in thw owner's manual.)

6. This Limited Warranty applies only to the cost of repair or

FOR ANY BREACH OF THIS LIMITED WARRANTY. TRUE'S LIABILITY SHALL UNDER NO CIRCUMSTANCES EXCEED THE ACTUAL AMOUNT PAID BY YOU FOR THE PRODUCT, NOR SHALL TRUE UNDER ANY CIRC UMSTANCES BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL, OR PUNITIVE DAMAGES OR LOSSES, WHETHER DIRECT OR INDIRECT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDNETIAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

NOTE TO AUTHORIZED WARRANTY LABOR PROVIDERS:

Warranty labor reimbursement or warranty parts rights may not be transferred to, reassigned to, a third party without the express written consent of TRUE. Even jobbing out warranty labor requires TRUE's written approval.

FS STRENGTH LINE SERIAL NUMBER:

The FS-52 comes with one serial number on the base of the machine. Please write down your serial number below and keep for your records.

SERIAL NUMBER:

Thank you for purchasing a TRUE product. To validate the TRUE product warranty the fast and easy way, please go on-line now to truefitness.com/support and register your product. The information you provide will never be distributed to any other individuals or agencies for any purpose. If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.

To mail your warranty information, please fill in the information below and mail to: Service Dept., TRUE Fitness, 865 Hoff Road, St. Louis, MO 63366 (or save postage and register online at truefitness.com)

Commercial Warranty Registration

PLEASE PROVIDE YOUR SERIAL NUMBER BELOW. REQUIRED FOR WARRANTY REGISTRATION:

SERIAL NUMBER:

Model Type_

Date of Purchase

Your Company Name

Contact First Name_

Contact Last Name_

Address

1. Please indicate your type of facility:

a. Apartment/Condo b. Corporate Fitness Center

c. Municipality d. Health Club/Gym/Spa

e. Hotel/Resort f. Military Base

g. Student Rec Center h. Other

1. What other types of equipment does your company ly own?

a. Treadmill	Brand
b. Bike	Brand
c. Elliptical	Brand
d. Free Weights/Gym	Brand

1. How many people use your facility on a daily basis?

a. <25	b. 25-75
c. 76-150	d. 150+

1. Do you plan to purchase more fitness equipment in the next 6-12 months?

Yes No
