Type	Refrigerator with bottom freezer
Brand	LG
Model	GR-P2073TVJ
Energy Source	Electric (standard household outlet)
Freezer Type	Automatic defrost
Ice Maker	Automatic, produces approximately 80 cubes per day
Water Dispenser	Built-in, offers cubed ice, crushed ice, and chilled water
Super Freezer Function	Rapid freezing mode, automatically turns off after a set time
Refreshment Center	Access to refrigerator compartment without opening main door
Wine Holder	Adjustable shelf for storing wine bottles horizontally
Egg Box	Removable container for egg storage
Humidity Control	Adjustable humidity in vegetable compartment
Miracle Zone	Convertible drawer with temperature settings: -3°C, -1°C, 4°C
Deodorizer	Helps reduce odors inside refrigerator
Door Open Alarm	Audible warning if door left open for more than 1 minute
Diagnosis Function	Automatic failure detection; contact service if error occurs
Water Filter	Replaceable cartridge, replacement indicator light, replace every 6 months
Interior Lighting	LED lamp in refrigerator compartment, separate lamp in freezer
Noise Level	41 dB(A)
Installation Clearance	At least 2 inches (5 cm) from rear wall
Water Pressure Required	147-834 kPa (1.5-8.5 kgf/cm²)
Net Weight	Approximately 100 kg (typical for this class)
Dimensions (W×H×D)	835 × 1780 × 700 mm (estimated based on similar models)
Climate Class	SN-T (suitable for ambient temperatures 10°C to 43°C)

Frequently Asked Questions - GR-P2073TVJ LG

How do I adjust the temperature in the freezer compartment?

Press the temperature adjustment button repeatedly to cycle through settings: Middle → Middle Strong → Strong → Weak → Middle Weak. The actual inner temperature may vary depending on food status.

What should I do if the ice maker is not producing ice?

Check that the water supply is connected and the valve is open, the ice maker switch is on, and the ice storage bin is not full. Also ensure the freezer door is properly closed. If ice is frozen together, remove and break apart.

How do I use the water and ice dispenser?

Press the selection button to choose between water, cubed ice, or crushed ice. Then press a glass against the push switch lightly. The dispenser will release the selected item.

Why is the refrigerator not cooling properly?

Possible causes include the temperature setting being too warm, doors opened too frequently, or insufficient airflow. Ensure the refrigerator is level, not blocked by food, and that the condenser is clean. Allow 2-3 hours after first installation to stabilize.

How do I change the water filter?

The water filter should be replaced every six months. When the filter indicator light comes on, press and hold the filter button for more than 3 seconds to reset after replacement.

What is the Miracle Zone and how do I use it?

The Miracle Zone is a convertible drawer that can store vegetables, fruits, or meats. Press the selection button to choose between Vegetable/Fruit (humidity maintenance) and Meat (lower temperature) modes. Available temperatures: -3°C, -1°C, and 4°C.

How do I remove a shelf for cleaning?

To remove a freezer shelf, push it to the left, lift the left part slightly, then lift the right part and take it out. Always unplug the refrigerator before disassembling parts.

What does the 'Door Open Alarm' mean?

If the refrigerator or freezer door is left open for more than one minute, the alarm sounds three times at 30-second intervals. If it persists after closing the door, contact service.

Can I store glass bottles in the freezer?

No, never store glass products in the freezer because they may break due to expansion when their contents freeze. This can cause personal injury.

How do I level the refrigerator if the doors are misaligned?

Use a flat-head screwdriver to turn the height adjusting screws on the bottom hinge. If the freezer door is lower, turn the left screw clockwise; if higher, turn the right screw clockwise. If still misaligned, insert transparent sheets between the hinge and bracket.

USER MANUAL GR-P2073TVJ LG

Please read this guide thoroughly before operating and keep it handy for reference at all times.

CVC 내자

介绍

目录

介绍

进入 3

重要安全指南 3

认识冰箱的内部 4

安装

安装于何处 5

将门拆下 6

门的重新安装 7

供水管的安装 7

高度调节 8

当冷冻室门未与冷藏室门高度对齐 8

运转

启用 9

调节温度和功能 9

保鲜室(仅适用于某些型号) 14

搁板(仅适用于某些型号) 15

置酒架(仅适用于某些型号) 15

蛋盒(仅适用于某些型号) 15

蔬菜保鲜盒湿度控制 16

门的重新安装

运转

启用

储存食物建议

冷冻室

储存食物

Important safety instruction 29

Identification of parts 30

Where to install 31

Door removal 32

Door replacement 33

Feed water pipe installation 33

Height adjustment 34

when the freezer door does not align with the height of the refrigerator door 34

Starting 35

Adjusting the temperatures and functions 35

Refreshment center (Applicable to some models only) 40

Shelf (Applicable to some models only) 41

Wine holder (Applicable to some models only) 41

Egg box (Applicable to some models only) 41

Humidity control in the vegetable compartment 42

Convert into a vegetable or meat compartment (Applicable to some models only) —42

Deodorizer(Applicable to some models only) 42

Entry

The model and serial numbers are found on the inner case or back of refrigerator compartment of this unit. These numbers are unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. Staple your receipt here.

Date of purchase

Dealer purchased from

Dealer address

Dealer phone no.

Model no.

Serial no.

Important safety instruction

Before it is used, this refrigerator must be properly installed and located in accordance with the installation instructions in this document.

Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull it straight out from the outlet.

When moving your appliance away from the wall, be careful not to roll over the power cord or to damage it in any way.

After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment, particularly when your hands are damp or wet. Skin could adhere to these extremely cold surfaces.

Unplug the power cord from the power outlet for cleaning or other requirements. Never touch it with wet hands because you can get an electric shock or be hurt.

Never damage, process, severely bend, pull out, or twist the power cord because damage the power cord may cause a fire or electric shock. You have doubts on whether the appliance is properly grounded.

Never place glass products in the freezer because they may be broken due to expansion when their contents are frozen.

Never allow your hands within the ice storage bin of the automatic ice maker. You could be hurt by the operation of the automatic ice maker.

The appliance is not intended for use by young children or infirm persons without

Introduction

Child entrapment warning

DANGER: Risk of child entrapment.

Before you throw away your old refrigerator or freezer.

Take off the doors but leave the shelves in place so that children may not easily climb inside.

The appliance is not intended for use by young children or infirm persons without supervision.

Young children should be supervised to ensure that they do not play with the appliance.

Don't store

Don't store or use gasoline or other flammable vapor and liquids in the vicinity of this or any other appliance.

Grounding (Earthing)

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.

In order to prevent possible electric shock, this appliance must be grounded improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

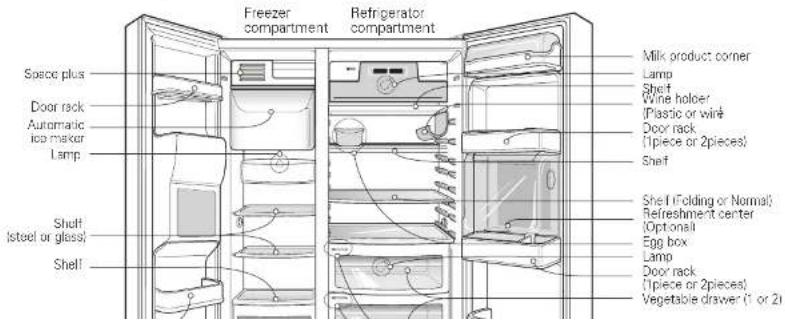

Identification of parts

Introduction

Select a good location

Where to Install

1. Place your appliance where it is easy to use.
2. Avoid placing the unit near heat sources, direct sunlight or moisture.
3. To ensure proper air circulation around the fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.

4. To avoid vibrations, the appliance must be leveled.

5. Don't install the appliance below 5?C. It may cause affect the performance.

Disposal of the old appliance

This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable.

All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

Introduction

Warning

Remove lower cover and then feed water tube

Remove the freezer compartment door

Door removal

Electric Shock Hazard

Disconnect electrical supply to refrigerator before installing. Failure to do so could result in death or serious injury.

If your access door is too narrow for the refrigerator to pass through, remove the refrigerator door and pass the refrigerator

Remove the lower cover by lifting upward, and remove clip, and then pull up the feed water tube while pressing area@shown in the figure to the right.

NOTE

If a tube end is deformed or abraded, cut the part away.

1) Removing the hinge cover by loosening the screws. Separate all connection wires except for the earth line after.

2) Remove the keeper by rotating it counter clockwise (1) and then lifting the upper hinge up (2).

NOTE

When removing the upper hinge, be careful that the door does not fall forwards

3) Remove the freezer compartment door by lifting it upward. This time, the door should be lifted enough for the feed water pipe tube to be completely pulled out.

NOTE

Move the refrigerator compartment door passing through the access door and lay

Introduction

Pass the refrigerator

Pass the refrigerator laterally through the access door as shown in the right figure.

Door replacement

Mount them in the reverse sequence of removal after they pass through the access door.

Feed water pipe installation

Before installation

• Automatic ice maker operation needs water pressure of 147\~834 kPa (1.5\~8.5 kgf/cm²) (That is, an instant paper cup (180 cc) will be fully filled within 3 sec.).
• If water pressure does not reach the rating 147 kPa (1.5 kgf/cm²) or below, it is necessary to purchase a separate pressure pump for normal automatic icing and cool water feed.
• Keep the total length of the feed water pipe tube within 8 m and be careful for the tube not be bent. If the tube is 8 m or longer it may cause trouble in water feed owing to the drain water pressure.
• Install the feed water pipe tube at a place free from heat.

Warning

• Connect to potable water supply only.
• Refer to instructions with water filter kit for installation.

If the height of freezer compartment door is different from the height of Refrigerator compartment door

Height adjustment

If the freezer compartment door is lower than the refrigerator compartment door

Level the door by inserting flatype) driver into the groove of the left height adjusting screw and rotate it clockwise (c).

If the freezer compartment door is higher than the refrigerator compartment door

Level the door by inserting flattype) driver into the groove of the right height adjusting screw and rotate it clockwise (i).

When the freezer door does not align with the height of the refrigerator door

Even if the height can not be aligned by using the height adjustment screw, insert the transparent sheet supplied with the product.

• Separate the door with the lower height, use the (+) type screwdriver to unscrew the screw at the bottom hinge as shown at Figure ①, insert the transparent sheet between the bottom hinge and the bottom bracket, and then fix it with the screw as shown at Figure ②.
• Insert more transparent sheets enough to align the height. 14 sheets are supplied in total

Operation

Starting

When your refrigerator is first installed, allow it to stabilize at normal operating temperatures for 2-3 hours prior to filling it with fresh or frozen foods. If operation is interrupted, wait 5 minutes before or starting.

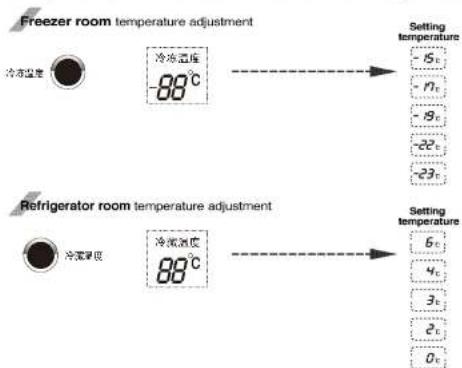

Adjusting the temperatures and functions

How to adjust the temperature in the freezer compartment

How to adjust the temperature in the refrigerator compartment

Super freezer (Applicable to some models only)

You can adjust temperature of and freezer room and refrigerator room.

* Whenever pressing button, setting is repeated in the order of (Middle) → (Middle Strong) → (Strong) → (Weak) → (Middle Weak).

• The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not actual temperature within refrigerator.
• Refrigeration function is weak in the initial time. Please adjust temperature as above after using refrigerator for minimum 2\~3 days.

Please select this function for prompt freezer.

• "on" and "off" is repeated whenever pressing button.
• The arrow mark graphic remains at the "on" status when selecting Special Refrigeration "on"
• Super freezer function automatically turns off if a fixed time passes.

onoff

Operation

Dispenser use selection

You can select water or ice.

※ Please select water, slice ice and square ice by pressing button as you desire.
* Please press the push button lightly by catching and pushing in cup.

• The border line is indicated for the selected function,
• "Tak!" sounds if 5 seconds pass after ice comes out.
  It is sound that the outlet of ice is closed.

- Reference: Please wait for 2-3 seconds in order to take Pressing final ice slices or drops of water when taking Switch out cup from the pressing switches after taking ice or water.

Automatic ice maker

• The icemaker can automatically make 8 pieces of ice cubes at anyone time, approximately 80 pieces per day. However these quantities may vary according to certain conditions. E.g. the duration and amount of times the refrigerator door is opened.
• The ice making proceeds ceases automatically when the ice storage bin is full.
• If you choose not to use the automatic ice making function, repositioned the icemaker selection switch to the off position or the on position for reselection. Note: The manual selection function is only applicable to some models only.

NOTE

It is normal that a noise is produced when ice made is dropped into the ice storage bin.

When ice maker does not operate smoothly

Ice is lumpedtogether

• When ice is lumped together, take the ice lumps out of the ice storage bin, break them into small pieces, and then place them into the ice storage bin again.
• When the ice makes produce too small or limped together in, the amount of

Operation

The other functions

Door open warning

• 3 times of warning sounds at the interval of 30 seconds if a minute passes with the door of refrigerator and the horbar door opened or completely closed.
• Please contact with the local service center if warning continue to sound even after closing the door.

Diagnosis (failure detection) function

• Diagnosis function automatically detects failure when failure is found in product during the use of refrigerator.
• If failure occurs at product, it does not operate though pressing any button and norma indication is not done. In this case, do not turn power off but immediately contact with the local service center. A lot of time are need for service engineer to detect the failed part if turning it off.

Water is cooled while stored in the water tank in the refrigerator compartment, and then sent to the dispenser.

Ice is made in the automatic ice maker and sent to the dispenser divided into crushed or cubed form ice.

NOTE

It is normal that the water is not very cold at first. If you want colder water, add ice into the glass.

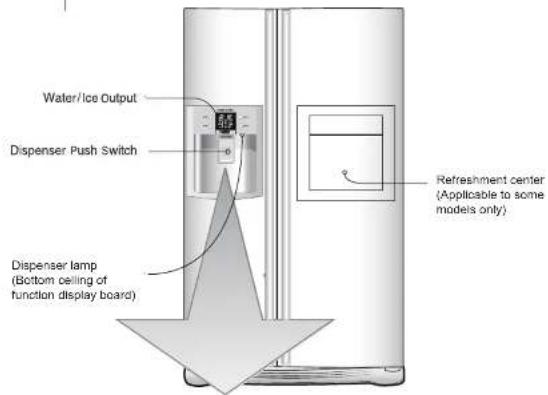

How ice/cold water is supplied

How to use dispenser

- Select one among crushed ice, water, and cubed ice and slightly press the push switch with a glass or other container.

Water

Light the water indicating lamp by pressing the selection button. Water will be dispensed by pressing the push switch with a glass.

Cubed ice

Light the cubed ice indicating lamp by pressing the selection button. Cubed ice will be dispel by pressing the push switch with a glass.

Crushed ice

Light the crushed ice indicating lamp by pressing the selection button. Crushed ice will be dispensed by pressing the push switch with a glass.

Operation

Filter conditior (filter replacement cycle) display function

• There is a replacement indicator light for the water filter cartridge on the dispenser.
• The water filter should be replaced every six months.
• The filter light comes on to let you know when to replace filter.
• After replacing the filter, press and hold the filter button more than 3 seconds to reset the indicator.
  陽明/武達

Dispenser light

This button turn the dispenser light in the dispenser on an off.

- The dispenser light function is turned ON or OFF by pressing "照明/过滤" button.

图8-2

IN OFF

Cautions

Throw away the ice (about 20 pieces) and water (about 7 glasses) first made after refrigerator installation.

The first ice and water may include particles or odor from the feed water pipe or feed water box. This is necessary in case that the refrigerator has not been used for a long time.

Keep children away from the dispenser.

Children may push switch incorrectly bad or damage lamps.

Be careful that food is not block the ice passage.

If foods are placed at the entrance of ice passage, ice may not be dispensed. The ice passage may also be covered with ice powder if splinter ice is used only. This time, remove the ice powder accumulated.

Never store beverage cans or other foods in ice storage bin for the purpose of rapid cooling.

Such actions may damage the automatic ice maker.

Never use thin crystal glass or crockery to collect ice.

How to use

Refreshment center (Applicable to some models only)

Open the refreshment center door.

• You can access the refreshment center without opening refrigerator door and thus saving electricity.

• Inner lamp is lit in refrigerator compartment when the refreshment center door opens. Thus it is easy to identify the contents.

• Never use the refreshment center door as a chopping board and take care not to damage it with sharp tools.

• Never rest your arms or severely press on it.

- The refreshment center can not function normally without the cover.

Use the refreshment center door as a stand

Never take out the inner refreshment center cover

Never place heavy items on the refreshment center door or allow children to

Operation

Slide-Under Shelf

Shelf (Applicable to some models only)

You can store taller items such as a gallon container or bottles by simply pushing in front half of shelf underneath back half of shelf. Pull toward you to return to a full shelf.

Wine holder (Applicable to some models only)

Wine holder adjustment (Type 1)

Bottles can be stored laterally with this wine corner. This can be attached to any shelf.

In case of inserting the wine holder :

Pull the wine holder downward as in ② after inserting it into the side anchoring part of the shelf as in ① by catching it upward as in ①.

In case of separating the wine holder :

Pull the wine holder inward as in ④ after holding it upward as in ③ by catching it.

(Type 2)

Bottles can be stored laterally with this wine rack.

Operation

Humidity control in the vegetable compartment

The humidity can be controlled by adjusting the humidity control switch to the left/right when storing vegetables or fruits.

High humidity

Convert into a vegetable or meat compartment (Applicable to some models only)

- The bottom drawer in the refrigerator can be converted into a vegetable or meat compartment

The meat compartment maintains the temperature at a lower point than the refrigerator compartment so that meat or fish can be stored fresh longer.

NOTE

• Vegetables or fruits are frozen if the conversion switch is set to meats compartment. So, be sure to check it before storing foods.

Operation

Method to Use

Miracle Zone Temperature Transition Corner (Applicable to some models only)

By pressing the button, store vegetables, fruits or other types of food such as meat be defrosted, raw fish, etc.

Temperature Change at Miracle Zone (Applicable to some models only)

You can select optimum temperature range depending on types of foods stored.

- 3-step of temperature selection including -3°C, -1°C and 4°C is available. Vegetables/fruits and co-storage foods requiring humidity maintenance and meats/fishes can be more freshly stored depending

• When using the Miracle Zone as storage room of meats, storing vegetables or fruits may be frozen
• When using the Miracle Zone as storage room of meats, keeping meats or fishes may be spoiled and thus meats or fishes must be kept at the F-room.
• If opening a door of the R-room, lamp turns on in the selected status and lamp turns off if closing it.
• (Vegetable/Fruit)→Cold storage while maintaining humidity) (Meat) is sequentially repeated whenever pressing the 'Selection' button.

Miracle Zone (Applicable to some models only)

URL: ____

- First remove the vegetable bin

Suggestion on food storage

Location of foods

(Refer to identification of parts)

Wine holder

Freezer compartment shelf

Freezer compartment door rack

Freezer compartment drawer

Milk product corner

Egg box

Refreshment center

Refrigerator compartment shelf

Refrigerator compartment door rack

Store wine.

Store various frozen foods such as meat, fish, ice cream, frozen snacks, etc..

• Store small packed frozen food.
• Temperature is likely to increase as door opens. So, do not store long-term food such ice cream, etc..
  ■ Store meat, fish, chicken, etc., after wrapping them with thin foil.
  ■ Store dry.

Store milk products such as butter, cheese, etc..

Place this egg box in the proper location.

Store foods of frequent use such as beverage, etc..

Store side dishes or other foods at a proper distance.

Store small packed food or beverages such as milk, juice, beer, etc..

Suggestion on food storage

Freezer compartment

Refrigerator compartment

Storing foods

• Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
• Do not store food which goes bad easily at low temperatures, such as bananas, and melons.
• Allow hot food to cool prior to storing, placing hot food in the refrigerator could spoil other food, and lead to higher energy consumption.
• When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.
• Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.
• Never keep too much food in door rack because they may push against by inner racks so that the door cannot be fully closed.
• Do not store bottles in the freezer compartment - they may break when frozen.
• Do not refreeze food that has been thawed. This causes loss of taste and nutrient.
• When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.
• Do not touch the cold foods or containers- especially made of metallic -, with wet hands and place glass products in the freezer compartment.

• That's why you may have chilblains and they may be broken when their inner matters are frozen, causing personal injury.

• Avoid placing moist food in top refrigerator shelves, it could freeze from direct contact with chilled air.

• Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped, to prevent adjacent food from spoiling.
• When storing eggs in their storage rack or box, ensure that they are fresh, and always store them in an upright position, which keeps them fresh longer.

Care and maintenance

How to dismantle parts

NOTE

- Dismantling is done in the reverse sequence of assembly.

Be sure to unplug the power plug before dismantling and assembly. Never apply severe force to dismantle parts. Parts may be damaged

Freezer compartment lamp

Separate the lamp by pulling it 0@while slightly pressing① and rotating② the lamp cover.

Turn the bulb counterclockwise. Use a 40-watt bulb (max.) which can be purchased at a service center.

Freezer compartment shelf

To remove a shelf, push the shelf to the left, lift the left part of the shelf a bit, lift the right part up and take it out.

Door rack and support

Lift the door rack holding both sides (①) and pull it out to (②) direction.

Lift the space plus (①) and pull it out to (②) direction.

Ice storage bin

Hold the ice storage bin as shown in the right figure and pull it out, while slightly lifting it (1).

- It is recommended not to dismantle the ice storage bin unless it is necessary.

- Be sure to use both hands when removing the ice storage bin, so as not to drop it on the floor.

- If the ice storage bin does not fit well, slightly rotate the rotating device.

Care and maintenance

Lamp in refrigerator compartment

Insert the tool into the marked area (①) and push the tool to disconnect.

Use the tool with the flat tip such as ( - ) screw driver.

Turn the bulb counterclockwise. Max. 40 W bulb for refrigerator is used and can be purchased at a service center.

Refreshment center

- Separate the bin (①) to upward.

- Separate the upper rack of the refreshment center and then pull out the refreshment center cover(2).

- The refreshment center can be removed by pulling it upwards.

NOTE

Be sure to remove parts from the refrigerator door when removing the vegetable compartment, snack drawer and refreshment center cover.

Vegetable compartment cover

- To remove the vegetable compartment cover, pull out the vegetable compartment a bit to the front ① , lift the front part of the vegetable compartment cover as shown by ② , and take it out.

Ice Maker

- Turn off the ice maker switch(off) after remove the Space plus, if you are on a long term vacation or don't use a ice. You want to use a ice, turn on the ice make switch(on).

Care and maintenance

	General information
Vacation time	During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life.When you plan not to operate, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.
Power failure	Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures.However, you should minimize the number of door openings while the power is off.
If you move	Remove or securely fasten down all loose items inside the refrigerator.To avoid damaging the height adjusting screws, turn them all the way into the base.
Anti condensation pipe	The outside wall of the refrigerator cabinet may sometimes get warm, especially just after installation.Don't be alarmed. This is due to the anti-condensation pipe, which pumps hot refrigerator to prevent "sweating" on the outer cabinet wall.CleaningIt is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wiped up immediately, since it may acidify and stain plastic surfaces if allowed to settle.
Exterior	Use a lukewarm solution of mild soap or detergent to clean the durable finish of your refrigerator.Wipe with a clean damp cloth and then dry.
Interior	Regular cleaning is recommended. Wash all compartments a baking soda solution or a cold detergent and water heater. Pives and dr.

Care and maintenance

Trouble shooting

Before calling for service, review this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

Occurrence	Possible cause	Solution
Running of refrigerator
Refrigerator compressor does not run.	Refrigerator control is off.	Set refrigerator control. See setting the controls.
	Refrigerator is in defrost cycle.	This is normal for a fully automatic defrosting refrigerator. The defrost cycle occurs periodically.
	Plug at wall outlet is disconnected.	Make sure plug is tightly pushed into outlet.
	Power outage. Check house lights.	Call local electric company.
Refrigerator runs too much or too long	Refrigerator is larger than the previous one you owned.	This is normal. Larger, more efficient units run longer in these conditions.
	Room or outside weather is hot.	It is normal for the refrigerator to work longer under these conditions.
	Refrigerator has recently been disconnected for a period of time.	It takes some hours for the refrigerator to cool down completely.
	Large amounts of warm or hot food may have been stored recently.	Warm food will cause the refrigerator to run longer until the desired temperature is reached.
	Doors are opened too frequently or too long.	Warm air entering the refrigerator causes it to run longer. Open the door less often.
	Refrigerator or freezer door may be slightly open.	Make sure the refrigerator is level. Keep food and containers from blocking door. See problem section. OPENING CLOSING OF DURS.

Care and maintenance

Occurrence	Possible cause	Solution
Refrigerator compressor does not run.	Thermostat is keeping the refrigerator at a constant temperature.	This is normal. The refrigerator goes on and off to keep the temperature constant.
Temperatures are too cold
Temperature in the freezer is too cold but the refrigerator temperature is satisfactory.	Freezer control is set too cold	Set the freezer control to a warmer setting until the freezer temperature is satisfactory.
Temperature in the refrigerator is too cold and the freezer temperature is satisfactory.	Refrigerator control is set too cold.	Set the refrigerator control to a warmer setting
Food stored in drawers freezes.	Refrigerator control is set too cold.	See above solution.
Meat stored in fresh meat drawer freezes.	Meat should be stored at a temperature just below the freezing point of water (32°F, 0°C) for maximum fresh storage time.	It is normal for ice crystals to form due to the moisture content of meat.
Temperatures are too warm
Temperatures in the refrigerator or freezer are too warm.	Freezer control is set too warm.	Set the freezer or refrigerator control to a colder setting until the freezer or refrigerator temperature is satisfactory.
	Refrigerator control is set too warm. Refrigerator control has some effect on freezer temperature.	Set the freezer or refrigerator control to a colder setting until the freezer or refrigerator temperature is satisfactory.
	Doors are opened too frequently or too	Warm air enters the refrigerator/ freezer

Care and maintenance

Occurrence	Possible cause	Solution
Sound and noise
Louder sound levels when refrigerator is on.	Today's refrigerators have increased storage capacity and maintain more even temperatures.	It is normal for sound levels to be higher.
Louder sound levels when compressor comes on.	Refrigerator operates at higher pressures during the start of the ON cycle.	This is normal. The sound will level off as the refrigerator continues to run.
Vibrating or rattling noise.	Floor is uneven or weak. Refrigerator rocks on the floor when it is moved slightly.	Be sure floor is level and solid and can adequately support refrigerator.
	Items placed on the top of the refrigerator are vibrating.	Remove items.
	Dishes are vibrating on the shelves in the refrigerator.	It is normal for dishes to vibrate slightly. Move dishes slightly. Make sure refrigerator is level and firmly set on floor.
	Refrigerator is touching wall or cabinets.	Move refrigerator so that it does not touch the wall or refrigerator.
Water/Moisture /Ice inside refrigerator
Moisture collects on the inside walls of the refrigerator.	The weather is hot and humid which increases the rate of frost buildup and internal sweating.	This is normal.
	Door is slightly open.	See problem section opening/closing of doors.

Care and maintenance

Occurrence	Possible cause	Solution
Odors in refrigerator
	Interior needs to be cleaned.	Clean interior with sponge, warm water and baking soda.
	Food with strong odor is in the refrigerator.	Cover food completely.
	Some containers and wrapping materials produce odors.	Use a different container or brand of wrapping materials.
Opening/Closing of doors/Drawers
Door(s) will not close.	Food package is keeping door open.	Move packages that keep door from closing.
Door(s) will not close.	Door was closed too hard, causing other door to open slightly.	Close both doors gently.
	Refrigerator is not level. It rocks on the floor when it is moved slightly.	Adjust the height adjusting screw.
	Floor is uneven or weak. Refrigerator rocks on the floor when it is moved slightly.	Be sure floor is level and can adequately support refrigerator. Contact carpenter to correct sagging or sloping floor.
	Refrigerator is touching wall or cabinets.	Move refrigerator..
Drawers are difficult to move.	Food is touching shelf on top of the drawer	Keep less food in drawer.
	Track that drawer slides on is dirty.	Clean drawer and track.
Dispenser
Dispenser will not	Ice storage bin is empty.	When the first supply of ice is dropped

Care and maintenance

Occurrence	Possible cause	Solution
Dispenser will not dispense ice.	Ice has melted and frozen around auger due to infrequent use, temperature fluctuations and/or power outrages.	Remove ice storage bin, and thaw and the contents. Clean bin, wipe dry and replace in proper position.When new ice is made, dispenser should operate.
Ice dispenser is jammed.	Ice cubes are jammed between the ice maker arm and back of the bin.	Remove the ice cubes that are jamming the dispenser.
	Ice cubes are frozen together.	Use the dispenser often so that cubes do not freeze together.
	Ice cubes that have been purchased or made in some other way have been used in the dispenser.	Only the ice cubes made by the ice maker should be used with the dispenser.
Dispenser will not dispense water.	Household water line valve is not open.See problem "Ice maker is not making any ice."	Open household water line valve.
	Refrigerator or freezer door is not closed.	Be sure both doors are closed.
Water has an odd taste and/or odor.	Water has been in the tank for too long.	Draw and discard 7 glasses of water to freshen the supply. Draw and discard an additional 7 glasses to completely rinse out tank.
	Unit not properly connected to cold water line.	Connect unit to cold water line which supplies water to kitchen faucet.
Sound of ice dropping	This sound is normally made when automatically made ice is dropped into ice storage bin. Volume may vary according to refrigerator's location.
Sound of water supply	This sound is normally made when ice maker is supplied with water after dropping the automatically made ice.
Noise(level)/dB(A)	41dB(A)

목차

머리말

기재사항 55

안전을 위한 주의사항 55

각 부품의 명칭 56

설치

설치장소 57

도어 제거 58

도어 교체 59

급수관 설치 59

높이 조절 60

도어 교체

작동

시작

자동 제빙기

음식보관을 위한 제안

음식 보관
