| Product Type | Refrigerator with Freezer |
| Model | GR-H2273KTG |
| Brand | LG |
| Total Capacity | 720 liters |
| Refrigerator Capacity | 450 liters |
| Freezer Capacity | 270 liters |
| Dimensions (W x H x D) | 912 x 1790 x 770 mm |
| Weight | 120 kg |
| Energy Source | 220-240V, 50Hz |
| Energy Efficiency Class | A+ |
| Annual Energy Consumption | 350 kWh/year |
| Compressor Type | Smart Inverter Compressor |
| Cooling System | Multi Air Flow |
| Defrost Type | Auto Defrost (No Frost) |
| Temperature Control | Electronic with Digital Display |
| Shelves Material | Tempered Glass |
| Door Type | French Door |
| Ice Maker | Built-in (Automatic) |
| Water Dispenser | Internal (Tank) |
| Noise Level | 39 dB |
| Climate Class | SN-T (10°C - 43°C) |
| Refrigerant | R600a |
| Door Alarm | Yes |
| Child Lock | Yes |
| Filter Replacement | Every 6 months |
Frequently Asked Questions - GR-H2273KTG LG
User questions about GR-H2273KTG LG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual GR-H2273KTG - LG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GR-H2273KTG by LG.
USER MANUAL GR-H2273KTG LG
Please read this guide thoroughly before operating and keep it handy for reference at all times.
SXS 냉장고
介绍
目录
介绍
进入 3
重要安全指南 3
认识冰箱的内部 4
安装
安装于何处 5
门的拆卸 6
门的重新安装 7
高度调节 7
当冷冻室门未与冷藏室门高度对齐 7
运转
启用 8
调节温度和功能 8
保鲜室和冰吧 11
搁板(仅适用于某些型号) 12
置酒架(仅适用于某些型号) 12
蛋盒(仅适用于某些型号) 12
蔬菜保鲜盒湿度控制 13
启用
冷冻室
冷藏室
储存食物
| Table of contents | ||
| Introduction | Entry | 25 |
| Important safety instruction | 25 | |
| Identification of parts | 26 | |
| Installation | Where to install | 27 |
| Door removal | 28 | |
| Door replacement | 29 | |
| Height adjustment | 29 | |
| when the freezer door does not align with the height of the refrigerator door | 29 | |
| Operation | Starting | 30 |
| Adjusting the temperatures and functions | 30 | |
| Refreshment center and ice home bar | 33 | |
| Shelf (Applicable to some models only) | 34 | |
| Wine holder (Applicable to some models only) | 34 | |
| Egg box (Applicable to some models only) | 34 | |
| Humidity control in the vegetable compartment | 35 | |
| Convert into a vegetable or meat compartment (Applicable to some models only) | 35 | |
| Deodorizer (Applicable to some models only) | 35 | |
| Suggestion on food storage | Location of foods | 36 |
Introduction
Entry
The model and serial numbers are found on the inner case or back of refrigerator compartment of this unit. These numbers are unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. Staple your receipt here.
Date of purchase :
Dealer purchased from :
Dealer address :
Dealer phone no.:
Model no.:
Serial no.:
Important safety instruction
Before it is used, this refrigerator must be properly installed and located in accordance with the installation instructions in this document.
Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull it straight out from the outlet.
When moving your appliance away from the wall, be careful not to roll over the power cord or to damage it in any way.
After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment, particularly when your hands are damp or wet. Skin could adhere to these extremely cold surfaces.
Unplug the power cord from the power outlet for cleaning or other requirements. Never touch it with wet hands because you can get an electric shock or be hurt.
Never damage, process, severely bend, pull out, or twist the power cord because damage the power cord may cause a fire or electric shock. You have doubts on whether the appliance is properly grounded.
Never place glass products in the freezer because they may be broken due to expansion when their contents are frozen.
Never allow your hands within the ice storage bin of the automatic ice maker. You could be hurt by the operation of the automatic ice maker.
The appliance is not intended for use by young children or infirm persons without supervision.
Introduction
Child entrapment warning
DANGER: Risk of child entrapment.
Before you throw away your old refrigerator or freezer
Take off the doors but leave the shelves in place so that children may not easily climb inside.
The appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the appliance.
Don't store
Don't store or use gasoline or other flammable vapor and liquids in the vicinity of this or any other appliance.
Grounding (Earthing)
In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.
In order to prevent possible electric shock, this appliance must be grounded
improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely
understood, or if you have doubts on whether the appliance is properly grounded.

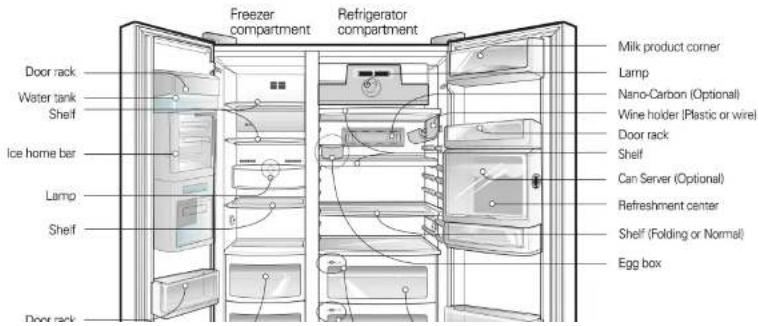

Identification of parts
Select a good location
Disposal of the old appliance
Where to Install
- Place your appliance where it is easy to use.
- Avoid placing the unit near heat sources, direct sunlight or moisture.
- To ensure proper air circulation around the fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.
- To avoid vibrations, the appliance must be leveled.
- Don't install the appliance below 5°C. It may cause affect the performance.
This appliance contains fluid (refrigerant, lubricantland is made of parts and materials which are reusable and/or recyclable.
All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

Warning
Remove lower cover
Remove the freezer compartment door
Door removal
Electric Shock Hazard
Disconnect electrical supply to refrigerator before installing. Failure to do so could result in death or serious injury.
If your access door is too narrow for the refrigerator remove the refrigerator door and pass the refrigerator laterally.
Remove the lower cover by lifting upward.
1) Loosen the hinge cover screws and remove the cover.
2) Remove the keeper by rotating it to counter clockwise (1) and then lifting the upper hinge up (2).



NOTE
- When removing the upper hinge, be careful that the door does not fall forwards.
3) Remove the freezer compartment door by lifting it upward.
Remove the refrigerator door
1) Loosen the hinge cover screws and remove the cover. Remove connection wire if any, except for the earth line.
Door replacement
Mount them in the reverse sequence of removal after they pass through the access door.
Height adjustment
If the freezer compartment door is lower than the refrigerator compartment door
Level the door by inserting flatype) driver into the groove of the left height adjusting screw and rotate it clockwise (i).
If the freezer compartment door is higher than the refrigerator compartment door
Level the door by inserting flatype) driver into the groove of the right height adjusting screw and rotate it clockwise (☐).
Even if the height can not be aligned by using the height adjustment screw, insert the transparent sheet supplied with the product.
- Separate the door with the lower height, use the (+) type screwdriver to unscrew the screw at the bottom hinge as shown at Figure ①, insert the transparent sheet between the bottom hinge and the bottom bracket, and then fix it with the screw as shown at Figure ②.
- Insert more transparent sheets enough to align the height. (4 sheets are supplied in total.)
If the height of freezer compartment door is different from the height of Refrigerator compartment door
Operation
Starting
When your refrigerator is first installed, allow it to stabilize at normal operating
temperatures for 2-3 hours prior to filling it with fresh or frozen foods. If operation is interrupted, wait 5 minutes before restarting.
Adjusting the temperatures and functions


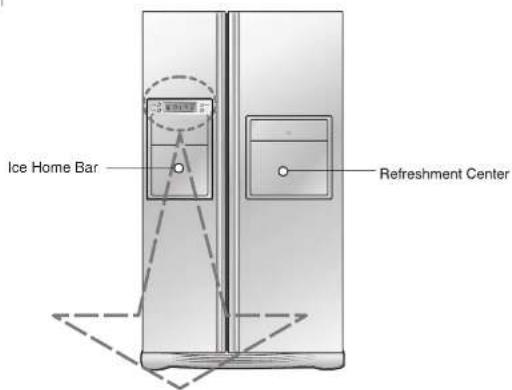

Ice Home Bar Refreshment Center


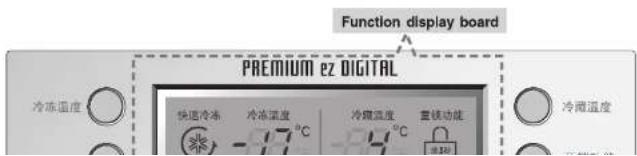

Function display board PREMIUM EZ DIGITAL 冷冻温度 -17°C -4°C 重铁功能 冷冻温度Operation
How to adjust the temperature in the freezer compartment
How to adjust the temperature in the refrigerator compartment
Express freezer
You can adjust temperature of and freezer room and refrigerator room.
Freezer Compartment temperature adjustment



Refrigerator Compartment temperature adjustment



* Whenever pressing button, setting is repeated in the order of (Weak) → (Middle Weak) → (Middle) → (Middle Strong) → (Strong).
- The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not actual temperature within refrigerator.
- Refrigeration function is weak in the initial time. Please adjust temperature as above after using refrigerator for minimum 2\~3 days.
Please select this function for prompt freezer.
- OFF→ON→OFF is repeated whenever pressing 🐘 button.
■ The arrow mark graphic remains at the On status after flickering 4 times when selecting Special Refrigeration On. - Prompt freezer function automatically turns off after a fixed time passes.
This button stops operation of different button.
- Locking or Release is repeated


ON OFF


Operation

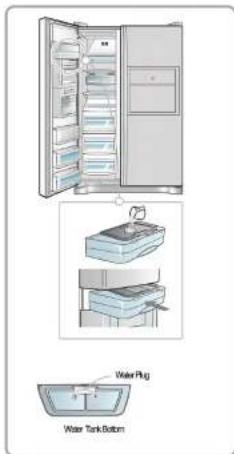

Door ice maker
Take out the water container, fill it up and put it back to its original location.
■ Water automatically falls to the icing compartment.
- Put the water container to its original location until you hear a "click" sound.

Caution
- When the water leaks or does not flow well, check whether the water hole on the bottom is frozen. If frozen, defrost it with warm water and then use it.
- Do not use other kind of drinks (barley tea, juice etc.) because it can cause a problem.
- When filling the water container or moving it, be careful not to hold the water hold lid. It can cause a leakage.

When you pull the ice separation level of the ice maker compartment downward, ice falls to the ice storage container.
- When the ice does not fall well, hold the lever 90^ and operate it repeatedly 2-3 times.
- When you pull the lever when the water is not fully frozen, ice water can fall into the ice storage container to make them all freeze together. Therefore you must be careful.
(It takes about 3 hours for the water of 20^ to freeze completely.)



Caution
- If you open and close the refrigerator door (door of door ice maker) frequently, warm air are not inside to delay the water freezing process.
Operation
How to use
Use the refreshment center or ice home bar door as a stand
Never take out the inner refreshment center cover (Only refreshment center)
Never place heavy items on the refreshment center / ice home bar door or allow
Refreshment center and ice home bar
Open the refreshment center or ice home bar door.
- You can access the refreshment center or ice home bar without opening refrigerator door and thus saving electricity.
-
Inner lamp is lit in refrigerator compartment when the refreshment center door opens. Thus it is easy to identify the contents.
-
Never use the refreshment center or ice home bar door as a chopping board and take care not to damage it with sharp tools.
-
Never rest your arms or severely press on it.
-
The refreshment centecan not function normally without the cover.
- The refreshment centecan not function normally without the cover.
- The refreshment centecan not function normally without the cover.
- Not only can the refreshment center or ice home bar door may be damaged, but also children may be hurt.




Operation
Slide-Under Shelf
Shelf (Applicable to some models only)
You can store taller items such as a gallon container or bottles by simply pushing in front half of shelf underneath back half of shelf. Pull toward you to return to a full shelf.
Wine holder adjustment (Type 1)
Bottles can be stored laterally with this wine corner.
This can be attached to any shelf.

In case of inserting the wine holder :
Pull the wine holder downward as in ② after inserting it into the side anchoring part of the shelf as in ① by catching it upward as in ①.

In case of separating the wine holder :
Pull the wine holder inward as in ④ after holding it upward as in ① by catching it.

(Type 2)
Bottles can be stored laterally with this wine rack.

Humidity control in the vegetable compartment
The humidity can be controlled by adjusting the humidity control switch to the left/right when storing vegetables or fruits.
High humidity

Low humidity
- The bottom drawer in the refrigerator can be converted into a vegetable or meat compartment



The meat compartment maintains the temperature at a lower point than the refrigerator compartment so that meat or fish can be stored fresh longer.
NOTE
• Vegetables or fruits are frozen if the conversion switch is set to meats compartment. So, be sure to check it before storing foods.
Deodorizer (Applicable to some models only)
Suggestion on food storage
Location of foods
(Refer to identification of parts)
Wine holder
Store wine.
Freezer compartment shelf
Store various frozen foods such as meat, fish, ice cream, frozen snacks, etc..
Freezer compartment door rack
- Store small packed frozen food. - Temperature is likely to increase as door opens. So, do not store long-term food such ice cream, etc..
Freezer compartment drawer
- Store meat, fish, chicken, etc.. after wrapping them with thin foil. - Store dry
Milk product corner
Store milk products such as butter, cheese, etc..
Egg box
Place this egg box in the proper location.
Refreshment center
Store foods of frequent use such as beverage, etc..
Refrigerator compartment shelf
Store side dishes or other foods at a proper distance.
Refrigerator compartment door rack
Store small packed food or beverages such as milk, juice, beer, etc..
■ Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
- Do not store food which goes bad easily at low temperatures, such as bananas, and melons.
- Allow hot food to cool prior to storing, placing hot food in the refrigerator could spoil other food, and lead to higher energy consumption.
- When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
- Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.
- Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.
- Never keep too much food in door rack because they may push against by inner racks so that the door cannot be fully closed.
- Do not store bottles in the freezer compartment - they may break when frozen.
- Do not refreeze food that has been thawed. This causes loss of taste and nutrient.
- When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.
- Do not touch the cold foods or containers- especially made of metallic-, with wet hands and place glass products in the freezer compartment.
- That's why you may have chilblains and they may be broken when their inner matters are frozen, causing personal injury.
- Avoid placing moist food in top refrigerator shelves, it could freeze from direct contact with chilled air.
- Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped, to prevent adjacent food from spoiling.
- When storing eggs in their storage rack or box, ensure that they are fresh, and always store them in an upright position, which keeps them fresh longer.
Care and maintenance
How to dismantle parts
NOTE
- Dismantling is done in the reverse sequence of assembly. Be sure to unplug the power plug before dismantling and assembly. Never apply severe force to dismantle parts. Parts may be damaged.
Freezer compartment lamp
Separate the lamp by pulling it out ③ while slightly pressing ① and rotating ② the lamp cover. Turn the bulb counterclockwise. Use a 40-watt bulb (max.) which can be purchased at a service center.

Freezer compartment shelf
To remove a shelf, push the shelf to the left ②, lift the left part of the shelf a bit ①, lift the right part up ③, and take it out.

Door rack and support
Lift the door rack holding both sides (①) and pull it out to (②) direction.

Lamp in refrigerator compartment
Insert the tool into the marked area (1) and push the tool to disconnect. Use the tool with the flat tip such as (-) screw driver. Turn the bulb counterclockwise. Max. 40 W bulb for refrigerator is used and can be purchased at a service center.

Refreshment center
- Separate the bin (①) to upward. - Separate the upper rack of the refreshment center and

Care and maintenance
Vegetable compartment cover
Door ice maker
- To remove the vegetable compartment cover, pull out the vegetable compartment a bit to the front ①, lift the front part of the vegetable compartment cover as shown by ②, and take it out.





- Hold the water container ① of the door ice maker and pull it forward.
- Hold both ends of the door basket ② on the top part of the door ice maker and pull it out by lifting it up.
Because the refrigerator alarm will go off with the freezer lamp on after pulling out the door basket (2), separate the door ice maker compartment (3) and reinsert the door basket (2) to its original position. - Hold both sides of the ice maker compartment of the door ice maker and pull it out by lifting it up.
- If you want to clean ice maker kit③, hold the grooves on the both sides of the ice maker kit, then pull out. And you can remove it.
- Press the underside of the transparent window ⑤on the case ④of home bar in freezer room to make it fixed. It prevents foods in the ice home bar from falling into the freezer room.
Warning:
• After cleaning ice maker ③ with water, please remove all the water from it's inner and make sure to use it with no water remained, Otherwise the ice maker possibly will not function well.
Care and maintenance
General information
Vacation time
During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life.
When you plan not to operate, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.
Power failure
Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures.
However, you should minimize the number of door openings while the power is off.
If you move
Remove or securely fasten down all loose items inside the refrigerator.
To avoid damaging the height adjusting screws, turn them all the way into the base.
Anti condensation pipe
The outside wall of the refrigerator cabinet may sometimes get warm, especially just after installation.
Don't be alarmed. This is due to the anti-condensation pipe, which pumps hot refrigerator to prevent "sweating" on the outer cabinet wall.
Cleaning
It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wiped up immediately, since it may acidify and stain plastic surfaces if allowed to settle.
Exterior
Use a lukewarm solution of mild soap or detergent to clean the durable finish of your refrigerator.
Wipe with a clean damp cloth and then dry.
Interior
Regular cleaning is recommended. Wash all compartments a baking soda solution or a mild detergent and warm water. Rinse and dry.
Care and maintenance
Trouble shooting
Before calling for service, review this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.
| Occurrence | Possible cause | Solution |
| Running of refrigerator | ||
| Refrigerator compressor does not run. | Refrigerator control is off. | Set refrigerator control. See setting the controls. |
| Refrigerator is in defrost cycle. | This is normal for a fully automatic defrosting refrigerator. The defrost cycle occurs periodically. | |
| Plug at wall outlet is disconnected. | Make sure plug is tightly pushed into outlet. | |
| Power outage. Check house lights. | Call local electric company. | |
| Refrigerator runs too much or too long | Refrigerator is larger than the previous one you owned. | This is normal. Larger, more efficient units run longer in these conditions. |
| Room or outside weather is hot. | It is normal for the refrigerator to work longer under these conditions. | |
| Refrigerator has recently been disconnected for a period of time. | It takes some hours for the refrigerator to cool down completely. | |
| Large amounts of warm or hot food may have been stored recently. | Warm food will cause the refrigerator to run longer until the desired temperature is reached. | |
| Doors are opened too frequently or too long. | Warm air entering the refrigerator causes it to run longer. Open the door less often. | |
| Refrigerator or freezer door may be slightly open. | Make sure the refrigerator is level. Keep food and containers from blocking door. See problem section. OPENING/CLOSING of doors. | |
Care and maintenance
| Occurrence | Possible cause | Solution |
| Refrigerator compressor does not run. | Thermostat is keeping the refrigerator at a constant temperature. | This is normal. The refrigerator goes on and off to keep the temperature constant. |
| Temperatures are too cold | ||
| Temperature in the freezer is too cold but the refrigerator temperature is satisfactory. | Freezer control is set too cold | Set the freezer control to a warmer setting until the freezer temperature is satisfactory. |
| Temperature in the refrigerator is too cold and the freezer temperature is satisfactory. | Refrigerator control is set too cold. | Set the refrigerator control to a warmer setting |
| Food stored in drawers freezes. | Refrigerator control is set too cold. | See above solution. |
| Meat stored in fresh meat drawer freezes. | Meat should be stored at a temperature just below the freezing point of water (32°F, 0°C) for maximum fresh storage time. | It is normal for ice crystals to form due to the moisture content of meat. |
| Temperatures are too warm | ||
| Temperatures in the refrigerator or freezer are too warm. | Freezer control is set too warm. | Set the freezer or refrigerator control to a colder setting until the freezer or refrigerator temperature is satisfactory. |
| Refrigerator control is set too warm. Refrigerator control has some effect on freezer temperature. | Set the freezer or refrigerator control to a colder setting until the freezer or refrigerator temperature is satisfactory. | |
| Doors are opened too frequently or too long. | Warm air enters the refrigerator/freezer whenever the door is opened. Open the door less often. | |
Care and maintenance
| Occurrence | Possible cause | Solution |
| Sound and noise | ||
| Louder sound levels when refrigerator is on. | Today's refrigerators have increased storage capacity and maintain more even temperatures. | It is normal for sound levels to be higher. |
| Louder sound levels when compressor comes on. | Refrigerator operates at higher pressures during the start of the ON cycle. | This is normal. The sound will level off as the refrigerator continues to run. |
| Vibrating or rattling noise. | Floor is uneven or weak. Refrigerator rocks on the floor when it is moved slightly. | Be sure floor is level and solid and can adequately support refrigerator. |
| Items placed on the top of the refrigerator are vibrating. | Remove items. | |
| Dishes are vibrating on the shelves in the refrigerator. | It is normal for dishes to vibrate slightly. Move dishes slightly. Make sure refrigerator is level and firmly set on floor. | |
| Refrigerator is touching wall or cabinets. | Move refrigerator so that it does not touch the wall or refrigerator. | |
| Water/Moisture /Ice inside refrigerator | ||
| Moisture collects on the inside walls of the refrigerator. | The weather is hot and humid which increases the rate of frost buildup and internal sweating. | This is normal. |
| Door is slightly open. | See problem section opening/closing of doors. | |
| Door is opened too often or too long. | Open the door less often. | |
Care and maintenance
| Occurrence | Possible cause | Solution |
| Odors in refrigerator | ||
| Interior needs to be cleaned. | Clean interior with sponge, warm water and baking soda. | |
| Food with strong odor is in the refrigerator | Cover food completely. | |
| Some containers and wrapping materials produce odors. | Use a different container or brand of wrapping materials | |
| Opening/Closing of doors/Drawers | ||
| Door(s) will not close. | Food package is keeping door open. | Move packages that keep door from closing. |
| Door(s) will not close. | Door was closed too hard, causing other door to open slightly. | Close both doors gently. |
| Refrigerator is not level. It rocks on the floor when it is moved slightly. | Adjust the height adjusting screw. | |
| Floor is uneven or weak. Refrigerator rocks on the floor when it is moved slightly. | Be sure floor is level and can adequately support refrigerator.Contact carpenter to correct sagging or sloping floor. | |
| Refrigerator is touching wall or cabinets. | Move refrigerator. | |
| Drawers are difficult to move. | Food is touching shelf on top of the drawer | Keep less food in drawer. |
| Track that drawer slides on is dirty. | Clean drawer and track. | |
| Noise(level)/dB(A) | 41dB(A) | |
| Other | Please thoroughly read 'Automatic ice maker and dispenser' in this manual. | |
