SECTION I: GETTING STARTED

I.1 IMPORTANT SAFEGUARDS

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

What the warranty does not cover

• Any product, on which the serial number has been defaced, modified or removed.
• Damage, deterioration or malfunction resulting from:
- Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
• Repair or attempted repair by anyone not authorized by us.
• Any damage of the product due to shipment.
- Removal or installation of the product.
- Causes external to the product, such as electric power fluctuation or failure.
• Use of supplies or parts not meeting our specifications.
- Normal wear and tear.
• Any other causes which does not relate to a product defect.
- Removal, installation, and set-up service charges.

1.2 SAFETY INSTRUCTIONS

The Avenview HDM-C6IP-SET, HDMI Extender has been tested for conformity to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment's, the HDM-C6IP-SET should be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user's authority to operate this equipment.

Warning symbols Description

ONLY USE THE PROVIDED POWER CABLE OR POWER ADAPTER SUPPLIED. DO NOT TAMPER WITH THE ELECTRICAL PARTS. THIS MAY RESULT IN ELECTRICAL SHOCK OR BURN.

DO NOT TAMPER WITH THE UNIT. DOING SO WILL VOID THE WARRANTY AND CONTINUED USE OF THE PRODUCT.

THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC. PLEASE ENSURE IF RACK MOUNTED OR INSTALLED ON A SURFACE, IT SHOULD BE IN A GROUNDED ENVIROMENT.

2. INTRODUCTION

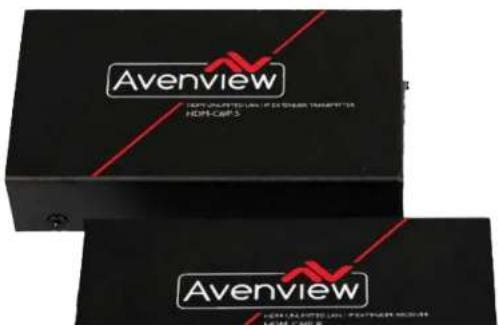

HDM-C6IP-SET, HDMI extender set is designed to extend your HD display with the resolutions of 1080p/60Hz up to 330 feet (100 meters) away from your HDMI or DVI-D source. Thanks to the use of the TCP/IP protocol, you can transfer your high-definition video over an existing TCP/IP network. See below three examples:

A: The Tx and Rx units can extend 100 meters over a single CAT5/6 cable connection point to point.
B: The Tx can be connected to a Gigabit switch to establish a IP address therefore sending 1080p video signals to multiple Rx connected to the Gigabit switch and the HDMI displays.
C: Multiple Tx's can be connected to a Managed Gigabit switch with VLAN/IGMP support therefore sending 1080p video signals to Rx connected to the Gigabit switch to show different sources on the HDMI displays.

• Extends HDMI up to 100m over single CAT5E/6

• Supports HDMI, EDID, Support HDCP
• Supports resolution HDTV / 1080Pp/60Hz, Vesa (1920 x 1080)

• Supporting the point to point transmission function currently which can be expanded to the multi-point to point transmission function.
• Requires a managed Gigabit switch with VLAN/IGMP support to have a solution with multiple sources (Transmitters). Standard Gigabit switch can only support one transmitter.
• The managed switch must support port based IEEE 802.1Q VLAN, IGMP, and to allow duplicate IP addresses across the VLAN domains.
  • Each VLAN acts as independent HDMI over IP Channel on the network.
• Number of Tx and Rx that can be used is dependent on bandwidth of the switch (Recommended Gigabit switch 10/1000).
• Managed switches can be cascaded up to 3 levels, allowing the farthest display to be located up to 300 meters away from the source device. Each receiver can be located up to 100 meters away.
• Uses M-JPEG technology to process image compression on a fixed bandwidth.

2.1 PACKAGE CONTENTS

Before you start the installation of HDM-C6IP-SET, please check the A. STANDARD package contents.

1	HDMI TRANSMITTER X 1
2	HDMI RECEIVER X 1
3	POWER ADAPTER (5VDC) X 2
4	USER'S MANUAL X1

HDM-C6IP-SET

HDM-C6IP-R

1080p = 90m (295 feet) CAT5e 1080p = 100m (328 feet) CAT6

Application Diagram 1

POINT TO POINT

CABLE INDEX

Input / Output
CAT-5e / CAT-6

HDMI Monitor

Red and black racing cars competing on a track race, no visible text or symbols

Back

HDM-C6IP-SET

HDM-C6IP-R

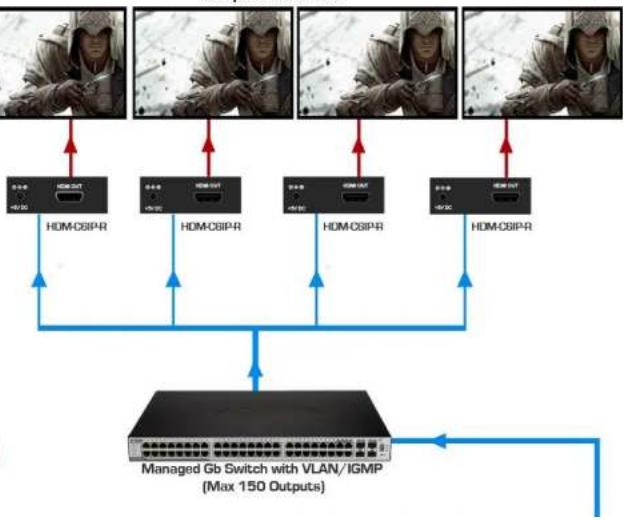

Application Diagram 2

ROUTER CONNECTION

1080p = 90m (295 feet) CAT5e

1080p = 100m (328 feet) CAT6

CABLE INDEX

Input / Output

AT-5e / CAT-6

HDM-C6IP-S

Multiple HDMI Monitor

This product is composed of a Transmitter and a Receiver.

2.4.1 Front Panel & Rear Panel (Transmitter, HDM-C6IP-S)

CA6 IN 1 2

+5V DC HDMI OUT 3 4

1 CAT5E/6: Plug in a Cat-5E/6 cable that needs to be linked to the receiving unit	3 +5V DC: Connect to 5V DC power supply.
2 SELECT: To pair with the corresponding Transmitter unit.	4 HDMI IN: Connects to a HDMI source with a HDMI male-male cable.

2.4.2 Front Panel & Rear Panel (Receiver, HDM-C6IP-R)

CAT OUT 1 2

+5V DC HDMI IN 2 4

3. INSTALLATION

Please ensure all the package contents are all received.

To setup Avenview HDM-C6IP-SET follow these steps for connecting to a device:

I. Connect your HDMI source (such as a Blu-ray Disc player) to Transmitter (HDM-C6IP-S).
2. Connect your HDMI display (such as a LCD TV) to the receiving unit HDM-C6IP-R.
3. Connect your CAT-5E/6 follow the standards of TIA-568BLAN cable between the transmitting and receiving units.
4. Make sure CAT-5E/6 LAN cable is tightly connected and not loose.
5. Plug in 5V DC power cord to the power jack of the transmitting unit HDM-C6IP-S
6. Plug in 5V DC power cord to the power jack of the receiving unit HDM-C6IP-R.

4. GENERAL TROUBLESHOOTING

PROBLEM	POSSIBLE SOLUTION
NO IMAGE	Check if connection to the source and the display are correct.Ensure that display device supports 480p, 720p and 1080p resolution
SCREEN DEFECTS APPEAR	Check the DVI and HDMI connection

5. SPECIFICATIONS

ITEM DESCRIPTION
UNITS HDM-C6IP-S HDM-C6IP-R
UNIT DESCRIPTION HDMI Transmitter HDMI Receiver
HDMI COMPLIANCE Full HD
HDCP COMPLIANCE Yes
VIDEO BANDWIDTH	M-JPEG technology to process image compressing GIGABIT (10/1000) OVER LAN
INPUT SUPPORTED RESOLUTION	480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
OUTPUT SUPPORTED RESOLUTION	720p@60Hz, 1080p@60Hz
RESOLUTION AND DIS-TANCE (24-BIT)	Full HD: (1080p)-100meter (328feet) (CAT5e) / 100meter (328feet) (CAT6)
AUDIO SUPPORT Surround Sound (up to 7.1 Ch) or Stereo Digital Audio
IR PASS-THRU NO
RS-232 SUPPORT NO
INPUT	1x HDMI	1x RJ45
OUTPUT	1x RJ45	1x HDMI + 1x 3.5mm
HDMI CONNECTOR	Type A (19 pin female)
RJ45 CONNECTOR	WE/SS 8P8C with 2 LED indicators
POWER ADAPTER	2 X DC 5V/1A
POWER CONSUMPTION	3W Max Each
DIMENSION L x W x H	(Tx: 4.3" Rx: 4.3") x (Tx: 2.2" Rx: 2.2") x (Tx: 1" Rx: 1")
WEIGHT	245g
