USER MANUAL HBT-C6POE-SET Avenview

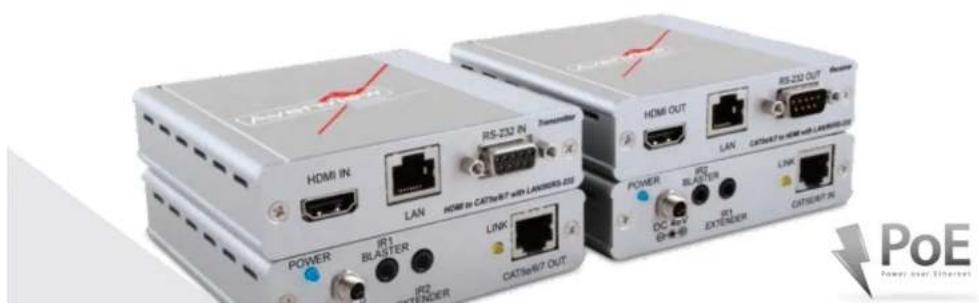

HDBaseT HDMI CAT5/6/7Extender with IR /RS-232/LAN/ Bi-directional POE

HDMI IN LAN RS-232 IN Transmission HDMI OUT LAN RS-232 OUT Recover CAT56W7 IN POWER IR1 BLASTER LINK CAT56W7 OUT. POWER IR2 BLASTER LINK DC Box v G+ - + IR1 EXTENDER CAT56W7 IN PoE Power over Ethernet

Product Application & Market Sectors

Corporate House

Vorship

Military Resident

Education Industri

Medical Aviation

TABLE OF CONTENTS

I. GETTING STARTED .... I
I.1 IMPORTANT SAFEGUARDS....
1.2 SAFETY INSTRUCTIONS
I.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC) 2
2. INTRODUCTION....3
2.1 PACKAGE CONTENTS 4
2.2 BEFORE INSTALLATION 5
2.3 CABLE SPECIFICATIONS 5
3. APPLICATION DIGRAM 6
4. PANEL DESCRIPTION....7

4.1 INPUT PANEL (Transmitter, HBT-C6POE-S) Front....7
4.2 INPUT PANEL (Transmitter HBT-C6POE-S) Rear....7
4.3 INPUT PANEL (Receiver, HBT-C6POE-R) Front....8
4.4 INPUT PANEL (Receiver HBT-C6POE-R) Rear 8

SECTION I: GETTING STARTED

I.1 IMPORTANT SAFEGUARDS

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

What the warranty does not cover

• Any product, on which the serial number has been defaced, modified or removed.
• Damage, deterioration or malfunction resulting from:
- Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
• Repair or attempted repair by anyone not authorized by us.
• Any damage of the product due to shipment.
- Removal or installation of the product.
- Causes external to the product, such as electric power fluctuation or failure.
• Use of supplies or parts not meeting our specifications.
- Normal wear and tear.
• Any other causes which does not relate to a product defect.
- Removal, installation, and set-up service charges.

1.2 SAFETY INSTRUCTIONS

The HBT-C6POE-SET HDBaseT HDMI CAT5/6/7 Extender set has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the HBT-C6POE-SET should be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user's authority to operate this equipment.

Warning symbols Description

ONLY USE THE PROVIDED POWER CABLE OR POWER ADAPTER SUPPLIED. DO NOT TAMPER WITH THE ELECTRICAL PARTS. THIS MAY RESULT IN ELECTRICAL SHOCK OR BURN.

DO NOT TAMPER WITH THE UNIT. DOING SO WILL VOID THE WARRANTY AND CONTINUED USE OF THE PRODUCT.

THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC. PLEASE ENSURE IF RACK MOUNTED OR INSTALLED ON A SURFACE, IT SHOULD BE IN A GROUNDED ENVIROMENT.

2. INTRODUCTION

The Avenview HBT-C6POE-R HDBaseT Extender set CAT5/6/7 with Bi-Directional POE, IR and Ethernet has been designed to extend High Definition video and multi-channel digital audio formats to any HD Monitor.

Video Signals: 4K2K@30 (Ultra HD), 3D, 8/10/12 Deep Color, and Full HD 1080p@60 Hz/36-bit color depth.

Audio signals: Lossless Multi-channel audio formats (DTS-HD Master Audio, Dolby TrueHD).

Data Signals: Bi-Directional IR signals 30 KHz to 50 KHz over CAT5/6.

The HBT-C6POE-SET includes two (2) units: Sending unit (TX) HBT-C6POE-S and Receiving unit (RX) HBT-C6POE-R with one (1) UTP output port which allows the user to extend video and audio up to 100m (330ft). The HBT-C6POE-SET also allows bi-directional IR control of the source connected to the unit from the users IR remote control at the monitor side.

The bonus features with this device it can be powered by the 24V from the TX PoE (Power over the CATx cable to the RX) also Internet (100Mbps Ethernet service when connected to a Router). These features has been added to this unit to give the installer and user a complete solution with the new trends in online streaming, network connected devices and new demand in Smart TV, Ultra HD monitors and content.

Features:

• Input: HDMI with 3D & 4Kx2K, 1080p,HDCP and DVI compliant
• Video bandwidth: From 300MHz / 9 Gbps
• Pc resolutions: Up to VGA to WUXGA
• HD resolutions: Up to 4Kx2K (3840x2160@30Hz and 4096x2160@24Hz)1080p (1920x1080@60Hz)
• Audio supported: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
• Audio transmission: (32-192kHz sample rate)
• Supports: CEC bypass
• Distance: Up to 100 meters through CAT6e/6a/7 cables
• Ethernet transmission: Rate up to 100Mbps

2.1 PACKAGE CONTENTS

Before you start the installation of the converter, please check the package contents.

1	HBT-C6POE-SET INCLUDESHBT-C6POE-S (TX)HBT-C6POE-R (RX)
2	POWER ADAPTER (24V/1.25A DC) XI
	IR EXTENDER X I
	IR BLASTER X I

2.2 BEFORE INSTALLATION

• Put the product in an even and stable location. If the product falls down or drops, it may cause an injury or malfunction.
• Don't place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high humidity.
• Use the DC power adapter with correct specifications. If inappropriate power supply is used then it may cause a fire.
• Do not twist or pull by force ends of the UTP Cable. It can cause malfunction.

2.3 CABLE SPECIFICATIONS

CABLE TYPE RANGE		VIDEO DATA RATE	SUPPORTED VIDEO
CAT5e/6/7	100 m <=5.3 Gbps	(HD Video)	Up to 1080p, 60Hz, 36bits, 3D ( Data rates lower than 5.3 Gbps or below 225 MHz TMDS clock).
	70m >5.3 Gbps	(Ultra HD Video)	4K2K, 30Hz video formats

Data Link TIA/EIA-568-B
PIN	Color	Function

RJ-45 Jack

PAIR3

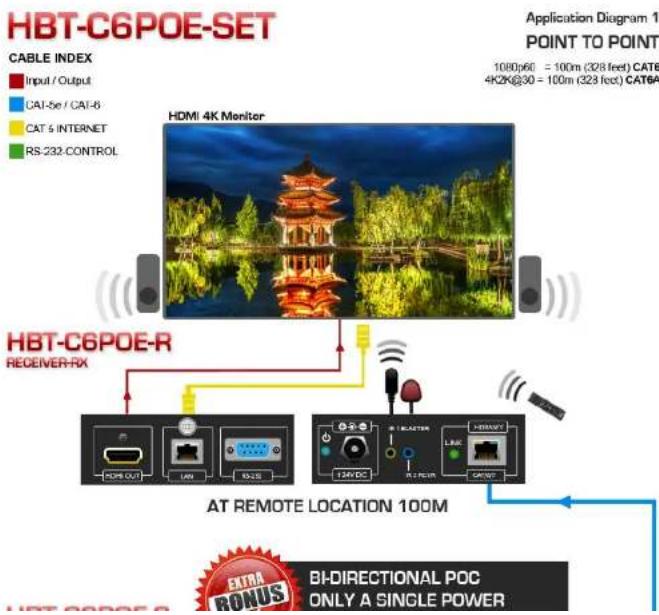

3. APPLICATION DIGRAM

HBT-C6POE-SET CABLE INDEX Input / Output CAT-5e / CAT-5 CAT 5 INTERNET RS-232-CONTROL HDMI 4K Monitor HBT-C6POE-R RECEIVER-RX AT REMOTE LOCATION 100M Application Diagram 1 POINT TO POINT 1080p60 = 100m (328 feet) CAT6 4K2K@30 = 100m (328 feet) CAT6A EXTRA RONUS BI-DIRECTIONAL POC ONLY A SINGLE POWER

4. PANEL DESCRIPTION

4.1 INPUT PANEL (Transmitter, HBT-C6POE-S) Front

HDMI In LAN RS-232 In Transmitter 1 2 HDMI to CAT5e/6 with LAN/IR/RS232 3

1. HDMI IN: Connect HDMI source Max 35ft via HDMI Cable Blu-ray player or Digital player	2. LAN Connect to a router for LAN sharing. This allows network/Internet access) to be shared over the CATx to the RX.Warning:DO NOTconnect the LAN connection to the CAT5e/6/7 output, this may trigger a power shut down and may damage the device.
3. RS-232 IN: Connect to a device that has the ability to send control commands (PC or laptop via D-Sub 9-pin male cable)

4.2 INPUT PANEL (Transmitter HBT-C6POE-S) Rear

4.3 INPUT PANEL (Receiver, HBT-C6POE-R) Front

HDMI Out 10 LAN 11 RS-232 Out Receiver CAT5e/6 to HDMI with LAN/IR/RS232 12

1. HDMI OUT: Connect to HDMI display Max 35ft via HDMI Cable or cascade with another Avenview type Transmitter

2. LAN OUT: Connect to a LAN equipped device (such as a smart TV or games console) to share the network/internet access. Warning: DO NOT connect the LAN connection to the CAT5e/6/7 output, this may trigger a power shut down and may damage the device.

3. RS-232 OUT: Connect to a device that has the ability to Receive control commands via RS232 only with compatible Transmitters.

4.4 INPUT PANEL (Receiver HBT-C6POE-R) Rear

IR2 Blaster Power Link

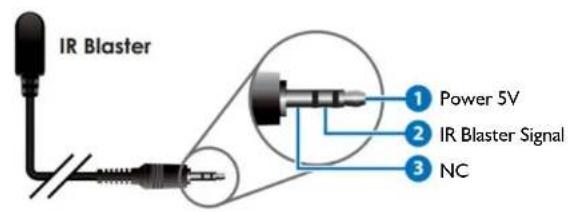

5. IR CABLE DEFINITION

IR Blaster 1 Power 5V 2 IR Blaster Signal 3 NC

1.5m 60° IR BLASTER

IR Extender 1 IR Signal 2 Power 5V 3 Grounding

3m 60° 7m 3m IR RECEIVER

IR Sockets

6. INSTALLATION (HBT-C6POE-SET)

To setup Avenview HBT-C6POE-SET please follow these steps for connecting to a device:

• Turn off all devices including monitors / TV
• Connect to a HDMI source (such as a Blu-Ray Disc player) to the Transmitter HBT-C6POE-S/SP4/8 or Matrix 4x4/8x8
• Connect HBT-C6POE-R 100m with a CAT5/6/7 cable with shielded ends, then connect to display with HDMI cable.
• Plug in Power for the Tx or Rx only one power adapter needed (Bi-directional).
• Plug in the IR BLASTER: into IR out and the blinker on the IR eye (Source)
• Plug in the IR Extender to IR IN to receive IR Signals from Remote
• Power on the HDMI display
• Power on HDMI Sources.

RS-232 Wiring (Cross Cable Connection)

HDMI-SMTRCHRBE-SW4
PIN Assignment
1	NC
2 TxD
3 RxD
4	NC
5 GND
6	NC
7	NC
8	NC
9	NC

HBT-C6POE-R
PIN De finition
1	NC
2 RxD
3 TxD
4	NC
5 GND
6	NC
7	NC
8	NC
9	NC

RS232 Pinout Pin 1: No Connect (NC) Pin 2: Transmit Data (TXD) Pin 3: Received Data (RXD) Pin 4: No Connect (NC) Pin 5: Ground (GND)

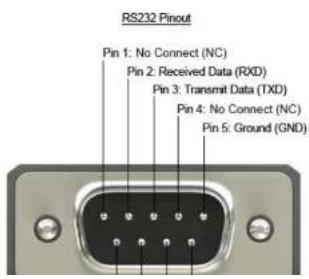

RS232 Pinout Pin 1: No Connect (NC) Pin 2: Received Data (RXD) Pin 3: Transmit Data (TXD) Pin 4: No Connect (NC) Pin 5: Ground (GND)

7. GENERAL TROUBLESHOOTING

Problem Possible Solution
NO IMAGE	1. Check if connection to the source and the display are correct.2. Ensure that display device supports 480p, 720p and 1080p 4K@30 resolution3. Terminated to 568B standard with Shielded Ends Recommended4. High Quality CAT5/6/7 Cable helps signal transmission5. Please use the supplied power supply-DC 24V 1.25A6. Check LED Link light see (Section 4 Panel Description)7. Check LED Sync light see (Section 4 Panel Description)
SET-TOP BOX NO PICTURE	8. HDBaseT and HDMI 1.3 standards support CLOCK STRETCHING for i2c buss protocol9. Example set top boxes like Scientific Atlantic results no picture. This can be resolved by swapping out the box for a newer version that supports HDMI 1.3 not HDMI 1.2
NO INFRARED COMMUNICATION	10. Ensure the UTP cable is run within the wall away from EMI and High Voltage power Lines.11. Please check manual of device to ensure proper placement of IR Blaster on IR EYE.12. Some LED /Plasma TV have EMI interference with the IR Extender, please place the IR Rx 3-6" away from Screen
Recommended TEST
END TO END TESTING	13. HDBaseT system, a final end-to-end test of all the A/V components should take place. These tests include checking the HDMI stream at the far end

8. SPECIFICATIONS

Item Description
UNITS HBT-C6POE-S HBT-C6POE-R
UNIT DESCRIPTION HDBaseT HDMI	Transmitter HDBaseT HDMI Receiver
HDCP YES
ETHERNET SPEED 100Mbps
VIDEO BANDWIDTH Single-link 300 MHz [9Gbps]
SUPPORTED RESOLUTIONS	480i~1080p@50/60, 1080p@24, 3D 4K@30 Up to Ultra HD (3840x2160@24/25/30Hz)
CEC SUPPORT ALLOWS CEC BYPASS
CAT5/6/7 CABLE	4K2K: (3840X2160@30Hz) ~ 70meter (229feet) (CAT6e)FULL HD: (1080p) -- 100meter (330feet) (CAT6e/6A)
AUDIO SUPPORT	LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
HDMI IN CABLE M/M	15m/1080p@8-bit or 6m/1080p@12-bit
HDMI OUT CABLE M/M	15m/1080p@8-bit or 10m/1080p@12-bit
ESD PROTECTION	Human body model — ±8kV (air-gap discharge)& ±4kV (contact discharge)
INPUT	1x 3.5mm IR Extender1x RS-232 1x LAN port1x HDMI	1x CAT5e/6/71x 3.5mm IR Extender
OUTPUT	1x CAT5e/6/71x 3.5mm IR Blaster	1x 3.5mm IR Blaster1x RS-232 1x LAN port1x HDMI

NOTICE

I. All HDMI over CAT5 transmission distances are measured using Belden CAT6A (625MHz), 4-Pair, U/UTP-Unshielded, Riser-CMR, Premise Horizontal Cable, 23 AWG Solid Bare Copper Conductors, Polyolefin Insulation, Patented Double-H spline, Ripcord, PVC Jacket using Quantum 980 signal HDMI Video Generator Module Video Pattern Testing.
2. The transmission length is largely affected by the type of category cables, also the type of HDMI sources, and the type of HDMI display. The testing result shows solid UTP cables (usually in the form of 300m or 1000ft bulk cable) can transmit a lot longer signals than stranded UTP cables (usually in the form of patch cords). Shielded STP connectors are better suit than unshielded UTP connectors. A solid UTP CAT5e cable
shows longer transmission length than stranded STP CAT6 cable. For long extension users, solid cables are your only choice.
3. EIA/TIA-568-B termination (T568B) for category cables is recommended for better performance.
4. To reduce the interference among the unshielded twisted pairs of wires in category cable, you can use shielded STP cables with shielded connector to improve EMI problems, which occurs in long transmission.
5. Because the quality of the category cables has the major effects in how long transmission distance will be made and how good is the received display, the actual transmission length is subject to your category cables. For resolution greater than 1080i or 1280x1024, a solid CAT6 cable is the only viable choice.

Notes

Avenview Warranty Certificate

AVENVIEW CORP. ("Avenview") warrants Aveniew-branded product(s) contained in the original packaging against deferts in materials and workmanship when used normally in accordance with Aveniew's enclosed manual guidelines for a period of TURZE (3) YEARS from the date of original retail purchase - Warranty Period. Aveniew's published prices include but are not limited to information obtained in technical specifications, over manuals and service communications.

LAROR: During the Warranty Period of 18ERK, (3) YEARS, Avenview will repair or replace the product(s) at no cost using new or used parts equivalent to novel performance and reliability if the product(s) is determined to have abide by Avenview's published guidelines. Cost of Labor applicable to product(s) after Warranty Period. For labor costs, please contact [e-mail].

PARTS: During the Warranty Period of 31THREE (7) YEARS, Overview will supply new or rebuild replacements in exchange for defective parts of the product(s) at no cost if the product(s) is determined to have abide by Overview's published guidelines. Cost of Parts applicable to product(s) after Warranty Period. For part(s) costs, please contact [e-mail].

To obtain Warranty: (a) proof of purchase in the form of a bill of sale or receipt invoice reflecting that the registered product(s) is within warranty period must be presented to obtain warranty service. (b) product(s) must be registered at time of purchase. Failure to do so well result in applicable parts and labor charges. Remaining product(s) must be slapped in Avenview's original packaging or in packaging pertaining equal degree of protection to Avenview's. Both Avenview and purchaser are responsible for freight charges and brochages when shipping the product(s) to the receiver.

NOT COVERED BY THIS WARRANTY

This warranty does not apply to any non-Averview branded products(s); non-registered Aveniew product(s). This warranty does not apply (a) to acratic damage, including but not limited to scratches, cents and broken cords; (b) to damage caused by use with another product; (c) to damage caused by accident, abuse, misuse, liquid contact, tire, earthquake or other external causes; (d) to damage caused by operating the Aveniew product(s) outside Aveniew's manuals or guidelines; (e) to damage caused by service performed by anyone who is not a representative of Aveniew or an Aveniew authorized personnel; (f) to defects caused by normal wear and nor otherwise due to the normal signs of the Aveniew product(s), or (g) if any serial number has been removed or defused from the Aveniew product(s).

AVENVIEW IS NOT LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF USE, LOSS OF REVENUE, LOSS OF ACTUAL OR ANTICIPATED PROFITS (INCLUDING LOSS OF PROFITS ON CONTRACTS); LOSS OF THE USE OF MONEY; LOSS OF ANTICIPATED SAVINGS; LOSS OF BUSINESS; LOSS OF OPPORTUNITY; LOSS OF GOODWILL; LOSS OF REPUTATION; LOSS OF DAMAGE TO, COMPROMISE OR CORRUPTION OF DATA; OR ANY INDIRECT OR CONSEQUENTIAL LOSS OR DAMAGE REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER.

Avenview

Control Your Video

TECHNICAL SUPPORT

CONTACT US

Phone: I [phone]

Email: [e-mail]

USA Head Office Avenview Corp. 275 Woodward Avenue Kenmore, NY 14217
