Before reading this manual

This is a basic installation manual for use of a network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this manual carefully before use and heed to the warnings and precautions contained herein while using the product. Safety warnings and precautions contained in this manual are intended to promote proper use of the product and thereby prevent accidents and property damage and must be followed at all times. Once you have read this manual, keep it at an easily accessible location for future reference.

• The manufacturer will not be held responsible for any product damage resulting from the use of unauthorized parts and accessories or from the user's failure to comply with the instructions contained in this manual.
• The information in this document is believed to be accurate as of the date of publication even though explanation about some functions may not be incorporated. The manufacturer is not responsible for any problems resulting from the use thereof. The information contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to incorporate such changes.
• It is recommended that first-time users of this network camera and individuals who are not familiar with its use seek technical assistance from their retailer regarding product installation and use.
• If you need to disassemble the product for functionality expansion or repair purposes, you must contact your retailer and seek professional assistance.
• Both retailers and users should be aware that this product has been certified as being electromagnetically compatible for commercial use. If you have sold or purchased this product unintentionally, please replace with a consumer version.

Safety Symbols

Symbol	Publication Description
— — —	IEC60417, No.5031 Direct current
~	IEC60417, No.5032 Alternating current

In-Text

Symbol	Type Description
	Caution Important information concerning a specific function.
	Note Useful information concerning a specific function.

Safety Precautions

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Safeguards

1. Read Instructions

All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Cleaning

Unplug this equipment from the wall outlet before cleaning it. Do not use liquid aerosol cleaners. Use a damp soft cloth for cleaning.

4. Attachments

Never add any attachments and/or equipment without the approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.

5. Water and/or Moisture

Do not use this equipment near water or in contact with water.

6. Placing and Accessories

Do not place this equipment on an wall or ceiling that is not strong enough to sustain the camera. The equipment may fall, causing serious injury to a child or adult, and serious damage to the equipment. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturer.

This equipment and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and cart combination to overturn.

Do not place this equipment in an enclosed space. Sufficient ventilation is required to prevent an increase in ambient temperature which can cause malfunction or the risk of fire.

7. Power Sources

This equipment should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power, please consult your equipment dealer or local power company.

You may want to install a UPS (Uninterruptible Power Supply) system for safe operation in order to prevent damage caused by an unexpected power stoppage. Any questions concerning UPS, consult your UPS retailer.

This equipment should be remain readily operable.

8. Power Cord

Operator or installer must remove power and TNT connections before handling the equipment.

9. Lightning

For added protection for this equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the equipment due to lightning and power-line surges. If thunder or lightning is common where the equipment is installed, use a surge protection device.

10. Overloading

Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.

11. Objects and Liquids

Never push objects of any kind through openings of this equipment as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the equipment.

12. Servicing

Do not attempt to service this equipment yourself. Refer all servicing to qualified service personnel.

13. Damage requiring Service

Unplug this equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power-supply cord or the plug has been damaged.
B. If liquid is spilled, or objects have hit the equipment.
C. If the equipment has been exposed to rain or water.
D. If the equipment does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the equipment to its normal operation.
E. If the equipment has been dropped, or the cabinet damaged.
F. When the equipment exhibits a distinct change in performance — this indicates a need for service.

14. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

15. Safety Check

Upon completion of any service or repairs to this equipment, ask the service technician to perform safety checks to determine that the equipment is in proper operating condition.

16. Field Installation

This installation should be made by a qualified service person and should conform to all local codes.

17. Correct Batteries

Warning: Risk of explosion if battery is replaced by an incorrect type. Replace only with the same or equivalent type.

Dispose of used batteries according to the instructions. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

18. Tmra

A manufacturer's maximum recommended ambient temperature (Tmra) for the equipment must be specified so that the customer and installer may determine a suitable maximum operating environment for the equipment.

FCC Compliance Statement

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE, IN WHICH CASE USERS WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT THEIR OWN EXPENSE.

WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE CAUSING EQUIPMENT REGULATIONS.

WEEE (Waste Electrical & Electronic Equipment)

Correct Disposal of This Product

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Manufacturer reserves all rights concerning this operation manual.

Use or duplication of this operation manual in part or whole without the prior consent of manufacturer is strictly prohibited.

Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.

This product contains software built partially on open-source content. You may obtain the complete corresponding source code depending on whether or not the source is publicly available under a license policy. For more information, refer to System > General page. This product includes software developed by the University of California, Berkeley and its contributors, and software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/). Also, this product includes cryptographic software written by Eric Young ([e-mail]).

Table of Contents

1

Part 1 – Introduction......6

Product Features 6

Accessories....8

Overview 9

Body....9

Cable 10

Factory Reset 12

Inserting a SD Memory Card....13

Dimensions....14

2

Part 2 - Camera Connection ....15

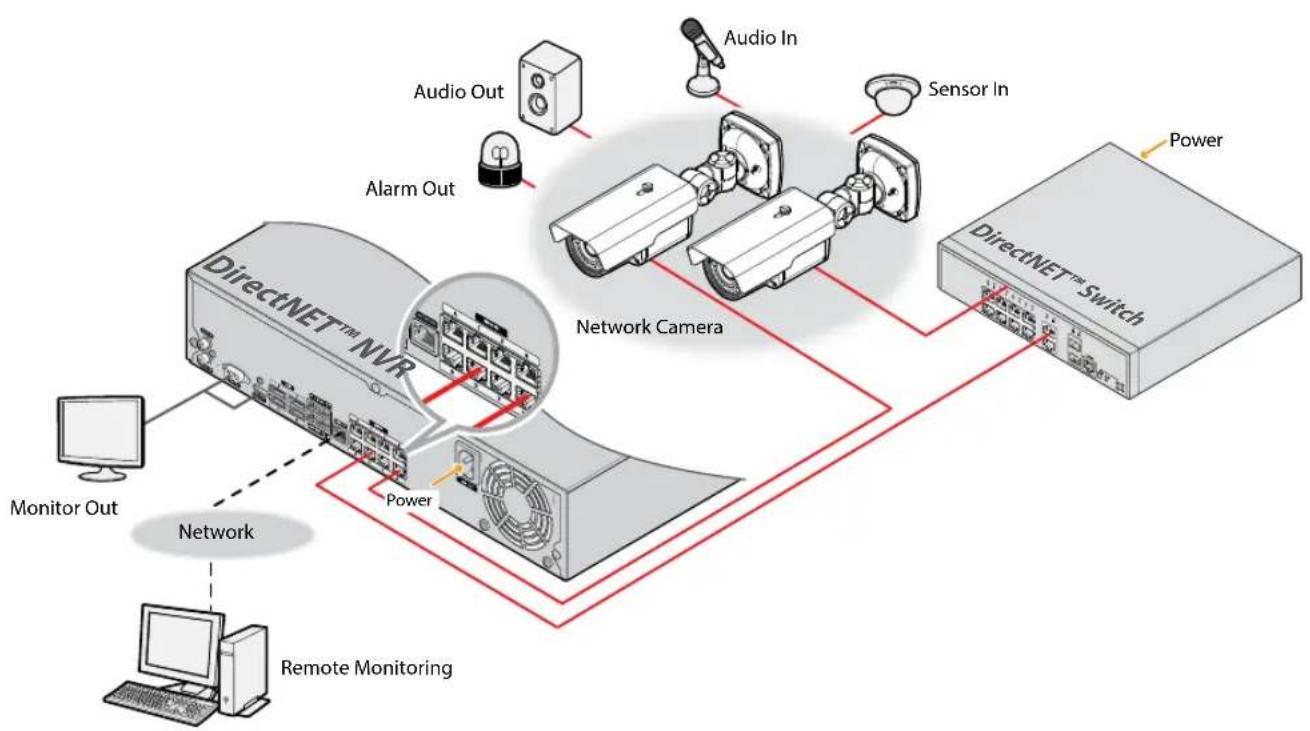

With DirectNET™ NVR-based Layout....15

With non DirectNET™ NVR-based Layout 16

3

Part 3 - Appendix....17

Troubleshooting ....17

Specifications 18

Product Features

This camera is an IP-based network camera that compress and transmit video over ethernet.

You can use the INIT program to change network camera settings or the INEX Basic program to manage multiple network cameras. In addition, the embedded web server (WebGuard) lets you remotely view live video using a web browser. In addition, you can use the INEX Basic to manage network cameras and view/record video.

In this manual, the term Remote System refers to the computer on which the remote program (INEX Basic or WebGuard) is running.

• Supports DirectNET mode working with a DirectNET™ NVR that allows users to simply set up all required configurations without a PC
  • Supports ONVIF protocol (Core specification version 2.4.0)
• Multi-streaming for high-resolution and high-quality video monitoring and simultaneous recording in real-time as well as flexible configurations for those
  • Supports H.264 and H.265 video compression and M-JPEG still image compression algorithms

• Supports 4-stage video compression rate and multiple compression resolutions
- Two-way audio communication support for remote audio dialog
- Video stream buffering to counter pre-/post-event buffering and network delays for improved network recording reliability
- Remote monitoring via web browser or remote software
• Automatic web casting code (HTML) generation
- Up to 10 simultaneous remote monitoring connections
- IP filtering, HTTPS, SSL, IEEE 802.1X, and configurable user authority levels for greater security
• Network bandwidth limitation and MAT features for more efficient use of network bandwidth

• Easy network access via UPnP (Universal Plug and Play) function and embedded mDNS (Multicast DNS) protocol
• Wide dynamic range compensation (True WDR) for improved video quality in high-contrast situations
• Slow shutter support for improved low-lighting video capture performance
  • Day & Night feature (built-in IR cut filter changer)
  • Auto focus functionality
  • Video out feature (selectable NTSC/PAL)
• Quick and easy firmware upgrade over the network
• Redundant firmware and auto recovery features for improved system stability
  • Network-based integrated management of multiple network cameras

• Multiple event detection modes
• Includes a motorized focus and zoom lens
- Backup storage on a microSD memory card as a safeguard against data loss during network interruptions
• Supports 12 VDC and PoE (Power over Ethernet)
• Built-in heater allowing operation in a sub-zero temperature

Remote monitoring and recording via multistreaming are available using the INEX Basic program. For more information on using INEX Basic, refer to its operation manual.

There is a limit to the number of users allowed to connect remotely via the Internet at the same time.

Accessories

Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model.

Network Camera Ferrite Core
Mounting Bracket Camera Sun Shield
Quick Guide Screws (4 ea.)
Allen Wrench Sun Shield Screw, O Ring (1 ea.)

Overview

Product color and design may vary depending on the model.

Body

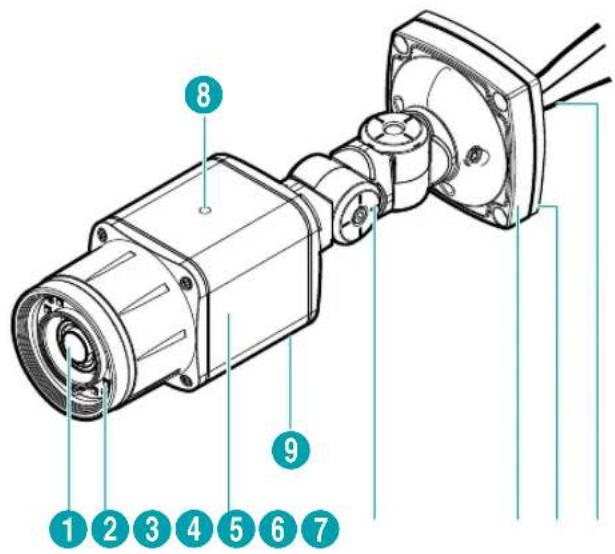

8 9 1 2 3 4 5 6 7

1	Lens
2	IR LED
3	Body
4	Stand
5	Bottom Cover
6	Mounting Bracket
7	Cable
8	Sun Shield Screw Hole
9	SD Memory Card Slot, Factory Reset Button

- Lens

Motorized lens is installed.

- IR LED

A sensor in the bottom middle monitors lighting levels and activates the IR LED during low-lighting conditions.

- Body

The cables are connected through the stand.

- Stand

Allows you to adjust the camera direction and lens' rotation angle. Twist the setscrews counterclockwise and move the camera to the desired direction. Once it is set, twist the setscrews clockwise to lock it.

- Bottom Cover

Allows you to mount the camera to the wall or ceiling using the mounting bracket provided with the camera.

- Mounting Bracket

Allows you to mount the camera to the wall or ceiling.

- Cable

Refer to the Cable.

• Sun Shield Screw Hole

Allows you to screw the sun shield to the camera.

• SD Memory Card Slot

Used to insert a microSD memory card into the camera. (An SLC (Single Level Cell) or MLC (Multi Level Cell) card by SanDisk or Transcend is recommended)

Part 1 - Introduction

• To remove/insert the SD memory card or perform the factory reset, make sure that the lens side's cover is joined properly when screwing it. Otherwise, the IP66 level is not guaranteed. For more information, contact your product retailer.

- Do not remove the SD memory card while the system is in operation. Removing the card while the system is in operation can cause the system to malfunction and/or corrupt data stored on the SD memory card.

- An SD memory card is a consumable product with a finite service life. Prolonged use will damage the card's memory sectors and result in data loss or memory card failure. Test the SD memory card regularly and replace it whenever necessary.

- Factory Reset Button

Factory reset button is under the SD memory card slot. Restores the camera's default factory settings. For more information, refer to the Factory Reset.

Technical diagram of a mechanical assembly with a component inserted, showing a blue arrow indicating direction (no text or symbols present)

Cable

Diagram of an electrical connector with labeled pins and internal wiring connections

1	Network Port
2	BNC Video Out (Yellow Cable)
3	Power In (Red Cable)
4	FGND
5	Audio In
6	Audio Out
7	Alarm In
8	Alarm Out

- Network Port

Connect a network cable with an RJ-45 connector to this port. If using a PoE switch, you can supply power to the camera using an ethernet cable. For more information on PoE switch use, refer to the switch manufacturer's operation manual. You can configure, manage, and upgrade this camera and monitor its images from a remote computer over the network. For more information on network connection setup, refer to the INIT operation manual.

The table below shows the network cable specifications. (The network cable specifications>

Item Content Note
Connector	RJ-45
Ethernet 10	/100/1000 Base	10/100/1000 Mbps
Cable	UTP Category 5e or higher
Maximum length	100m
PoE	IEEE 802.3af, Class 3

• Video Out (BNC)

Connect the monitor. Use these ports for previewing video and not monitoring video.

• Power In

Connect to the power adapter (12 VDC).

• FGND (Frame Ground)

Used to ground the device.

- Audio In

Connect an audio source to this port. (line in)

- Audio Out

Connect an amplifier to this port (line out). This device does not feature a built-in audio amplifier unit and therefore requires the user to purchase a separate speaker system with a built-in amplifier.

- Alarm in

Connect an alarm-in device to this port. Connect a mechanical or electrical switch to the IN and GND (ground) connectors. Alarm in range is 0V to 5V. In order to detect alarm input from an electrical switch, the signal must be higher than 4.3V from an NC switch or less than 0.3V from an NO switch and must last for longer than 0.5 seconds.

- Alarm Out

It is the BJT (Bipolar Junction Transistor) - open collector output. If the voltage and current exceed the specification limit (max. load: 30mA, max. voltage: 5VDC), the product could be damaged. When connecting the device which exceeds the specification limit, refer to the picture (circuit) below

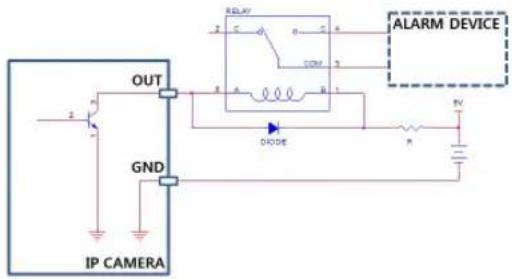

If used with an external inductive load(e.g. relay), a diode must be connected in parallel with the load for protection. Otherwise, the product could be damaged.

OUT GND IP CAMERA RELAY ALARM DEVICE DIODE R R1 R2 R3 R4 R5 R6 R7 R8 R9 R10 R11 R12 R13 R14 R15 R16 R17 R18 R19 R20

• Check your local laws and regulations on making video or audio recordings. The user will be held liable for any violation of the law.
• When switching over from 12 VDC to PoE as the power source, the system will be rebooted once the power adapter is disconnected.
• Organize the power cable so that it will not cause people to trip over or become damaged from chairs, cabinets, desks, and other objects in the vicinity. Do not run the power cable underneath carpet or a rug or plug the cable into a power outlet shared by a number of other devices.
• Wrap the camera-end of the network cable twice around the provided ferrite core to subdue electromagnetic wave generation.

Ferrite Core LAN Cable

- The network connector is not designed to be connected directly with cable or wire intended for outdoor use.

Factory Reset

Only use the factory reset button to restore the camera to its factory default settings.

A factory reset will clear all camera settings configured by the user.

1 Shut off the power supply.
2 Remove the SD memory card slot cover.
3 Press and hold the reset button down
4 Hold the button down and reconnect the power adapter.
5 Once the device turns back on, wait 5 seconds, and then release the reset button.
6 The device will go through the resetting process and reboot. All camera settings will be restored to their factory defaults after the reboot.

It's also possible to do a factory reset by pressing and releasing the reset button while the camera is turned on or using the INIT program from a remote location. A factory reset will reboot the system. For more information on factory reset, refer to the INIT operation manual.

Installation

Installation of this product does not require the use of special tools.

For more information on other devices comprising the overall system, refer to their respective installation manuals.

Product color and design may vary depending on the model.

Inserting a SD Memory Card

1 Loosen the screws counterclockwise and remove the cover.

Technical diagram of a mechanical device with a rotating tool and highlighted section (no text or symbols)

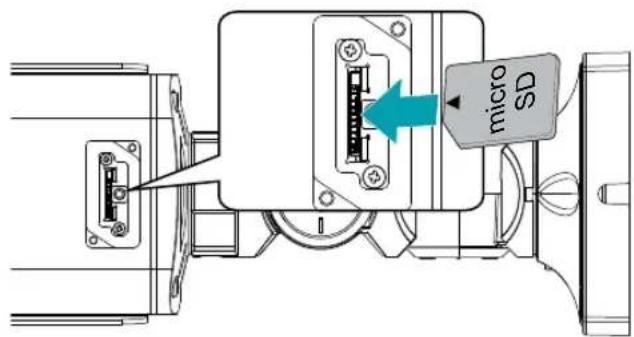

2 Insert a SD memory card into the SD memory card slot with the 'micro SD' print facing upward.

micro SD

Push the SD memory card until it disengages from the slot, and then pull it out.

3 Cover the lens bottom's cover and tighten the screws clockwise.

Technical diagram of a mechanical device with a rotating tool and highlighted component (no text or symbols)

Make sure that the lens bottom's cover is joined properly when screwing it; otherwise, the IP66 level is not guaranteed.

Part 1 - Introduction

Installation

- Check the wall or ceiling to see if it needs to be reinforced. The camera may fall off if the wall or ceiling is not strong enough to support its weight.

• Install the camera in a shaded area. If the camera is installed in direct sunlight, it may affect adversely.

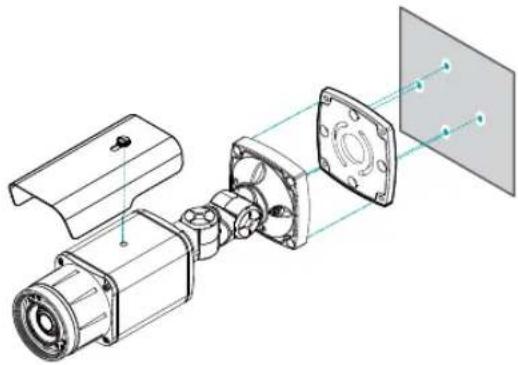

Exploded view diagram of a mechanical assembly showing internal components and alignment (no text or labels)

1 Screw the camera sun shield to the camera using the screw and rubber provided with the camera.
2 Screw the mounting bracket to the wall or ceiling by using screws provided with the camera.
3 Screw the bottom cover to the mounting bracket by using screws provided with the camera.
4 Adjust the camera angle by bending the stand.
5 Connect external devices, network and power adapter.
6 Apply power.

Dimensions

76mm (2.99") 175.3mm (6.90") 140mm (5.51") 315.3mm (12.41)

76mm (2.99") 90mm (3.54") 76mm (2.99") 90mm (3.54")

Part 2 - Camera Connection

Use the camera by connecting to DirectNET™ NVR or non DirectNET™ NVR, VMS such as iNEX Basic.

With DirectNET™ NVR-based Layout

DirectNET™ NVR makes it easy to use cameras without extra network configurations.

Each camera can be controlled via the DirectNET™ NVR setup menu, without any PC.

For detailed camera settings, please see the camera setting pages of DirectNET™ NVR manual.

For users using the camera with DirectNET™ NVR connection, do not need to consider contents in the camera operation manual.

With non DirectNET™ NVR-based Layout

Control the camera over the network from software installed on a computer. Ideal for using the camera over the network from a remote location.

The contents in the camera operation manual are only for users using the camera with non DirectNET™ NVR connection or VMS connection such as iNEX Basic.

Part 3 - Appendix

Troubleshooting

Problem Check
The main unit won't turn on.	Check the power cable connection.Check the power outlet.
I can't see Live videos.	Check the camera's power status.Check the network connection status of the computer and the network camera.
Images are blurry.	Make sure the lens is clean. If not, clean it using a soft piece of cloth or a brush.Make sure the lens is in focus.If there is too much light coming into the camera or the camera is picking up an overly bright light source, adjust the camera's position/angle accordingly.
Video color appears incorrect.	Check the white balance settings. If using theAutooption, it may take some time for the white balance to be adjusted.
Images are blinking.	If the camera is pointed at the sun or a fluorescent lamp, adjust the camera's angle away.
Lost the admin ID and password and unable to connect to a network camera.	Ask your dealer or distributor.
Unable to launch WebGuard.	If the WebGuard login screen is not loading, check which version of Microsoft Internet Explorer you are using. WebGuard may not launch properly on versions 8.0 or below.

Specifications

These product specifications may change without prior notice.

Video

Image Sensor	1/1.9" CMOS
Max. Resolution	1920 x 1080
Scanning Mode	Progressive Scan
Lens type	Motorized Vari-focal
Focal Length	f=4.4 - 10.0mm
Aperture	F1.2 - 1.95
Iris Control	P-Iris
Angular Field of View	Wide : 91.5°(H), 48.4°(V), 109°(D)Tele : 43.4°(H), 24.2°(V), 49.9°(D)
Min. Illumination	COLOR : 0.01 lux F1.2B/W : 0 lux (IR LED ON)
Dynamic Range	120 dB, True WDR
Electronic Shutter Speed	Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter(1~1/5,1/7.5,1/15)
Day & Night	IR cut filter with auto switch
IR Distance (LEDs)	30m (10ea)
Video Out *	1 BNC

* Use this port for previewing video and not monitoring video.

Network

Video Compression		H.264(MP), M-JPEG, H.265
Bitrate Control		CBR / VBR
Max. Frame Rate		60fps : 1920 x 108030fps : 1920 x 1080(WDR)
Audio Compression		G.726, G.711
Supported Resolution	DirectNETTM	1920x1080, 1280x720, 704x480, 640x360, 352x240
	Non DirectNETTM	1920x1080, 1280x720, 704x480, 640x360, 352x240
Multi-Video Streaming	DirectNETTM	Quadruple
	Non DirectNETTM	Quadruple
Ethernet		RJ45(10/100/1000BASE-T)
Edge Storage** (Optional)		micro SDTM (micro SD/SDHC/SDXC memory card (class 6 or higher, max. 128GB)

** An SLC (Single Level Cell) or MLC (Multi Level Cell) card by SanDisk or Transcend is recommended to ensure stable recording performance.
** An SD memory card is a consumable product with a finite service life. Prolonged use will damage the card's memory sectors and result in data loss or memory card failure. Test the SD memory card regularly and replace it whenever necessary.
** microSD logo is a trademark of SD-3C, LLC.

I/O

Audio In/Out	Line-in 1ea / Line-out 1ea
Alarm In	1 TTL, NC/NO Programmable, 4.3V(NC) or 0.3V(NO) threshold, 5V DC
Alarm Out	1 TTL open collector, 30mA @ 5 VDC

General

Vandal Resistance	Yes
Out-door Ready	IP66, Heater
Operating Temperature	-40°C ~ +60°C (-40°F ~ +140°F)
Boot Up Temperature	-20°C ~ +60°C (-4°F ~ +140°F)
Operating Humidity	0% ~ 90%
Power Source	12VDC, PoE(IEEE 802.3af class 3)
Power Consumption	Max. 9.6W
Approval	FCC, CE
External Dimensions (∅ x H)	90mm x 315.3mm
Packaging Dimensions (W x D x H)	375mm X 219mm X 133mm
Weight (Main Unit)	2.91 lbs. (1.32kg)
Weight (Packaging)	4.74 lbs. (2.15kg)

COSTAR

COSTAR VIDEO SYSTEMS

101 Wrangler, Suite 201 Coppell, Texas 75019

Phone: [phone]

Fax: [phone]

Toll-free: [phone]
