USER MANUAL CDI2112PZ Costar

Close-up of a white surveillance camera with a spherical lens and 'Costar' logo on the cap (no additional text or symbols visible)

Please read this manual thoroughly before use and keep it handy for future reference.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT.

CAUTION

Warning symbol image showing a lightning bolt inside a triangle with a downward arrow

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Warning symbol image with exclamation mark inside a triangle

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

EXPLANATION OF GRAPHICAL SYMBOLS

Warning symbol image showing a lightning bolt inside a triangle with a downward arrow

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Warning symbol image with exclamation mark inside triangle

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

FCC COMPLIANCE STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC INFORMATION: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This Class A digital apparatus complies with Canadian ICES-003.

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED

BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING

TO THE INSTRUCTIONS.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. CAUTION - THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.

16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power source only.

17. ITE is to be connected only to PoE networks without routing to the outside plant.

Symbolic icon of a person climbing a ladder inside a circle with no text or symbols

TABLE OF CONTENTS

1. Description....7

1.1 Components ...... 7
1.2 Key Features....8

2. Installation....9

2.1 Installation 9
2.2 Basic Configuration of Camera System....11
2.3 Connections.... 12
2.4 Network Connection & IP assignment 13

3. Operation....14

3.1 Access from a browser 14
3.2 Access from the internet.... 15
3.3 Setting the admin password over a secure connection .... 15
3.4 Live View Page 15

3.5 Network Camera Setup 17

3.5.1 Basic Configuration.... 17

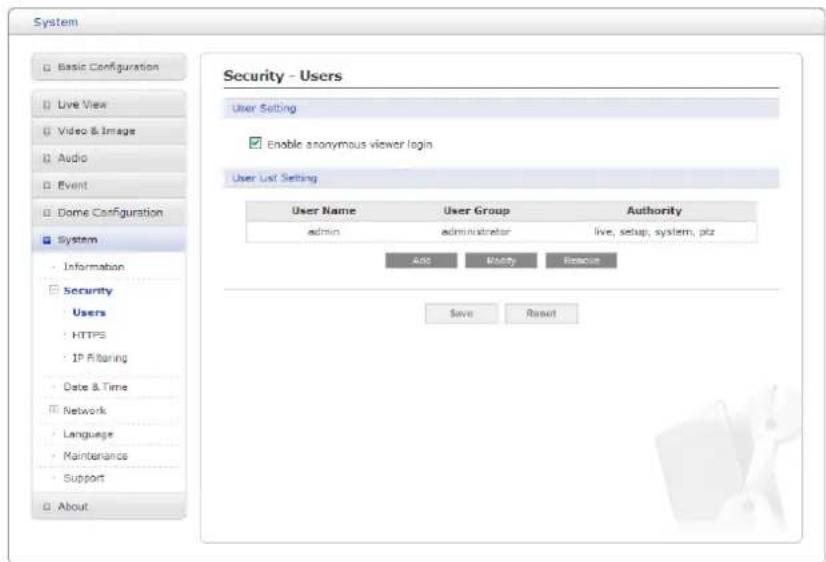

1) Users.... 18
2) Network....19
3) Video & Image 20

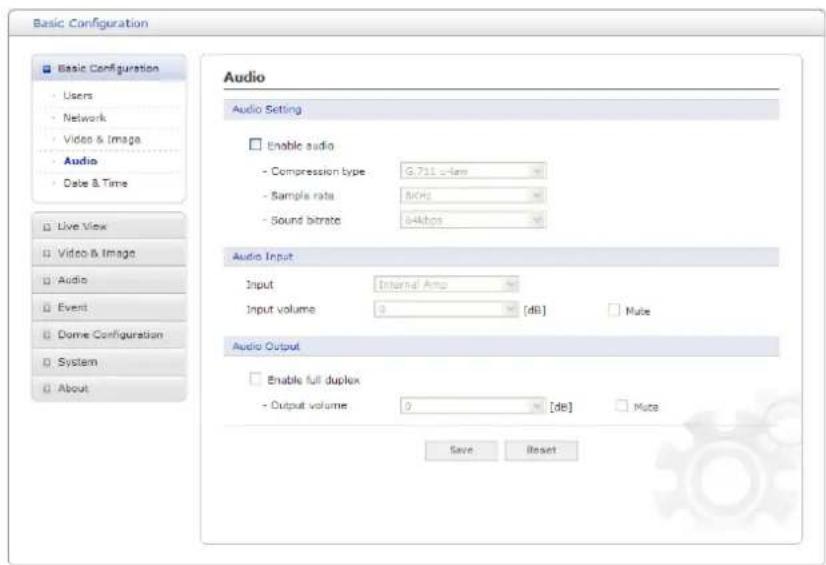

4) Audio....22

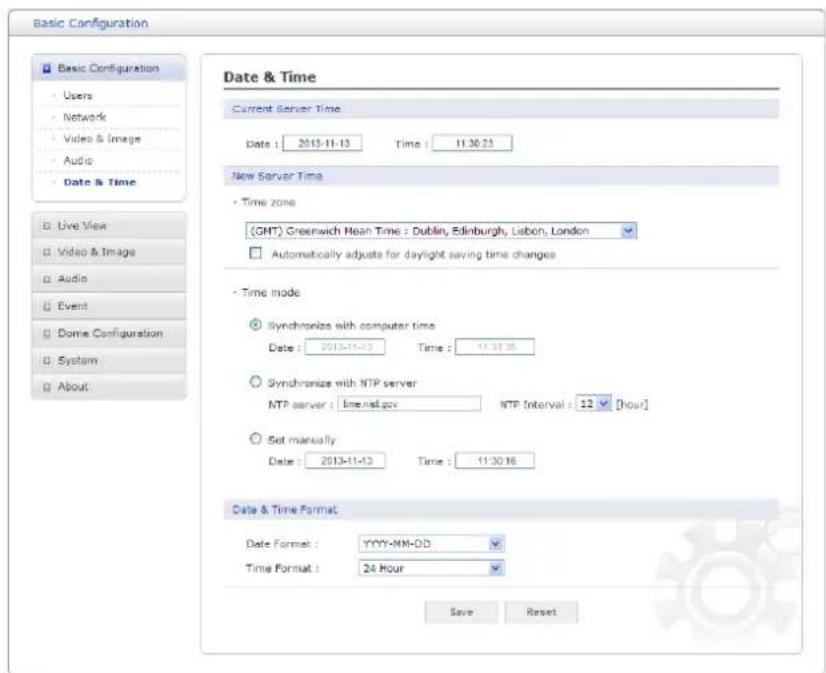

5) Date & Time 23

3.5.2 Live View 24

3.5.3 Video & Image 24

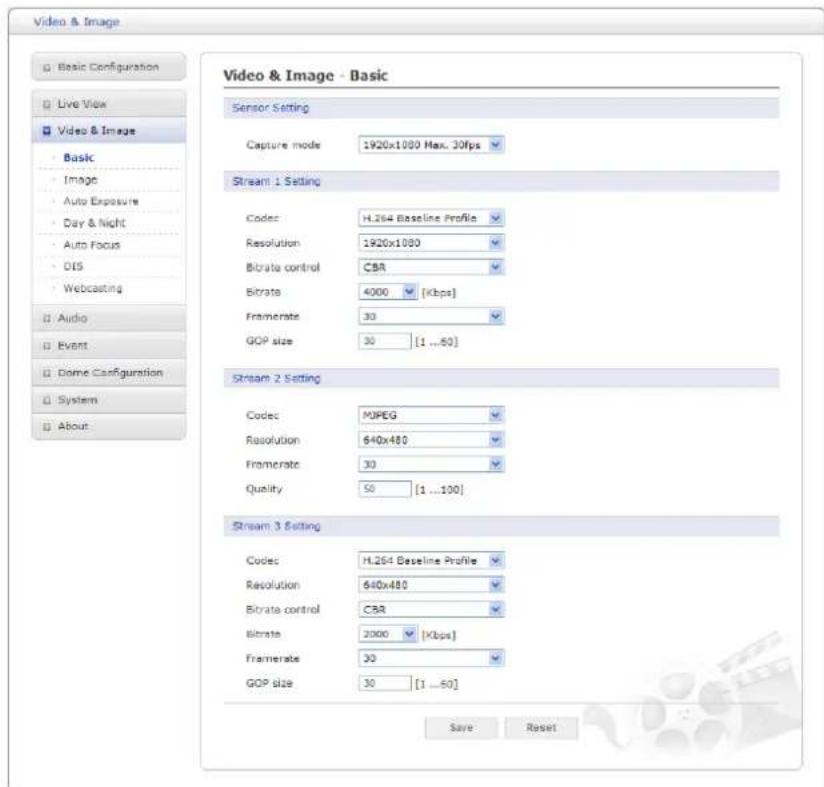

1) Basic 24
2) Image.... 25

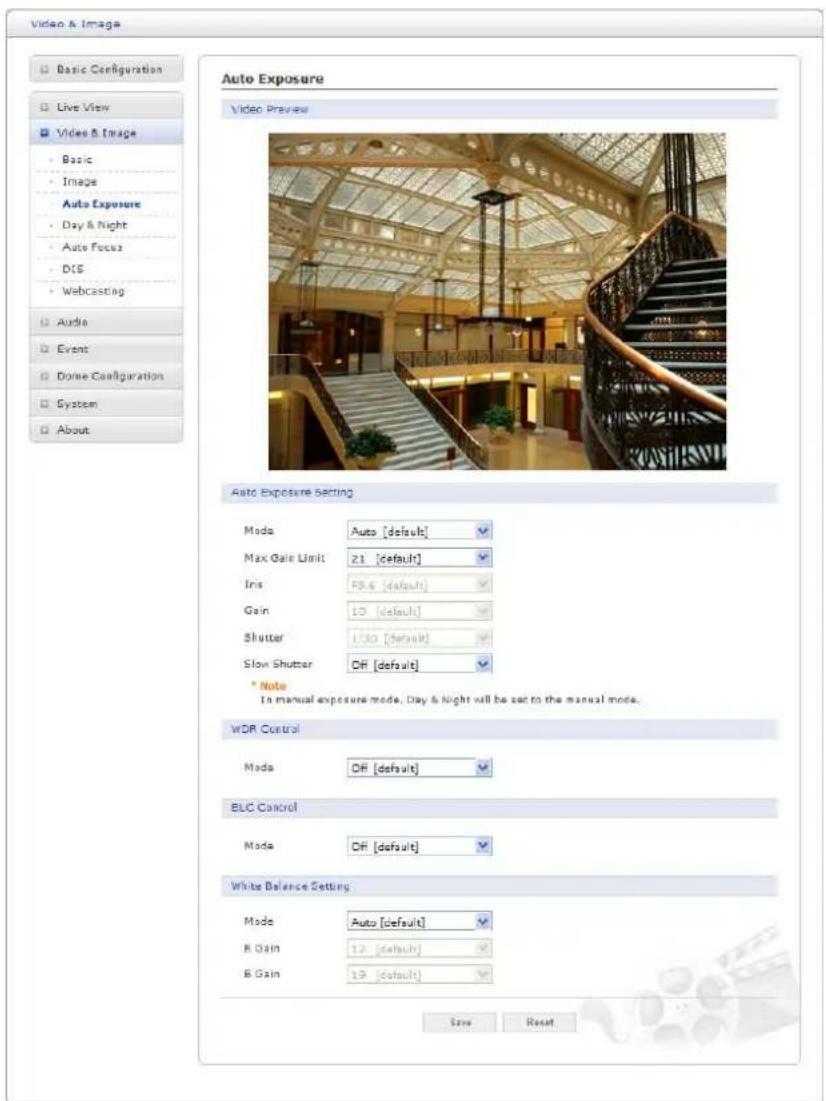

3) Auto Exposure....26

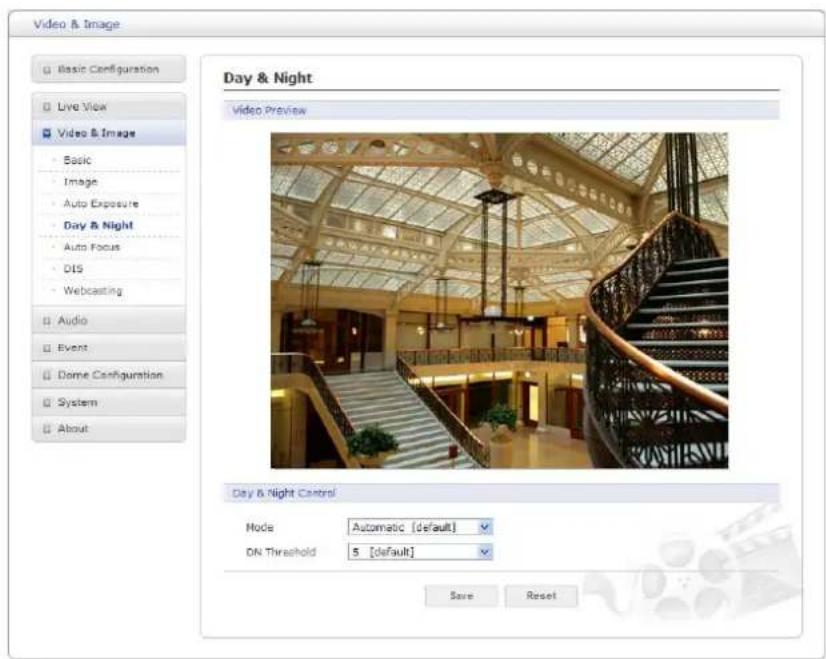

4) Day & Night....27
5) Auto Focus 28
6) DIS....29
7) Webcasting....29

3.5.4 Audio 30

3.5.5 Event....30

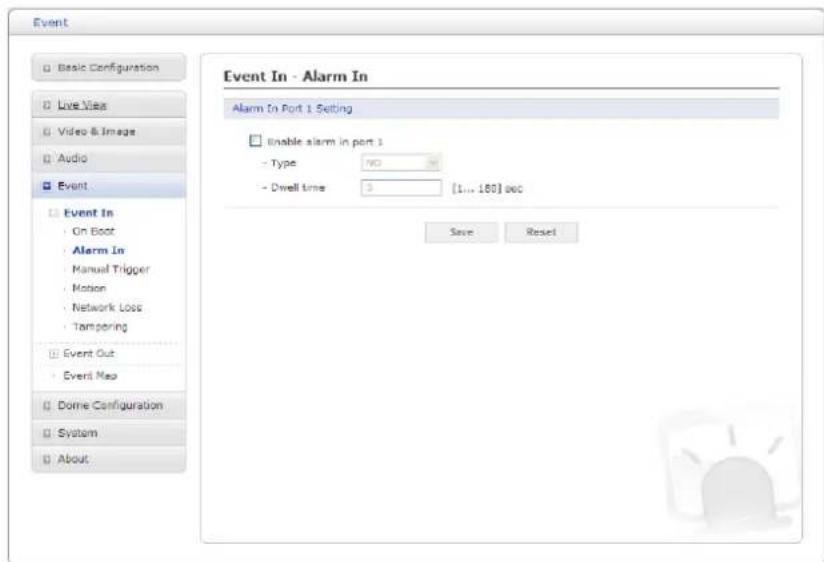

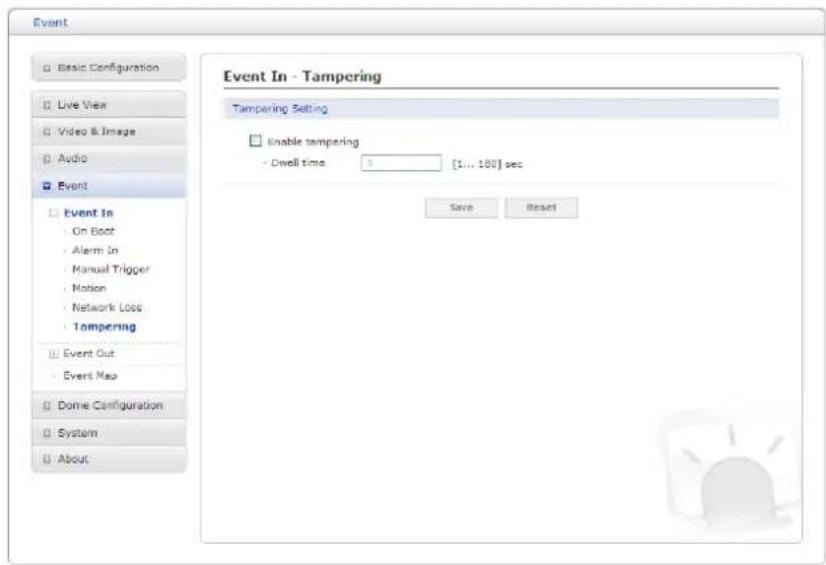

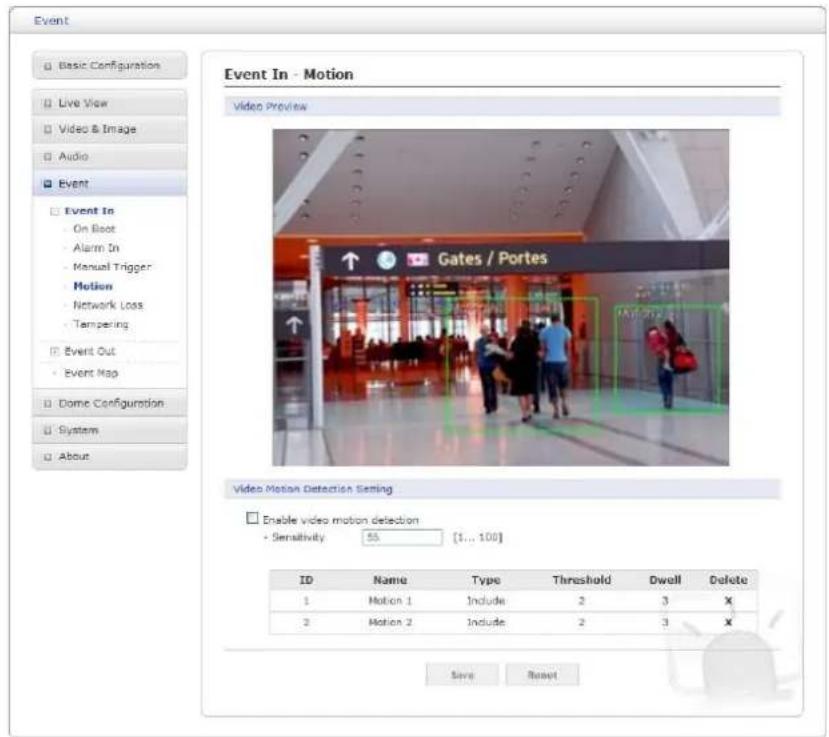

1) Event In....30

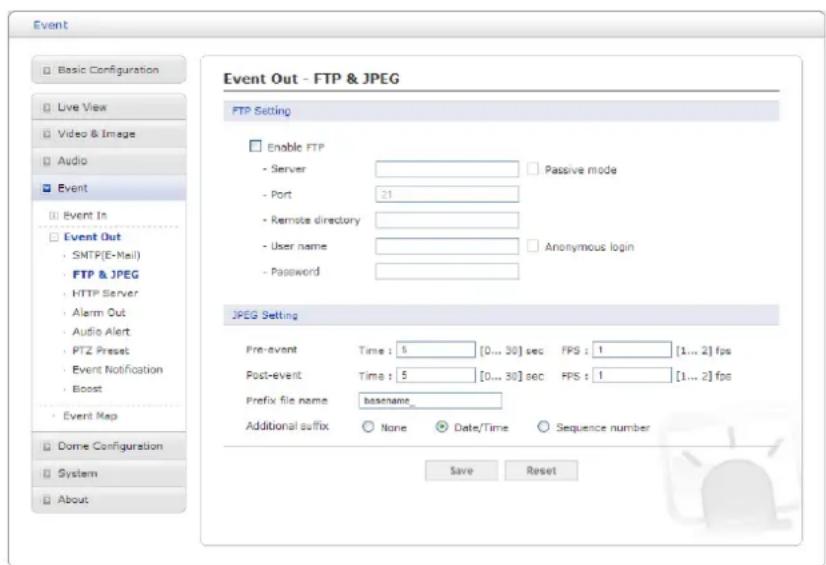

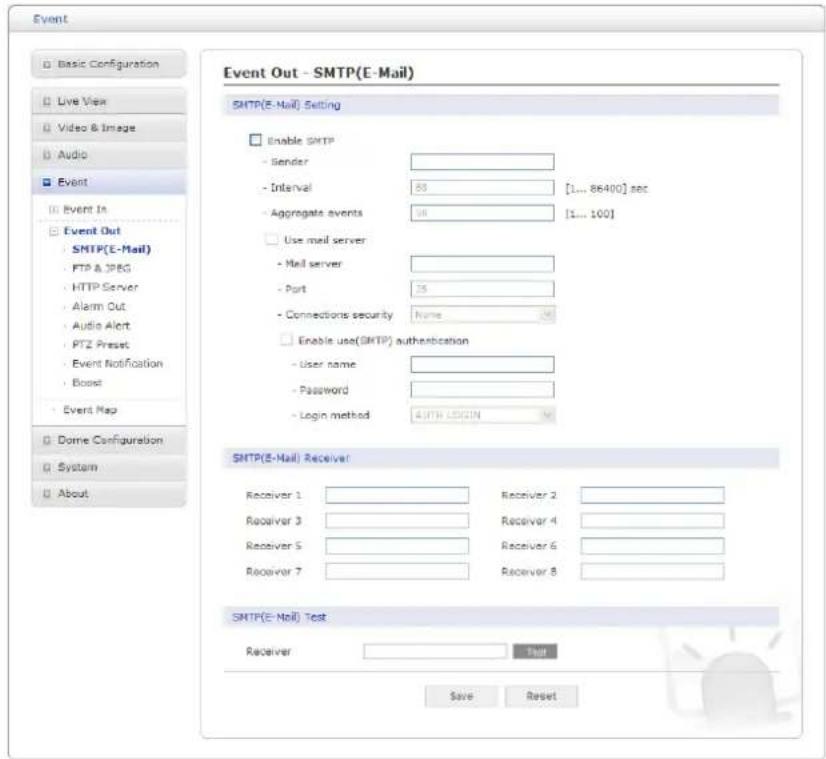

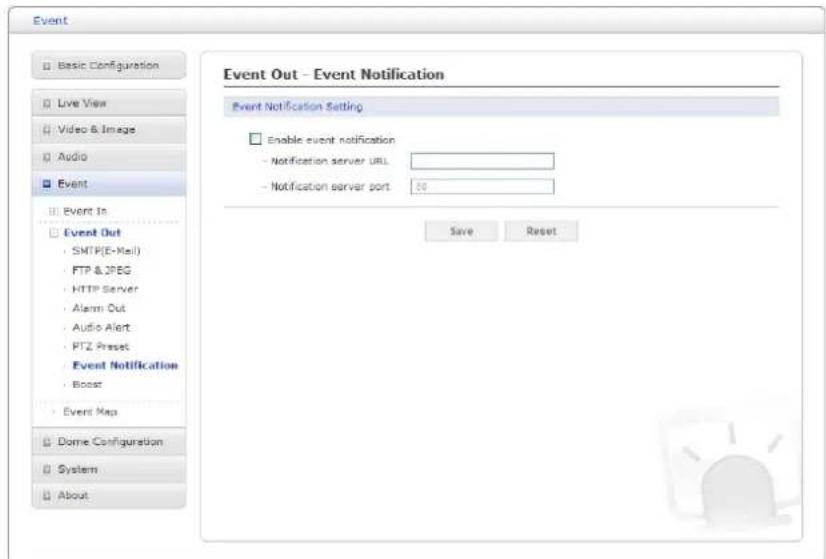

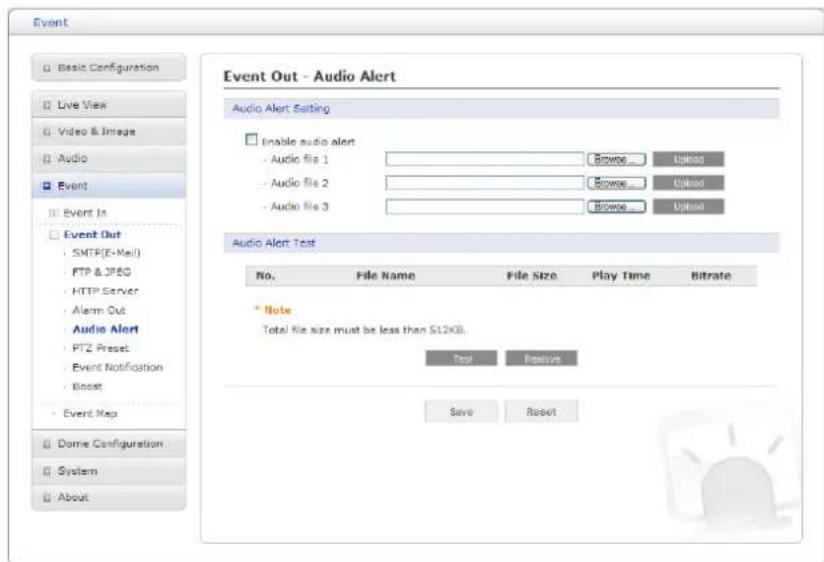

2) Event Out....34
3) Event Map 40

3.5.6 Dome Configuration....42

1) Preset......42

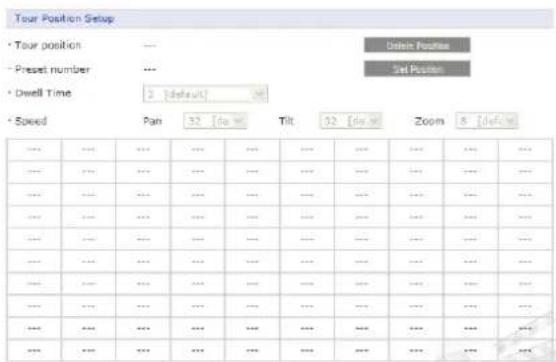

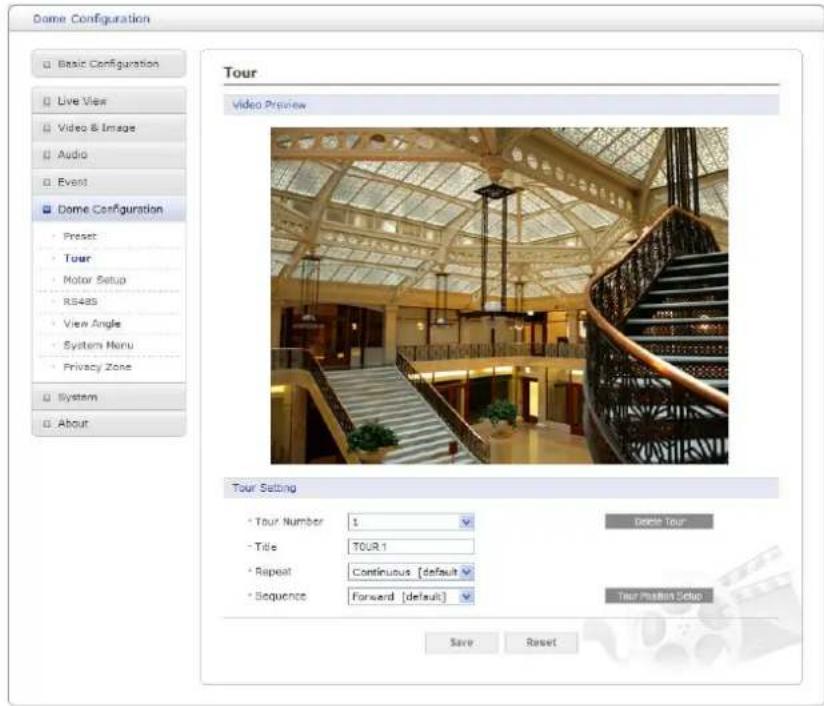

2) Tour....43
3) Motor Setup 44

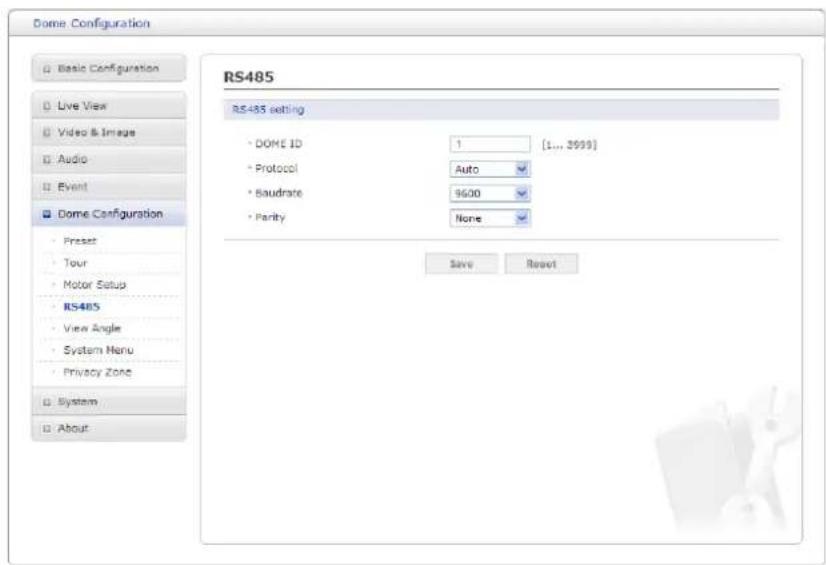

4) RS485....45

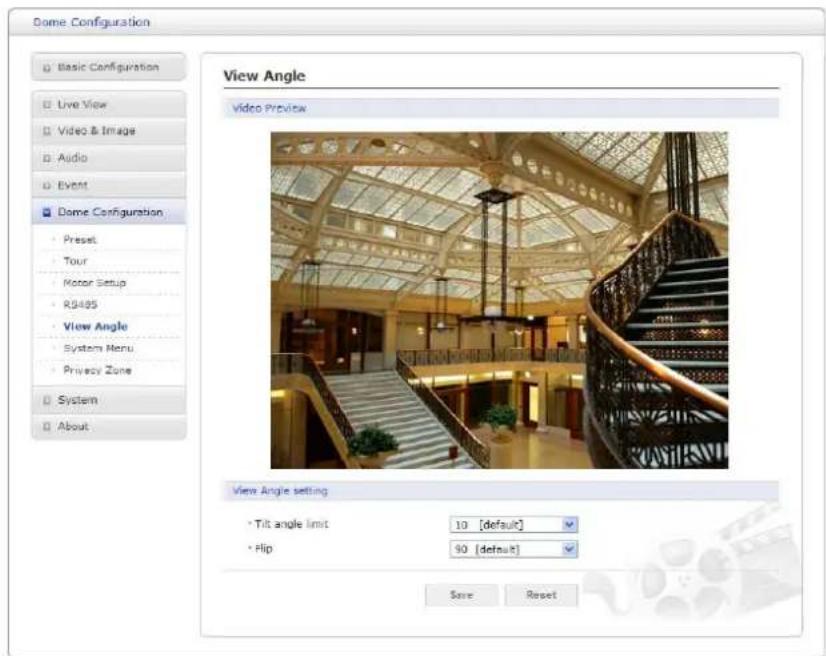

5) View Angle 45
6) System Menu....46
7) Privacy Zone....47

3.5.7 System 48

1) Information 48
2) Security......48
3) Date & Time .... 50

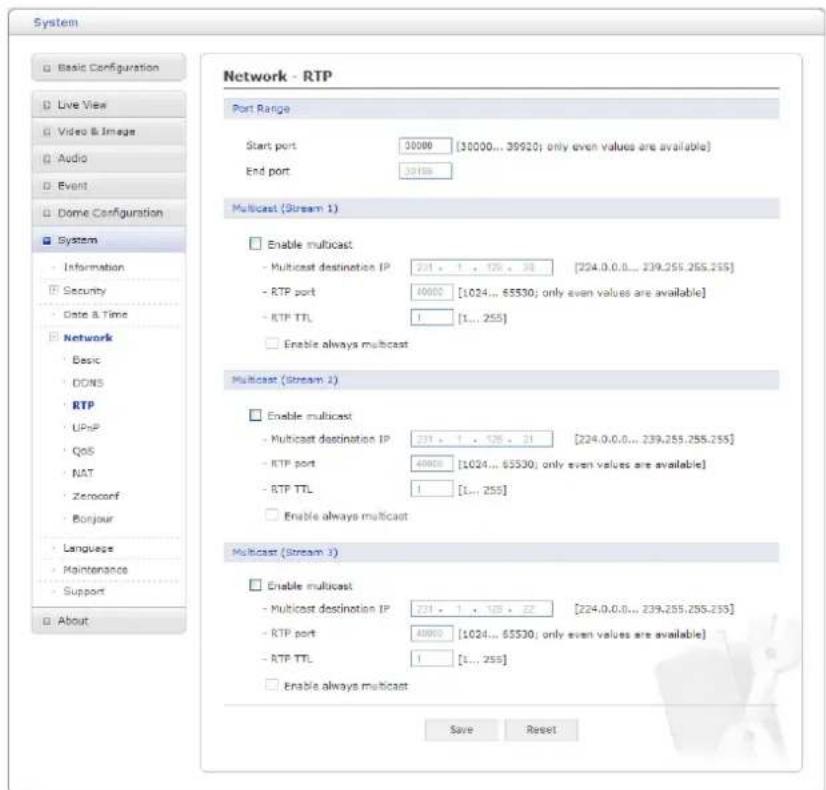

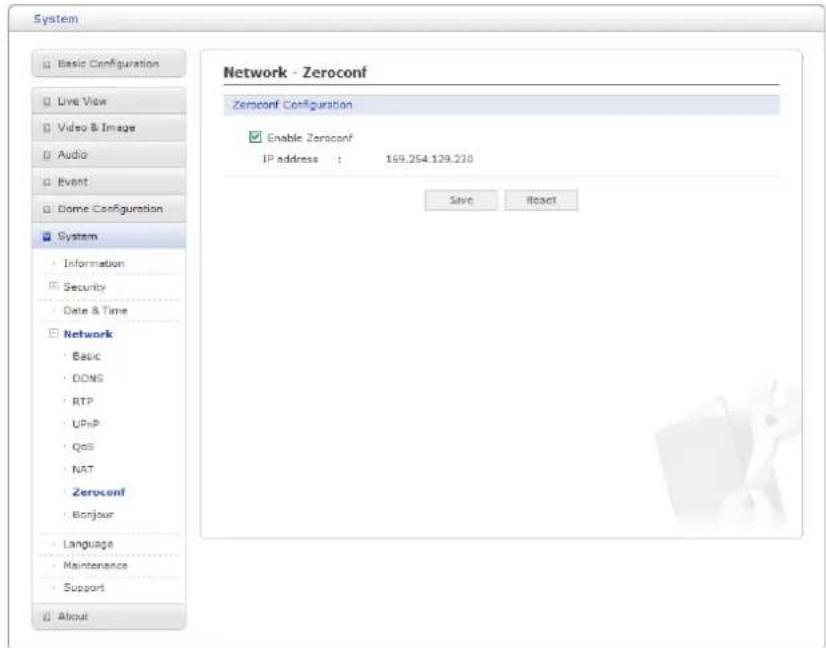

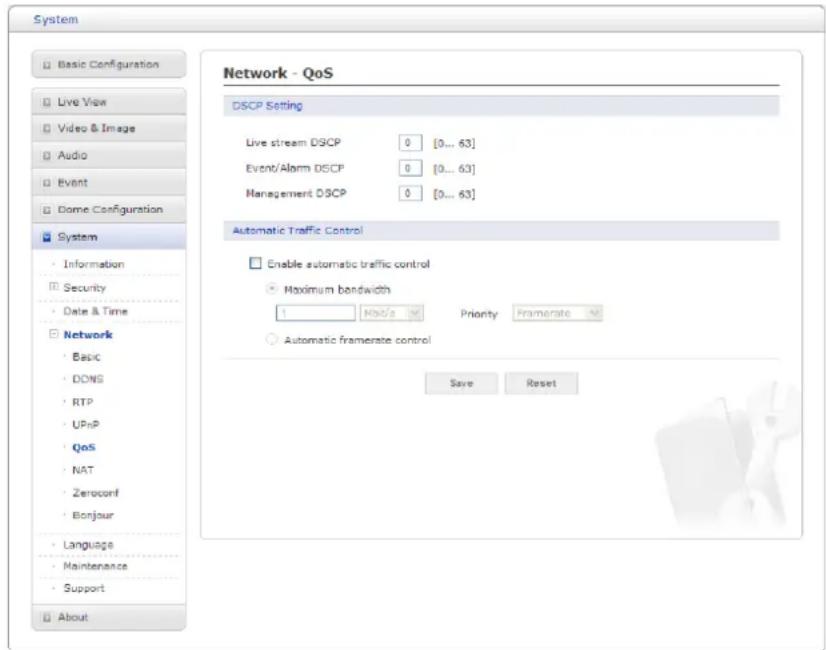

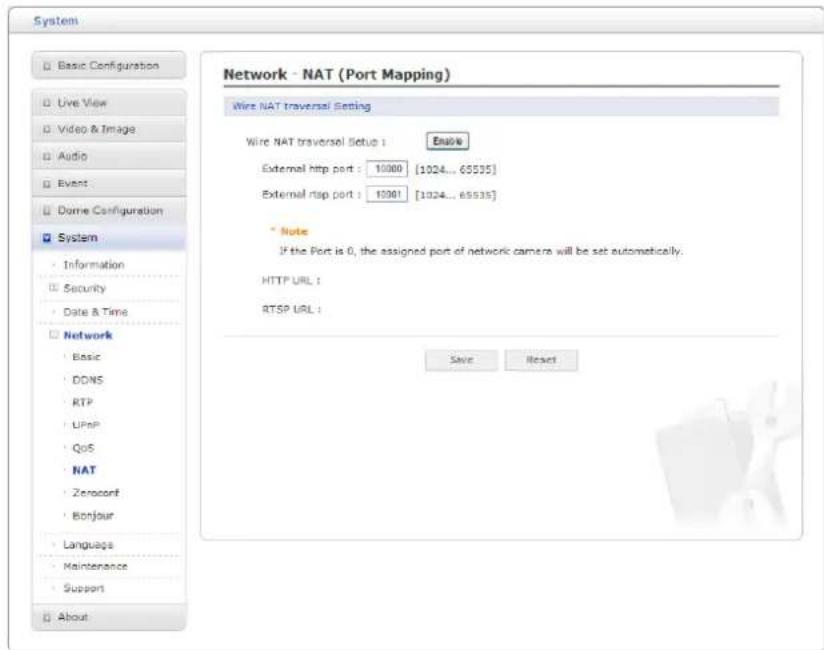

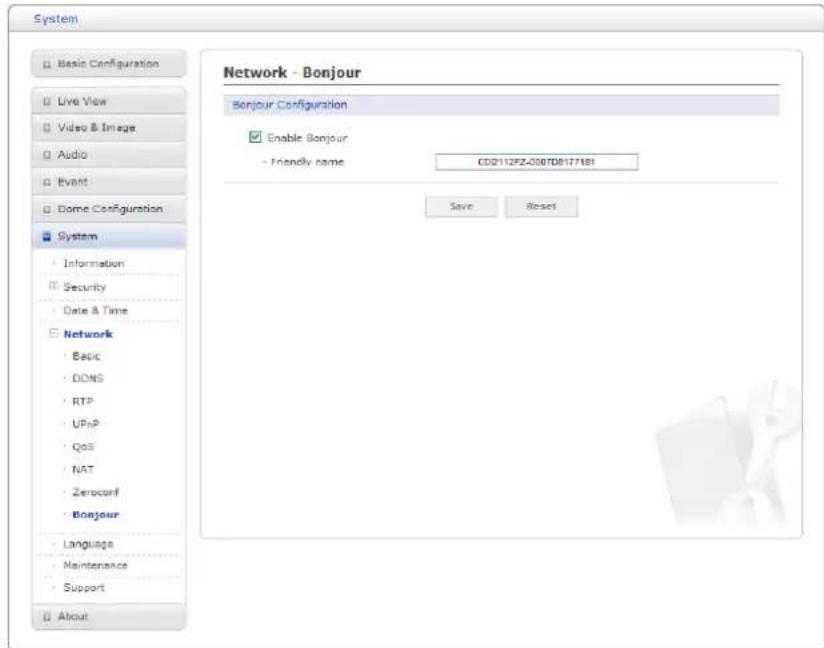

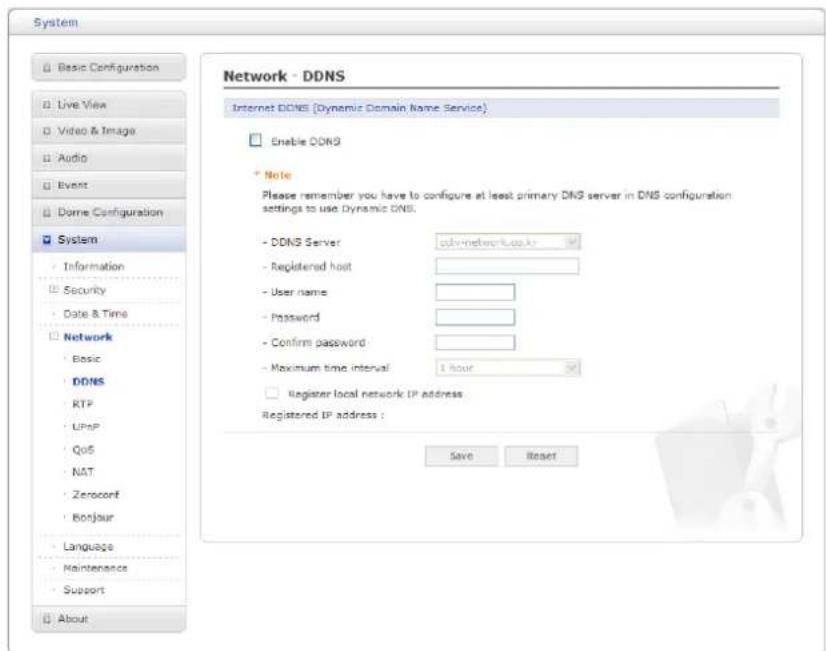

4) Network....51
5) Language....59

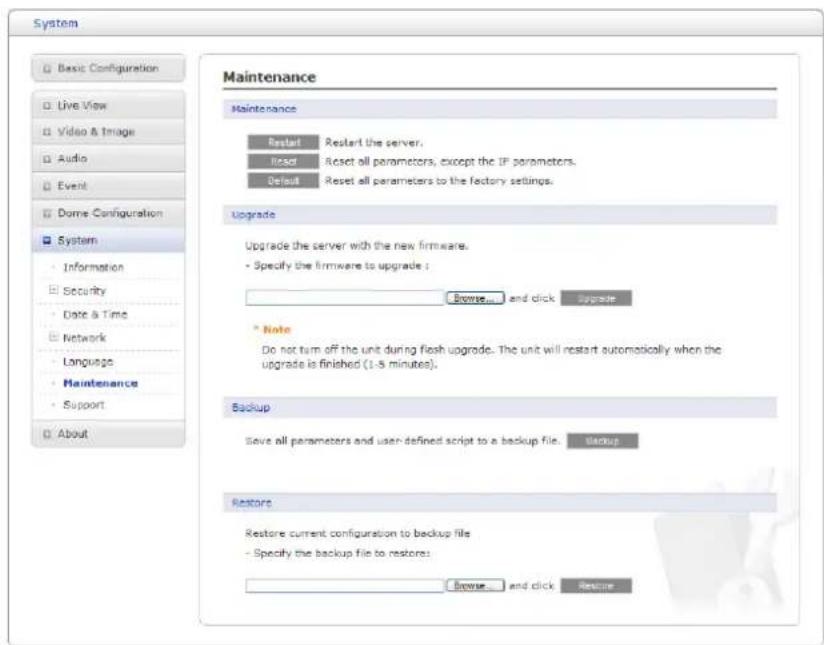

6) Maintenance 60

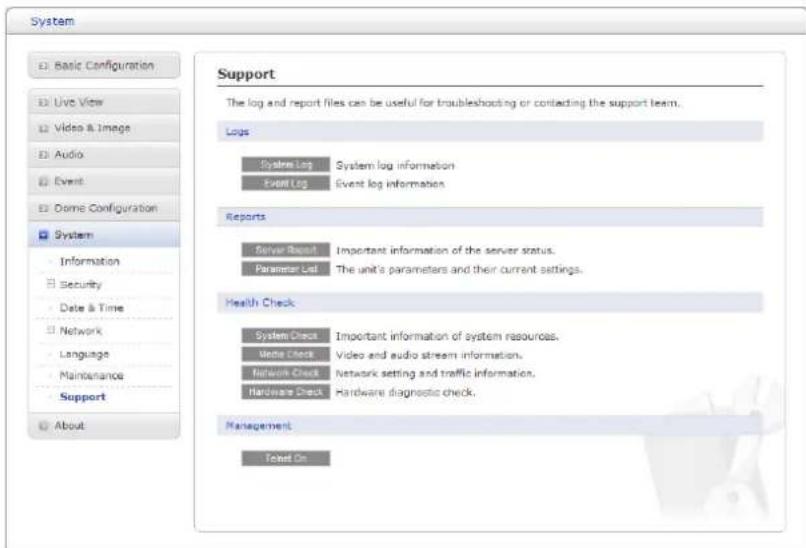

7) Support 61

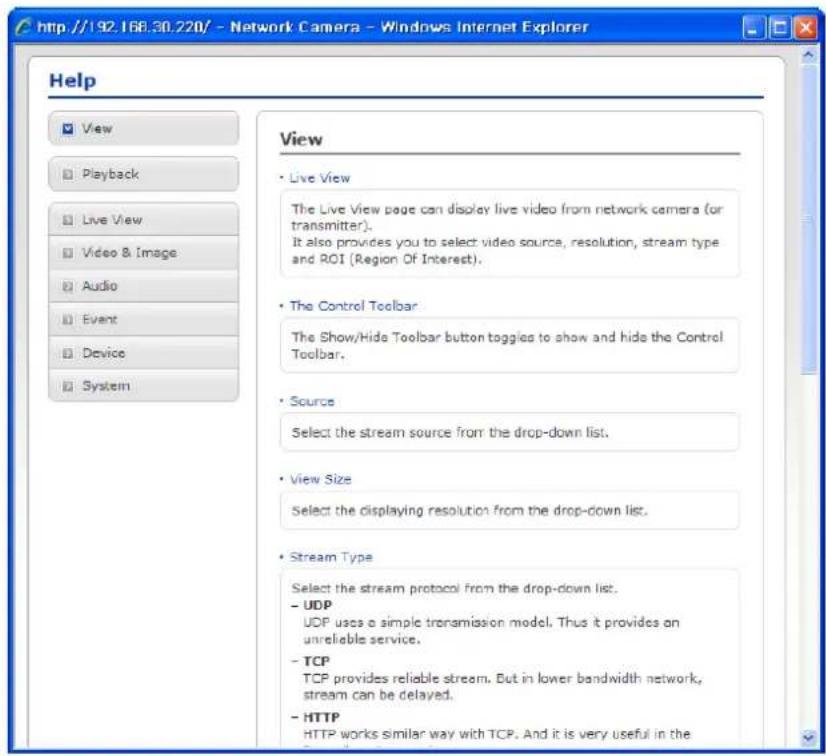

3.6 Help 63

3.7 Resetting to the factory default settings....63

4. Appendix ......64

4.1 Troubleshooting 64
4.2 Alarm Connection....65
4.3 Preventive Maintenance....65

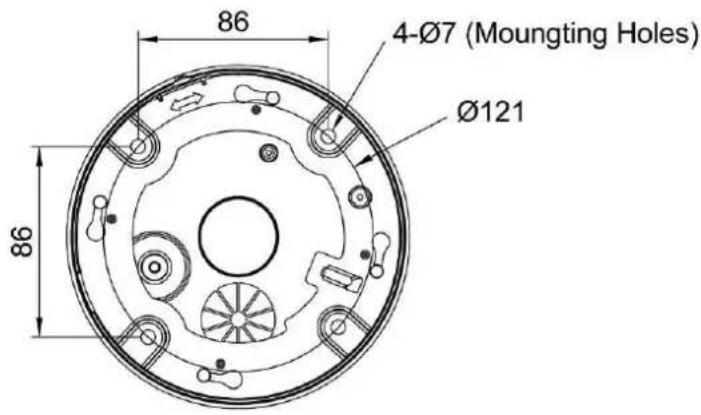

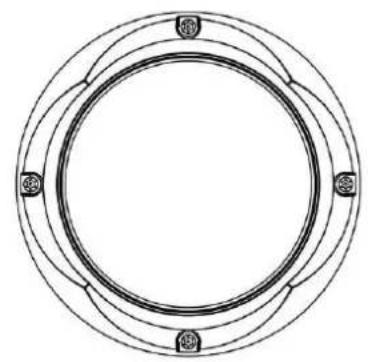

4.4 Product Specification....66
4.5 System Requirement for Web Browser....69
4.6 General Performance Considerations....69

1. Description

The network camera supports the network service for a sensor image with progressive scan, which can be monitored on a real-time screen regardless of distances and locations. By using its dedicated program, many users are able to have an access to the network camera at once or a single user can monitor various network cameras at the same time. It also enables users to play, store and retrieve a monitoring image by using a PC. All the settings and real-time monitoring screens are also provided through an access to the web.

The network camera is fully featured for security surveillance and remote monitoring needs. It is based on the DSP compression chip, and makes it available on the network as real-time, full frame rate Motion JPEG and H.264 video streams.

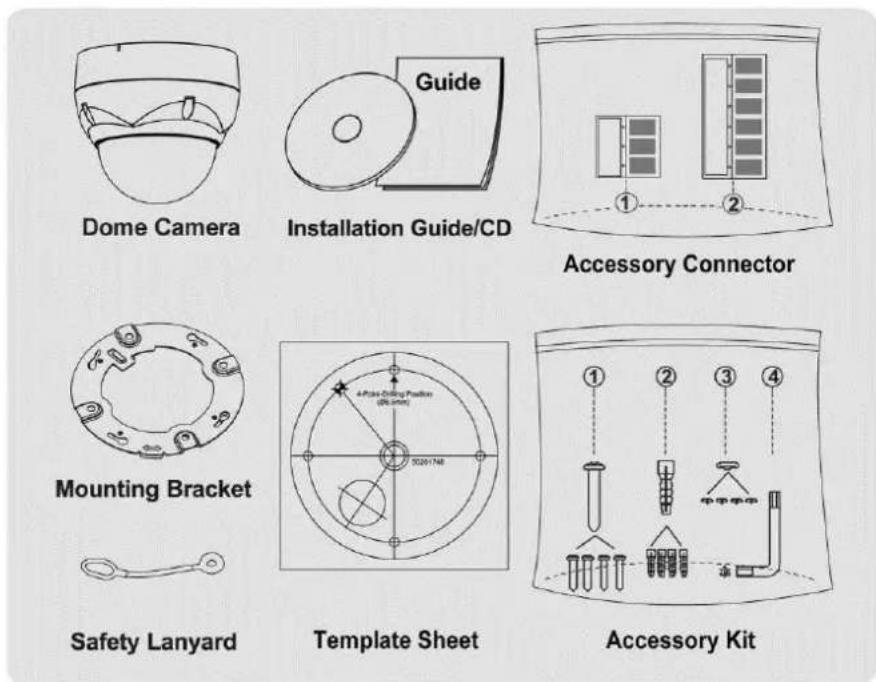

1.1 Components

The camera is designed with compact, small size, hard dome camera housing. The housing is constructed of aluminum, steel and plastic. The housing is designed to be mounted on a wall or a ceiling. The housing meets the Protection Classification IP66 standards for dust and moisture resistance.

* Dome Camera .... 1....
* Installation Guide/CD .... 1
* Template Sheet 1
* Mounting Bracket 1
* Safety Lanyard .... 1

* Accessory Kit 1

1) Mounting screws (PH6 x 35.0) .....(4).....
2) Plastic anchors .....(4)
3) O-Rings ..... (4)
4) Torx wrench ..... (1)

1) 3-pin terminal block .....(1).....

2) 6-pin terminal block .....(1)

Dome Camera Guide Installation Guide/CD Accessory Connector Mounting Bracket Safety Lanyard Template Sheet Accessory Kit

1.2 Key Features

- Brilliant video quality

The network camera offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility.

- Triple Streams

The network camera can deliver triple video streams simultaneously at full frame rate in all resolutions up to 1920 x 1080 using Motion JPEG and H.264. This means that several video streams can be configured with different compression formats, resolutions and frame rates for different needs.

• Image setting adjustment

The network camera also enables users to adjust image settings such as contrast, brightness and saturation to improve images before encoding takes place.

• Intelligent video capabilities

The network camera includes intelligent capabilities such as enhanced video motion detection. The network camera's external inputs and outputs can be connected to devices such as sensors and relays, enabling the system to react to alarms and activate lights or open/close doors.

- Improved Security

The network camera logs all user access, and lists currently connected users. Also, its full frame rate video can be provided over HTTPS.

- PoE (Power over Ethernet)

This network camera can be powered through PoE, which simplifies installation since only one cable is needed for carrying power, as well as video controls.

- ONVIF Certificate

This is a global interface standard that makes it easier for end users, integrators, consultants, and manufacturers to take advantage of the possibilities offered by network video technology. ONVIF enables interoperability between different vendor products, increased flexibility, reduced cost, and future-proof systems.

2. Installation

2.1 Installation

The dome camera is for use in surface or pendent mounting applications, and the mounting member must be capable of supporting loads of up to 3.5 lb (1.6 kg). (Pendent mounting must use pendent mount accessory.)

The dome camera's mounting bracket should be attached to a structural object, such as hard wood, wall stud or ceiling rafter that supports the weight of the dome camera.

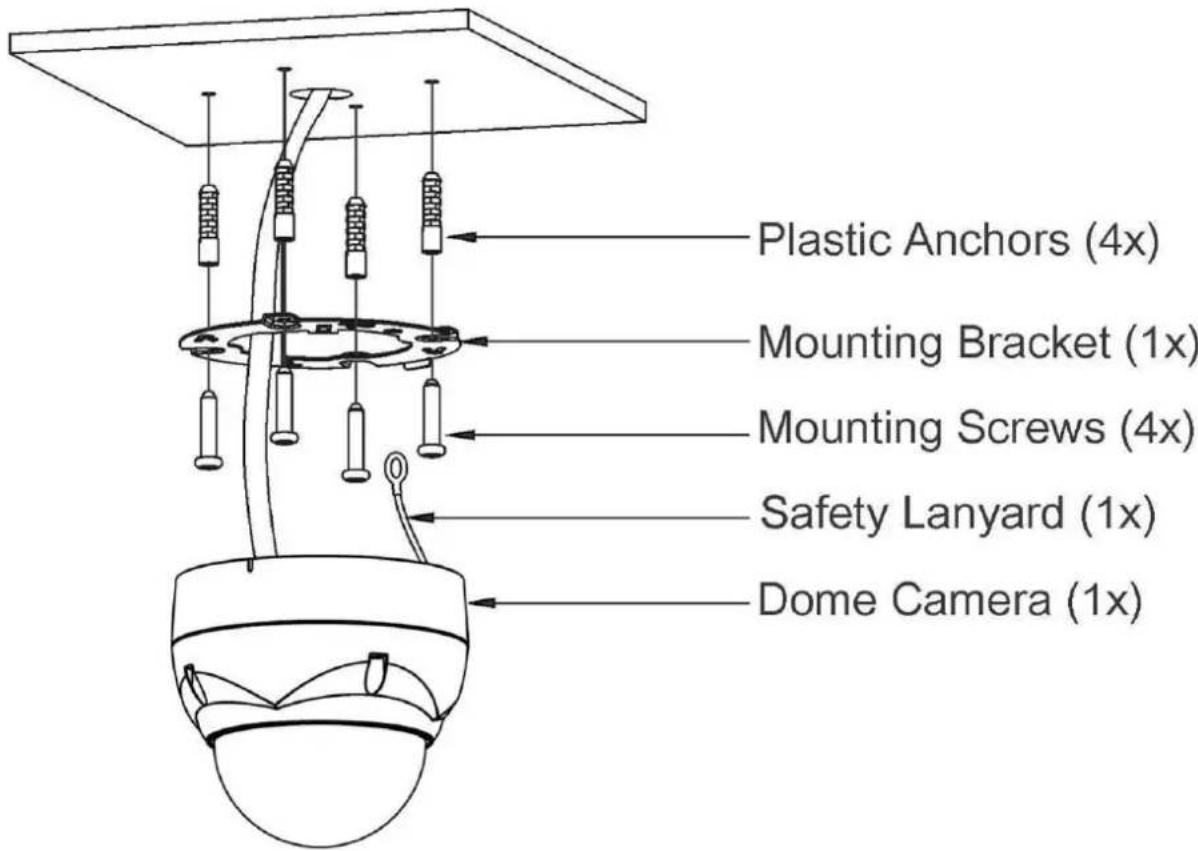

Plastic Anchors (4x) Mounting Bracket (1x) Mounting Screws (4x) Safety Lanyard (1x) Dome Camera (1x)

CAUTION: A silicone rubber sealant must be applied to seal the housing to secure waterproofing.

2.1.1 Locking Dome Camera

A. Make screw holes on the ceiling using the supplied mounting Template Sheet (Figure A).
B. Fix the Mounting Bracket to the ceiling using supplied Anchors (4x) and Mounting Screws (4x) (Figure B).
C. Hook up the Safety Lanyard to the Safety Lanyard Hook of the Mounting Bracket (Figure C).
D. Align the locking tab on the bracket and the locking slot on the base of the dome (Figure D).
E. Turn the dome to the counterclockwise about 10 degree to the locked position (Figure E).

CAUTION: Before installing mounting bracket to surface pre-adjust the four mounting screws "A" on the base of the dome camera to best match the mounting bracket locked position. Unscrew the locking screw on the side of the dome's base and fit the tab of the mounting bracket into the locking slot. Screws "A" should not be too tight or too loose when the dome is in the locked position. After setting the proper positions of screws "A" remove the mounting bracket and install it to the proper surface. If it is too difficult to lock the dome in position after the mounting bracket has been installed readjust the screws "A" by unscrewing them a small amount and try to install dome camera again.

2.2 Basic Configuration of Camera System

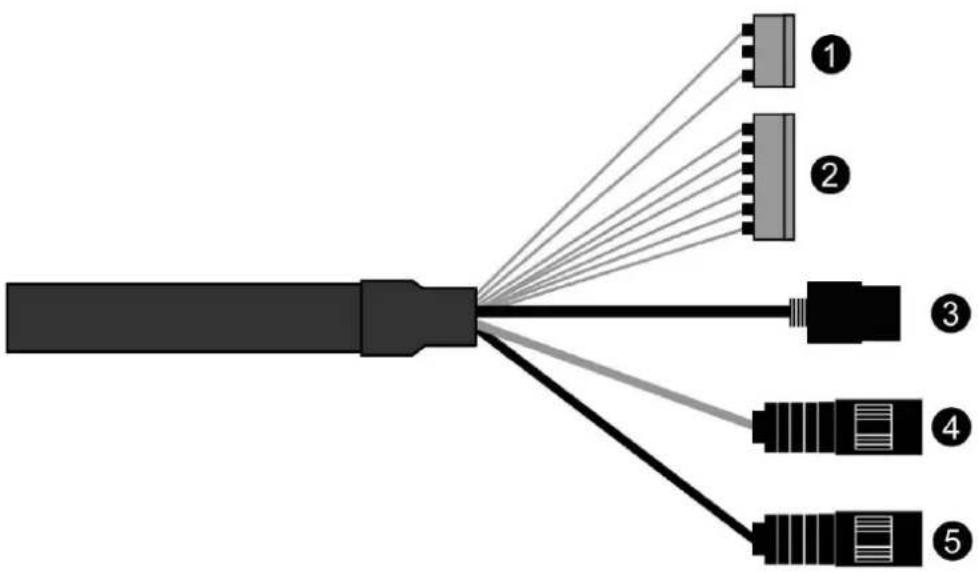

Diagram showing cable connector connections with labeled pins 1 through 5

No.	Connector	Wire Color	Description
1	3-pin terminal block	RED	24VAC or 12VDC+
		WHITE	24VAC or 12VDC-
2	6-pin terminal block	PINK	GND
		GRAY	ALARM INPUT
		BROWN	GND
		YELLOW	ALARM OUTPUT
		GREEN	RS485+
		BLUE	RS485-
3	RJ-45	BLACK	Ethernet, RJ-45 port compatible with 10/100Mbps having PoE functionality.
4	STEREO	GRAY	AUDIO OUTPUT
5	STEREO	BLACK	AUDIO INPUT

The camera must be installed by qualified service personnel in accordance with all local and federal electrical and building codes.

2.3 Connections

- Connecting the Network

Connect a standard RJ-45 cable to the network port of the camera. Generally a cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a hub.

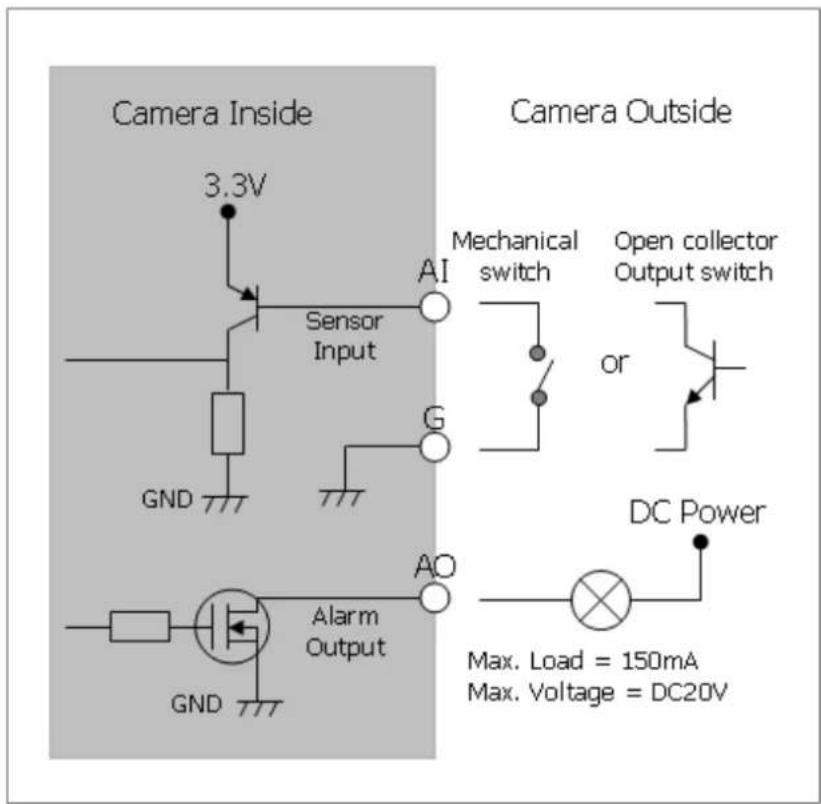

- Connecting Alarms

- AI (Alarm Input)

You can use external devices to signal the camera to react on events. Mechanical or electrical switches can be wired to the AI (Alarm Input) and G (Ground) connectors.

- G (Ground)

NOTE: All the connectors marked G or GND are common.

Connect the ground side of the alarm input and/or alarm output to the G (Ground) connector.

- AO (Alarm Output)

The camera can activate external devices such as buzzers or lights. Connect the device to the AO (Alarm Output) and G (Ground) connectors.

- Connecting to the RS485

The camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS485 half-duplex serial communications signals.

- Connecting the Power

Connect power of 12VDC or 24VAC 1.5A for the camera.

When using a 12VDC adapter, connect the positive (+) pole to the ‘+’ position and the negative (-) pole to the ‘-’ position.

Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power source only.

• Be careful not to reverse the polarity when you connect the power cable.
• You can also use a router featuring PoE (Power over Ethernet) to supply power to the camera.
• If PoE and 12VDC are both applied, this camera will get supplied with power from PoE.
• 24VAC is recommended to use for the camera power for stable operation with heater kit. If using PoE, the heater will not operate at all.

2.4 Network Connection & IP assignment

The camera supports the operation through the network. When a camera is first connected to the network, it is necessary to allocate an IP address to the device with the "SmartManager" utility on the CD. (Default IP 192.168.30.220)

1) Connect the network camera/device to the network and power up.

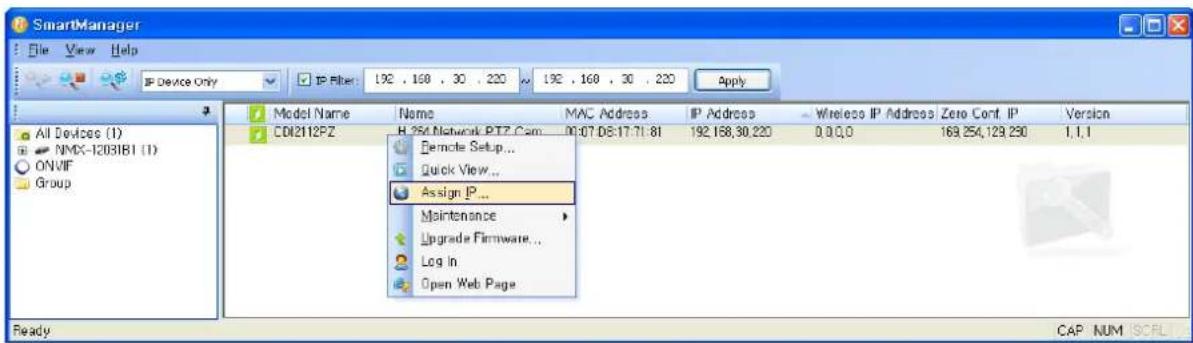

2) Start SmartManager utility (Start > All programs > SmartManager > SmartManager). The main window will display, and after a short while any network devices connected to the network will be displayed in the list.

SmartManager File View Help JP Device Only JP Filter: 192 . 166 . 30 . 220 .. 192 . 166 . 30 . 220 Apply All Devices (1) NMX-12031B1 (1) ONVIF Group Model Name Name MAC Address IP Address Wireless IP Address Zero Cont. IP Version COM112PZ H,264 Network PTZ Cam... 00:07:08:17:71:81 192 168,30 220 0,0,0,0 150,254,129,230 1,1,1 Ready CAP NUM CTRL

3) Select the camera on the list and click right button of the mouse. You can see the pop-up menu as below.

SmartManager File View Help IP Device Only IP Filter: 192 , 160 , 30 , 220 192 , 160 , 30 , 220 Apply All Devices (1) NMX-12031B1 (1) ONVIF Group Model Name Name MAC Address IP Address Wireless IP Address Zero Conf. IP Version CDI2112PZ H_254 Network PT7 Cam 00:07 D6:17:71:81 192,168,30,220 0,0,0,0 169,254,129,250 1,1,1 Remote Setup... Quick View... Assign IP... Maintenance Upgrade Firmware... Log In Open Web Page Ready CAP NUM SCRL

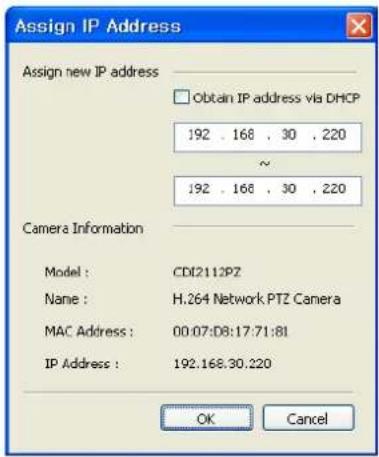

4) Select Assign IP Address. The Assign IP window will display. Enter the required IP address.

Assign IP Address Assign new IP address Obtain IP address via DHCP 192 . 168 . 30 , 220 ~ 192 . 168 . 30 , 220 Camera Information Model : CDI2112PZ Name : H.264 Network PTZ Camera MAC Address : 00:07:D8:17:71:81 IP Address : 192.168.30.220 OK Cancel

NOTE: For more information, refer to the SmartManager User's Manual.

3. Operation

The network camera can be used with Windows® operating system and browsers. The recommended browsers are Internet Explorer®, Safari®, Firefox®, Opera™ and Google® Chrome® with Windows.

NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls.

3.1 Access from a browser

1) Start a browser (Internet Explorer).
2) Enter the IP address or host name of the network camera in the Location/Address field of your browser.
3) You can see a starting page. Click Live View or Setup to enter web page.

Network Camera Live View Setup

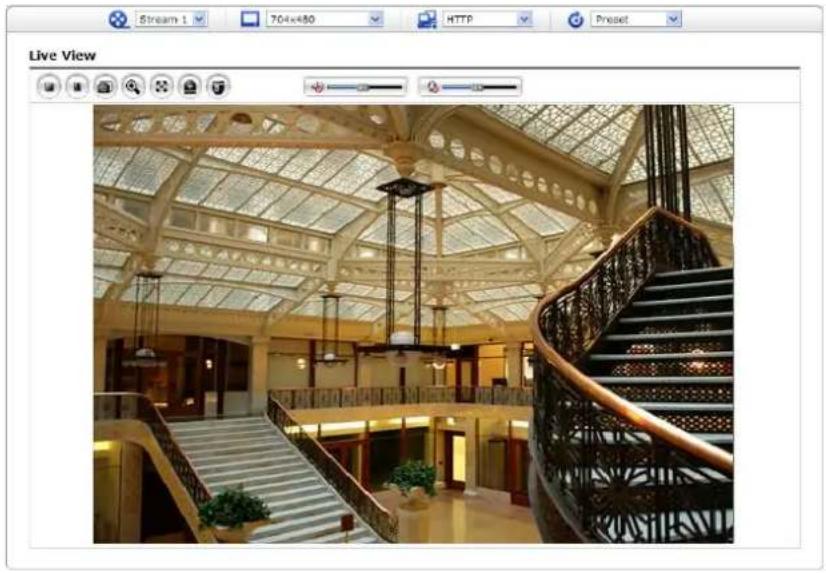

4) The network camera's Live View page appears in your browser.

Interior view of a grand, ornate hall with glass ceiling and metal staircase (no visible text or symbols)

3.2 Access from the internet

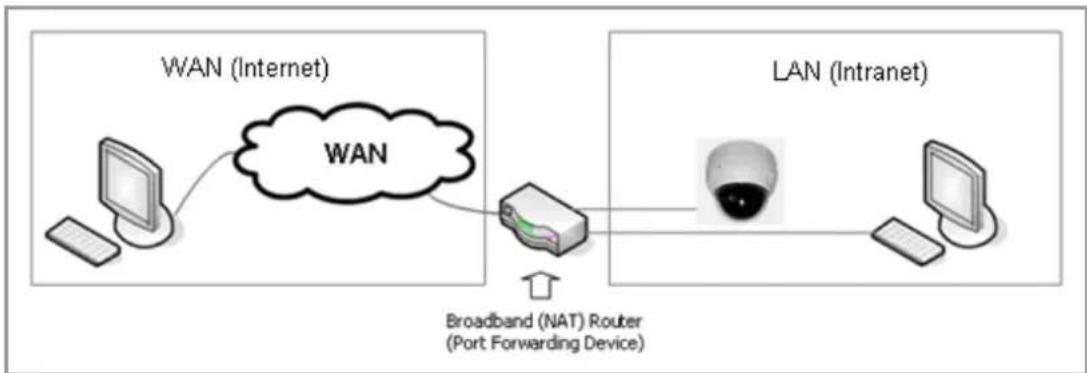

Once connected, the network camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. To do this, enable the NAT traversal feature, which will attempt to automatically configure the router to allow access to the network camera. This is enabled from Setup > System > Network > NAT. For more information, please see "3.5.7 System > Network > NAT" of User's Manual.

3.3 Setting the admin password over a secure connection

To gain access to the product, the password for the default administrator user must be set. This is done in the "Admin Password" dialog, which is displayed when the network camera is accessed for the setup at the first time. Enter your admin name and password, set by the administrator.

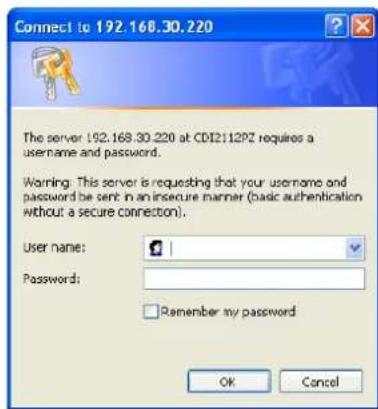

Connect to 192.168.30.220 The server 192.168.30.220 at CDI2112PZ requires a username and password. Warning: This server is requesting that your username and password be sent in an insecure manner (basic authentication without a secure connection). User name: Password: Remember my password OK Cancel

NOTE: The default administrator user name and password is "admin". If the password is lost, the network camera must be reset to the factory default settings. Please see "Resetting to the factory default settings".

To prevent network eavesdropping when setting the admin password, this can be done via an encrypted HTTPS connection, which requires an HTTPS certificate (see NOTE below).

To set the password via a standard HTTP connection, enter it directly in the first dialog shown below. To set the password via an encrypted HTTPS connection, please see "3.5.7 System > Security > HTTPS" of User's Manual.

NOTE: HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to encrypt the traffic between web browsers and servers. The HTTPS certificate controls the encrypted exchange of information.

3.4 Live View Page

The Live View page comes in several screen modes: 1920x1080, 1280x1024, 1280x720, 704x576, 704x480, 640x480 and 320x240. Users are allowed to select the most suitable one out of those modes. Adjust the mode in accordance with your PC specifications and monitoring purposes.

Stream 1 704x480 HTTP Preset Live View

1) General controls

Live View Page

Setup Page

Help Page

Stream 1

The video drop-down list allows you to select a customized or pre-programmed video stream on the Live View page. Stream profiles are configured under Setup > Basic Configuration > Video & Image. For more information, please see "3.5.1 Basic Configuration > Video & Image" of User's Manual.

1920×1080

The resolution drop-down list allows you to select the most suitable one out of video resolutions to be displayed on Live View page.

HTTP

The protocol drop-down list allows you to select which combination of protocols and methods to use depending on your viewing requirements, and on the properties of your network.

Preset

The preset drop-down list allows you to select the preset number for the PTZ camera being used. This icon is inactivated if the PTZ settings are not set.

2) Control toolbar

The live viewer toolbar is available in the web browser page only. It displays the following buttons:

The Stop button stops the video stream being played. Pressing the key again toggles the start and stop. The Start button connects to the network camera or starts playing a video stream.

The Pause button pauses the video stream being played.

The Snapshot button takes a snapshot of the current image. The location where the image is saved can be specified.

The Digital Zoom button activates a zoom-in or zoom-out function for video image on the live screen.

The Full Screen button causes the video image to fill the entire screen area. No other windows will be visible. Press the 'Esc' button on the computer keyboard to cancel full screen view.

The Manual Trigger button activates a pop-up window to manually start or stop the event.

The PTZ button activates a pop-up window for Pan, Tilt and Zoom control.

Use this scale to control the volume of the speakers.

Use this scale to control the volume of the microphone.

Use this scale to control the volume of the speakers and microphones.

3) Video Streams

The network camera provides several images and video stream formats. Your requirements and the properties of your network will determine the type you use.

The Live View page in the network camera provides access to H.264 and Motion JPEG video streams, and to the list of available video streams. Other applications and clients can also access these video streams/images directly, without going via the Live View page.

3.5 Network Camera Setup

This section describes how to configure the network camera, and is intended for product. Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access to the settings for Basic Configuration, Live View, Video & Image, Audio, Event, Dome Configuration, System

You can configure the network camera by clicking Setup in the top right-hand corner of the Live View page. Click on this page to access the online help that explains the setup tools.

When accessing the network camera for the first time, the "Admin Password" dialog appears. Enter your admin name and password, set by the administrator.

Connect to 192.168.30.220 The server 192.168.30.220 at CDI2112PZ requires a username and password. Warning: This server is requesting that your username and password be sent in an insecure manner (basic authentication without a secure connection). User name: Password: Remember my password OK Cancel

NOTE: If the password is lost, the network camera must be reset to the factory default settings. Please see "Resetting to the Factory Default Settings".

3.5.1 Basic Configuration

You can see the device information in this information page.

Basic Configuration Basic Configuration Users Network Video & Image Audio Date & Time Live View Video & Image Audio Event Dome Configuration System About Basic Configuration Manufacturer : COSTAR Model name : CD12112PZ Device name : HL264 Network PTZ Camera Firmware version : 1.1.1 MAC address : 90:07:08:17:71:81 IP address : 192.168.30.220 Link-Local IP address : 169.254.139.230 Video mode : NTSC

1) Users

User access control is enabled by default. An administrator can set up other users, by giving these user names and passwords. It is also possible to allow anonymous viewer login, which means that anybody may access the Live View page, as described below:

Basic Configuration Basic Configuration Users Network Video & Image Audio Date & Time Live View Video & Image Audio Event Dome Configuration System About Users User Setting Enable anonymous viewer login User List Setting User Name User Group Authority admin administrator live, setup, system, ptz Add Modify Remove Save Reset

The user list displays the authorized users and user groups (levels):

User Group	Authority
Guest	Provides the lowest level of access, which only allows access to the Live View page.
Operator	An operator can view the Live View page, create and modify events, and adjust certain other settings. Operators have no access to System Options.
Administrator	An administrator has unrestricted access to the Setup tools and can determine the registration of all other users.

- Enable anonymous viewer login: Check the box to use the webcasting features. Refer to "3.5.3 Video & Image" for more details.

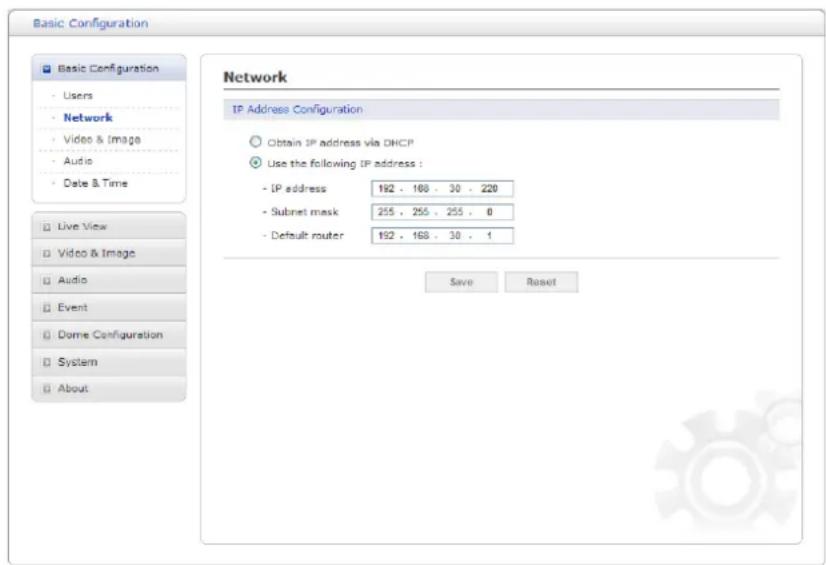

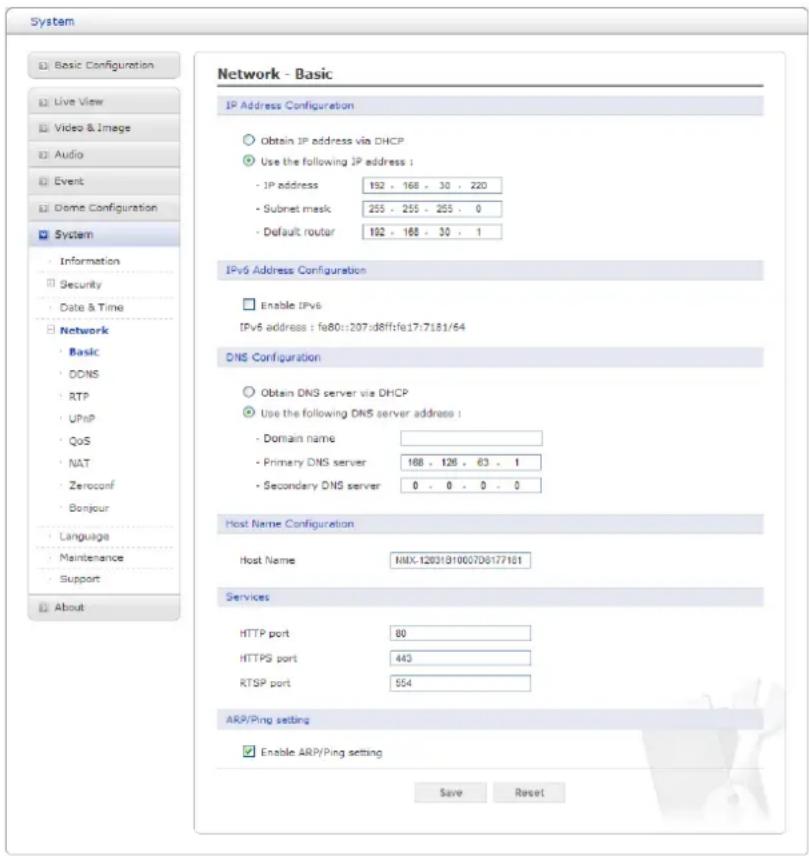

2) Network

The network camera supports both IP version 4 and IP version 6. Both versions may be enabled simultaneously, and at least one version must always be enabled. When using IPv4, the IP address for the network camera can be set automatically via DHCP, or a static IP address can be set manually. If IPv6 is enabled, the network camera an IP address according to the configuration in the network router. There is also the option of using the Internet Dynamic DNS Service. For more information on setting the network, please see "3.5.7 System > Network > Basic".

Basic Configuration Basic Configuration Users Network Video & Image Audio Date & Time Live View Video & Image Audio Event Dome Configuration System About Network IP Address Configuration Obtain IP address via DHCP Use the following IP address : - IP address 192 , 160 , 30 , 220 - Subnet mask 255 , 255 , 255 , 0 - Default router 192 , 168 , 30 , 1 Save Reset

• Obtain IP address via DHCP: Dynamic Host Configuration Protocol (DHCP) is a protocol that lets network administrators centrally manage and automate the assignment of IP addresses on a network. DHCP is enabled by default. Although a DHCP server is mostly used to set an IP address dynamically, it is also possible to use it to set a static, known IP address for a particular MAC address.

• Use the following IP address: To use a static IP address for the network camera, check the radio button and then make the following settings:

• IP address: Specify a unique IP address for your network camera.

• Subnet mask: Specify the mask for the subnet the network camera is located on.
• Default router: Specify the IP address of the default router (gateway) used for connecting devices attached to different networks and network segments.

NOTES:

1. DHCP should only be enabled if using dynamic IP address notification, or if your DHCP server can update a DNS server, which then allows you to access the network camera by name (host name). If DHCP is enabled and you cannot access the unit, you may have to reset it to the factory default settings and then perform the installation again.
2. The ARP/Ping service is automatically disabled two minutes after the unit is started, or as soon as an IP address is set.
3. Pinging the unit is still possible when this service is disabled.

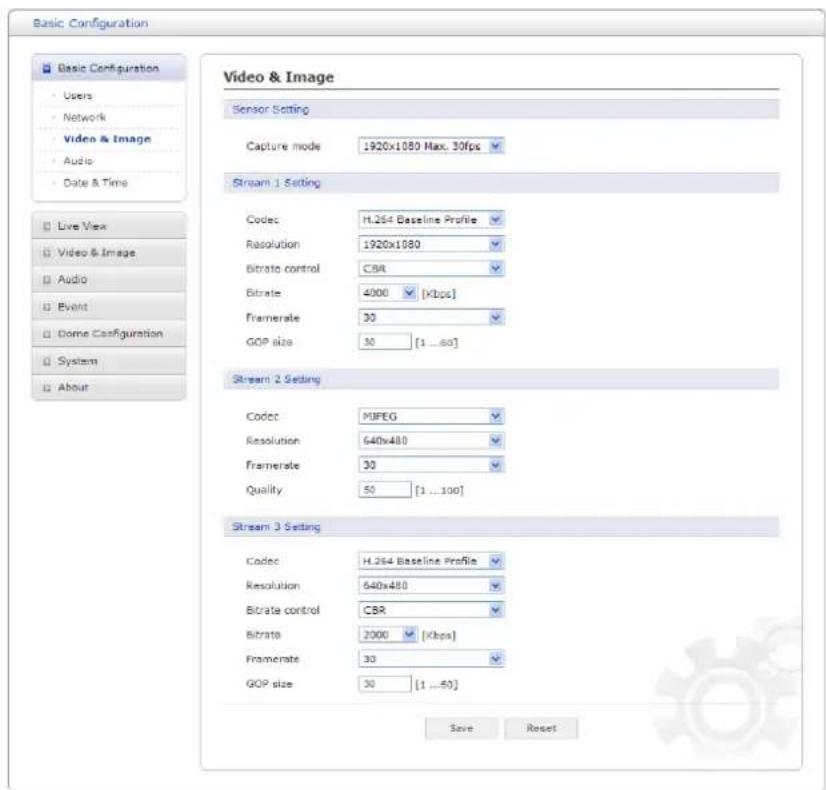

3) Video & Image

Basic Configuration Basic Configuration Users Network Video & Image Audio Date & Time Live View Video & Image Audio Event Dome Configuration System About Video & Image Sensor Setting Capture mode 1920x1080 Max. 30fps Stream 1 Setting Codec H.264 Baseline Profile Resolution 1920x1080 Bitrate control CBR Bitrate 4000 [Kbps] Framerate 30 GOP size 30 [1 ...60] Stream 2 Setting Codec MJPEG Resolution 640x480 Framerate 30 Quality 50 [1 ...100] Stream 3 Setting Codec H.264 Baseline Profile Resolution 640x480 Bitrate control CBR Bitrate 2000 [Kbps] Framerate 30 GOP size 30 [1 ...60] Save Reset

- Sensor Setting:

- Capture mode: Use can select video frame rate at either 60/50fps or 30/25fps of resolution 1920x1080.

- Stream 1 Setting:

• Codec: The codec settings are separated into H.264. H.264 is also known as MPEG-4 Part 10. This is the new generation compression standard for digital video. This function offers higher video resolution than Motion JPEG or MPEG-4 at the same bit rate and bandwidth, or the same quality video at a lower bit rate.
• Profile: There are 3 pre-programmed stream profiles available for quick set-up. Choose the form of video encoding you wish to use from the drop-down list:

* H.264 HP (High Profile): Primary profile for broadcast and disc storage applications, particularly for high-definition television applications (for example, this is the profile adopted by the Blu-ray Disc storage format and the DVB HDTV broadcast service).

* H.264 MP (Main Profile): Primary profile for low-cost applications that require additional error robustness, this profile is used rarely in videoconferencing and mobile applications; it does add additional error resilience tools to the Constrained Baseline Profile. The importance of this profile is fading after the Constrained Baseline Profile has been defined.

* H.264 BP (Baseline Profile): Originally intended as the mainstream consumer profile for broadcast and storage applications, the importance of this profile faded when the High Profile was developed for those applications.

- Resolution: This enables users to determine a basic screen size when having an access through the Web Browser or PC program. The screen size control comes in seven modes like 1920x1080, 1280x1024, 1280x720, 704x576, 704x480, 640x480 and 320x240.

Users can reset the selected screen size anytime while monitoring the screen on a real-time basis.

- Bit rate control: Limiting the maximum bit rate helps control the bandwidth used by the H.264 video stream. Leaving the Maximum bit rate as unlimited maintains consistently good image quality but increases bandwidth usage when there is more activity in the image. Limiting the bit rate to a defined value prevents excessive bandwidth usage, but images are lost when the limit is exceeded.

NOTE: The maximum bit rate can be used for both variable and constant bit rates.

The bit rate can be set as Variable Bit Rate (VBR) or Constant Bit Rate (CBR). VBR adjusts the bit rate according to the image complexity, using up bandwidth for increased activity in the image, and less for lower activity in the monitored area.

CBR allows you to set a fixed target bit rate that consumes a predictable amount of bandwidth. As the bit rate would usually need to increase for increased image activity, but in this case cannot, the frame rate and image quality are affected negatively. To partly compensate for this, it is possible to prioritize either the frame rate or the image quality whenever the bit rate needs to be increased. Not setting a priority means the frame rate and image quality are equally affected.

• Bit rate: When it is necessary to adjust a smooth transmission status according to network situations, users can increase the compressibility to carry out the network transmission stably. On the other hand, when it is necessary to maintain a detailed monitoring screen by enhancing the image quality, users can do so by decreasing the compressibility. In each case, please adjust this function according to the network status and monitoring purposes.
• Frame rate: Upon the real-time play, users should select a frame refresh rate per second. If the rate is high, the image will become smooth. On the other hand, if the rate is low, the image will not be natural but it can reduce a network load.
• GOP size: Select the GOP (Group of Picture) size. If users want to have a high quality of fast image one by one, please decrease the value. For the purpose of general monitoring, please do not change a basic value. Such act may cause a problem to the system performance. For the details of GOP setting, please contact the service center.

Stream 2 Setting: Sometimes the image size is large due to low light or complex scenery. Adjusting the frame rate and quality helps to control the bandwidth and storage used by the Motion JPEG video stream in these situations. Limiting the frame rate and quality optimizes bandwidth and storage usage, but may give poor image quality. To prevent increased bandwidth and storage usage, the Resolution, Frame rate, and Frame Quality should be set to an optimal value.

• MJPEG Resolution: Same as the stream 1 settings.
• MJPEG Frame rate: Same as the stream 1 settings.
• MJPEG Quality: Select the picture quality. If users want to have a high quality of fast image one by one, please decrease the value. For the purpose of general monitoring, please do not change a basic value. Such act may cause a problem to the system performance.

Stream 3 Setting: Same as the Stream 1 Setting.

When satisfied with the settings, click the Save button, or click the Reset button to revert to previously saved settings.

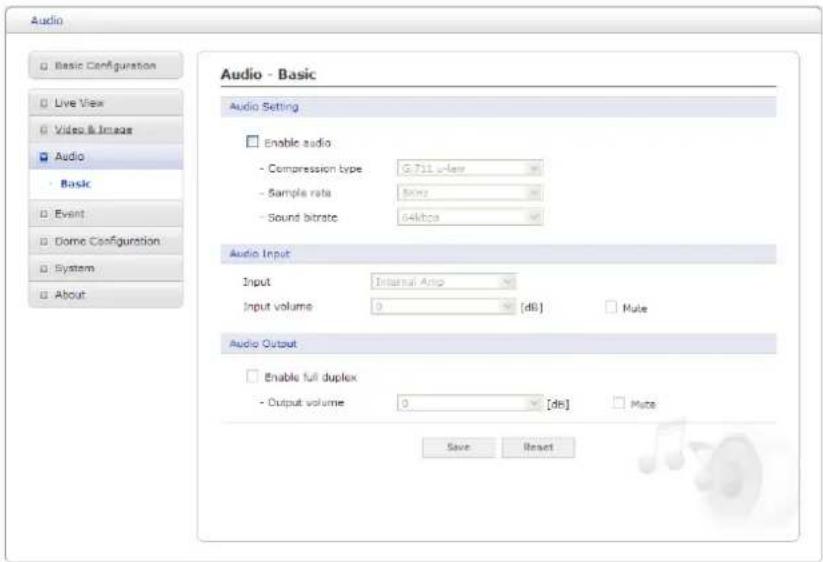

4) Audio

Basic Configuration Basic Configuration Users Network Video & Image Audio Date & Time Live View Video & Image Audio Event Dome Configuration System About Audio Audio Setting Enable audio - Compression type: G.711 c-law - Sample rate: 8kHz - Sound bitrate: 84kbps Audio Input Input: Internal Amp Input volume: 0 [dB] Mute Audio Output Enable full duplex - Output volume: 0 [dB] Mute Save Reset

The network camera can transmit audio to other clients using an external microphone and can play audio received from other clients by attaching a speaker. The Setup page has an additional menu item called Audio, which allows different audio configurations, such as full duplex and simplex.

- Audio Setting:

• Enable audio: Check the box to enable audio in the video stream.
• Compression type: Select the desired audio Compression format, G.711.
• Sample rate: Select the required Sample rate (number of times per second the sound is sampled). The higher the sample rate, the better the audio quality and the greater the bandwidth required.
• Sound bit rate: Depending on the selected encoding, set the desired audio quality (bit rate). The settings affect the available bandwidth and the required audio quality.

- Audio Input: Audio from an external line source can be connected to the STEREO Jack I/O of the network camera.

- Input volume: If there are problems with the sound input being too low or high, it is possible to adjust the input gain for the microphone attached to the network camera.

- Audio Output:

- Enable full duplex: Check the box to enable Full Duplex mode. This means that you can transmit and receive audio (talk and listen) at the same time, without having to use any of the controls. This is just like having a telephone conversation.

This mode requires that the client PC has a sound card with support for full-duplex audio.

Uncheck the box enable Simplex mode. The simplex mode only transmits audio from the network camera to any web client. It does not receive audio from other web clients.

- Output volume: If the sound from the speaker is too low or high it is possible to adjust the output gain for the active speaker attached to the network camera.

When satisfied with the settings, click the Save button, or click the Reset button to revert to previously saved settings.

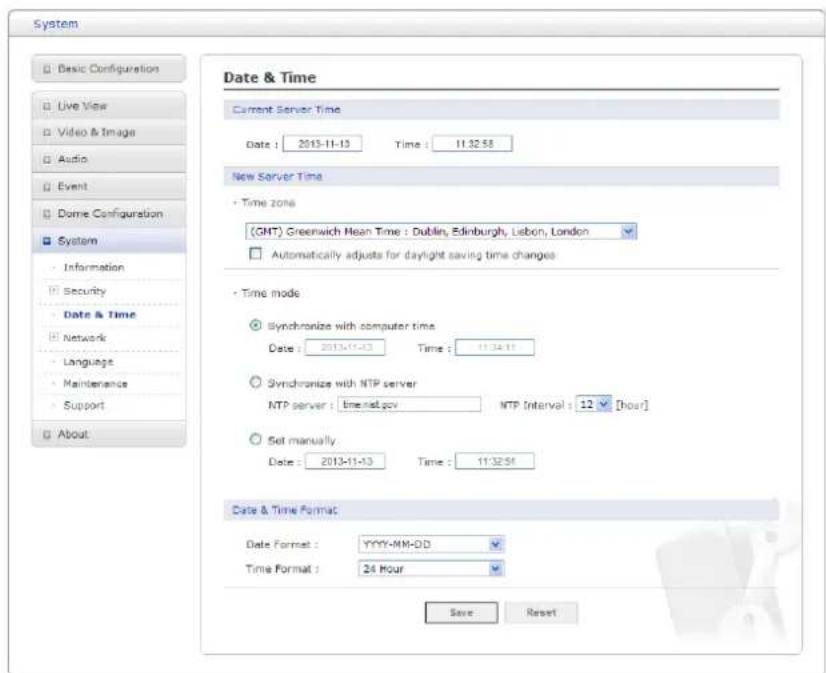

5) Date & Time

Basic Configuration Basic Configuration Users Network Video & Image Audio Date & Time Live View Video & Image Audio Event Dome Configuration System About Date & Time Current Server Time Date : 2013-11-13 Time : 11:30:23 New Server Time • Time zone (GMT) Greenwich Mean Time : Dublin, Edinburgh, Lisbon, London • Automatically adjusts for daylight saving time changes • Time mode • Synchronize with computer time Date : 2013-11-13 Time : 11:31:35 • Synchronize with NTP server NTP server : time@day NTP Interval : 12 [hour] • Set manually Date : 2013-11-13 Time : 11:30:16 Date & Time Format Date Format : YYYY-MM-DD Time Format : 24 Hour Save Reset

• Current Server Time: This displays the current date and time (24h clock). The time can be displayed in 12h clock format in the overlay (see below).
• New Server Time: Select your time zone from the drop-down list. If you want the server clock to automatically adjust for daylight saving time, select "Automatically adjustment for daylight saving time changes".

From the Time mode section, select the preferred method to use for setting the time:

• Synchronize with computer time: sets the time from the clock on your computer.
• Synchronize with NTP Server: the video encoder will obtain the time from an NTP server every 60 minutes.
• Set manually: this option allows you to manually set the time and date.

- Data & Time Format: Specify the formats for the date and time (12h or 24h) displayed in the video streams.

Select Date & Time format from the drop-down list.

• Date Format: Specify the date format. YYYY: Year, MM: Month, DD: Day
• Time Format: Specify the date format. 24 Hour or 12 Hour

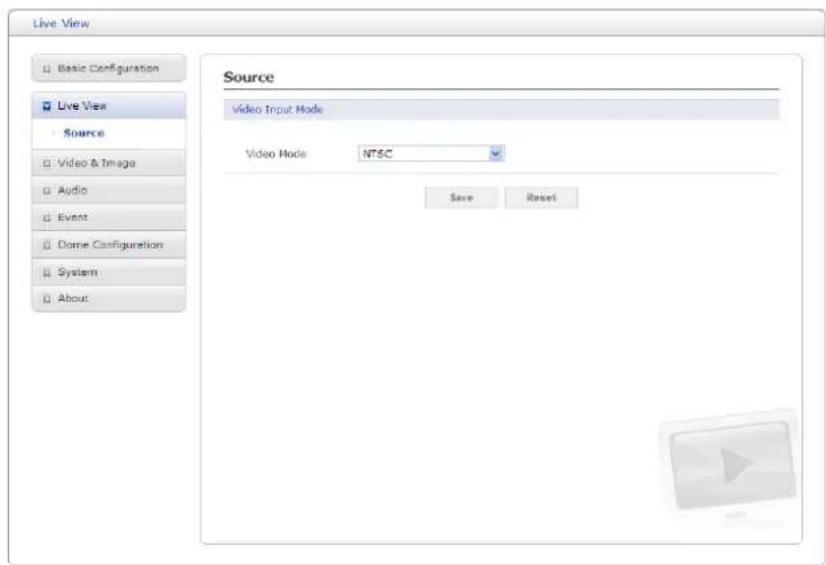

3.5.2 Live View

Live View Basic Configuration Live View Source Video & Image Audio Event Dome Configuration System About Source Video Input Mode Video Mode: NTSC Save Reset

• Video Input Mode:

- Video Mode: Choose Video Mode you wish to use from the drop-down list: NTSC or PAL NOTE: This function may not be applicable, depending on the model.

3.5.3 Video & Image

1) Basic

Video & Image Basic Configuration Live View Video & Image Basic Image Auto Exposure Day & Night Auto Focus DIS Webcasting Audio Event Dome Configuration System About Video & Image - Basic Sensor Setting Capture mode 1920x1000 Max. 30fps Stream 1 Setting Codec H.264 Baseline Profile Resolution 1920x1080 Birata control CBA Bitrate 4000 [Kbps] Framerate 30 GOP size 30 [1 ...60] Stream 2 Setting Codec MIPEG Resolution 640x480 Framerate 30 Quality 50 [1 ...100] Stream 3 Setting Codec H.264 Baseline Profile Resolution 640x480 Birata control CBA Bitrate 2000 [Kbps] Framerate 30 GOP size 30 [1 ...60] Save Reset

Refer to "3.5.1 Basic Configuration > Video & Image" for more details.

2) Image

Video & Image Basic Configuration Live View Video & Image Basic Image Auto Exposure Day & Night Auto Focus D19 Webcasting Audio Event Dome Configuration System About Image Video Preview Image Appearance Brightness 7 [default] Sharpness L [default] High sensitivity Off [default] Defog Off [default] Enable flip horizontally Noise Reduction Control Level 4 [default] Zoom Control Speed 6 [default] Digital Zoom Off [default] Save Reset

• Image Appearance:

• Brightness: The image brightness can be adjusted in the range 1 \~ 12, where a higher value produces a brighter image.
• Sharpness: Controls the amount of sharpening applied to the image. A sharper image might increase image noise especially in low light conditions. A lower setting reduces image noise, but the image would be less sharp.
• High sensitivity: Produce brighter image in low light environment.
• Defog: Produce clearer image in hazy environment.
• Enable flip horizontally: Flip the camera image upside down.

- Noise Reduction Control: The NR (Noise Reduction) function removes noise to provide clearer image. In bright conditions, changing the NR level may not affect the image quality.

- Level: The level can be adjusted in the range 1 \~ 10 and Off.

- Zoom Control:

• Speed: The speed can be adjusted in the range 1 \~ 8.
• Digital Zoom: Select On or Off.

3) Auto Exposure

Video & Image Basic Configuration Live View Video & Image Basic Image Auto Exposure Day & Night Auto Focus DIS Webcasting Audio Event Dome Configuration System About Auto Exposure Video Preview Auto Exposure Setting Mode Auto [default] Max Gain Limit: 21 [default] Iris PS-6 [default] Gain 10 [default] Shutter 1/30 [default] Slow Shutter Off [default] * Note In manual exposure mode, Day & Night will be set to the manual mode. WDR Control Mode Off [default] BLC Control Mode Off [default] White Balance Setting Mode Auto [default] R Gain 12 [default] B Gain 13 [default] Save Reset

- Auto Exposure Setting: Exposure is the amount of light detected by the camera sensor. A scene with correct exposure settings has adequate detail and contrast between white and dark values. An image with too little or too much exposure may lose detail in the scene. The camera features Auto and Manual Exposure Settings.

• Mode: Support Exposure modes to control the amount of light detected by the camera sensor base on settings for light conditions.
• Max Gain Limit: Controls the upper limit of the gain which the camera can control. This is only available if Exposure mode is set to Auto.
• Iris: Controls the camera iris. This is only available if Exposure mode is set to Manual.
• Gain: Increasing exposure gain increases the brightness of image, but it also increases the amount of noise in the image. This is only available if Exposure mode is set to Manual.
• Shutter: Controls the electronic shutter speed. This is only available if Exposure mode is set to Manual.
• Slow Shutter: The camera can lower the shutter speed electronically to get brighter image when the brightness drops. This is only available if Exposure mode is set to Auto.

- WDR Control: Wide Dynamic Range (WDR) improves video exposure quality in scenes with high contrast between bright and dark areas, for example, if a shady area and a bright light area are in the same scene.

- Mode: Select On or Off.

- BLC Control: Backlight Compensation (BLC) corrects the exposure of the subjects that are in a bright light source.

- Mode: Select On or Off.

- White Balance Setting: Adjustments in the color hue (red and blue) gains for a camera so that true white appears white in the image. It is normally compensated for by the automatic gain control. In some lighting conditions, you may need to manually adjust the red and blue settings for optimal viewing. When Automatic White Balance is enabled, the camera measures the image and automatically adjusts the red and blue settings to balance white. When Automatic White Balance is disabled, the camera uses the values set for the red and blue settings to balance white.

- Mode:

* Auto: Computes the white balance value output using color information from the entire screen automatically.

* Manual: Manual mode, you can change R and B Gain manually.

- R Gain: The R gain can be adjusted in the range 0 \~ 255. This is only available if exposure mode is set to Manual.

- B Gain: The B gain can be adjusted in the range 0 \~ 255. This is only available if exposure mode is set to Manual.

4) Day & Night

Video & Image Basic Configuration Live View Video & Image Basic Image Auto Exposure Day & Night Auto Focus DIS Webcasting Audio Event Deme Configuration System About Day & Night Control Video Preview Mode Automatic [default] DN Threshold 5 [default] Save Reset

- Day & Night Control: Select the day & night mode from among three modes.

- Mode:

* Automatic: Normally displays color image, and switches automatically to black & white image after the ambient light level reaches a pre-defined threshold.

* Day: Always displays color image.

* Night: Always displays black & white image.

- DN Threshold: Adjusts the level of light which the camera automatically switches between color and black & white image. (0 \~ 10)

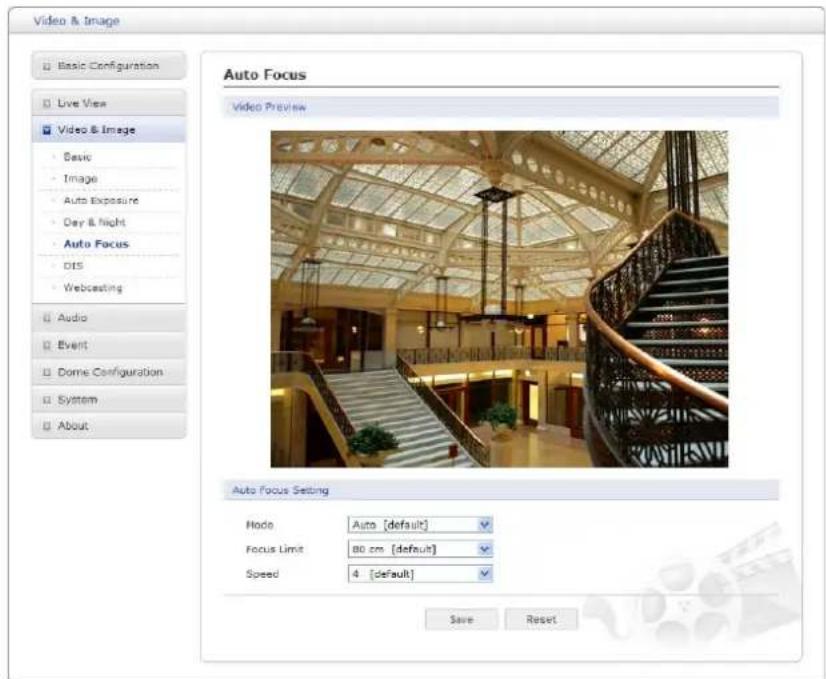

5) Auto Focus

Video & Image Basic Configuration Live View Video & Image Basic Image Auto Exposure Day & Night Auto Focus OIS Webcasting Audio Event Dome Configuration System About Auto Focus Video Preview Auto Focus Setting Mode Auto [default] Focus Limit 80 cm [default] Speed 4 [default] Save Reset

- Auto Focus Setting: Continuously adjusts the lens automatically to the correct focus for the sharpest picture.

- Mode:

* Auto: Auto Focus is always active.

* Manual: Auto Focus is inactive.

- Focus limit: This distance is approximate value, and the focus operates from the setting value.

- Speed: The speed can be adjusted in the range 1 \~ 8.

NOTE: Avoid continuous, 24-hour use of the auto focus. This will shorten the lifespan of the lens.

6) DIS

Analytic Basic Configuration Live View Video & Image Basic Image Auto Exposure Day & Night Auto Focus DIS Webcasting Audio Event Dome Configuration System About DIS Video Preview Digital Image Stabilization Setting Enable DIS DIS level 5 Local motion suppress On Illumination suppress On Plain background suppress On Slow motion suppress On Save Reset

- Digital Image Stabilization Setting: Controls DIS level from 0 to 9 and usage of 4 suppress: Local motion, Illumination, Plain background, and Slow motion.

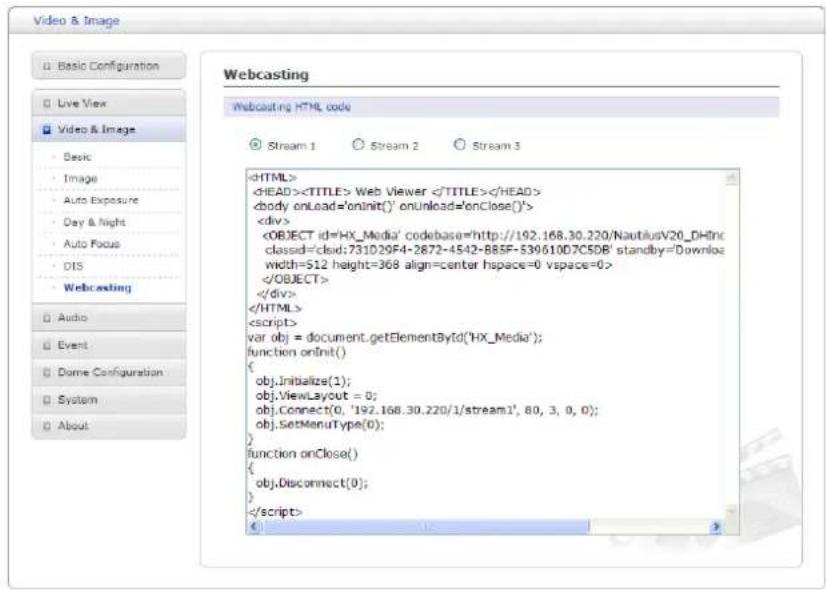

7) Webcasting

The network camera can stream live video to a website. Copies the HTML code generated on the screen and pastes it in page code of the website you want to display live video.

Video & Image Basic Configuration Live View Video & Image Basic Image Auto Exposure Day & Night Auto Focus DIS Webcasting Audio Event Dome Configuration System About Webcasting Webcasting HTML code Stream 1 Stream 2 Stream 3
