Product Type	Cyclonic Canister Vacuum Cleaner
Brand	LG
Model	VK89509HUG
Filtration System	Air filter, motor safety filter, exhaust filter
Dust Tank Capacity	1.5 L (approx.)
Power Cord Length	9 m (approx.)
Power Supply	230 V ~ 50 Hz
Follow Me Function	Yes - vacuum automatically follows user within 1 m distance
Kompressor RoboSense	Yes - dust compression technology
Thermal Protector	Yes - auto shut-off on overheating
Cord Rewind	Automatic with button
Nozzles Included	Carpet & floor nozzle, 2-in-1 nozzle, crevice tool, upholstery nozzle, dusting brush, corner free nozzle
Weight	5.5 kg (approx.)
Dimensions (H x W x D)	350 x 280 x 400 mm (approx.)
Filter Maintenance	Washable air filter and motor safety filter (dry 24h), exhaust filter dust-off yearly
Safety Features	Automatic cord rewind, thermal protector, no extension cord use

Frequently Asked Questions - VK89509HUG LG

How do I empty the dust tank?

Turn off and unplug the vacuum. Press the tank separation lever, pull out the dust tank, empty it, then reassemble by inserting until it clicks.

How often should I clean the filters?

Wash the air filter and motor safety filter at least once a month. Clean the exhaust filter at least once a year.

What does the FOLLOW ME function do?

The FOLLOW ME function uses sensors to keep the vacuum about 1 meter behind you. The vacuum automatically moves toward you when you move away, so you don't have to pull it.

What should I do if suction power decreases?

Check for blockages in the hose, telescopic pipe, or nozzle. Ensure the dust tank is not full. Clean the dust separator, air filter, and exhaust filter if clogged.

Can I use an extension cord with this vacuum?

No, do not use an extension cord. It may create a fire hazard. Plug directly into a wall outlet.

How do I assemble the vacuum cleaner?

Push the carpet/floor nozzle into the telescopic pipe. Connect the flexible hose to the vacuum cleaner by pressing the fitting pipe until it locks. Then plug in and use.

How do I rewind the power cord?

After use, hold the plug and press the cord reel button. The cord will automatically rewind. Keep children away and watch for obstructions.

What should I do if the vacuum cleaner suddenly shuts off?

This may be due to overheating. Turn off and unplug. Check for a full dust tank, blocked hose, or clogged filter. Fix any issues, wait at least 30 minutes, then plug back in and try again.

How do I clean the exhaust filter?

Remove the exhaust filter cover by pulling it out. Take out the filter, dust it off (do not wash with water), then reinsert the filter and click the cover back into place.

Can I use this vacuum on stairs?

Yes, but always place the vacuum at the bottom of the stairs to prevent it from falling. Use the appropriate nozzle and ensure the hose is not a tripping hazard.

USER MANUAL VK89509HUG LG

KOMPRESSOR RoboSense™

OWNER'S MANUAL

This information contains important instructions for the safe use and maintenance of the vacuum cleaner. Especially, please read all of the information on pages 4, 5, 6, 7 for your safety. Please keep this manual in an easily accessible place and refer to it anytime.

NEW TYPE CYCLONIC VACUUM CLEANER

Important safety instructions 4~7

Assembling vacuum cleaner 17~18

Assembling the vacuum cleaner / Assembling the vacuum cleaner / Assembling the vacuum cleaner

Operating vacuum cleaner 19~20

Operating the vacuum cleaner / Operating the vacuum cleaner / Operating the vacuum cleaner

FOLLOW ME function.... 21

FOLLOW ME function / FOLLOW ME function / FOLLOW ME function

Using carpet and floor nozzle / Carpet master 22

Using 2 in 1 nozzle 24

Using the accessory nozzles 25

Cleaning dust tank 27

Cleaning air filter and motor safety filter 28~29

Cleaning exhaust filter 30

What to do if your vacuum cleaner does not work 31

What to do when the suction performance decreases 31

What to do if FOLLOW ME function does not work 33

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or damage when using the vacuum cleaner. This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand. This appliance complies with the following EC Directives: 2006/95/EC Low Voltage Directive, 2004/108/EC EMC Directive.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "WARNING" or "CAUTION."

These words mean:

This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.

This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by LG Electronics Service Agent in order to avoid a hazard.
4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING

• Do not plug in if control knob is not in OFF position. Personal injury or product damage could result.
• Keep children away and beware of obstructions when rewinding the cord to prevent personal injury. The cord moves rapidly when rewinding.
• Disconnect electrical supply before servicing or cleaning the unit or when cleaner is not in use. Failure to do so could result in electrical shock or personal injury.
• Do not use vacuum cleaner to pick up anything that is burning or smoking such as cigarettes, or hot ashes. Doing so could result in death, fire or electrical shock.
• Do not vacuum flammable or explosive substances such as gasoline, benzene, thinners, propane (liquids or gases). The fumes from these substances can create a fire hazard or explosion. Doing so could result in death or personal injury.
• Do not handle plug or vacuum cleaner with wet hands. Doing so could result in death or electrical shock.
• Do not unplug by pulling on cord. Doing so could result in product damage or electrical shock. To unplug, grasp the plug, not the cord.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts. Failure to do so could result in electrical shock or personal injury.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces. Failure to do so could result in electrical shock or personal injury or fire or product damage.
• The hose contains electrical wires. Do not use it if it is damaged, cut or punctured. Failure to do so could result in death or electrical shock.
• Do not allow to be used as toy. Close attention is necessary when used by or near children. Personal injury or product damage could result.

Do not use the vacuum cleaner if the power cord or plug is damaged or faulty.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not use vacuum cleaner if it has been under water.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not continue to vacuum if any parts appear missing or damaged.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not use an extension cord with this vacuum cleaner.

Fire hazard or product damage could result.

• Using proper voltage.

Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the bottom of vacuum cleaner.

- Turn off all controls before unplugging.

Failure to do so could result in electrical shock or personal injury.

- Do not change the plug in any way.

Failure to do so could result in electrical shock or personal injury or product damage. Doing so result in death. If plug does not fit, contact a qualified electrician to install the proper outlet.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Repairs to electrical appliances may only be performed by qualified service engineers.

Improper repairs may lead to serious hazards for the user.

- Do not put fingers near the gear.

Failure to do so could result in personal injury.

CAUTION

• Do not put any objects into openings. Failure to do so could result in product damage.
• Do not use with any opening blocked: keep free of dust, lint, hair, and anything that may reduce air flow. Failure to do so could result in product damage.
• Do not use vacuum cleaner without the dust tank and/or filters in place. Failure to do so could result in product damage. • Always clean the dust bin after vacuuming carpet cleaners or fresheners, powders and fine dust. These products clog the filters, reduce airflow and can cause damage to the cleaner. Failure to clean the dust bin could cause permanent damage to the cleaner.
• Do not use vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc. They may damage the cleaner or dust bin.
• Store the vacuum cleaner indoors. Put the vacuum cleaner away after use to prevent tripping over it.
• The vacuum cleaner is not intended to use by young children or infirm people without supervision. Failure to do so could result in personal injury or product damage.
• Only use parts produced or recommended by LG Electronics Service Agents. Failure to do so could result in product damage.
• Use only as described in this manual. Use only with LG recommended or approved attachments and accessories. Failure to do so could result in personal injury or product damage. • To avoid personal injury and to prevent the machine from falling when cleaning stairs, always place it at the bottom of stairs. Failure to do so could result in personal injury or product damage.
• Use accessory nozzles in sofa mode. Failure to do so could result in product damage.
• Do not grasp the tank handle when you are moving the vacuum cleaner. The vacuum cleaner's body may fall when separating tank and body. Personal injury or product damage could result. You should grasp the carrier handle when you are moving the vacuum cleaner. (Page 26)
• If after emptying the dust tank the alarm sounds, clean the dust tank. Failure to do so could result in product damage.
• Make sure the filters (motor safety filter and air filter) are completely dry before replacing in the machine. Failure to do so could result in product damage.
• Do not dry the filter in an oven or microwave. Failure to do so could result in fire hazard.
• Do not dry the filter in a clothes dryer. Failure to do so could result in fire hazard.
• Do not dry near an open flame. Failure to do so could result in fire hazard.
• Do not use filters that are not dried.
• If the power cord is damaged, it must be replaced by an approved LG Electronics Service Agent to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Do not approach the vacuum cleaner suddenly when the FOLLOW ME function is activated. Failure to do so could result in personal injury or product damage.

Thermal protector:

This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner. Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner. After the 30 minute period, plug the vacuum cleaner back in and turn on the switch.

If the vacuum cleaner still does not run, contact a qualified electrician.

How to use Assembling vacuum cleaner

① Carpet and floor nozzle (depending on model)

Push the nozzle into the telescopic pipe.

How to use: Assembling the vacuum cleaner

③ Connecting the hose to the vacuum cleaner

Push the fitting pipe on the flexible hose into the attachment point on the vacuum cleaner.

To remove the flexible hose from the vacuum cleaner, press the button on the fitting pipe, then pull the fitting pipe out of the vacuum cleaner.

- Pull out the power cord to the desired length and plug it into the socket.

- Slide the control knob of the hose handle to operate the vacuum cleaner.

• To turn off, slide the control knob to the off position.

- Press the cord reel button to rewind the power cord after use.

Liquid suction can cause defects.

③ Park mode

• Slide the control knob to the off position before parking.
• To store during vacuuming, for example to move a small piece of furniture or a rug, use park mode to support the flexible hose and nozzle.

- Slide the hook on the nozzle into the slot on the side of the vacuum cleaner.

Liquid suction can cause defects.

The Follow Me function can measure the distance between the user and the vacuum cleaner. After measurement, the vacuum cleaner will move automatically to maintain a constant distance (about 1.0 m) between the user and the vacuum cleaner. When the distance between the transmitting sensor in the grip handle and the receiver sensors on the vacuum cleaner becomes more than 1 m, the vacuum cleaner will move automatically toward the user.

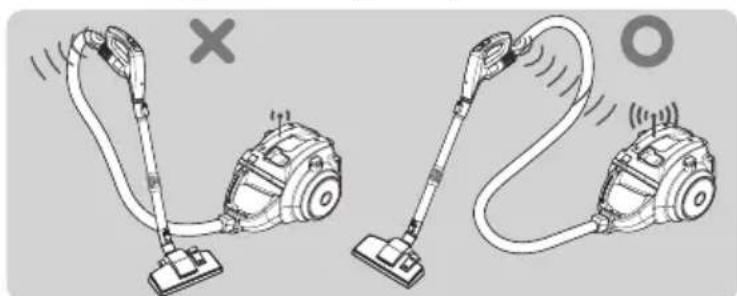

• Keep the grip handle directed toward the receiving sensors to send the signal. If the hose points in the wrong direction, the FOLLOW ME function cannot work properly.
• For signal transmission, the handle must be directed toward the receiving sensors. If the emission direction is not appropriate, the FOLLOW ME function may not work properly.
• Keep the handle directed so that the sensors can exchange signals. If the hose handle is pointed in the wrong direction, the FOLLOW ME function will not work properly.
• For signal transmission, keep the handle directed toward the receiving sensors. If the hose is pointed in another direction, the FOLLOW ME function cannot work properly.

Do not put liquids such as water or drinks on the transmitting sensor and receiving sensors. The FOLLOW ME function cannot work properly.

How to use: Using carpet and floor nozzle / Carpet master

① Carpet and floor nozzle (depending on model)

② Carpet master (depending on model)

How to use: Corner free nozzle

⑤ Corner free nozzle (depending on model)

- You can clean any place, such as corners or narrow cracks, by utilizing the structure where both sides of the suction hole are set back.

How to use the 2-in-1 nozzle

④ Upholstery nozzle (depending on model)

The upholstery nozzle is for vacuuming upholstery, mattresses, etc.

⑤ Dusting brush (depending on model)

The dusting brush is for vacuuming picture frames, furniture frames, books, and other irregular surfaces.

< Dusting brush mode >

- The 2-in-1 nozzle is included in the "PE BAG" with the owner's manual (depending on model)

How to use accessory nozzles

●

●

⑥ Crevice tool (depending on model)

The crevice tool is for vacuuming in those normally hard-to-reach places, such as reaching cobwebs or between the cushions of a sofa.

The upholstery nozzle is for vacuuming upholstery, mattresses, etc.

⑧ Dusting brush (depending on model)

The dusting brush is for vacuuming picture frames, furniture frames, books, and other irregular surfaces.

Use accessory in the sofa mode.

Be cautious when using the product on TV, LCD, monitor, or furniture, as it may cause small scratches.

· PE BAG ·

· PE bag ·

· PE bag ·

· Bag ·

- Accessory nozzles included in the "PE BAG" with owner's manual (depending on model)

How to empty the dust tank

① Turn off the vacuum cleaner and unplug it. ② Grasp the handle of the tank and then press the tank separation lever.

Pull out the dust tank.

③ Empty the tank and then assemble the dust tank as below.

Moving the vacuum cleaner

- Do not grasp the tank handle when moving the vacuum cleaner.

The vacuum cleaner's body may fall when separating the tank and body.

You should grasp the carrier handle when moving the vacuum cleaner.

How to use Cleaning dust tank

If suction power decreases after cleaning the dust tank, clean the air filter and the motor safety filter. ➔ Next page

NOTE

How to use Cleaning air filter and motor safety filter

① Open the vacuum cleaner cover by pushing the button. ② Grasp the handle of the dust separator and take it out. ③ Open the guide cover by pulling the guide cover lever and remove the dust. ④ Open the air filter cover by pushing the air filter cover lever and take out the air filter.

How to use Cleaning air filter and motor safety filter

Dry fully for more than 24 hours in shade.

DANGER

⑤ Separate the motor safety filter from the dust separator.

⑥ Wash the air filter and the motor safety filter.

Do not wash filters with hot water.

⑦ Dry fully in shade so that moisture is entirely removed.

The air filter and the motor safety filter should be cleaned as shown in the figure above.

If filters are damaged, do not use them.

In such cases, contact LG Electronics Service Agent.

Wash filters at least once a month.

NOTE

How to use Cleaning exhaust filter

• The exhaust filter is reusable.

① To clean the exhaust filter, remove the exhaust filter cover on the body by pulling it out. ② Separate the exhaust filter. ③ Dust off filter. (Do not wash filter with water.) ④ Insert the projection of exhaust filter into the grooves on the body and push up the exhaust filter button certainly until you hear sound "click".

Exhaust filter cover assembling

The exhaust filter should be cleaned at least a year.

NOTE

What to do when the suction performance decreases

• Turn off the vacuum cleaner and unplug it.
• Check the telescopic pipe, flexible hose and cleaning tool for blockages or obstructions.
• Check that the dust tank is not full. Empty if necessary.
• Check that dust separator is not clogged with obstruction. Eliminate it.
• Check that the exhaust filter is not clogged. Clean the exhaust filter if necessary.
• Check that the air filter of dust separator is not clogged. Clean the air filter if necessary.

Disposal of your old appliance

1. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
2. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
3. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

The equipment complies with requirements of the Technical Regulation, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment.

What to do if FOLLOW ME function does not work.

- Check the transmitting sensor and receiving sensors

- Please make sure that is blocked by obstacles (wall, clothes, etc.).

If the sensors were blocked, FOLLOW ME function cannot work properly.

- If transmitting sensor and receiving sensors were blocked by dust, clean the sensors using a cotton swab. Clean the sensor holes using a cotton swab periodically.

NOTICE

For your safety, if abnormal electrical noise occurred, the speed of the wheel could be changed instantaneously.

Note

Note

Note

Object

Notes
