USER MANUAL HOR-N150 Infiniton

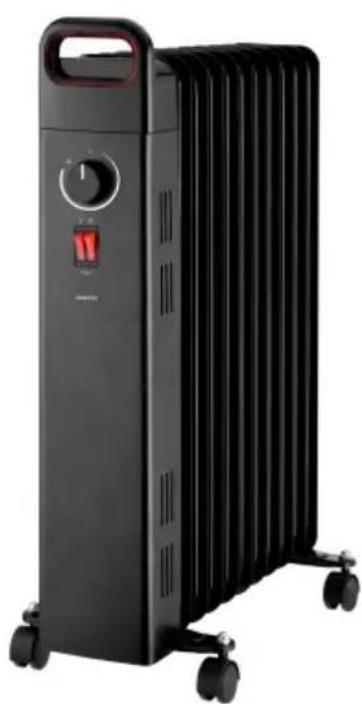

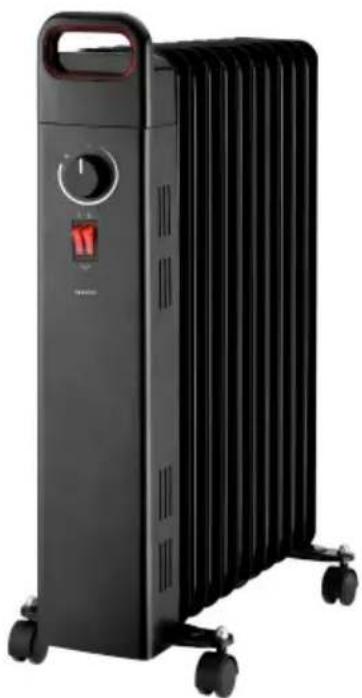

Black rectangular electric heater with cooling fan and control panel, displayed on wheels (no visible text or symbols)

Black rectangular electric heater with cooling fan and control panel, no visible text or symbols

HOR-N150

ean:8445639002162

HOR-N200

ean:8445639002179

LEA Y GUARDE ESTAS INSTRUCCIONES

NO PONGA LOS RADIADORES BOCA ABAJO DURANTE EL FUNCIONAMIENTO

READ AND SAVE THESE INSTRUCTIONS

DO NOT TURN RADIATORS UPSIDE-DOWN DURING OPERATION

LER E GUARDAR ESTAS INSTRUÇÕES

QR code image containing encoded data, no visible human-readable text

Black rectangular electric heater with cooling fan and control panel, displayed on wheels (no visible text or symbols)

Black rectangular electric heater with cooling fan and control panel, no visible text or symbols

HOR-N150

ean:8445639002162

HOR-N200

ean:8445639002179

LEA Y GUARDE ESTAS INSTRUCCIONES

NO PONGA LOS RADIADORES BOCA ABAJO DURANTE EL FUNCIONAMIENTO

READ AND SAVE THESE INSTRUCTIONS

DO NOT TURN RADIATORS UPSIDE-DOWN DURING OPERATION

LER E GUARDAR ESTAS INSTRUÇÕES

Thank you for purchasing our Comfort Oil Radiator. Each unit has been manufactured to ensure safety and reliability. Before first use. Please read the instructions carefully and keep them for further reference.

ASSEMBLY

Remove the heater and all the accessories from the carton.

1、Turn the heater upside down.
2、Position the wheelbase assembles between the end fins.
3、Attach them to the heater using the U-bolls and wing nuts supplied.
4、Tighten the wing nuts.
5、Turn the heater the right way up.

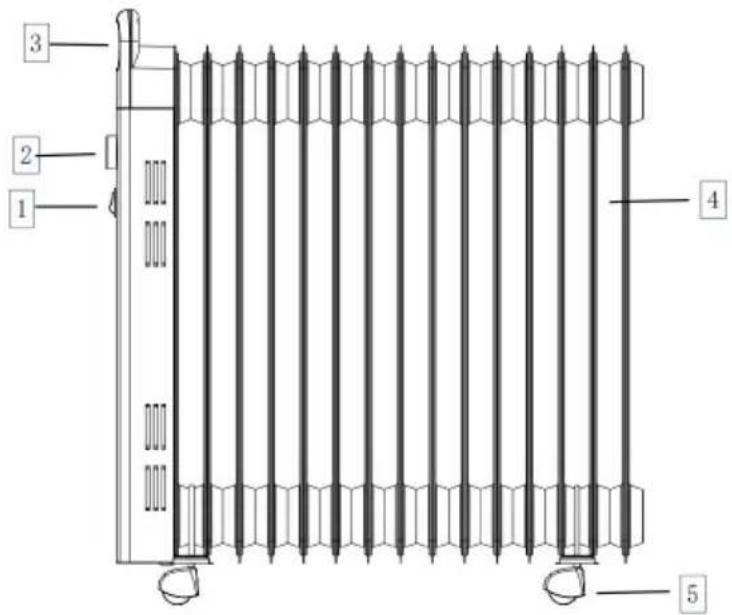

PARTS DESCRLPTION

1. Power setting switch
2. Thermostat control
3. Handle
4. Oil filled fins
5. Wheel

3 2 1 4 5

OPERATING YOUR OIL RADIATOR

Place the heater on the floor at least 90cm away from the wall and any other objects such as furniture. Curtains or plants.

(Make sure the power supply used corresponds to the one on the rating label)

With the thermostat control switch and the power setting switches in the “OFF” Position; plug the heater into the main power supply.

USING THE THERMOSTAT AND POWER SWITCHS

1、Room temperature can be adjusted using the thermostat. . Simply turn the thermostat knob clockwise to increase the heat and anti-clockwise to decrease the temperature until you reach the desired temperature.

1、Switch the heater to one of the following power settings.

A)07fins: Push switch one (I) for 600W Push switch two (II) for 900W Push switch one&two (I& II ) for 1500W. B)09fins: Push switch one (I) for 800W Push switch two (II) for 1200W Push switch one&two (I& II ) for 2000W

Note: this radiator heater is oil fitted. And will cool down slowly after the power is shut off. Allow the radiator heater to cool prior to any movement, the carry handle should be used for easy movement.

1、The switch lights up when turn on
2、Turning the thermostat control clockwise will increase the "set" temperature.
3、Turning the thermostat anti-clockwise will decrease the "set" temperature.
4、Do not cover the heater at any time during operation. There is a risk of fire if the heater is covered.
5、Once you have finished using your heater. Turn off the power switches, and the thermostat control switch to the "0" positions. And unplug from the mains supply.

CLEANING YOU OIL RADIATOR

1、Always disconnect the heater from the mains supply before cleaning.
2、Clean the outside of the heater by wiping with a damp cloth and buff with a dry cloth.
3、DO NOT use waxes or polishes as these may react with the heater and cause Discoloration.

STORING YOUR OIL RADIATOR

1、Save the box for off-season storage.
2、Clean the heater following the cleaning instructions above.
3、Remove the wheel base assemblies.
4、 Place the heater and wheel assemblies in the original box, and store in a cool, and dry

place.

5、If you choose to store your heater fully assembled. Be sure to cover it to protect it from dust.

IMPORTANT SAFEGUARDS

1、Read the instructions carefully before use and keep them for future reference.
2、 Always disconnect the heater from the main supply when not in use and when cleaning.

3、Do not leave the heater “ON” unattended.

4、Never cover the heater as this may lead to risk of fire.

5、Keep the heater a distance of at least 90-cm from any combustible material such as furniture. Curtains, bedding, clothes or papers.

6、Do not attempt to open any part of the oil fins.

7、Keep the heater clean do not allow objects to enter the ventilation, as this may cause electric shock. Fire or damage the heater.

8、 Close supervision is required when any appliance is used near or by children.

9、Never allow the cord to touch wet or hot surfaces, become twisted or be within the reach of children.

10、Do not use outdoors.

11、Do not place on or near a hot gas or electric burner.

12、Never use the appliance with a damaged cord or plug or after the appliance has malfunctioned or been damaged in any way.

13、Never attempt to open any part or dismantle the controls. Responsibility for failure cannot be accepted if these instructions have been ignored.

14、Do not use the appliance for anything other than its intended use.

15、 This appliance is intended for household use only.

16、Regulations concerning the disposal of the oil when scraping the appliance have to be followed.

17、Any repairs that need to be done to the heater must be referred to an authorized service agent only. If this instruction is not followed the manufacturers warranty falls away.

18、The heater must not be located immediately below a socket outlet.

19、This heater is filled with a precise quantity of special oil. Repairs requiring opening of the oil container are only to be made by the manufacturer or his service agent who should be

contacted if there is an oil leakage.

NOTE:

1- Put the plug in a place easy to access to it always.
2- Disconnect the unit if you are not using it for a long time.
3- Unplug power cord from wall outlet to protect your heater during heavy thunderstorms.
4- Don't let cord hang over edge of the table or counter or touch hot services.
5- Always hold the plug to remove it, but never pull the cord.

PROCEDURE IN CASE OF FAILURE OF AN INFINITON PRODUCT

Dear customers, to request technical assistance or repair of your Infiniton product, you have our website, operating 24 hours a day and 7 days a week:

QR code image containing encoded data, no visible human-readable text

Alternatively, if they wish, they can request technical assistance via email:

[e-mail]

[e-mail]

To streamline all procedures, the following information should always be indicated:

• Name and surname
• Telephone 1
• Telephone 2
• Full address
• Postal Code
• Population
• Brand
• Product model
• Serial number
• Failure presented by the product

If they wish, they can request technical assistance through the number 958 087 169, available only for white range products (except for free-standing microwaves).
