Product Type	Smart Camera
Model	C1
Brand	Totolink
Image Sensor	1/3 inch CMOS
Resolution	1080P (1920x1080)
Night Vision	IR-CUT auto switch, up to 10 meters
Field of View	93° Diagonal
Aperture	F2.1
Video Compression	H.265/H.264/MJPEG
Frame Rate	Main Stream 1080P@20fps, Sub Stream 640x360@20fps
Audio	Built-in Mic and Speaker, two-way audio
Detection	Motion, human-shape, sound detection, siren alarm
Storage	micro SD up to 128GB, cloud storage
Connectivity	Wi-Fi IEEE 802.11 b/g/n 2.4GHz
Wi-Fi Security	WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Power Input	Micro USB, 5V 1A
Operating Temperature	-10°C to +50°C
Operating Humidity	<95%
Mounting Options	Ceiling, wall, placing; 3M adhesive
Multi-channel Preview	Up to 2 channels P2P
Special Features	Privacy mode, siren, 2x playback
Package Contents	Camera, USB Cable, Power adapter, 3M Adhesive, Quick Guide

Frequently Asked Questions - C1 Totolink

How do I reset the TOTOLINK C1 camera?

Use the RST button on the camera to reset to factory settings. Press and hold for about 5 seconds until the indicator light changes.

Does the C1 support 5GHz Wi-Fi?

No, it supports only 2.4GHz Wi-Fi (IEEE 802.11 b/g/n).

What is the maximum micro SD card capacity?

The camera supports micro SD cards up to 128GB for local storage.

Can I use the camera without Wi-Fi?

Yes, you can record directly to a micro SD card, but remote viewing and app control require Wi-Fi.

How do I enable night vision?

Night vision is automatic via IR-CUT switch. You can also adjust manually in the T-SmartLife app.

Does the camera have two-way audio?

Yes, it has built-in mic and speaker for two-way audio communication via the app.

What app do I use to control the camera?

Use the T-SmartLife app available on iOS and Android.

Can I mount the camera on the ceiling?

Yes, it comes with 3M adhesive and supports ceiling, wall, or desk placement.

What is the field of view angle?

The camera has a 93° diagonal field of view.

How do I store videos in the cloud?

Enable cloud storage in the T-SmartLife app. Note that this may require a subscription.

USER MANUAL C1 Totolink

TOTOLINK C1 is a smart camera specially built for home security, equipped with 1080P camera with night vision function and two-way voice function.

C1

HD

2-Way audio

Motion detection SD care storage

Encrypted ID

White smart camera with circular lens and stand (no visible text or symbols)

IR

Overview

TOTOLINK C1 is a smart camera specially built for home security, equipped with 1080P camera with night vision function and two-way voice function. It can be controlled via Wi-Fi to connect to access view the camera in real time on your phone.

This product supports two-way voice real-time intercom, anytime, anywhere communication. 2 million real pixels, high transmission lens, high-quality imaging experience. 93° HD wide angle, no blind spots in the field of vision. 10 m enhanced infrared night vision, the same clear night.

Features

• 1080P Full HD, crystal clear lens, high-quality imaging experience.
• 93° HD wide viewing angle, wider field of view.
• 10m enhanced infrared night vision, clear day and night.
• Support motion detection, real-time alarm pushes via APP.
• Support bidirectional voice intercom at anytime and anywhere.
• View multiple cameras on the same screen, having a panoramic view.
• TF card enables recording without network, cloud storage is more.
• Secure.
• Ceiling / Wall hanging / Placing, installation in various environments.

White smart camera with a circular head and a small card labeled 'HiroSD' on the right (no visible text or symbols on device body)

White cylindrical device with black interior and circular body, showing 195° angular measurement (no text or symbols on device)

Highlights

Black-and-white photo of a young girl lying in bed, resting her head on her hands (no text or symbols visible)

Child lying in bed, resting on a blanket with soft clothing (no visible text or symbols)

Low-light full-color camera Maintains color images in low light conditions In low light conditions, switch to black and white TOTOLINK Smart Camera C1

Local micro SD card Cloud storage

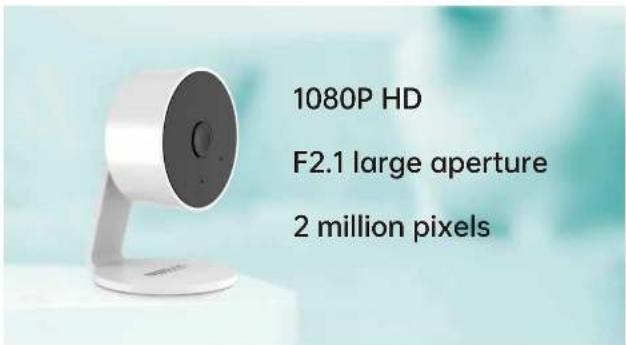

1080P HD picture quality, clearer imaging

Equipped with 1080P resolution, 2.0 megapixels, equipped with a large F2.1 aperture and 3D image noise reduction technology to make the picture clearer.

Full Color in Low-light, Enhanced infrared night vision

External LED infrared light, infrared distance up to 10 meters, support automatic / manual adjustment.

T-SmartLife, link everything

Log in to the T-SmartLife app on your phone, remote monitoring, safe and worry-free.

Two Storage Options

The video can be stored in local Micro SD card and cloud storage. Even the camera is damaged, or your network crashes, you can still retrieve videos based on cloud recording.

Highlights

50% ↓

50% ↓

Save 50% of video storage space 50% savings in bandwidth usage

Intelligent motion detection

Based on AI deep learning algorithms, when a person or object movement is detected, the APP warns in real time and stores the video to memory card or cloud storage.

Two-way voice calls

You can view the monitoring remotely through the cell phone APP and make two-way calls. It's easy and convenient.

Installation is ridiculously easy

3M adhesive make installation a breeze. Mount the C1 by sticking it to a smooth wall or ceiling. Once it's mounted, adjust its position manually(Vertical rotation 195°) for optimal coverage right where you need it.

New H.265 video encoding technology

New H.265 video encoding technology, up to 50% reduction in broadband usage and storage space for the same pixels and bit rate.

Specifications

IProduct model	C1
Image Sensor	1/3 inch CMOS
Maximum Pixels	1080P (1920×1080)
IR LED	Ring lamp, infrared distance up to 10 meters, support automatic/manual
Night vision	IR-CUT auto switch
Denoise	3D denoise
Focal length	4mm
FOV	93° Diagonal
Aperture	Fixed, F2.1
Image Compression	H.265/H.264/MJPEG
Video bitrate	Main Stream: 1.0Mbps; Sub Stream: 512Kbps
Image Frame Rate	Main Stream: 1080P@20fps; Sub Stream: 640*360@20fps
Audio input/output	Mic, Speaker
Two-way audio	Support

Multi-channel preview	Maximum support 2 channels P2P, synchronized previewing at multiple terminals
Detection	Support motion detection, human-shape detection, sound detection, Siren Alarm
SD Card Storage	Support continuous recoding & event recording, up to128G
General Features	Support customize volume, 2x playback, cloud storage, privacy mode
Button and Interface	RST button *1, SD card slot *1, Micro USB *1
Wi-Fi connection	Wi-Fi IEEE 802.11 b/g/n 2.4GHz
Wi-Fi security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Input	Micro USB, 5V 1A
Operating temperature	-10°C ~ +50°C
Operating humidity	<95%
Package Contents	Smart Camera, USB Cable, Power adapter, 3M Adhesive, Quick Installation Guide
