USER MANUAL GS1000 Totolink


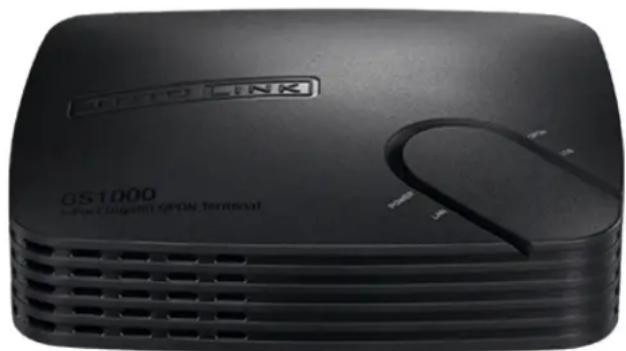

TOTO LINK GS1000 1-Port Gigabit GPON Terminal POWER LAN OPEN LOS1-Port
Gigabit GPON Terminal
Model No. GS1000
GPON Network
Gigabit LAN port
Transfer distance up to 20KM
Overview
1-Port Gigabit GPON Terminal
Model No. GS1000
GS1000 is a Gigabit Passive Optical Network (GPON) device that designed for Fiber to The Home(FTTH) requirement. With one GPON port, GS1000 allows users to access high-speed Internet and share data via the Gigabit Ethernet port. Delivering transmission rate up to 2.5Gbps, GS1000 is a high performance GPON solution to ensure smooth online experience.
Features
- Complies with ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3 and ITU-T G.984.4.
- 1*gigabit port, 1*SC/UPC optical interface.
- Downstream rate up to 2.488Gbps and upstream rate up to 1.25Gbps.
- Supports OMCI (ONT Management Control Interface) remote management.
- Supports remote diagnosis to accurate locate error.

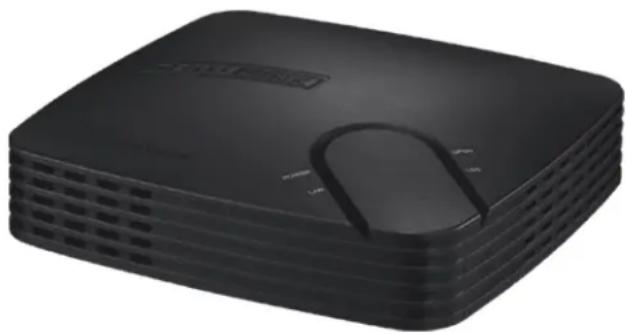

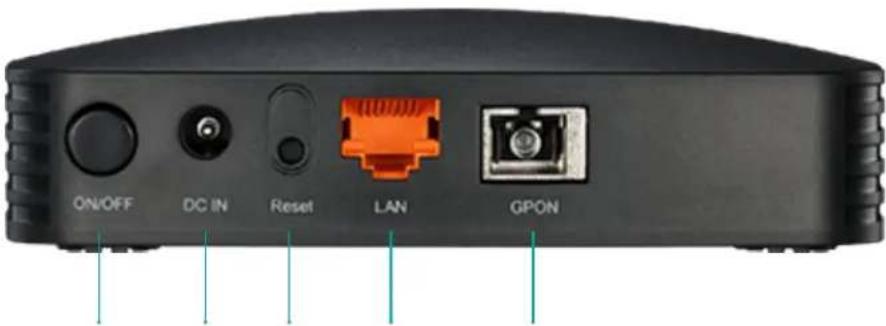

ON/OFF DC IN Reset LAN GPONSpecification
Hardware
| Interface | -1*1000Mbps LAN port-1*SC/UPC GPON port |
| Power Supply | -9V DC / 0.5A |
| Button | -1*RST Button-1*Power ON/OFF Button |
| LED Indicator | -1*Power, 1*GPON, 1*LAN, 1*LOS |
| Data Rate | -Upstream: 1.25Gbps-Downstream: 2.5Gbps |
| Standard | -IU-T G.984.1, G.984.2, G.984.3, G.984.4-IEEE 802.3, IEEE 802.3u |
| Optical Module | -Class B+ |
| Distance | -Up to 20Km |
 GPONON/OFF DCIN Reset Gigabir LAN |
Software
| VLAN | - 802.1Q tag VLAN, Authentication based on SN and Password, VLAN Auto Detect |
| Security | - AES Encryption, Packet Filter based on VLAN |
| Management | - Managed by Web, OMCI and Telnet, Specified the management IP, Reset to Factory default, Real-time statistics, Optical Diagnostic |
Specification
Others
| Package Contents | - GS1000 GPON Terminal*1- Power Adapter *1- Ethernet Cable *1- Quick Installation Guide *1 |
| Environment | - Operating Temperature: 0 °C ~40 °C (32 °F ~104 °F)- Storage Temperature: -40 °C ~70 °C (-40 °F ~158 °F)- Operating Humidity: 10%~90% non-condensing- Storage Humidity: 5%~90% non-condensing |
