USER MANUAL CM-S21139BG Zmodo


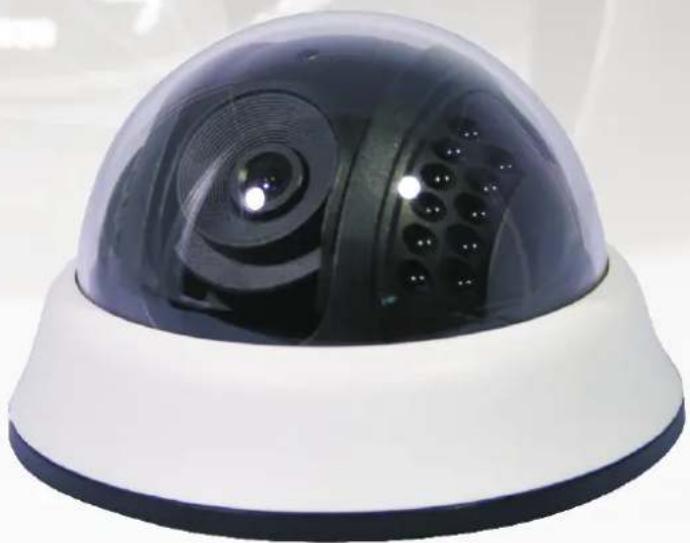

Vari-Focal IR Dome Camera
User's Guide
CM-S21139BG
1201-1205, Sangda Mansion, High Technology Park,
ShenZhen, Guangdong, China
Fax: Tel: 0755-3363-1636 0755-3363-1639
SAFETY PRECAUTIONS
WARNING
- Be sure to use only the standard adapter that is specified in the specification sheet. Using any other adapter could cause fire, electrical shock, or damage to the product
- Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock, or damage to the product.
- Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat generation or fire.
- Securely plug the power cord into the power receptacle. Insecure connection may cause fire.
- When installing the camera, fasten it securely and firmly. A falling camera may cause personal injury
- Do not place conductive objects (e.g. screwdrivers, coins, metal things, etc.) or containers filled with water on top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.
- Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.
- If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock.
- If this product fails to operate normally, contact the nearest service center. Never attempt to modify this product in any way. (ZMODO is not liable for problems caused by unauthorized modifications or attempted repair.)
- When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock.
CAUTION
- Do not drop objects on the product or apply strong shock to it. Keep away from a location subject to excessive vibration or magnetic interference.
- Do not install in a location subject to high temperature (over 110F), low temperature (below 0F), or high humidity. Doing so may cause fire or electric shock.
- If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall it.
- Remove the power plug from the outlet when then there is a lightning. Neglecting to do so may cause fire or damage to the product.
- Keep out of direct sunlight and heat radiation sources. It may cause fire.
- Install it in a place with good ventilation.
- Avoid aiming the camera directly towards extremely bright objects such as sun, as this may damage the CCD image sensor.
- Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
- The Mains plug is used as a disconnect device and shall stay readily operable at any time.
ZMODO TECHNOLOGY CORP. LTD. 1201-1205, Sangda Mansion, High Technology Park, Shenzhen, Guangdong, China Fax: Tel: 0755-3383-1638 0755-338
PRODUCT OVERVIEW
Product Overview
Keep an eye on the people and places you care about most with this color CCD dome camera. Featuring imaging provided by a 1/3" Sony Color CCD, it delivers good video quality, reliable operation, a long operating life, and high value. With 22 built in IR LEDs, this camera can capture video in night vision mode up to 50' away. With 4\~9mm vari-focal lens, it allows you to have a wider or further view angle. This dome camera is designed for indoor use, and can easily be mounted for the perfect viewing angle. BNC and RCA connections are used for video and power. Installation is easy and hassle free, just plug and play.
Main Features
• 1/3" Sony Color CCD Image Sensor
• 420 TV Lines, Horizontal
• 4\~9mm Vari-focal Lens
- Signal: NTSC
- Iris: Auto
• Night Vision Min. Light: 0 Lux (IR On)
• IR Irradiation Distance: 50' (15m)
• Operation Temperature: 0F \~ 110F
- Mount: Ceiling or Wall
• Video Connector: BNC
• Power Connector: RCA 12V DC
Package includes
Please check your camera and accessories included in the package. Those components are as shown below:



Screws Package Box
1) CM-S21139BG Vari-focal Color IR Dome Camera
1) A Card
3) Screws
1) Package Box

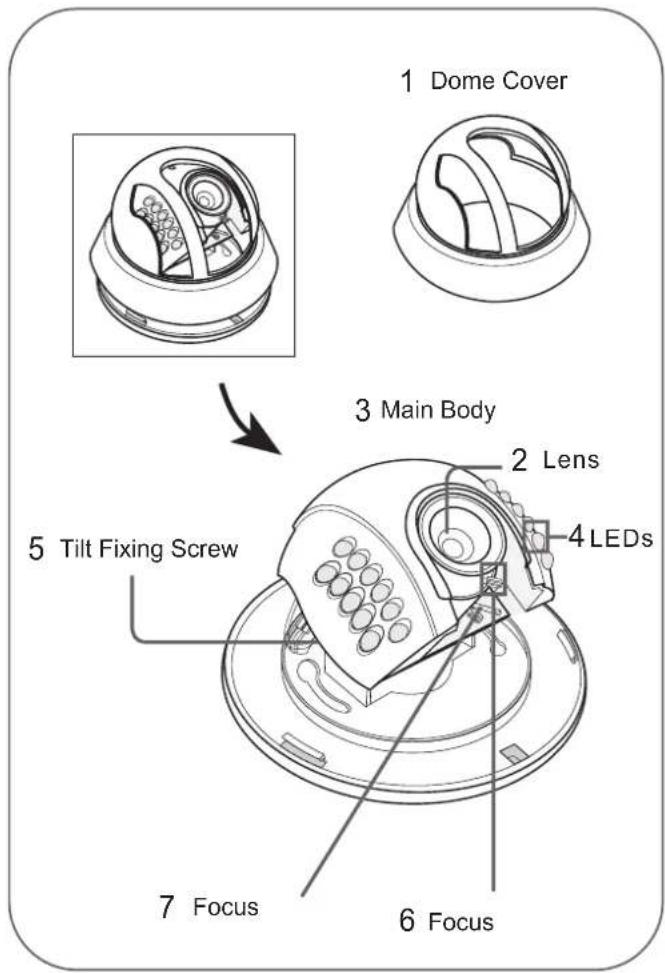

SCHEMATIC DIAGRAM


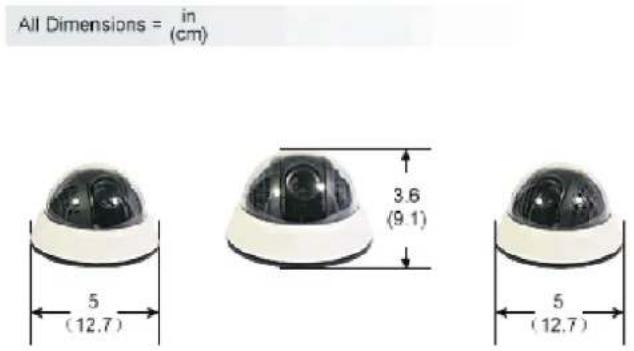

All Dimensions = in (cm) 5 (12.7) 3.6 (9.1) 5 (12.7)


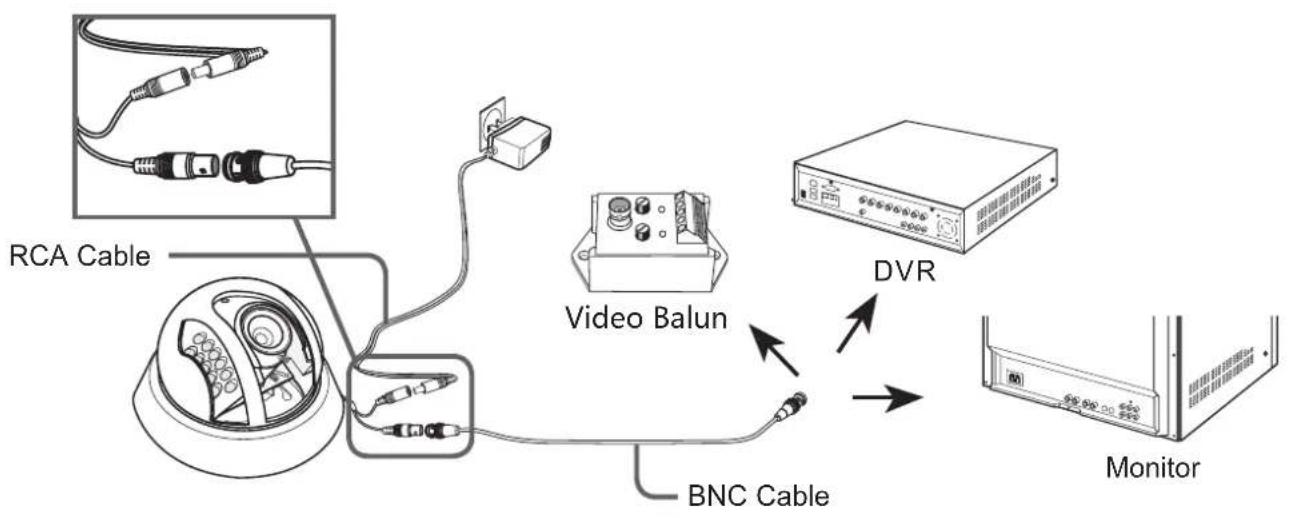

To connect cables
- Connect the BNC cable to the video connector attached on your camera
- Connect the BNC cable to the Video Input on a monitor, DVR or Video Balun.
- Connect the power adapter to the RCA Power connector attached on your camera. When the monitor is turned on, the camera image appears.
Note
It is very important that you identify these ends before installing the cable so that you have the correct ends at the correct location.
HOW TO INSTALL
Before installation
Please read the following instructions before installing your camera:
- You have to check whether the location (ceiling or wall) can bear five times the weight of your camera.
- Do not allow the cable to be caught in a pinched area, otherwise the electric line cover may be damaged. This may cause cable breakdown or fire.
- When installing your camera, don't allow anyone to walk or stand under your installation site, and remove all valuable items. A dropped camera may cause injury to bystanders or harm to valuable items.
Installation procedure
• To install your camera


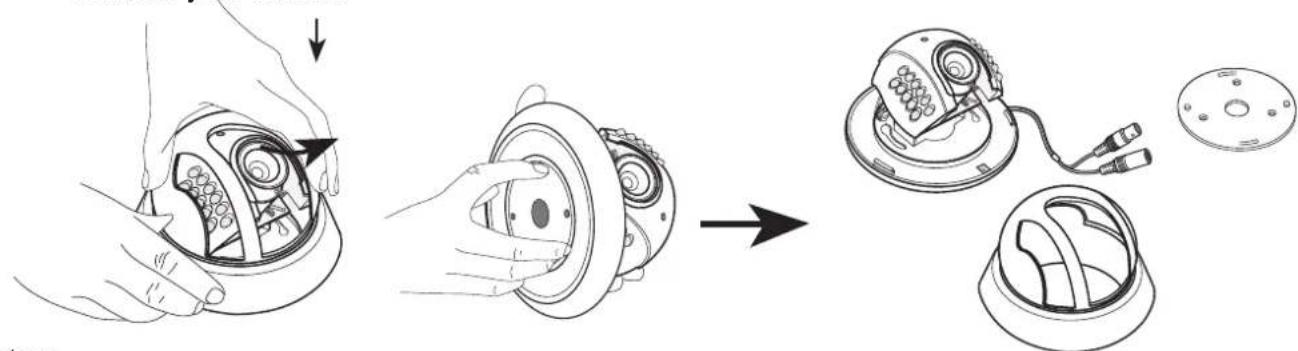

1 Press down on the Dome Cover, and rotate the Dome Cover counterclockwise until it becomes loose. Remove the Dome Cover from the Main Body. Rotate the Mount Bracket counterclockwise while holding the Main Body to remove the Mount Bracket. This will reveal the camera's Main Body.
HOW TO INSTALL


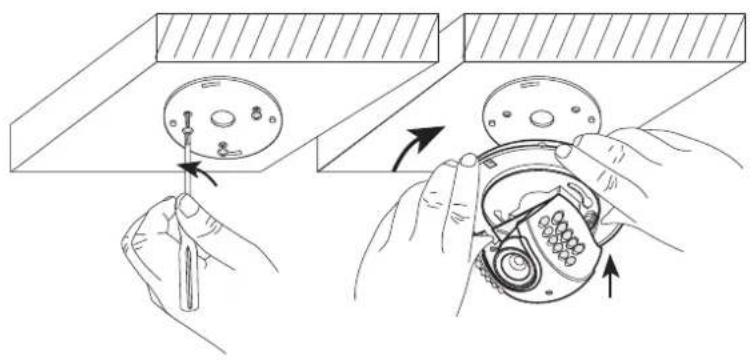

2 Drill three holes on the mounting location. Fix the Mount Bracket to the location with the 3 screws supplied in your package. Then attach the Main Body to the Mount Bracket by rotating it on clockwise.
step
3 Adjust the slope of the lens by tilting the Main Body up and down. Make sure that the Lens is facing the camera's monitor ing area. You can also adjust the lens focus by using the lens adjustment under the lens to me et your specific needs.
step
4 Last, attach the Dome Cover to the Main Body. Rotate the Dome
Cover on clockwise until it becomes tight. The camera is now installed on the mounting location.
CAMERA SPECIFICATION
Specifications for NTSC & PAL Standard
| Item Details | |||
| Product type | Vari-Focal Color IR Dome Camera | ||
| Power input | DC 12V | ||
| Broadcast type | NTSC Standard color system PAL $standard color system | ||
| (525 Lines, 60 Fields) | (625 Lines, 50 Fields) | ||
| Power Consumption | Approx. 300mA | ||
| Image device | 1/3 inch SONY Color CCD | ||
| Effective Pixels | 510(H) x 492(V), 250,920 pixels | ||
| Scanning mode | NTSC Standard PAL Standard | ||
| 525 Lines 625 Lines | |||
| Synchronization mode | Internal Synchronization | ||
| Horizontal resolution | 420 TV Lines | ||
| Minimum illumination | 0.0Lux (IR Lamps on) | ||
| IR Lamps | 22 LEDs | ||
| IR Distance | Visible up to 15m(50') | ||
| Signal output | 1.0Vp-p, 75ohms | ||
| Lens | Focal Length | Zone | Limit of Viewing Angle |
| Vari-focal4~9mm | Horizontal | 39°~72° | |
| Vertical | 32°~63° | ||
| S/N Ratio | >48dB | ||
| Controls | Auto Iris | ||
| Auto Gain Control | |||
| Auto Back Light Compensation | |||
| Auto Switching between Color and B&W by day and night change(D/N) | |||
| Product color | Beige | ||
| Operation temperature | 0F—110F | ||
| Size | 5"x5"x3.6" | ||
| Weight | 0.79 lbs | ||
| Mounting | Wall or Ceiling | ||
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received including interference that may cause undesired operation.
Note
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Correct Disposal of This Product

(Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product
or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
