CM-S14359SV - Security Camera Zmodo - Free user manual and instructions

Product Type	Indoor/Outdoor Security Camera
Brand	Zmodo
Model	CM-S14359SV
Dimensions	6.0 x 2.5 x 2.5 in (152 x 64 x 64 mm)
Weight	0.5 lb (227 g)
Power Supply	12V DC Adapter (included)
Power Consumption	5W (max)
Video Resolution	1080p Full HD (1920x1080)
Night Vision	Up to 65 ft (20 m) with IR LEDs
Field of View	90° diagonal
Motion Detection	Yes, with customizable zones and alerts
Audio	Two-way audio with built-in microphone and speaker
Storage	MicroSD card (up to 128 GB, not included) or cloud (subscription)
Connectivity	Wi-Fi 2.4 GHz 802.11 b/g/n
App Compatibility	Zmodo App (iOS & Android)
Weather Rating	IP65 (weather-resistant)
Operating Temperature	-4°F to 122°F (-20°C to 50°C)
Mounting Type	Wall or ceiling mount with included bracket
Maintenance	Clean lens with a soft, dry cloth. Keep ventilation openings clear.
Safety Features	Password protection, encrypted video stream, firmware updates via app
Spare Parts & Repairability	Replacement power adapter and mounting kit available. Camera is not user-serviceable; contact Zmodo support.
General Information	Designed for home or business security, easy DIY installation.

Frequently Asked Questions - CM-S14359SV Zmodo

How do I reset the Zmodo CM-S14359SV camera to factory defaults?

Press and hold the reset button on the camera for 10 seconds using a paperclip. The camera will reboot and all settings will be cleared.

Does the camera support 5 GHz Wi-Fi?

No, the CM-S14359SV only supports 2.4 GHz Wi-Fi (802.11 b/g/n). Ensure your router broadcasts a 2.4 GHz network.

What is the maximum microSD card size supported?

The camera supports microSD cards up to 128 GB (Class 10 or higher recommended). Format the card to FAT32 before use.

How do I enable motion detection alerts?

Open the Zmodo app, go to the camera settings, and enable Motion Detection. You can also set activity zones and adjust sensitivity.

Can I view the camera remotely?

Yes, after connecting the camera to your Wi-Fi network, you can view live footage from anywhere using the Zmodo app on your smartphone or tablet.

How do I set up the camera for the first time?

Download the Zmodo app, create an account, and follow the in-app setup guide. You will need to plug in the camera, wait for the blue LED to blink, and scan the QR code displayed in the app.

Does the camera record continuously?

Yes, you can choose between continuous recording (loop) or event-based recording. For continuous recording, insert a microSD card or subscribe to cloud storage.

How do I clean the camera lens?

Use a soft, lint-free cloth slightly dampened with water or lens cleaner. Gently wipe the lens in a circular motion. Avoid abrasive materials.

What is the warranty period for the Zmodo CM-S14359SV?

Zmodo offers a 1-year limited warranty from the date of purchase. For warranty claims, contact Zmodo customer support with proof of purchase.

Is the camera suitable for outdoor use?

Yes, the camera has an IP65 weather resistance rating, meaning it is protected against dust and low-pressure water jets. However, avoid direct exposure to heavy rain or submersion.

USER MANUAL CM-S14359SV Zmodo

7modo

Vari-Focal IR Bullet Camera

User's Guide

CM-S14359SV

ZMODO TECHNOLOGY CORP. LTD.

1201-1205, Sangda Mansion, High Technology Park,

ShenZhen, Guangdong, China

Fax: Tel: [phone] 0755-3363-1639

SAFETY PRECAUTIONS

WARNING

1. Be sure to use only the standard adapter that is specified in the specification sheet. Using any other adapter could cause fire, electrical shock, or damage to the product
2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock, or damage to the product.
3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat generation or fire.
4. Securely plug the power cord into the power receptacle. Insecure connection may cause fire.
5. When installing the camera, fasten it securely and firmly. A falling camera may cause personal injury
6. Do not place conductive objects (e.g. screwdrivers, coins, metal things, etc.) or containers filled with water on top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.
7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.
8. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock.
9. If this product fails to operate normally, contact the nearest service center. Never attempt to modify this product in any way. (ZMODO is not liable for problems caused by unauthorized modifications or attempted repair.)
10. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock.

CAUTION

1. Do not drop objects on the product or apply strong shock to it. Keep away from a location subject to excessive vibration or magnetic interference.
2. Do not install in a location subject to high temperature (over 120F), low temperature (below -5F), or high humidity. Doing so may cause fire or electric shock.
3. If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall it.
4. Remove the power plug from the outlet when then there is a lightning. Neglecting to do so may cause fire or damage to the product.
5. Keep out of direct sunlight and heat radiation sources. It may cause fire.
6. Install it in a place with good ventilation.
7. Avoid aiming the camera directly towards extremely bright objects such as sun, as this may damage the CCD image sensor.
8. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
9. The Mains plug is used as a disconnect device and shall stay readily operable at any time.

ZMODO TECHNOLOGY CORP. LTD. 1201-1205, Sangda Mansion, High Technology Park, Shenzhen, Guangdong, China Fax: Tel: [phone] 0755-338

PRODUCT OVERVIEW

Product Overview

Keep an eye on the people and places you care about most with this color CCD bullet camera. Featuring imaging provided by a 1/3 Sony Color CCD, it delivers good video quality, reliable operation, a long operating life, and high value. With 36 built in IR LEDs, this camera can capture video in night vision mode up to 150' away. With 4\~9mm vari-focal lens, it allows you to have a wider or further view angle. This camera is designed for indoor or outdoor use, and can easily be mounted for the perfect viewing angle. BNC and RCA connections are used for video and power. Installation is easy and hassle free, just plug and play.

Main Features

• 1/3" Sony Color CCD Image Sensor
• 420 TV Lines, Horizontal
• 4\~9mm Vari-Focal Lens
• Signal: NTSC
- Iris: Auto
• Night Vision Min. Light: 0 Lux (IR On)
• IR Irradiation Distance: 150' (45m)
• Operation Temperature: -5F \~ 120F
- Mount: Ceiling or Wall
• Video Connector: BNC
• Power Connector: RCA 12V DC

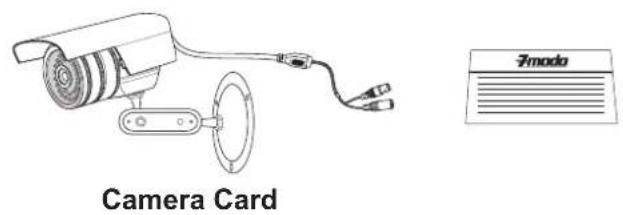

Package includes

Please check your camera and accessories included in the package. Those components are as shown below:

Screws Package Box

1) CM-S14359SV Weatherproof IR Outdoor Camera
1) A Card
4) Screws
1) Package Box

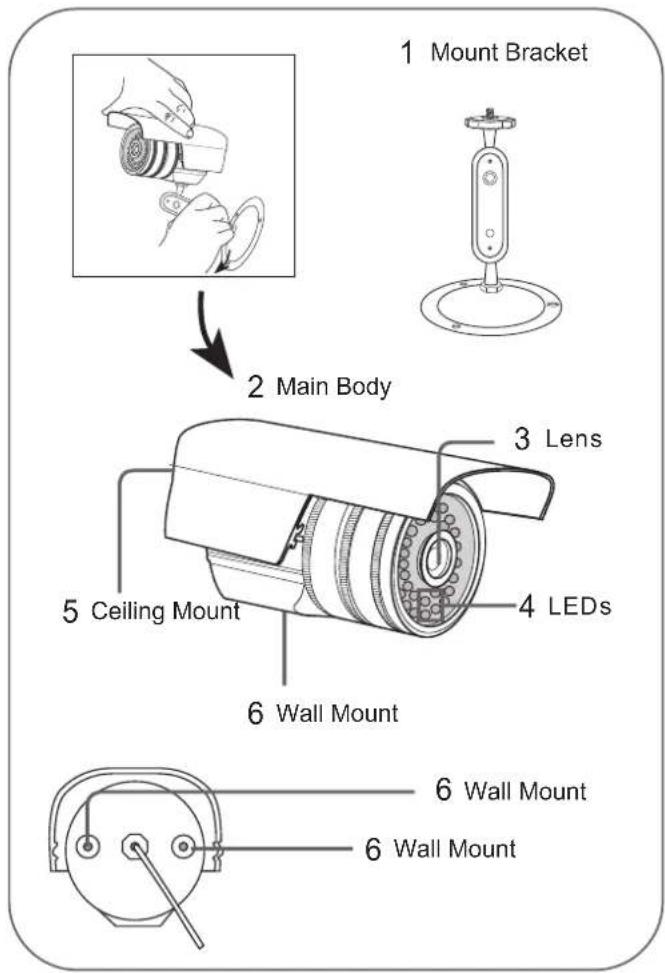

SCHEMATIC DIAGRAM

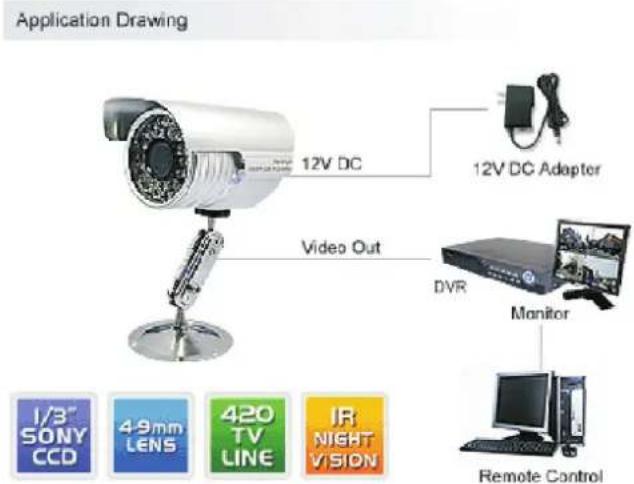

CONNECTING CABLES

To connect cables

1. Connect the BNC cable to the video connector attached on your camera
2. Connect the BNC cable to the Video Input on a monitor, DVR or Video Balun.
3. Connect the power adapter to the RCA Power connector attached on your camera. When the monitor is turned on, the camera image appears.

Note

It is very important that you identify these ends before installing the cable so that you have the correct ends at the correct location.

HOW TO INSTALL

Before installation

Please read the following instructions before installing your camera:

• You have to check whether the location (ceiling or wall) can bear five times the weight of your camera.
• Do not allow the cable to be caught in a pinched area, otherwise the electric line cover may be damaged. This may cause cable breakdown or fire.
• When installing your camera, don't allow anyone to walk or stand under your installation site, and remove all valuable items. A dropped camera may cause injury to bystanders or harm to valuable items.

Installation procedure

• To install your camera

step

Rotate the Mount Bracket counterclockwise until it gets off the camera. Now you are ready for installation.

HOW TO INSTALL

step

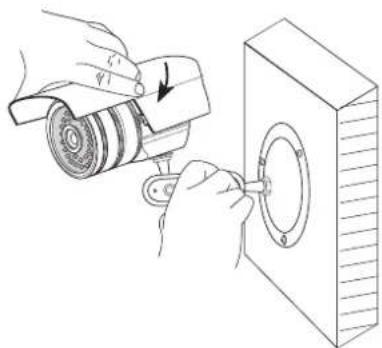

2 Attach the Mount Bracket to the mounting location(wall or ceiling) using the 4 screws supplied in your package. As shown in the picture, push the 3 screws into the 3 holes on the Mount Bracket, then twist the 3 screws into the holes using screwdriver.

step

3 Attach the Main Body of the camera to the Mount Bracket. There are two screws for your installation. One is on the rear of the camera, the other one is on the bottom of the camera. Twist the Mount Bracket into the screws to fix it.

step

4 Last, adjust the slope of the lens by twirling the cameras up and down, left and right to make sure that the front of the Main Body is facing the camera's monitoring area.

Note

There are two focus screws in the rear of the camera for you to adjust your lens.

CAMERA SPECIFICATION

Specifications for NTSC & PAL Standard

Item Details
Product type	Vari-Focal IR Long Range Bullet Camera
Power input	DC 12V
Broadcast type	NTSC Standard color system PAL $standard color system
	(525 Lines, 60 Fields)	(625 Lines, 50 Fields)
Power Consumption	Approx. 630mA
Image device	1/3 inch SHARP Color CCD
Effective Pixels	510(H) x 492(V), 250,920 pixels
Scanning mode	NTSC Standard PAL Standard
	525 Lines 625 Lines
Synchronization mode	Internal Synchronization
Horizontal resolution	420 TV Lines
Minimum illumination	0.0Lux (IR Lamps on)
IR Lamps	36 LEDs
IR Distance	Visible up to 45m(150')
Signal output	1.0Vp-p, 75ohms
Lens	Focal Length	Zone	Limit of Viewing Angle
	Vari-focal4~9 mm	Horizontal	39°~72°
		Vertical	32°~63°
S/N Ratio	>48dB
Controls	Auto Iris
	Auto Gain Control
	Auto Back Light Compensation
	Auto Switching between Color and B&W by day and night change(D/N)
Product color	Silver
Operation temperature	-5F—120F
Size	6.1"x3.7"x3.6"
Weight	2.29 lbs
Mounting	Wall or Ceiling

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference.
2) This device must accept any interference received including interference that may cause undesired operation.

Note

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product

or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
