USER MANUAL GL-B302RQM LG

Please read carefully the manual instruction and safety caution before operating your refrigerator and retain it for future reference.

1. Identification of parts 3
2. Important Safety Information 4
3. Warning 4-7
4. Caution 8
5. Installation 8
6. Features 9-11
7. Power Cut Evercool (Optional) 11
8. Identification of Control 12
9. Operating Procedure 12
10. Identification of Control (With Button) 13
11. Disposal of Your Old Appliance 13
12. LED Replacement 14
13. Suggestions on Food Storage 14-16
14. Suggestions 16
15. Before Calling for Service 17

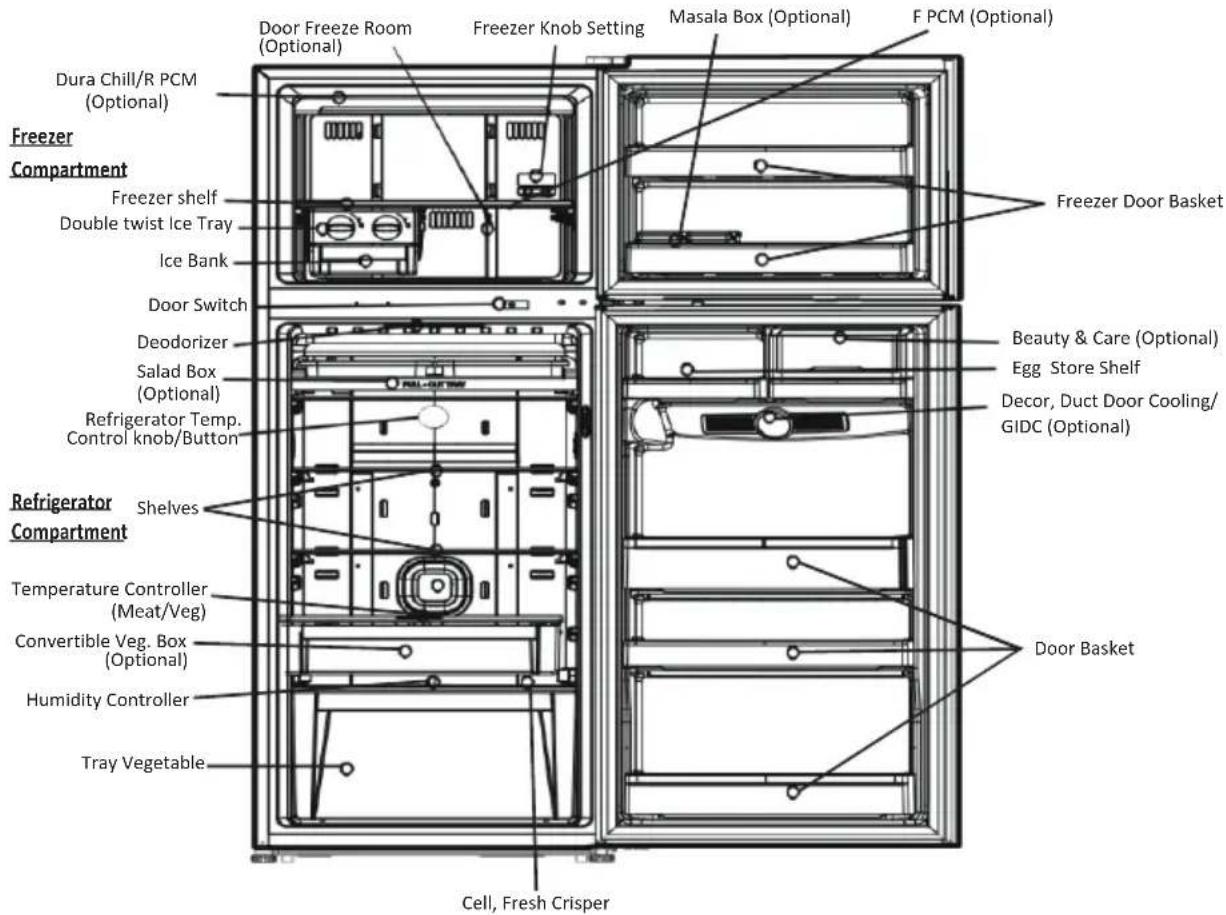

Identification of Parts

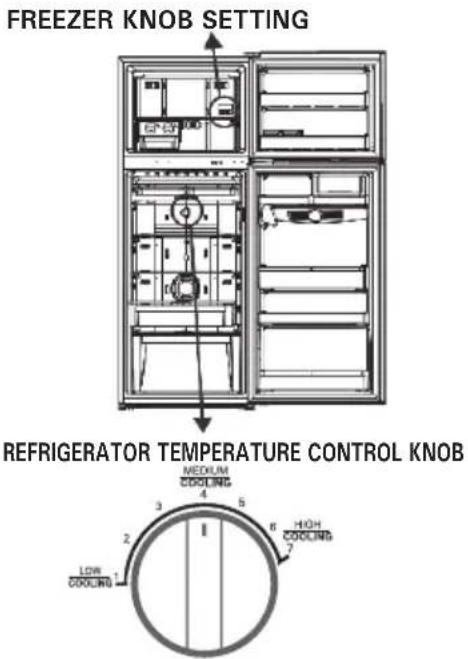

Door Freeze Room (Optional) Freezer Knob Setting Masala Box (Optional) F PCM (Optional) Dura Chill/R PCM (Optional) Freezer Compartment Freezer shelf Double twist Ice Tray Ice Bank Door Switch Deodorizer Salad Box (Optional) Refrigerator Temp. Control knob/Button Refrigerator Compartment Shelves Temperature Controller (Meat/Veg) Convertible Veg. Box (Optional) Humidity Controller Tray Vegetable Cell, Fresh Crisper Freezer Door Basket Beauty & Care (Optional) Egg Store Shelf Decor, Duct Door Cooling/ GIDC (Optional) Door Basket

• Due to continuous improvements at LG, specifications of refrigerator are subject to change without prior notice.
• If you find out some parts which are not in your unit, the parts are applied to other models.
• Except during transportation & maintenance, the shelves must be considered as fixed when in normal use.

Important Safety Information

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that may kill or you or others or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING or CAUTION. These words mean:

DANGER

You will be killed or seriously injured if you don't follow instructions.

WARNING

You can be hurt or seriously injured if you don't follow instructions.

CAUTION

Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following. Read all instructions before using this appliance.

1. When connecting the power

The dedicated outlet should be used.

Using several devices at one outlet may cause fire.

Abstract line drawing of intersecting ribbon-like shapes (no text or symbols)

Do not allow the power cord to face upward or to be squeezed at the back of the refrigerator.

Power supply cord should not be bent or pressed under heavy object.

It may damage the power cord to cause fire or electric shock.

Cartoon illustration of a refrigerator with a bandaged arm and a surprised expression (no text or symbols)

Do not extend or modify the length of the power supply cord.

Water may be flown into or the plug may be damaged, which causes fire or electric shock.

Illustration of a cartoon refrigerator with a wavy face and crossed arms, connected to a broken door (no text or symbols)

It causes electric shock or fire by the electric damage of the power cord or others.

Cartoon illustration of a refrigerator with a person holding a phone and waving (no text or symbols)

1. When connecting the power

Remove water or dust from the power plug and insert it with the ends of the pins securely connected.

Dust, water or unstable connection may fire or electric shock.

When the power cord or the power plug is damaged or the holes of the outlet are loosen, do not use them.

It may cause electric shock or short circuit to make fire.

2. When using the refrigerator

Do not place the heavy object or the dangerous object (container with liquid) on the refrigerator.

It may be dropped to cause injury, fire or electric shock when opening or closing the door.

Do not install the refrigerator in the wet place or the place which water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

Cartoon illustration of a sad book character holding a 'NO' sign, with a cross symbol below (no text or symbols on the book itself)

Do not keep any other electrical appliance on top and inside of refrigerator such as TV, Cooler, Temple, Decoration Lighting, Harmful Chemicals, Cloth Top etc.

It may cause explosion or fire.

Do not pull out the cord or touch the power plug with wet hands.

It may cause electric shock or injury.

Illustration of two children playing with a board game (no text or symbols)

Make sure of grounding.

The incorrect grounding may cause breakdown and electric shock.

Ground Wire Copper Flat More than 30 inches

Do not cling to the door or the shelves of the door or the home bar of the freezer or the cool chamber.

It may make the refrigerator fallen down or damage the hands. Especially, do not allow the children to do the above.

NO

Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas spray or cosmetic near or in the refrigerator.

It may cause explosion or fire.

Cartoon illustration of a smiling book character and a crossed book (no text or symbols)

Do not store the medicine or the academic materials in the refrigerator.

When the material with the strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk.

Cartoon illustration of a refrigerator with a sad face and a 'NO' sign, accompanied by a crossed-out hand (no text or symbols on the refrigerator itself)

Do not use the combustible spray near the refrigerator.

It may cause fire.

Cartoon illustration of a refrigerator with a sad face and a crossed-out airlock, accompanied by a distressed character (no text or symbols)

Do not place the lit candle on top and inside refrigerator to deodorize.

It may cause explosion or fire.

Cartoon illustration of a smiling refrigerator with a 'NO' sign and a crossed-out door (no text or symbols on the refrigerator itself)

When gas is leaked, do not touch the refrigerator or the outlet and ventilate the room immediately.

It may cause explosion or fire.

Cartoon illustration showing a character with 'GAS' written on clouds next to a smiling rectangular object, while another person holds up an open door.

Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or thinner.

Deterioration of insulation of electric parts may cause electric shock or fire.

Cartoon illustration of a smiling book character and a girl holding a paper, with no visible text or symbols.

When disposing the refrigerator, remove the door gasket from the door.

It may cause to lock out the child.

Cartoon illustration of a girl opening a refrigerator with a smiling face (no text or symbols)

Avoid the heating devices near the refrigerator.

It may cause fire.

Cartoon illustration of a distressed rectangular object and a box with steam rising (no text or symbols)

Use the submerged refrigerator after checking it.

It may cause electric shock or fire.

Cartoon illustration of a person standing beside a large refrigerator with steam clouds (no text or symbols)

When any strange smell or smoke is detected from the refrigerator, disconnect

the power plug immediately and contact to the service center.

It may cause fire.

Service center

Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

Cartoon illustration of a smiling book character with arms and legs, standing on a cross symbol (no text or symbols present)

Install the refrigerator on the solid and level floor.

Installing it on the unstable place may cause death by falling down the refrigerator when opening or closing the door.

Cartoon illustration of a smiling book character with arms and legs, standing next to a cross-shaped symbol (no text or symbols present)

Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator.

It may cause injury, electric shock or fire.

Cartoon illustration of two children running with a backpack and a smiling refrigerator (no text or symbols)

Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of the refrigerator, the heatproof grill (exhaust hole) at the backside.

It may cause electric shock or injury.

Illustration of a child inside a cardboard box with X symbols, no text or symbols present

When you want to dispose the refrigerator, contact to the down-block office.

When you want to dispose the large living waste such as electric home appliance and furniture, you should better contact the local down-block office.

Customer Care Centre

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, offices and other working environment; - farm houses and by clients in hotels, motels and other residential type environment; - bed and breakfast type environment; - catering and similar non-retail applications.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Keep the ventilation openings, in the appliance enclosure or in the built - in structure, clear of obstruction.

CAUTION

Violating this direction may cause injury or damage house or furniture. Please always be careful.

Do not touch food or containers at the freezer with wet hands.

It may cause frostbite.

Do not put Glass bottle in the freezer.

It may freeze the contents to break the bottle to cause injury.

Do not put any living animal in the refrigerator.

It may cause death of that living animal.

Because opening or closing the door of the refrigerator may cause injury to the person around it. Please be careful.

Opening or closing the door may cause feet or hands to be caught in the chink in door or the child to be get hurt by the corner.

Cartoon illustration of a distressed refrigerator with a person holding a fan (no text or symbols)

Carry the refrigerator from bottom of the front and the top of the rear.

Otherwise, your hands may be slipped to cause injury.

Illustration of three workers in hard hats pulling a large white banner (no text or symbols visible)

Wait for 5 minutes or longer when reconnecting the plug.

It may cause the operation of the freezer to fail.

Pull out the power plug not by grasping the cord but the plug of its end.

It may cause electric shock or short circuit to fire.

Do not install the refrigerator in the wet place or the place which water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

NO

Do not insert the hands into the bottom of the refrigerator.

The iron plate of the bottom may cause injury.

Cartoon illustration of a smiling refrigerator with a sad face and a child holding a cross (no text or symbols)

Always remove Gasket when discarding Refrigerator.

As marked for 2 Star Section, only store Item which need temperature or minimum -12 deg. C of warmer temperature.

Installation

Refrigerator should be located properly in ventilated area.

Levelling of refrigerator should be done with front leg. Refrigerator should be levelled with front to back inclination for base.

Iron Leg

Do not install refrigerator where the front surface area is higher than back surface area by 2 deg.

Features

Deodorizer

• By using a catalyst, deodorizing performance is guaranteed.
• Unpleasant odour of food in fresh food compartment is deodorized with no harm to you and the food.

How to use

• As Deodorizer is located in cooling air path for circulating air in fresh food compartment, there is no need for any handling.
• Do not prick the cooling air inlet with a sharp tip because Deodorizer may be damaged.
• When storing food with a strong odour, wrap it or store it in a container with a lid because odour may be passed on to other foods.

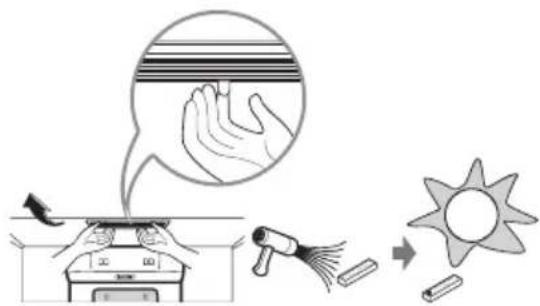

Re-Using of Deodorizer

• Keep distance as odour is strong, Deodorizer can be revived and re-used.
• Separate Deodorizer in ceiling of refrigerator compartment, using hair drier to remove moisture or odour and oxidize under sunlight to decomposing odour by ultraviolet.
• Don't try to remove the deodorizer cover, as you may break the catalyst.

Diagram illustrating the process of lighting and sun exposure, showing hand protection, laser, and radiation generation.

Green Ion Door Cooling (Optional)

- Cool air vent is placed on the refrigerator door to provide cool air to the Door Shelves.

Top-down line drawing of a vehicle front view showing grille and side brackets (no text or symbols)

• If foreign substances enter the cool air vent while cleaning, efficiency will be lowered. In addition, if gasket is damaged, efficiency may be lowered due to the escape of cool air. So care should be taken during cleaning.
• The green catechin deodorizer purifies the air and helps stored foods remain fresh longer.
• For better effectiveness deodorizer is placed on return path of air in Refrigerator Compartment.

Beauty and Care (Optional)

• It is placed in the refrigerator compartment and can be used for storing medicines and cosmetics.
• Only those medicines which are supposed to be stored in refrigerator.

Interior view of a refrigerator showing the door, front panel, and side view of the refrigerator (no text or symbols visible)

Door Alarm (Optional)

When the door of refrigerator is opened for 1 minute, an alarm will sound.

Illustration of a child standing beside a refrigerator with a 'NO' sign, no text or symbols present

Egg-cum-Ice Tray

It is used for storing the eggs. It can also be used for making the ice.

Dura Chill (Optional)

Keeps your items cooler even when there is power off condition in freezer compartment.

Diagram showing a rectangular panel with internal structure and an adjacent view of a multi-panel device (no text or symbols visible)

Pull Out Tray (Optional)

Pull out tray is placed in refrigerator compartment to store chopped raw vegetables & salad & keeps them fresh for longer duration.

Close-up of a mechanical component with a close-up inset showing internal layered structure (no visible text or symbols)

Pull Out Tray

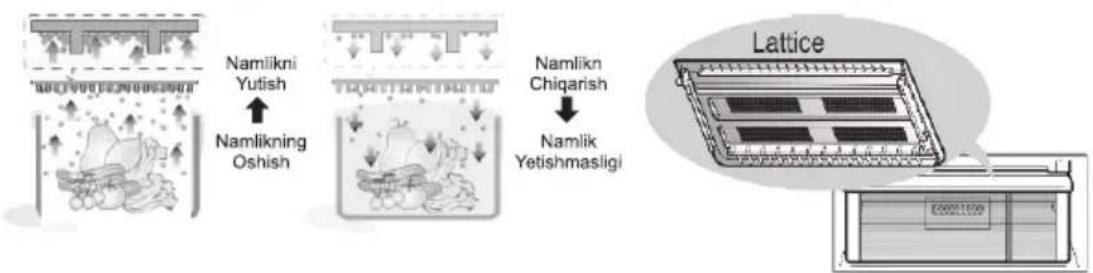

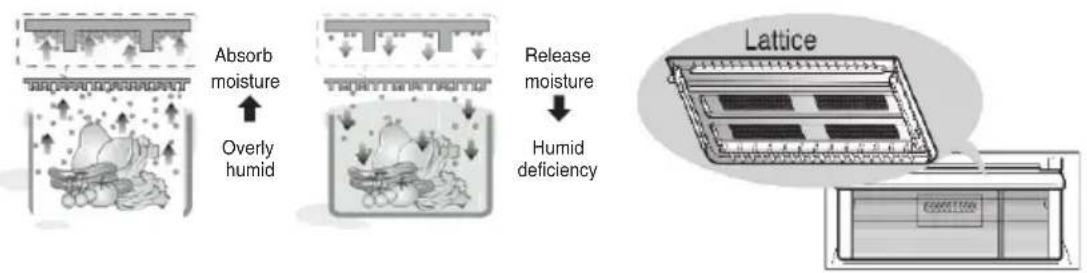

Cell Fresh Crisper

It keeps your vegetables fresh by holding moisture & prevents them from getting rotten.

Convertible Vegetable Box (Optional)

When the door is opened, the warmer air can't incluence in the fresh zone. So you can store food more fresh in it.

Inserted convertible room must be placed at its position. If drawer is opened, it can't perform the role.

Diagram showing a refrigerator with a mouse inside and connected to a rack via cable, enclosed in a circular inset (no text or symbols)

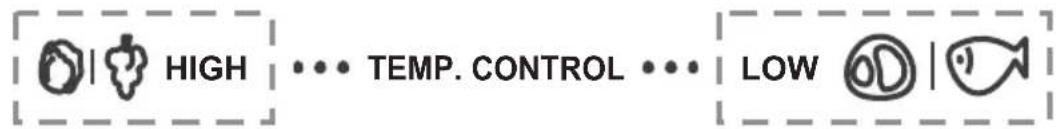

Position of the knob to be adjusted as per type of food to be stored.

HIGH TEMP. CONTROL LOW

• Less cooling in box for Veg / Fruits.

• High cooling in box for Fish / Meat / Dairy.

Humidity Controller

- Humidity Controller is for controlling the humidity inside the vegetable box.

Humidity Controller

OPERATIONS

STARTING

When your refrigerator first time installed, allow 24 hours for the temperature to stabilize prior to filling it with fresh or frozen foods.

POWER CUT EVERCOOL (OPTIONAL)

Power Cut Ever Cool is a unique cooling retention function which retain temperature of freezer and refrigerator compartment during the power cut off condition. This function is a patented technology of LG Electronics.

CAUTION

During "Power Cut EverCool" functioning, dew formation may happen on the inner walls of the refrigerator.

This is a normal phenomena and will not harm the product functioning in anyway.

When the Power will resume, the dew on the inner walls will be automatically removed.

Incase, excess dew is formed. Please remove the same with the help of a soft cloth.

During Power ON/OFF, Valve gets activated and will make a one time sound.

• Do not open the valve cover.
• Do not disassemble the PCM tank (mounted on the top side) in freezer compartment.
• When your refrigerator is first time installed, allow 24 hours for the temperature to stabilize prior to filling it with fresh or frozen foods. In the event of power cut after stabilization. It must be powered for at least 8 hours after power cut to have the maximum cool air retention capability.

Important point for Better performance of Evercool

1. Evercool performance may be deteriorated if the PCM is not freezed properly.
2. In order to maintain Evercool Performance, Don't keep Freezer & Refrigerator knob at warm setting (Freezer 1, Refrigerator 1, 2).
3. Use Seasonal recommended knob setting.
4. Do not open the Door frequently during Power cut off to maintain long time retention (Cooling effect).

Identification of Control

TEMPERATURE CONTROL

• Refrigerator and Freezer Compartment Temperature is controlled by Refrigerator Temperature Control Knob and Freezer Control Knob respectively.
• Initially set the Refrigerator Temperature Control Medium/Normal and the Freezer Temperature Control at Normal.
• Leave it operating for 8 hours to stabilize.

CONTROL EFFECTS

For better use : Please follow the instructions given in the sticker on your product.

	Model with 1 to 4
FOR LESS COOLING	'1'
NORMAL COOLING	'2'
FOR MORE COOLING	'4'
Best Performance For All Seasons- Set Knob at '2'

FREEZER KNOB SETTING REFRIGERATOR TEMPERATURE CONTROL KNOB MEDIUM COOLING 2 3 4 5 6 HIGH COOLING LOW COOLING 1 7

Best Performance For All Seasons Set Knob at '4'

Operating Procedure

DEFROSTING

• Defrosting takes place automatically.
- The defrosted water flows down to the evaporating tray which is located in the lower back side of the refrigerator and is evaporated automatically.

SUPER COOLING

In refrigerator compartment coldest setting in Refrigerator Knob is used for super cooling.

LOCKING / UNLOCKING

Press & turn the lock with key for locking/unlocking

Identification of Control (with button)

TEMPERATURE CONTROL

TEMPERATURE CONTROL

(with Display Button)

• Refrigerator and Freezer Compartment Temperature is controlled by Refrigerator Temperature Control display button and Freezer Control Knob respectively.
• Initially set the Refrigerator Temperature Control Display at '4' level and the Freezer Temperature Control at Normal.
• Leave it operating for 8 or 12^* (Evercool model) hours to stabilize.

CONTROL EFFECTS

For better use : Please follow the instructions given in the sticker on your product.

	Model with 1 to 4
FOR LESS COOLING	'1'
NORMAL COOLING	'2'
FOR MORE COOLING	'4'
Best Performance For All Seasons - Set Knob at '2'

Interior view of a server rack cabinet with multiple compartments and ventilation grilles (no visible text or labels)

FREEZER KNOB SETTING

REFRIGERATOR TEMPERATURE CONTROL

SUPERCHILL COLD 1 1 1 COLEST REF TEMP 1 2 3 4 5 6 7 LED ON → ● LED OFF → ○

OPERATION (with button)

CONTROLS FOR REFRIGERATOR COMPARTMENT

■ Method of Operation
The temperature of Refrigeration Room is automatically controlled by software. Pressing the arrow key sets the temperature, designated to a selected notch.

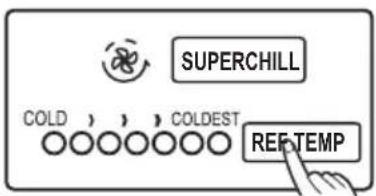

Operation Indicator

Each time the temperature button is pressed, the LED glows in sequence shown and the temperature is selected accordingly by the software. And if no more pressure detected for 10 seconds, then the selected temperature is applied to system (Comp. ON / OFF control).

MEMORY BACK-UP

In case of power failure, your refrigerator will keep previous setting in memory and as soon as the power ON, your last refrigerator settings will be restored.

SUPERCHILL COLD ) ) COLDEST REFTEMP

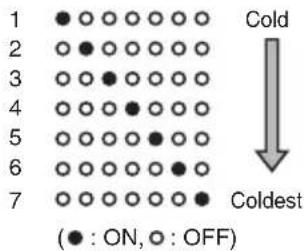

DisplayLevel

1 2 3 4 5 6 7 ● ON, ○ OFF Cold Coldest (● : ON, ○ : OFF)

SUPERCHILL

If the SUPERCHILL button is pressed SUPERCHILL feature is activated.

SUPERCHILL COLD ) ) ) COLDEST REF TEMP

Disposal of Your Old Appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means, the product is covered by the European Directive 2002/96/EC.
2. All electrical & electronics products should be disposed off separately from the municipal waste stream via designated collection facilities appointed by the government of local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.
5. This product contains fluorinated greenhouse gases covered by the Kyoto Protocol.

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

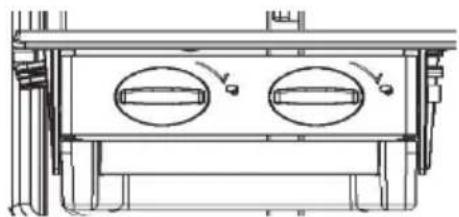

ICE MAKING

Double Twist Ice Tray

- To make ice cubes, fill the ice tray with water and insert in its position.

- To remove ice cubes, hold the lever of the tray and turn gently. Then, ice cubes drop into the ice cube box.

- Fill the water upto water level mark in the ice tray.

Instruction for Bank Ice

Technical line drawing of a mechanical assembly with two circular components and directional arrows (no text or symbols)

Use Bank Ice Only To Store Ice Cubes. Do not Make Ice In It, As It May Break.

LED Replacement

This product applies LED Lamp which can not be replaced by the user. Please contact authorized service centre for the lamp replacement.

Suggestions on Food Storage

When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating and helps food to keep its taste and nutrients.

Simple line drawing of a bag and a rolled-up food item (no text or symbols)

Don't keep hot milk or hot food in your refrigerator. This will result in an increased temperature and increase in power consumption.

Never overload your refrigerator or cover the shelves with paper or plastic sheets as it will reduce its efficiency.

Image containing fragmented Chinese characters and a grid pattern, possibly from a document or form.

Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperature to rise.

Close the door properly, make sure that there is no gap between the gasket and the cabinet of your LG refrigerator.

Simple line drawing of two people interacting near a smiling rectangular object (no text or symbols)

Wipe excessive moisture on food or place it inside containers or plastic bags. This will help in retaining its freshness for a longer period of time.

Two line drawings of a person holding a milk carton and a bag, with no visible text or symbols.

Do not store food which goes bad easily at low temperatures. Such as bananas, pineapples, etc.

Do not store glass bottles in the freezer compartment - they may break when frozen.

Loading for Freezing - It is recommended to load newly introduced foods on the following position for freezing.

Technical line drawing of an electrical enclosure or enclosure with internal compartments and ventilation systems (no text or labels)

Avoid placing moist food on deep interior refrigerator shelves. It could freeze upon direct contact with chilled air. To avoid this it is better to store food in the covered container.

Refrigerator Shelf Vegetable Drawer

It is desirable to store moist food (especially vegetable and fruit) in the vegetable storage compartment. If it

is necessary to store on a shelf of the refrigerator, put it close to the door away from the back wall of the refrigerator to avoid being frozen by the cool circulating in the refrigerator.

Refrigerator Shelf Vegetable Drawer

When storing eggs in their storage tray, ensure that they are fresh, and always store them in a upright position, which keeps them fresh longer.

Feel free to call your LG Customer Information Centre (CIC) / Branch / LG Representative in case your refrigerator has suffered a damage in transit.

It is recommended to use Voltage Stabilizer (0.5kVA) if power fluctuations are frequent and out of specified voltage range (135-290V)**, Stabilizer usage increases the refrigerator life.

** As per LG Test Standards.

Suggestions

Cleaning

Cleaning of Interior Parts is recommended. Wash all compartments with a mild baking soda solution, then rinse and dry the compartment. Use a lukewarm solution of mild soap or detergent to clean the exterior finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

Illustration of a hand opening a refrigerator with a lid (no text or symbols)

During Vacations

During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odour formation. To operate again, let the refrigerator run for 6-8 hrs. for stabilization.

Cartoon character holding a camera near a wall with warning symbol (no text or labels)

Shifting

While shifting the refrigerator, four people should carry it for its safety. Fasten the door with tape or lock to prevent opening of the refrigerator.

大额安全 1.00%

Before Calling for Service

Check for yourself

Type of Complaint Probable Cause		Remedy
1. Refrigerator does not work.	-House fuse blown	Call an electrician and get it corrected.
	-Power Supply Off.	Check that the refrigerator main supply plug is connected to the wall socket and that the supply is ON. Check that the fuse is intact in the supply line.
	-Stabilizer not working properly	Please plug power cord of refrigerator directly in the wall socket and then check, if it works then get the stabilizer checked by Stabilizer Repairing Centre.
2. Refrigerator attempts to start, does not operate.	-Low Voltage.	Install a line-correcting transformer in the mains, or a Voltage Stabilizer.
3. Refrigerator compartment - Low Cooling	-Restriction of cold air circulation.	Provide space in between the dishes. If the shelves are covered with cloth or polythene, remove it.
	-Improper thermostat setting of Freezer Temp.erature Control / Refrigerator Temperature Control.	Set the Refrigerator Temp. Control Knob to colder (Maximum 5~7) position. Freezer Temperature Control Knob to be adjusted accordingly.
	-Entry of hot air.	Opening and closing of the doors too often will result in hot air from outside rushing into the refrigerator causing the temperature to go up. Reduce the frequency of opening of the doors.
	-Storing hot foods.	Avoid storing hot foods in the refrigerator, cool them to room temperature before placing them inside the refrigerator.
4. Formation of water drops on exterior of refrigerator.	-High humidity during monsoon season.	During the monsoon, when the humidity in the atmosphere reaches around 90% water droplets may form around the sides of the refrigerator cabinet, especially the top portion. This moisture should be wiped off periodically. Contact our serviceman to check the door seal or proper and uniform contact with the cabinet.
5. Refrigerator Compartment — Overcooling	-Incorrect setting of Refrigerator Temperature Control Knob.	Lower the setting (1~3) of Refrigerator Temperature Control Knob to make the Refrigerator Compartment warmer.
6. Smell	-Improper covering and wrapping of food.	Wrap and cover food stuffs properly. Place caps on bottles and other liquid stores.
7. Difficulty in formation of ice and ice-cream.	-Incorrect setting of Freezer Temperature Control Knob.	For faster Ice & Ice-cream formation adjust the Freezer Temperature
	-Bowls used Use Ice trays for ice making.
8. Noise	-Normal cut-off/cut-in noise	Whenever refrigerator starts & stop there is noise of Thermostat cut-off/ cut-in & Compressor start/stop. This is a normal phenomenon.

Notes :

СОДЕРЖАНИЕ

Стр. №

Cartoon illustration of a refrigerator and a person relaxing on a couch (no text or symbols)

Illustration of a refrigerator with a smiling face and a double-headed arrow pointing to a closed door (no text or symbols)

Illustration of two cartoon girls interacting with a large X-shaped object (no text or symbols)

Ground Wire Copper Flat More than 30 inches

Cartoon illustration of a smiling book character and a small figure holding a book (no text or symbols present)

Cartoon illustration of a refrigerator with a sad face and a 'NO' sign, accompanied by a crossed hand (no text or symbols on the refrigerator itself)

Cartoon illustration of a smiling book character and a girl in winter clothing, no text or symbols present

Illustration of a smiling refrigerator with a child holding a tool (no text or symbols)

Cartoon illustration of a child standing beside a large refrigerator with arms and legs, surrounded by clouds (no text or symbols)

Service center

Cartoon illustration of a smiling book character with arms and legs, standing on a cross symbol (no text or symbols present)

Cartoon illustration of a sad book character with arms and legs, crossed out by a crossed-out 'X' symbol (no text or symbols present)

Cartoon illustration of a child running with a backpack and a smiling smartphone (no text or symbols)

Cartoon illustration of a person standing next to a refrigerator with a surprised expression (no text or symbols)

Illustration of three workers in hard hats pulling a large white object (no text or symbols visible)

Cartoon illustration of a smiling rectangular character with a sad expression and a person holding a cross (no text or symbols)

Front Leg

Technical line drawing of a vehicle front panel with grille and side brackets (no text or symbols)

Interior view of a refrigerator with open door and side panel, showing close-up of front panel (no text or symbols visible)

Illustration of a child standing beside a refrigerator with a 'NO' sign, no text or symbols present

Diagram showing a rectangular panel with internal components and an adjacent view of a refrigerator (no text or symbols visible)

Close-up of a mechanical component with a close-up inset showing internal components (no visible text or symbols)

Salad Box + Movable Tray

Illustration of a cartoon refrigerator with a magnified inset showing its interior compartments (no text or symbols)

Technical line drawing of an open industrial cabinet with internal compartments and ventilation systems (no text or labels)

Interior view of a dual-chamber computer rack unit with visible internal compartments and mounting holes (no text or labels)

Simple line drawing of a trash bin with no text or symbols

СОЗДАНИЕ ЛЬДА

Technical line drawing of a mechanical assembly with two circular components and directional arrows (no text or symbols)

Simple line drawing of a bag and a plate with food items (no text or symbols)

Image containing fragmented Chinese characters and a grid pattern with crossed-out symbols

Simple line drawing of a refrigerator with an open door and a curved arrow indicating rotation (no text or symbols)

Cartoon illustration of a smiling computer monitor and a person interacting with it (no text or symbols)

Two line drawings of stylized animals, one holding a box and the other pouring liquid (no text or symbols)

Technical line drawing of an electrical enclosure or enclosure with internal compartments and ventilation systems (no text or labels)

Illustration of a hand inserting a cup into a refrigerator (no text or symbols)

В период отпуска

Cartoon illustration of a smiling face with a magnifying glass, no text or symbols present

Переноска

Diagram of a rope knot with no text or symbols

Elektr ta'minot shnuri bukilishi yoki og'ir ob'ekt tomonidan siqilib qolmasligi kerak.

Bu ta'minot shnuriga zarar yetkazishi mumkin natijada yong'in yoki elektr shokka sabab bo'lishi mumkin.

Cartoon illustration of a refrigerator and a person relaxing (no text or symbols)

Ta'minot vilkasini tokka tiqqanda tepaga qarab qolishi yoki sovitgich orqasida qisilib qolishiga yo'l qo'ymang.

Ichkariga suv kirishi yoki vilkaga zarar yetishi mumkin, bu esa yong'in yoki elektr shokka sabab bo'lishi mumkin.

Illustration of a cartoon refrigerator with a wavy face and crossed-out X-shaped tape, next to a broken door (no text or symbols)

Elektr ta'minoti shnurining uzunligini uzaytirmang yoki o'zgartirmang.

Bu elektr shok yoki yong'inga sabab bo'lishi ta'minot shnuriga yoki boshqalarga elektr zarar yetishi mumkin.

Cartoon illustration of a refrigerator with a surprised face and a person lying on the floor (no text or symbols)

1. Tokka ulash vaqtida

Ta'minot vilkasidan suv yoki changni artib tashlang va rozetkaga xavfsizlik bilan ohirigacha tiqing.

Ho'l qo'llar bilan Shnurni yoki ta'minot vilkani tokdan sug'urmang.

Agar elektr ta'minoti shnuri yoki shteker shikastlangan yoki rozetkaning kirish teshiklari bo'shashgan bo'lsa, u holda ulardan foydalanmang.

Yerga ulanganligiga ishonch hosil qiling.

Cartoon illustration showing a book character with a 'NO' sign and a crossed-out book symbol, likely indicating no change or absence.

Sovutgichning usti/ichida Televizor, Kuler, to'qish asbobi, Dekorativ chiroq, kabi elektr qurilmalar, zararli kimyoviy moddalar, kiyimlarni ustiga qo'yish va hokazo.

Bu portlash yoki yong'inga sabab bo'lishi mumkin.

Chang, suv yoki barqaror bo'Imagan tarzda ulash

yong'in yoki elektr shokka sabab bo'lishi mumkin.

Elektr shok yoki shikastlanishga sabab bo'lishi mumkin.

Illustration of two cartoon characters interacting with a large X-shaped object (no text or symbols)

Ground Wire Copper Flat More than 30 inches

Eshikni ochib yopgada uning tushib ketishi shikastlanish, yong'in yoki elektrik shokka sabab bo'lishi mumkin.

Bu sovutgichning ag'darilib ketishiga yoki qo'llarga shikast yetkazishiga olib kelishi mumkin.

Cartoon illustration of a smiling book character and a falling object (no text or symbols)

Bu portlash yoki yong'inga sabab bo'lishi mumkin.

Dori mahsulotlarini yoki o'qish materiallarini muzlatgich ichida saqlamang

Cartoon illustration of a refrigerator with a sad face and a crossed-out knife, no text or symbols present.

Cartoon illustration of a refrigerator with a sad face and a person holding a 'NO' sign (no text or symbols on the refrigerator itself)

Sovutgichning usti/ichiga tozalash uchun sham joylashtirmang.

Bu portlash yoki yong'inga sabab bo'lishi mumkin.

NO

Agar gaz uchganda sovutgichga yoki xonani shamollatish uchun chiqish tirqishiga darhol teginmang.

Bu portlash yoki yong'inga sabab bo'lishi mumkin.

HOT DOG AS

Sovutgichning tashqarisiga yoki ichkari tomoniga suv sachratmang yoki uni benzol yoki suyultirgich bilan tozalamang.

Cartoon illustration of a smiling book character and a girl holding a paper, both waving (no text or symbols present)

Muzlatgichdan foydalanish uchun eshikdagi eshik qistirmasini oling.

Bu bolalar ichida qolib ketishiga sabab bo'lishi mumkin.

Cartoon illustration of a smiling refrigerator with a child opening the door (no text or symbols)

Muzlatgichga yaqin joyda isitish qurilmalarini qo'ymang.

Yong'inga sabab bo'lishi mumkin.

NO

Uni tekshirgandan keyin botirilgan sovutgichdan foydalaning.

Cartoon illustration of a worker pushing a bag near a refrigerator with steam rising (no text or symbols)

Agar sovutgichdan biror g'alati hid yoki tutun chiqqanligi aniqlanganda elektr ta'minotdan uzing va darhol xizmat ko'rsatish markazi bilan bog'laning.

Yong'inga sabab bo'lishi mumkin.

Xizmat ko'rsatish markazi

Sovutgichdan uy sharoitiga mo'ljallanmagan maqsadlardan foydalanmang. (tibbiyot narsalari yoki sinov materiallari, kemada ishlatish va hokazo).

Cartoon illustration of a smiling book character with arms and legs, standing on a cross symbol (no text or symbols present)

Sovutgichni mustahkam va tekis polga o'rnating.

Sovutgichni barqaror bo'Imagan joyga o'rnatilishi uning eshigi ochib yopilganda ag'darilib ketishi natijasida o'limga olib kelishi mumkin.

Cartoon illustration of a smiling book character with arms and legs, standing next to a cross symbol (no text or symbols present)

Cartoon illustration of two children running with a large book and a smiling refrigerator (no text or symbols)

Qo'lingizni yoki metal cho'plarni sovuq havo chiqish joyi, korpus, sovutgichning pastgi qismlariga, orqa tomondagi issiqqa chidamli panjara (tortib olish tirqishi) ga tiqmang.

Illustration of a child inside a cardboard box with X marks, surrounded by two expressive hands (no text or symbols)

Down-block office

Cartoon illustration of a distressed refrigerator with a surprised face and a person holding a fan (no text or symbols)

Illustration of four workers in hard hats carrying a large object (no text or symbols visible)

Cartoon illustration of a distressed refrigerator with a sad face and a crossed-out X (no text or symbols)

Muzlatgichni utilizatsiya qilayotganingizda, har doim Prokladkani chiqarib oling.

Faqatgina -12 C yoki undan iliqroq haroratda bo'lishi lozim bo'Igan Do'kon elementlarigina 2 Yulduzchali bo'linma sifatida belgilanadi

O'rnatish

Technical line drawing of a vehicle front panel with ventilation grilles (no text or symbols)

Interior view of a refrigerator showing the door, front panel, and side view of the refrigerator (no text or symbols visible)

Illustration of a child standing beside a refrigerator with a 'NO' label, no text or symbols present

Tuxum fleykasi-Muz idish

Diagram showing a refrigerator with internal compartments and a close-up view of the interior (no text or symbols)

Chiqariladigan lotok (Ehtiyoriy)

Close-up of a mechanical component with a close-up inset showing internal layered structures (no visible text or symbols)

Salat Savati + Ko'char idish

Barra holatni saqlab qolish katagi

U sabzavotlarni namlikni saqlash va buzilib qolishdan saqlash orqali barra holda saqlaydi.

O'zgaruvchan Sabzavot savati (Ehtiyoriy)

Diagram showing a refrigerator with a door connected to a rack, and a magnified inset illustrating the interior layout (no text or symbols)

• Sabzavot/meva savatini past sovitish.

• Baliq/Go'sht/sut mahsuloti savatini yuqori sovitish.

Technical line drawing of an open electrical cabinet with internal components and mounting holes (no text or labels)

SOVUTGICH HARORAT BOSHQARGICH TUGMASI

PAST SOVITISH CROTACHA SOVITISH 1 2 3 4 5 6 7 YUMQORI SOVITISH

Barcha mavsum uchun zo'r foydalanish uchun - '4' Tugmanibosing

Ishlash Jarayoni

ERITISH

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

MUZ QILISH

Ikki buramali Muz idish

• Muz kubiklarini hosil qilish uchun Muz Idishning ichini suv bilan to'ldiring va uni kerakli holatga qo'ying.
• Muz kubiklarni olish uchun idish richagini ushlang va sekin burang. So'ng, muz kubiklari muz kubiklarini savatchasiga tushadi.
• Muz idishning ichini undagi suv sathi belgisigacha qilib suv bilan to'ldiring.

Muz Qolipi uchun yo'riqnoma

Technical line drawing of a mechanical assembly with two circular components and directional arrows indicating motion (no text or symbols)

Muz kubiklarini saqlash uchun faqat Muz qolipdan foydalaning. Uni muzlatmang, chunki u buzilishi mumkin.

SKD (LED) ni almashtirish

Simple line drawing of a bag, a rolled-up food item, and a slice of bread (no text or symbols)

Sovutgich ichiga issiq sut yoki issiq taomni joylashtirmang. Bu haroratning oshishiga olib keladi natijada elektr iste'mol qilish ham oshadi.

Image containing fragmented Chinese characters and crossed-out gray lines, possibly a logo or symbol.

Eshikni tez-tez ochmang. Eshikning ochilishi iliq havoning sovutgich ichiga kirishiga va haroratning oshishiga sabab bo'ladi.

Eshikni muvofiq ravishda yoping, LG sovutgichning kabineti va eshik devoir orasida bo'shliq yo'qligiga ishonch hosil qiling.

Cartoon illustration of two people interacting, one pointing at a smiling rectangular object (no text or symbols present)

Technical line drawing of an electrical enclosure or enclosure with internal compartments and ventilation gauges (no text or symbols)

Illustration of a hand opening a refrigerator with a lid (no text or symbols)

Tanaffus paytlari

Cartoon character peeking from behind a wall, holding a camera (no text or symbols)

Tashish

LG Life's Good
