USER MANUAL 95-7355B Metra

INSTALLATION INSTRUCTIONS FOR PART 95-73558

APPLICATIONS

Kia Sorento 2014-up (excluding factory NAV equipped vehicles)

95-7355B

KIT FEATURES

• Double DIN radio provision
- Painted matte black

KIT COMPONENTS

• A) Radio Housing Trim Panel • B) Brackets • C) (2) #6 x 3/8" screws

Interior view of a car dashboard with air filters and a central touchscreen display (no visible text or symbols)

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-7304 harness/HYBL-04 premium sound and Bluelink interface

Antenna Adapter: • Not required

TOOLS REQUIRED

- Panel removal tool - Phillips screwdriver - Socket wrench

Table of Contents

Dash Disassembly

— Kia Sorento 2014-up .... 2

Kit Assembly

- Double DIN radio provision.... 3

CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the aftermarket radio.

95-7355B

Dash Disassembly

1. Using soft panel tools, unsnap and remove the center dash panel surrounding the radio, disconnecting the necessary harnesses. (Figure A)

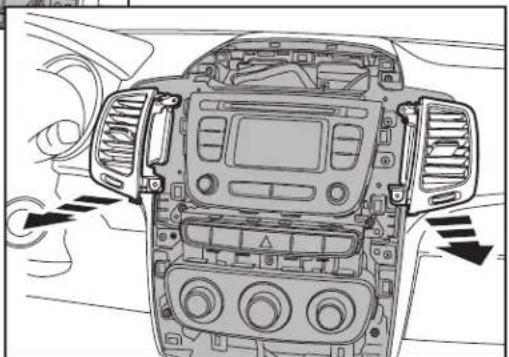

2. Remove two screws from the two vents surrounding the factory radio and remove them both. (Figure B, C)

Technical line drawing of a car interior showing engine compartment and dashboard (no text or symbols)

(Figure A)

Top-down schematic of a car dashboard with visible control panels and buttons (no text or labels)

(Figure B)

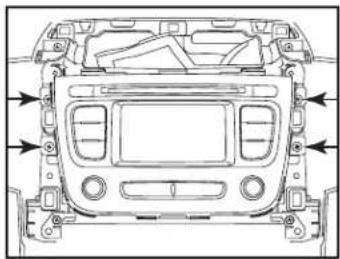

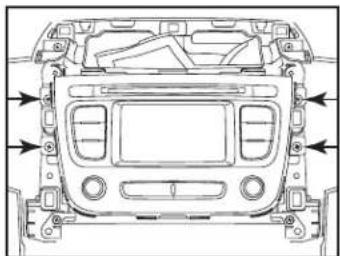

1. Remove the four screws securing the factory radio and remove it from the dash. (Figure D)

Continue to kit assembly

Top-down view of a car dashboard with air vent and control panel (no text or symbols visible)

(Figure C)

Top-down technical line drawing of a vehicle chassis frame with no visible text or symbols

(Figure D)

95-7355B

Kit Assembly

Double DIN radio provision

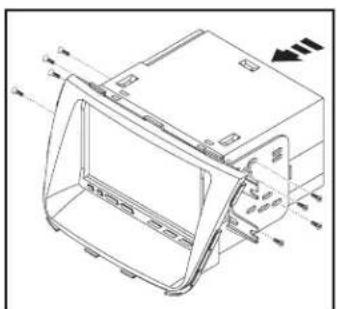

1. Attach the brackets to the radio housing trim panel using the (2) #6 x 3/8" screws supplied. (Figure A)

2. Slide the double DIN radio into the bracket/radio housing trim panel assembly and secure with the screws supplied with the radio. (Figure B)

3. Locate the factory wiring harness and antenna plug in the dash. Metra recommends using the proper mating adapters from Metra and/or AXXESS.

4. Reassemble dash in reverse order of disassembly.

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

(Figure A) (Figure B)

Technical line drawing of a mechanical device casing with internal components and directional arrows (no text or symbols)
