USER MANUAL 99-8248B Metra

Installation instructions for part 99-82488

Toyota Highlander 2014-up 99-8248B

KIT FEATURES

• ISO DIN radio provision with pocket
- Painted black

Interior view of a car dashboard with air filters and control panels (no visible text or symbols)

KIT COMPONENTS

• A) Radio housing trim panel • B) Brackets • C) Pocket • D) (4) #8 x 3/8" screws • E) (2) Panel clips

ABCD

E

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-1761 or TYTO-02

Antenna Adapter: • Not required

TOOLS REQUIRED

- Panel removal tool • Phillips screwdriver

Table of Contents

Dash Disassembly

- Toyota Highlander 2014-up .... 2

Kit Assembly

- ISO DIN radio provision with pocket .... 3

CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the aftermarket radio.

99-82488

Dash Disassembly

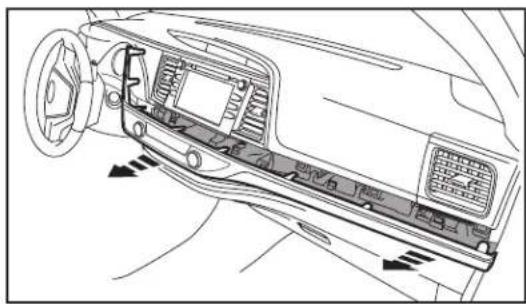

1. Unsnap and remove climate control and the long trim panel with it. (Figure A)

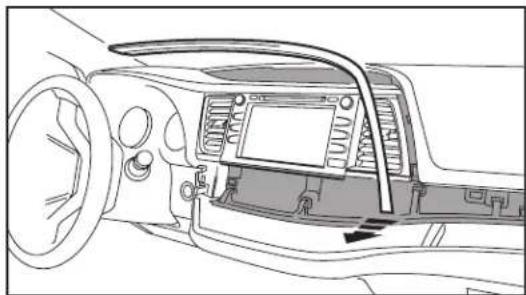

2. Unsnap the thin trim panel from the top and right side of the radio. (Figure B)

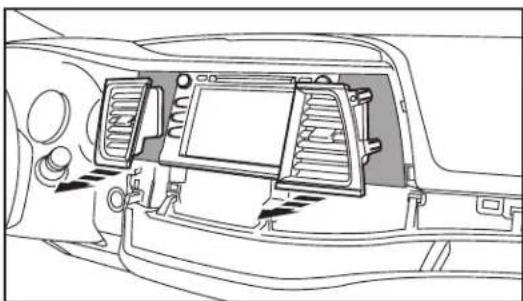

3. Unsnap and remove the climate vents from either side of the radio. (Figure C)
4. Remove four 10 mm bolts to remove the factory radio. (Figure D)
   Continue to Kit Assembly

Diagram of a car interior showing dashboard, air vent, and control panel (no text or labels)

Interior view of a car dashboard and infotainment system (no text or symbols visible)

Line drawing of a car front panel with ventilation grilles and control buttons (no text or symbols)

(Figure C)(Figure A)

Line drawing of a car dashboard with control panel and rearview door (no text or symbols)

(Figure D)(Figure B)

99-82488

Kit Assembly

ISO DIN radio provision with pocket

1. Attach the (2) panel clips to the radio housing. Note: The factory panel clips may be used if preferred.

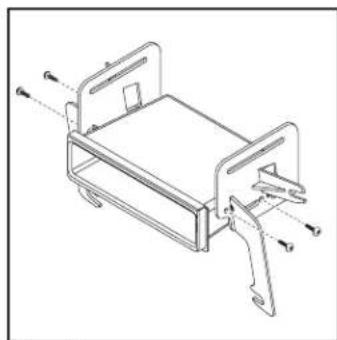

2. Mount the pocket to the bracket/ panel assembly with the (4) #8 x 3/8" Phillips screws supplied. (Figure A)

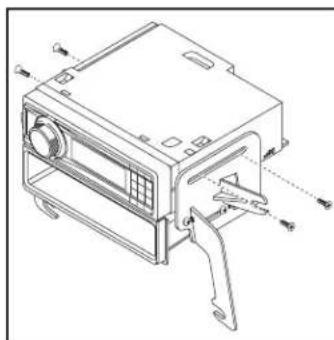

3. Slide the radio into the assembly and secure with screws supplied with the radio. (Figure B)
4. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition. Test everything for proper operation.

Technical line drawing of a mechanical housing or frame assembly (no text or symbols)

(Figure A)

1. Mount the radio/bracket assembly into the dash opening.
2. Snap the radio trim panel over the new radio and reassemble dash in reverse order of disassembly.

Technical line drawing of a mechanical device housing with mounting brackets and internal components (no text or symbols)

(Figure B)
