USER MANUAL 99-7356B Metra

INSTALLATION INSTRUCTIONS FOR PART 99-73568

U.S. PATENT # D725,095

APPLICATIONS

Kia Forte 2014-up 99-7356B

KIT FEATURES

• ISO DIN radio provision with pocket
- Painted matte black

Interior view of a car dashboard with air vent and grille (no visible text or symbols)

KIT COMPONENTS

• A) Radio Trim Panel • B) Brackets • C) Pocket • D) (6) #8 x 3/8" Phillips Screws

A

E

C

D

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-7304

Antenna Adapter: • Not Required

Table of Contents

Dash Disassembly

- Kia Forte 2014-up....2

Kit Assembly

- ISO DIN radio provision with pocket.... 3

TOOLS REQUIRED

- Panel removal tool - Phillips screwdriver

CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the aftermarket radio.

99-73568

Dash Disassembly

1. Unsnap and remove the small trim below the climate controls, then remove one Phillips screw from the radio trim panel. (Figure A)

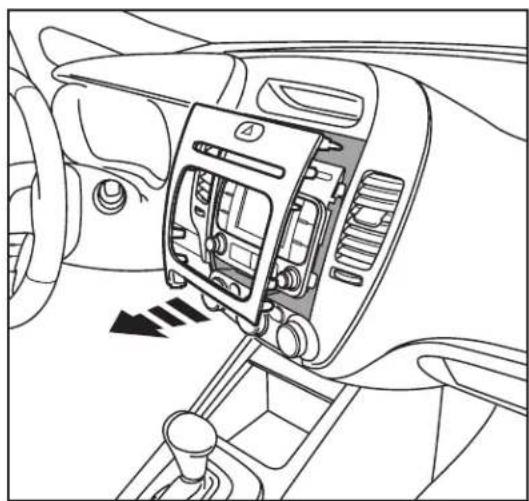

2. Unsnap and remove the radio trim panel. (Figure B)
3. Remove the panel clips from the factory radio, save them for the kit assembly.
4. Unscrew the factory hazard button, save it for the kit assembly.
5. Remove four Phillips screws to remove the factory radio.

Continue to kit assembly

Line drawing of a car dashboard with air vent, controls, and directional arrows (no text or symbols)

(Figure A) (Figure B)

Interior view of a car showing the dashboard and steering wheel (no text or symbols visible)

99-73568

Kit Assembly

ISO DIN radio provision

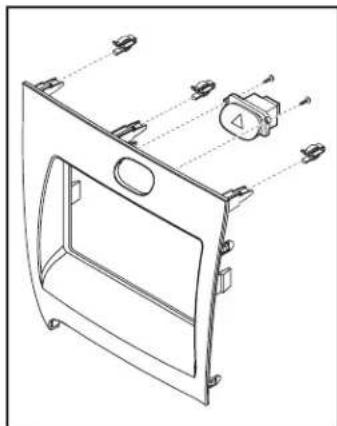

1. Attach the factory panel clips to the radio housing (Figure A)
2. Attach the factory hazard button to the radio trim panel with (2) of the #8 x 3/8" screws provided. (Figure A)

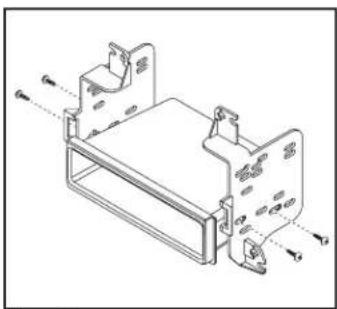

3. Attach the pocket to the radio brackets with (4) of the #8 x 3/8" screws provided. (Figure B)
4. Slide the radio into the radio brackets/pocket assembly and secure with the screws supplied with the radio. (Figure C)
5. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
6. Snap the radio trim panel over the new radio and reassemble dash in reverse order of disassembly.

Technical line drawing of a door frame with mounting bracket and control panel (no text or symbols)

(Figure A)

Technical line drawing of a mechanical housing component with mounting holes and mounting brackets (no text or symbols)

(Figure B)

Technical line drawing of a mechanical device housing with mounting holes and control panel (no text or symbols)

(Figure C)
