USER MANUAL W3000A LG

Please read this manual carefully

before operating your set.

Retain it for future reference.

CE 0700

C€ 0700

Revision #1.1 PRINTED IN KOREA P/N : MMBB0085904

P/N : MMBB0085904 Revision #1,1 PRINTED IN KOREA W • A • P • P • H • O • N • E • W • A • P • P • H • O • N • E W •

WAP هاثف

دليل المستخدم

W3000 : طراز

Illustration of a classic mobile phone with keypad and screen (no visible text or symbols)

W3000

Illustration of a vintage mobile phone with keypad and display screen (no visible text or symbols)

جهاز التلفون

Line drawing of a handheld electronic device with earbuds and leads (no text or symbols)

Simple line drawing of a rectangular object with rounded edges (no text or symbols)

بطارية قياسية

Simple line drawing of a connected electrical plug with wires (no text or symbols)

شاحن سفر

Blank white rectangle with black border (no text or symbols)

olerance تلفون

Illustration of a CD/DVD drive with attached audio jack and cable (no text or symbols)

Line drawing of a coiled cable with a connector and connector (no text or symbols)

شاحن ولاعة سجائر

أجهزة تلفون متنقلة

Labeled diagram of a mobile phone with numbered parts for identification

1 Departارية

Illustration of a hand holding a mobile phone with a blue scroll wheel (no text or symbols visible)

ملاحظة

Illustration of hands holding a smartphone with a blue square on the screen (no text or symbols visible)

بدء التشفيل

Illustration of a hand holding a flip phone with a small blue icon on the screen (no text or symbols)

③ شحن الطارية

Illustration of a hand holding a mobile phone with a magnified inset showing the cable being inserted (no text or symbols visible)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

تحذير

Illustration of a hand inserting a card into a mobile phone (no text or symbols visible)

ملاحظة

!

Illustration of two vintage mobile phones with control panels and buttons (no text or symbols visible)

Illustration of two vintage mobile phones with different sizes and buttons, shown from front and back angles (no text or symbols)

Illustration of a mobile phone with a close-up view showing its screen and keypad (no text or symbols present)

بدء التشفيل

① لبده تشغيل الهاتف

1 Saudi Arabia Executive

2 العلامات

3 خصائص

4 als Dehaj للعنوان

5 الذاكرة المؤقتة

10.0 4" 5" 6" 7" 8" 9" *+0 0+ 80

Discovery that he always chose to the same.

[1-5-7 قائمة] إيقاف

10.0 4 7 8 0

Please read this manual carefully before operating your set. Retain it for future reference.

W3000 has a polished style which provides users with a better feel and more convenience.

W3000 Phone

For Your Safety

All radio transmitters carry risks of interference with electronics in close proximity.

GSM Phones must be switched off at all times in an aircraft.

Do not activate near petrol stations, fuel depots, chemical plants or blasting operations.

Switch off the phone in any area where are forced by special regulations. For example, the phone does not allow to be used in hospital because pacemakers and hearing aids can be affected.

Minor interference may affect TVs, radios, PCs, etc.

Do not hold the phone in your hand while driving.

Do not dismantle phone or battery.

Keep the phone in a safe place out of children's reach since it contains the detachable small parts and create a choking hazard.

Do not touch the charger with wet hands.

For your safety, use ONLY specified ORIGINAL batteries and chargers.

Please note:

Unusable batteries should be disposed of in accordance with relevant legislation.

Only use ORIGINAL accessories to avoid damage to your phone.

Emergency call may not be available under all cellular networks. Therefore, you should never depend solely on the phone for essential communications such as medical emergencies.

Important Information

This user's guide contains important information on the use and operation of this phone. Please read all the information carefully for optimal performance and to prevent any damage to or misuse of the phone. Any changes or modifications not expressly approved in this user's guide could void your warranty for this equipment.

Contents

Overview

Accessories 10

Part of the Phone 12

• Front of the Phone 12
• Rear of the Phone 13

Key Description 14

- Alphanumeric Keys 16

Display Information

Display Information 17

- On-Screen Icons 17

Getting Started

Installation 19

• Inserting the SIM Card.... 19
• Installing the Battery 19
• Charging the Battery 20
• Disconnecting the charger 21
• Instructions for changing the front colour cover 22

Powering On Sequence 23

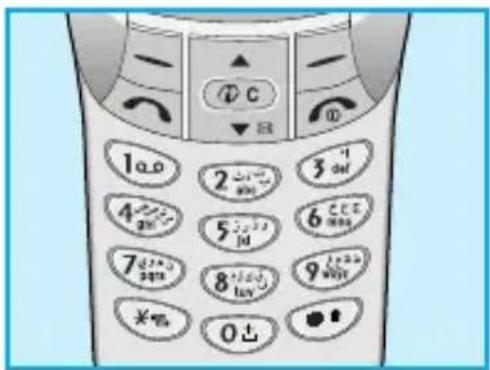

• To get started with the phone 23
• To turn off the phone 23

Access Codes 24

• PIN code (4 to 8 digits) 24
• PIN2 code (4 to 8 digits) 24
- PUK1 code (4 to 8 digits) 24
- PUK2 code (4 to 8 digits) 25
• Security code (4 to 8 digits) 25

Accessing the Menu

Phonebook 26

• Search [Names 1] 27
• Add new [Names 2] 28
• Speed dial [Names 3] .... 30
  • Voice list [Names 4]......30
• Caller groups [Names 5] .... 31
• Copy all [Names 6].... 32
• Delete all [Names 7] .... 32
• Settings [Names 8] ...... 33
  • Information [Names 9]...... 34

Menu Tree 36

Messages [Menu 1] 40

• Write message [Menu 1-1]....40
• Inbox [Menu 1-2].... 45
• Outbox [Menu 1-3] ....46
• Info Service [Menu 1-4]...... 47
• Voice messages [Menu 1-5] 49
• Namecard [Menu 1-6] 50
• Templates [Menu 1-7]....50
• Settings [Menu 1-8]....50
• Check memory [Menu 1-9] .... 51

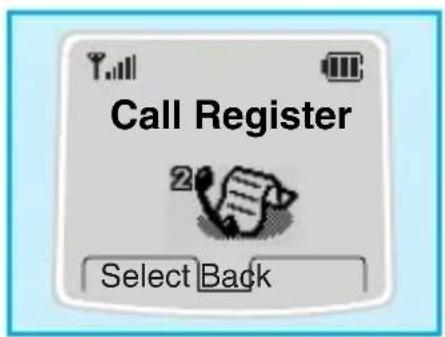

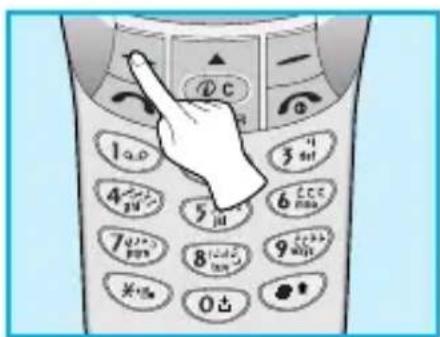

Call Register [Menu 2] 52

• Missed calls [Menu 2-1] 52
• Received calls [Menu 2-2].... 52
• Dialled calls [Menu 2-3].... 52
• Clear recent calls [Menu 2-4]....53
• Call charge [Menu 2-5].... 53

Profiles [Menu 3] 56

• Vibrate only [Menu 3-1]....57
• Quiet [Menu 3-2]....57
• General [Menu 3-3]....57
• Loud [Menu 3-4]....57
• Headset [Menu 3-5] 57
• Car [Menu 3-6]....58

Settings [Menu 4] 60

• Alarm clock [Menu 4-1]....60
• Date & Time [Menu 4-2]....61
• Phone settings [Menu 4-3]....63
• Call settings [Menu 4-4]....64
• Security settings [Menu 4-5] ...... 68
  • Network settings [Menu 4-6] 72
• Restore factory settings [Menu 4-7] ...... 72

Call Divert [Menu 5]......73

• All voice calls [Menu 5-1]....73
• If busy [Menu 5-2]....73
• If no reply [Menu 5-3] ....73
• If unreachable [Menu 5-4]....73
• All data calls [Menu 5-5]....74
• All fax calls [Menu 5-6] 74
• Cancel all [Menu 5-7].... 75

Scheduler [Menu 6]......76

• Add new [Menu 6-1]....77
  • View day [Menu 6-2]....78
  • View all [Menu 6-3] 78
• Delete passed [Menu 6-4]....78
• Delete all [Menu 6-5]....78

Fun & Tools [Menu 7]...... 79

• Game [Menu 7-1].... 79
• Unit convert [Menu 7-2].... 80
• Calculator [Menu 7-3]....81
• World time [Menu 7-4]...... 81
  • Auto Answer [Menu 7-5] 82

Internet [Menu 8] 84

• Home [Menu 8-1] 84
- Bookmarks [Menu 8-2] 84
- Profiles [Menu 8-3] 85
- Go to URL [Menu 8-4] 87
- Cache settings [Menu 8-5] 88
• Security certifications [Menu 8-6] 88
- Reset profiles [Menu 8-7] 88

Internet On-line menu 89

Additional Functions

How to Use Data and Fax call 90

• Sending Data or Fax Calls 90
• Receiving Data or Fax Calls 90

In call Menu 92

• During a call 92
• Multiparty or Conference Calls ...... 94

Care and Maintenance 97

Technical Data 99

Accessories

Overview

Check to make sure that you have all the parts shown below.

Illustration of a classic mobile phone with keypad and display screen (no visible text or symbols)

Handset

Line drawing of a handheld electronic device with leads and cables (no text or symbols)

Portable Handsfree

Simple line drawing of a rectangular object with rounded edges and a small protrusion (no text or symbols)

Standard Battery

Simple line drawing of a cable being inserted into an electrical plug (no text or symbols)

Travel Adapter

Blank white rectangle with black border (no text or symbols)

Warranty Card(s)

User's manual

Changeable front cover

(Optional Accessories>

Illustration of a CD/DVD drive system with attached components (no text or symbols)

Data Kit/CD

Illustration of a coiled cable with a connector and connector (no text or symbols)

Cigar Lighter Adapter

Changeable front cover

Handsfree Kit

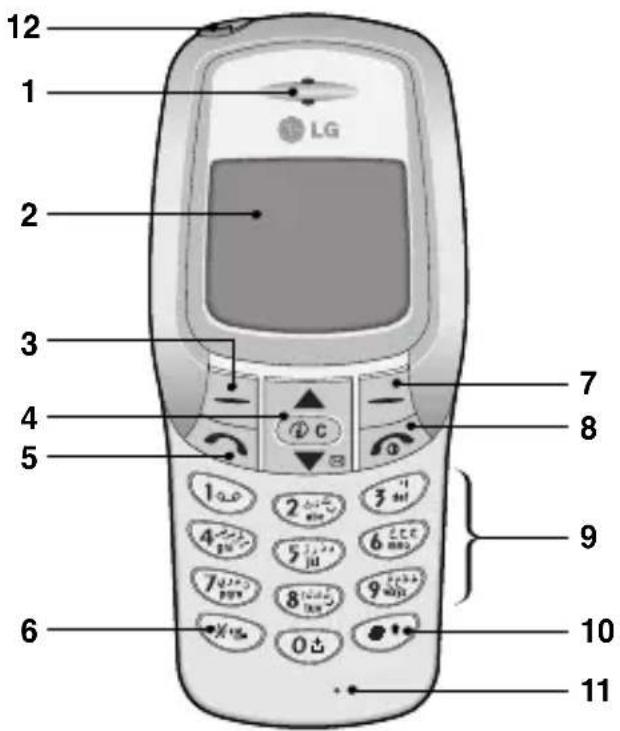

Front of the Phone

12 1 2 3 4 5 6 7 8 9 10 11 LG C 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 Earpiece
8 END/PWR keys
2 Display Screen
9 Numeric Keys
3 Soft Left Key
10 Hash Key
4 Navigation Keys
11 Microphone
5 Send Key
12 Ear Microphone Connector
6 Star Key
7 Soft Right Key

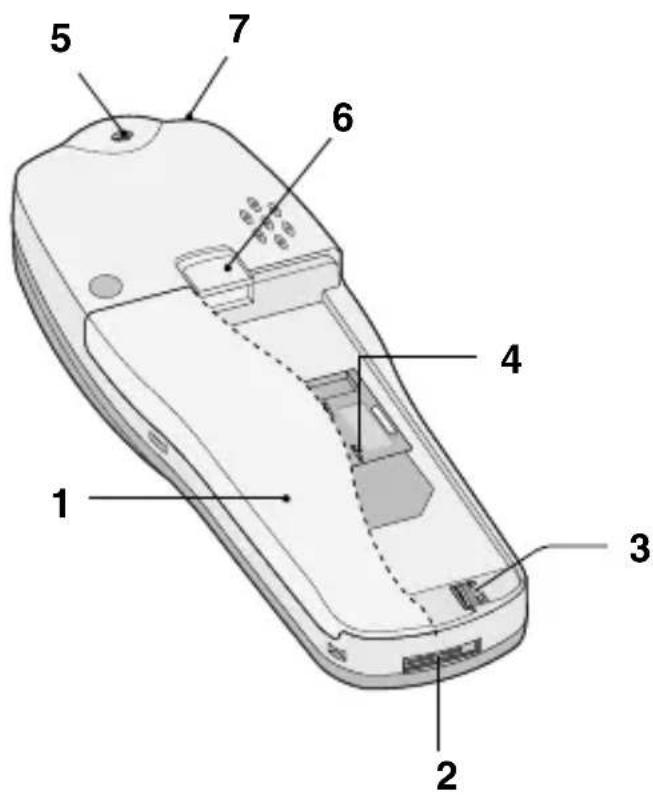

Rear of the Phone

Labeled diagram of a mobile phone with numbered parts for identification

1 Battery
2 Cable Connector/ Battery Charging Connector/ Hands-Free Car kit Connector
3 Battery Terminals
4 SIM Card Socket
5 Handstrap Hole
6 Battery Lock
7 Ear Microphone Connector

Key Description

Overview

The following shows key components of the phone.

Keypad Description

Key	scription
	Soft Left Key / Soft Right KeyEach of these keys performs the function indicated by the text on the display immediately above it.
	WAP HotkeyUsed to connect to WAP directly by pressing this key.Used to delete character(s).Navigation KeysUsed to scroll through name, phone numbers, menus or setting options.
	Used to enter Message menu directly.
▲	Used to scroll through names, phone numbers.
	Send KeyYou can dial a phone number and answer a call.If you press this key without entering a number,your phone shows the most recently dialed number.
	Numeric KeysThese keys are used mainly to dial in standby mode and enter numbers or characters in editing mode.When you press these keys for a long time.Used to call your voicemail box by 1w.Used to call for international call by 0d.Used to call Speed dials by from 2m to 9m.
	Used to enter the vibration mode by pressing this key for a long time
	Used to call by voice dial with long pressing this key. This key is also used as Ear mic. hook key when connecting Ear mic.
	END/PWR KeyUsed to end or reject a call. This key is also used as Power Key. Pressing and holding this key for a few seconds.

Key Description

Overview

Alphanumeric Keys

The alphabet and numerical keypad mapping relation are listed as the following table.

The screen displays several icons the following describe each of them you may see on the phone.

On-Screen Icons

Icon/Indicator	Description
	Tells you the strength of the network signal.
	Call is connected.
	Line 1/2 is in use for outgoing calls – If you subscribe to the Two Line Service.
	The alarm has been set and is on.
	Tells you the status of the battery.
	You have received a text message.
	You have received a voice message depending on your subscription.
	You have received an E-mail.
[ZHST]	You can view your schedule.
	All audible signals are turned off.
	General menu in profiles.
	Loud menu in profiles.
	Quiet menu in profiles.
	Headset menu in profiles.
	Handsfree menu in profiles.

Display Information

Display Information

Icon/Indicator	Description
	You can divert a call.
	General menu in Auto Answer.
	Meeting menu in Auto Answer.
	Driving menu in Auto Answer.
	User defined menu in Auto Answer.

Top Menu Icons

Icon	cription
	Messages
	Call register
	Profiles
	Settings
	Call divert
	Scheduler
	Fun & Tools
	Internet
	Sim service

① Inserting the SIM Card

Illustration of a hand holding a mobile phone with a blue cable inserted (no text or symbols visible)

Locate the SIM card socket in the back of the phone.

Follow the steps below to install the SIM card.

1. Remove the battery if attached.
2. Slide the SIM card into the slot, under the silvery holders, with the golden connectors facing down and the cut corner to the right.

Notice

• Before installing always make sure that the phone is switched off and remove the battery.
• The metal contact of the SIM card can be easily damaged by scratches. Pay special attention to the SIM card when you handle and install. Follow the instructions supplied with the SIM card.

② Installing the Battery

Illustration of a hand holding a smartphone with a blue indicator light (no text or symbols)

1. Place the battery on the back of the phone.

Installation

Getting Started

Illustration of a hand holding a flip phone with a small blue icon on the screen (no text or symbols)

1. Push it until you hear a click.

③ Charging the Battery

To connect the travel adapter to the phone, you must have installed the battery.

Illustration of a hand holding a mobile phone with a magnified inset showing the internal components (no text or symbols visible)

1. Insert one end of the travel adapter into the bottom of the phone.

Illustration of a hand inserting a plug into an electrical outlet (no text or symbols)

1. Connect the other end of the travel adapter to an AC wall outlet. Use only the included packing charger.

Warning

- Do not force the connector as this may damage the phone and/or the travel adapter.

④ Disconnecting the charger

Illustration of a hand inserting a mobile phone into a card (no text or symbols visible)

Disconnect the travel adapter from the phone by pressing its side buttons.

Notice

•The battery delivered with your phone has to be fully charged before using it.
- Do not remove your battery or the SIM card while charging.
- “Charging” is displayed on the screen after connecting the travel adapter. Only if the battery is totally empty, Back light is on without displaying “Charging”.
- The moving bars of battery icon will stop after charging completely.

Installation

Getting Started

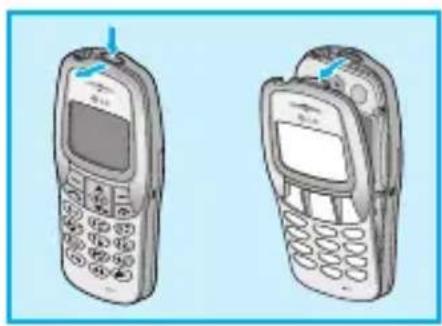

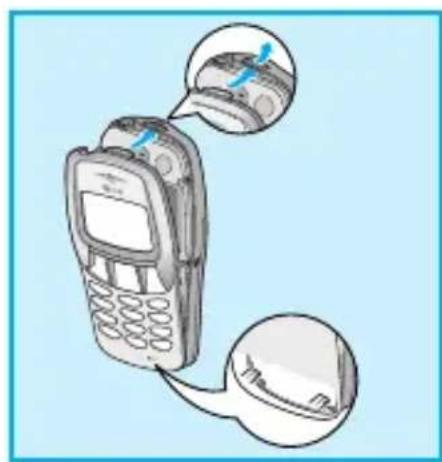

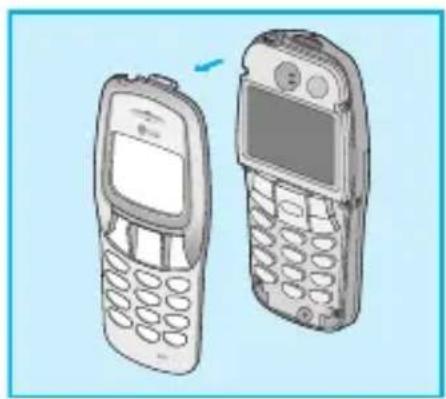

⑤ Instructions for changing the front colour cover

Before changing the cover, always switch off the power and disconnect the phone from the charger or any other device.

Illustration of two vintage mobile phones with buttons and a display screen (no text or symbols visible)

1. To remove the cover, press the locking catch of the cover for example with a coin, Start to open the cover from its upper part.

Illustration of two vintage mobile phones with different sizes and buttons, shown from front and back angles (no text or symbols)

Illustration of a mobile phone with a speech bubble showing the door (no text or symbols present)

1. To replace the cover, first place and close the catch in the lower part of the cover into the corresponding hole in the phone and then gently close the whole cover.

Powering On Sequence

Getting Started

① To get started with the phone

1a0 2 3 4 5 6 7 8 9 0↓

1. Press and hold 🔒 key until you hear a tone.

2. Depending on setting PIN Code [Menu 4-5-1], you can enter PIN code or not.

3. If your phone connects to a network, the network name will be displayed shortly.

② To turn off the phone

In stand by mode, press and hold 🔍 key until you hear a tone.

Access Codes

Getting Started

You can use the access codes described in this section to avoid unauthorized use of your phone. The access codes (except PUK and PUK2 codes) can be changed by using [Menu 4-5-6].

PIN code (4 to 8 digits)

The PIN (Personal Identification Number) code protects your SIM card against unauthorized use. The PIN code is usually supplied with the SIM card. When PIN code is set Enable, your phone will request the PIN code every time it is switched on. On the contrary, when PIN code is set Disable, your phone connects to the network directly without the request PIN code.

PIN2 code (4 to 8 digits)

The PIN2 code, supplied with some SIM cards, is required to access some functions such as Advice of call charge, Fixed Dial number. These functions are only available if supported by your SIM card.

PUK1 code (4 to 8 digits)

The PUK(Personal Unblocking Key) code is required to change a blocked PIN code. The PUK code may be supplied with the SIM card. If not, contact your local service provider for the code. If you lose the code, also contact your service provider.

PUK2 code (4 to 8 digits)

The PUK2 code, supplied with some SIM cards, is required to change a blocked PIN2 code. If you lose the code, also contact your service provider.

Security code (4 to 8 digits)

The security code protects the unauthorized use of your phone. It is usually supplied with the phone. This code is required to delete all phone entries and to activate “Factory reset” menu. The default number of Security code is “0000”. You can also change it in Security menu.

Phonebook

Accessing the Menu

1 a0 2 abc 3 cat 4 pH 5 11 6 mno 7 pops 8 12 9 mgs * * * 0 1 * *

To select a menu in phonebook, press [Names] in standby mode and then scroll to a desired item.

	Name Description
1 Search Allows you	to search for a specific name, number.
2 Add new Allows you to add new names and numbers.
3 Speed dial Allows you to assign up to 8 (2-9) one-touch dial allocations.
4 Voice list Allows you to list phone numbers which is attached voice.
5 Caller groups Allows you to show group list.
6 Copy all Allows you to copy entries from your Phone memory to SIM card or from SIM card to Phone memory.
7 Delete all Allows you to erase all the data in either your phonebook or the SIM card to the phone memory.
8 Settings Allows you to set the memory and to search item by Variable, name and number.
9 Information Allows you to check the status of memory, SDN(Service Dial Number), and Own number.

Search [Names 1]

(Calling from phonebook)

1. Open the phonebook first by pressing ☐[Names] in a standby mode.
2. Search by Pressing ☐ [Select] to enter.

3. Depending on setting Search by, the below menu may not appear.

4. Name

5. Number

6. You can find an entry by name and number.

7. Select [Search].
8. You can check the names and numbers by pressing [List].

9. If you want to edit, delete, copy an entry, or to add the voice to one, select [Options]. The below menu will be displayed.

10. Edit : You can edit the name, number, E-mail, and fax by pressing ☐ [OK].

11. Delete : You can delete an entry.
12. Copy : You can copy a entry from SIM to phone or from phone to SIM.
13. Call: You can call thru the chosen entry.
14. Voice : You can add the voice to the entry or change the voice tag.
15. Main number : You can select the one out of mobile, home, office that you often use. The main number will be displayed first, if you set this.

Add new [Names 2]

You can add phonebook entry by using this function.

Phone memory capacity is 200 entries. SIM card memory capacity depends on the service provider.

You can also save 20 characters of name in the Phone memory, and you can save characters in the SIM card. the number of character is SIM dependent feature.

1. Open the phonebook first by pressing ☐ [Names] in standby mode.
2. Scroll to highlight Add new, and press [Select] to enter.
3. Select the memory you want to save: SIM or Phone.

- SIM : You can add name and number for entry.

a. Write a name to add.
b. Press ☐ [OK], then you can input a number.
c. Press ☐ [OK].
d. If you want to add the voice, press ☐ [Yes].

- Phone : You can add name, mobile, home, office, fax no. and E-mail address.

a. Write a name to add.
b. Press ☐ [OK].
c. Enter the numbers following as mobile, home, office, and fax by pressing ☐ [OK]. Also you can input E-mail address.
d. If you want to add the voice, press ☐ [Yes].

You should speak a word within 2 seconds, and the phone asks you to speak it again to ensure the accuracy of voice recognition. After voice recognition has finished, Voice is attached automatically.

Note

• The voice can only be attached to main number which you set. For example, If you change main number voice will be automatically attached changed number.
• You can add voice tag to phone number in SIM card. The voice tag can be erased removing or changing SIM card. And voice tag attached to phone number in SIM card may be attached to another phone number when you changed SIM card. Why? The answer is that SIM card doesn't contain information about voice tag.

Speed dial [Names 3]

You can associate any of the keys 2 to 9 with a Name list entry. You can call directly by pressing this key for 2-3 seconds.

1. Open the phonebook first by pressing ☐ [Names] in a standby mode.
2. Scroll to Speed dial, then press ☐ [Select] to enter this menu.
3. Every Speed dial will be displayed.
4. If you want to add Speed dial, select . Then, you can search the name in phonebook.
5. If you select allocated name by speed dial, you can view following the submenus.

- Change : You can change the allocation of speed dial number.

- Undo speed dial : You can delete the allocated speed dial number.

Voice list [Names 4]

You can see all phone numbers which contain voice. You can also call directly by pressing [Send]. After selecting phone number by using and and press [Options], you can see following the submenus.

• Play : You can play voice which is attached to phone number.
• Change : You can change voice which is attached to phone number.
• Delete : You can delete voice which is attached to phone number.
• Call : You can call by selecting this menu.

Caller groups [Names 5]

You can list up to 20 members per one group. There are 7 groups you can make lists to.

1. Press ☐ [Names] to enter into the phonebook in standby mode.
2. Scroll to Caller groups then press ☐ [Select] to enter this menu.
3. Every Group list will be displayed.: Family, Friend, Colleague, VIP, etc.
4. Select Group name that you want to manage by pressing [Select].
5. Then submenus below will be displayed.

- Add member

You can add the number in Caller groups.

- View member

• You can view the number list in Caller groups.
• You can select the member you want by pressing [Options] then you can enable the submenu such as Edit, Delete.

- Group ring tone

- You can set the ring tone depending on Group.

- Group icon

- You can set icon depending on Group.

- Change name

- You can change and edit the Group name.

Phonebook

Accessing the Menu

Note

- This menu "Change name" will be displayed only when you select "Empty".

Copy all [Names 6]

You can copy/move entries from SIM card memory to Phone memory or from Phone memory to SIM card memory.

1. Open the phonebook first by pressing ☐ [Names] in standby mode.
2. Scroll to Copy all, then press [Select] to enter this menu.
3. Then submenus below will be displayed.

• SIM to Phone : You can copy the entry from SIM Card to Phone memory.

- Phone to SIM : You can copy the entry from Phone memory to SIM Card.

Delete all [Names 7]

You can delete all entries in SIM, Phone, and Voice. This function requires security code.

1. Press ☐ [Names] to enter into the phonebook in standby mode.
2. Scroll to Delete all, then press ☐[Select].
3. Then select a memory to erase: SIM, Phone, Voice.
4. And then you will be requested to enter Security code.
5. Press ☐ [OK] or, press ☐ [Back] to cancel.

Settings [Names 8]

You can set preferred memory which includes Variable, SIM or Phone and preferred search which includes Variable, Name and Number.

1. Open the phonebook first by pressing ☐ [Names] in a standby mode.

2. Scroll to Settings, then Press ☐[Select] to enter.

3. Then submenus below will be displayed.

- Set memory

1. Scroll to highlight Set memory, then press [Select] to enter.

2. The three submenus are displayed.

3. Variable : If you select Variable, the phone asks you where to store whenever you add entries in Phonebook.

4. SIM : If you select SIM, the phone stores entries to SIM directly without asking you where to store.
5. Phone : If you select Phone, the phone stores entries to Phone directly without asking you where to store.

Phonebook

Accessing the Menu

- Search by

1. Scroll to highlight Search by, then press ☐ [Select] to enter.

2. The three submenus are displayed.

3. Variable : If you select Variable, the phone asks you how to search the entries.

4. Name : If you select Name, the phone searches entries by name.
5. Number : If you select Number, the phone searches entries by number.

Information [Names 9]

SDN (Service Dial Number)

Use this function to access a particular list of services provided by your network operator (if supported by the SIM card).

1. Open the phonebook first by pressing ☐ [Names] in a standby mode.
2. Scroll to SDN, then Press ☐ [select] to enter.
3. The names of the available services will be shown.
4. Use ▲ and ▼ to select a service. Press [Send].

Check memory

SIM Card 0/250 Handset 0/200 Back

This feature allows you to see how many free and in-use are in your phonebook.

1. Open the phonebook first by pressing [Names] in standby mode. Select Information by pressing ☐ [Select]

1. Scroll to Check memory, then press [select] to enter this menu.

Own number (SIM dependent)

You can check your own number in SIM card.

1 Messages

1 Write message

Send

Save

Use template

Use namecard

Add dictionary

List dictionary

2 Inbox

Delete

Edit

Forward

Get number

Reply

Return call

3 Outbox

Delete

Edit

Forward

Get number

4 Info service

1 Read

2 Receive CB

3 Alert

4 Language

5 Topics

5 Voice messages

1 Listen to voice message

2 Voice mailbox number

6 Namecard

7 Templates

8 Settings

1 Message type

2 Validity period

3 Status report

4 Pay for reply?

5 SMS centre

9 Check memory

2 Call Register

1 Missed calls

2 Received calls

3 Dialled calls

4 Clear recent calls

5 Call charge

1 Call duration

2 Show call costs

3 Cost settings

3 Profiles

1 Vibrate only
2 Quiet
3 General
4 Loud
5 Headset
6 Car

4 Settings

1 Alarm clock
1 Enable
2 Disable
2 Date & Time
1 Date
2 Time

3 Phone settings

1 Display

2 Language

4 Call settings

1 Minute minder

2 Any key answer

3 Send number
4 Call waiting
5 Auto redial
6 Select line
7 Next incoming

5 Security settings

1 PIN code
2 Phone lock
3 Automatic key lock
4 Call barring
5 Fixed dial num.
6 Change code

6 Network settings

1 Automatic

2 Manual

3 Preferred

4 User define

7 Restore factory settings

Menu Tree

Accessing the Menu

5 Call Divert

1 All voice calls

2 If busy

3 If no reply

4 If unreachable

5 All data calls

6 All fax calls

7 Cancel all

6 Scheduler

1 Add new

1 Schedule

2 Memo

2 View day

3 View all

4 Delete passed

5 Delete all

7 Fun & Tools

1 Game

2 Unit convert

3 Calculator

4 World time

5 Auto Answer

8 Internet

1 Home
2 Bookmarks
3 Profiles
4 Go to URL
5 Cache settings
1 Clear cache
2 Cache check
6 Security certifications
7 Reset profiles

9 Sim Service

This menu depends on SIM and the network services.

Messages [Menu 1]

Accessing the Menu

1 2 3 4 5 6 7 8 9 0 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

This menu includes functions related to SMS (Short Message Service), voice mail, as well as the network's service messages.

Write message [Menu 1-1]

You can write and edit text message up to 1024 characters. Also, you can check the number of characters.

1. Enter the Message menu by pressing ☐ [Select].
2. If you want to write a new message, select Write message in the menu.

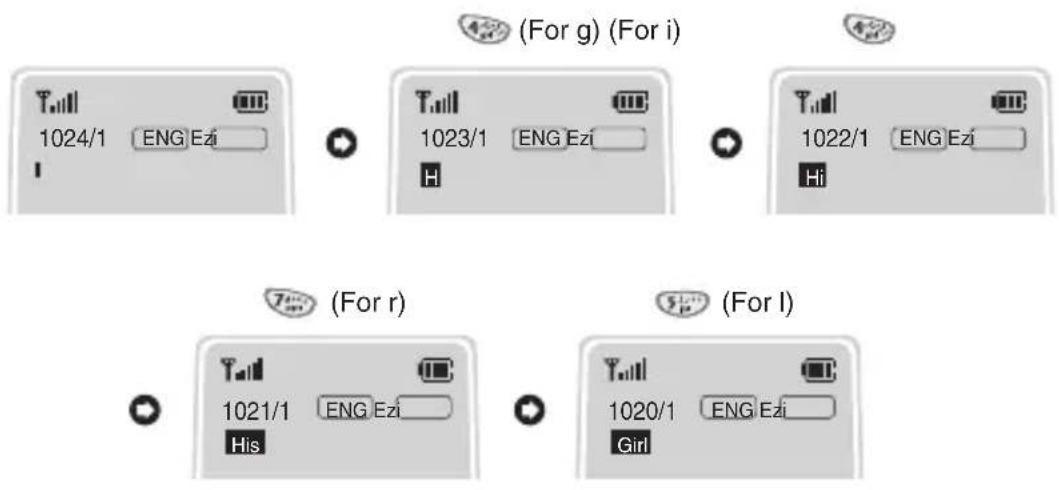

3. Input the message by using eZi text. For details, see eZi text (Page 43).
4. When you finish writing your message, press [Options]. Then following option menu will be displayed.

Send

Sends the text message.

1. If you want to send the text message, enter the number you want.
2. Your phone asks you to enter the number that you want to send it to.
3. After sending it, your phone asks whether you will store the edited message.
4. Press ☐ if you want to store it in Outbox and press ☐ if you don't want to.

Save

Stores the message in Outbox.

1. Your phone asks whether you will save the edited message.
2. Press ☐ if you want to save it in Outbox and press ☐ if you don't want to.

Use template

The template is pre-defined message. You can add the template of the list to the message when you edit it.

Use namecard

The items of the name card are a name, mobile, office, and memo. You can add a namecard to the message.

Messages [Menu 1]

Accessing the Menu

Add dictionary

If you add a word you use often, you can input it by pressing a key once for each character.

1. Enter the menu.
2. Scroll to highlight Add dictionary, and then press [Select].
3. Input a word, and then press ☐ [Add].

List dictionary

You can view the list you already saved words in a dictionary.

1. Enter the menu.
2. Scroll to highlight List dictionary, and then press ☐ [Select].
3. You can check the word list.
4. If you want to delete a word, press [Delete].
5. If you want to delete all words in a list, select Delete all at the bottom of the list by pressing ☐ [Select].

eZi-Text

The eZi text allows you to type easily and quickly. If you just press a key marked a character on the keypad, you can get a character you want. It is useful to make a word and a sentence. If you press 🔍 key for a long time, you can change the type of language.

Also, the phone supports four modes: eZi Mode, Numeric mode, Capital mode, and Small mode. If you want to change mode, press #+ key.

• How to Use in eZi mode

To input a character in eZi text mode, you just press each key once for a character you want.

For example, to write Girl in eZi mode;

(For g) (For i) 1024/1 ENG Ezi 1023/1 ENG Ezi 1022/1 ENG Ezi Hi (For r) 1021/1 ENG Ezi His (For l) 1020/1 ENG Ezi Girl

Messages [Menu 1]

Accessing the Menu

• How to use in Numeric mode

1024/1 123 Options Back

To input a number in Numeric mode, you press a number key displayed on the keypad.

• How to use in Capital mode

1024/1 Options Back

To input Capital letter, you press a character key displayed on the keypad.

• How to use in Small mode

1024/1 abc Options Back

To input Small letter, you press a character key displayed on the keypad.

Note

- If you want to input a symbolic character, press key in each mode.

Inbox [Menu 1-2]

When you receive a text message, your phone shows the symbol and stores it in the incoming message lists. Scroll to the desired message by using ▲ , ▼ . In addition, you can see Delete all for deleting all incoming messages at the bottom of the list. While reading the message, press [Options] to access the available options.

Delete

The selected message is deleted.

Edit

You can edit an incoming message and send or save the edited message.

Forward

You can forward the selected message to the other party.

Get number

If the selected message has the phone number, you can extract and save it in a phonebook. Also, you can call by this number.

Reply

You can reply to the sender by message.

Return call

You can call back to the sender who sent the message automatically.

Outbox [Menu 1-3]

When you enter this menu, you can see the message(s). Scroll to the desired message by using ▲, ▼ and press — to see the message. And if you want to exit Outbox menu, press —.

And if you want to exit outbox menu, press ☐. In addition, you can see Delete all for deleting all outgoing messages at the bottom of the list.

After reading message, press [Options] to access the following submenus.

Delete

The selected message is deleted.

Edit

You can edit an outgoing message and send or save it.

Forward

You can forward the selected message to the other party.

Get number

If the selected message has the phone number, you can extract and save it in a phonebook. Also, you can call by this number.

Info Service [Menu 1-4]

(Dependent to network and subscription)

Cell Broadcast messages (CB Message) are text messages by the network to GSM phone users. They provide general information such as weather reports, traffic news, taxis, pharmacies, and stock prices. Each type of information has the number; therefore, you can contact service provider. When you receive CB message, you can read it following sequence:

Read [Menu 1-4-1]

1. When you receive CB message, it will be displayed on the screen. You can read the message by scrolling ▲, ▼.
2. After reading the message, press 📋 to return to the standby mode. In addition, you can save it until another message is reached.

Receive CB [Menu 1-4-2]

- Yes

If you select this menu, your phone will receive the Cell Broadcast message.

- No

If you select this menu, your phone will not receive the Cell Broadcast message any more.

Messages [Menu 1]

Accessing the Menu

Alert [Menu 1-4-3]

- Yes

If you select this menu, your phone will beep when Cell broadcast message is received.

- No

If you select this menu, your phone will not beep despite Cell broadcast message is received.

Language [Menu 1-4-4]

You can select the language you want. Then your phone will receive the cell broadcast message in the language selected by you.

You can select Cell broadcast language pressing [Select]. The language list which you selected already will be displayed with check box.

Topics [Menu 1-4-5]

(Dependent to network and subscription)

- Add [Menu 1-4-5-1]

If you select this menu, you will add the CB message category in Phone memory.

• View list [Menu 1-4-5-2]

If you select this menu, you can see CB message category. If you press [Options], you can edit and delete it.

• Active list [Menu 1-4-5-3]

You can select the CB message category in active list by pressing [Select].

Voice messages [Menu 1-5]

You can listen to your voice message(s) and get the voicemail centre number.

Listen to voice message [Menu 1-5-1]

You can call voicemail centre if you want to listen to voice message.

Voice mailbox number [Menu 1-5-2]

You can get the voicemail if this feature is supported by the network service provider. When new voicemail is arrived, the symbol will be displayed on the screen. Please check with your network service provider for details of their service in order to configure the handset accordingly.

1. Press 1 key for a long time in standby mode.
2. You can check the following submenus.

• Home [Menu 1-5-2-1]

The number dialed on the home network to listen to voicemail.

- Roam [Menu 1-5-2-2]

The number dialed when other networks to listen to voicemail.

Messages [Menu 1]

Accessing the Menu

Namecard [Menu 1-6]

It's for editing the namecard. The items of the namecard are a name, mobile, office, and memo.

• Edit : You can edit a namecard.
• Delete : You can delete a namecard.

Templates [Menu 1-7]

It's for editing pre-defined messages. You can see 11 pre-defined messages in the list. You can save 6 templates before you edit. But you can change them. The others are .

• Edit : You can edit a template.
• Delete : You can delete the template.

Settings [Menu 1-8]

Message type [Menu 1-8-1]

Text, Voice, Fax, Natl. paging, X.400, E-mail, ERMES

Usually, the type of message is set to Text. You can convert your text into alternative formats, which are suitable for the device that will be received the message. Contact your service provider for the availability of this function.

Validity period [Menu 1-8-2]

This network service allows you to set how long your text messages will be stored at the message center while attempts are made to deliver them to you.

Status report [Menu 1-8-3]

If you set Yes in this menu, you can check whether your message is sent successfully or not.

Pay for reply? [Menu 1-8-4]

When a message is sent, it allows the person to whom you sent the message to reply and charges the cost of the reply to your telephone bill.

SMS centre [Menu 1-8-5]

If you want to send the text message, you can get the address of SMS center thru this menu.

Check memory [Menu 1-9]

If you select this menu, the phone shows an used memory and total amount of memory. The total memory is the sum of SIM and Phone memory.

Call Register [Menu 2]

Accessing the Menu

10.0 4" 5" 6 7" 8" 9 0+0

Call Register 2 Select Back

Missed calls [Menu 2-1]

This menu shows recent missed call number(s). You can call by this number, save it or view date and time in this menu.

Received calls [Menu 2-2]

You can check the recent received numbers. You can call by this number, save it or view date and time in this menu.

Dialled calls [Menu 2-3]

You can check the recent dialled numbers. You can call by this number, save it or view date and time in this menu.

Clear recent calls [Menu 2-4]

You can delete all call records.

1. Press ☐ [Menu] in standby mode.
2. Press 2 for direct access or use ▲ and ▼ to enter Call register.
3. Scroll to highlight Clear recent calls and press [Select] to enter.
4. The following four submenus: Missed calls, Received calls, Dialled calls, All calls.
5. Delete all message will be displayed and then press [Select], then, press one more time [Yes] to confirm.

Call charge [Menu 2-5]

Within these submenus, you can view the duration and the call cost.

Call duration [Menu 2-5-1]

This function allows you to view the duration of your Last Call, All Calls, Incoming Calls and Outgoing Calls in hours, minutes and seconds. You can also reset the call timers.

1. Press ☐ [Menu] in standby mode.
2. Press 2 for direct access or use ▲ and ▼ to enter Call register.
3. Scroll to highlight Call duration and press ☐ [Select].

The following 5 submenus: Last call, All calls, Received calls, Dialled calls and Reset all.

Call Register [Menu 2]

Accessing the Menu

Show call costs [Menu 2-5-2]

This function allows you to check the cost of your last call, all calls, remaining and reset the costs. To reset the cost, you need the PIN2 code.

1. Press ☐ [Menu] in standby mode.
2. Press 2 for direct access or use ▲ and ▼ to enter Call register.
3. Scroll to highlight Show call costs and Press [Select] to enter.

The following 4 submenus: Last call, All calls, Remaining and Reset all.

Note

- The actual call cost may be different depending on network features, billing, and tax.

Cost settings [Menu 2-5-3] (SIM Dependent)

- Set tariff [Menu 2-5-3-1]

You can set the currency type and the unit price. Contact your services providers to obtain charging unit prices. To select the currency or unit in this menu, you need the PIN2 code.

1. Press ☐ [Menu] in standby mode.
2. Press 2 for direct access or Use ▲ and ▼ to enter Call register.
3. Scroll to highlight Cost settings and Press [Select] to enter.
4. Select Set tariff.

- Set credit [Menu 2-5-3-2]

This network service allows you to limit the costs of your calls by selected charging units. If you select Read, the number of remaining unit is shown. If you select Change, you can change your charge limit.

1. Press ☐ [Menu] in a standby mode.

2. Press 2 for direct access or use ▲ and ▼ to enter Call register.

3. Scroll to highlight Cost settings and press [Select] to enter.

4. Select Set credit.

Note

- When all units have been used, no calls can be made except emergency calls. Depending on SIM card, you need the PIN2 code to set a call cost limit.

• Auto display [Menu 2-5-3-3]

This network service allows you to see automatically cost of your last call. If you select Yes in Auto display menu, you can see the last cost when the call is released.

1. Press ☐ [Menu] in standby mode.
2. Press 2 for direct access or use ▲ and ▼ to enter Call register.
3. Scroll to highlight Cost settings and press [Select] to enter.
4. Select Auto display.

Profiles [Menu 3]

Accessing the Menu

100 400 700 800 000 300 600 900

Profiles 8 Select Back

In this menu, you can adjust and customize the phone tones for different events, environments and caller's group. (e.g. When your phone is connected to the Handsfree kit, it'll be automatically set to the Car profiles menu and when your phone is connected to the Earmic, it'll be automatically set to Headset profiles menu.)

1. Press ☐ [Menu] in standby mode.
2. Press ⚡ for direct access or use ▲ and ▼ to enter Profiles.

Note

• In case that your phone is connected to Accessories such as Earmic and Handsfree, you cannot enable Profiles menu manually.
• Profiles menu has "Enable" submenu except Headset and Car so that you can set Profiles menu at any time except above case.

Vibrate only [Menu 3-1]

- Enable : You can adjust the Profiles as Vibration if you need vibration mode.

Quiet [Menu 3-2]

- Enable : You can adjust the Profiles as Quiet if you are in Silent place.

- Change : You can change the values of Profiles submenus.

General [Menu 3-3]

- Enable : You can adjust the Profiles as General

- Change : You can change the values of Profiles submenus.

Loud [Menu 3-4]

- Enable : You can adjust the Profiles as Loud if you are in a noisy environment.

- Change : You can change the values of Profiles submenus.

Headset [Menu 3-5]

- Enable : You can adjust the Profiles as Headset when you put on a headset.

- Change : You can change the values of Profiles submenus.

Profiles [Menu 3]

Accessing the Menu

Car [Menu 3-6]

• Enable : You can adjust the Profiles as Car when you activate Handsfree Kit.
• Change : You can change the values of Profiles submenus.

A Group of Profiles submenus [Menu 3-x-x]

Profiles menu have the submenus as shown below.

Incoming alert type [Menu 3-x-1]

Allows to set alert type for the incoming call for adjusting environment.

Ringing tone [Menu 3-x-2]

Allows to set the ringing tone for adjusting environment.

Ringing volume [Menu 3-x-3]

Allows to set the ringing volume for adjusting environment.

Message alert [Menu 3-x-4]

Allows to alert when receiving a message for adjusting environment.: Beep, Vibrator, and No alert.

Key volume [Menu 3-x-5]

Allows to set the keypad volume for adjusting environment.

Automatic answer [Menu 3-x-6]

Allows to set to answer automatically for adjusting environment.

Please note that only Car and Headset has this sub menu so that you can activate this function.

- Disable

Even though your phone is ringing, your phone will not answer automatically.

- After 5 sec

After 5 seconds your phone will answer automatically.

- After 10 sec

After 10 seconds your phone will answer automatically.

Note

- If you set the Handsfree kit to the phone, you can't activate the vibration related with Incoming alert type or Message alert menu. Therefore, in Car menu, you can view the following submenus;

- Incoming alert : Ring, Silent

- Message alert : Beep, No alert

Settings [Menu 4]

Accessing the Menu

You can set the following menus for your convenience and preferences.

1. Press ☐ [Menu] in standby mode.
2. Press 4 for direct access to enter Setting.

Alarm clock [Menu 4-1]

You can set the phone to alarm at a specified within this menu.

Enable [Menu 4-1-1]

You can set the time (Hour and Minute) for raising the alarm.

1. Enter the menu.
2. Select Enable by pressing ☐ [Select], and then enter the alarm time you want.
3. Press ☐ [OK].
4. Select the repeat period: Once, Daily, Weekly, and Monthly.
5. If you set in Power off alarm, the alarm signal sounds at the time you set even if the phone is turned off.

Disable [Menu 4-1-2]

You can cancel setting the alarm time.

1. Enter the menu.
2. Select Disable by pressing ☐ [Select].
3. Clear alarm message will be displayed when the phone is set to alarm before.
4. If you want to cancel, press ☐ [Yes]. If not, press ☐ [No].

Date & Time [Menu 4-2]

Date [Menu 4-2-1]

- Set date

In this menu, you can set the date of your phone.

1. Enter the menu.
2. Select Set date by pressing ☐[Select].
3. Enter the number you want to set the date.
4. Press ☐ [OK].

- Date format

You can set the Date format in this menu.

Settings [Menu 4]

Accessing the Menu

Time [Menu 4-2-2]

The phone has its own clock. In this menu you can set the time and select between the 12-hour or 24-hour time formats.

1. Enter the menu.
2. Scroll to highlight Time by pressing [Select].

- Set time:

You can set time of your phone in this menu.

1. Select Set time by pressing ☐ [Select].
2. Enter the number you want to set the time.
3. Select the am/pm you want to set the time format by long pressing ▲, ▼ key.
4. Press ☐ [OK].

- Time format:

Your can select time format between 12-hour or 24-hour.

1. Scroll to highlight Time format by pressing [Select].
2. Select 12 hour or 24 hour you want by pressing ☐ [Select].

Phone settings [Menu 4-3]

You can set the phone setting you want. Scroll to highlight Phone settings menu, and then press [Select].

Display [Menu 4-3-1]

- Screen saver [Menu 4-3-1-1]

If you don't activate any function for 20 seconds, the picture will be displayed in a standby mode.

- Welcome note [Menu 4-3-1-2]

This menu allows you to set the message, which is shown briefly when the phone is switched on.

1. Select Settings – Phone settings – Display – Welcome note.
2. Your own text can be displayed. If you select this item, your phone asks you to edit the message.

- Backlight [Menu 4-3-1-3]

You can set the light-up duration you want whenever you press a key.

• LCD contrast [Menu 4-3-1-4]

You can set the brightness of LCD you want by pressing ▲,

Language [Menu 4-3-2]

You can select the language that will be displayed on the phone.

Settings [Menu 4]

Accessing the Menu

Call settings [Menu 4-4]

You can set the menu relevant to a call by pressing [Select] in Setting menu.

Minute minder [Menu 4-4-1]

If you select Yes, you can check the call duration by beep sound every minute during a call.

Any key answer [Menu 4-4-2]

- Yes [Menu 4-4-2-1]

If you select this menu, you can receive an incoming call by pressing any key except ☐ key and 🔒 key

- No [Menu 4-4-2-2]

If you select this menu, you can receive an incoming call by [Answer] or ↗.

Note

• How to use Handsfree portable:

If you want to use the handsfree portable (earphone), Please press the button for a long time after inserting it to the connector when incoming a call.

Send number [Menu 4-4-3]

(network and subscription dependent)

- Yes [Menu 4-4-3-1]

If you select this, you can send your phone number to the other party. That is, your phone number will be displayed on receiver's phone.

- No [Menu 4-4-3-2]

If you select this, you can't send your phone number.

- Default [Menu 4-4-3-3]

If you select this menu, this phone will be set to the default value.

Call waiting [Menu 4-4-4]

(network dependent)

If this service is available, you can accept a waiting (incoming) call.

- Enable [Menu 4-4-4-1]

Activating the corresponding service.

- Disable [Menu 4-4-4-2]

Deactivating the corresponding service.

- Check status [Menu 4-4-4-3]

Checking the Status of the service.

Settings [Menu 4]

Accessing the Menu

Auto redial [Menu 4-4-5]

- Yes [Menu 4-4-5-1]

When this function is set on, your phone will make up to 10 attempts for a call after not connecting.

- No [Menu 4-4-5-2]

Your phone will not make any attempts to connect the call after not connecting.

Select line [Menu 4-4-6]

(network dependent)

This function is only used if Alternate line service supported by the Service Provider. Two independent phone numbers are registered for the phone. This function provides you with the selection the currently used phone number. If this function is supported by your service provider, the following menu will be displayed.

1. Line 1 : Select Line 1 as the current phone number.
2. Line 2 : Select Line 2 as the current phone number.

Next incoming [Menu 4-4-7]

(network dependent)

In case of Single Numbering Service, you can use the phone and a connected PC to send and receive fax, data, and voice. If you select the mode, you can receive data, fax, or voice each mode. Once you enter this menu, you following options are displayed.

- Voice

You can receive the voice call.

- Data

You can receive the data call.

- Fax

You can receive the fax call.

Note

- Single numbering service means that the number of fax or data service is identical with the number of voice service. And, these modes depend on network feature.

Security settings [Menu 4-5]

PIN code [Menu 4-5-1]

In this menu, you can set the phone to ask for the PIN code of your SIM card when the pone is switched on. If this function is activated, you'll be requested to enter the PIN code.

1. Press ☐ [Menu] in standby mode.
2. Press 4 key for direct access or use ▲ and ▼ to enter Settings.
3. Scroll to highlight Security settings menu.
4. Select PIN code by pressing ☐ [Select].
5. You can view the following submenus.

- Enable : Enable PIN code request.

- Disable : Disable PIN code request.

Phone lock [Menu 4-5-2]

You can use security code to avoid unauthorized use of your phone. When you switch on your phone, Your phone will request security code always if you set phone lock to "Enable". If you set phone lock to "Automatic". Your phone will request security code only when you change your SIM card.

• Enable
• Disable
• Automatic

Automatic key lock [Menu 4-5-3]

When you enable Automatic key lock, keypad will be lock automatically on a idle screen after 25 seconds without any key requesting.

• Enable
• Disable

Note

• If you want to lock your phone keypad manually, enter Top menu and press *# key.
• If you want to unlock your phone keypad, press [unlock] key and then press ✕ key. But if you enabled Automatic key lock before, your phone keypad will be unlock and then after 25 seconds the keypad will be lock up again automatically.

Settings [Menu 4]

Accessing the Menu

Call barring [Menu 4-5-4]

The Call barring service prevents your phone from making or receiving certain category of calls. This function requires the call barring password. You can view the following submenus.

- All outgoing:

The barring service of all outgoing calls.

- Outgoing Intl:

The barring service of all outgoing international calls.

- Outg. intl roam:

The barring service of all international outgoing calls except home network.

- All incoming:

The barring service of all incoming calls

- Inc when roam:

The barring service of all incoming calls when roaming

- Cancel all:

You can cancel all barring service.

- Change passwd:

You can change the password for Call Barring Service.

Fixed dial num. [Menu 4-5-5] (SIM dependent)

You can restrict your outgoing calls to selected phone number. The numbers are protected by your PIN2 code.

1. Press ☐[Menu] in standby mode.
2. Press 4µ key for direct access or use ▲ and ▼ to enter Settings.
3. Scroll to highlight Security settings menu.
4. Select PIN code by pressing [Select].
5. If the PIN 2 code is correct, you can view the following submenus.

- On: You can restrict your outgoing calls to selected phone number.

- Off: you can call without restricting phone number.

- Number list : You can view the number list saved as Fixed dial number.

Change code [Menu 4-5-6]

You can change the access codes: PIN, PIN2, and Security code.

1. Press ☐ [Menu] in standby mode.
2. Press 4# key for direct access or use ▲ and ▼ to enter Settings.
3. Scroll to highlight Security settings menu.
4. Select Change code by pressing ☐ [Select].
5. If you want to change the PIN/PIN2/Security code, input your original code, and then press [OK].
6. Input new PIN/PIN2/Security code, and verify the them.

Network settings [Menu 4-6]

You can select the network which you will be registered either automatically or manually. Usually, the selection of the network used by the handset is automatic.

Automatic [Menu 4-6-1]

The phone automatically selects network which is available in the your area.

Manual [Menu 4-6-2]

The phone will find the list of available networks and show you them. Then you can select the network which you want to use if this network has a roaming agreement with your home network operator.

Preferred [Menu 4-6-3]

You can set a list of preferred networks the handset should attempt to register with first, before attempting to register to any other networks. This list is created from the handset's predefined list of known networks.

User define [Menu 4-6-4]

You can add entries or delete new ones from the network list. This can even include new networks whose network codes are not known to the handset. To do this, select and then enter the network code, country code and network name.

Restore factory settings [Menu 4-7]

You can set the handset to the default configuration by selecting the Settings/Restore factory settings option, and then confirming this selection.

Call Divert [Menu 5]

(network and subscription dependent)

Accessing the Menu

10.0 4 7 9 0 3 5 6 8 0

○

Hand gesture showing a button labeled 'C' with an arrow pointing to it, next to a circular icon with a right-pointing arrow.

Call Divert 5 Select Back

The Call divert service allows to divert incoming voice calls, fax calls, and data calls to another number. For details, contact your service provider.

1. Press ☐ [Menu] in standby mode.
2. Press 5 for direct access or use ▲ and ▼ to enter Call Divert.

All voice calls [Menu 5-1]

Diverts voice calls unconditionally.

If busy [Menu 5-2]

Diverts voice calls when the phone is in progress.

If no reply [Menu 5-3]

Diverts voice calls which you do not answer.

If unreachable [Menu 5-4]

Diverts voice calls when the phone is switched off or out of range.

Call Divert [Menu 5]

(network and subscription dependent)

Accessing the Menu

All data calls [Menu 5-5]

Diverts to a number with a PC connection unconditionally.

All fax calls [Menu 5-6]

Diverts to a number with a fax connection unconditionally.

The submenus [Menu 5-x-x]

Call Divert menus have the submenus as shown below.

Enable [Menu 5-x-1]

Activating the corresponding service.

• Voicemail box [Menu 5-x-x-1]

Forwards to message center. This function is not included in All data calls and All fax calls menus.

- Other number [Menu 5-x-x-2]

Inputs the number for diverting.

- Favorite [Menu 5-x-x-3]

Shows the list of 5 diverting numbers.

Note

- You can select the number you want in Favorite menu.

Disable [Menu 5-x-2]

Deactivating the corresponding service.

Check status [Menu 5-x-3]

Checking the Status of the corresponding service.

Cancel all [Menu 5-7]

Cancels all call divert service.

Scheduler [Menu 6]

Accessing the Menu

10.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 OK OK

Scheduler Select Back

When you enter this menu a Calendar will show up. On top of the screen there are sections for date and icons. Whenever you change the date, the calendar will be updated according to the date. And square cursor will be used to locate the certain day. If you see under bar on the calendar, it means that there is a schedule that day. This function helps to remind you of your schedule and memo. The phone will sound an alarm tone if you set alarm for the note.

For changing the day, month, and year.

Key		Description
		Yearly
		Monthly
		If you press these keys shortly, you can set the alarm daily. In case of pressing for a long time, you can set it weekly.

Add new [Menu 6-1]

You can edit maximum 30 characters. You can take a note. You can choose the following types of note. You can make up to maximum 20 notes.

Schedule [Menu 6-1-1]

Input the subject, the schedule time, the repeat time, alarm time by pressing [Select].

- Repeat [Menu 6-1-1-1]

• Once : no repeat.
• Daily : repeat schedule daily for 5 days.
• Weekly : repeat schedule weekly for 5 weeks.
• Monthly : repeat schedule monthly for 5 months.
• Yearly : repeat schedule yearly for 5 years.

- Alarm time [Menu 6-1-1-1-1]

• On time : alarm on time you set already.
• 10 min before : alarm before 10 minutes from the schedule you set already.
• 30 min before : alarm before 30 minutes from the schedule you set already.
• 1 hour before : alarm before 1 hour from the schedule you set already.
• 1 day before : alarm before 1 day from the schedule you set already.

Scheduler [Menu 6]

Accessing the Menu

Memo [Menu 6-1-2]

1. Select Add new by pressing [Select].
2. Scroll to highlight Memo.
3. Press ☐ [Select].
4. Input the memo and then press ☐ [Select].

View day [Menu 6-2]

Shows the note for the chosen day. Use ▲, ▼ to browse through the note lists. If you set alarm for the note, Alarm watch is displayed. Press [Options] to delete, edit the note you selected.

View all [Menu 6-3]

Shows the notes that are set for all days. Use ▲, ▼ to browse through the note lists. Pressing [Options] allows access to the same menu as in 'View day'.

Delete passed [Menu 6-4]

You can delete for the last schedule already is notified you.

Delete all [Menu 6-5]

You can delete for the all note(s).

Fun & Tools [Menu 7]

Accessing the Menu

100 4"min min 7"min min 8"min min 9"min min 00

Fun & Tools Select Back

Game [Menu 7-1]

Your phone offers you enjoyable games to play with.

Note

The Control keys are different for each game. But each game has screens to explain the main control key. Other common control keys are below.

[Common Key Function]

• [Soft 1 Key] : Start Game
  • [CLR] : Pause
• [Soft 2 Key] : Back
  • [END] : Exit
  • [Star Key] : Backlight
• [Soft 1 Key] : Save score
  • , ▲ , ▼ : Level control [Up/Down, numeric key]

Fun & Tools [Menu 7]

Accessing the Menu

Unit convert [Menu 7-2]

: , 0.00 cm

0.0000 cm Change Back

This converts any measurement into a unit you want. There are 4 types that can be converted into units: Length, Area, Weight, and Volume.

1. You can select one of four unit types by pressing [Select] key.

2. Select the unit you want to convert by pressing ▲ and ▼.

3. You can change unit by pressing ☐ [Change] key.
4. You can input the prime number after the decimal place by pressing #↑ key.
5. You can delete the number you want by pressing Ⓓc .
6. Press ☐ key or — [Back] key if you want to end the process for converting the value.

Calculator [Menu 7-3]

This contains the standard functions such as +, -, *, ÷ : Add, Subtract, Multiply, Divide

1. Input the numbers by pressing numeric keys.
2. Press ☐ [Options] to select menu you want such as Add, Subtract, Multiply, Divide, Negative, Decimal point, Equals.
3. You can view the result by pressing [Options] key and select equals.
4. If you want to continue the calculation, repeat the process.
5. You can delete the number or sign you want by pressing Ⓐc .
6. Press 🔍 key if you want to end the calculation process.

World time [Menu 7-4]

You can view the time for each city around the world.

when you press ▲, ▼ shortly, you can view the city belonged to the different time zone and when you press ▲, ▼ long, you can view the all of city on the same time zone.

If you want to select the country you want, press [set] key.

Fun & Tools [Menu 7]

Accessing the Menu

Auto Answer [Menu 7-5]

Allow you to set your phone into automatic answering mode for adjusting environment.

Off [Menu 7-5-1]

Allow you to inactivate the answering phone mode.

General [Menu 7-5-2]

You can adjust the answering phone mode as General.

Meeting [Menu 7-5-3]

You can adjust the answering phone mode as Meeting.

Driving [Menu 7-5-4]

You can adjust the answering phone mode as Driving.

User defined 1, 2 [Menu 7-5-5/6]

You can personalize answering phone mode, as you want by recording your voice.

The submenus [Menu 7-x-x]

• Activate
  Allows to Activate answering phone mode, which you selected.

- Listen to voice guide

Allow you to listen to current voice guide, which you selected.

- Record new voice guide

Allow you to record new voice guide for 15 seconds when you select User defined menu.

Recorded messages [Menu 7-5-7]

It shows the list of recorded messages including recorder's name and recorded time at the bottom of the screen. 5 Messages each for 30 seconds can be saved.

- Play

Allow you to play the recorded messages.

- Delete

Allow you to delete the recorded messages.

- Call

You can call back to the sender who left messages.

Ringing time [Menu 7-5-8]

Allow you to set your phone when the answering mode will be activated.

- After 3 Secs

After 3 seconds your phone will be activated to answering phone mode.

- After 5 Secs

After 5 seconds your phone will be activated to answering phone mode.

- After 10 Secs

After 10 seconds your phone will be activated to answering phone mode.

Internet [Menu 8]

Accessing the Menu

100 4 5 6 7 8 9 0

Internet 8 Select Back

Your phone supports services based on Wireless Application Protocol (WAP). You can access services supported by your network. The services menu allows you to get the information such as news, weather reports, and flight times.

Home [Menu 8-1]

You can connect to the configured homepage of the activated profile.

Bookmarks [Menu 8-2]

When you enter this menu, you can see the bookmarks. Then press button to access available option, or press to exit it.

• Connect : Connect to selected bookmark.
• Add new : Add a new bookmark manually.
• Edit : Edit the title and the address of the selected bookmark.
• Delete : Delete the selected bookmark from the bookmark list.

Profiles [Menu 8-3]

You can make up to 5 profiles and activate only one of them. Scroll to the desired profile and press 📄 to access available options.

- Activate [Menu 8-3-1-1]

You can activate the selected profile.

- Settings [Menu 8-3-1-2]

You can edit and change WAP settings of the selected profile.

- Homepage [Menu 8-3-1-2-1]

This setting allows you to enter the address (URL) of the site you want to use as homepage. You do not need to type "http://" in front of each URL as the WAP Browser will automatically add it.

- Display image [Menu 8-3-1-2-2]

You can select whether images on WAP cards are displayed or not.

- Conn. type [Menu 8-3-1-2-3]

The options for connection type are Continuous or Temporary and depend on the gateway.

Continuous [Menu 8-3-1-2-3-1]

A confirmed delivery mechanism but generates more network traffic.

Temporary [Menu 8-3-1-2-3-2]

A non-confirmed (connectionless) service.

Internet [Menu 8]

Accessing the Menu

- Secure setting [Menu 8-3-1-2-4]

The options are On and Off depend on the gateway you are using.

- Gateway info. [Menu 8-3-1-2-5]

Most of WAP gateways do not require a User ID and Password. If your gateway need them to connect to it, then your network should provide them, and you must set them up correctly before trying to browse a WAP site.

- Data setting [Menu 8-3-1-2-6]

These values of setting are provided by your network.

IP address : Enter the IP address of the WAP gateway you are using to access.

Dial number : Enter the telephone number to dial to access your WAP gateway.

Call type : Select the type of data call.: Analogue or ISDN (Digital).

Call speed : The speed of your data connection.

User ID : The user identity for your dial-up server (and NOT the WAP gateway).

Password : The password required by your dial-up server (and NOT the WAP gateway) to identify you.

- Linger time [Menu 8-3-1-2-7]

You need to select one of 5 timeout periods. After selecting one of them, the service will be unavailable if any data wasn't input or transferred.

- Rename [Menu 8-3-1-3]

Edit the Profile Name.

• E-mail server [Menu 8-3-1-4]

Save the URL of the E-mail server that you frequently use.

- Connect [Menu 8-3-1-4-1]

Connect to the E-mail server that you configured.

- Edit address [Menu 8-3-1-4-2]

Edit the URL of the E-mail server.

Go to URL [Menu 8-4]

You can directly connect to the site that you want. You need to enter the specific URL that you want to directly connect.

Cache settings [Menu 8-5]

You can remove the contents of Cache memory and change the Cache check mode.

Clear cache [Menu 8-5-1]

The contents of Cache memory will be removed.

Cache check [Menu 8-5-2]

You can change the time for checking the Cache memory.

- Always [Menu 8-5-2-1]

The cache is always checked whenever URL is loaded or navigated.

- Start only [Menu 8-5-2-2]

The cache is only checked when the WAP is started.

- Off [Menu 8-5-2-3]

The cache is never checked.

Security certifications [Menu 8-6]

A list of the available certificates is shown.

Reset profiles [Menu 8-7]

You can reset all the current settings of profiles to the factory default.

Internet On-line menu

Accessing the Menu

If you are on line, you can see the following menus.

Home

This is the same as [Menu 8-1].

Reload

This reloads the current page.

Bookmarks

This is the same as [Menu 8-2].

□ Save as bookmarks

Save the current URL as a bookmark. You can also edit the bookmark title.

Go to URL

Same as [Menu 8-4].

☐ Go to e-mail server

Connect to the E-mail server that you configured.

□ Set as e-mail server

Save the current URL as an E-mail server.

How to Use Data and Fax call

Additional Functions

To be able to data or fax service, you need the communicate software such as a data or a fax program. Before using these functions, you need to connect your phone to a computer or make sure that your phone is in connection with a compatible device.

Sending Data or Fax Calls

1. Connect your computer to the phone.
2. After starting the communicate software, make a call and transmit a data or fax.
3. After the data or fax transmission, you can end the call by just ending of the communicate software, pressing [End].

Receiving Data or Fax Calls

If you have separate numbers for voice, data and fax calls, your phone recognizes the type of call.

Receiving Data or Fax Calls – Separate numbers (Multi-numbers)

To use a data or a fax service, the display shows which type of call you are receiving.

To receive a data or fax call

1. Connect your computer to the phone.
2. After starting the communicate software, accept a call and receive a data or fax (if it is not answered automatically).
3. After the data or fax reception, you can end the call by just ending of the communicate software, pressing [End].

Receiving Data or Fax Calls – Single number

If you have a SIM card that does not support separate voice, data and fax numbers, the phone does not recognize the type of incoming call.

To use a data or a fax service, make sure that you want to receive a data or fax call mode. You first have to set the phone to one of these options in the call mode (Settings → Call Setting → Next Incoming) sub menu.

To receive a data or fax call

1. Press ☐ [Menu] in standby mode.
2. Select the Settings → Call setting → Next Incoming.
3. Select the call type you want (Voice, Data or Fax) and press [Select].
4. Connect your computer to the phone.
5. After starting the communicate software, accept a call and receive a data or fax (if it is not answered automatically).
6. After the data or fax reception, you can end the call by just ending of the communicate software, pressing [End].

Once you have set your phone for a specific incoming call, it remains set until you change it.

PC Sync

PC Sync is a program for data exchange PC & Phone by data cable. Therefore, if you want to use this function, you have to buy accessory kit. About more detail for using guide refers to PC Sync Help file on the PC Sync CD.

In call Menu

Additional Functions

During a call, the following menus will be displayed, not in a standby mode.

1 During a call

1-1 Putting a Call on Hold

You can place a call on hold or retrieve by just pressing the [Send] key. When a call is made or answered, press the [Send] key to place it on hold. When a call is held, press the [Send] key to make it active.

1-2 Making a Second Call

You can get a dial number from phonebook to make a second call. Press ☐ [Names] key then select Search. To save the dial number into phonebook during call, press ☐ [Names] key then select Add Entry.

1-3 Swapping Between Two Calls

To switch between two calls, select the [Menu] key, then select Swap or just press [Send] key.

You can make one of two calls focused by pressing up/down arrow key. If you want to end one of two calls, make the call you want to end focused, then press [End] key when the call you want to end is focused.

1-4 Answering an Incoming Call

To answer an incoming call, simply press the [Send] key.

The handset is also able to warn you of an incoming call while you are already in a call. A tone sounds in the earpiece, and the display will show that a second call is waiting.

If Call Waiting is on, you can put the first call on hold and answer the second, by pressing [Send] or by selecting the [Menu] key, then Hold & Answer.

You can end the current call and answer the waiting call by selecting the [Menu] key, then End & Answer.

1-5 Rejecting an Incoming Call

You can reject an incoming call without answering by simply pressing the [End] key.

When in a call you can reject an incoming call by pressing the [Menu] key and selecting Multiparty/Reject or by pressing [End] key.

1-6 Controlling the volume during a call

You can control the volume during a call by pressing [Menu] key and selecting Volume.

1-7 Muting the Microphone

You can mute the microphone during a call by pressing the [Menu] key then selecting Mute. The handset can be unmuted by pressing the [Unmute].

When the handset is muted, the caller cannot hear you, but you can still hear them.

1-8 Switching DTMF Tones on During a Call

To turn DTMF tones on during a call, for example, to allow your handset to make use of an automated switchboard, select the [Menu] key, then DTMF On. DTMF tones can be turned off the same way.

1-9 Calling up the Main Menu

The Messages and SIM Tool kit main menu options can be reached from the in-call menu by selecting the [Menu] key, then Main Menu. SIM Tool kit menu is shown only when SIM in the handset supports SIM Tool kit service.

2 Multiparty or Conference Calls

The multiparty or conference service provides you with the ability to have a simultaneous conversation with more than one caller, if your network service provider supports this feature.

A multiparty call can only be set up when you have one active call and one call on hold, both calls having been answered. Once a multiparty call is set up, calls may be added, disconnected or separated (that is, removed from the multiparty call but still connected to you) by the person who set up the multiparty call. These options are all available from the in-call menu and are listed in Section.

The maximum callers in a multiparty call is five. Once started, you are in control of the multiparty call, and only you can add calls to the multiparty call.

2-1 Making a Second Call

You can make a second call while you are already in a call. To do this, enter the second number and press [Send]. When you get second call the first call is automatically put on hold. You can swap between calls by selecting the [Menu] key then Swap.

2-2 Setting up a Multiparty Call

You can connect a call on hold to the currently active call to form a multiparty call by selecting the [Menu] key then Multiparty/Join all.

2-3 Putting the Multiparty Call on Hold

To put a multiparty call on hold, select the [Menu] key then Multiparty/Hold all.

2-4 Activate the Multiparty Call on Hold

To make a multiparty call on hold active, select the [Menu] key then Multiparty/Join all.

2-5 Adding Calls to the Multiparty Call

To join an active call to the held multiparty call, select the [Menu] key then Multiparty/Join all.

2-6 Displaying Callers in a Multiparty Call

To scroll through the numbers of the callers who make up a multiparty call on the handset screen, press ▲ and ▼ keys.

2-7 Putting a Member of a Multiparty Call on Hold

To place one selected caller (whose number is currently displayed on-screen) of a multiparty call on hold, select the [Menu] key then Multiparty/Exclude.

2-8 A Private Call in a Multiparty Call

To have a private call with one caller of a multiparty call, display the number of the caller you wish to talk to on the screen, then select the [Menu] key and Multiparty/Private to put all the other callers on hold.

2-9 Ending a Multiparty Call

The currently displayed caller of a multiparty call can be disconnected by pressing the [End] key. To end a multiparty call, press the [Menu] key then select Multiparty/End multiparty.

Selecting the [Menu] key then Multiparty/End all, will end all the active and held calls.

2-10 Explicit Call Transfer (ECT)

If you have one caller on hold and another active call, you may connect one call party to another call party and then leave the call. This is done by selecting the Multiparty/Transfer option from the in-call menu.

Care and Maintenance

When using this unit, basic safety precautions as below should be always followed.

• Do not touch the adapter with wet hands.
• Do not disassemble this unit. (Take it to a qualified service technician when repair work is required.)
• Away from electrical appliance such as a TV, radio or personal computer.
• The unit should be situated from heat sources such as radiators or cookers.
• Do not drop.
• Do not subject this unit to mechanical vibration or shock.
• The coating of the phone may be damaged if covered with wrap or vinyl wrapper.
• Use dry cloth to clean the exterior of the unit. (Do not use solvent such as benzene, thinner or alcohol.)
• Do not subject this unit to excessive smoke or dust.
• Do not keep the phone next to credit cards or transport tickets; it can be affect the information on the magnetic strips.
• Do not tap the screen with a sharp object; otherwise, it may damage the phone.
• Do not expose the phone to liquid or moisture.
• Use the accessories like an earphone cautiously. Do not touch the antenna unnecessarily.

Care and Maintenance

Caring for the Battery

• You do not need to completely discharge the battery before recharging. Unlike other battery systems, there is no memory effect that could compromise the battery's performance.
• Use only LG batteries and chargers. LG chargers are designed to maximize the battery life.
• Do not disassemble or short-circuit the battery pack.
• Keep the metal contacts of the battery pack clean.
• Replace the battery when it no longer provides acceptable performance. The battery pack may be recharged hundreds of times until it needs replacing.
• Recharge the battery if it has not been used for a long time to maximize usability.
• Do not expose the battery charger to direct sunlight or use it in high humidity, such as the bathroom.
• Do not leave the battery in hot or cold places, this may deteriorate the battery performance.

Danger

- There is a danger of an explosion if the backup battery is incorrectly placed. The battery can explode if it is not properly handled, or disposed of. Replace only with a battery of the same type. To avoid possible injury or death, Do not: (1) throw or immerse into water, (2) allow it to heat to more than 100°C (212°F), or (3) attempts to repair or disassemble it. Dispose of it as required by local ordinances or regulations and your company's safety standards.

Technical Data

General

Product name : W3000

System : GSM 900 / DCS 1800MHz

Dimension : 102 x 45 x 20 (mm)

Weight : 80g (with standard battery)

Battery

Type : Li-ion Battery

Standard voltage : 3.7V

Battery full charge voltage : 4.2V

Travel charger

Input : AC 220V, 50/60Hz

Output : DC 5.2V / 800mA

Ambient Temperatures

Max : +55°C

Min : -10^ C

Declaration of Conformity

LG Electronics

This model complies with the essential requirements of Article 3 of the R&TTE 1999/5/EC Directive, if used for its intended use.

1. Health (Article 3.1.a of the R&TTE Directive)
2. Safety (Article 3.1.a of the R&TTE Directive)
3. Electromagnetic compatibility (Article 3.1.b)
4. Efficient use of the radio frequency spectrum

CE 0700

I hereby declare under our sole responsibility

that the product mentioned above to which this declaration relates complies with the above mentioned articles of the directive.

If available, write the contact person(s)

Mr. Jin Seog, Kim

LG Amsterdam Branch Office

Capronilaan 6, 1119 NR Schiphol-rijk, The Netherlands

(Tel.) [phone]

Mr. Ji Jong, Jeon

LG Electronics Inc. GSM Division

Emerald BD, 1042 Hogye-Dong, Dongan-Gu
Anyang-city, Kyuongki-Do
431-080, Korea

Memo

Memo
