USER MANUAL CGL23TMTSFU LG

Exterior view of a modern stainless steel refrigerator with a single door and side legs (no signage or text visible)

Owner's Manual

Please read this manual carefully and thoroughly before operating this unit.

LG 24 x 7 CALL CENTER

1800-180-9999

(Toll Free)

5757554

(Send SMS)

www.lg.com

[e-mail]

CONTENTS

IMPORTANT SAFETY INFORMATION 2

INSTALLATION 4

OPERATIONS 4

IDENTIFICATION OF PARTS 5

SUGGESTIONS 6

SUGGESTIONS ON FOOD STORAGE 6

CLEANING 7

GENERAL INFORMATION 7

FEATURES 8

BEFORE CALLING FOR SERVICE 9

IMPORTANT SAFETY INFORMATION

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:

DANGER

You will be killed or seriously injured if you don't follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

CAUTION

Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INFORMATION

WARNING

1. Do not modify the power cord length or sharing of outlet with other appliances and don't replace the power cord with the damaged or unspecified power cord. It will cause electric shock or fire. If the power cord is damaged, it should be replaced by authorized service person as specified by the manufacturer.

2. Plug in the power socket properly. Loose plug-in causes electric shock or fire due to heat generation.

3. Do not switch ON/OFF the refrigerator with wet hands. It may cause electric shock.

4. Use only dedicated power socket for supply to refrigerator. Do not use an extension cord; otherwise it will cause overloading and intermittent tripping of other appliances or household lights.

5. Never splash water on your refrigerator. It may cause short circuit.

6. Grounding (Earthing). In the event of an electric short circuit, grounding (Earthing) reduces the risk of electric shock by providing an escape wire for the electric current. In order to prevent possible electric shock, this appliance must be grounded. Consult a qualified electrician or service person if you have doubts on whether the appliance is properly grounded. Improper use of the grounding plug can result in an electric shock.

7. Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull it straight out from the outlet.

8. When moving your appliance away from the wall, be careful not to roll over the power cord or damage it in any way.

9. Unplug the power cord from outlet for cleaning or other requirements. Never touch it with wet hands because you can get an electric shock or be hurt.

10. Never damage, process, pull out, or twist the power cord, because damage of power cord may cause a fire or electric shock.

11. Do not place the lit candle within the refrigerator to deodorize. It may cause explosion or fire.

12. Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas, spray or cosmetics near or in the refrigerator. It may cause explosion or fire.

13. When any strange smell or smoke is detected from the refrigerator, disconnect the power plug immediately and contact to the service center. It may cause fire.

14. The refrigerator should be so positioned that the supply plug is accessible for quick disconnection when accident happens.

15. When disposing the refrigerator, remove the packing materials from the door. It may cause to lock out the child.

CAUTION

1. Before use, refrigerator must be properly installed and located as per the installation instructions.

2. After your refrigerator is in operation, do not touch the cold surface in the freezer compartment, particularly when your hands are damp or wet. Skin could adhere to these extremely cold surfaces.

3. Wait for 5 minutes or longer when reconnecting the plug. (It may cause the operation of the freezer to fail.)

4. Do not install the refrigerator in the wet place or the place which water or rain splashes. (Deterioration of insulation of electric parts may cause electric leakage.)

5. Because opening or closing the door of the refrigerator may cause injury to the person around it, be careful, please. (Opening or closing the door may cause feet or hands to be caught in the chink in door or the child to be get hurt by the corner.)

⚠️ चेतावनी

Levelling of refrigerator should be done with front leg. Refrigerator should be levelled with front to back inclination for base.

200mm 200mm50mm

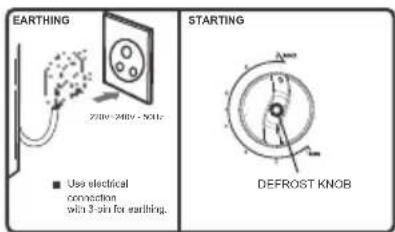

EARTHING ZWH-240V - NO1c ■ Use electrical connection with 3-pin for earthing. STARTING DEFROST KNOB

Operation

Refrigerator Temperature Control

It is natural for moisture in the air to condense on the cold surface. This leads to a regular build up of frost on the surface of the freezer and the cooling in the fresh food compartment. This frost accumulation reduces the cooling effect, thereby reducing efficiency. Therefore, periodic defrosting is necessary to ensure optimum performance.

★ The water in the drain tray evaporates by natural evaporation if defrosting is done once in two days. However, due to varied conditions of usage it is desirable to check the drain-tray occasionally and dispose of the water, if any, Please ensure that the chiller tray is in its correct position by pushing it to its correct position by pushing it to its extreme. Otherwise the defrosting water may fall over the contents of the refrigerator.

★ Manual Defrosting : However in some models, in case of defrosting or power failure the water directly accumulates in chiller tray, dispose off water directly from chiller tray by taking it out.

Diagram showing two 3D grid arrangements with a curved arrow indicating rotation (no text or symbols)

IDENTIFICATION OF PARTS

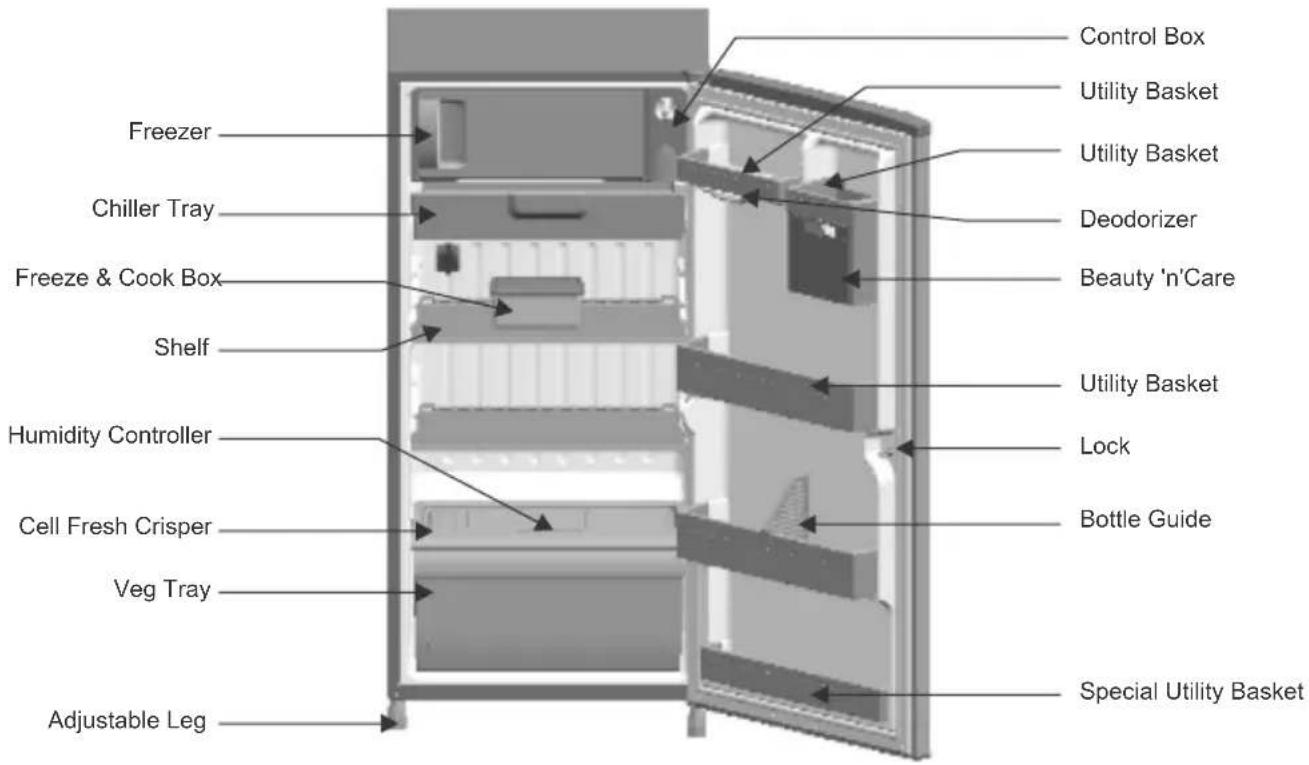

GL-225

Control Box Utility Basket Utility Basket Deodorizer Beauty 'n'Care Freezer Chiller Tray Freeze & Cook Box Shelf Humidity Controller Cell Fresh Crisper Veg Tray Adjustable Leg Utility Basket Lock Bottle Guide Special Utility Basket

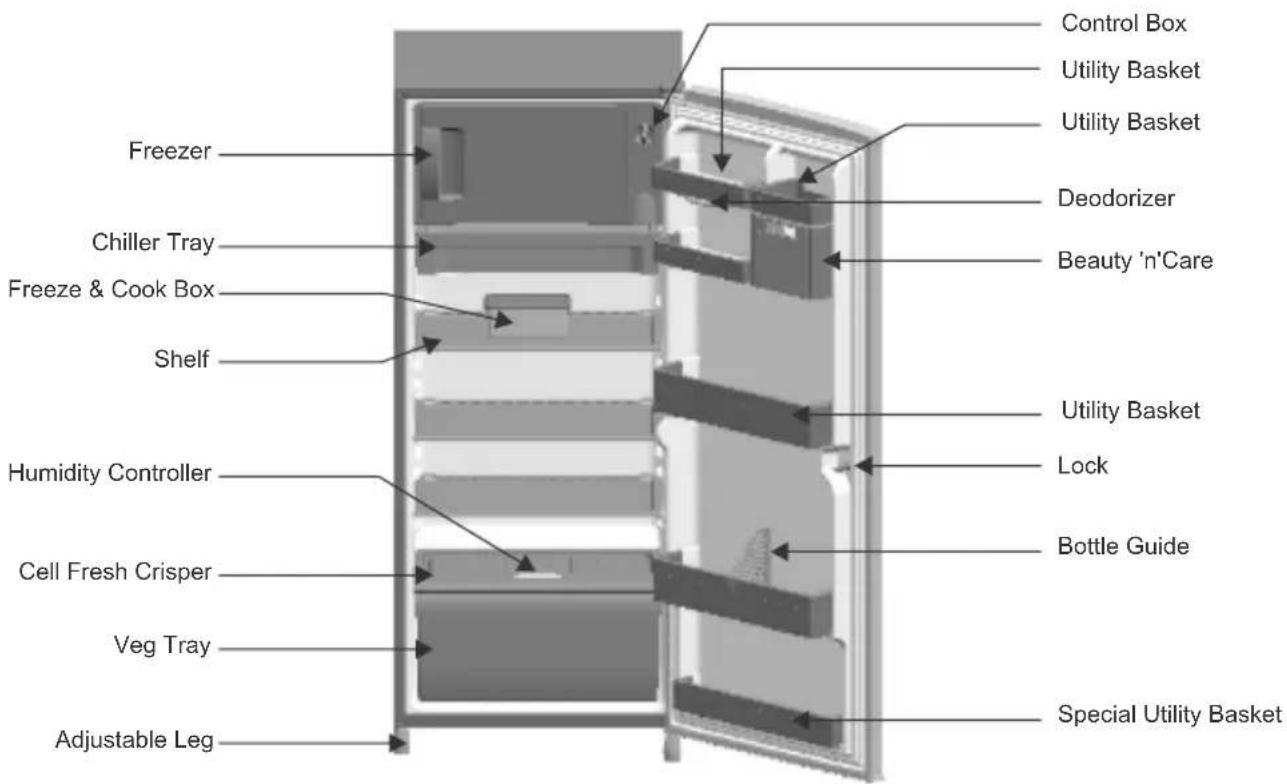

GL-245 / GL-285

Control Box Utility Basket Utility Basket Deodorizer Beauty 'n'Care Freezer Chiller Tray Freeze & Cook Box Shelf Utility Basket Lock Humidity Controller Bottle Guide Cell Fresh Crisper Veg Tray Adjustable Leg Special Utility Basket

* Due to continuous R&D, model specification subjected to change.

SUGGESTIONS

SUGGESTIONS ON FOOD STORAGE

EXTERIOR -Use a lukewarm solution of mild soap or detergent to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR - Regular cleaning of the interior and interior parts is recommended. If you have the Wash all compartments with a mild baking soda solution, then rinse and dry the compartment.

Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts(lamps, switches controls, etc.).

Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing electric shock. Do not use flammable or toxic cleaning liquids.

• Caution for Cleaning Not in use : Surface active agent, Car wax, Anticorrosive, All sorts of oil, Gasoline, Acids, Wax.
• Usable Detergent Vegetable dish washable solution, Soapy water
• When careless using, it can occur a color change.

VACATION TIME - During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan to be away for an extended period remove all food, disconnect the power cord, clean the interior throughly and leave each door OPEN to prevent odour formation.

POWER FAILURE - Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.

IF YOU MOVE - Remove or securely fasten down all loose items inside the refrigerator. To avoid damaging the leveling screws, turn them all the way into the base.

DISPOSAL OF THE OLD APPLIANCE - This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable.

All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

bad colour molecule

Simple line drawing of two stacked rectangular containers with a lid (no text or symbols)

Isometric line drawing of a computer chassis with internal compartments and ventilation slots (no text or symbols)

Freezer Lamp

• Unplug the power cord from the outlet.
• Turn the lamp counterclockwise.
• Assemble the reverse order of disassembly.
  Replacement bulb must be the same specifications as original.

- To remove the lamp cover, reach behind the lamp cover and pull it forward as shown in Fig.

Simple line drawing of a hand holding a circular object with a curved arrow above, no text or symbols present.

Power Cord Replacement : If the supply cord is damaged, it must be replaced by a special cord or assembly from the manufacturer or its authorised service agent.

"This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance."

★ In selected models only

Before Calling for Service

Check for yourself

Type of Complaint	Probable Cause	Remedy
1. Refrigerator does not work.	-Thermostat switch in 'OFF' position.	Check that the thermostat knob is on 'Normal' (No.4) position and not in off position.
	-Power Supply Off.	Check that the refrigerator main supply plug is connected to the wall socket and that the supply is on. Check that the fuse is intact in the supply line.
2. Refrigerator attempts to start, but does not operate.	-Low Voltage.	Install a line-correcting transformer in the mains, or a Voltage Stabilizer.
3. Refrigerator contents not cooling.	-Defrosting over due	Defrost the refrigerator.
	-Restriction of cold air circulation.	Provide space in between the dishes. If the shelves are covered with cloth or polythene, remove it.
	-Improper thermostat control selection.	If the refrigerator is required to give a low temperature turn the thermostat knob towards colder (No.7) position.
	-Entry of hot air.	Opening and closing of the door too often will result in hot air from outside rushing into the refrigerator causing the temperature to go up. Reduce the frequency of opening of the door
	-Storing hot foods.	Avoid storing hot foods in the refrigerator, cool them to room temperature before placing them inside the refrigerator.
4. Formation of water drops on exterior of refrigerator.	-High humidity during mansoon season.	During the mansoon, when the humidity in the atmosphere reaches around 90% water droplets may form around the sides of the refrigerator cabinet, especially the top portion. This moisture should be wiped off periodically. Contact our serviceman to check the door seal for proper and uniform contact with the cabinet.
5. Formation of droplets on the underside of the Chiller tray.	-Hot and humid climate.	In hot and humid weather the moist air rushes inside whenever the refrigerator door is opened. This results in excess frosting on the Evaporator, and condensation on the Chiller tray bottom. Avoid too frequent door openings.
6. Smell and odour.	-Improper covering and wrapping of food.	Wrap and cover foodstuffs properly. Place caps on bottles and other liquid stores.
		If the smell persists, defrost the refrigerator, remove all foodstuffs, clean the refrigerator thoroughly and wipe it dry before restarting.
7. Difficulty in formation of ice and ice-cream.	-Incorrect thermostat setting.	Set the thermostat on 'Colder' (No.7) position.
	-Defrosting overdue.	Excessive frost on the freezer, should be defrosted. Ensure that the container of ice-cream or ice is in proper contact with the surface of the freezer. Do not use bowls.

Line drawing of a mechanical device housing with internal compartments and a base mount (no text or symbols)

- Open the box and take the base stand out.

- Place the base stand at appropriate location, you intend to install Refrigerator.

- Adjust legs of base stand to level it perfectly on Floor.

Technical line drawing of a mechanical device with arrows indicating assembly or connection (no text or symbols)

- Place refrigerator on the base stand, such that to insure the proper placement of refrigerator on base stand as indicated (fig. 2).

Line drawing of a refrigerator front view with door and side panel (no text or symbols)

- Adjust the refrigerator so that the gap on either sides is even.

- Plug in the power supply.

- Do not move refrigerator with base stand it might damage the stand

Pure technical line drawing of a door frame without any text, numbers, or symbols

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

- When Refrigerator is used without base ensure both the legs of refrigerator are in place and properly leveled.

a) Maintain required distance between walls.
b) Leveling of legs for proper alignment.
c) At a first time do not start /run refrigerator for minimum 3 hrs.
d) Use three pin 6 Amp socket with proper earthing.
e) Run the refrigerator for 6 hrs. Without loading food stuff / water etc...

b Front Log For details refer page no. 4

Cartoon illustration of a smiling refrigerator with arms and legs, connected to a button (no text or symbols)

a) For cooling control rotate knob.
b) Store food stuff such as Milks, Fish etc. in Fresh Zone.
c) Store food stuff at a proper distance from each other & in closed container in refrigerator compartment shelf area.
d) Store vegetables & Fruits in Tray Vegetable.
e) Cover or wrap al foods that you put into your refrigerator with polythene or aluminium foil.

Frost building on evaporator is natural. Defrost regularly to avoid heavy frost building on evaporator, which will reduce cooling efficiency.

a) Make defrosting of refrigerator every 3 days regularly for better cooling at lesser power consumption.
b) Defrosting can be done by pressing defrost knob.

a) Do not place refrigerator in direct sunlight.
b) Place the refrigerator in ventilated area.
c) Do not open the door frequently.
d) Do not keep Hot food directly inside refrigerator.
e) Set cooling control as per requirement / load inside refrigerator. e.g. Less Load → 'Min' Setting.

a) Do not tilt the refrigerator more than 45° angle while shifting the refrigerator.
b) Do not use sharp edges / knife for removing ICE.
c) Check Drain pipe at Rear Side incase of drain water overflow.
d) Condenser (Black mesh behind the refrigerator) may get warm during the run time. This is normal phenomenon.
e) Sweating / Water formation over refrigerator may happen during Monsoon / High humid conditions. Wipe it with soft cloth.

Regd Office : A-27, Mohan Cooperative Industrial Estate, Mathura Road, New Delhi-110044

WARRANTY

The LG Refrigerator comes with 1 + 4 year warranty, from the date of purchase, that comprises of a 1 year warranty on all Parts (except Light Bulb, Consumables, Loose Plastic Parts, Glass) in the first year and thereafter a 4 year Additional warranty on the compressor, from the date of purchase of the product, provided always that the warranty card bears the rubber stamp, date and signature of our Authorised Dealer.

4 YEAR ADDITIONAL WARRANTY ON COMPRESSOR

The 4 year warranty on Compressor will continue even after the expiry of 1 year period from the date of purchase. This warranty covers Compressor only. Gas/Gas Charging will be charged to the customer. Gas charging is included only when compressor is defective & inoperative. During the additional warranty period, it does not cover any part such as condenser, freezer, capillary, suction line, overload protector, relay, thermostat etc.. Standard visiting charges will be applicable within the municipal limit of town where LG Electronics India Pvt. Ltd. (LGEIL) has its Authorized Service centre, Service outside municipal limit will attract to and fro traveling, other incidental expenses in addition to standard visiting charges, as prevailing from time to time. During the warranty period, only the parts replaced or repaired shall be free of costs, but service charges shall always be payable by the customer.

TERMS & CONDITIONS

1. The warranty is confined to the first purchaser of the Refrigerator only & is non-transferable.
2. Repairs & replacements will be carried out by the dealer from whom the product has been purchased, or through the Authorized Service Centers of LGEIL. In case the customer shifts the place of residence during warranty period, it is advised to contact Authorized Service Centre directly or call our help line.
3. Repairs under warranty shall be carried out by an authorized service personnel only. The details of centralized help lines are attached.
4. For units installed beyond municipal limits of the jurisdiction of company's Authorized Service Center, it is responsibility of the purchaser to contact the nearest authorized service center and bring the unit to the authorized service center at its own cost and risk. All expenses incurred in collecting the units or parts thereof from the company's authorized service center, as well as expenses incurred with deputizing of service personnel/technicians towards conveyance and other incidentals etc. will be borne by the customer. Local Charges for transportation and handling charges may vary from location to location. Customers are advised to verify before. In case the customer desires to bring the unit on its own to the Authorized Service Centre, the same shall be at its own risks & consequences.
5. The concerned authorized service center will advise the customer whether to effect the repairs at site or at the authorized service center.
6. Call registered with the centralized helpline/Authorized service center, wherein only cleaning of the unit/parts in the unit due to dust accumulation on portions of the unit, general explanations/returning, are not to be considered as defects.
7. In case of repairs or replacement of any part/s of the unit, this warranty will thereafter continue and remain in force only for the unexpired period of the warranty. Replacement of parts would be purely at the discretion of LGEIL alone. In case the replacement of the entire unit is being made, (subject to the sole discretion of LGEIL), the same model shall be replaced and in the event such model has been discontinued, it shall be replaced with the model of price equivalent at the time of purchase.
8. In case of any damage to the product / customer abuse/ repairs by un-authorised personnel/ misuse detected/ by the Authorized Service Center personnel, the warranty conditions are not applicable and repairs will be done subject to availability of parts and on a chargeable basis only.
9. This warranty shall not cover any consequential or resulting liability, damage or loss to property or life arising directly or indirectly out of any defect in the Refrigerator. The company's obligation under this warranty shall be limited to repair or providing replacement of defective parts only under the warranty period.
10. The company or its Authorized Service Center reserves the right to retain any part/s or component replaced at its discretion, in the event of a defect being noticed in the equipment during warranty period.
11. While the company will make every effort to carry out repairs at the earliest, it however is made expressly clear that the company is under no obligation to do so in a specified period of time.
12. Warranty does not cover accessories external to the equipment supplied by the dealer.
13. If any coloured internal or external components are replaced, there will be commitment to ensure that the shades match with the original or other components. The replaced shades, patterns, tints may vary from the customer's unit due to continuous usage of the unit. Any matching components changed at customer's request will be on chargeable basis except the component which actually needed.

Warranty is not applicable in any of the following cases :

1. The warranty card is not completed properly at the time of purchase. 2. The completed warranty card is not presented to authorized service personnel at the time of service of the product. 3. The product is not operated according to instructions given in the Operating Instruction Booklet. 4. Defects are caused by improper or reckless use, which shall be determined by the company personnel. 5. Any repair work is carried out by persons other than authorized service personnel. 6. Defects are caused by due to causes beyond control like lightening, abnormal voltage, acts of God or while in transit to service center or purchaser's residence. 7. The warranty is not valid in case, the serial number is deleted, defected or altered. 8. Damage to the product or any part/s due to transportation or shifting is not covered by warranty. 9. a) This warranty will automatically terminate on the expiry of the warranty period of 12 months, even if the Refrigerator may not be in use for any time during the warranty period for any reason. b) The warranty on compressor will automatically terminate on expiry of 4 years (after 1 year warranty period) even if the Refrigerator may not be in use for any time during the said period for any reason. 10. Only courts in state of Delhi and places where LGEIL has it's branch office shall have the jurisdiction for settling any claims, disputes arising under the warranty.

CUSTOMER'S COPY

MODEL No.: DATE OF PURCHASE :

UNIT SERIAL No.:

CUSTOMER'S NAME & ADDRESS

TEL.

DEALER'S NAME & ADDRESS

TEL.

For any further information, please contact LGEIL Branch

BRANCH	ADDRESS	PH NOIFAX NO.
Ahmedabad LGEIL,233-234,Platinum Plaza,Nr. Judges Bunglow cross Road, Bodakdev , Ahmedabad - 54 40040013-14Asansol LGEIL,Block-E,Ist Floor, P C Chattarjee Market,Rambandhu Tala,GT Road (E) Asansol-713303Aurangabad LGEIL,302 CIDCO No 3, Opp Hotel Ramgiri ,Jalna Road,Aurangabad - 431003 5625705/(FAX)2474055/32095436/Bangalore LGEIL, No. 914, 2nd Floor, Shri Venkateshwara Complex, Opp. IBP Petrol Bunk, 80ft Road, 6th Block,Koramangala - Bangalore - 560095Bhopal LG Electronics India Private Limited,2nd Floor, Alankar Complex,Plot No.10, M.P. Nagar Zone - II,BHOPAL -PIN 462011.Bhubaneshwar LGEIL, Plot No.02,1st Flr.,Bapuji Nagar, Bhubaneshwar- 751009 2531430, 2534280Calcutta LGEIL 1,Ho-Chi-Min-Sarani, 6th Floor, Metro Towers, Calcutta-700071 22883254 (51) FAXChandigarh LGEIL, SCO No. 142-143, 3rd Floor,Sector-34A Chandigarh.-160002 508738990 (Fax) 5089107Chennai LGEIL AA11,2nd Avenue,Fatima Tower, Anna Nagar West, Chennai-600040 65510501~04 fax [phone]Cochin LGEIL,40/1270, Vasudeva Buildings, T.D.Road ,Ermakulam Cochin-682011 2369765,2369743 ,2370744,Coimbatore LGEIL, 250a, Sanganur Main Road, Kannappa Nagar, Coimbatore-641027 2332197 ,2332195Delhi Dehradun Gurgaon Ghaziabad Guwahati HyderabadLGEIL, 1st Floor, Survey No.54, Pulla Reddy Building, Vikarampuri Main Road Kharkhana, Secunderabad -500009Hubli Indore Jaipur LGEIL, 1 Floor, Above Bellad & Co., Near Bannigida Busstop, Gokul Road Hubli-580030LGEIL, 3rdflr.,304 Bansi Trade Centre,581/5 M.G.Road,Indore-452003LGEIL,B-71,Sahakar Marg, Lal Kothi Scheme,Jaipur-302015Jammu Jodhpur Kamal Lucknow Ludhiana Mumbai(N & S) Nagpur Patna PuneRajkot RaipurRanchi LGEILL,402,Commerce Tower, Opp. Gel Church Complex, Main Road, Ranchi Surat Thane Varanasi Vijaywada Warangal KOZHIKODE	3292009/3292010 Fax No:- 221517032095437/3209543841145145/41144750/411447514262847/4229861( FAX) 42628484027444,4027555, 2360977(Fax)26991412/11/13 (Fax)269914102644213/2834047461- 62 - 63/42728674047460 (Fax)9811354152/3/64/65/2662663895/2666958/2665983/2668984- Telefax27207504,05,06/2720409427201462(Fax)4250251/524065523-24, 4082157(Fax)5111118/5113028/51053925111540 (fax)2477420, 2477419, 2474396, 24743842742384,392 5120030 (Fax)2219201,2219202 (Telefax)2757538,39,2759121 (FAX) 27575592804412 - 1928352882-2887 28352889 (fax)235120, 235122, fax [phone] 2541845(Fax)66030100,732/733/734/73566030740 (Fax)2481499,2467692(FAX)4053171/4037470(Fax) 4038426/10/11323940262730982/83 2730984(Fax)25472633/2637 25472602(FAX)2373432/36/372497283/87 (Fax) 249728425514532366755, 2366756, 2366678(Fax) 2766678
