TH-G31C - Phone LG - Free user manual and instructions

Product Type	Mobile Phone
Brand	LG
Model	TH-G31C
Dimensions	105 x 45 x 14 mm
Weight	80 g
Display	1.8-inch CSTN, 128x160 pixels
Network	GSM 900/1800 MHz
Battery	Li-Ion 1000 mAh, removable
Charging	Micro USB, 5V/0.5A
Camera	0.3 MP (VGA)
Memory	Up to 32 GB microSD
Phonebook	500 contacts
Messaging	SMS, EMS
FM Radio	Yes, with headset
Flashlight	Yes
Alarm	Yes, with snooze
Calculator	Yes
Safety	SAR: 0.8 W/kg (head), 1.2 W/kg (body)
Maintenance	Clean with dry soft cloth; avoid water
Spare Parts	Battery, charger, headset, back cover
Repairability	Battery and SIM card accessible; other repairs by service center
Package Contents	Phone, battery, charger, headset, user manual

Frequently Asked Questions - TH-G31C LG

How do I set the date and time on my LG TH-G31C?

Go to Menu > Settings > Time & Date. Use the keypad to enter the current date and time, then select Save.

Can I use a microSD card with this phone?

Yes, the LG TH-G31C supports microSD cards up to 32 GB. Insert the card into the slot under the back cover.

How do I listen to FM radio?

Connect the headset (acts as antenna), then go to Menu > FM Radio. Press OK to start scanning for stations.

Why is the phone not charging?

Check the charging cable and adapter. Ensure the battery is properly inserted. Try a different outlet or cable. If still not working, the battery may need replacement.

How can I save a contact?

Go to Menu > Phonebook > Add New Contact. Enter the name and number, select a memory location (SIM or phone), then Save.

What should I do if the phone freezes?

Remove the battery and wait 30 seconds, then reinsert it and turn the phone on. If the problem persists, perform a factory reset from Menu > Settings > Reset.

How do I change the ringtone?

Go to Menu > Settings > Sound Profiles. Select a profile, then choose Ringtone and pick from the list. You can also use custom MP3 files saved on the microSD card.

What is the SAR value of this phone?

The SAR (Specific Absorption Rate) is 0.8 W/kg for the head and 1.2 W/kg for the body, compliant with international safety guidelines.

How do I turn on the flashlight?

Press and hold the '0' key from the home screen, or go to Menu > Tools > Flashlight to toggle on/off.

Can I set an alarm?

Yes, go to Menu > Alarms. Select an empty alarm slot, set the time, repeat days, and sound. Press Save to activate.

USER MANUAL TH-G31C LG

Abstract pattern of black and white diagonal stripes (no text or symbols)

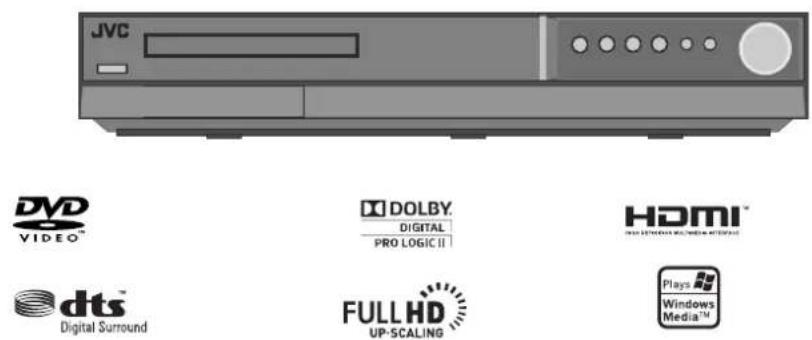

DVD DIGITAL THEATER SYSTEM

TH-G31

Consists of XV-THG31 SP-THG51F, SP-THG61C and SP-THG50W

JVC

JVC DVD VIDEO™ DOLBY DIGITAL PRO LOGIC II HDMI™ dts™ Digital Surround FULL HD UP-SCALING Plays Windows Media™

INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.

WARNING: Do not install this equipment in a confined space such as a bookcase or similar unit.

CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating.

The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction have been adhered to.

CAUTION:

This product employs a Laser System.

To ensure proper use of this product, please read this owner's manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center.

Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, shall be placed on the apparatus.

FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

REGULATORY INFORMATION: FCC Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION concerning the Power Cord

Most devices are recommended be placed on a dedicated circuit;

That is, a single outlet circuit which powers only that electronic device and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous.

Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER'S MANUAL. AND THOSE MARKED ON THE PRODUCT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This product has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this product will protect you if you observe the following procedures for installation, use, and servicing.

This product does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read these instructions. - All these safety and operating instructions should be read before the product is operated.

2. Keep these instructions. - The safety, operating and use instructions should be retained for future reference.

3. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to.

4. Follow all instructions. - All operating and use instructions should be followed.

5. Do not use this apparatus near water. - For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; or near a swimming pool; and other areas located near water.

6. Clean only with dry cloth. - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over-heating. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with apparatus. When a cart is used, use caution when moving the cart/product combination to avoid injury from tip-over.

Symbolic illustration of a person pushing a large object under a diagonal line, enclosed in a circle (no text or symbols)

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

Contents

Introduction .....2-5

About the ⊙ Symbol Display .....2

Symbol Used in this Manual .....2

Screen Saver 2

Notes on Discs ....2

Handling Discs .....2

Storing Discs .....2

Cleaning Discs 2

Types of Playable Discs ....3

Regional Code ....3

Front Panel 4

Remote Control ....5

Remote Control operation ....5

Remote Control Battery installation .....5

Installation and Setup .....6-13

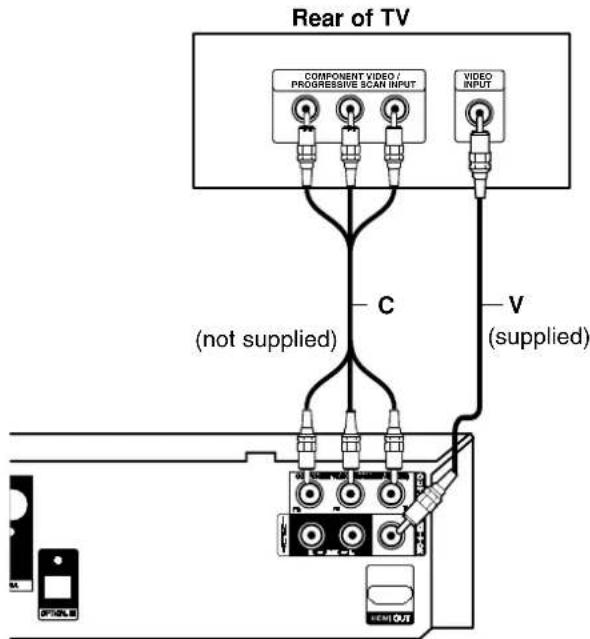

TV Connection ....6

Video connection 6

Component Video connection .....6

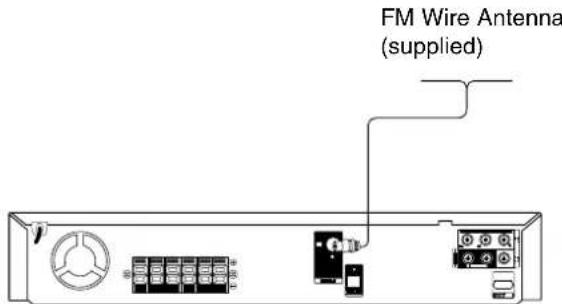

Antenna Connection ....6

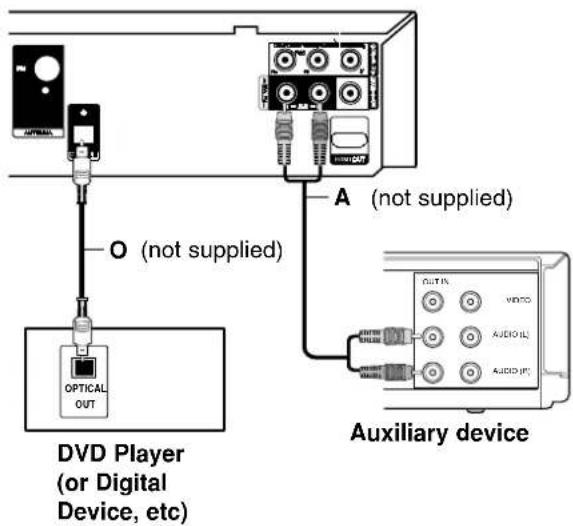

Optional Equipment Connection .....7

AUX IN connection (A) 7

OPTICAL IN connection (O) .....7

AUDIO IN connection (D)....7

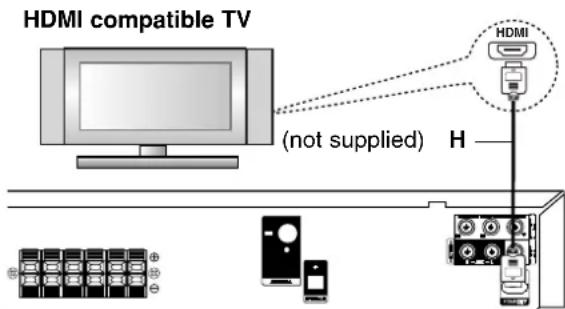

HDMI Connection ....8

About HDMI 8

Resolution setting 8

Available resolution according to connection .8

Speaker System Connection .....9

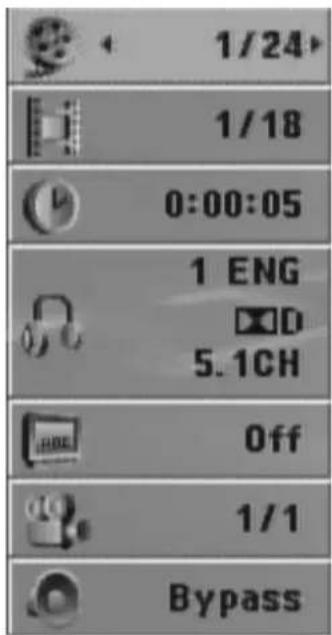

Displaying Disc Information on-screen .....10

Initial Settings 10-13

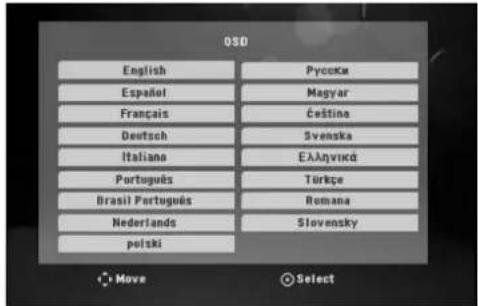

OSD Initial language settings .....10

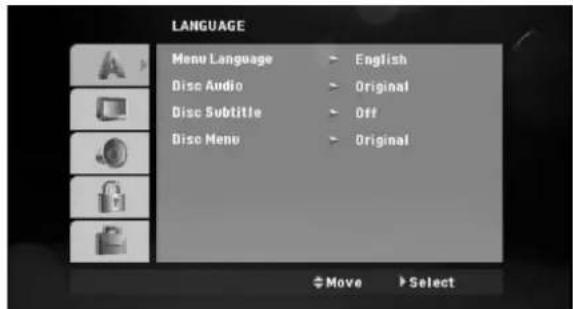

General Operation .....11

Language 11

- Menu language ....11

• Disc Audio / Subtitle / Menu .....11

DISPLAY....11

• TV Aspect .....11

- Display Mode ....11

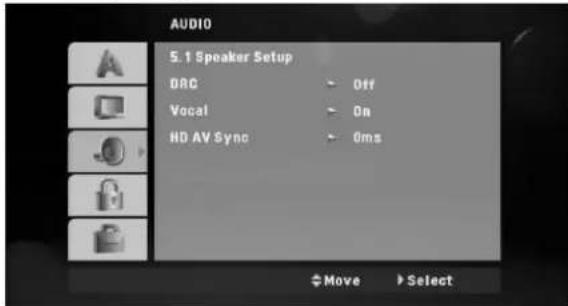

AUDIO 12

• Dynamic Range Control (DRC) .....12

- Vocal 12

• HD AV Sync .....12

5.1 SPEAKER SETUP .....12-13

LOCK (PARENTAL CONTROL) .....13

- Initial Setting the Area Code .....13

• Rating 13

- Password ....13

- Area Code 13

OTHERS 13

Operations .....14-21

General Features ....14

Additional Features ....15

Playing an Audio CD or MP3/WMA file .....16

Programmed Playback ....17

Repeat Programmed Tracks .....17

Erasing a Track from Program List .....17

Erasing the Complete Program List .....17

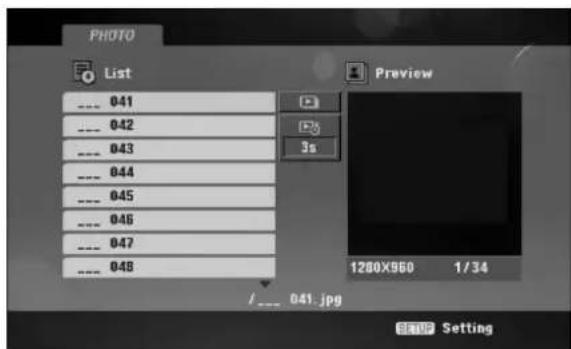

Viewing a JPEG file .....18

Slide Show 18

Still Picture 18

Moving to another file .....18

Rotating the picture .....18

Listening to music during slide show .....18

Presetting the Radio Stations .....19

To tune in a station with a weak signal ....19

To clear all the stored stations .....19

Listening to the Radio .....19

To turn off the radio 19

To listen to non-preset radio stations .....19

To select a preset radio station directly ....19

Sleep Timer Setting .....20

Dimmer .....20

Muting .....20

Setting the disc ejection lock .....20

Enjoying audio form an external source . . . .20

Setting the surround mode .....20

Reference .....21-24

Language Codes .....21

Area Codes 21

Troubleshooting .....22-23

Specifications....24

Introduction

To ensure proper use of this product, please read this owner's manual carefully and retain it for future reference.

This manual provides information on the operation and maintenance of your DVD player. Should the unit require service, contact an authorized service location.

About the ⊗ Symbol Display

" may appear on your TV display during operation and indicates that the function explained in this owner's manual is not available on that specific DVD video disc.

Symbol Used in this Manual

Note:

Indicates special notes and operating features.

Tip:

Indicates tips and hints for making the task easier.

A section whose title has one of the following symbols is applicable only to the disc represented by the symbol.

ALL All discs and file listed below

DVD DVD and finalized DVD±R/RW

ACD Audio CDs

MP3 MP3 files

WMA WMA files

JPEG JPEG files

Screen Saver

The screen saver activates when there is no operation made for approximately 5 minutes since a still picture was last displayed.

To cancel the screen saver, push any key.

Notes on Discs

Handling Discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Cleaning Discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out.

Illustration of two hands holding a circular object with a cross mark, no text or symbols present

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Types of Playable Discs

DVD (8 cm / 12 cm disc)

Audio CD (8 cm / 12 cm disc)

In addition, this unit plays DVD±R/RW and CD-R/RW, Dual disc that contains audio titles, MP3, WMA, and/or JPEG files.

Notes:

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs may not be played on the unit.
• Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal) since they may result in malfunctions.
• This unit requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions (see above) to ensure compatible playback.

Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

Regional Code

This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labelled as the same as the rear of the unit or "ALL".

Notes on Regional Codes

• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your unit's regional code or the disc cannot play.
• If you try to play a DVD with a different regional code from your player, the message "Check Regional Code" appears on the TV screen.

Notes on Copyrights:

It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. The Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE 'STANDARD DEFINITION' OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.

Front Panel

1 2 3 4 5 6 7 8 9 10 JVC

1 ⏻/I (STANDBY/ON)

Switches the unit ON and OFF.

2Disc Tray

Insert a disc here.

3 AUDIO IN

The AUDIO IN port means you can connect a audio device to play through the surround sound speakers.

4 △ (OPEN/CLOSE)

Opens or closes the disc tray.

5 ■ (STOP)

Stops playback.

6▶(PLAY)

Starts playback.

SOURCE

Press and hold down this button about 3 seconds, then press repeatedly to select other function

7 II (PAUSE)

Pause playback.

FM MODE

This will change the tuner from stereo to mono and usually improve the reception.

8 (SKIP)

Returns to the beginning of current chapter or track or go to the previous chapter or track.

(SCAN)

During playback, press and hold this button repeatedly to select the required scan speed.

- TUNING

Tunes in the desired radio station.

9▶▶I (SKIP)

Go to the next chapter or track.

(SCAN)

During playback, press and hold this button repeatedly to select the required scan speed.

+ TUNING

Tunes in the desired radio station.

10 VOLUME controller

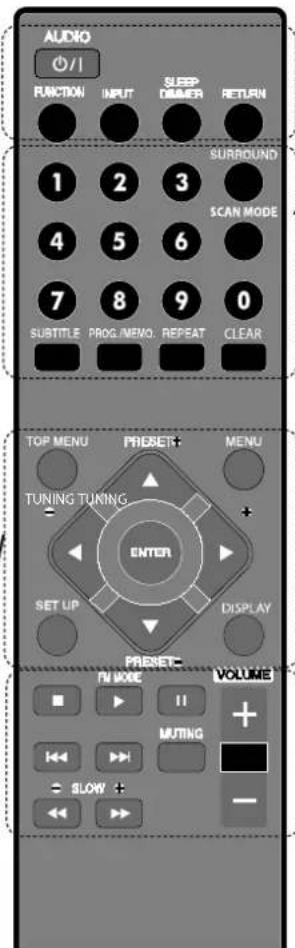

Remote Control

AUDIO (1/1)

Switches the unit ON and OFF.

FUNCTION

Selects the function (DVD/CD, FM)

INPUT

Changes the input source ( AUX, AUX OPT, AUDIO IN,)

SLEEP

Sets the System to turn off automatically at a specified time.

DIMMER

Changes brightness of the display window on the front panel during in power-on status.

RETURN

Press to move back wards in the menu.

TOP MENU

If the current DVD title has a menu, the title menu appears on the screen. Otherwise, the disc menu may appear.

MENU

Accesses the menu on a DVD disc.

SET UP

Accesses or removes setup menu.

DISPLAY

Accesses On-Screen display.

◀/▶/▲/▼ (left/right/up/down)

Selects an option in the menu.

ENTER

Acknowledges the menu selection.

PRESET (⊖/⊕)

Selects program of Radio.

TUNING. (⊖/⊕)

Tunes in the desired radio station.

AUDIO O/I FUNCTION INPUT SLEEP DIAMER RETURN SURROUND SCAN MODE 1 2 3 4 5 6 7 8 9 0 SUBTITLE PROG.MENO. REPEAT CLEAR TOP MENU PRESET: MENU TUNING TUKING ENTER SET UP DISPLAY PRESET TV MODE II MUTING SLOVY - VOLUME

0-9 numerical buttons: Selects numbered options in a menu.

SURROUND

Selects the surround mode.

SCAN MODE

Sets the output resolution for HDMI and COMPONENT VIDEO OUT jacks.

SUBTITLE

Selects a subtitle language (DVD).

PROG./MEMO.

Accesses or removes Program menu.

Enter a radio station's frequency into the tuner.

REPEAT

Repeats chapter, track, title, all

CLEAR

Removes a track number on the Program List.

SCAN/SLOW(◄◄/►►)

Searches backward or forward.

Reverse/ Forward slow playback.

SKIP (◀◀/▶◀)

STOP (■)

PLAY (▶)

FM MODE

This will change the tuner from stereo to mono and usually improve the reception.

PAUSE (II)

VOLUME (-/+)

Adjusts speaker volume.

MUTING

To mute the sound

Remote Control operation

Point the remote control at the remote sensor and press the buttons.

Cautions:

• Do not mix old and new batteries and never mix different types of batteries such as standard, alkaline, etc.
• Do not put the batteries in the place where young children can reach.
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

Remote Control Battery installation

Detach the battery cover on the rear of the remote control, and insert two batteries (size AAA) with and aligned correctly.

Installation and Setup

TV Connection

Make one of the following connections, depending on the capabilities of your existing equipment.

Tips:

• Depending on your TV and other equipment you wish to connect, there are various ways you could connect the DVD/CD Receiver. Use one of the connections described below.
• Please refer to the manuals of your TV, VCR, Stereo System or other devices as necessary to make the best connections.

Caution:

• Make sure the DVD/CD Receiver is connected directly to the TV. Select the correct AV input on your TV.
• Do not connect your DVD/CD Receiver to TV via your VCR. The DVD image could be distorted by the copy protection system.

Rear of TV COMPONENT VIDEO / PROGRESSIVE SCAN INPUT VIDEO INPUT C (not supplied) V (supplied) OUTPUT

Rear of DVD/CD Receiver

Video connection

Connect the MONITOR OUT jack from the DVD/CD Receiver to the VIDEO IN jack on the TV using the video cable (V).

Component Video connection

Connect the COMPONENT VIDEO OUT jacks from the DVD/CD Receiver to the corresponding jacks on the TV using an Y P B P R cable (C).

• If your television is a high-definition or "digital ready" television, you may take advantage of the DVD/CD Receiver's progressive scan output for the highest video resolution.
• If your TV does not accept your resolution setting, abnormal picture appears on the screen. Please read owner's manual for TV then set the resolution that your TV can accept.

Antenna Connection

Connect the supplied FM antenna for listening to the radio.
- Connect the FM Wire antenna to the FM antenna connector.

FM Wire Antenna (supplied)

Notes:

• Be sure to fully extend the FM wire antenna.
  ● After connecting the FM Wire antenna, keep it as horizontal as possible.

Optional Equipment Connection

Rear of DVD/CD Receiver

O (not supplied) A (not supplied) DVD Player (or Digital Device, etc) Auxiliary device

AUX IN connection (A)

Connect a Output of auxiliary device to the AUX AUDIO Input (L/R) Connector.

OPTICAL IN connection (O)

Connect an optical output of DVD Player (or Digital Device etc) to the OPTICAL IN connector.

AUDIO IN connection (D)

Connect a output of portable device (MP3 or PMP etc) to the AUDIO input connector.

JVC ToAUDIO IN D (not supplied) Portable device ToAUDIO OUT

HDMI Connection

About HDMI

HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for an easy all- digital output to an HDMI or DI-equipped TV.

Connection to an HDMI TV requires an HDMI cable while connection to a DVI-equipped TV requires a DVI adapter besides a HDMI cable.

HDMI has the capability to support standard, enhanced, or high-definition video plus standard to multi-channel surround-sound audio, HDMI features include uncompressed digital video, a bandwidth of up to 5 gigabytes per second, one connector (instead of several cables and connector), and communication between the AV source and AV devices such as DTVs.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

If you have a HDMI TV or monitor, you can connect it to this DVD/CD Receiver using a HDMI cable.

1. Connect the HDMI OUT jack on the DVD/CD Receiver to the HDMI jack on a HDMI compatible TV or monitor (H).
2. Set the TV's source to HDMI (refer to owner's manual for TV).

Notes on HDMI Out connection

• If your TV does not accept your resolution setting, abnormal picture appears on the screen. ("TV do not support" will appear in screen) Please read owner's manual for TV, and then set the resolution that your TV can accept.

- Changing the resolution when the unit is connected with HDMI connector may result in malfunctions. To solve the problem, turn off the unit and then turn it on again.

- When you connect a HDMI or DVI compatible device make sure of the following :

• Try switching off the HDMI/ DVI device and this unit. Next, switch on the HDMI/ DVI device and leave it for around 30 seconds, then switch on this unit.
• The connected device's video input is set correctly for this unit.
• The connected device is compatible with 720X576i(480i), 720X576p(480p), 1280X720p, 1920X1080i or 1920X1080p video input.
• The 1080p, 720p and 576p(480p) resolutions are the progressive scan applied resolution.

- Not all HDCP-compatible DVI devices will work with this unit.

- The picture will not be displayed properly with non-HDCP device.

HDMI compatible TV (not supplied) H HDMI

Rear of DVD/CD Receiver

Resolution setting

You can change the resolution for component video and HDMI output.

Press SCAN MODE repeatedly to select the desired resolution - 480i, 480p, 720p, 1080i, 1080p The resolution may not be selected depending on the connection or TV.

Note:

Depending on your TV, some of the resolution settings may result in the picture disappearing or an abnormal picture appearing. In this case, press SCAN MODE repeatedly until the picture re-appears.

You can set 1080p video resolution to enjoy Full HD picture quality. (Full HD up-scaling)

Available resolution according to connection

HDMI OUT - 1080p, 1080i, 720p 480p and 480i COMPONENT VIDEO OUT - 480p and 480i VIDEO OUT - 480i

Note:

If your TV does not accept your resolution setting, abnormal picture appears on the screen. Please read owner's manual for TV, and then set the resolution that your TV can accept.

Speaker System Connection

Connect the speakers using the supplied speaker cables.

To obtain the best possible surround sound, adjust the speaker parameters (volume, distance, etc.).

Notes:

• Be sure to match the speaker cable to the appropriate terminal on the components: + to + and - to -. If the cables are reversed, the sound will be distorted and will lack base.
• If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive output on the speakers.

Caution:

• The left and right speakers can be installed on a wall.
• When installing the speakers on a wall, be sure to have the speakers installed by qualified personnel.
• DO NOT install the speakers on the wall by yourself to avoid unexpected damage from them falling off the wall due to incorrect installation or weakness in wall structure.
• Care must be taken in selecting a location for speaker installation on a wall. Injury to personnel or damage to devices may result if the installed speakers interfere with daily activities.

Displaying Disc Information on-screen

You can display various information about the disc loaded on-screen.

1. Press DISPLAY to show various playback information.

The displayed items differ depending on the disc type or playing status.

1/24 1/18 0:00:05 1 ENG D 5.1CH Off 1/1 Bypass

1. You can select an item by pressing ▲ / ▼ and change or select the setting by pressing ◀ / ▶.

2. Title – Current title number/ total number of titles.

3. Chapter – Current chapter number/total number of chapters.
   • Time – Elapsed playing time.
   • Audio – Selected audio language or channel.
4. Subtitle – Selected subtitle.
5. Angle – Selected angle/total number of angles.
6. Sound – Selected sound mode.

Note:

If any button is not pressed for a few seconds, the on-screen display disappears.

Initial Settings

By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see pages 10 to 13.

OSD Initial language settings:

When the POWER is turned on for the first time, the unit need to set the menu language. Follow the descriptions below after the display connections. After OSD Initial language setting, to set Area code (see page 13)

OSD English PyocCKa Español Magyar Français Čeština Deutsch Svenska Italiano Eλληνικά Português Türkçe Brasil Português Romana Nederlands Slovensky polski Move Select

1. Press POWER to turn the unit on. The language setup menu will appear on the screen.
2. Use ◀/▶/▲/▼ to select a language then press ENTER. The confirm menu will appear.
3. Use ◀ / ▶ to select the [Enter] then press ENTER to finish the language setup.

To display and exit the Menu:

Press SETUP to display the menu. A second press of SETUP will take you back to initial screen.

To go to the next level:

Press ▶ on the remote control.

To go back to the previous level:

Press ◀ on the remote control.

About help menu

Menu Buttons Operation
▲ / ▼ Move	▲ / ▼	Moving to another menu
◀ Prev.	◀	Moving to previous level
▶ Select	▶	Moving to next level or selecting menu
	RETURN	5.1 Speaker Setup menu
◎	ENTER To confirm menu

General Operation

1. Press SETUP.

The Setup menu appears.

LANGUAGE Menu Language > English Disc Audio > Original Disc Subtitle > Off Disc Menu > Original Move > Select

1. Use ▲ / ▼ to select the desired option then press ▶ to move to the second level. The screen shows the current setting for the selected item, as well as alternate setting(s).
2. Use ▲ / ▼ to select the second desired option and then press ▶ to move to the third level.
3. Use ▲ / ▼ to select the desired setting then press ENTER to confirm your selection. Some items require additional steps.
4. Press SETUP or PLAY (▶) to exit the Setup menu.

LANGUAGE

LANGUAGE Menu Language > English Disc Audio > Original Disc Subtitle > Off Disc Menu > Original Move > Select

Menu Language

Select a language for the Setup menu and then on-screen display.

Disc Audio / Subtitle / Menu

Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.

Original – Refers to the original language in which the disc was recorded.

Other – To select another language, press numeric buttons and then ENTER to enter the corresponding 4-digit number according to the language code list on the page 21. If you enter the wrong language code, press CLEAR.

DISPLAY

DISPLAY TV Aspect 4:3 Display Mode Letterbox Move Select

TV Aspect

4:3 – Select when a standard 4:3 TV is connected.

16:9 - Select when a 16:9 wide TV is connected.

Display Mode

The Display Mode setting works only when the TV Aspect mode is set to 4:3.

Letterbox – Displays a wide picture with bands on the upper and lower portions of the screen.

Panscan – Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit. (If the disc/file is not compatible with Pan Scan, the picture is displayed at Letterbox ratio.)

AUDIO

Each DVD disc has a variety of audio output options. Set the player's AUDIO options according to the type of audio system you use.

AUDIO 5.1 Speaker Setup DRC > Off Vocal > On HD AV Sync > 0ms $Move > Select

Dynamic Range Control (DRC)

With the DVD*1 format, you can hear a program's soundtrack in the most accurate and realistic presentation, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). Then, you may listen to a movie at a lower volume without losing clarity of sound. Set DRC to On for this effect. *1: Dolby Digital only

Vocal

Set Vocal to On only when a multi-channel karaoke DVD is playing. The karaoke channels on the disc will mix into normal stereo sound.

HD AV Sync

When using Digital TV.

Sometimes AV signal could not be transmitted simultaneously because of later transmission of video signal compared to audio signal.

Because it takes some time to convert analogue video signal to digital one in the Digital TV.

And It means that you may not enjoy picture on the screen and sound from speaker at the same time even though it is one scene.

In the HD AV Sync menu, you could adjust delay time to audio signal for simultaneous AV signal transmission

- Delay time could be set up with 10msec unit. (0 \~ 300ms)

- Delay time is different according to each TV Brand. So you need to adjust optimal delay time complying with your TV.

5.1 Speaker Setup

Make the following settings for the built-in 5.1 channel surround decoder.

1. Press ENTER, and the 5.1 Speaker Setup menu appears.

AUDIO Speaker Front L Size Large Volume -5 dB Distance 0.3(1)m(ft) Test Off Select Move Return

1. Use ◀ / ▶ to select the desired speaker.

2. Adjust options using ▲ / ▼ / ◀ / ▶ buttons.

3. Press ENTER to confirm your selection. Returns to the previous menu.

Speaker selection

Select a speaker that you want to adjust. [Front speaker (Front L), Front speaker (Front R), Center Speaker (Center), Subwoofer (SubWoofer), Rear speaker (Rear L), Rear speaker (Rear R)]

Note:

Certain speaker settings are prohibited by the Dolby Digital licensing agreement.

Size

Since the speaker settings are fixed, you cannot change the settings.

Volume

Press ◀ / ▶ to adjust the output level of the selected speaker. (-5dB \~ 5dB)

Distance

After you connected speakers to your DVD Receiver, set the Distance between the speakers and your listening point if the distance of Center or Rear speakers is bigger than the distance of Front speakers. This allows the sound from each speaker to reach the listener at the same time.

Press ◀/▶ to adjust the Distance of the selected speaker. This distance is equivalent to a difference of the distance between Center or Rear speaker and Front speakers.

5.1 Speaker Setup

Test

Press ◀ / ▶ to test the signals of each speaker. Adjust the volume to match the volume of test signals memorized in the system.

Front Left (Front L) → Center → Front Right (Front R) → Rear Right (Rear R) → Rear Left (Rear L) → SubWoofer

LOCK (Parental Control)

LOCK Rating > Unlock Password > ***** Area Code > AA Move > Select

Initial Setting the Area Code:

See the Area Codes on page 21.

LOCK Rating Password Area Code A A Prev. Move Select

1. Select the LOCK menu and then press ▶.
2. To access the LOCK options, you must input the password you have created. Input a password and press ENTER. Enter it again and press ENTER to verify. If you make a mistake before pressing ENTER, press CLEAR.
3. Select the first character using ▲ / ▼ buttons.
4. Press ▶ and select the second character using ▲ / ▼ buttons.
5. Press ENTER to confirm your Area code selection.

Rating

Blocks playback of rated DVDs based on their contents. Not all discs are rated.

1. Select "Rating" on the LOCK menu then press ▶.
2. Input a password and press ENTER.
3. Select a rating from 1 to 8 using the ▲ / ▼ buttons. Rating 1-8: Rating one (1) has the most restrictions and rating eight (8) is the least restrictive. Unlock: If you select unlock, parental control is not active and the disc plays in full.
4. Press ENTER to confirm your rating selection, then press SETUP to exit the menu.

Password

You can enter or change password.

1. Select Password on the LOCK menu and then press ▶.
2. Follow the step 2 as shown above (Rating). To change the password, press ENTER when the "Change" option is highlighted. Input a password and press ENTER. Enter it again and press ENTER to verify.
3. Press SETUP to exit the menu.

If you forget your password

If you forget your password, you can clear it using the following steps:

1. Press SETUP to display the Setup menu.
2. Select the LOCK menu.
3. Input the 6-digit number "210499" and press ENTER. The password is cleared.

Area Code

Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 22.

1. Select "Area Code" on the LOCK menu then press ▶.
2. Follow the step 2 as shown previous paragraph (Rating).
3. Select the first character using ▲ / ▼ buttons.
4. Press ENTER and select the second character using ▲ / ▼ buttons.
5. Press ENTER to confirm your Area code selection.

OTHERS

OTHERS Move >Select

This option has no selection on this set.

Operation

General features

Buttons Operations		Discs
▲ (OPEN / CLOSE)	Opens or closes the disc tray.	ALL
II (PAUSE)	During playback, press II to pause playback.	ALL
	Press II repeatedly to play Frame-by-Frame.	DVD
I◄◄ / ►►I	During playback, press I◄◄ or ►►I to go to the next chapter/track or to return to the beginning of the current chapter/track.	ALL
	Press I◄◄ twice briefly to step back to the previous chapter/track.
◄◄ / ►►	During playback, press ◀◄ or ►► repeatedly to select the required scan speed.	DVD
	DVD: ◀◄, ◀◄, ◀◄, ◀◄, ◀◄, or ►►, ►►►, ►►►►, ►►►►►WMA/MP3, Audio CD: ◀◄ (X2, X4, X8) or ►► (X2, X4, X8)	MP3A DWMA
REPEAT During playback, press REPEAT repeatedly to select a desired repeat mode. DVD Video discs: Chapter/Title/OffAudio CD, MP3/WMA discs: Track/All/Off		ALL
TOP MENU If the current DVD title has a menu, the title menu appears on the screen. Otherwise, the disc menu may appears.		DVD
MENU The disc menu appears on the screen.		DVD
☐ (SUBTITLE) During playback, press SUBTITLE repeatedly to select a desired subtitle language.		DVD
SLOW	In the pause mode, press SLOW (◄◄ or ►►) to select the required speed. DVD: ◀◄ (1/2, 1/4, 1/8, 1/16) or ►► (1/2, 1/4, 1/8, 1/16)	DVD

Additional features

Time Search DVD

To start playing at any chosen time on the disc:

1. Press DISPLAY during playback.
2. Press ▲ / ▼ to select the time clock icon and "--::--:" appears.
3. Input the required start time in hours, minutes, and seconds from left to right. If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then input the correct numbers.
4. Press ENTER to confirm. Playback starts from the selected time.

1.5 times speed playback

DVD

You can play at 1.5 times speed.

The 1.5 speed allows you to watch the pictures and listen to the sound quicker than playing at a normal speed on the disc.

1. During playback, press PLAY(▶) to play at 1.5 times speed. “▶X1.5” appears on the screen.
2. Press PLAY(▶) again to exit.

Screen Saver

The screen saver appears when you leave the unit in Stop mode for about five minutes. To cancel the Screen Saver, press any button and then operate the unit.

Last Scene Memory DVD

This receiver memorizes the last scene from the last disc that is viewed. The last scene remains in the memory even if you remove the disc from the receiver or switch off the receiver. If you load a disc that has the scene memorized, the scene is automatically recalled.

Note:

This receiver does not memorize the scene of a disc if you switch off the receiver before commencing to play the disc.

Mixed disc - MP3/WMA and JPEG

When playing a disc contained with MP3/WMA and JPEG files together, you can select which menu of files you would like to play by pressing MENU.

Playing an Audio CD or MP3/WMA file

This unit can play Audio CDs or MP3/WMA files.

MP3/ WMA/ Audio CD

Once you insert an MP3/WMA files recording media or Audio CD a menu appears on the TV screen.

Press ▲ / ▼ to select a track/file and then press PLAY or ENTER, and playback starts. You can use variable playback functions. Refer to the page 14.

AUDIO CD List TRACK01 TRACK02 TRACK03 TRACK04 TRACK05 Program Clear All 0:21:03 1/5 SETUP Setting

MUSIC List Program FOLDER 00 FOLDER 01 FOLDER 02 FOLDER 03 FOLDER 04 FOLDER 05 File 01 Clear All 0:00:00 1/10 DISPLAY Info SERP Setting

ID3 TAG

When playing a file containing information such as track titles, you can see the information by pressing DISPLAY. (Song, Artist, Album, Genre, Comment)

MP3 / WMA disc compatibility with this player is limited as follows:

• Sampling frequency: within 32 - 48 kHz (MP3), within 32 - 48kHz (WMA)
• Bit rate: within 32 - 320kbps (MP3), 40 - 192kbps (WMA)
• The DVD/CD Receiver cannot read an MP3/WMA file that has a file extension other than ".mp3" / ".wma".
  • CD-R physical format should be ISO 9660
• If you record MP3 / WMA files using software that cannot create a file system (eg. Direct-CD) it is impossible to playback MP3 / WMA files. We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.
• File names should have a maximum of 8 letters and must incorporate an .mp3 or .wma extension.
• They should not contain special letters such as / ? * : "< > | etc.
• The total number of files on the disc should be less than 999.

This DVD/CD Receiver requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions (see above) to ensure compatible playback.

Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

Programmed Playback

The program function enables you to store your Favourite tracks from any disc in the receiver memory. A program can contain 30 tracks.

1. Insert a disc.
   Audio CD and MP3/WMA Discs:
2. To add a music(s) on the program list, press PROG/MEMO to enter the program edit mode (© mark appears on the menu).
3. Select a desired music on the [List] by using the ▲ / ▼ then press ENTER to add the music to the program list.
4. Select music from the program list then press ENTER to start programmed playback.

Repeat Programmed Tracks

1. Press REPEAT when playing a disc. The repeat icon appears.
2. Press REPEAT to select a desired repeat mode.
3. Track: repeats the current track
4. All: repeats all the tracks on programmed list.
5. Off (No display): does not play repeatedly.

Erasing a Track from "Program" List

1. Use ▲▼ to select the track that you wish to erase from the Program list.
2. Press CLEAR in program edit mode.

Erasing the Complete Program List

Use ▲ / ▼ to select [Clear All] then press ENTER in program edit mode.

Note:

The programs are also cleared when the disc is removed, the unit is switched to power off or the function is switched to others.

Viewing a JPEG file

This unit can play discs with JPEG files. Before playing JPEG recordings, read the notes on JPEG Recordings on the right.

1. Insert a disc and close the tray. The PHOTO menu appears on the TV screen.

PHOTO List Preview 041 042 043 044 045 046 047 048 1260X960 1/34 / ---- 041.jpg SETUP Setting

1. Press ▲ / ▼ to select a folder, and then press ENTER. A list of files in the folder appears. If you are in a file list and want to return to the previous Folder list, use the ▲ / ▼ buttons on the remote to highlight and press ENTER.

2. If you want to view a particular file, press ▲ / ▼ to highlight a file and press ENTER or PLAY. While viewing a file, you can press STOP to move to the previous menu (JPEG menu).

Tips:

There are three Slide Speed options ☐s, 5s, 8s Use ▲/▼/◄/► to highlight the Speed. Then, use ◀/► to select the option you want to use and then press ENTER.

Note:

Depending on the size and resolution of JPEG files, it may take longer for slide show to be set.

Slide Show

1. Highlight the file (not folder) which you like beginning to slide show.
2. Select the slide speed. (Refer to the tips this page)
3. Use ▲ /▼ /◄ /► to highlight the ▶ (Slide Show) then press ENTER.

Note:

• The sequence of slide show is from top to down, cannot be reverse.
• Slide show cannot repeat automatically, you could start the slide show again manually.
• During slide show, a help menu appears in the lower part of the screen. To hide this help menu, press ENTER or DISPLAY. Then press this button again, a help menu appears again.
• To close JPEG slide show, press RETURN or STOP (■).

Still Picture

1. Press PAUSE (Ⅲ) during the slide show. The DVD/CD Receiver will now go into the PAUSE (Ⅱ) mode.
2. To return to the slide show, press PLAY or press PAUSE (Ⅲ) again.

Moving to another File

Press SKIP (I◄◄ or ►►) once during viewing a picture to advance to the next or previous file.

Rotating the picture

Press ▲ / ▼ during showing a picture to rotate the picture clockwise or counter-clockwise.

Listening to music during slide show

You can listen to music during slide show, if the disc contain music and photo files together. Use ▲/▼/◄/► to highlight (■p) icon then press ENTER to start slide show. This function is available only in disc.

About help menu

Menu	Buttons	Operation
▲/90° / ▼/90°	▲ / ▼	Rotating the picture
◀ Prev./▶ Next	◀ / ▶	Moving to another file
	RETURN	Closes the slide show
◎	ENTER	To hide the help menu

JPEG disc compatibility with this player is limited as follows:

• Depending upon the size and the number of JPEG files, it could take a long time for the DVD/CD Receiver to read the disc's contents. If you don't see an on-screen display after several minutes, some of the files may be too large — reduce the resolution of the JPEG files to less than 2M pixels as 2760 x 2048 pixels and burn another disc.
• The total number of files and folders on the disc should be less than 999.
• Some discs may not operate due to a different recording format or the condition of disc.
• Ensure that all the selected files have the ".jpg" extensions when copying into the CD layout.
• If the files have “.jpe” or “.jpeg” extensions, please rename them as “.jpg” file.
• File names without "jpg" extension will not be able to be read by this DVD/CD Receiver. Even though the files are shown as JPEG image files in Windows Explorer.

Presetting the Radio Stations

You can preset 50 stations for FM. Before tuning, make sure that you have turned down the volume.

1. Press FUNCTION on the remote control until FM appears in the display window.
2. Press and hold TUNING.(-/+) for about two seconds until the frequency indication starts to change, then release. Scanning stops when the DVD/CD Receiver tunes in a station.
3. Press PROG./MEMO. on the remote control. A preset number will flash in the display window.
4. Press PRESET (-/+) on the remote control to select the preset number you want.
5. Press PROG./MEMO. on the remote control again. The station is stored.
6. Repeat steps 3 to 6 to store other stations.

To tune in a station with a weak signal

Press TUNING.(-/+) repeatedly in step 2 to tune in the station manually.

To clear all the stored stations

Press and hold PROG./MEMO. for about two seconds and "ERASE ALL" is appeared in the display window and then press PROG./MEMO. again, the stations are cleared.

- If you have accidentally entered into the "ERASE ALL" mode and you do not wish to clear the memory, do not press any key. After a few seconds, "ERASE ALL" will go off by itself and change to normal mode.

Note:

If all stations have already been entered, the FULL message will appear in the display window for a moment and then a preset number will flash. To change the preset number, follow the steps 4-5 as above.

Listening to the Radio

Preset radio stations in the DVD/CD Receiver's memory first (see "Presetting radio stations" on the left).

1. Press FUNCTION until FM appears in the display window. The last received station is tuned in.
2. Press PRESET (-/+) repeatedly on the remote control to select the preset station you want. Each time you press the button, the DVD/CD Receiver tunes in one preset station at a time.
3. Adjust the volume by rotating VOLUME on the front panel or by pressing VOLUME + or - on the remote control repeatedly.

To turn off the radio

Press POWER to turn the DVD/CD Receiver off or select another function mode.

To listen to non-preset radio stations

• Use manual or automatic tuning in the step 2.
• For manual tuning, press TUNING.(-/+) repeatedly.
• For automatic tuning, press and hold TUNING.(-/+) for about two seconds on the front panel.

To select a preset radio station directly

You can use the number buttons on the remote control to select a preset radio station directly. For example, to listen to the preset station 4, press 4 on the remote control. To listen to the preset station 19, press 1 and then 9 (within 3 seconds).

For your reference

•To improve reception

Reorient the supplied antennas.

Sleep Timer Setting

Press SLEEP/DIMMER one or more times to select delay time between 10 and 180 minutes, after the player will turn off.

To check the remaining time, press SLEEP/DIMMER To cancel the sleep function, press SLEEP/DIMMER repeatedly until "SLEEP 10" appears, and then press SLEEP/DIMMER once again while "SLEEP 10" is displayed.

Note:

You can check the remaining time before the DVD/CD Receiver turns off.

Press SLEEP/DIMMER. The remaining time appears in the display window.

Dimmer

Press SLEEP/DIMMER once. The LED (Light-emitting diode) of front panel is turned off and the display window will be darken by half. To cancel it, press SLEEP/DIMMER repeatedly until dim off.

Muting

Press MUTING to mute your unit.

You can mute your unit in order, for example, to answer the telephone, the "MUTING" indicator flickers in the display window.

Note:

This muting doesn't affect the audio output to HDMI; it only mutes the output of speakers connected to the unit.

Setting the disc ejection lock

You can lock the disc tray to prevent the disc form being ejected.

When the main unit is turned off, hold down the STOP key at the front panel for 5 seconds

If you attempt to open the disc tray by pressing OPEN/CLOSE key, the disc tray does not open and "LOCKED" appears in the display window.

To cancel the disc ejection lock, hold down the STOP key at the front panel for 5 seconds again when the main unit is turned off.

"UNLOCKED" is displayed in the display window.

Note:

Before the main unit is turned off, DVD/CD function should be selected.

Enjoying audio form an external source

You can enjoy audio form an external source through your unit.

Press INPUT repeatedly to select the desired input source. - AUX, AUX OPT, AUDIO IN

Setting the surround mode

This system has a number of pre-set surround sound fields. You can select a desired sound mode by using

SOURROUND. You can change the SOURROUND using ◀/▶ arrow key while the SOURROUND information is displayed on.

The displayed items for the Equalizer may be different depending on sound sources and effects.

[[PLII MOVIE/ PLII MUSIC/ PLII MTRX(matrix)] Dolby Pro Logic II enables you to play stereo source on 5.1-channel.

[Bypass] You can enjoy the sound without equalizer effect.

Notes:

- In some of surround modes, some speakers maybe no sound or low sound, it depends on the mode of surround and the source of audio, it is not defective.

- You may need resetting the surround mode, after switch the input, sometimes even after the sound track changed.

Language Codes

Use this list to input your desired language for the following initial settings:

Disc Audio, Disc Subtitle, Disc Menu.

Language	Code	Language	Code	Language	Code	Language	Code
Abkhazian	6566	Fiji	7074	Lingala	7678	Singhalese	8373
Afar 6565		Finnish	7073	Lithuanian	7684	Slovak 8375
Afrikaans	6570	French	7082	Macedonian	7775	Slovenian	8376
Albanian	8381	Frisian 7089		Malagasy	7771	Somali	8379
Ameharic	6577	Galician	7176	Malay	7783	Spanish	6983
Arabic	6582	Georgian	7565	Malayalam	7776	Sudanese	8385
Armenian	7289	German	6869	Maltese	7784	Swahili	8387
Assamese	6583	Greek	6976	Maori	7773	Swedish	8386
Aymara	6588	Greenlandic	7576	Marathi	7782	Tagalog	8476
Azerbaijani	6590	Guarani	7178	Moldavian	7779	Tajik 8471
Bashkir	6665	Gujarati	7185	Mongolian	7778	Tamil 8465
Basque	6985	Hausa	7265	Nauru	7865	Tatar 8484
Bengali; Bangla	6678	Hebrew	7387	Nepali	7869	Telugu	8469
Bhutani	6890	Hindi	7273	Norwegian	7879	Thai	8472
Bihari	6672	Hungarian	7285	Oriya	7982	Tibetan 6679
Breton	6682	Icelandic 7383		Panjabi	8065	Tigrinya	8473
Bulgarian	6671	Indonesian	7378	Pashto, Pushto	8083	Tonga	8479
Burmese	7789	Interlingua	7365	Persian	7065	Turkish	8482
Byelorussian	6669	Irish	7165	Polish	8076	Turkmen	8475
Cambodian	7577	Italian	7384	Portuguese	8084	Twi	8487
Catalan	6765	Japanese	7465	Quechua	8185	Ukrainian	8575
Chinese 9072		Javanese	7487	Rhaeto-Romance	8277	Urdu	8582
Corsican 6779		Kannada	7578	Rumanian	8279	Uzbek	8590
Croatian	7282	Kashmiri	7583	Russian	8285	Vietnamese	8673
Czech	6783	Kazakh	7575	Samoan	8377	Volapük	8679
Danish	6865	Kirghiz	7589	Sanskrit	8365	Welsh	6789
Dutch 7876		Korean	7579	Scots Gaelic	7168	Wolof	8779
English 6978		Kurdish	7585	Serbian	8382	Xhosa	8872
Esperanto	6979	Laothian	7679	Serbo-Croatian	8372	Yiddish	7473
Estonian	6984	Latin	7665	Shona	8378	Yoruba	8979
Faroese 7079		Latvian, Lettish	7686	Sindhi	8368	Zulu	9085

Area Codes

Choose a area code from this list.

Area Code		Area Code		Area Code		Area Code
Afghanistan AF		Ethiopia ET		Malaysia	MY	Saudi Arabia	SA
Argentina AR		Fiji	FJ	Maldives	MV	Senegal	SN
Australia AU		Finland FI		Mexico MX		Singapore SG
Austria AT		France FR		Monaco	MC	Slovak Republic	SK
Belgium BE		Germany	DE	Mongolia	MN	Slovenia	SI
Bhutan BT		Great Britain	GB	Morocco MA		South Africa	ZA
Bolivia BO		Greece	GR	Nepal NP		South Korea	KR
Brazil BR		Greenland	GL	Netherlands	NL	Spain ES
Cambodia KH		Heard and McDonald Islands	HM	Netherlands Antilles	AN	Sri Lanka	LK
Canada CA		Hong Kong	HK	New Zealand	NZ	Sweden SE
Chile CL		Hungary	HU	Nigeria NG		Switzerland CH
China CN		India	IN	Norway	NO	Taiwan	TW
Colombia CO		Indonesia	ID	Oman	OM	Thailand	TH
Congo CG		Israel	IL	Pakistan	PK	Turkey TR
Costa Rica CR		Italy	IT	Panama	PA	Uganda UG
Croatia HR		Jamaica	JM	Paraguay PY		Ukraine	UA
Czech Republic	CZ	Japan JP		Philippines	PH	United States	US
Denmark	DK	Kenya KE		Poland PL		Uruguay	UY
Ecuador	EC	Kuwait KW		Portugal	PT	Uzbekistan UZ
Egypt	EG	Libya	LY	Romania	RO	Vietnam	VN
El Salvador	SV	Luxembourg	LU	Russian Federation	RU	Zimbabwe	ZW

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

Symptom	Cause	Correction
No power.	The power cord is disconnected.	Plug the power cord securely into the wall outlet.
The power is on, but the DVD/CD Receiver does not work.	No disc is inserted.	Insert a disc. (Check that the DVD or, audio CD indicator in the DVD display is lit.)
No picture.	The TV is not set to receive DVD signal output.	Select the appropriate video input mode on the TV so the picture from the DVD/CD Receiver appears on the TV screen.
	The video cable is not connected securely.	Connect the video cable into the jacks securely.
	The connected TV power is turned off.	T urn on the TV.
There is no sound or only a very low-level sound is heard.	The equipment connected with the audio cable is not set to receive DVD signal output.	Select the correct input mode of the audio receiver so you can hear the sound from the DVD/CD Receiver.
	The audio cables are not connected securely.	Connect the audio cable into the jacks securely.
	The power of the equipment connected with the audio cable is turned off.	T urn on the equipment connected with the audio cable.
	The audio connecting cable is damaged.	Replace it with new one.
The playback picture is poor.	The disc is dirty.	Clean the disc.
The DVD/CD Receiver does not start playback.	No disc is inserted.	Insert a disc. (Check that the DVD, or audio CD indicator in the DVD display is lit.)
	An unplayable disc is inserted.	Insert a playable disc. (Check the disc type, colour system and Regional code.)
	The disc is placed upside down.	Place the disc with the playback side down.
	The disc is not placed within the guide.	Place the disc on the disc tray correctly inside the guide.
	The disc is dirty.	Clean the disc.
	A menu is on the TV screen.	Press the SETUP button to turn off the menu screen.
	The Rating level is set.	Cancel the Rating function or change the rating level.
Loud hum or noise is heard.	The disc is dirty.	Clean the disc.
	The speakers and components are connected poorly.	Connect the speakers and components securely.
	The DVD/CD Receiver is located too close to the TV.	Move your TV away from the audio components.
Radio stations cannot be tuned in.	The antenna is positioned or connected poorly.	Connect the antenna securely.
		Adjust the antennas and connect an external antenna if necessary.
	The signal strength of the stations is too weak (when tuning in with automatic tuning).	T une in the station manually.
	No stations have been preset or preset stations have been cleared (when tuning by scanning preset stations).	Preset the stations (page 19).
The remote control does not work properly.	The remote control is not pointed at the remote sensor of the DVD/CD Receiver.	Point the remote control at the remote sensor of the DVD/CD Receiver.
	The remote control is too far from the DVD/CD Receiver.	Use the remote control within about 23 ft (7 m).
	There is an obstacle in the path of the remote control and the DVD/CD Receiver.	Remove the obstacle.
	The batteries in the remote control are flat.	Replace the batteries with new ones.
The front panel display is too dim.	Nothing is displayed on the front panel display.	Press DIMMER on the remote control.

Specifications

GeneralCD/D		Power supply 120 V ~ 60 Hz
		Power consumption 130 W
		Net Weight 3.6 kg
		External dimensions (W x H x D) 430 x 76 x 317 mm
		Operating conditions Temperature: 5°C to 35°C, Operation status: Horizontal
		Operating humidity 5% to 85%
		Laser Semiconductor laser, wavelength 650 nm
		Video system NTSC
		Frequency response (audio) 140 Hz to 20 kHz ★
		Signal-to-noise ratio (audio) More than 75 dB (1 kHz, 20 kHz LPF/A-Filter) ★
		Dynamic range (audio) More than 75 dB ★
		Harmonic distortion (audio) 0.5 % (1 kHz, at 1W position) (20 kHz LPF) ★
		Video output	1.0 V (p-p), 75 Ω, negative sync., RCA jack x 1
		COMPONENT VIDEO OUT	(Y) 1.0 V (p-p), 75 ohms, negative sync, RCA jack x 1(PB)/(PR) 0.7 V (p-p), 75 ohms, RCA jack x 1
		HDMI OUT 480i/480p/720p/1080i/1080p
Tuner	FM	Tuning Range	87.5 - 108.0 MHz
		Intermediate Frequency	10.7 MHz
		Signal-to Noise Ratio	60 dB (Mono) ★
		Frequency Response	140 - 10,000 Hz ★
Amplifier		Stereo mode	155 W + 155 W (4Ω at 1 kHz, THD 10 %)
		Surround mode(* Depending on the sound mode settings and the source, there may be no sound output.)	Front: 155 W + 155 W (THD 10 %)center*: 155 WSurround*: 155 W + 155 W (4Ω at 1 kHz, THD 10 %)Subwoofer*: 225 W (3Ω at 70 Hz, THD 10 %)
		Inputs	AUDIO IN, OPTICAL IN, AUX IN
		Outputs	MONITOR OUT, HDMI OUT,COMPONENT VIDEO OUT
Speakers			Front/Rear Speaker	Center speaker	Passive Subwoofer
		Type	1 Way 1 Speaker	1 Way 1 Speaker	1 Way 1 Speaker
		Impedance	4 Ω	4 Ω	3 Ω
		Frequency Response	120 - 18000 Hz	120 -18000 Hz	40 - 1500 Hz
		Sound Pressure Level	83 dB/W (1m)	83 dB/W (1m)	82 dB/W (1m)
		Rated Input Power	155 W 155 W	225 W
		Max. Input Power	310 W 310 W	450 W
		Net Dimensions (W x H x D)	113 x 209 x 83 mm	301 x 118 x 83 mm	236 x 435 x 391 mm
		Net Weight	0.78 kg	0.9 kg	5.7 kg

Items with ★ are measured at Front Speaker Terminals in STEREO mode

Supplied Accessories

FM Antenna	.x1	Video RCA cable	.x1
Speaker cable	.x6	Batteries	.x2
Remote control	.x1

* Designs and specifications are subject to change without notice.

Abstract geometric pattern with diagonal black and white stripes on white background (no text or symbols)

TH-G31

JVC

EN

© 2009 Victor Company of Japan, Limited

0409SKMLGEEGL

Abstract black and white diagonal striped pattern (no text or symbols)
