USER MANUAL VK75302H LG

This information contains important instructions for the safe use and maintenance of the vacuum cleaner. Especially, please read all of the information on page 5, 6, 7 for your safety. Please keep this manual in an easily accessible place and refer to it anytime.

Important safety instructions 5\~7

Assembling vacuum cleaner 17\~19

сборный пылесос

Встановіть пилосос

Operating vacuum cleaner.... 20\~21

Using carpet and floor nozzle / Hard Floor Nozzle.... 22

Cleaning all floor nozzle 25

Cleaning Turbine nozzle 27

Cleaning dust tank 31

Очистка контейнера

Очистіть пил бак

Шаң ыдысын тазалау

Cleaning filters and air guide tank 32

Cleaning exhaust filter 33

Assembling Tank Cover & Tank assembly 34

What to do if your vacuum cleaner does not work 35

What to do when suction power decreases 35

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or damage when using the vacuum cleaner. This guide do not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand. This appliance complies with the following EC Directives: 2006/95/EC Low Voltage Directive 2004/108/EC EMC Directive.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "WARNING" or "CAUTION."

These words mean:

WARNING

This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.

CAUTION

This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.

WARNING

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by LG Electronics Service Agent in order to avoid a hazard
4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

- Do not plug in if control switch is not in OFF position.

Personal injury or product damage could result.

- Keep children away and beware of obstructions when rewinding the cord to prevent personal injury.

The cord moves rapidly when rewinding.

- Disconnect electrical supply before servicing or cleaning the unit or when cleaner is not in use.

Failure to do so could result in electrical shock or personal injury.

- Do not use vacuum cleaner to pick up anything that is burning or smoking such as cigarettes, or hot ashes.

Doing so could result in death, fire or electrical shock.

- Do not vacuum flammable or explosive substances such as gasoline, benzene, thinners, propane (liquids or gases).

The fumes from these substances can create a fire hazard or explosion. Doing so could result in death or personal injury.

- Do not handle plug or vacuum cleaner with wet hands.

Doing so could result in death or electrical shock.

- Do not unplug by pulling on cord.

Doing so could result in product damage or electrical shock. To unplug, grasp the plug, not the cord.

- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.

Failure to do so could result in electrical shock or personal injury.

- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.

Failure to do so could result in electrical shock or personal injury or fire or product damage.

- The hose contains electrical wires. Do not use it if it is damaged, cut or punctured.

Failure to do so could result in death, or electrical shock.

- Do not allow to be used as toy. Close attention is necessary when used by or near children.

Personal injury or product damage could result.

- Do not use the vacuum cleaner if the power cord or plug is damaged or faulty.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not use vacuum cleaner if it has been under water.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not continue to vacuum if any parts appear missing or damaged.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

- Do not use an extension cord with this vacuum cleaner.

Fire hazard or product damage could result.

• Using proper voltage.

Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the bottom of vacuum cleaner.

- Turn off all controls before unplugging.

Failure to do so could result in electrical shock or personal injury.

- Do not change the plug in any way.

Failure to do so could result in electrical shock or personal injury or product damage. Doing so result in death. If plug does not fit, contact a qualified electrician to install the proper outlet.

- Repairs to electrical appliances may only be performed by qualified service engineers.

Improper repairs may lead to serious hazards for the user.

IMPORTANT SAFETY INSTRUCTIONS

! CAUTION

• Do not put any objects into openings.
  Failure to do so could result in product damage.
• Do not use with any opening blocked: keep free of dust, lint, hair, and anything that may reduce air flow.
  Failure to do so could result in product damage.
• Do not use vacuum cleaner without dust tank and/or filters in place.
  Failure to do so could result in product damage.
  • Always clean the dust bin after vacuuming carpet cleaners or fresheners, powders and fine dust.
  These products clog the filters, reduce airflow and can cause damage to the cleaner. Failure to clean the dust bin could cause permanent damage to the cleaner.
• Do not use vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc.
  They may damage the cleaner or dust bin.
• Store the vacuum cleaner indoors.
  Put the vacuum cleaner away after use to prevent tripping over it.
• The vacuum cleaner is not intended to use by young children or infirm people without supervision.
  Failure to do so could result in personal injury or product damage.
• Only use parts produced or recommended by LG Electronics Service Agents.
  Failure to do so could result in product damage.
• Use only as described in this manual. Use only with LG recommended or approved attachments and accessories.
  Failure to do so could result in personal injury or product damage.

• To avoid personal injury and to prevent the machine from falling when cleaning stairs, always place it at the bottom of stairs.
  Failure to do so could result in personal injury or product damage.

• Use accessory nozzles in "MIN" mode.
  Failure to do so could result in product damage.

• Don't grasp the tank handle when you are moving the vacuum cleaner.
  The vacuum cleaner's body may fall when separating tank and body. Personal injury or product damage could result. You should grasp the carrier handle when you are moving the vacuum cleaner.
• If after emptying the dust tank the indicator light is on(red), clean the dust tank.
  Failure to do so could result in product damage.
• Make sure the filters (exhaust filter and motor safety filter) are completely dry before replacing in the machine.
  Failure to do so could result in product damage.
• Do not dry the filter in an oven or microwave.
  Failure to do so could result in fire hazard.
• Do not dry the filter in a clothes dryer.
  Failure to do so could result in fire hazard.
• Do not dry near an open flame.
  Failure to do so could result in fire hazard.
• If the power cord is damaged, it must be replaced by an approved LG Electronics Service Agent to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

Thermal protector :

This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner.

Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner. After the 30 minute period, plug the vacuum cleaner back in and turn on the switch.

If the vacuum cleaner still does not run, contact a qualified electrician.

How to use Assembling vacuum cleaner

Push the nozzle into the telescopic pipe.

How to use Assembling vacuum cleaner

Push the nozzle into the telescopic pipe.

- Push telescopic pipe firmly into hose handle.

- Grasp the spring latch to expand.

- Pull out the pipe to desired length.

③ Connecting the hose to the vacuum cleaner

Push the fitting pipe on the flexible hose into the attachment point on the vacuum cleaner.

To remove the flexible hose from the vacuum cleaner, press the button situated on the fitting pipe, then pull the fitting pipe out of the vacuum cleaner.

How to use Operating vacuum cleaner

Line drawing of a vacuum cleaner with a downward arrow indicating motion (no text or symbols)

3

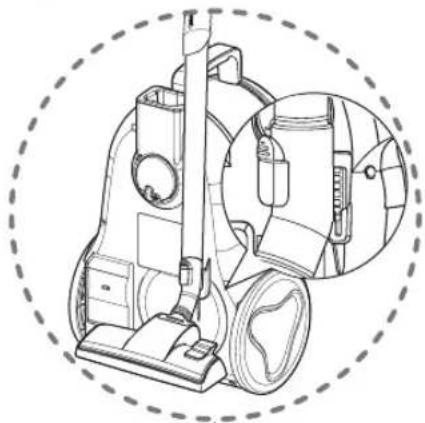

Line drawing of a vacuum cleaner with a close-up inset showing internal components (no text or symbols)

② Park mode

Парковочный режим

Парковка режимі

Токтата түру

- To store during vacuuming, for example to move a small piece of furniture or a rug, use park mode to support the flexible hose and nozzle.

- Slide the hook on the nozzle into the slot on the rear side of vacuum cleaner.

• When you have switched off and unplugged the vacuum cleaner, press the cord reel button to automatically rewind the cord.
• You can store your vacuum cleaner in a vertical position by sliding the hook on the nozzle into the slot on the underside of the vacuum cleaner.

How to use Using carpet and floor nozzle / Hard Floor Nozzle

Diagram of a hand cleaning a tiled floor with a mop, enclosed in a dashed circle (no text or symbols)

- Carpet and floor nozzle (depending on model)

This is equipped with a pedal which allows you to alter its position according to the type of floor to be cleaned.

- Carpet or rug position

Press the pedal to lift the brush up.

- Hard floor position (tiles, parquets floor) Press the pedal to lower brush.

• Efficient cleaning of hard floors (wood, linoleum, etc)

How to use Using Hard Floor Nozzle / Turbine Nozzle

Cleaning Turbine Nozzle

Очистка турбо щетки

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Botton

Дно

Дно

ТЕМЕН

How to use Cleaning all floor nozzle

Personal injury hazard. Always unplug the vacuum cleaner before cleaning. Failure to do so could result in personal injury.

How to use Using Turbine Nozzle

Diagram showing a vacuum cleaner inside a dashed circle, with arrows indicating motion direction (no text or symbols)

⑦ Turbine Nozzle (depending on model)

How to use Cleaning Turbine Nozzle

Personal injury hazard. Always unplug the vacuum cleaner before cleaning. Failure to do so could result in personal injury.

Technical illustration of a mechanical device with a magnified view of its component (no text or symbols present)

How to use Using accessory nozzles

Diagram of a tool interacting with a metal bracket, enclosed in a dashed circle (no text or symbols)

Illustration of a hand using a tool to lift a car seat (no text or symbols present)

Illustration of a desk lamp with a paper airplane and a small object on top, enclosed in a dashed circular border (no text or symbols)

⑧ Crevice Tool(depending on model) Средство для очистки пыли в трещине(в зависимости от моделей) Расцеліна інструмент(в залежності від моделі) Санлауларға арналған кондырмә(белгілі маделдерге негізделін)

Crevice tool is for vacuuming in those normally hard-to-reach places such as reaching cobwebs or between the cushions of a sofa.

Upholstery nozzle is for vacuuming upholstery, mattresses etc.

Dusting brush is for vacuuming picture frames, furniture frames, books and other irregular surfaces.

Use accessory in the sofa mode.

Illustration of a hand using a handheld tool to lift a rubber or rubber component (no text or symbols visible)

Illustration of a hand holding a wrist-mounted device with a wrist strap, showing motion direction (no text or symbols)

How to use Using accessory nozzles

Diagram showing a tool interacting with a 3D structural joint, enclosed in a dashed circle (no text or symbols)

Illustration of a person using a tool on a car seat, enclosed in a dashed circle (no text or symbols)

Illustration of a desk lamp with a curved arm and a small paper nearby, enclosed in a dashed circular border (no text or symbols)

① Crevice Tool(depending on model) Средство для очистки пыли в трещине(в зависимости от моделей) Расцеліна інструмент(в залежності від моделі) Санлауларға арналған кондырма(белгілі маделдерге негізделіп)

Crevice tool is for vacuuming in those normally hard-to-reach places such as reaching cobwebs or between the cushions of a sofa.

Upholstery nozzle is for vacuuming upholstery, mattresses etc.

Dusting brush is for vacuuming picture frames, furniture frames, books and other irregular surfaces.

Illustration of a hand holding a tool with a circular component, showing motion direction (no text or symbols)

Illustration of hands using a tool to lift a wall-mounted device (no text or symbols present)

Illustration of a hand holding a tool with a curved handle and a small object, no text or symbols present

How to use Emptying dust tank

-When the dust in dust tank reaches the maximum line.

Moving the vacuum cleaner

- Don't grasp the tank handle when you are moving the vacuum cleaner. The vacuum cleaner's body may fall when separating tank and body. You should grasp the carrier handle when you are moving the vacuum cleaner.

Cleaning the dust tank.

• Open the tank cap.
• Wash both parts with soft material.
  Gently rinse both parts under a cold running tap.

Очистка контейнера

If filters are damaged, do not use them.

In this cases, contact LG Electronics Service Agent.

ЗАМЕЧАНИЕ

How to use Cleaning dust tank

Line drawing of a hand holding a vacuum cleaner with a magnified inset showing the handle (no text or symbols)

Line drawing of a hand holding a vacuum cleaner device with a handle and internal components (no text or symbols)

Technical line drawing of two mechanical components, one open and one closed, shown in cross-sectional view (no text or symbols)

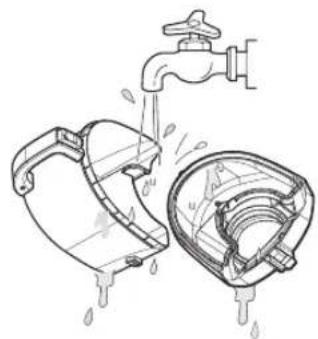

Diagram showing water flowing from a faucet into a partially submerged container (no text or symbols present)

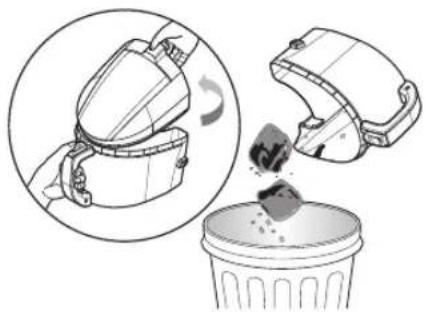

Illustration of a hand pouring liquid into a trash bin with a magnified inset showing the process (no text or symbols)

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

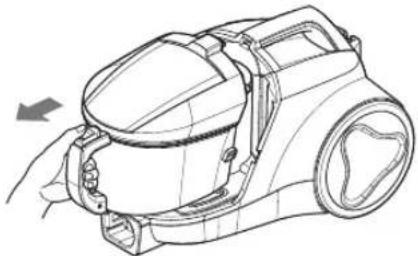

Push button and pull out dust tank.

Raise dust tank cap.

Dry fully in shade so that moisture is entirely removed.

Dry fully in shade so that moisture is entirely removed.

NOTICE

If suction power decreases after cleaning dust tank, clean air filter and motor safety filter. ➡ Next page

ЗАМЕЧАНИЕ

How to use Cleaning filters and air guide tank

Gently rinse both parts separately under a cold running tap until the water runs clear.

Do not use detergent or a washing machine or dishwasher.

Wash filters at least once a month.

ОПАСНО!

How to use Cleaning exhaust filter

Diagram illustrating the step-by-step installation of a vacuum cleaner, showing component removal and disposal process.

• The exhaust filter is a reusable HEPA filter.

• To change the exhaust filter, remove the filter cover on the body by release hook.

- Pull out the exhaust filter.

- Dust off filter.

• The exhaust filter should be cleaned at least once a year.

How to use Assembling Tank Cover & Tank assembly

Slide the tank on product to match the tank ribs to groove of body.

Technical line drawing of a mechanical device with an inset showing a close-up of a cable or connector detail (no text or symbols present)

If suction power is decreased after re-assemble, check dust tank assembled correctly.
- Check the guide rib whether it is right in tank groove.
- If guide rib is not put in tank hole, re-assemble dust tank in parallel.
