USB 3.1 Gen 1 3-Port PCIe with Charging Port - Type-C Installation Guide

Introduction

The USB 3.1 Gen 1 3-Port PCIe with Charging Port - Type-C Ready adds one USB Type-C port, one USB BC1.2 charging port and 19-pin USB header (Two USB 3.1 Gen 1 ports) to your desktop computer.

Key Features and Benefits

• Supports SuperSpeed USB data transfer rates up to 5Gbps providing fast and smooth data transmission
• Supports USB Battery Charging Specification Rev 1.2 (BC1.2) for safe and fast charging of smartphones or tablets
- Features over-current protection to further protect your USB device
- Included low profile bracket allows installing into different system form factors

Specifications

Bus Type PCI Express	(1x)
Connectors	1x USB Type-C, Female1x USB charging port, Female (with BC 1.2 charging)Internal: 1x 19-pin header (USB 3.1 Gen 1)
Data Transfer Rate Up to 5Gbps
Charging port Up to 5V/2.4A
Power SATA power (15-pin)
Product Dimensions 472" (W) x 0.71" (H) x 3.15" (D)
Weight 0.11 lbs

Package Contents

• USB 3.1 Gen 1 3-Port PCIe with Charging Port - Type-C Ready
• Low profile bracket
• Installation guide

System Requirements

• Desktop PC with one available PCI Express (PCIe) slot
• Windows ^ 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit)

Layout

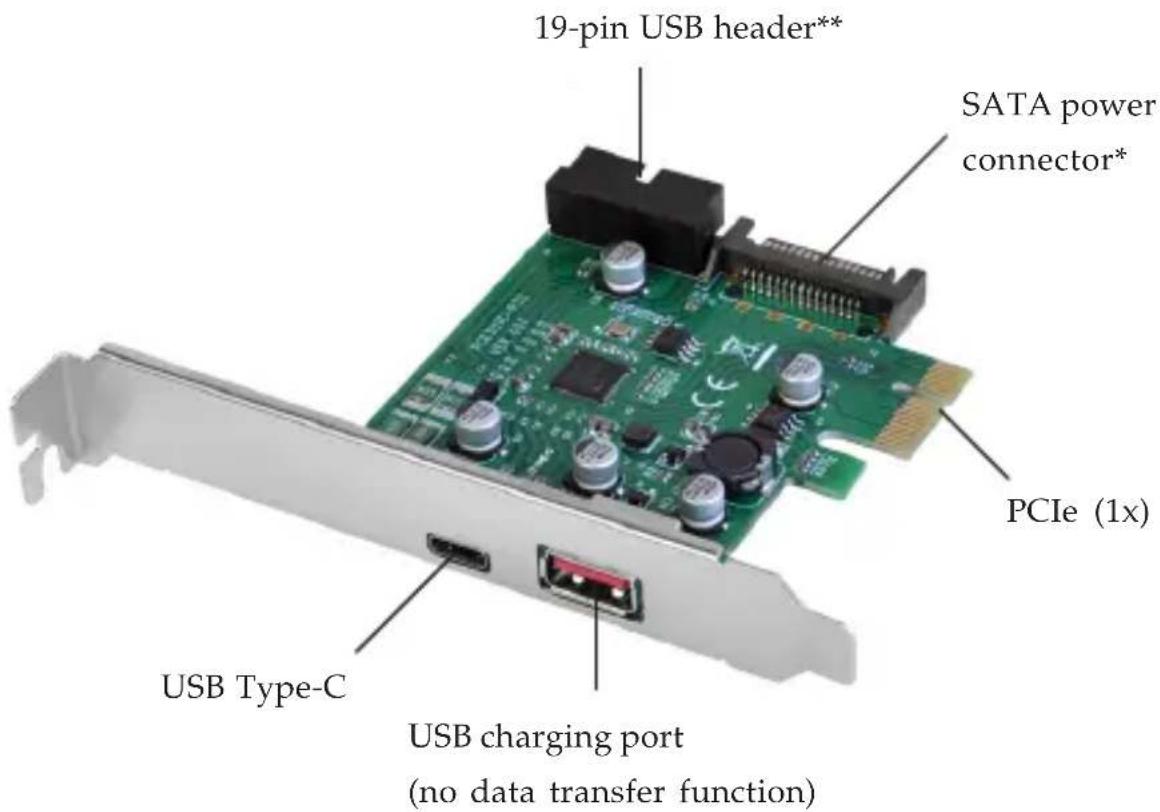

19-pin USB header** SATA power connector* PCIe (1x) USB Type-C USB charging port (no data transfer function)

Figure 1: Layout

Note:

* The SATA power connection to the power supply is required to make the PCI-e card work properly.

** You could add up to 2 USB 3.1 Gen 1 Type-A ports by 19-pin header.

Hardware Installation

Since the design of computer cases and motherboards vary, refer to your computer's reference manual for further information.

Static Electricity Discharge may permanently damage your system. Discharge any static electricity build up in your body by touching your computer case for a few seconds. Avoid any contact with internal parts and handle cards only by their external edges.

1. Turn OFF the power to your computer and any other connected peripheral devices.
2. Unplug the power cord from the computer.
3. Remove your computer cover.
4. Remove the slot bracket from an available PCIe slot.
5. Carefully align the card's bus connector with the selected PCI Express slot on the motherboard. Push the card down firmly, but gently, until it is well seated.

6. Replace the slot bracket holding screw to secure the card.

7. Connect the system power supply to the cards's SATA power connector. (This connection is required for proper power)

8. Optional: Connect the Adapter's 19-Pin USB Header to your system case front panel 19-Pin USB header cable.
9. Replace the computer cover and reconnect the power cord.
10. Power on your computer.

Windows Driver Installation

Windows 10, 8.1 and 8 have built-in driver support for this adapter. Windows will automatically detect and install the correct drivers for it. No additional driver installation is needed.

To Verify Installation

1. Right click This PC or Computer on the desktop, click Manage, then click Device Manager.
2. Double click Universal Serial Bus controllers, and below item should be displayed.
3. In Windows 10
   Renesas USB 3.0 eXtensible Host Controller - 1.0 (Microsoft)
4. In Windows 8.1/8
   Renesas USB 3.0 eXtensible Host Controller - 0100 (Microsoft)

Technical Support and Warranty

QUESTIONS? SIIG's Online Support has answers! Simply visit our web site at www.siig.com and click Support. Our online support database is updated daily with new drivers and solutions. Answers to your questions could be just a few clicks away. You can also submit questions online and a technical support analyst will promptly respond.

SIIG offers a 2-year manufacturer warranty with this product. This warranty covers the original purchaser and guarantees the product to be free of any defects in materials or workmanship for two (2) years from the date of purchase of the product.

SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Please see our web site for more warranty details.

If you encounter any problems with this product, please follow the procedures below. A) If it is within the store's return policy period, please return the product to the store where you purchased from.

B) If your purchase has passed the store's return policy period, please follow the steps below to have the product repaired or replaced.

Step 1: Submit your RMA request.

Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.

Step 2: After obtaining an RMA number, ship the product.

• Properly pack the product for shipping. All accessories that came with the original package must be included.
• Clearly write your RMA number on the top of the returned package. SIIG will refuse to accept any shipping package, and will not be responsible for a product returned without an RMA number posted on the outside of the shipping carton.
• You are responsible for the cost of shipping to SIIG. Ship the product to the following address:

SIIG, Inc. 6078 Stewart Avenue Fremont, CA 94538-3152, USA RMA #: ____

• SIIG will ship the repaired or replaced product via Ground in the U.S. and International Economy outside of the U.S. at no cost to the customer.
