USER MANUAL CE-H23911-S1 Siig

Red circular logo with a white abstract line design (no text or symbols)

SIIG®

Dual Antenna Wireless Multi-Channel Expandable HDMI Extender Installation Guide

Two black wireless network devices with visible antennas and ports, no text or symbols present.

Introduction

The Dual Antenna Wireless Multi-Channel Expandable HDMI Extender wirelessly transmits HDMI signals with stereo audio up to 165ft.

Features and Benefits

• Supports up to 2 transmitter units (part # CE-H23811-S1 sold separately) and 2 receiver units (part # CE-H23911-S1 sold separately). Allows you to choose and broadcast any of the 2 sources to any of the 2 displays simultaneously
• Dual antenna design greatly improves the quality of a wireless link for more stable and seamless video
• 5GHz wireless technology with 10 selectable wireless channels prevents signal interference
  • Built-in HDMI output on the transmitter allows for local monitoring of the extended display
  • Built-in switch button and the included palm size remote allows control over selection of wireless channels for both RX and TX units to retrieve different video content or set for channel pairing
• Included IR extension modules allow remote controlling of the HDMI source device from the display unit
• Premium aluminum housing that enhances durability. Slim and low profile design is versatile enough to adopt into any environment

Package Contents

• Dual Antenna Wireless Multi-Channel Expandable HDMI Extender
• IR blaster extension cable
• IR receiver extension cable
• Power adapters (x2)
• Remote control (with one battery)
• Installation Guide

Specifications

Wireless Technology 5 GHz
Signal Type HDMI
HDMI Version HDMI 1.3 compatible
HDCP Version HDCP 1.2 compatible
Transmission Distance Up to 50m (165ft)
Supported Resolutions 1080p/1080i/720p/576p/576i/480p/480i
HDMI Cable Distance Up to 5m (Input & Output)
Audio Format R/L stereo audio (2-ch)
Power	Input:AC 100-240V, 50/60HzOutput:DC 5V/2A
Color Black
Dimensions (TX/RX) 5.51" (W) x 0.98" (H) x 3.10" (D)
Weight (TX/RX) Approx. 0.55 lbs
Operating Temperature 32 to 122 degrees F
Storage Temperature 14 to 140 degrees F
Operating Humidity	0% ~ 90% RH (non-condensing)

Note: The transmission distance will vary depending on building layout, electronic interference, other environmental conditions, and may be much less than the maximum.

Product Layout

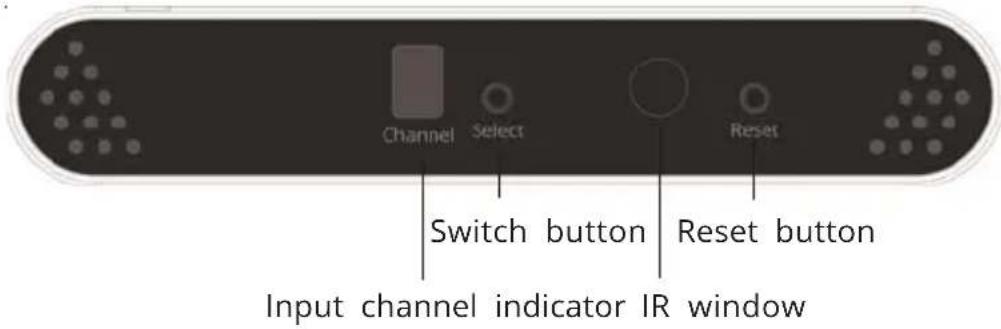

Channel Select Reset Switch button Reset button Input channel indicator IR window

Figure 1: Transmitter (TX) - front side

• Input channel indicator: Indicates the input channel selected. There are 10 channels (0-9)
• Switch button: Press to select the channel
• IR window: Receives infrared signals from the included remote control
• Reset button: Press to reset the transmitter

DC 5V In HDMI Out HDMI IR Antenna port HDMI In HDMI Out IR Out Connection indicator Power jack Input indicator Antenna port

Figure 2: Transmitter (TX) - rear side

• Antenna port: Attach the included Antenna here
  • Power jack: Connects to the included power adapter
  • HDMI In: Connects to your HDMI source with a HDMI cable (cable not included)
• Input indicator: On when the HDMI signal is detected
• Connection indicator: On when the transmitter and receiver are linked

• HDMI out: Connects to a local HDMI display
- IR out: Plug the IR Blaster extension cable here

Channel Select Reset Switch button Reset button IR windowOutput channel indicator

Figure 3: Receiver (RX) - front side

• Output channel indicator: Indicates the channel selected. There are 10 channels (0-9)
• Switch button: Press to select the channel
• IR window: Receives infrared signals from the included remote control
• Reset button: Press to reset the receiver

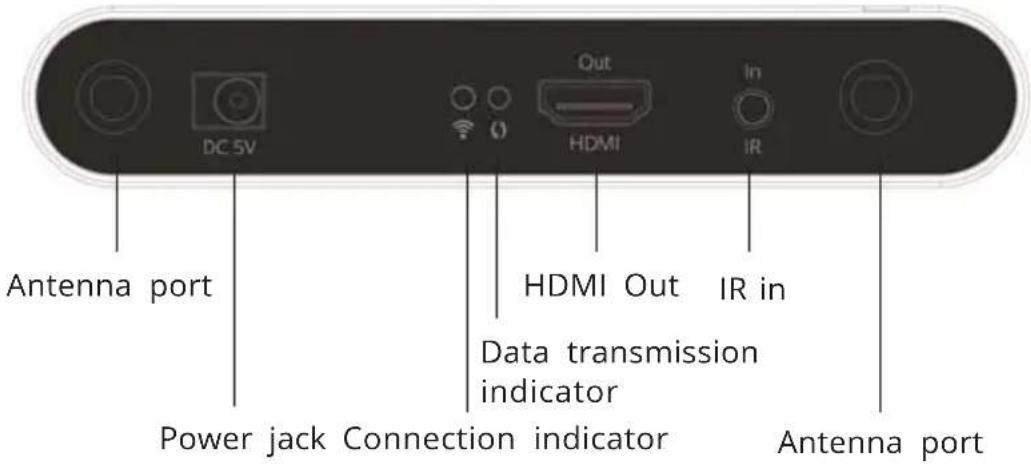

DC 5V Out HDMI In IR Antenna port HDMI Out IR in Data transmission indicator Power jack Connection indicator Antenna port

Figure 4: Receiver (RX) - rear side

• Antenna port: Attach the included Antenna here
  • Power jack: Connects to the included power adapter
• Connection indicator: On when the transmitter and receiver are linked

• Data transmission indicator:

• Blinks slowly when searching for wireless signal
• Blinks fast when wireless signal is linked
  • HDMI Out: Connects to your HDMI display with a HDMI cable (cable not included)
• IR in: Plug the IR Receiver extension cable here
• Antenna port: Attach the included Antenna here

IR Extension cables (20-60Hz Frequency Range)

The IR Extension feature allows you to control your HDMI source device from a remote location.

Black plastic cord with a circular head and attached bandage, no visible text or symbols

Figure 5: IR blaster extension cable (IR OUT)

Black and white photo of a black handheld device with coiled cable (no visible text or symbols)

Figure 6: IR receiver extension cable (IR IN)

• IR blaster extension cable (IR OUT): Plugs into the Transmitter's IR Out socket. It emits the IR signals received from the IR receiver extension cable of the Receiver unit and directs it to the HDMI source's IR receiver window
• IR receiver extension cable (IR IN): Plugs into the Receiver's IR In socket. It receives IR signals from the HDMI source's remote control and directs it to the IR blaster extension cable of the Transmitter unit

Hardware Installation

1. Power off all devices including your HDMI source and display.
2. Attach the included antennas to the TX and RX.
3. Connect your HDMI source to the Transmitter's HDMI IN connector.
4. Connect your HDMI display to the transmitter's HDMI OUT. This connection is optional and needed only when local monitoring of the video signal is desired.
5. Optional: Connect the IR Blaster extension cable to the Transmitter's IR Out. Face the eye towards your HDMI device's IR window. This connection is needed only if you need to control your HDMI source from the remote location.
6. Connect your HDMI display to the Receiver's HDMI OUT connector with an HDMI cable (not included).
7. Optional: Connect the IR Receiver extension cable to the Receiver's IR In. This connection is needed only if you need to control your HDMI source from the remote location.
8. Plug the included power adapters into the Transmitter's and Receiver's Power Jacks, then plug both power adapters into reliable power outlets.
9. Power on your HDMI device and HDMI display.
10. Use the included remote control or built-in switch button to select the same channel for the TX and RX (for channel pairing).
11. The device is ready for use.

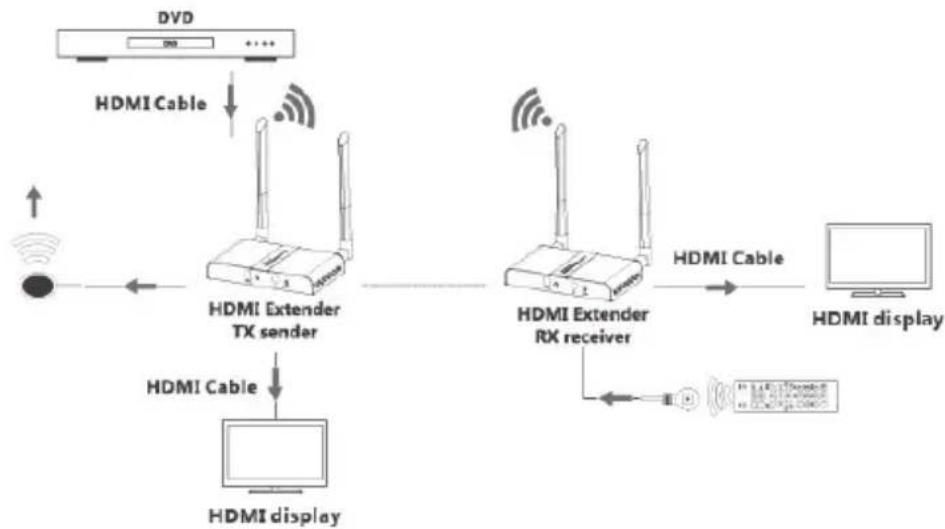

Application

Extends HDMI A/V signals to a remote display up to 165ft away and supports high resolutions up to 1080p Full HD.

Note: The transmission distance will vary depending on building layout, electronic interference, other environmental conditions, and may be much less than the maximum.

Figure 7

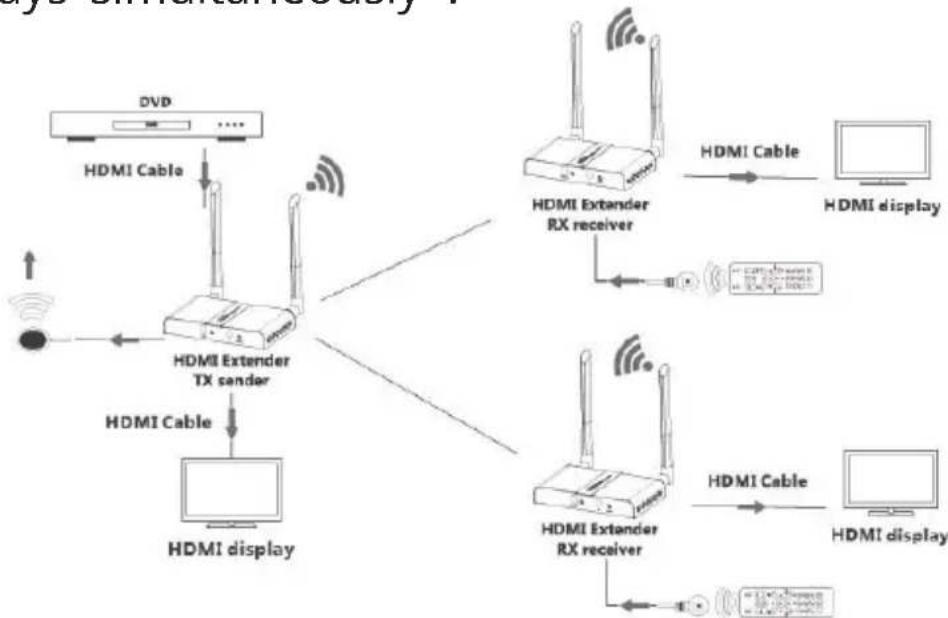

Multicast ability: Broadcasts and independent streams video content to two remotely located displays simultaneously*.

* Remark: Extra receiver unit (CE-H23911-S1) sold separately

Figure 8

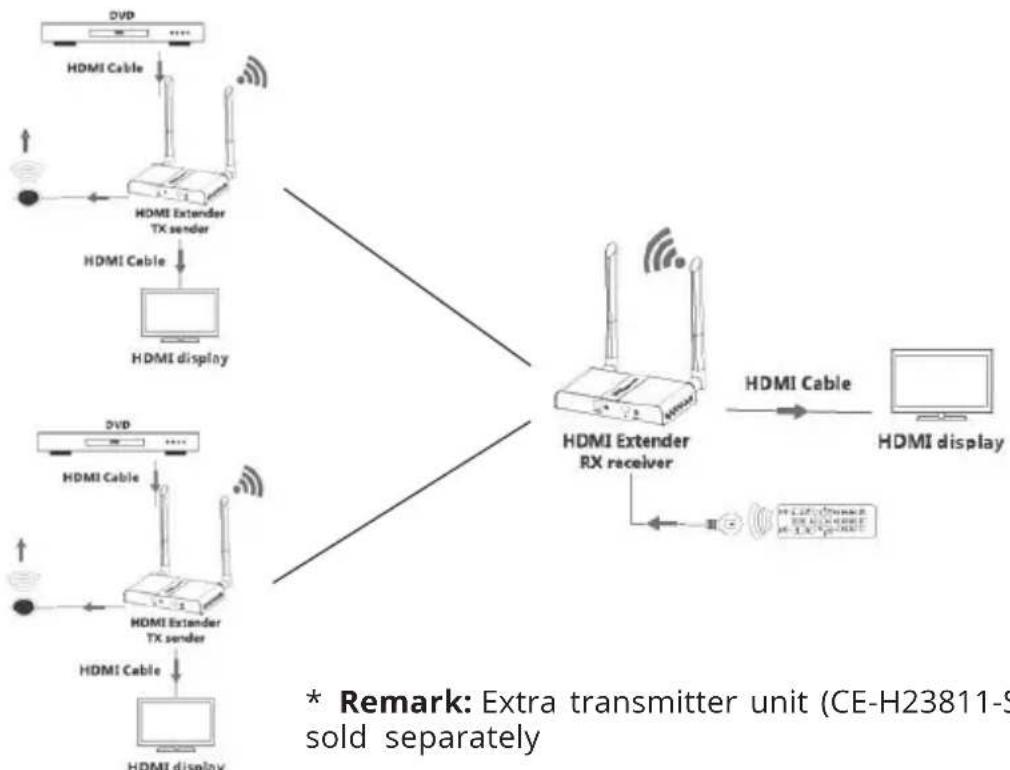

Matrix (2 TX's to 1 RX): Select any of the 2 sources* to broadcast to the display.
    V["* Remark: Extra transmitter unit (CE-H23811-S sold separately"]

* Remark: Extra transmitter unit (CE-H23811-S1) sold separately

Figure 9

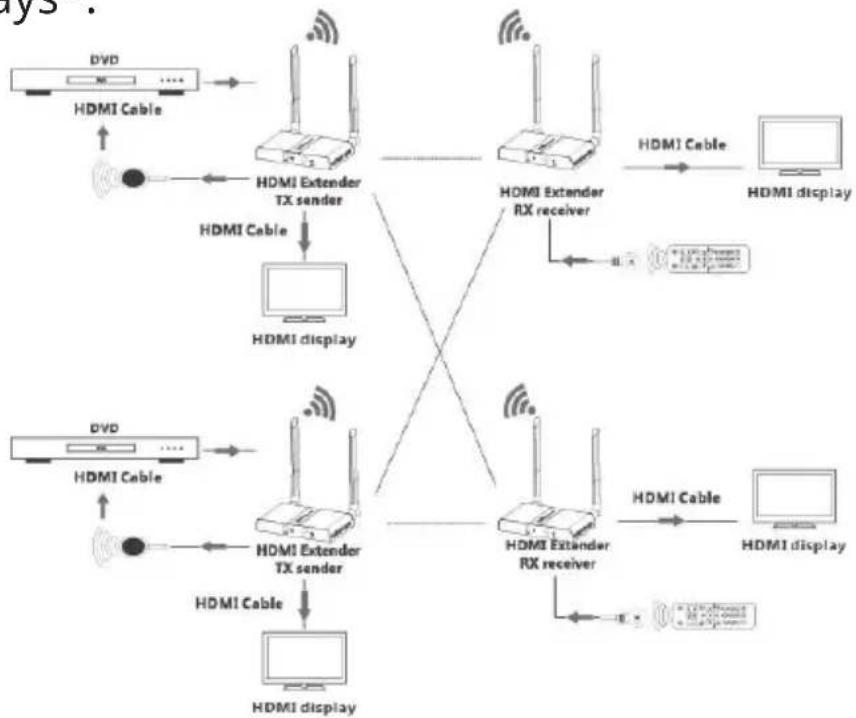

Matrix (2 TX's to 2 RX's): Allows you to switch and select any of the 2 sources* to broadcast to any of the 2 displays*.

* Remark: Extra transmitter unit (CE-H23811-S1) and receiver unit (CE-H23911-S1) sold separately

Figure 10

Notice

• Wireless signals transmitted through walls, glass, brick or other solid objects will cause signal loss and decrease the transmission distance
• It's recommended that the distance between two receivers not less than 3 meters
  • DO NOT expose the unit to rain, moisture, or liquids
• DO NOT open the housing, doing so will void the warranty and may cause personal injury due to electronic hazard
• DO NOT plug-in or take-out the IR extension cables when the unit is powered on

FAQ & Solutions

Q: The transmitter unit and receiver unit can't connect with each other:

A: 1) Please check that both transmitter and receiver are powered on.

2) Please check the input channel of the transmitter and output channel of the receiver are the same.
3) Please check if there is HDMI signal input from the Transmitter (TX) unit.
4) Use different HDMI cables.

Q: The display is not clear or stable:

A: 1) Check the HDMI cable lengths are within 5m.
2) Check the transmission distance is within 50m.
3) Remove other wireless signals and move any obstacles that are blocking the signal.
4) Decrease the distance between the transmitter unit and the receiver unit.

Technical Support and Warranty

QUESTIONS? SIIG's Online Support has answers! Simply visit our web site at www.siig.com and click Support. Our online support database is updated daily with new drivers and solutions. Answers to your questions could be just a few clicks away. You can also submit questions online and a technical support analyst will promptly respond.

SIIG offers a 2-year manufacturer warranty with this product. This warranty covers the original purchaser and guarantees the product to be free of any defects in materials or workmanship for two (2) years from the date of purchase of the product. This warranty is not transferable and is available only to the original purchaser of the product.

SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Please see our web site for more warranty details.

If you encounter any problems with this product, please follow the procedures below.

A) If it is within the store's return policy period, please return the product to the store where you purchased it.

B) If your purchase has passed the store's return policy period, please follow these steps to have the product repaired or replaced.

Step 1: Submit your RMA request. Go to www.siig.com, click Support, then Request A Product Replacement to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.

Step 2: After obtaining an RMA number, ship the product.

- Properly pack the product for shipping. All software, cable(s) and any other accessories that came with the original package must be included

- Include a copy of your original sales receipt inside the package with date of purchase and place of purchase circled and clearly visible

- Clearly write your RMA number on the top of the returned package. SIIG will refuse to accept any shipping package, and will not be responsible for a product returned without an RMA number posted on the outside of the shipping carton

- You are responsible for the cost of shipping to SIIG. Ship the product to the following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

RMA #:

• SIIG will ship the repaired or replaced product via Ground in the U.S. and International Economy outside of the U.S. at no cost to the customer

Founded in 1985, SIIG, Inc. is a leading manufacturer of IT connectivity solutions (including Serial ATA and Ultra ATA Controllers, FireWire, USB, and legacy I/O adapters) that bridge the connection between Desktop/Notebook systems and external peripherals. SIIG continues to grow by adding A/V and Digital Signage connectivity solutions to our extensive portfolio. All centered around the distribution and switching of A/V signals over CAT5/6, these products include matrix switches, distribution amplifiers, extenders, converters, splitters, cabling, and more.

SIIG is the premier one-stop source of upgrades and is committed to providing high quality products while keeping economical and competitive prices. High-quality control standards are evident by one of the lowest defective return rates in the industry. Our products offer comprehensive user manuals, user-friendly features, and are backed by an extensive manufacturer warranty.

SIIG products can be found in many computer retail stores, mail order catalogs, and e-commerce sites in the Americas, as well as through major distributors, system integrators, VARs and e-commerce sites.

PRODUCT NAME

Dual Antenna Wireless Multi-Channel Expandable HDMI Extender

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCC COMPLIANCE STATEMENT:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

Phone: [phone]

Dual Antenna Wireless Multi-Channel Expandable HDMI Extender is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.
