5-Port Smart USB Charger plus Organizer Bundle User Reference Guide

Introduction

The 5-Port Smart USB Charger plus Organizer Bundle comes with 1 Quick Charge 3.0, 1 USB Type-C and 3 standard USB charging ports to satisfy a variety of power charging demands.

Package Contents

• 5-Port Smart USB Charger plus Organizer Bundle with QC3.0 & Type-C-Black/White
• Power cord
• Charging organizer
• User Reference Guide

LOT Number Sticker

For future product return or exchange, this LOT number is required. Please keep it for your reference.

LOT Number

Part Number

Key Features and Benefits

- Simultaneously charge all your devices at once with this 5-port USB charger, supports iPads, iPhones, Android smartphones, tablets and more

- Qualcomm Quick Charge 3.0 certified, charges up to 4X faster than conventional chargers and achieves up to 80% of battery charge in as little as 35 minutes when charging Quick Charge 3.0 enabled devices

- The three standard USB ports have built-in smart charging IC to automatically detect and deliver the optimal power output up to 2.4A per port

Specifications

Charging Ports	1 x Quick Charge 3.0 port1 x USB Type-C charging port3 x USB charging ports
Power Input AC	100~240V (50/60Hz)
Power Output	QC 3.0 port: 3.6V-6.5V/3A, 6.5V-9V/2A, 9V-12V/1.5A (Max)Type-C port: 5V/3A (Max)USB charging port: 5V/2.4A per port (Max)
Total power output	45W
Dimensions 3.15'	(W) x 1.10" (H) x 3.15" (D)
Weight 0.35 lbs

Layout

Qualcommi Quick Charger 3.0 USB Type-C Charging Port USB Charging Ports (x3) Quick Charge 3.0 USB Charging Port

Figure 1: 5-Port Smart USB Charger plus Organizer Bundle with QC3.0 & Type-C

• USB Type-C Charging Port: Connects to Type-C equipped smartphones or tablets for charging
• USB Charging Ports (x3): Connects to smartphones, tablets or other USB-powered devices for charging
• Quick Charge 3.0 USB Charging Port: Connects to smartphones, tablets or other USB-powered devices for charging

Pure electrical outlet diagram without any text, numbers, or symbols

2-pin power connector

• 2-pin power connector: Connects to the included power cord for power source

Instructions for Use

Note: 1. It is recommended to use your USB device's original charging cable for charging.
2. For Quick Charge 3.0, please make sure to use the device's Sync & Charge USB charging cable for proper initialization.

1. Connect the Charger to a reliable power outlet using the included power cord and verify the power LED is lit.

Close-up of a white electrical plug with two ports and a cable (no text or symbols visible)

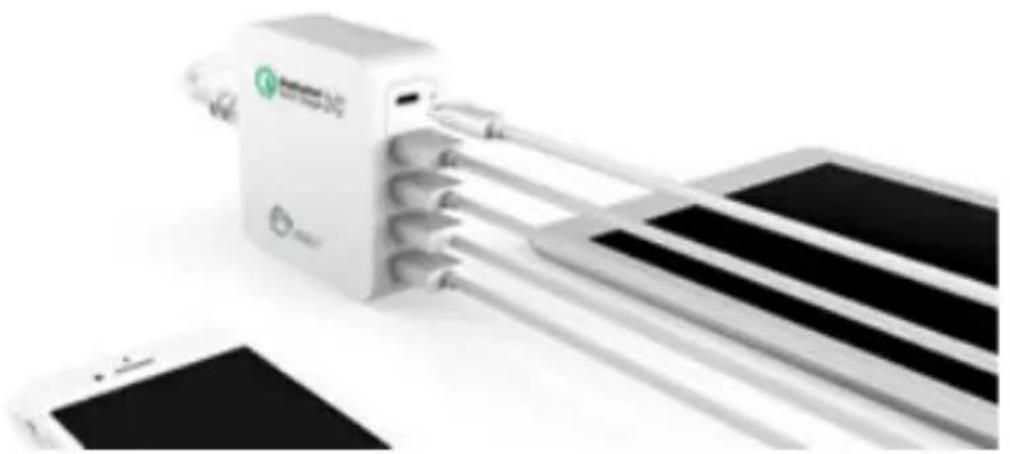

1. Connect your USB device(s) to the USB charging ports using USB charging cable(s).

Note: Plug your Quick Charge 3.0 enabled device into the Quick Charge 3.0 USB Charging Port for optimal charging efficiency.

Close-up of a white electronic device labeled 'Sensient 3D' with metallic leads, next to a smartphone (no visible text or symbols on the device itself)

1. Optional: Use the included charging organizer as needed.

White wireless router with SIM logo and ports, no visible text or symbols on the device body

Please refer to the table for a list of USB Type-C enable devices: (not complete list)

Google Pixel Google Pixel XL Google Nexus 6P GoogleNexus 5X
Nokia Lumia 950	Nokia Lumia 950XL	Meizu Pro 5 Lenovo ZUK Z1
LeTV One Max	LeTV One Pro	Huawei P9 CHUWI Hi10 Pro
HTC 10	LG G5	Nokia N1	OnePlus 2 & 3
Nextbit Robin	ASUS Zenpad S 8.0	Asus Zenfone 3

Quick Charge 3.0

Please refer to the table for a list of Quick Charge 3.0 enable devices: (not complete list)

LG G5 LG V20 HTC 10 HTC One		A9
ZTE Nubia Z11	ZTE Nubia Z11 Max	ZTE Nubia Z11miniS	ZTE Axon 7
ZTE Axon 7 Max	ASUS ZenFone 3	ASUS ZenFone 3 Deluxe	ASUS ZenFone 3 Ultra
HP Elite x3 Sony	Xperia XZ	Vodafone Smart platinum 7	Xiaomi Mi 5
Xiaomi Mi 5s	Xiaomi Mi Max	Mi Note 2 Xiaomi MIX

For an updated list of Quick Charge 3.0 enabled devices visit this website: https://www.qualcomm.com/documents/quick-charge-device-list

Technical Support and Warranty

QUESTIONS? SIIG's Online Support has answers! Simply visit our web site at www.siig.com and click Support. Our online support database is updated daily with new drivers and solutions. Answers to your questions could be just a few clicks away. You can also submit questions online and a technical support analyst will promptly respond.

SIIG offers a 1-year manufacturer warranty with this product. This warranty covers the original purchaser and guarantees the product to be free of any defects in materials or workmanship for one (1) year from the date of purchase of the product. This warranty is not transferable and is available only to the original purchaser of the product.

SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Please see our web site for more warranty details.

If you encounter any problems with this product, please follow the procedures below.

A) If it is within the store's return policy period, please return the product to the store where you purchased from.

B) If your purchase has passed the store's return policy period, please follow the steps below to have the product repaired or replaced.

Step 1: Submit your RMA request.

Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.

Step 2: After obtaining an RMA number, ship the product.

- Properly pack the product for shipping. All accessories that came with the original package must be included

- Include a copy of your original sales receipt inside the package with date of purchase and place of purchase circled and clearly visible

- Clearly write your RMA number on the top of the returned package. SIIG will refuse to accept any shipping package, and will not be responsible for a product returned without an RMA number posted on the outside of the shipping carton

- You are responsible for the cost of shipping to SIIG. Ship the product to the following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

RMA #:

• SIIG will ship the repaired or replaced product via Ground in the U.S. and International Economy outside of the U.S. at no cost to the customer

Founded in 1985, SIIG, Inc. is a leading manufacturer of IT connectivity solutions (including Serial ATA and Ultra ATA Controllers, FireWire, USB, and legacy I/O adapters) that bridge the connection between Desktop/Notebook systems and external peripherals. SIIG continues to grow by adding A/V and Digital Signage connectivity solutions to our extensive portfolio.

SIIG products offer comprehensive user manuals, many user-friendly features, and are backed by an extensive manufacturer warranty. High quality control standards are evident by the overall ease of installation and compatibility of our products, as well as one of the lowest defective return rates in the industry. SIIG products can be found in computer retail stores, mail order catalogs, through major distributors, system integrators, VARs and through e-commerce sites.

PRODUCT NAME

5-Port Smart USB Charger plus Organizer Bundle with QC3.0 & Type-C

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCC COMPLIANCE STATEMENT:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

Phone: [phone]

5-Port Smart USB Charger plus Organizer Bundle with QC3.0 & Type-C is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.

December, 2016
