USB-C Power Meter Tester with Digital Indicator User Reference Guide

Introduction

The USB- C^TM Power Meter Tester with Digital Indicator enables you to monitor USB-C charging performance easily including Voltage and Current.

Key Features and Benefits

• Measures Voltage of the power source while charging
• Measures Current that's being received by your USB-C device
• Compatible with most of USB-C laptops, tablets and smartphones

LOT Number Sticker

For future product return or exchange, this LOT number is required. Please keep it for your reference.

LOT Number

Part Number

Specifications

Voltage range 3-20V
Current range 30mA-5000mA (resolution: 10mA)
Accuracy +/- 5%
Housing material ABS
Connectors	USB-C, maleUSB-C, female
Power consumption 5V/30mA
Operating temperature 32~122 degrees F
Storage temperature 14~140 degrees F
Dimensions 2.16" (W) x 0.78" (H) x 0.39" (D)
Weight 0.01lbs

Package Contents

• USB-C Power Meter Tester with Digital Indicator
• User Reference Guide

Layout

USB-C (Male) SIMC USB-C Power Meter

USB-C (Female)LED Display

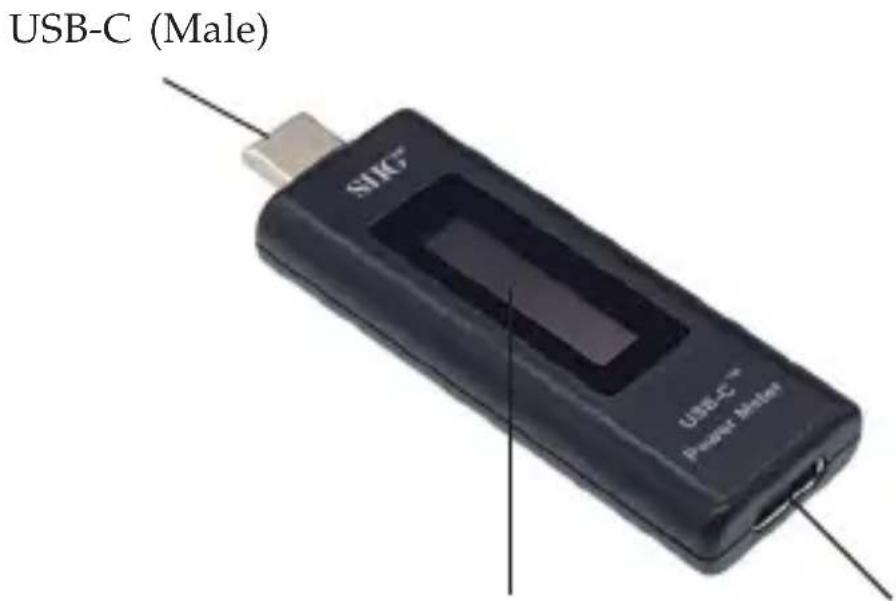

Figure 1: USB-C Power Meter Tester with Digital Indicator

• USB-C (Male): Connects to the USB-C port of your USB-C laptop, tablet or smartphone
• USB-C (Female): Connects to the power source which used to charge your USB-C device
  • LED Display: Refer to page 4 for more details

LED Display

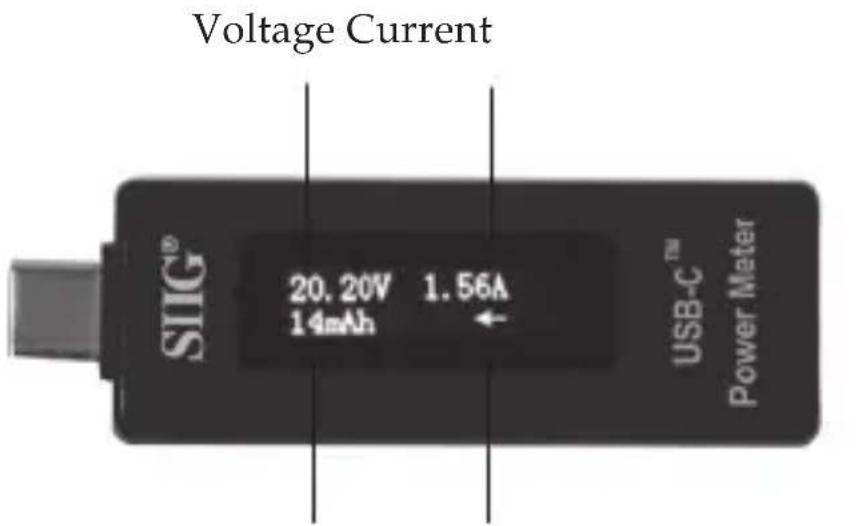

Voltage Current 20. 20V 1.56A 14mAh SiIG™ USB-C™ Power Meter

Milliamp Hours Power Flow Direction
Figure 2

• Voltage: Indicates the voltage that's being inputted to your USB-C device
- Current: Indicates the current that's being received by your USB-C device
• Power Flow Direction: Indicates the direction of the power flow
- Milliamp Hours: Indicates the power that your device has received

Application

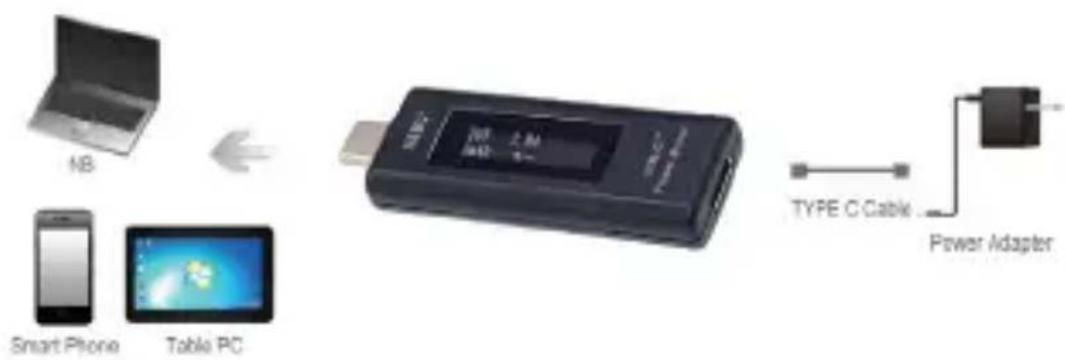

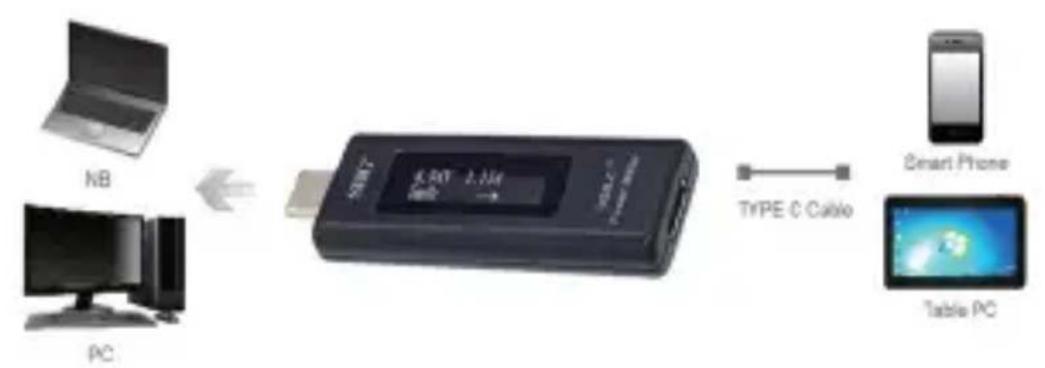

USB-C Power Meter Tester with Digital Indicator measures Voltage (Volts) and Current (Amps) that're being inputted to your USB-C device. Easy-to-read display makes the charging performance easy to recognize at a glance.

Figure 3

Figure 4

Blank Page
