USER MANUAL 5DA17151 BLAUPUNKT

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
  • Means for disconnection must be incorporated in the fixed wiring in accordance

with the wiring rules.

- For Class I appliances, check that the domestic power supply guarantees adequate earthing.

- Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Regulations concerning the discharge of air have to be fulfilled.

- Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air

back into the room).

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

"In case of replacement with halogen lamp use only self-shielded tungsten halogen lamps or self-shielded metal halide lamps."

2. USE

- The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

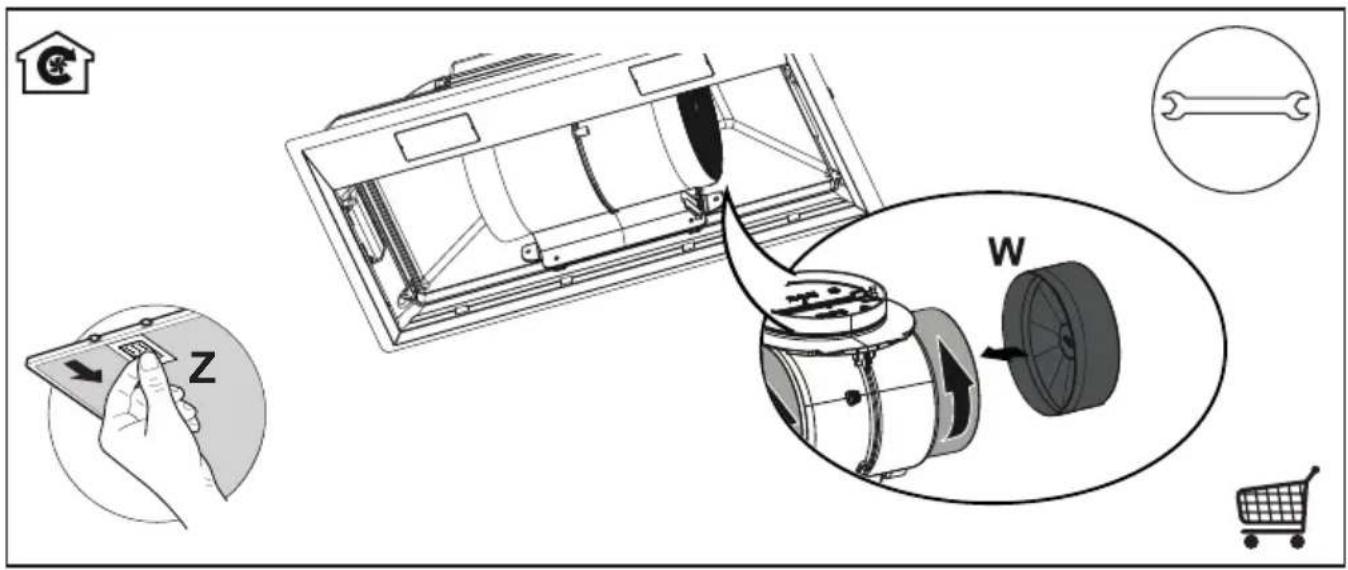

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

W

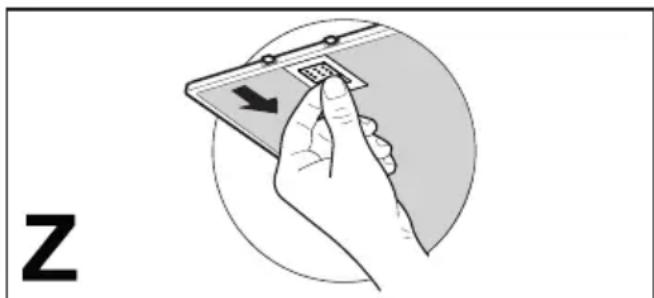

- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Z

- Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

L V 0 1 0 1 2 3

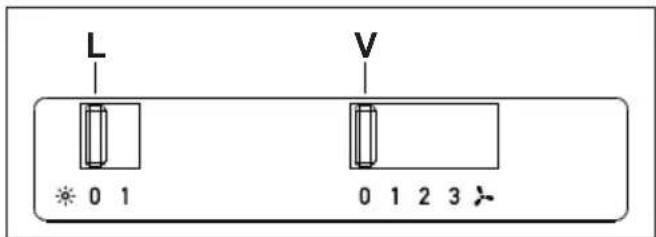

L	Light Switches the lighting system on and off.
V	Speed Sets the operating speed of the extractor:0. Motor Off.1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

5. LIGHTING

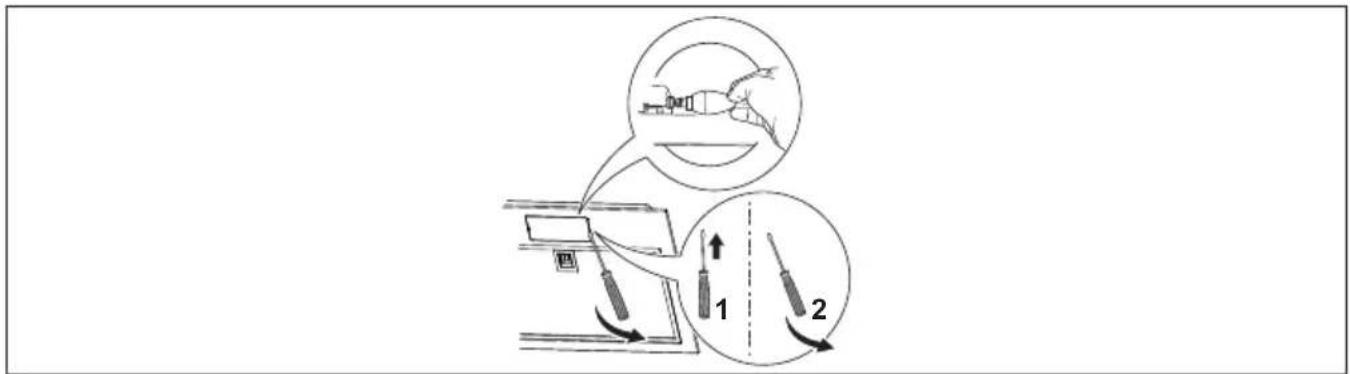

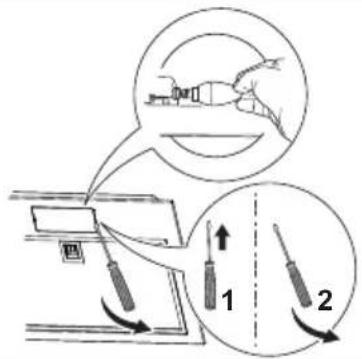

Diagram illustrating a medical procedure with labeled steps 1 and 2, showing tool placement and insertion instructions.

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including a magnified inset showing a device and tool.

Lamp Power (W) Socket Voltage (V) Dimension (mm) ILCOS Code
	4 E14 2	20 – 240	107 x 37	DRBB/F-4-220-240-E	14-35/100

INSTALLATION MANUAL

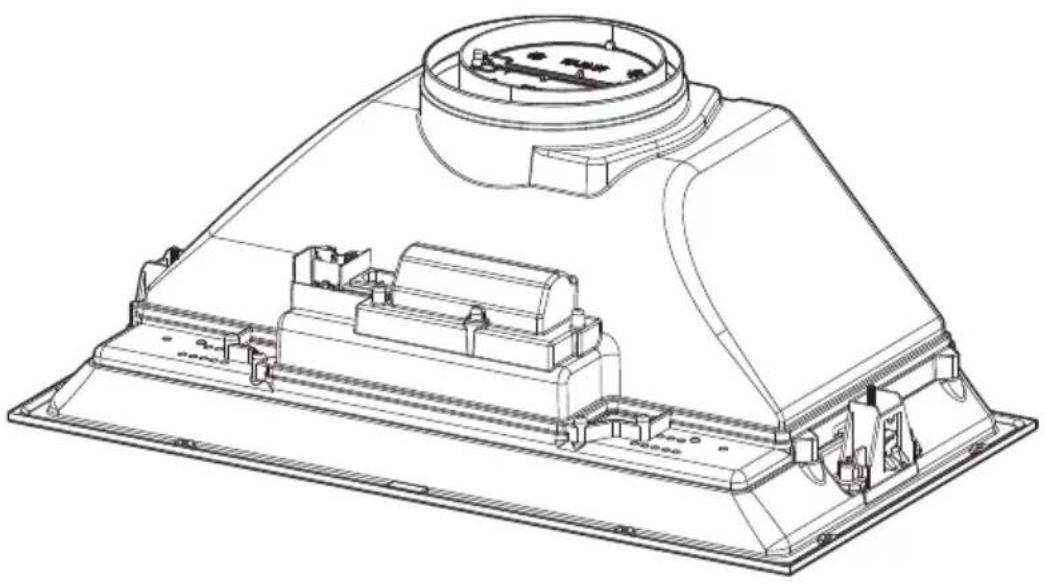

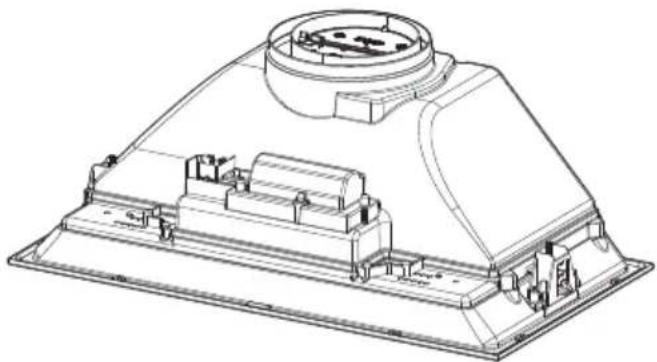

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a wrench and screwdriver (no text or symbols)

AU Warning! Before proceeding with installation, read the Recommendations and Suggestions in the User Manual.

AU The hood must be installed inside a unit, so that the plastic casing around the hood cannot be reached when installation is complete.

Simple line drawing of an open cardboard box (no text or symbols)

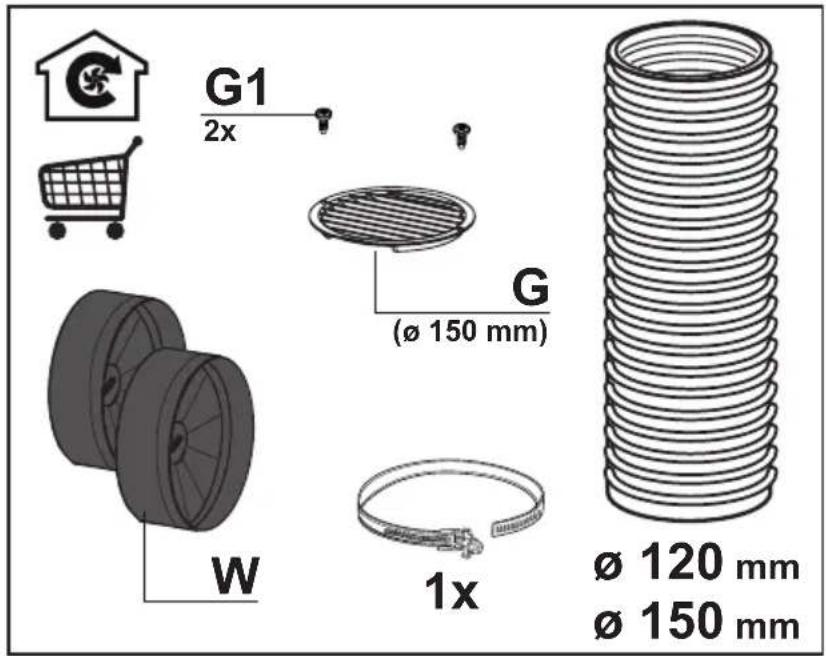

G1 = 2x G

Technical line drawing of a mechanical component with no visible text or symbols

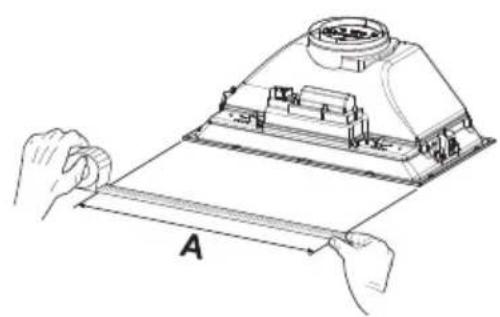

Illustration of hands holding a sheet of paper with a lid and labeled section A (no text or symbols on the diagram itself)

L = 8x (A = 520mm)

L = 10x (A = 700mm)

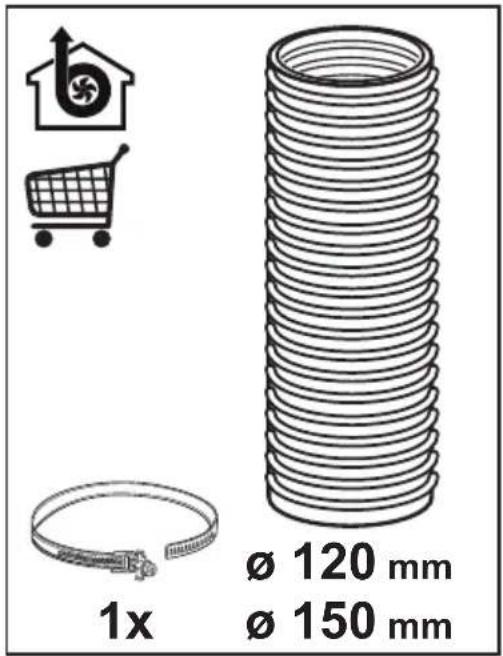

1x Ø 120 mm Ø 150 mm

G1 2x G (ø 150 mm) W 1x ø 120 mm ø 150 mm

! OK!

Warning symbol image showing a hand with an exclamation mark and a pair of gloves, likely indicating hazardous or hazardous conditions.

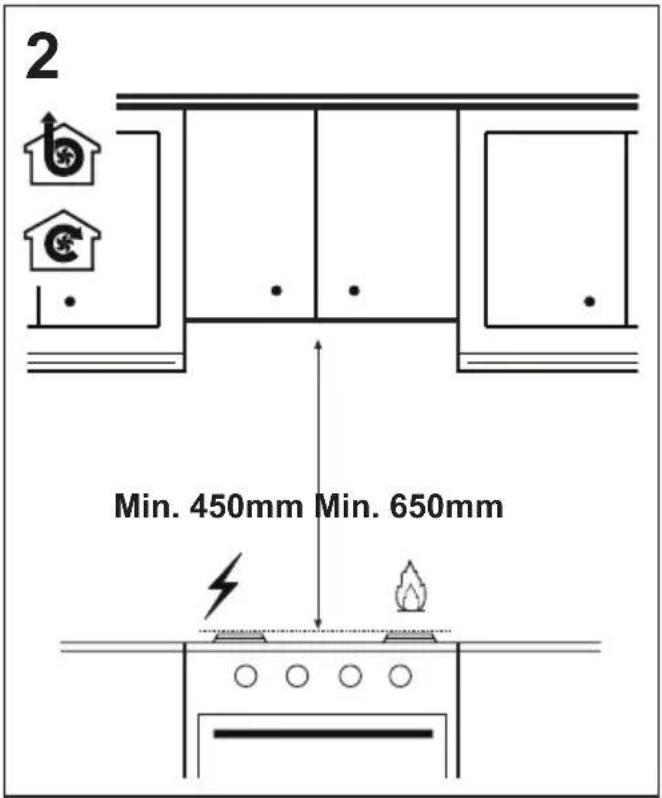

! Min. 450 mm 90° Min. 650 mm

Diagram illustrating airflow or ventilation system with directional arrows and a 2° angle annotation

Min. 150mm

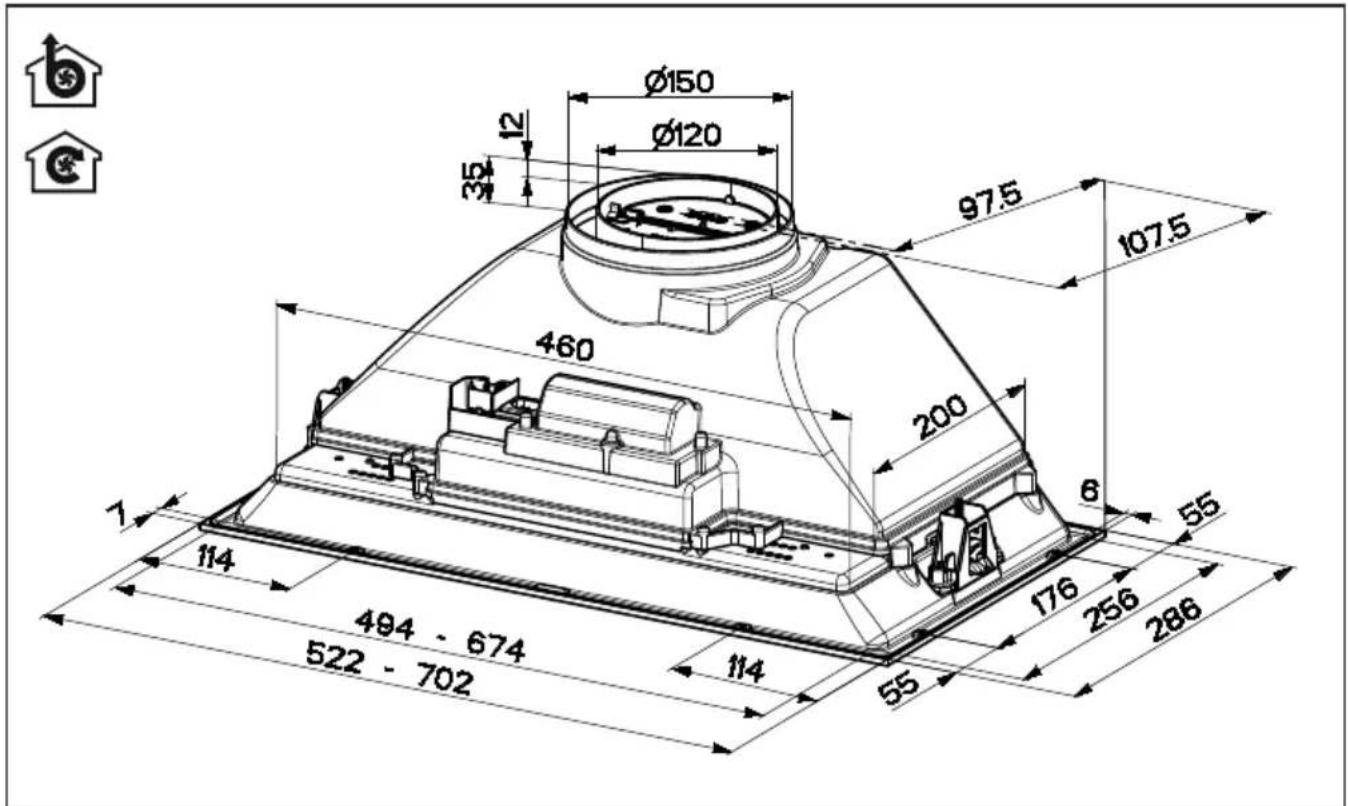

Ø150 Ø120 35 12 97.5 107.5 460 200 6 55 1 114 494 - 674 522 - 702 114 55 176 256 286

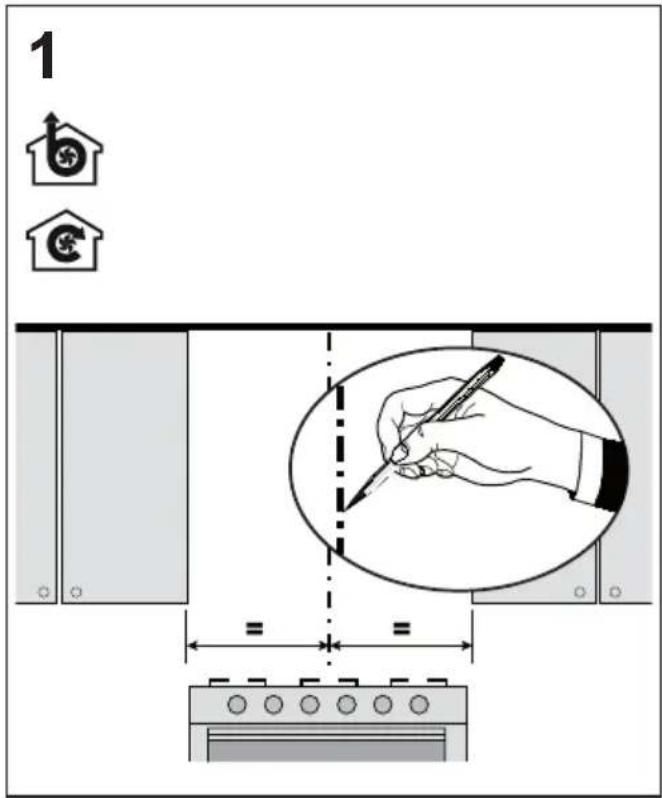

1 =

2 Min. 450mm Min. 650mm

3 259 13 L1 A A 520 700 L1 497 677

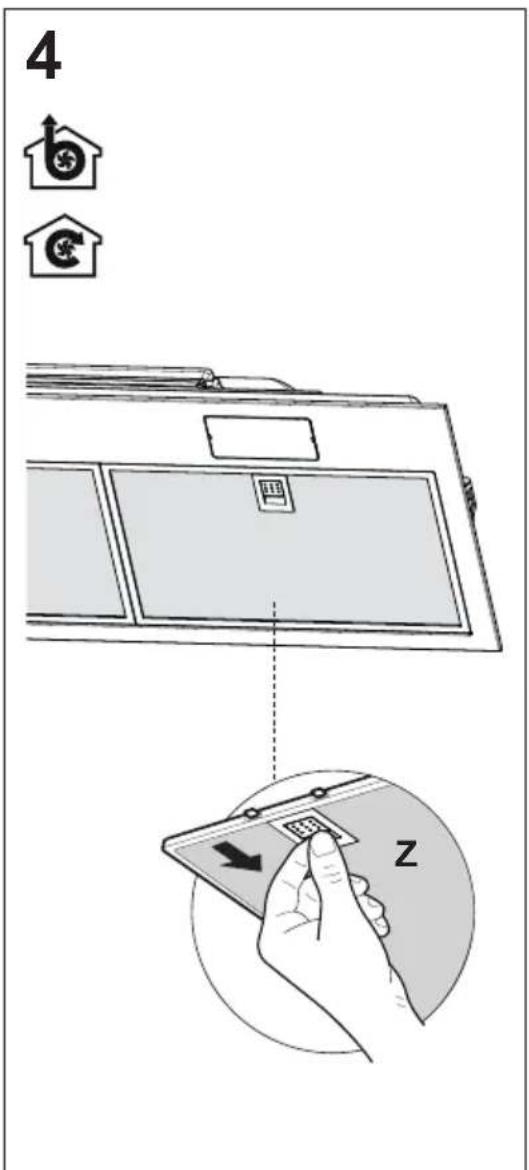

4 ↑ € Z

5a

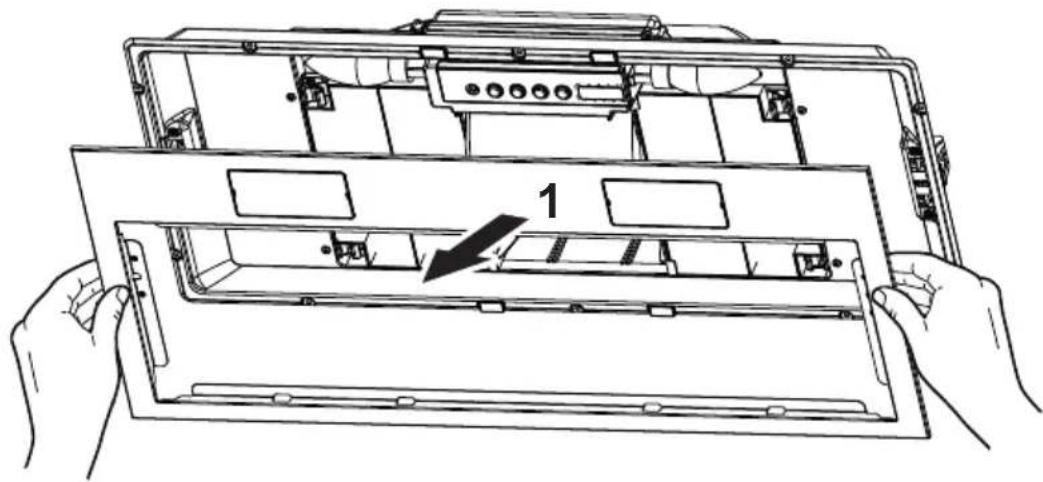

Line drawing of a device chassis with hands holding the chassis frame (no text or symbols present)

L 3 2

F 4x 4 5 5

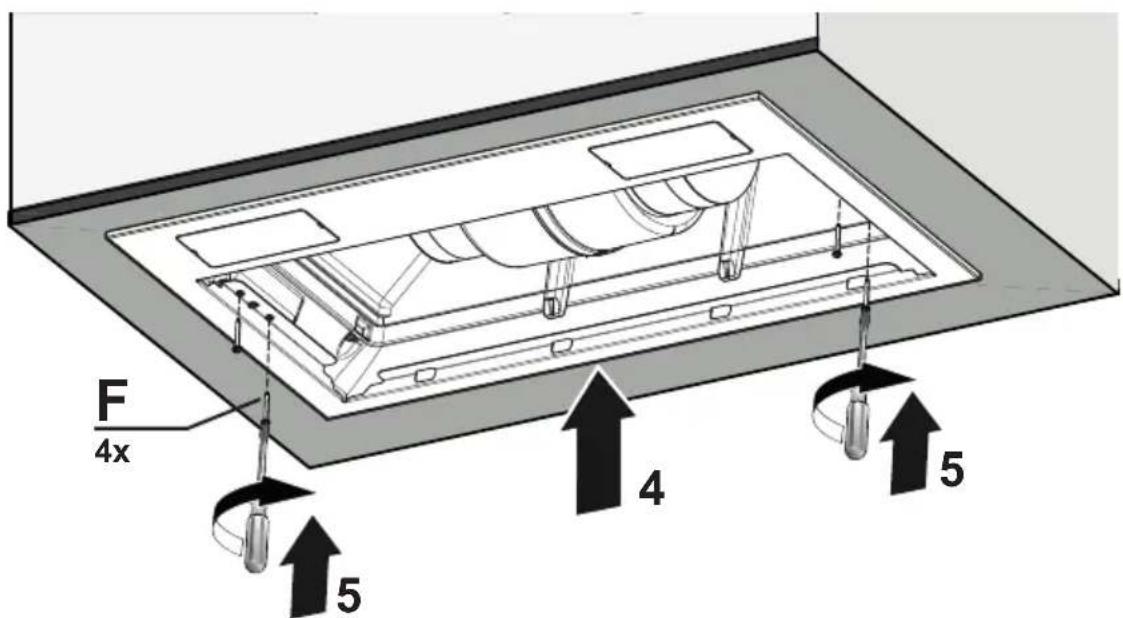

5b Vf Vf 1 2 2 Vf Min. 15 mm Max 30 mm F 4x 3 3

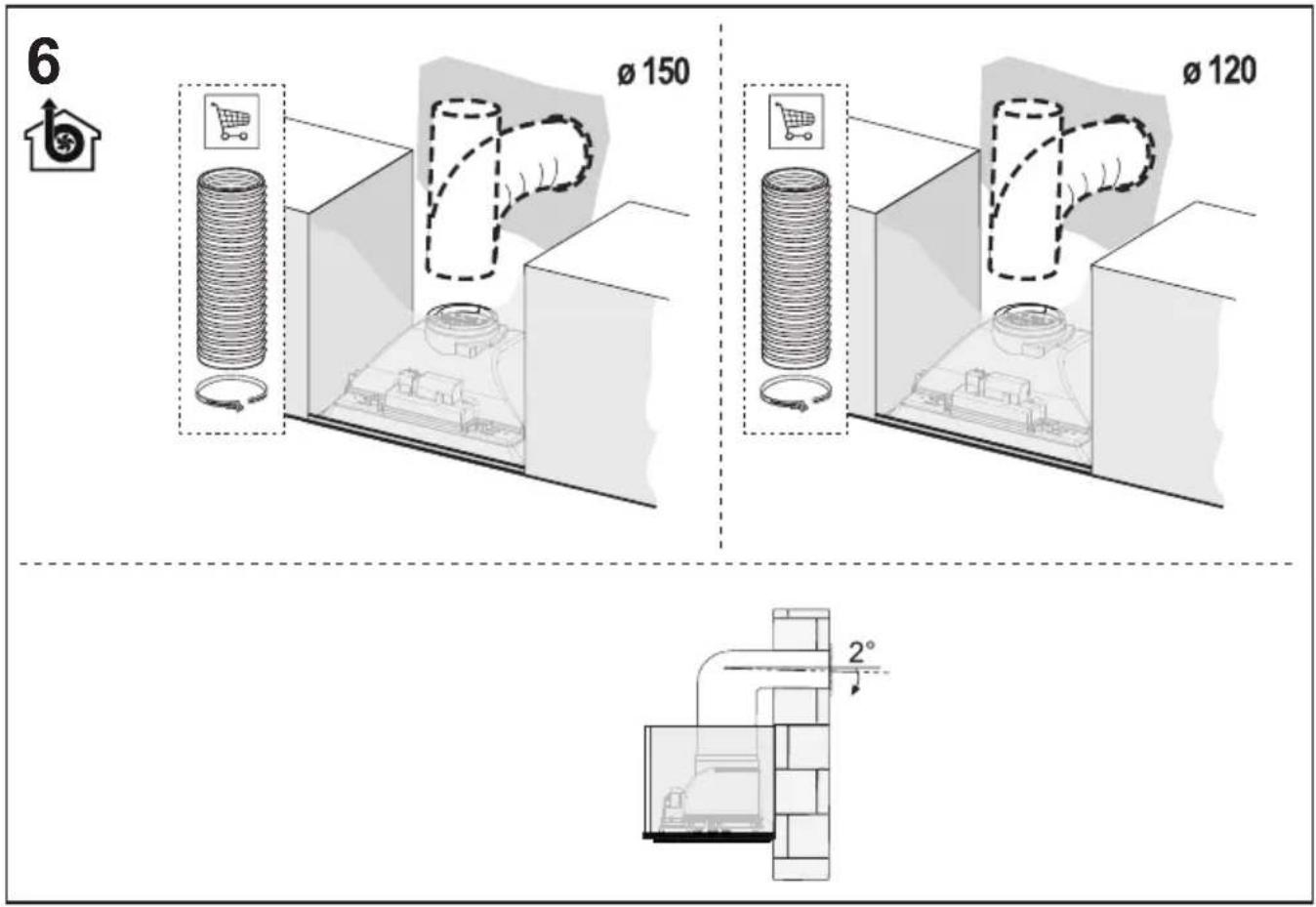

6 Ø 150 Ø 120 2°

7 G1 2x G Ø 125 G1 2x G Ø 150 W W W

8

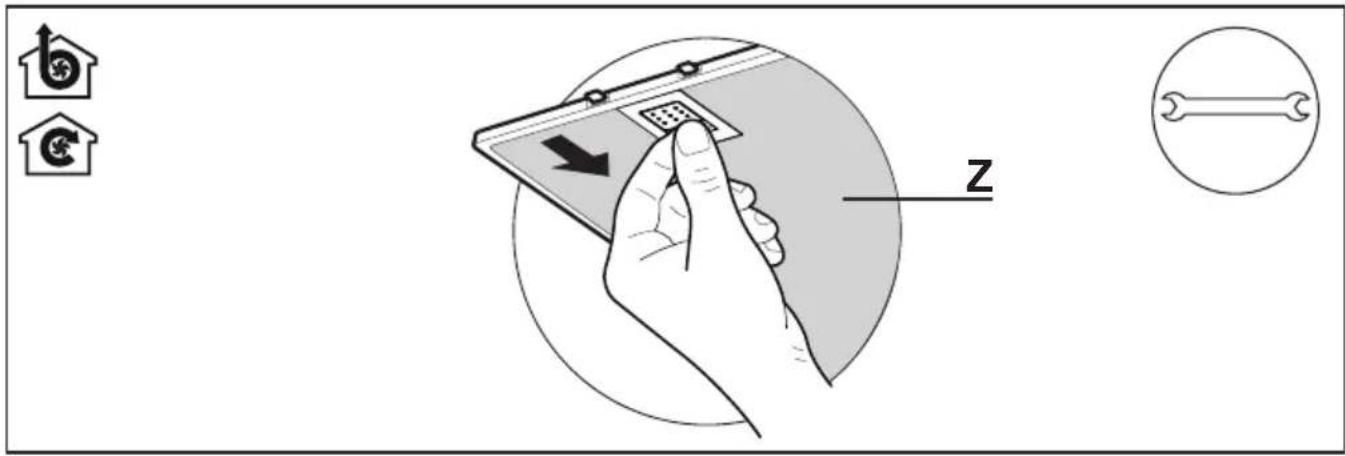

Hand holding a smartphone with a grid and arrow icon, labeled 'Z' (no text or symbols on the device itself)

Diagram illustrating a hand holding a smartphone with a wrench, showing icons for home, home renovation, and wrench tool.

Diagram illustrating a hand holding a smartphone next to a device with labeled parts including a wrench, wrench, and a car.

Diagram illustrating screwdriver tool application steps, showing tool positioning and disassembly with numbered instructions.
