Brand	Blaupunkt
Model	5DA15151
Product Type	Built-in Extractor Hood
Width Options	520 mm (8x) or 700 mm (10x)
Estimated Weight	15 kg
Power Supply	220-240 V, 50/60 Hz
Lamp Type	4 W E14 self-shielded tungsten halogen or metal halide
Controls	Light switch (L) and speed selector (0-3)
Speed Settings	0: Off, 1: Low (silent), 2: Medium, 3: Maximum
Exhaust Duct Diameter	Minimum 120 mm
Minimum Safety Distance	650 mm from cooker top (may vary per hob)
Grease Filter	Washable in dishwasher; clean every 2 months
Charcoal Filter	Not washable; replace every 4 months (heavier use more often)
Safety Features	Class I earthing, overload protection, not for flambé, anti-backflow
Installation	Must be inside a unit; plastic casing not accessible after installation
Disposal	WEEE compliant; do not dispose with household waste

Frequently Asked Questions - 5DA15151 BLAUPUNKT

What is the minimum installation height above a cooker?

The minimum safety distance between the cooker top and the hood is 650 mm. Check your gas hob manual; if it specifies a greater distance, follow that.

How do I clean the grease filter?

Remove the grease filter and wash it in a dishwasher or by hand with mild detergent. Clean it every 2 months (more often for heavy use).

How often should I replace the charcoal filter?

The charcoal filter cannot be washed and must be replaced approximately every 4 months of operation, or more frequently if used heavily.

Can I use the hood without external ducting?

Yes, as a recirculating hood with the charcoal filter installed. However, it must discharge air back into the room, and adequate ventilation should be ensured.

What should I do if the power cord is damaged?

The supply cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.

Are children allowed to use this hood?

This appliance can be used by children aged 8 years and above under supervision. Children shall not play with it, and cleaning/user maintenance should not be done by children without supervision.

What type of lamp can I use?

Use only self-shielded tungsten halogen or self-shielded metal halide lamps with E14 socket, 4 W, 220-240 V.

Can I flambé food under the hood?

No, never flambé under the range hood. It creates a fire risk.

How do I dispose of the old hood?

Do not dispose of it with household waste. Hand it over to a WEEE collection point for recycling of electrical and electronic equipment.

What do the speed settings mean?

Speed 1 is low for silent continuous air change, speed 2 is medium for normal cooking, speed 3 is maximum for heavy vapor. The motor off position is 0.

USER MANUAL 5DA15151 BLAUPUNKT

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by a specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

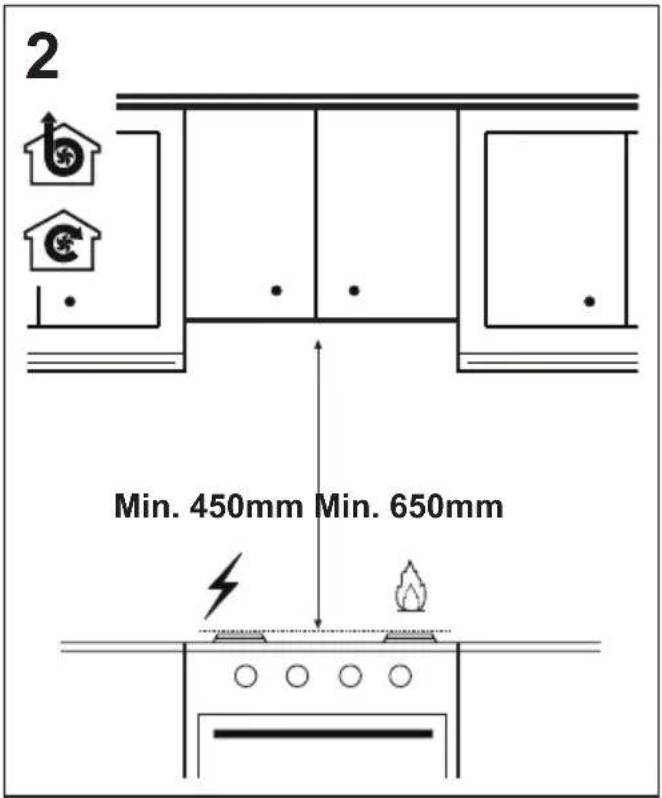

• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood. Means for disconnection must be incorporated in the fixed wiring in accordance

with the wiring rules.

For Class I appliances, check that the domestic power supply guarantees adequate earthing.

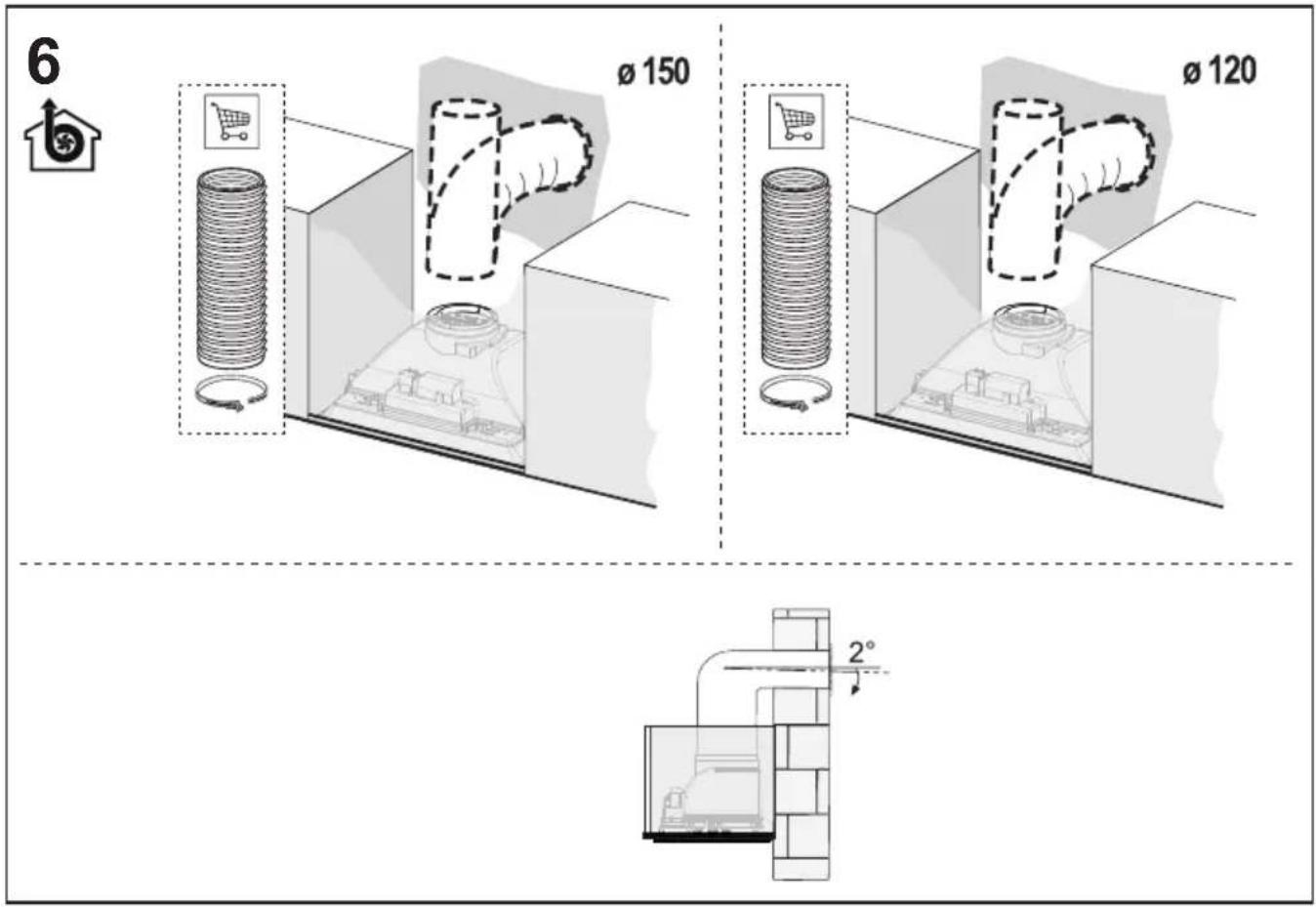

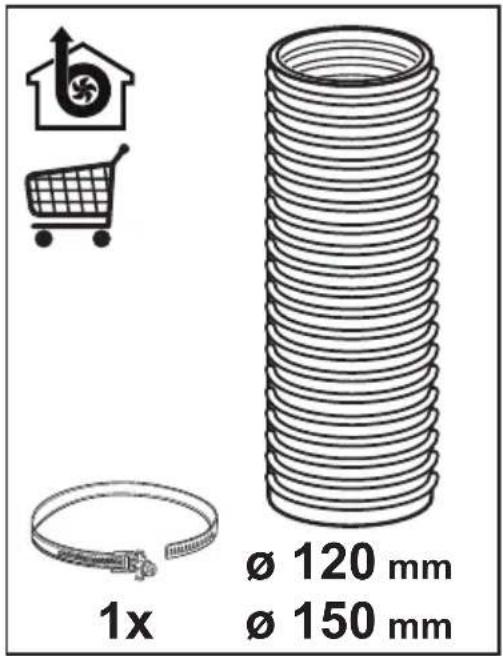

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

Regulations concerning the discharge of air have to be fulfilled.

Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging, it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
• Do not flambé under the range hood; risk of fire. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air

back into the room).

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

"In case of replacement with halogen lamp use only self-shielded tungsten halogen lamps or self-shielded metal halide lamps."

2. USE

- The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

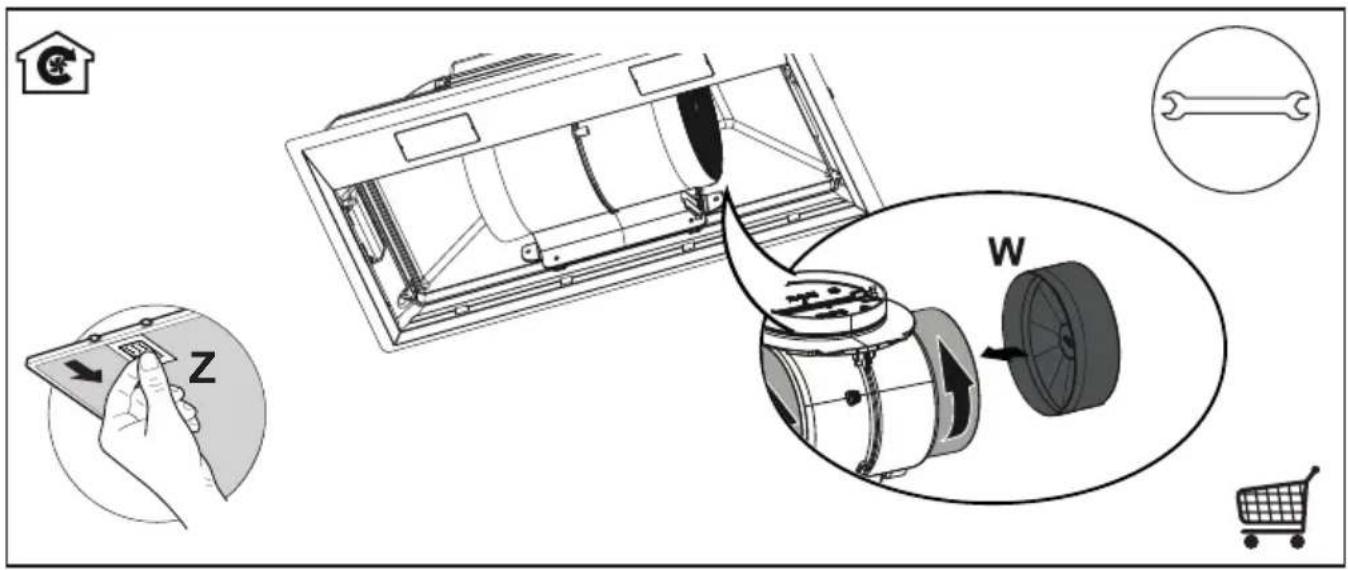

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

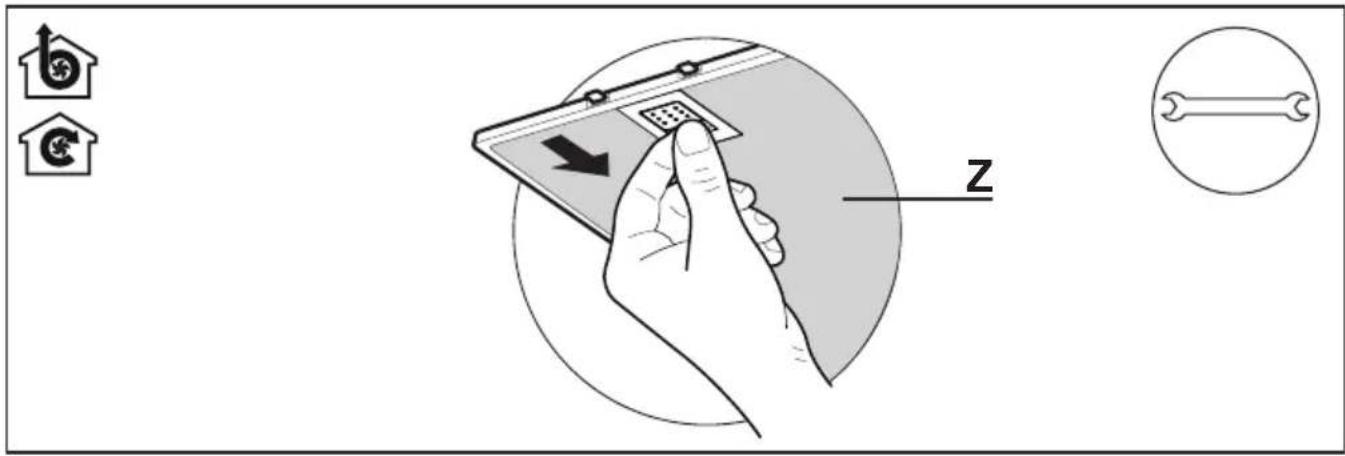

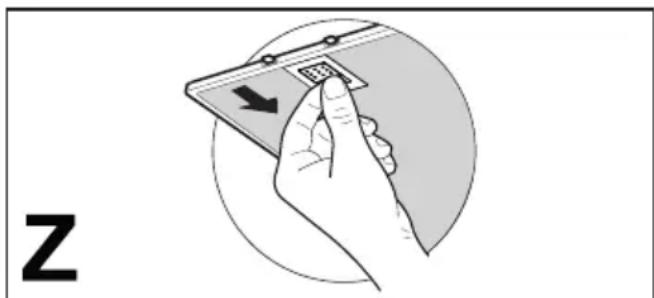

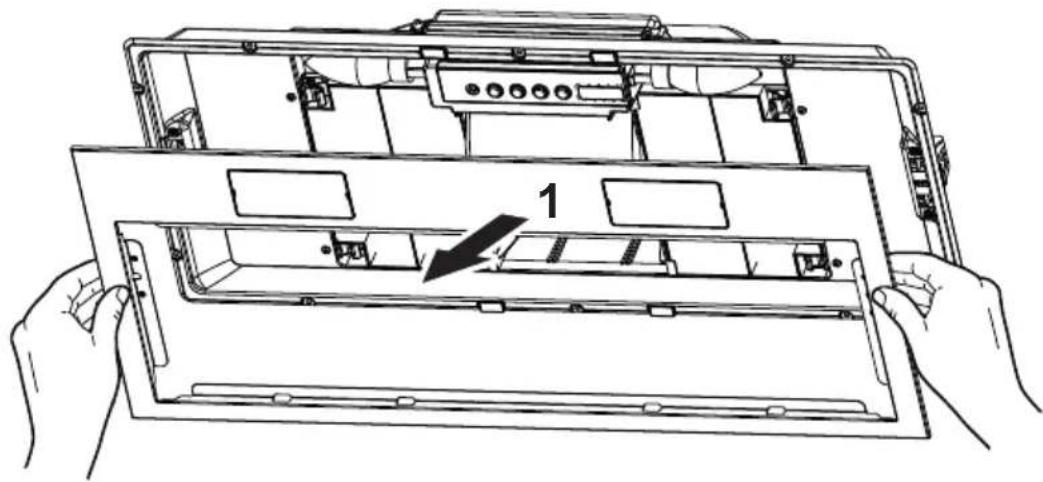

- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

- Clean the hood using a damp cloth and a neutral liquid detergent.

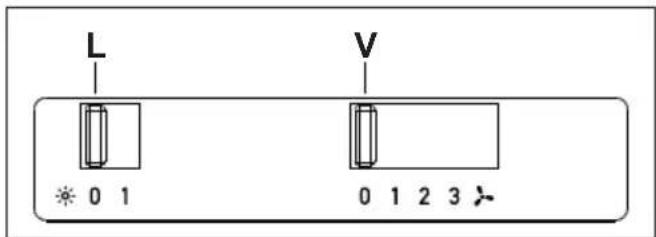

4. CONTROLS

L	Light Switches the lighting system on and off.
V	Speed Sets the operating speed of the extractor:0. Motor Off.1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

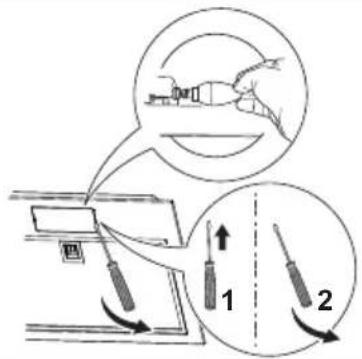

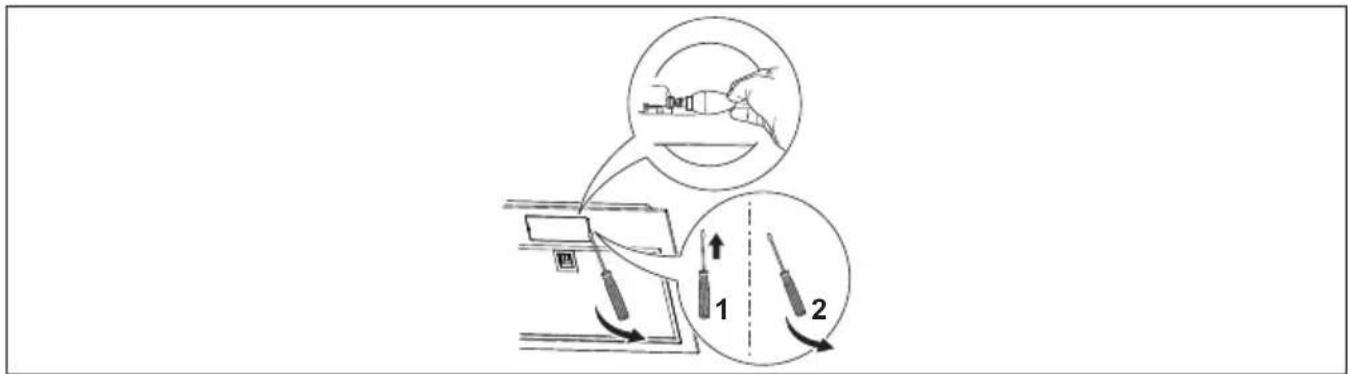

5. LIGHTING

Lamp Power (W) Socket Voltage (V) Dimension (mm) ILCOS Code
	4 E14 2	20 – 240	107 x 37	DRBB/F-4-220-240-E	14-35/100

INSTALLATION MANUAL

AU Warning! Before proceeding with installation, read the Recommendations and Suggestions in the User Manual.

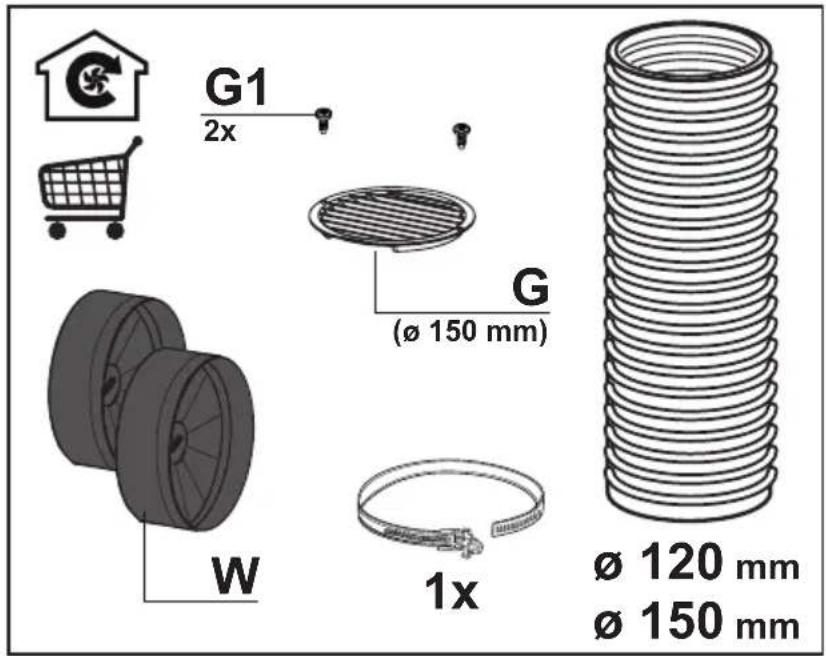

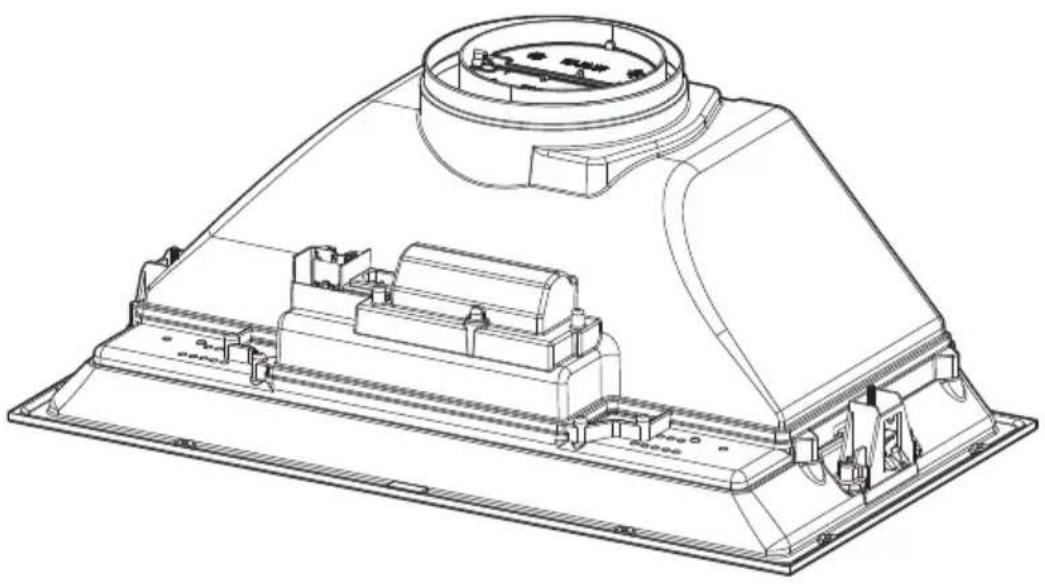

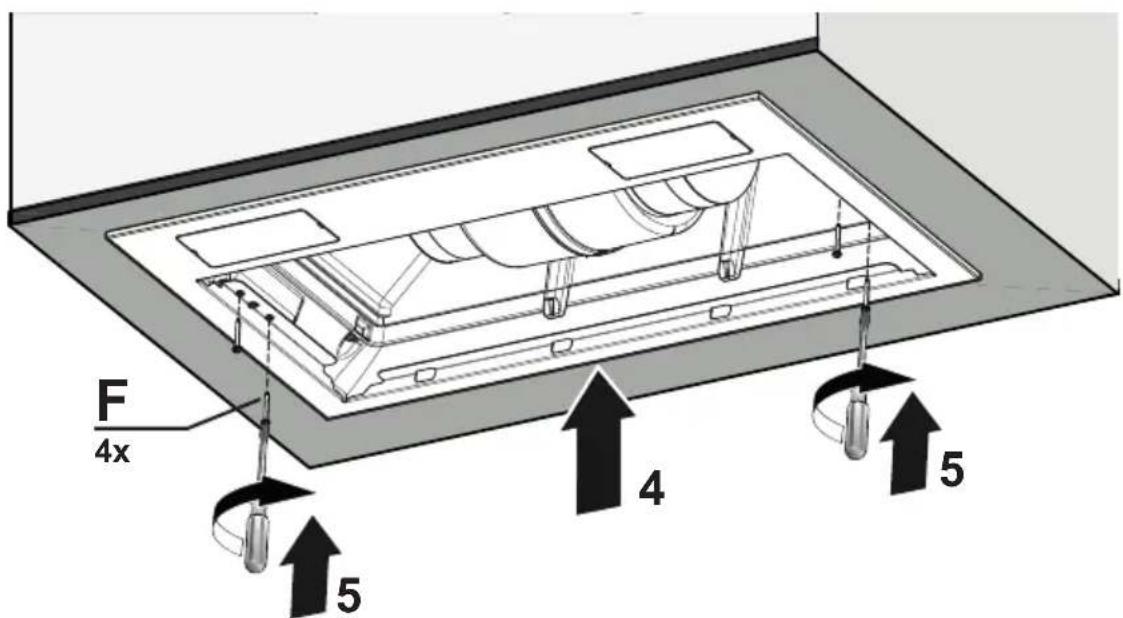

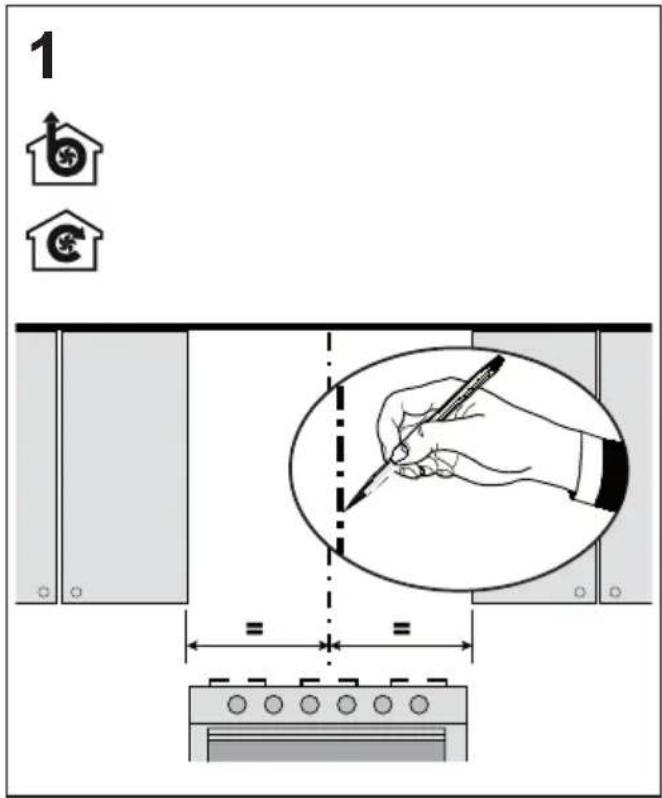

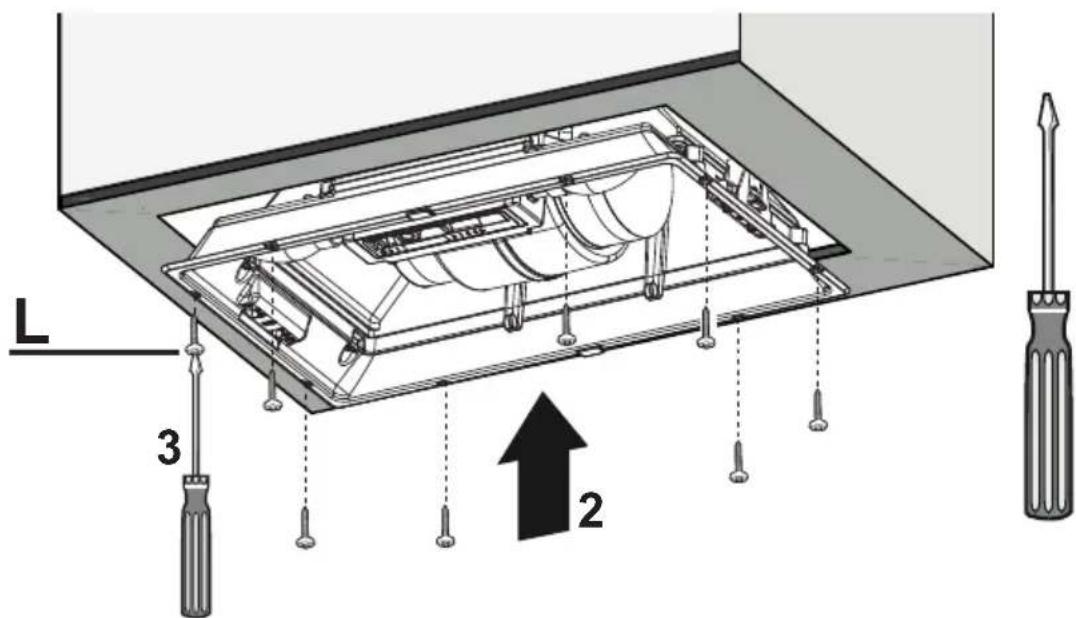

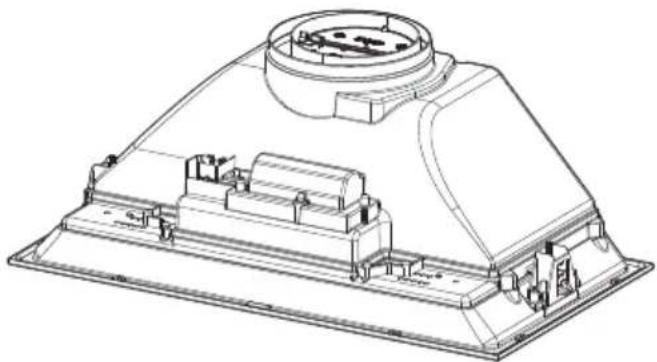

AU The hood must be installed inside a unit, so that the plastic casing around the hood cannot be reached when installation is complete.

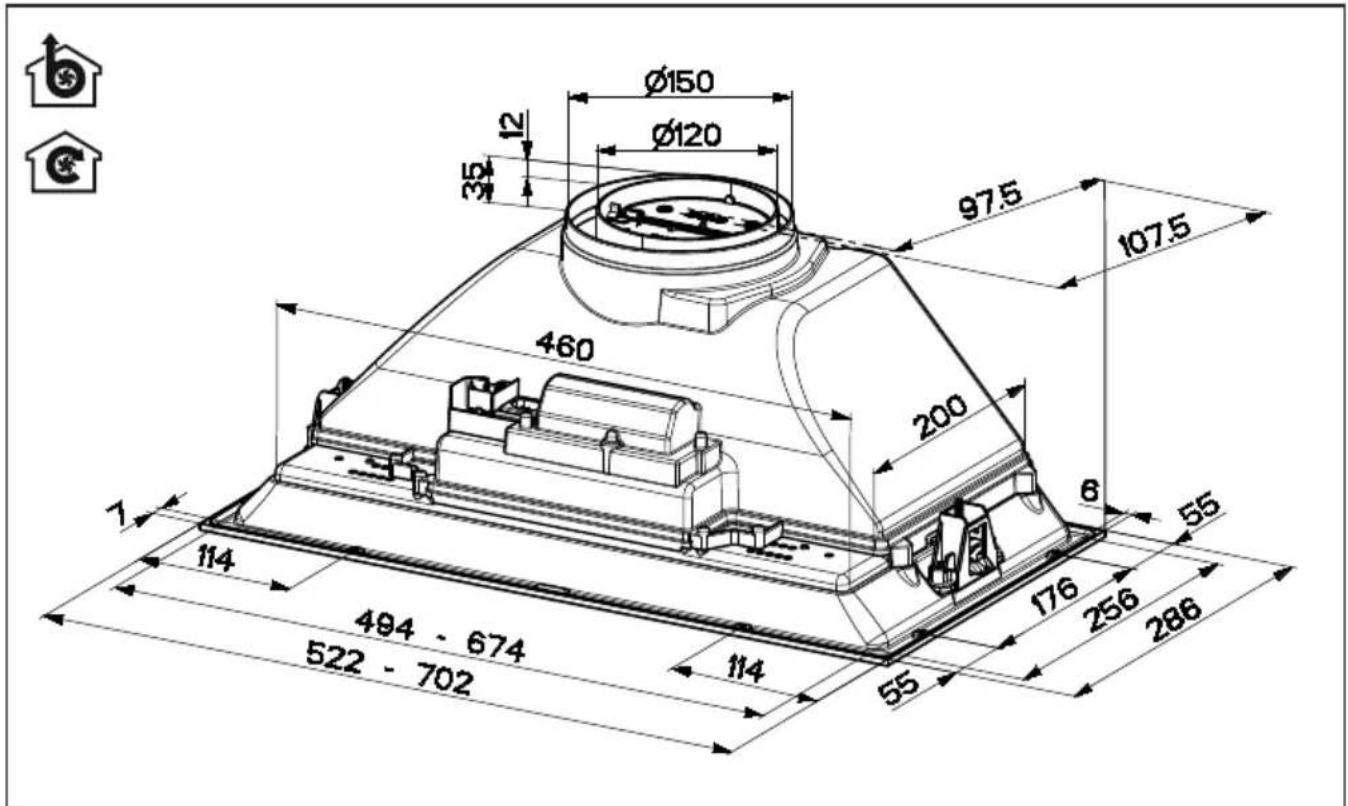

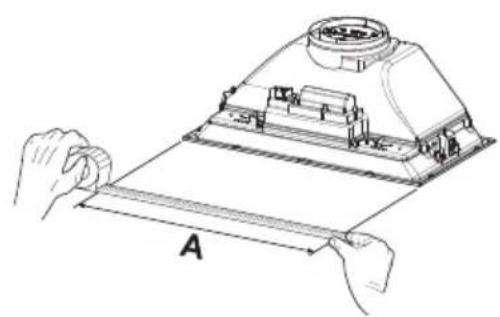

L = 8x (A = 520mm)

L = 10x (A = 700mm)

5a
