USER MANUAL GA-B489BVTP LG

Cartoon illustration showing a distressed refrigerator with a broken bottle labeled 'BUY' and 'CHANGE', symbolizing financial or market stress.

Illustration of three workers in hard hats pulling a large rectangular object (no text or symbols)

Pure electrical circuit lines without any symbols

Line drawing of a hand inserting a file into a rack or drawer (no text or symbols)

Line drawing of hands inserting a file into a folder (no text or symbols)

Architectural line drawing of a staircase with shelves and structural beams (no text or symbols)

Line drawing of a refrigerator interior with hand gestures and storage shelves (no text or symbols)

Architectural elevation drawing of a window frame with decorative railings and a wavy central element (no text or symbols)

Technical line drawing of a mechanical or architectural component with layered structure and wavy internal layer (no text or symbols)

1 MULT AIRFLOW

2 MULTI AIRFLOW

Diagram of hands operating a mechanical device with a central arrow (no text or symbols)

Line drawing of two containers on shelves, one with a label and the other with a handle (no text or symbols)

Приготовление льда

Line drawing of a kitchen appliance with a hand holding a tool, showing two compartments (no text or symbols)

Diagram showing a door mechanism with labeled parts and directional arrows indicating movement or force

Illustration of hands lifting a shelf with an arrow indicating upward motion (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Please read this manual carefully before operating your set and retain it for future reference.

GA-B489*

GA-B439*

GA-B429*

Registration

The model and serial number are found on the outer side of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. Staple your receipt here.

Date of Purchase : ____

Dealer Purchased From : ____

Dealer Address : ____

Dealer Phone No. : ____

Model No. : ____

Serial No. :

Introduction	Table of contents
	Table of the technical characteristics	36
	Important Safety Instruction	31
	Identification of Parts	36
	Identification of Parts	37
Installation	Installation	38
	Starting	38
	Climate class	38

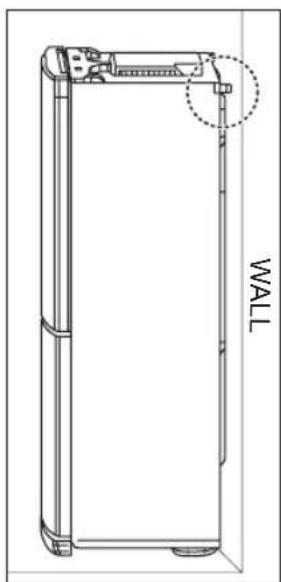

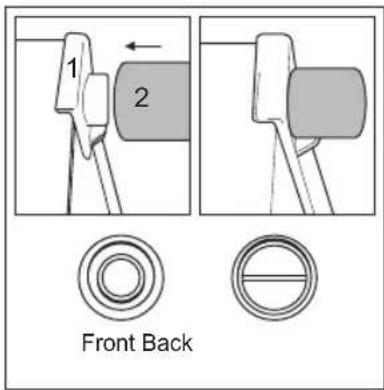

	Set stoppers	39

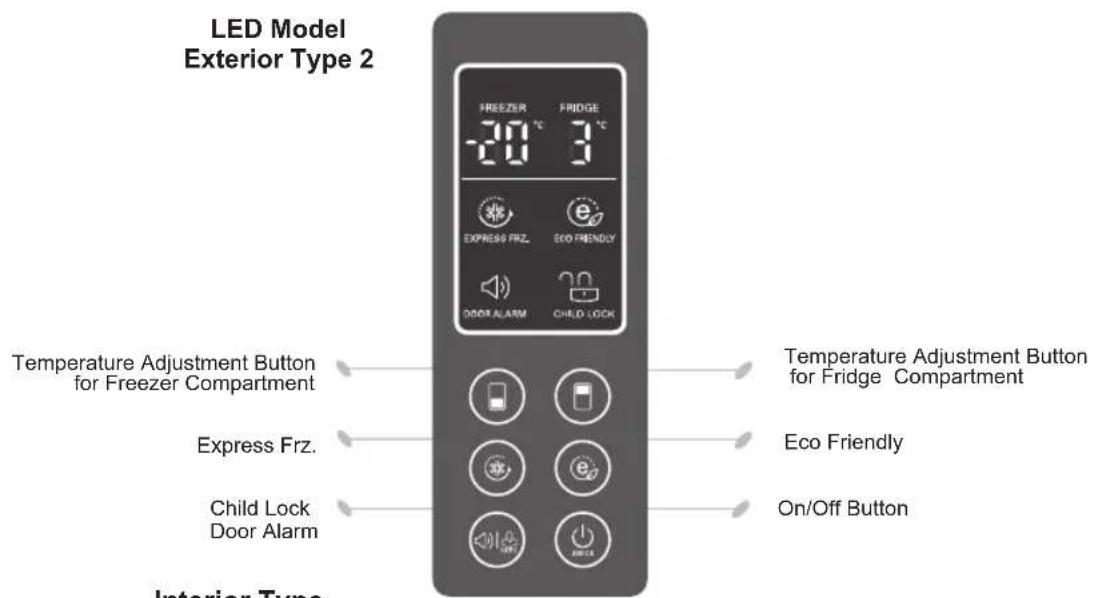

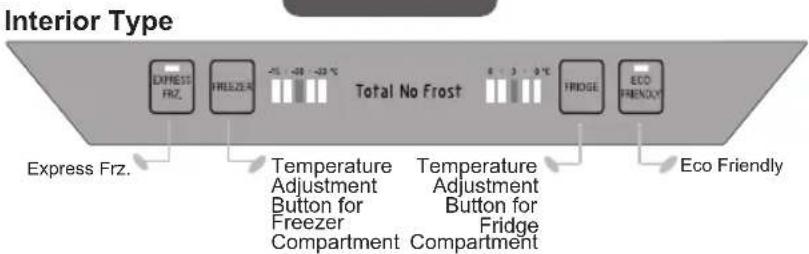

Operation	Temperature Control	40
	How to adjust the temperature in the fridge and freezer compartment	41
	OPTI Temp Zone (Chill)	41
	Express Frz.	42
	Eco Friendly	42
	Self Test	43
	Lock	43
	Door Alarm	43
	On/Off	43
	Fridge Compartment	43

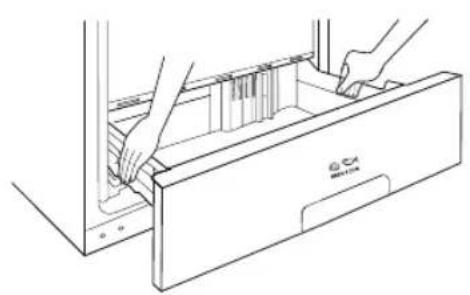

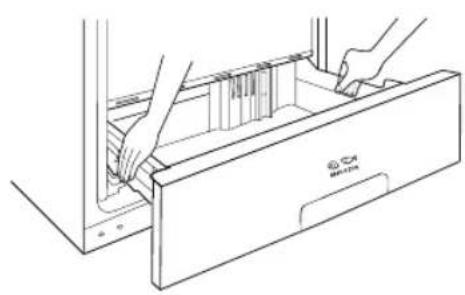

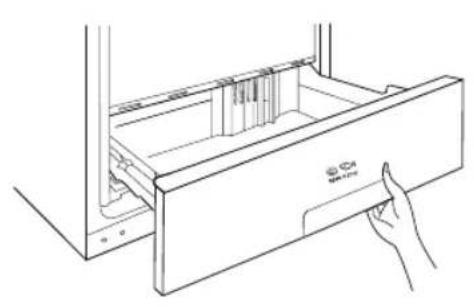

	How to separate the Opti Temp Zone drawer	44
	How to separate the cover of the drawer	44

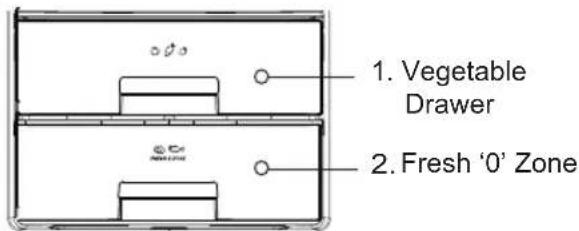

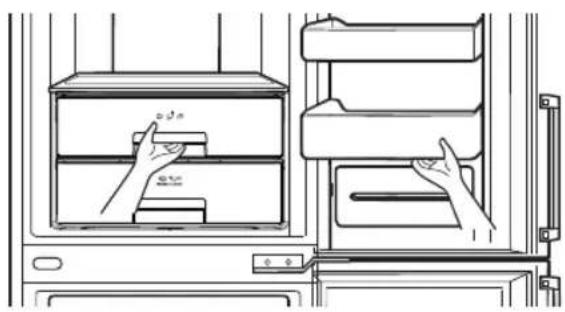

	How to separate the vegetable drawer	44

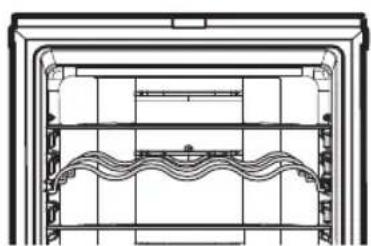

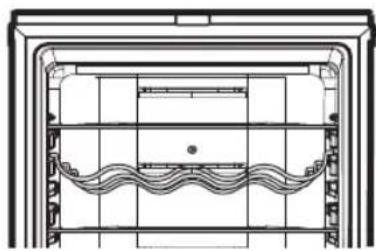

	Bottle Rack	45

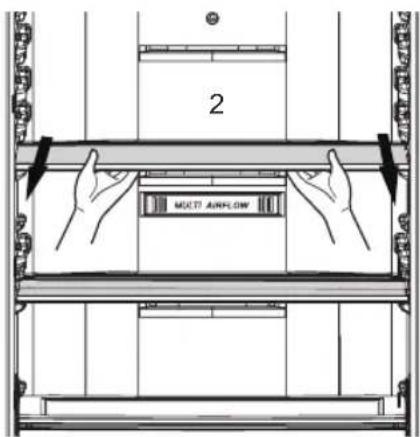

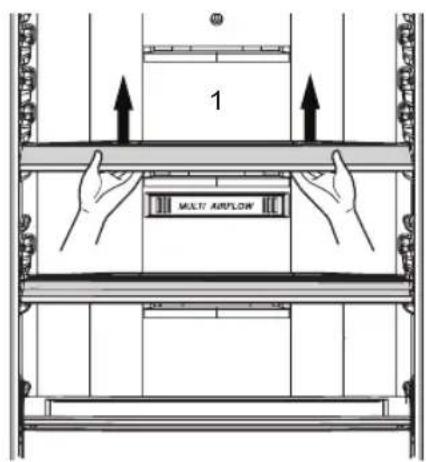

	Removable Glass Shelf	45

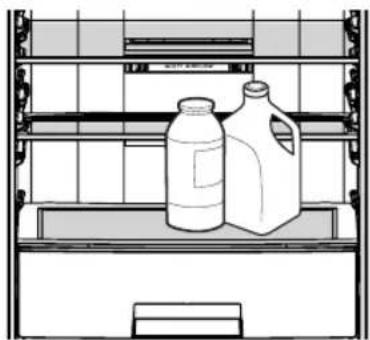

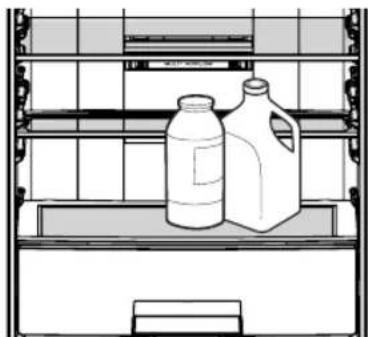

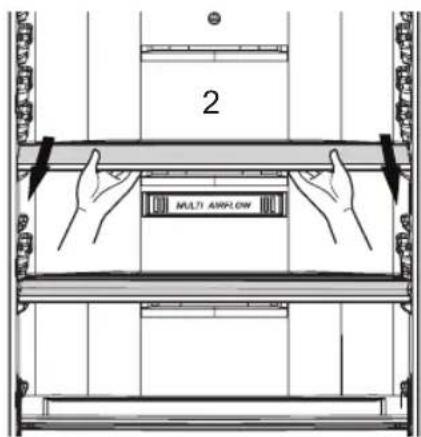

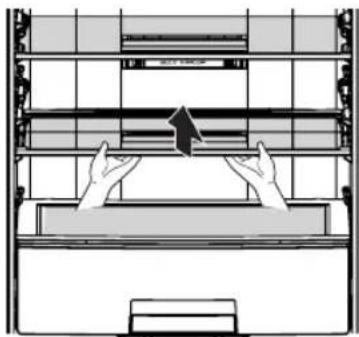

	Folding Glass Shelf	46

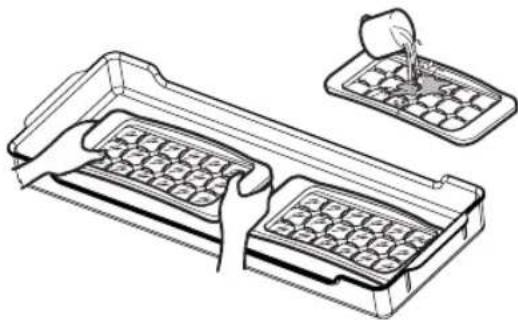

	Ice Making	46

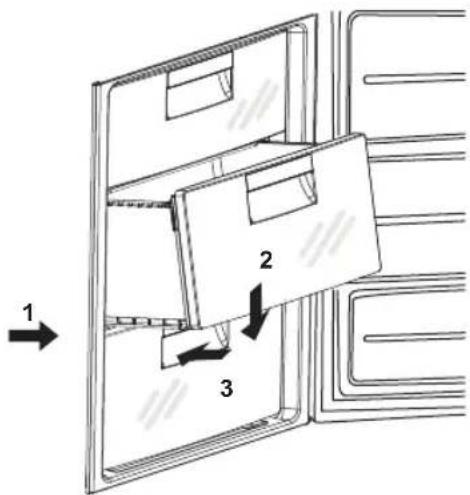

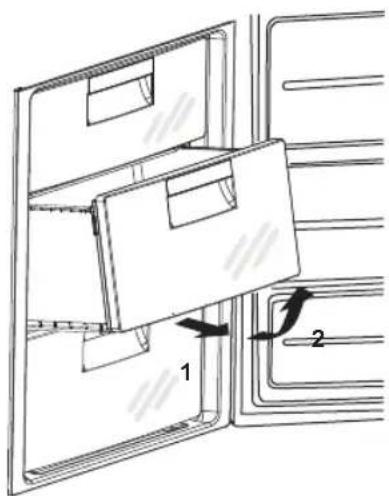

	Removing/Installing freezer drawers	47
	Storing Food	48
Suggestion On Food storage
Care and Maintenance	Cleaning	48
	General Information	49
	To Reverse the Doors	50
	Refrigerator work features	50

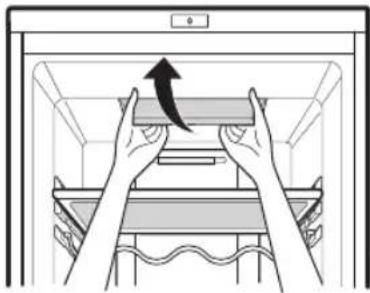

	Lamp Replacement	50
Trouble Shooting	Trouble Shooting	51

The working life of this set is 7 years since the date of delivery to consumer.

:rezeerF-rotaregirfeR a fo sc

Specification\Model	PTVB984BGPSVB984BGZKAD984BGZA984BG		GA-B489B*QAGA-B489B*CA		GA-B439B*QA	GA-B439B*CA	GA-B429B*QA	GA-B429B*CA
Rating (V~NZ)	220 - 240V~ 50 Hz
Climate class	SN-T
Rated current (A)	0,7	0,55
Rated input (W)	60	120
- defrost input (W)	170
- of sheath heater (W)	170
- of lamp, maximal (W)	-	-	30	-	30	-	30
Gross vol. total (l), Storage/Gross	335/394	360/394		334/368		297/331
- freezer compartment (l), Storage/Gross	105/131
- chill food compartment (l)	17	-
- fresh food compartment (l), Storage/Gross	213/263	255/263		229/237		192/200
Refrigerant/weight (g)	R600a/62g
Insulation blowing agent	Cyclopentane
Dimensions:
- height (mm), Net/Packing	2000/2095			1900/1995		1800/1895
- depth (mm) Net/Packing	688/745	685/745
- width (mm), Net/Parting	595/655
- weight (kg), Net/Parting	89/95	86/92	84/90	82/88	80/86	76/82
Freezer class	Total No Frost
Cooling system
Class of Energy Efficiency GOST R 51565-2000	A++	A
Sound power level, dBA	40	41

NOTE

Technical characteristics of the refrigerator can be changed by the Company-manufacturer without prior Notice.

Important Safety Instruction

To avoid any risk of personal injury, material damage or incorrect use of the appliance, be sure to observe the following safety precautions. (After reading these owner's instructions, please keep them in a safe place for reference). Remember to hand them over to any subsequent owner.

WARNING!

Indicates that a danger of death or serious injury exists.

CAUTION!

Indicates that a risk of personal injury or material damage exists.

The working life of this set is 7 years since the dateofdeliveryto consumer. Ina case of defying manual owner regulation, manufacturer do not carry warranty liability.

WARNING!

• This fridge-freezer must be properly installed and located in accordance with the Installation Instruction before it is used.
• Do not disassemble, repair or alter the appliance. It may cause fire or abnormal operations, which way lead to injury.
  • To reduce the risk of fire, electric shock or injury to persons when using your product, basic safety precautions should be followed.

1. When connecting the power

A separate outlet

should be used.

Using several devices at one outlet may cause fire.

Water on the plug or plug damage can cause fire or electric shock.

Make sure the mains cable is not bent or trapped under a heavy object. It may damage the cable and cause fire or electric shock.

Cartoon illustration of a refrigerator with a 'NO' sign and a fan, no text or symbols present

Do not change the mains cable and do not change its length. It may damage the cable and cause fire or electric shock.

If the mains cable is

damaged it must be replaced by a service agent or a similarly qualified person in order to avoid hazard.

Do not pull the cable or touch the plug with wet hands.

It may cause electric shock or injury.

Remove water or dust from the plug and securely connect it to the socket.

Dust, water or looseness in connection may cause fire or electric shock.

The appliance must be earthed.

Incorrect grounding may cause breakdown or electric shock.

Ground Wire Copper Flat More than 30 inches (80 cm)

When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them. It may cause electric shock or short circuit to make fire.

2. When using the fridge - freezer

Do not place heavy or dangerous objects such on the top of the appliance.

When opening or closing the door it may fall and cause injury, fire or electric shock.

Do not cling to the doors, door baskets, drawers or shelves.

These may cause the appliance to fall or lead to hand injuries. Especially, do not allow the children to do the above.

Deterioration of insulation of electric parts may cause short circuit or electric shock.

Do not use or store inflammable materials, such as ether, benzene, alcohol, LP gas, sprays or cosmetics, near or in the appliance.

Cartoon illustration of a smiling refrigerator with a distressed expression and a crossed-out book labeled 'Egg' (Egg) on its side.

It may cause explosion or fire.

Do not place the lit candle within the fridge-freezer to deodorize.

Do not use drier to dry the inside, nor light a candle to remove odor.

It may cause explosion or fire.

Do not put any live animals into the appliance.

Do not store medicine or scientific materials in the appliance.

Storing materials with strict temperature limitations may cause deterioration of the materials or other unexpected reaction and ma

NO

Use the submerged fridge-freezer only after it's been checked by service agent.

It may cause electric shock or fire.

In case of gas leakage do not touch the appliance or socket and ventilate the room immediately.

Natural gas (isobutane, R600a) is used as the refrigerant. It is environment-friendly but even small amount (80\~90g)

is flammable.

If in process of transportation, installing or using some damage caused gas leakage, any spark may result in fire or burns. After ventil contact the service center

Cartoon illustration of a smiling refrigerator with 'GAS' branding and a person running away from the door (no text or symbols)

Do not spray water on the outside or inside of the appliance and do not clean it with solvents.

Deterioration of insulation of electric parts may cause electric shock or fire.

To carry the appliance hold handles on the front bottom and rear top sides.

Otherwise, your hands may be slipped to cause injury.

Illustration of three workers in hard hats pulling a large rectangular object (no text or symbols)

Please, be careful opening or closing the doors of the appliance for it may cause injuries to other people.

A hand or a foot can be caught between the door and case when opening or closing the appliance or a child can be hurt by a corner of the door.

NO

When any strange smell or smoke is detected from the fridge-freezer,

disconnect the power plug immediately and contact to the service center. It may cause fire.

Service center

Only qualified technician should disassemble, repair or alter the appliance.

NO

Do not use the fridge-freezer for non-domestic purpose

(storing medicine or testing material, using at the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

When disposing the

appliance, remove the gasket from the doors and leave the shelves on their places.

Otherwise a child may be locked inside.

Install the fridge-freezer on the solid

and level floor.

The appliance should be installed on a plane surface to prevent it from falling and causing injuries or death.

Do not put hands or

other things in the air holis, under the cover, into the holes at the back of the appliance.

It may cause electric shock or injury.

NO

Don't use heating devices close to t appliance.

It may cause fire.

NO

Do not put hands under the appliance.

The iron plate at the bottom may cause injury.

CAUTION!

Violation of these instructions may cause injury or damage to house or furniture.

Always be careful, please.

When you want to dispose the fridge-freezer, contact the down-block office.

The refrigerant and insulation blowing gas used in the appliance require special disposal pro

Before disposal, make sure none of the pipes at the back of the appliance is damaged.

Do not touch food or containers at the freezer with wet hands.

It may cause frostbite.

After unplugging the appliance, wait for 5 minutes or longer before reconnecting the plug.

It may cause the operation of the freezer to fail.

Do not put bottles into the freezer.

Frozen contents may break the bottle and cause injury.

To unplug the appliance pull the end of the plug and not the cable.

Extraction by the cord may cause electric shock or short circuit and fire.

Unplug the power plug when cleaning, handling or replacing the interior lamp of the fridge-freezer.

- It may cause electric shock or injury.

- When replacing the interior lamp of the fridge-freezer, make sure that the rubber ring for preventing the electric spark within the socket is

Do not use the combustible spray near the fridge-freezer.

It may cause fire.

In case of thunder and lightning, or not in use for a long period

of time, detach the power plug.

There is a danger of electric shock or fire.

Do not place flower vase, cup, cosmetics, medicine or any container with water on the fridge-freezer.

It may cause fire, electric shock or injury by dropping down.

Socket must be easily accessible for quick disconnection at emergency.

Do not let children touch or play with the control panel on the front of the appliance.

WARNING!

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not with the appliance play

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Isobutane (R600a) is an environmental-friendly natural gas, but it is flammable.

When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Leaking refrigerant can ignite or cause eye injuries. If gas leakage is detected, remove from the room any open flames or potential sources of fire and ventilate the room for several minutes.

To avoid occurrence of a flammable gas mixture in case of leakage of refrigerant the size of the room in which the appliance may be used must be bigger then minimal allowed size, depending on the amount of used refrigerant. The room must be at least 1 m² for every 8g of R600a refrigerant used in the appliance. The amount of used refrigerant is indicated on the label inside the fridge compartment.

Never turn on the appliance showing any signs of damage. If in doubt, consult your dealer.

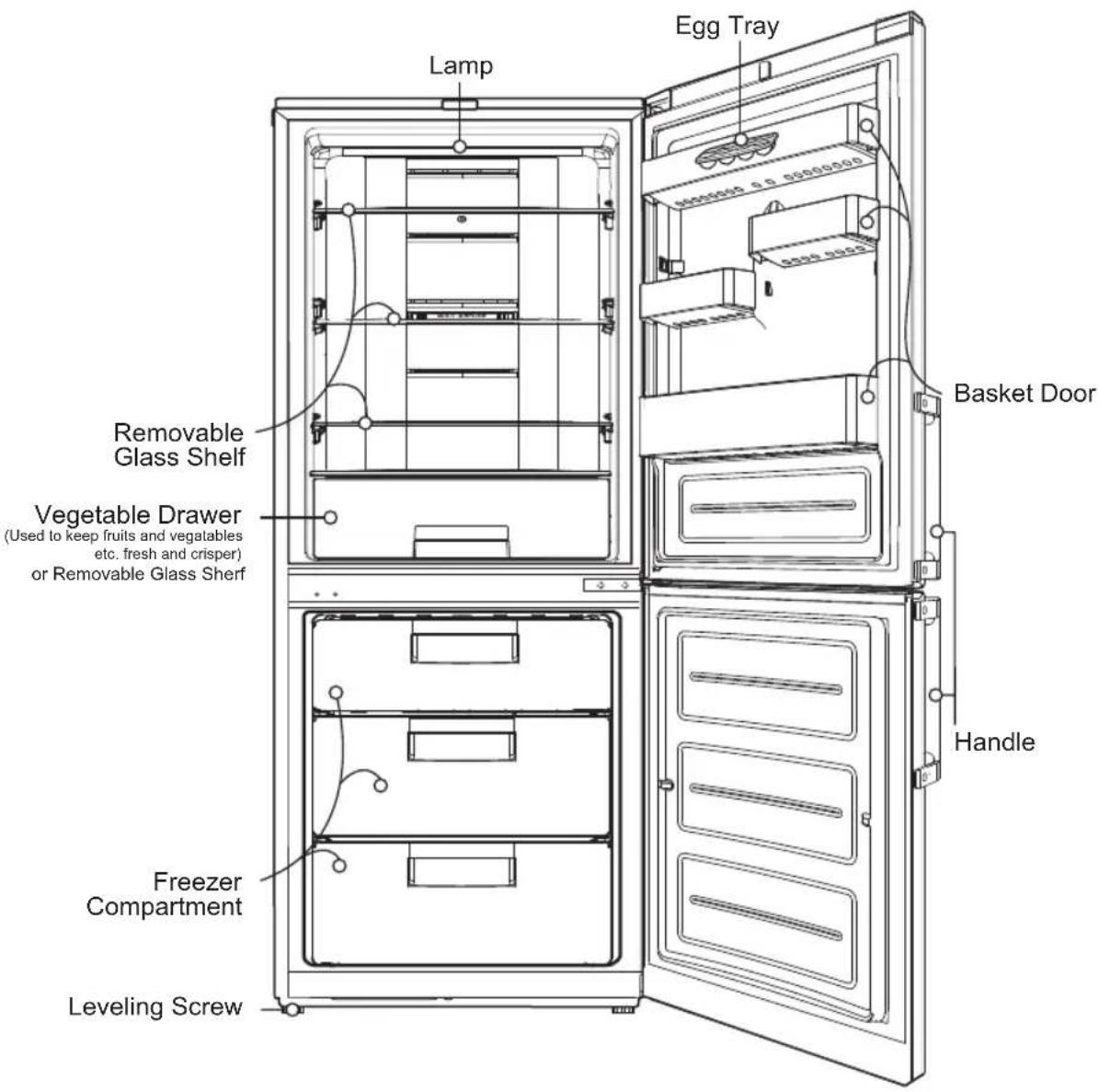

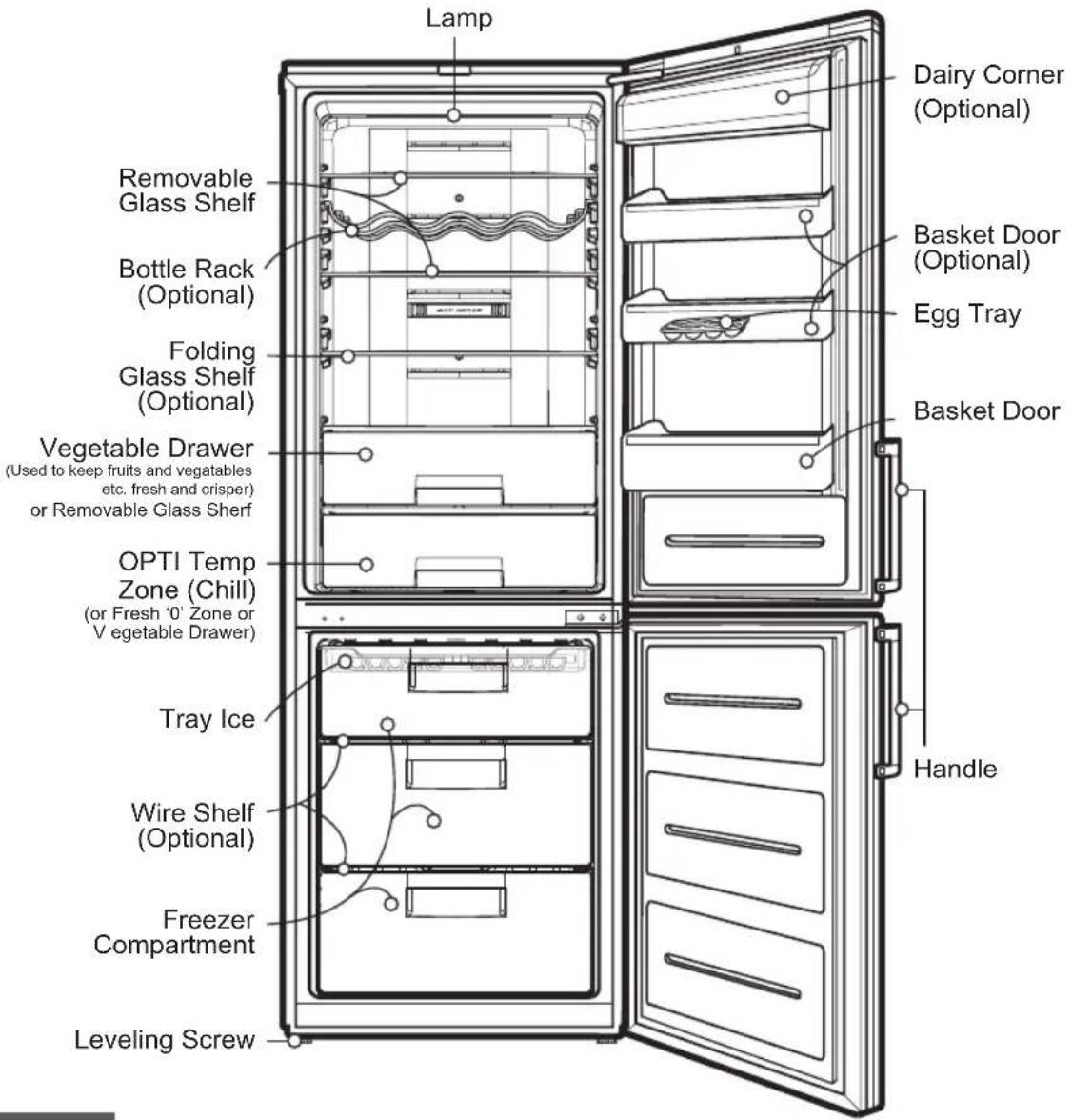

IDENTIFICATION OF PARTS

Model Name:

GA-B489****

GA-B439****

Lamp Removable Glass Shelf Bottle Rack (Optional) Folding Glass Shelf (Optional) Vegetable Drawer (Used to keep fruits and vegetables etc. fresh and crisper) or Removable Glass Sherf OPTI Temp Zone (Chill) (or Fresh '0' Zone or V vegetable Drawer) Tray Ice Wire Shelf (Optional) Freezer Compartment Leveling Screw Dairy Corner (Optional) Basket Door (Optional) Egg Tray Basket Door Handle

NOTE

If you find some parts missing from your unit, they may be parts only used in other models.

Specification of the refrigerator can be changed by the Company-manufacture r without prior Notice.

IDENTIFICATION OF PARTS

Model Name:

GA-B429****

Lamp Egg Tray Removable Glass Shelf Vegetable Drawer (Used to keep fruits and vegetables etc. fresh and crisper) or Removable Glass Sherf Freezer Compartment Leveling Screw Basket Door Handle

NOTE

If you find some parts missing from your unit, they may be parts only used in other models.

Specification of the refrigerator can be changed by the Company-manufacture r without prior Notice.

Installation

1. Choose a good location. Place your fridge-freezer where it is easy to use.
2. Do not place the appliance close to sources of heat, exposed to the direct sunlight or moisture.
3. Make sure that the power supply voltage and type of current which are specified in the instruction are according to the settings in your power supply.
4. To provide necessary of air circulation, you should leave enough space behind, on each side and top of refrigerator-freezer. Set the limit stops in the upper corners of the back plate of the device as shown in picture 1. Stops are delivered in the basket door inside the refrigeration cabinet.
5. To provide optimal heat exchange and the reduction of power consumption, it is recommended to keep the gap from the top, between the rear and side walls of the device and room walls not less than 5 cm.(picture 2)
6. Please, do not remove the round stickers on the back side of the refrigerator. They are performing decoration functions by closing technological holes.

7. To avoid vibration, the unit must be leveled. If required, adjust the leveling screws to compensate unevenness of the floor. The front should be slightly higher than the rear for better door closing. The front should be slightly higher than the rear to aid in door closing. To easily turn the leveling screws tilt the appliance slightly. Turn the leveling screws counterclockwise (☐) to raise forward part of a refrigerator, clockwise (☐) to lower it.

8. Before using the appliance clean it thoroughly.

9. Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during transportation.

10. Connect the power supply cord (or plug) to the outlet. Don't plug in with other appliances on the same outlet.

Starting

When the appliance is installed let it operate for 2-3 hours at normal temperature setting before filling it with fresh or frozen food. After unplugging the appliance, wait for 5 minutes or longer before reconnecting the plug. Your fridge-freezer is now ready for use.

Climate class

The appliance is designed to operate at the limited range of ambient temperature, depending on climate zones. Do not use the appliance at the temperature out of the limit. Climate class of your appliance is indicated on the label with technical description inside the fridge compartment.

Class	Symbol	Ambient temperature range °C
Extended temperate	SN	+10 to +32
Temperate	N	+16 to +32
Subtropical	ST	+16 to +38
Tropical	T	+16 to +43

SET STOPPERS

1 2 Front Back

picture 1

Push 2 (Stopper) to the part of 1 until the end.

Technical line drawing of a rectangular device with a highlighted internal component and 'WALL' label (no other text or symbols)

picture 2

After attaching 2, push the refrigerator to the end of the wall.

CAUTION!

This part must be installed for efficiency of refrigerator.

NOTE

Part 2 is located at the R room refrigerator door basket.

TEMPERATURE CONTROL

Your fridge-freezer has controls that let you regulate the temperature in the fridge and freezer compartments.

Display Panel For Temperature Control Adjusting the temperatures and functions

LED Model Exterior Type 1 FREEZER 20°C 3°C OPTI-ZONE VEG. MEAT EXPRESS FRZ. ECO/FRIENDY DOOR ALARM CHILD LOCK Temperature Adjustment Button for Freezer Compartment Express Frz./Eco Friendly Child Lock/ Door Alarm Temperature Adjustment Button for Fridge Compartment Temperature Adjustment Button for Opti Temp Zone (Chill) Compartment On/Off Button

LED Model Exterior Type 2 Temperature Adjustment Button for Freezer Compartment Express Frz. Child Lock Door Alarm FREIZER 30°C 3°C EXPRESS FRZ. ECONYLEDY DOOR ALARM CHILD LOCK Temperature Adjustment Button for Fridge Compartment Eco Friendly On/Off Button

Interior Type EXPRESS FRZ. FREEZER -5% -48% -30% Total No Frost 6.3 - 9°C FRIDGE ECO FRENOY Express Frz. Temperature Adjustment Button for Freezer Compartment Temperature Adjustment Button for Fridge Compartment Eco Friendly

How to adjust the temperature in the fridge and freezer compartment

- The initial temperature of the fridge and freezer compartments is -20^ and 3^ respectively. You can now adjust the temperature of the compartments as you want.

Exterior Type 1

Exterior Type 2

Interior Type

NOTE

The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not actual temperature within refrigerator. Fridge-freezer function is weak in the initial time. Please adjust temperature as above after using refrigerator for minimum 2\~3 days.

OPTI Temp Zone (Chill)

• Optimum temperature can be chosen by pressing the button to store vegetables or fruits (at relatively low conservation temperature) or other types of food such as meat to be defrosted.
• You can choose optimum temperature range depending on type of food stored.

Exterior Type 1

OPTI-ZONE VEGE. | MEAT

• Two modes are available: for storing vegetables or fruits (2°C) and meat or fish (-1°C).
• Vegetable and cold storage food that require humidity control and meat/fish can be preserved fresher according to its type.
• When VEGE. lamp is on, OPTI Temp Zone has the optimum temperature for storing vegetables and fruits. When MEAT lamp is on, OPTI Temp Zone has the optimum temperature for storing meat or fish.
• Chill compartment temperature is maintained within -2^ 3^ regardless of ambient temperature. Chill compartment is the special temperature zone.

Express Frz.

• You can use this function for quick freezing.
• This function is used when you want to freeze the food quickly. Press the Express Frz. Button once. The Express Frz. Lamp turns on and the quick freezing starts.
• The Express Frz. operation takes about 24 hours. When its operation ends, it automatically returns to the previous temperature setting. If you want to stop the quick freezing operation, press the Express Frz. Button once more, the lamp goes out, and the Express Frz. Operation stops and the refrigerator returns to the previous temperature setting.

Exterior Type 1

Exterior Type 2

Interior Type

- On LED Model Exterior Type 1 press Express Frz./ECO Friendly button once to turn the Express Frz.mode on. Press the button again to turn ECO Friendly mode on. Pressing the button third time will turn both modes off and return the previous temperature setting.

NOTE

When the Eco Friendly mode is "ON", the other buttons will not operate. When you don't need this function any more press the Eco Friendly button to return the appliance to its previous temperature setting and turn on other buttons.

Eco Friendly

- This function tunes on the power saving mode which is useful when you are away for holiday. It helps to reduce energy consumption. It helps to reduce energy consumption. To start the function press ECO FRIENDLY button, the lamp will turn on. To stop the function press the button again.

Exterior Type 1

e ECO FRIENDLY

Exterior Type 2

e ECO FRIENDLY

Interior Type

Self Test

• This function automatically detects if a failure occurs in the appliance.
• If the failure occurs, the buttons do not operate or display indication is wrong, do not turn off the power and immediately contact a local service center.
• If you turn the appliance off it can take much time for a service engineer to detect the failed part.

Lock

For LED Model

• Pressing this button stops operation of other buttons.
• Locking or unlocking is repeated whenever the LOCK button is pressed. (For locking hold the LOCK button for 3 seconds. For unlocking hold the LOCK button for 3 seconds).
• When LOCK is activated, pressing the other buttons would not work.

Unlock

Lock
Lock

Unlock

Door Alarm

• When the door of the fridge is opened for a while (\~30 sec.; \~1 min.), the alarm sounds.
• Please contact the local service center if the warning continue to sound even after closing the door.
• You can turn door alarm on and off by pressing Door Alarm button shortly.

On/Off

• This button turns the appliance on and off.
- Turning on and off is repeated whenever the ON/OFF button is pressed. (To turn the appliance off hold the ON/OFF button for 7 seconds. To turn the appliance on press the button shortly).

On

Off

Fridge Compartment (Applicable to some models only)

1. Vegetable Drawer 2. Fresh '0' Zone

1. Vegetable Drawer

Store vegetables and fruits.

1. Fresh '0' Zone

Store only meat or fish. If the vegetables or fruits are stored they can be frozen.

Fresh '0' Zone temperature can be changed by setting as follows:

• When the fridge compartment is set on 6^ C , temperature in Fresh '0' Zone is 4 ± 2^ C .
• When the fridge compartment is set on 3^ C , temperature in Fresh '0' Zone is 0 ± 2^ C .
• When the fridge compartment is set on 0^ , temperature in Fresh '0' Zone is -3 ± 2^ .

How to separate the OPTI Temp Zone drawer (Optional)

To separate the drawer pull it forward as much as possible and then lift it up with both hands.

Line drawing of a hand inserting a CD drive into a file holder (no text or symbols)

Line drawing of hands inserting a CD into a file folder (no text or symbols)

How to separate the cover of the drawer

To separate the cover of the drawer first take out the vegetable drawer. To do it pull the drawer forward and the lift it up.

Then:

Technical line drawing of a mechanical assembly or shelf with no visible text or symbols

1. Lift the front of the cover and pull it forward.

How to separate the vegetable drawer

Remove the lower basket from the door by lifting it up.

Pull the drawer until it stops and slightly lifting it up pull it to take it out.

Line drawing of a refrigerator interior with hand gestures installing or adjusting the shelves (no text or symbols)

Bottle Rack Removable Glass Shelf

On the bottle rack bottles can be stored.

You can invert the bottle rack and place it under the shelf.

This will free more space for the lower shelf.

Architectural cross-section diagram of a building facade with grid lines and structural elements (no text or symbols)

Ex. in use

Architectural cross-section diagram of a building facade with wavy internal structure (no text or symbols)

Ex. out of use

To extract the shelf from fridge, at first – lift up the back of the Shelf 1, and then - pull it out Side 2. In case of wrohg extracting of the Shelf, the damages of inner surfaces of fridge possible.

1 MULTI AIRFLOW

2 MULT AIRFLOW

Folding Glass Shelf

To place high objects, for example, bottles, it is necessary to lift the front half of the shelf and push it in back shelf.

Lift it and drag it to yourself for reverse in order to restore to a full shelf.

Diagram of hands operating a mechanical device with a black arrow indicating motion (no text or symbols present)

Illustration of two empty storage shelves with bottles on top (no text or symbols)

Ice Making

• Take out container with ice tray. Fill the ice tray to the water level and put it back.
- You can place container with ice tray in upper or middle drawer of freezing compartment.

Line drawing of a tray with two compartments, one containing a grid pattern and the other holding a small object (no text or symbols)

- If ice cubes are required fast, press the «EXPRESS FRZ.» or the «EXPRESS FRZ./ECO FRIENDLY»

(depending on model) button.

• To remove ice cubes, hold the tray at its ends and twist gently.

Illustration of hands holding a device with a grid pattern, no text or symbols present

TIP

To remove ice cubes easily, run water on the tray before twisting.

Removing / Installing freezer drawers

• To ensure good air circulation in the appliance, insert the freezer drawers all the way

- If large quantities of food are to be stored in the freezer the upper or middle drawer taken of the freezer compartment can be out of the appliance and food can be stored directly on the wire shelf. (wire shelf is applicable to some models only)

- Freezer compartment is provided with wire shelves to maximize the food storage capacity.

• To remove one of the freezer drawer do the following:

1. Pull the drawer until it stops;
2. Lift the front part up and remove the drawer.

Diagram showing two labeled panels (1 and 2) with arrows indicating movement or flow, likely illustrating a mechanical or electrical assembly.

• To install a freezer drawer back into the freezer do the same steps in reverse order:

1. Put the drawer on the guides at the angle of 45^ ;
2. Lower the front part to one level with the guides;
3. Push the drawer until it stops. Make sure that the angle of the drawer is not skewed.

1 2 3

WARNING!

Don't apply a overwhelming effort and brute force on drawer and shelves - it could damage the refrigerator.

Storing Food

CAUTION!

• Do not store food which goes bad easily at low temperature, such as banana, and melon.
• Before storing hot food let it cool down. Placing hot food into the appliance can spoil other foods.
• When storing the food, use a container with a lid. This prevents moisture from evaporating and help to keep the taste and nutrients of the food.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the doors frequently. Opening the doors lets warm air to enter the appliance and cause the temperature to rise.
• Do not store too much food in the door baskets for it may prevent the door from complete closing.
• Do not store bottles in the freezer compartment — they may break when frozen.
• Do not refreeze food that has been thawed. This causes loss of taste and nutrition.
• Do not store pharmaceutical products, scientific materials or other temperature sensitive products in the refrigerator. Products that require strict temperature control must not be stored in the refrigerator.
• If you want to freeze quickly warm products, put them into lower drawer of freezer compartment and press the Express Frz. Button.
• To ensure good air circulation in the appliance, insert the freezer drawers all the way.

Cleaning

1. Before Cleaning. Be sure to unplug the power.
2. Exterior and Interior.
   Clean the outside of the fridge-freezer with a soft cloth soaked with hot water or liquid detergent. If you use a detergent, be sure to wipe it with a clean wet cloth.
3. After Cleaning.
   Check that the power cord is not damaged, and that the power plug is tightly inserted into the outlet.

WARNING!

Be sure to dry the appliance with a cloth after washing it with water. Do not use abrasive, petroleum, benzene, thinner, hydrochloride acid, boiling water, rough brush, etc, as they may damage parts of the fridge-freezer.

General Information

Power Failure:

1\~2 hour power failure does no harm to the foods stores. Try to avoid opening and closing the door too frequently.

If You Move:

• Remove all food and other items from the refrigerator. Fix the inner movable parts (shelves, drawers and door basket) securely.
  • In order not to damage of adjustable refrigerator legs turn them counterclockwise before the transportation.
• Refrigerator should be transported in upright position by any type of covered transport. Should safely fix the refrigerator, in order to prevent any shock and fall inside vehicle during transportation.
• Do not expose refrigerator to impact forces during load handling.

Before switch on:

• In the cold season after refrigerator transportation and installation, do not turn it on at least 12 hours.

Anti-Condensation Pipe:

- The anti-condensation pipe is installed around the front side of the appliance to prevent condensation.

- The appliance may feel hot at these places, especially right after installation or when ambient temperature is high.

Anti-Condensation Pipe

To Reverse the Doors

- The appliance is designed with reversible doors so that they can open both on the right and left sides to suit your kitchen design.

CAUTION!

However, when you want to reverse the doors, you must call to service agent. Reversing the doors is not covered by the warranty.

Refrigerator work features

CAUTION!

As a result of thermal strain for components of a refrigerator appliance can be heard crackling noise that is not a defect and doesn't affect efficiency of the appliance. This special sound when the thermo-regulator and compressor and turned on is a normal state, which appears during the working process of appliance's electric installation.

The gas refrigerant produces a slight noise even when the compressor is not running (this is not a defect.)

While refrigerator appliance working process can be heard:

• flick of the temperature relay;
• murmur of refrigerant flowing round cycle;
• cracking noise because of the materials deformation by temperature.

All that is not defect and doesn't affect efficiency of the appliance.

Lamp Replacement (For bulb lamp applied model only)

1. Unplug the power cort from the outlet.
2. Remove the room lamp lid by taking down while pulling its back projection.

Illustration of hands lifting a shelf with an arrow indicating upward motion (no text or symbols)

1. Remove the lamp by turning it counterclockwise and replace new one.

2. Assemble in reverse order of disassembly. Replacement bulb must be original.the same specification

CAUTION!

Lamp capacity is MAX 30W.

The lamp will remain "ON" for 7 minutes if the door is left open and then it is "OFF" for safety. (If you reopen the door, the lamp is "On").

NOTE

You must check the O-RING, which is made by rubber and prevent electric spark. Don't touch the lamp, in case of light on the long time. Because it can be very hot.

Before calling for service, check this list or call in Support service of clients. It may save your time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

PROBLEM	POSSIBLE CAUSES
Fridge-Freezer does not operate	Power plug may be unplugged from the electric outlet. Plug it in securely.House fuse has blown or circuit breaker has tripped. Check and/or replace fuse and reset circuit breaker.Power cut.Check house lights.
Fridge or Freezer Compartment Temperature too warm	Temperature control not set on proper position.Refer to Temperature Control section.Appliance is placed close to heat source.Warm weather.Frequent door openings.Door left open for a long time.Package holding door open or blocking air duct in freezer compartment.
Vibration or Rattling or Abnormal Noise	The floor on which the appliance is installed may be uneven or the appliance may be unstable.Make it even by rotating the leveling screw.Unnecessary objects placed at the back side of the appliance.
Frost or Ice	Door may have been left ajar or package holding door open.Too frequent or too long door openings.Frost within package is normal.
Moisture forms on Cabinet Surface	This can occur in a humid place.Wipe it with a dry towel.
Moisture collects inside	Too frequent or too long door openings.In humid weather, air carries moisture into fridge when doors are opened.

PROBLEM	POSSIBLE CAUSES
Fridge has odor	·Foods with strong odors should be tightly covered or wrapped.·Check for spoiled food.·Interior needs cleaning.Refer to CLEANING section.
Door not closing properly	·Food package is keeping door open.Move packages that keep door from closing.·The appliance doesn't stand upright.Adjust the leveling screws.·The floor on which the fridge-freezer is installed may be uneven or the fridge-freezer may be unstable.Slightly raise the front side with the leveling screw.
Interior light does not work	·No power at outlet.·Light lamp needs replacing.Refer to the Lamp Replacement section.

NOTE

For more information about refrigerator service and use, you can find at the official site of LG at «Frequently Asked Questions» (www.lg.com/ru/refhelp).

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

LG

Life's Good

BZ03

001 003

KZ.7500561

LG products are certified.

The information about our appliance certification, data of the certificate number and its validity, you can get in the Customer service.

Производитель:

b.9, 86 km Minskoe highway, Rural village Dorokhovskoe, Ruza district, Moscow region, Russian Federation, 143160

8-800-200-76-76

Россия/Russia

8-820-0071-11-11

Беларусь/Belarus

0-800-303-000

Украина / Ukraine

8-8000-805-805

Казахстан / Kazakhstan

2255(with mobileGSM)

800-0071-0005

Узбекистан/Uzbekistan
