USER MANUAL JGP321EJWH GE

Safety Instructions ..... 2–5

Operating Instructions

Cookware 7

Flame Size 6

Lighting a Burner ..... 6

Care and Cleaning

Air Adjustment .....11

Burners .....10

Control Knobs .....9

Lift-Up Cooktop ....8

Installation Instructions . .12-24

Troubleshooting Tips .....25

Consumer Support

Canada Warranty .....31

Consumer Support 32

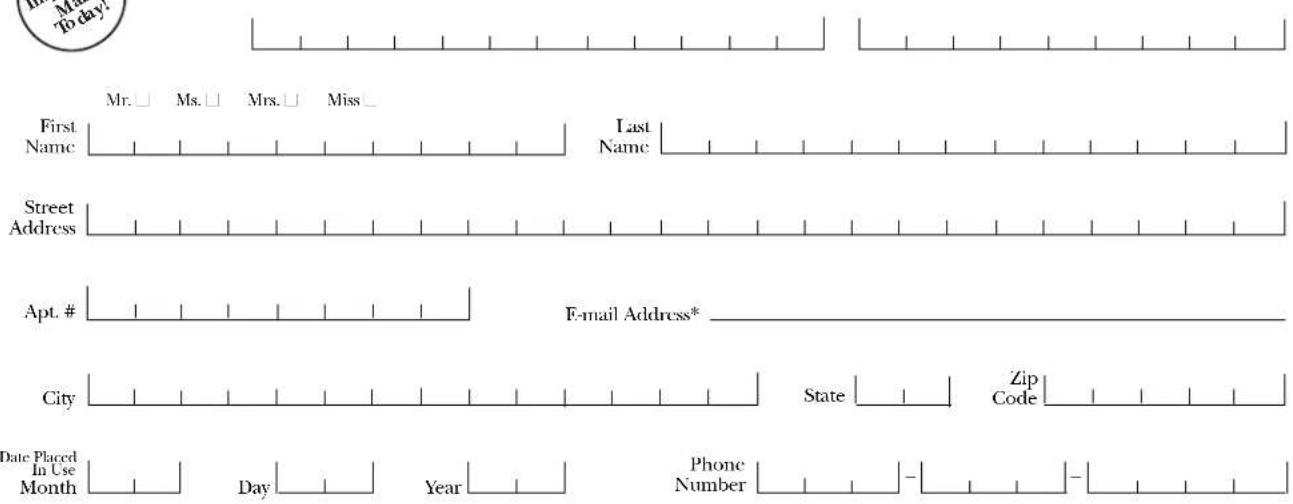

Product Registration .....27, 28

U.S. Warranty ....30

Owner's Manual and Installation Instructions

JGP321—Natural Gas

JGP319—Liquid Propane

Write the model and serial numbers here:

Model # ____

Serial # ____

You can find them on a label located in the burner box under the cooktop.

Abstract decorative swirl design with no text or symbols

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

⚠ WARNING!

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels. Properly adjusted burners, indicated by a bluish rather than a yellow flame, will minimize incomplete combustion. Exposure to these substances can be minimized by venting with an open window or using a ventilation fan or hood.

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

■ Do not try to light any appliance.
■ Do not touch any electrical switch; do not use any phone in your building.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
■ If you cannot reach your gas supplier, call the fire department.

— Installation and service must be performed by a qualified installer, service agency or the gas supplier.

DESIGN CERTIFIED®

SF CERTIFIED

⚠ WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

SAFETY PRECAUTIONS

Have the installer show you the location of the cooktop gas shut-off valve and how to shut it off if necessary.

■Have your cooktop installed and properly grounded by a qualified installer, in accordance with the Installation Instructions. Any adjustment and service should be performed only by qualified gas cooktop installers or service technicians.
■Do not attempt to repair or replace any part of your cooktop unless it is specifically recommended in this manual. All other service should be referred to a qualified technician.
■If cooktop is located near a window, do not hang long curtains that could blow over the top burners and create a fire hazard.

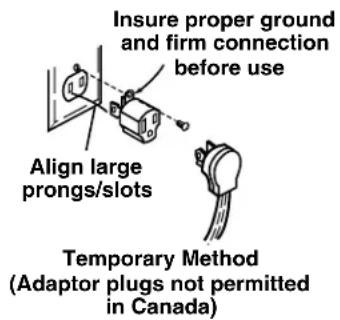

■Plug your cooktop into a 120-volt grounded outlet only. Do not remove the round grounding prong from the plug. If in doubt about the grounding of the home electrical system, it is your personal responsibility and obligation to have an ungrounded outlet replaced with a properly grounded, three-prong outlet in accordance with the National Electrical Code. Do not use an extension cord with this appliance.
■Let the burner grates and other surfaces cool before touching them or leaving them where children can reach them.
■Be sure all packaging materials are removed from the cooktop before operating it to prevent fire or smoke damage should the packaging material ignite.
■Do not leave children alone or unattended where a cooktop is hot or in operation. They could be seriously burned.

■Do not allow anyone to climb, stand or hang on the cooktop.
■Be sure your cooktop is correctly adjusted by a qualified service technician or installer for the type of gas (natural or LP) which is to be used. Your cooktop can be converted for use with either type of gas. See LP conversion instructions packed with your cooktop. Model JGP319 is factory adjusted for LP gas operation.

WARNING: This conversion kit must be installed by a qualified service technician in accordance with the manufacturer's instructions and all codes and requirements of the authority having jurisdiction. Failure to follow these instructions could result in serious injury or property damage. The qualified agency performing this work assumes responsibility for the conversion.

■ CAUTION: Items of interest to children should not be stored in cabinets above a cooktop—children climbing on the cooktop to reach items could be seriously injured.
■Always keep wooden and plastic utensils and canned food a safe distance away from your cooktop.
■Always keep combustible wall coverings, curtains or drapes a safe distance from your cooktop.
■Never wear loose fitting or hanging garments while using the appliance. Be careful when reaching for items stored in cabinets over the cooktop. Flammable material could be ignited if brought in contact with flame or hot oven surfaces and may cause severe burns.

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

⚠ WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

SAFETY PRECAUTIONS

■Teach children not to play with the controls or any other part of the cooktop.
■For your safety, never use your appliance for warming or heating the room.
■Always keep dish towels, dish cloths, pot holders and other linens a safe distance from your cooktop.
■Do not store flammable materials near a cooktop.
■Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
■Do not let cooking grease or other flammable materials accumulate near the cooktop.
■Do not operate the burner without all burner parts in place.

■Do not clean the cooktop with flammable or volatile cleaning fluids.
■Do not clean the cooktop when the appliance is in use.
■Never clean the cooktop surface when it is hot. Some cleaners produce noxious fumes and wet cloths could cause steam burns if used on a hot surface.
■Never use the cooktop as a cutting board.
■Do not use water on grease fires. Never pick up a flaming pan. Turn the controls off. Smother a flaming pan on a surface burner by covering the pan completely with a well-fitting lid, cookie sheet or flat tray. Use a multi-purpose dry chemical or foam-type fire extinguisher.
■Flaming grease outside a pan can be put out by covering it with baking soda or, if available, by using a multi-purpose dry chemical or foam-type fire extinguisher.

COOK MEAT AND POULTRY THOROUGHLY...

Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160^ F and poultry to at least an INTERNAL temperature of 180^ F. Cooking to these temperatures usually protects against foodborne illness.

SURFACE BURNERS

Use proper pan size—avoid pans that are unstable or easily tipped. Select cookware having flat bottoms large enough to cover burner grates. To avoid spillovers, make sure cookware is large enough to contain the food properly. This will both save cleaning time and prevent hazardous accumulations of food, since heavy spattering or spillovers left on cooktop can ignite. Use pans with handles that can be easily grasped and remain cool.

■ Always use the LITE position when igniting burners and make sure the burners have ignited.
■Never leave the surface burners unattended at high flame settings. Boilovers cause smoking and greasy spillovers that may catch on fire.

■When using glass cookware, make sure it is designed for cooktop cooking.
■Always turn the surface burner controls off before removing cookware.
■Carefully watch foods being fried at a high flame setting.

SURFACE BURNERS

Use proper pan size—avoid pans that are unstable or easily tipped. Select cookware having flat bottoms large enough to cover burner grates. To avoid spillovers, make sure cookware is large enough to contain the food properly. This will both save cleaning time and prevent hazardous accumulations of food, since heavy spattering or spillovers left on cooktop can ignite. Use pans with handles that can be easily grasped and remain cool.

■Use only dry pot holders—moist or damp pot holders on hot surfaces may result in burns from steam. Do not let pot holders come near open flames when lifting cookware. Do not use a towel or other bulky cloth in place of a pot holder. Such cloths can catch fire on a hot burner.

■To minimize the possibility of burns, ignition of flammable materials and spillage, turn cookware handles toward the side or back of the cooktop without extending over adjacent burners.

■Always heat fat slowly, and watch as it heats.

■Do not leave any items on the cooktop.

If a combination of oils or fats will be used in frying, stir together before heating or as fats melt slowly.

■Do not use a wok on the cooking surface if the wok has a round metal ring that is placed over the burner grate to support the wok. This ring acts as a heat trap, which may damage the burner grate and burner head. Also, it may cause the burner to work improperly. This may cause a carbon monoxide level above that allowed by current standards, resulting in a health hazard.

■Foods for frying should be as dry as possible. Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan.

■Use the least possible amount of fat for effective shallow or deep-fat frying. Filling the pan too full of fat can cause spillovers when food is added.

■Use a deep fat thermometer whenever possible to prevent overheating fat beyond the smoking point.

■Never try to move a pan of hot fat, especially a deep fat fryer. Wait until the fat is cool.

■Do not flame foods on the cooktop. If you do flame foods under the hood, turn the fan on.

■Do not leave plastic items on the cooktop.

■Keep all plastics away from the surface burners.

■If you smell gas, turn off the gas to the cooktop and call a qualified service technician. Never use an open flame to locate a leak.

■To avoid the possibility of a burn, always be certain that the controls for all burners are at the off position and all grates are cool before attempting to remove them.

■Never leave jars or cans of fat drippings on or near your cooktop.

- Don't use aluminum foil to line drip pans. Misuse could result in a fire hazard or damage to the cooktop.

■Do not cover or block the area around the cooktop knobs. This area must be kept clear for proper ventilation and burner performance.

■Clean only parts listed in this Owner's Manual.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Using the cooktop burners.

Throughout this manual, features and appearance may vary from your model.

OFF LO HI UFE

Be sure you turn the control knob to OFF when you finish cooking.

How to Light a Burner

Your cooktop burners are lit by electric ignition, eliminating the need for standing pilot lights with constantly burning flames.

Push the control knob in and turn it counterclockwise to the LITE position. After the burner ignites, turn the knob to adjust the flame size. To turn the burner off, turn the knob clockwise as far as it will go, to the OFF position.

Check to be sure the burner you turn on is the one you want to use.

In case of a power failure, you can light the burners with a match. Hold a lit match to the burner, then push in and turn the control knob to the LITE position. Use extreme caution when lighting burners this way. Burners in use when an electrical power failure occurs will continue to operate normally.

Do not operate the burner for an extended period of time without cookware on the grate. The finish on the grate may chip without cookware to absorb the heat.

Be sure the burners and grates are cool before you place your hand, a pot holder, cleaning cloths or other materials on them.

Simple line drawing of a crossed-out box with a handle, no text or symbols present

Never let the flame extend up the sides of the cookware.

How to Select Flame Size

For safe handling of cookware, never let the flame extend up the sides of the cookware.

Watch the flame, not the knob, as you reduce heat. When fast heating is desired, the flame size on a gas burner should match the cookware you are using.

Flames larger than the bottom of the cookware will not result in faster heating of the cookware and could be hazardous.

Use a flat-bottomed wok.

Wok Cooking

We recommend that you use a flat-bottomed wok, available at your local retail store.

Do not use a wok on any other support ring. Placing the ring over the burner grate may cause the burner to work improperly, resulting in carbon monoxide levels above allowable current standards.

This could be dangerous to your health. Do not try to use such woks without the ring unless you are using the Wok Holder. You could be seriously burned if the wok tipped over.

Simple line drawing of a cooking pot with a crossed-out X mark (no text or symbols)

Cookware

Aluminum: Medium-weight cookware is recommended because it heats quickly and evenly. Most foods brown evenly in an aluminum skillet. Use saucepans with tight fitting lids when cooking with minimum amounts of water.

Enamelware: Under some conditions, the enamel of some cookware may melt. Follow cookware manufacturer's recommendations for cooking methods.

Glass: There are two types of glass cookware: those for oven use only and those for cooktop cooking (saucepans, coffee and tea pots). Glass conducts heat very slowly.

Cast Iron: If heated slowly, most skillets will give satisfactory results.

Heatproof Glass Ceramic: Can be used for either surface or oven cooking. It conducts heat very slowly and cools very slowly. Check cookware manufacturer's directions to be sure it can be used on a gas cooktop.

Stainless Steel: This metal alone has poor heating properties and is usually combined with copper, aluminum or other metals for improved heat distribution. Combination metal skillets usually work satisfactorily if they are used with medium heat as the manufacturer recommends.

Home Canning Tips

Be sure the canner is centered over the burner.

Make sure the canner is flat on the bottom.

To prevent burns from steam or heat, use caution when canning.

Use recipes and procedures from reputable sources. These are available from manufacturers such as Ball ^® and Kerr ^® and the Department of Agriculture Extension Service.

Flat-bottomed canners are recommended. Use of water bath canners with rippled bottoms may extend the time required to bring the water to a boil.

Care and cleaning of the cooktop.

Proper care and cleaning are important so your cooktop will give you efficient and satisfactory service. Follow these directions carefully in caring for it.

Before cleaning any part of your cooktop, be sure all burners are off and DISCONNECT ELECTRIC POWER TO THE COOKTOP at the fuse box or circuit breaker panel, or pull the cooktop power cord plug from the electric outlet, located on back wall below cooktop.

Support rod

Lift-Up Cooktop

Clean the area under the cooktop often. Built-up soil, especially grease, may catch fire. To make cleaning under the top easier, the top may be lifted up and supported by a locking arm. After cleaning under the top with hot, soapy water, lower the top back in place. Be careful not to pinch your fingers.

To raise cooktop:

Be sure all burners are turned off and unit is cool. Remove cooktop drip pans, grates and control knobs. Grasp cooktop at the front and lift up. Raise the support rod into place and hook it into the bracket on the underside of the cooktop to hold the cooktop while cleaning. Be sure to secure the cooktop support rod in the cooktop strike catch.

To lower cooktop:

Carefully replace the support rod and lower the cooktop. Press into place. Make sure the strikes fit in the catches to fasten the cooktop. Replace four surface units and control knobs.

Porcelain Cooktop

The porcelain enamel finish is sturdy but breakable if misused.

This finish is acid resistant. However, any acidic foods spilled (such as fruit juices, tomato or vinegar) should not be permitted to remain on the finish.

If acids spill on the cooktop while it is hot, use a dry paper towel or cloth to wipe it up right away. When the surface has cooled, wash with soap and water or cleansing powders. Rinse well.

For other spills such as fat spatterings, wash with soap and water or cleansing powders after the surface has cooled. Rinse well. Polish with a dry cloth.

Control Panel

It's a good idea to wipe the control panel clean after each use of the cooktop. For a more thorough cleaning, the knobs can be removed by pulling them off the knob stems. Clean with mild soap and water, rinse with clean water and polish dry with a soft cloth.

Do not use abrasive cleaners, strong liquid cleaners or oven cleaners on the control panel—they will damage the finish. A 50/50 solution of vinegar and hot water works well.

Molded rib Clear groove

Control Knobs

The control knobs may be removed for easier cleaning.

Make sure the knobs are in the OFF positions and pull them straight off the stems for cleaning.

The knobs can be cleaned in a dishwasher or they may also be washed with soap and water. Make sure the insides of the knobs are dry before replacing.

Replace the knobs in the OFF position to ensure proper placement.

Burner Grates

Burner grates should be washed regularly and, of course, after spillovers. Wash them in hot, soapy water and rinse with clean water. Dry the grates with a cloth—don't put them back on the cooktop wet. When replacing the grates, be sure they're positioned securely over the burners.

To get rid of burned-on food, place the grates in a covered container or plastic bag. Add 1/4 cup ammonia and let them soak for 30 minutes. Wash, rinse well and dry.

Although they're durable, the grates will gradually lose their shine, regardless of the best care you can give them. This is due to their continual exposure to high temperatures.

Do not operate a burner for an extended period of time without cookware on the grate. The finish on the grate may chip without cookware to absorb the heat.

Drip Pans

Drip pans can permanently discolor if exposed to excessively high heat or if soil is allowed to bake on.

Remove the grates. Then lift out the drip pans.

To remove brown food stains, soak them for about 20 minutes in slightly diluted liquid cleanser or a mild solution of ammonia and water (1/2 cup of ammonia to one gallon of water). Rinse with clean water.

Blue/gold heat stains can be lessened with a metal polish but are usually permanent. To minimize staining, avoid excessive use of high heat setting and use flat bottom pans that do not extend more than two inches from the surface burner.

The drip pans may also be cleaned in the dishwasher.

When replacing drip pans, the notch on the rear pan and the notch on the front pan should meet in the middle.

Care and cleaning of the cooktop.

The holes in the burners must be kept clean at all times for proper ignition and an even, unhampered flame.

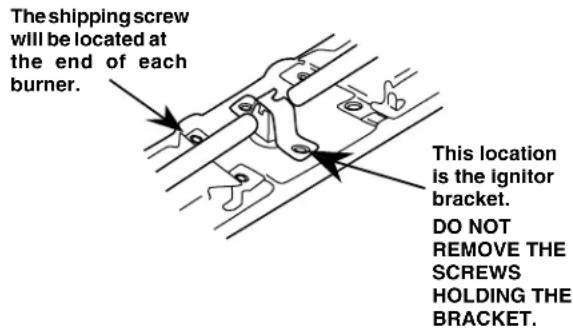

Shipping screws

A screw holds each of the burners in place to keep them from wobbling around during shipment. Remove and discard the shipping screw.

Cooktop Burners

You should clean the burners routinely, especially after bad spillovers which could clog these holes. Burners lift out for cleaning if the shipping screw was removed at installation.

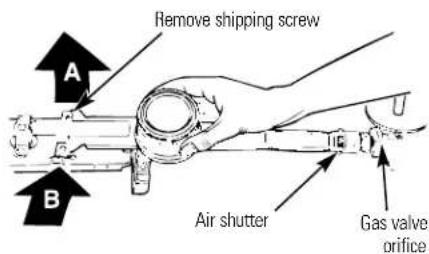

To remove burners:

Remove shipping screw Air shutter Gas valve orifice

7 Grasp burner head and tilt it to the right to release the two tabs from slots in the burner support (A and B).
2 Lift the end of the burner assembly, then pull away from the front of the cooktop to free the air shutter from the gas valve orifice.
To remove burned-on food, soak the burners in a solution of mild liquid detergent and water. Soak the burner for 20 to 30 minutes. If the food doesn't rinse off completely, scrub them with soap and water and a brush or plastic pad.
■Do not use steel wool or abrasive cleansers because they will clog the burner openings and scratch the burners.
■If the holes become clogged, clean them with a small safety pin or a small sewing needle.

■Do not attempt to clean burners in an automatic dishwasher. Loosened food soil can clog burner holes, and the strong action of the dishwasher detergent can damage the burner heads.
■Before putting the burners back, shake out excess water and dry them thoroughly by setting them in a warm oven for 30 minutes.

To replace burners:

Slip the air shutter over the gas valve orifice.
2 Lower the burner assembly and hook the tabs in the slots in the burner support.
3 Be sure both tabs are in their slots, that the burner sits level and straight, and that the flash tube forms a straight line from the igniter to the burner.

Inner cone of flame 11/16" Burner

Air Adjustment

An air adjustment shutter for each surface burner regulates the flow of air to the flame.

When the right amount of air flows into the burner, the flame will be steady, relatively quiet and have approximately 11/16 inch sharp blue cones. This is usually the case with factory preset shutters.

With too much air, the flame will be unsteady, possibly won't burn all the way around, and will be noisy, sounding like a blowtorch.

With not enough air, you won't see any sharp blue cones in the flame, you may see yellow tips, and soot may accumulate on cookware.

Slide Air shutter

If the flames are yellow, use pliers to open the air shutter more. If they blow away from the burner, close the air shutter more. Be sure to keep the gap in the air shutter facing straight up. Be careful not to distort the air shutter when making adjustments with the pliers.

Now look at the inner cone of the flame. It should be about 11/16-inch long for all surface burners. If the flame is not the right length, the flame adjustment screw must be adjusted. To access the flame adjustment screw, remove the control knob for the burner needing adjustment. Insert a flat blade screwdriver through the shaft of the valve. To increase the flame length, rotate the screw counterclockwise. To decrease the flame length, rotate the screw clockwise.

Installation Instructions

30”Gas Cooktop

If you have questions, call 1.800.GE.CARES or visit our Website at: ge.com

In the Commonwealth of Massachusetts:

• This product must be installed by a licensed plumber or gas fitter.
• When using ball-type gas shut-off valves, they shall be the T-handle type.

- A flexible gas connector, when used, must not exceed 3 feet.

CAUTION: Before you begin—read these instructions completely and carefully.

• IMPORTANT—Save these instructions for local inspector's use.
  • IMPORTANT—OBSERVE ALL GOVERNING CODES AND ORDINANCES.
• Note to Installer—Be sure to leave these instructions with the Consumer.

• Note to Consumer—Keep these instructions for future reference.

• Note—This appliance must be properly grounded.

• IMPORTANT: Leak testing of the appliance shall be conducted according to the manufacturer's instructions.
• Skill level—Installation of this appliance requires basic mechanical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

MATERIALS YOU MAY NEED
4 screws	Pipe Fittings	Joint Sealant	Shut Off Valves

TOOLS YOU WILL NEED
				Pipe WrenchFlat-Blad
	Adjustable Wrench or Open End Wrench
1/8"Drill Bit & Electric or Hand Drill	Phillips Head Screwdriver	Pencil	Ruler or Straightedge	Saber Saw

IMPORTANT SAFETY INSTRUCTIONS

FOR YOUR SAFETY

WARNING!!

If the information in this manual is not followed exactly, a fire, explosion or gas leak may result, causing property damage, personal injury or death.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance!

WHAT TO DO IF YOU SMELL GAS:

• Open windows.
• Extinguish any open flame.
• Do not try to light any appliance. Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.

• Be sure your cooktop is installed properly by a qualified installer or service technician.
• To eliminate reaching over surface burners, cabinet storage above burner should be avoided.
• Do not install the unit near an outside door or where a draft may affect its use.

BEFORE YOU BEGIN

Installation of this cooktop must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA.54, latest edition. In Canada, installation must conform with the current Natural Gas Installation Code, CAN/CGA-B149.1 or the current Propane Installation Code, CAN/CGA-B149.2, and with local codes where applicable. This cooktop has been design-certified by CSA International according to ANSI Z21.1, latest edition and Canadian Gas Association according to CAN/CGA-1.1 latest edition.

As with any appliance using gas and generating heat, there are certain safety precautions you should follow. You will find these precautions in the Important Safety Information section in the front of this manual. Read them carefully.

IMPORTANT SAFETY INSTRUCTIONS

ELECTRICAL REQUIREMENTS

This Appliance must be electrically grounded. Check with your local codes which apply in your area. If no local codes apply, the National Electrical Code, ANSI/NFPA No. 70–Latest Edition must be followed. Write to:

National Fire Protection Association

Batterymarch Park

Quincy, MA 02269

In Canada, electrical grounding must be in accordance with the current CSA C22.1 Canadian Electrical Code Part 1 and/or local codes. See Installation—Electrical Connections in this section.

Be sure the installation of this cooktop in a mobile home conforms with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280. If this standard does not apply, you must follow the standard for Manufactured Home Installations, ANSI A225.1 and Manufactured Home Installations, Sites and Communities and ANSI/NFPA 501A or with local codes. You can get a copy of the Federal Standard by Writing:

Office of Mobile Home Standards

HUD Building

451 7th Street, S.W.

Washington, D.C. 24010

WARNING!

INSTALLATION SAFETY INSTRUCTIONS

• Make sure the wall coverings, countertop and cabinets around the cooktop can withstand heat generated by the cooktop up to 200^ .
• Avoid placing cabinets above the cooktop. To reduce the hazard caused by reaching over the open flames of operating burners, install a ventilation hood over the cooktop that projects forward at least 5" beyond the front of the cabinets.

WARNING!

INSTALLATION SAFETY INSTRUCTIONS (cont.)

- The ventilating hood must be constructed of sheet metal not less than 0.0122"thick. Install above the cooktop with a clearance of not less than 1/4"between the hood and the underside of the combustible material or metal cabinet. The hood must be at least as wide as the appliance and centered over the appliance. Clearance between the cooking surface and the ventilation hood surface MUST NEVER BE LESS THAN 24 INCHES.

EXCEPTION: Installation of a listed microwave oven or cooking appliance over the cooktop shall conform to the installation instructions packed with that appliance.

• If cabinets are placed above the cooktop, allow a minimum clearance of 30" between the cooking surface and the bottom of unprotected cabinets.
• If a 30" clearance between cooking surface and overhead combustible material or metal cabinets cannot be maintained, protect the underside of the cabinets above the cooktop with not less than 1/4" insulating millboard covered with sheet metal not less than 0.0122" thick. Clearance between the cooking surface and protected cabinets MUST NEVER BE LESS THAN 24 INCHES.
• The vertical distance from the plane of the cooking surface to the bottom of adjacent overhead cabinets extending closer than 1" to the plane of the cooktop sides must not be less than 18". (See the Preparing the Opening section.)
• CAUTION: Items of interest to children should not be stored in cabinets above a cooktop—children climbing on the cooktop to reach items could be seriously injured.

Pre-Installation Checklist

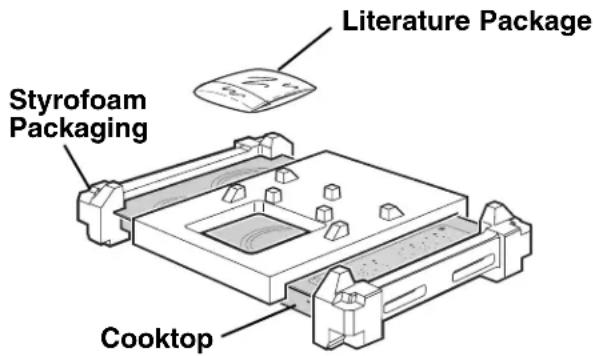

Remove packaging materials and literature package from the cooktop before beginning installation.

Literature Package Styrofoam Packaging Cooktop

Remove packaging tape. To assure no damage is done to the finish of the product, the safest way to remove the adhesive left from packaging tape on new appliances is an application of a household liquid dishwashing detergent, mineral oil or cooking oil.

Apply with a soft cloth and allow to soak. Wipe dry and then apply an appliance polish to thoroughly clean and protect the surface.

NOTE: The plastic tape must be removed from all chrome trim. It cannot be removed if it is baked on.

Be sure to place all literature in a safe place for future reference.

Make sure you have all the tools and materials you need before starting the installation of the cooktop.

When preparing cooktop opening, make sure the inside of the cabinet and the cooktop do not interfere with each other. (See section on preparing the opening.)

Your home must provide the adequate electrical service needed to safely and properly use your cooktop. (Refer to section on electrical requirements.)

When installing your cooktop in your home, make sure all local codes and ordinances are followed exactly as stated.

Make sure the wall coverings, countertop and cabinets around the cooktop can withstand heat (up to 200^ F) generated by the cooktop.

Installation Instructions

PREPARING THE OPENING

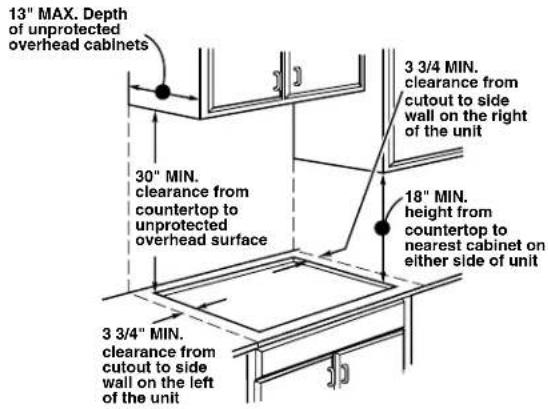

The following MINIMUM clearance dimensions must be maintained.

13" MAX. Depth of unprotected overhead cabinets 30" MIN. clearance from countertop to unprotected overhead surface 3 3/4" MIN. clearance from cutout to side wall on the left of the unit 3 3/4 MIN. clearance from cutout to side wall on the right of the unit 3 3/4 MIN. clearance from cutout to side wall on the right of the unit 18" MIN. height from countertop to nearest cabinet on either side of unit

The recommended Gas Supply Location from the backwall.

1" Min. From Backwall Recommended gas supply location. 12 1/2" From Cutout Center Line

Overall cooktop dimensions

30 1/4" 21 1/4" COOKTOP 3 9/16" 19 1/2" 28 3/4"

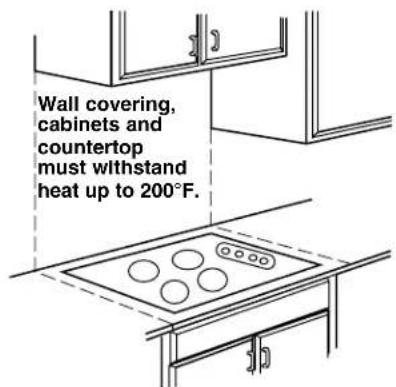

Make sure the wall coverings, countertop and cabinets around the cooktop can withstand heat (up to 200^ F) generated by cooktop.

Wall covering, cabinets and countertop must withstand heat up to 200°F.

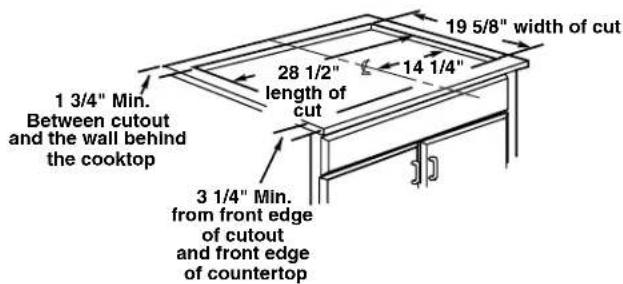

Cutout dimensions of the countertop

To insure accuracy, it is best to make a template when cutting the opening in the counter.

1 3/4" Min. Between cutout and the wall behind the cooktop 28 1/2" length of cut 19 5/8" width of cut 14 1/4" 3 1/4" Min. from front edge of cutout and front edge of countertop

Installation Instructions

B Installing the Cooktop Unit

B1 Insert Cooktop Into Cutout

Insert the cooktop centered into the cutout opening. Make sure the front edge of the countertop is parallel to the cooktop. The unit must rest on the metal flange around the burner box. Make final check that all required clearances are met.

COOKTOP

B2 Secure Cooktop to Cabinet

Attach the cooktop to the counter by inserting a screw in each corner that is suitable for your countertop.

Screw Holes Screw Holes

C Installing the Cooktop

C1 Provide Adequate Gas Supply

This cooktop is designed to operate on natural gas at 4" of water column pressure. It is shipped from the factory set for natural gas (except JGP319 models, which are set for LP). The convertible pressure regulator supplied with the unit must be connected in series with the manifold of the cooktop and must remain in series with the supply line regardless of whether natural or L.P. gas is being used. FOR PROPER OPERATION, THE MAXIMUM INLET PRESSURE TO THE REGULATOR MUST BE NO MORE THAN 14" OF WATER COLUMN PRESSURE. For checking the regulator, the inlet pressure must be at least 1"(or 3.4 KPA) greater than the regulator output setting. If the regulator is set for 4" of water column pressure, the inlet pressure must be at least 5". If the regulator is set for 10", the inlet pressure must be at least 11". The gas supply line to the cooktop should be 1/2" or 3/4" pipe.

C2 Locate the electrical outlet and the Gas Shut Off valve beneath the cabinet.

NEVER REUSE OLD CONNECTORS WHEN INSTALLING THIS UNIT.

Shut Off Valve Electrical Outlet 12" Below Countertop

Install a manual shutoff valve in the gas line in an easily accessible location outside the cooktop. Be sure you know how and where to shut off the gas supply to the cooktop. Install the electrical outlet 12"below the countertop.

C3 Installing the Regulator

NEVER REUSE OLD CONNECTORS WHEN INSTALLING THIS COOKTOP.

WARNING: Never reuse old flexible connectors. The use of old flexible connectors can cause gas leaks and personal injury. Always use new flexible connectors when installing a gas appliance.

Screw a section of pipe onto each end of the pressure regulator.

Pressure Regulator

To reduce the likelihood of gas leaks, apply teflon tape or a thread compound approved for use with LP or natural gases to all threaded connections.

C4 Install the regulator onto the burner box bottom

Screw the regulator and pipe connection into the burner box bottom. Make sure the top of the regulator is facing toward the cabinet front, easily accessible through the cabinet doors.

Pressure Regulator Shut Off Valve Electrical Outlet 12" Below Countertop

C Installing the Cooktop cont.

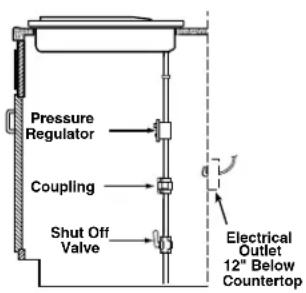

C5 Complete the connection with a coupling

Install a coupling between the regulator and the shutoff valve to complete the connection.

Pressure Regulator Coupling Shut Off Valve Electrical Outlet 12" Below Countertop

C6 Check for Leaks

After connecting the cooktop to gas, check system for leaks with a manometer. If a manometer is not available, turn the gas supply on to the cooktop and use a liquid leak detector at all joints and connections to check for leaks.

Tighten all connections if necessary to prevent gas leakage in the cooktop or supply line.

Check alignment of valves after connecting the cooktop to the gas supply to be sure the manifold pipe has not been moved. A misalignment could cause the valve knob stem to rub on the control panel, resulting in a gas leak at the valve.

DO NOT USE OPEN FLAME TO CHECK FOR LEAKS!

Disconnect this cooktop and its individual shutoff valve from the gas supply piping system during any pressure testing of that system at test pressures greater than 1/2" psig.

Isolate the cooktop from the gas supply piping system by closing its individual shutoff valve during any pressure testing of the gas supply system at test pressures equal to or less than 1/2" psig.

C7 INSTALLATION OVER BUILT-IN OVEN

See built-in oven installation for complete installation instructions.

5" TO CENTER OF 2" DIA. HOLE FROM COUNTERTOP 90° STREET EL 2" DIA. HOLE (20 7/8" FROM FRONT OF COUNTERTOP TO HOLE CENTER) CABINET SIDES

D Installation—Electrical Connections

D1

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord. However, if you still elect to use an extension cord, it is absolutely necessary that it be a UL listed 3-wire grounding type appliance extension cord and that the current carrying rating of the cord in amperes be equivalent to or greater than the branch circuit rating. Such extension cords are obtainable through your local appliance dealer.

IMPORTANT: (Please read carefully) FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED.

D3

Where a standard two-prong wall receptacle is encountered, it is the personal responsibility and obligation of the customer to have it replaced with a properly grounded three-prong wall receptacle.

Do not under any circumstances cut or remove grounding prong from the cooktop cord. Failure to provide proper polarization may create a hazardous condition.

D2

An adequate electrical supply and outlet must be used to operate the electrical parts of your cooktop.

a. The power cord of this appliance is equipped with a three-prong (grounding) plug which must be used with a properly grounded three-hole outlet with a standard 120 Volt, 60 cycle AC household current.
b. If you do not have a three-hole grounded outlet, have a qualified electrician change your old one.
c. A grounding adaptor will be needed to convert the old one until the outlet can be replaced. This method is only temporary, and a qualified electrician should test it to be sure it meets requirements.

N L

Insure proper ground and firm connection before use

D Installation—Electrical Connections

D4 Usage situations where appliance power cord will be disconnected infrequently.

For 15 amp circuit only. Do not use an adaptor on a 20 amp circuit. Where local codes permit, a TEMPORARY CONNECTION may be made to a properly grounded two-prong wall receptacle by the use of a UL listed adaptor available at most hardware stores. The larger slot in the adaptor must be aligned with the large slot in the wall receptacle to provide proper polarity in the connection of the power cord.

Insure proper ground and firm connection before use Align large prongs/slots Temporary Method (Adaptor plugs not permitted in Canada)

CAUTION: Attaching the adaptor ground terminal to the wall receptacle cover screw does not ground the appliance unless the screw is metal, and not insulated, and the wall receptacle is grounded through the house wiring. The customer should have the circuit checked by a qualified electrician to make sure the receptacle is properly grounded.

When disconnecting the power cord from the adaptor, always hold the adaptor with one hand. If this is not done, the adaptor ground terminal is very likely to break with repeated use. Should this happen, DO NOT USE the appliance until a proper ground has again been established.

Usage situations where appliance power cord will be disconnected frequently.

Do not use an adaptor plug in these situations because disconnection of the power cord places undue strain on the adaptor and leads to eventual failure of the adaptor ground terminal. The customer should have the two-prong receptacle replaced with a three-prong (grounding) receptacle by a qualified electrician before using the appliance.

E Cooktop Burners

E1 Checking the Igniters

Operation of the electric igniters should be checked after the cooktop and supply line have been carefully checked for leaks and the cooktop has been connected to the electrical power.

a. Push and turn a burner valve to the LITE position.

- The burner valve should light when gas is available to the burner

- Once the burner lights, it should be turned out of the LITE position.

b. Try each valve separately until all burners have been checked.

E2 Burner Ignition

Cooktop Spark Ignition—When you turn the cooktop knob to LITE, the spark igniter makes a series of electric sparks (ticking sounds) which light the burner.

During a power failure, the burners will not light automatically. In an emergency, a cooktop burner may be lit with a match by following the steps below.

WARNING: Lighting gas burners with a match is dangerous. You should match light the cooktop burners only in an emergency.

a. Light a match and hold the flame near the burner you want to light. Wooden matches work best.
b. Push in and turn the control knob slowly. Be sure you are turning the correct knob for the burner you are lighting.

NOTE: If the burner does not light within five seconds, turn the knob off and wait one minute before trying again.

E3 The Burner Flames

Turn all burners full on and check the flames. They should be blue in color with no trace of yellow. Foreign particles in the gas line may cause an orange flame at first, but this will soon disappear.

To make adjustments:

a. Remove the control knobs, grates and drip pans.
b. Lift up the cooktop (hinged in rear).
c. Use pliers to adjust the air shutter. Be sure to keep the gap in the air shutter facing straight up. Be very careful not to bend the air shutter when using pliers to make adjustments.

- If the flames were yellow or fluttered, open the air shutter more than the original setting.

- If the flames blew away from the burner, close the air shutter more than the original setting.

E Cooktop Burners cont.

E3 The Burner Flames (cont.)

Burners should be checked frequently

Check the inner cone of the flame. It should be about 11/16"long.

Inner Cone of Flame 11/16" Cooktop Burner

If the flame size is not the right length, the flame adjustment screw must be adjusted. To access the flame adjustment screw, remove the control knob for the burner needing adjustment. Insert a flat blade screwdriver through the shaft of the valve. To increase the flame length, rotate the screw counterclockwise. To decrease the flame length, rotate the screw clockwise.

WARNING: If you attempt to measure the inner cone of the flame, please use caution. Burns could result.

E4 Removing the Shipping Screws

Grasp the sides of the cooktop and lift up. Remove the shipping screws from each of the four burner assemblies.

The shipping screw will be located at the end of each burner. This location is the ignitor bracket. DO NOT REMOVE THE SCREWS HOLDING THE BRACKET.

DO NOT REMOVE THE SCREWS HOLDING THE IGNITOR BRACKET!

Operation Checklist

Double check to make sure everything in this manual has been completed. Rechecking steps will ensure safe use of the cooktop.

When ordering parts, always include the serial number, model number and a code letter to ensure proper replacement parts.

Make sure all controls are left in the OFF position.

Recheck Steps: Double check to make sure everything in this manual has been completed. Rechecking steps will ensure safe use of the cooktop.

Make sure the flow of combustion and ventilation air to the cooktop is unobstructed.

The serial plate for your cooktop is located on the bottom of the burner box. In addition to the model and serial numbers, it tells you the ratings of the burners and the type of fuel and pressure the cooktop was adjusted for when it left the factory.

CONVERTING TO LP GAS (or converting back to natural gas from LP)—JGP321 model only

This cooktop leaves the factory set for use with natural gas. If you want to convert to LP gas, the conversion must be performed by a qualified LP gas installer.

The conversion instructions and LP orifices can be found in the accessories bag.

Keep these instructions and the orifices in case you want to convert back to natural gas.

Troubleshooting Tips

Save time and money! Review the chart on this page

first and you may not need to call for service.

Problem Possible Causes What To Do

Burners do not light	Plug on range is not completely inserted in the electrical outlet.	On models with electric ignition, make sure electrical plug is plugged into a live, properly grounded outlet.
	Burner holes on the side or around the top of the burner may be clogged.	Remove the burners and clean them with a safety pin or paper clip. Make sure you do not enlarge the holes.
	Burners may not be fitted correctly onto the mounting brackets.	Remove the burners and reinstall them properly.
Burners have yellow or yellow-tipped flames	The combustion quality of burner flames needs to be determined visually.	Use the illustrations below to determine if your burner flames are normal. If burner flames look like A, call for service. Normal burner flames should look like B or C, depending on the type of gas you use. With LP gas, some yellow tipping on outer cones is normal.
		A–Yellow flamesCall for service	B–Yellow tipson outer conesNormal for LP gas	C–Soft blue flamesNormal for natural gas

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Notes.

GE Service Protection Plus™

GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus™—comprehensive protection on all your appliances—No Matter What Brand!

Benefits Include:

• Backed by GE
• All brands covered
  • Unlimited service calls
• All parts and labor costs included
  • No out-of-pocket expenses
  • No hidden deductibles
  • One 800 number to call

We'll Cover Any Appliance. Anywhere. Anytime.\*

You will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It's that simple.

Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand! Plus there's no extra charge for emergency service and low monthly financing is available. Even icemaker coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable household products are protected against expensive repairs.

Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224 for more information.

*All brands covered, up to 20 years old, in the continental U.S.

Cut here

Please place in envelope and mail to:

General Electric Company

Warranty Registration Department

P.O. Box 32150

Louisville, KY 40232-2150

Consumer Product Ownership Registration

Dear Customer:

Thank you for purchasing our product and thank you for placing your confidence in us.

We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

1

Complete and mail your Consumer Product Ownership Registration today. Have the peace of mind of knowing we can contact you in the unlikely event of a safety modification.

2

After mailing the registration below, store this document in a safe place. It contains information you will need should you require service. Our service number is 800.GE.CARES (800.432.2737).

3

Read your Owner's Manual carefully. It will help you operate your new appliance properly.

Model Number Serial Number

Important: If you did not get a registration card with your product, detach and return the form below to ensure that your product is registered, or register online at ge.com.

Cut here

Consumer Product Ownership Registration

Model Number Serial Number

Mr. Mr. Ms. Mrs. Miss First Name Last Name Street Address Apt. # F-mail Address* City State Zip Code Date Placed In Use Month Day Year Phone Number -

GE Consumer & Industrial

Appliances

General Electric Company

Louisville, KY 40225

ge.com

* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important communications from GE Appliances (GEA).

□ Check here if you do not want to receive communications from GEA's carefully selected partners.

FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR WARRANTY RIGHTS.

For information about GEA's privacy and data usage policy, go to ge.com and click on "Privacy Policy" or call 800.626.2224.

Notes.

Safety Instructions

Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

GE Gas Cooktop Warranty—For Model JGP321 only. (For Customers in the United States)

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, 24 hours a day, visit us at ge.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: GE Will Replace:

One Year

From the date of the

Any part of the cooktop which fails due to a defect in materials or workmanship.

During this limited one-year warranty, GE will also provide, free of charge, all labor

original purchase and related service costs to replace the defective part.

What GE Will Not Cover:

■Service trips to your home to teach you how to use the product.
- Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.

■ Damage to the product caused by accident, fire, floods or acts of God.
■Incidental or consequential damage caused by possible defects with this appliance.
■ Damage caused after delivery.
■ Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service Location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

GE Gas Cooktop Warranty—For Model JGP321 only. (For Customers in Canada)

All warranty service provided by our Factory Service Centers or an authorized Customer Care® technician. For service, call 1.800.361.3400. Please have serial number and model number available when calling for service.

For The Period Of: GE Will Replace:

One Year

From the date of the

Any part of the cooktop which fails due to a defect in materials or workmanship.

During this limited one-year warranty, GE will also provide, free of charge, all labored service costs to replace the defective part.

What GE Will Not Cover:

■ Service trips to your home to teach you how to use the product.
Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.

■ Damage to the product caused by accident, fire, floods or acts of God.
■Incidental or consequential damage caused by possible defects with this appliance.
■ Damage caused after delivery.
■ Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.

Warrantor: CAMCO INC.

GE Appliances Website

In the U.S.: ge.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts, catalogs, or even schedule service on-line. You can also "Ask Our Team of Experts" your questions, and so much more... In Canada: geappliances.ca

Schedule Service

In the U.S.: ge.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours. In Canada, call 1.800.361.3400

Real Life Design Studio

In the U.S.: ge.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

In Canada, contact: Manager, Consumer Relations, Camco, Inc. Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3

Extended Warranties

In the U.S.: ge.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133

Parts and Accessories

In the U.S.: ge.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Customers in Canada should consult the yellow pages for the nearest Camco service center, or call 1.888.261.3055.

Contact Us

In the U.S.: ge.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225

In Canada: geappliances.ca, or write to: Director, Consumer Relations, Camco, Inc. Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3

Register Your Appliance

In the U.S.: ge.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada: geappliances.ca

Abstract decorative swirl design with no text or symbols

183D5580P178 49-85092 11-05 JR

SP CERTIFIED

ADVERTENCIA!

Simple line drawing of a crossed-out box with a handle, no text or symbols present

Simple line drawing of a frying pan with a crossed X mark (no text or symbols)

National Fire Protection Association

Batterymarch Park

Quincy, MA 02269

Office of Mobile Home Standards

HUD Building

451 7th Street, S.W.

Washington, D.C. 24010

Garante: General Electric Company. Louisville, KY 40225

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Registre su electrodoméstico ge.com
