Product Type	Augmented Reality Glasses
Dimensions (glasses)	178 x 191 x 25 mm
Dimensions (controller)	116 x 56 x 23 mm
Weight (glasses)	69 g
Weight (controller)	129 g
Power	Lithium-polymer battery 2950 mAh, 5 V / 1 A adapter
Battery life	Approximately 6 hours
Display	Si-OLED 0.43\" (16:9), 1280 x 720 pixels
Field of view	23° (diagonal)
Operating system	Android 5.1
Memory	2 GB RAM, 16 GB internal storage
External storage	microSD/microSDHC up to 32 GB
Connectivity	Wi-Fi 802.11a/b/g/n/ac, Bluetooth 4.1, Miracast, micro-USB, 4-pole mini-jack
Camera	5 megapixels
Sensors	GPS, geomagnetic, accelerometer, gyroscope, brightness
Video formats	MP4 (H.264), MPEG-2, VP8
Operating temperature	5 to 35 °C
Maintenance	Wipe the lenses with a soft cloth
Safety	Do not use while driving, do not look at the sun, etc.
After-sales service	Contact an authorized Epson dealer

Frequently Asked Questions - MOVERIO BT-300 EPSON

How to turn the device on and off?

To turn on, press the power button for one second. To turn off, hold this button down then select [Turn off] on the screen.

Cannot see images, what to do?

First check the mute mode: tap twice on the side of the glasses to disable it. Make sure headphones are plugged in. If the image is blurry, switch to 2D/3D mode. Check that files are in supported format (MP4, JPEG, etc.).

How to connect Wi-Fi?

Go to Settings > Wireless & networks > Wi-Fi. Enable Wi-Fi, select your network (SSID), enter the password and confirm. The Wi-Fi icon appears in the status bar.

How to update the system?

Connect to the Internet. A notification appears if an update is available. Click on it and follow the instructions. You can also go to Settings > About device > System updates to check manually.

The battery is not charging, why?

Let it charge for at least 30 minutes; the indicator may not light up immediately. Use only the provided cable and adapter. If the controller heats up, charging stops for safety; wait for it to cool down. Check that the connector is fully inserted.

How to use the touchpad?

Touch the touchpad to move the pointer. Tap to select, swipe to scroll, pinch/spread to zoom. Use two fingers for smooth scrolling.

Can I wear the glasses over prescription glasses?

Yes, replace the standard nose pad with the nose pad for glasses provided. Prescription glasses must not exceed 147 mm wide. You can also use a lens holder from an optician.

How to take a video?

Open the Camera application. Swipe the left edge of the screen to the right and select video mode. Press the button to start recording, then press again to stop. The video is saved automatically.

What if the controller does not respond?

Check the key lock: hold down the switch key to disable it. If the indicator is blue (standby mode), briefly press the power button. As a last resort, hold the power button for 10 seconds to force shutdown.

How to download applications?

Use the MOVERIO Apps Market application. Create an account on first use. Browse applications and install them directly. You can also queue them from a computer via the site https://moverio.epson.com.

USER MANUAL MOVERIO BT-300 EPSON

Copyright ©2016 Seiko Epson Corporation. All rights reserved.

2016.11

https://moverio.epson.com/

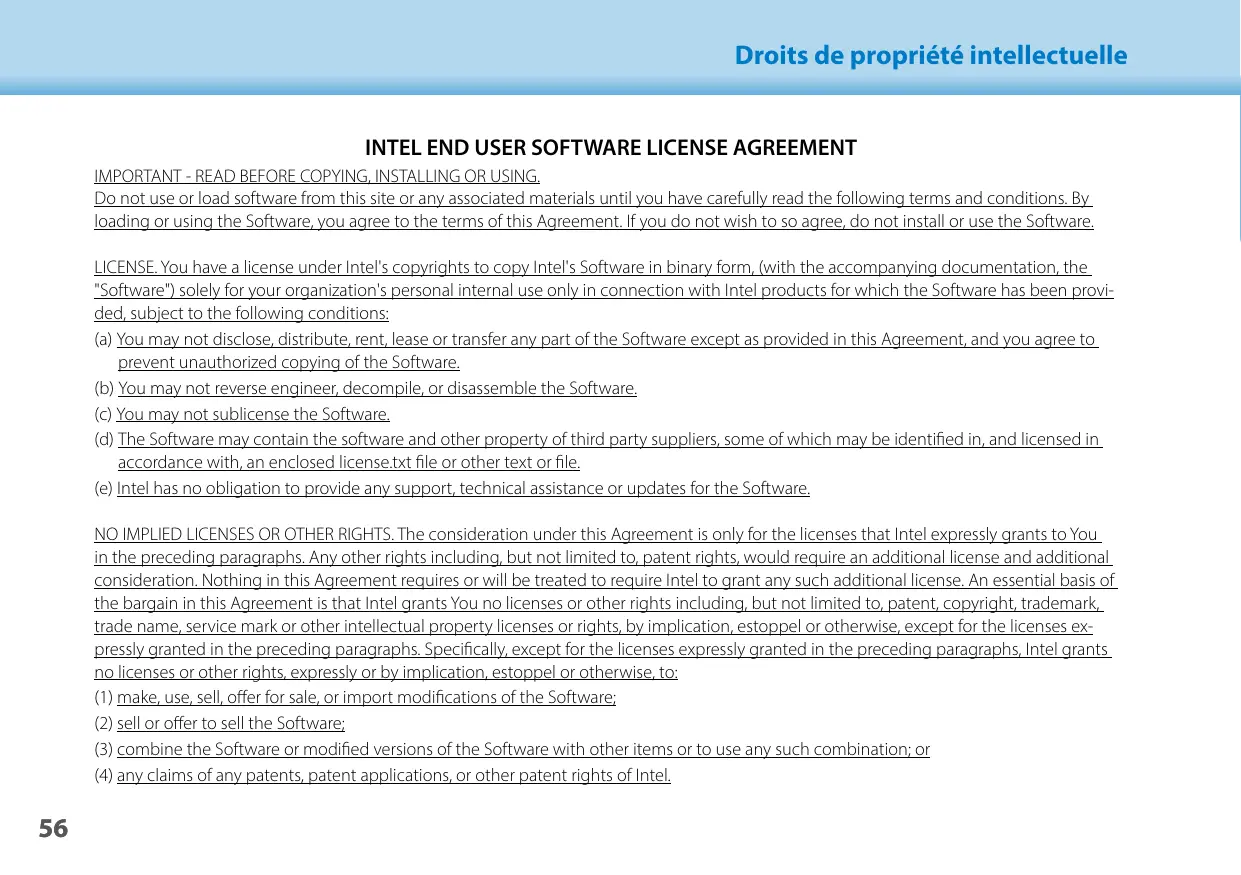

Do not use or load software from this site or any associated materials until you have carefully read the following terms and conditions. By loading or using the Software, you agree to the terms of this Agreement. If you do not wish to so agree, do not install or use the Software.

LICENSE. You have a license under Intel's copyrights to copy Intel's Software in binary form, (with the accompanying documentation, the "Software") solely for your organization's personal internal use only in connection with Intel products for which the Software has been provided, subject to the following conditions:

(a) You may not disclose, distribute, rent, lease or transfer any part of the Software except as provided in this Agreement, and you agree to prevent unauthorized copying of the Software.
(b) You may not reverse engineer, decompile, or disassemble the Software.
(c) You may not sublicense the Software.
(d) The Software may contain the software and other property of third party suppliers, some of which may be identified in, and licensed in accordance with, an enclosed license.txt file or other text or file.
(e) Intel has no obligation to provide any support, technical assistance or updates for the Software.

NO IMPLIED LICENSES OR OTHER RIGHTS. The consideration under this Agreement is only for the licenses that Intel expressly grants to You in the preceding paragraphs. Any other rights including, but not limited to, patent rights, would require an additional license and additional consideration. Nothing in this Agreement requires or will be treated to require Intel to grant any such additional license. An essential basis of the bargain in this Agreement is that Intel grants You no licenses or other rights including, but not limited to, patent, copyright, trademark, trade name, service mark or other intellectual property licenses or rights, by implication, estoppel or otherwise, except for the licenses expressly granted in the preceding paragraphs. Specifically, except for the licenses expressly granted in the preceding paragraphs, Intel grants no licenses or other rights, expressly or by implication, estoppel or otherwise, to:

(1) make, use, sell, offer for sale, or import modifications of the Software;
(2) sell or offer to sell the Software;
(3) combine the Software or modified versions of the Software with other items or to use any such combination; or
(4) any claims of any patents, patent applications, or other patent rights of Intel.

You acknowledge that there are significant uses of the Software in its original, unmodified and uncombined form. The consideration for the license in this Agreement reflects Intel's continuing right to assert patent claims against any modifications or derivative works (including, without limitation, error corrections and bug fixes) of, or combinations with, the Software that You or third parties make that infringe any Intel patent claim.

OWNERSHIP OF SOFTWARE AND COPYRIGHTS. Title to all copies of the Software remains with Intel or its suppliers. The Software is copyrighted and protected by the laws of the United States and other countries, and international treaty provisions. You may not remove any copyright notices from the Software. Except as otherwise expressly provided above, Intel grants no express or implied right under Intel patents, copyrights, trademarks, or other intellectual property rights. Transfer of the license terminates your right to use the Software.

DISCLAIMER OF WARRANTY. [Intel warrants that the media on which the Software is furnished will be free from defects in material and workmanship under normal use for a period of 90 days from the date of purchase. Intel's entire liability and your exclusive remedy will be the replacement of the Software if the media on which the Software is furnished proves to be defective. This warranty is void if the media defect has resulted from accident, abuse, or misapplication. [Except as provided above, the] [The] Software is provided "AS IS" without warranty of any kind, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.

LIMITATION OF LIABILITY. NEITHER INTEL NOR ITS SUPPLIERS WILL BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS, OR INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND) WHETHER UNDER THIS AGREEMENT OR OTHERWISE, EVEN IF INTEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

LICENSE TO USE COMMENTS AND SUGGESTIONS. This Agreement does NOT obligate You to provide Intel with comments or suggestions regarding the Software. However, if You provide Intel with comments or suggestions for the modification, correction, improvement or enhancement of (a) the Software or (b) Intel products or processes that work with the Software, you grant to Intel a non-exclusive, worldwide, perpetual, irrevocable, transferable, royalty-free license, with the right to sublicense, under Your intellectual property rights, to incorporate or otherwise utilize those comments and suggestions.

TERMINATION OF THIS LICENSE. Intel or the licensor may terminate this license at any time if You are in breach of any of its terms or conditions. Upon termination, You will immediately destroy the Software, and return to Intel all copies of the Software.

THIRD PARTY BENEFICIARY. Intel is an intended beneficiary of the End User License Agreement and has the right to enforce all of its terms.

U.S. GOVERNMENT RESTRICTED RIGHTS. No Government procurement regulation or contract clauses or provision will be considered a part of any transaction between the Parties under this Agreement unless its inclusion is required by statute, or mutually agreed upon in writing by the Parties in connection with a specific transaction. The technical data and computer software covered by this license is a "Commercial Item" as that term is defined by the FAR 2.101 (48 C.F.R. 2.101) and is "commercial computer software" and "commercial computer software documentation" as specified under FAR 12.212 (48 C.F.R. 12.212) or DFARS 227.7202 (48 C.F.R. 227.7202), as applicable. This commercial computer software and related documentation is provided to end users for use by and on behalf of the U.S. Government, with only those rights as are granted to all other end users under the terms and conditions in this Agreement. Use for or on behalf of the U.S. Government is permitted only if the party acquiring or using this Software is properly authorized by an appropriate U.S. Government official. This use by or for the U.S. Government clause is in lieu of, and supersedes, any other FAR, DFARS, or other provision that addresses Government rights in the computer Software or documentation covered by this license. All copyright licenses granted to the U.S. Government are coextensive with the technical data and computer Software licenses granted in this Agreement. The U.S. Government will only have the right to reproduce, distribute, perform, display, and prepare Derivative Works as needed to implement those rights.

EXPORT LAWS. You acknowledge that the Software and all related technical information or materials are subject to export controls under the laws and regulations of the United States and any other applicable governments. You agree to comply with these laws and regulations governing export, re-export, import, transfer, distribution, and use of the Software, technical information and materials. In particular, but without limitation, the Software, technical information and materials may not be exported or re-exported (a) into any U.S. embargoed countries or (b) to any person or entity listed on a denial order published by the U.S. government or any other applicable governments. By using the Software, technical information and materials, you represent and warrant that you are not located in any such country or on any such list. You also agree that you will not use the Software, technical information and materials for any purposes prohibited by the U.S. government or other applicable government's law, including, without limitation, the development, design, manufacture or production of nuclear, missile, chemical or biological weapons. You confirm that the Software, technical information and materials will not be re-exported or sold to a third party who is known or suspected to be involved in activities including, without limitation, the development, design, manufacture, or production of nuclear, missile, chemical or biological weapons. You agree that any Software, technical information or materials subject to control under defense laws

and regulations (e.g., the International Traffic in Arms Regulations [ITAR]) must not be transferred to non-U.S. persons, whether located in the U.S. or abroad, without a government license. You will indemnify Intel against any loss related to Your failure to conform to these requirements.

APPLICABLE LAWS. This Agreement is governed by the laws of the state of Delaware, excluding its principles of conflict of laws and the United Nations Convention on Contracts for the Sale of Goods. You may not export the Software in violation of applicable export laws and regulations.

Your specific rights may vary from country to country.

Remarques générales

Complies with IDA standards

DB101624

CE
Déclaration de CONFORMITÉ

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End-users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Caution:

You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Industry Canada (IC) Notices

CAN ICES-3 (B)/NMB-3(B)

This Class B digital apparatus complies with Canadian ICES-003.

This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment. End-users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
