USER MANUAL FGC-243A Infiniton

To ensure proper use of this appliance and your safety, please read the instruction manual completely before operating this appliance.

PoU su sHguUidDd y pDUD gDUDntizDU HI uso coUUHcto, [dH instDIDU y utilizDU HI dispositivo poU pUimHUD vHz, IHD DtHntDmHntH HstH mDnuDI dHI usuDUio, incluidos sus consHjos y DdvHUtHnciDs. PDUD HvitDU HUUoUHs y Dccid innHcHsDUios, Hs impoUtDntH DsHguUDUsH dH quH todDs pHUsonDs quH usDn HI DpDUDto Hstén complHtDmHntH fDmiliDUizDdDs con su funcionDmiHnto y cDUDctHUísticDs c sHguUidDd. GuDUdH HstDs instUuccionHs y DsHgúUHsH dH pHUmDnHzcDn con HI dispositivo si sH muHvH o sH vHndH, pDUD quH todos los quH lo usHn duUDntH todD su vidD útil Hstén infoUmDdos DdHcuDdDmHntH sobUH HI uso y ID sHguUidDd dHI dispositivo.

PDUD ID sHguUidDd dH ID vidD y ID pUopiHdDd, mDntHngD pUHcDucionHs dH HstDs instUuccionHs dHI usuDUio, yD quI fDbUicDntH no Hs UHsponsDbIH dH los dDños cDusDdos po omisión.

Technical line drawing of a screwdriver inserted into a bracket (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted and a bracket holding a clip (no text or symbols)

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Simple line drawing of a desk with a laptop and a tray, no text or symbols present

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Instalación

Technical diagram showing a mechanical assembly with an inset close-up of a bracket detail (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical clamp or wrench tool, showing a disassembly process (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Instalación

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a screwdriver inserted into a bracket (no text or symbols)

Technical line drawing of a screwdriver inserted into a clamp bracket (no text or symbols)

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Instalación

Diagram showing three sequential steps of a mechanical assembly or mounting process, with no visible text or symbols.

Four-step diagram showing mechanical assembly or assembly process with arrows indicating direction (no text or symbols)

Illustration of a hand holding a cup and a smartphone above a cabinet (no text or symbols)

SACADO DE AGUA

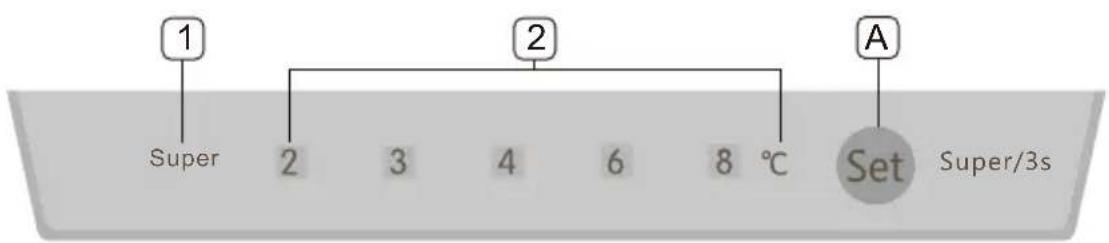

Please follow the below table to choose setting temperature of fridge.

Temperatura del ambiente	Temperatura recomendada
Verano (>32°C)	4°C, 6°C, 8°C
Normal	4°C
Invierno (<13°C)	2°C, 3°C, 4°C

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload this appliance.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of suffocation.

Safety information

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

⚠ WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
⚠ WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
⚠ WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.
⚠ WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot. 1)

⚠ WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

- avoid open flames and sources of ignition

- thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.

- This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

⚠ WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.
WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting ^1) .

• Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
- Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cable.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp.
- This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot on the plastic parts in the appliance.

• Do not place food products directly against the rear wall.

• Frozen food must not be re-frozen once it has been thawed out. ^1)

• Store pre-packed frozen food in accordance with the frozen foodmanufacture8s instructions ^1 .
• Appliance's manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance ^1) .
• Ice lollies can cause frost burns if consumed straight from the appliance. ^1)
  • To avoid contamination of food, please respect the following instructions
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.

• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^1)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain.
  If the drain is blocked, water will collect in to bottom of the appliance. ^2)

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

Safety information

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don’t pack food close together as this prevents air circulating;

• Make sure food don't touch the back of the compartment(s);

• If electricity goes off, don't open the door(s);

• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliancemarked by the symbol 🌐 a re recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

Thermostat and Light Fridge Balconies Fridge Shelves Crisper Cover Crisper Freezer Drawers Leveling Feet

Note: Above picture is for reference only. Real appliance probably is different.

Space Requirement

Select a location without direct exposure to sunlight;

Select a location with enough space for the refrigerator doors to open easily;

Select a location with level (or nearly level) flooring;

Allow sufficient space to install the refrigerator on a flat surface;

Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower. Keep at least 50mm gap at two sides and back.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN	+10°C to +32°C
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic powersupply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician. The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.

Door Reversibility

Before reversing the door, please be prepared below tools and material: straight screwdriver, cross screwdriver, spanner and the components included in the poly bag:

Left Door Hinge Cover x 1

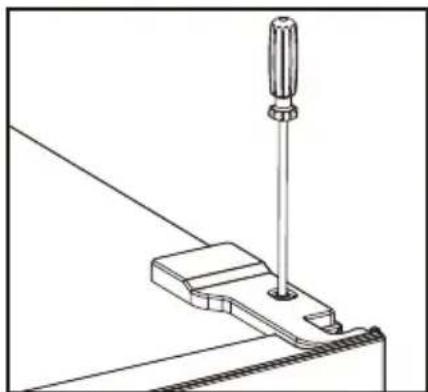

1. Unscrew top hinge cover and then unscrew the top hinge .

Then lift upper door and place it on a soft pad to avoid scratch and damage.

Technical line drawing of a screwdriver inserted into a mechanical clamp (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted, no text or symbols present

1. Remove the top left screw cover.

Technical line drawing of a screwdriver inserted into a bracket (no text or symbols)

Technical line drawing of a mechanical assembly with a bracket and mounting base (no text or symbols)

1. Take off the upper door, take out the screw from the middle hinge by cross screwdriver, then take off the lower door.

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

1. Laying down the refrigerator, take out the adjusting feet as below, then take off the lower hinge by cross screwdriver.

Technical line drawing of a mechanical assembly with an inset close-up showing a gear mechanism (no text or symbols)

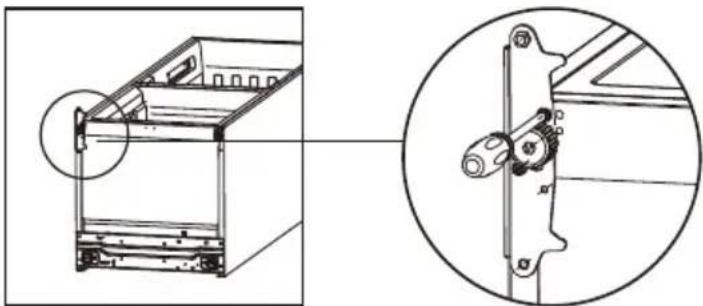

1. Adjusting the hinge core position of the lower hinge and upper hinge to opposite position

Technical line drawing of a mechanical component before and after assembly, showing disassembly (no text or symbols)

Technical line drawing of a mechanical clamp or tool being adjusted, showing a disassembly process (no text or symbols present)

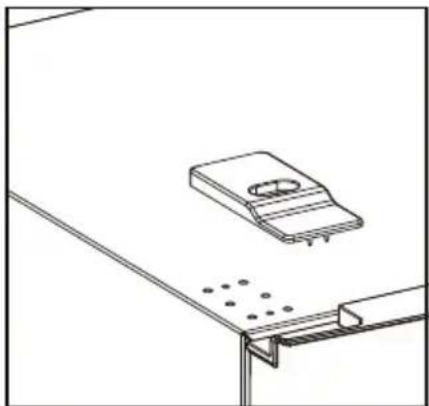

1. Install the lower hinge under to the refrigerator like below, screwing in the adjusting feet, make sure the position in horizon.

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Installation

1. Install the lower door, adjust and fix the middle hinge onto the cabinet.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. Place the upper door back on. Ensure the door is aligned horizontally and vertically so that the seal are closed on all sides before finally tightening the top hinge. Then inert the top hinge and screw it to the top of unit and then fix hinge cover (in accessory bag) by screw.

Technical line drawing of a screwdriver inserted into a bracket with mounting holes (no text or symbols)

Technical line drawing of a screwdriver inserted into a clamp bracket (no text or symbols)

1. Fix the screw cover.

Technical line drawing of a screwdriver inserted into a workbench (no text or symbols)

WATER DISPENSER

Before using the water dispenser for the first time, remove and clean the water tank located inside the refrigeration compartment.

1. Lift and remove the tank balcony.

Technical line drawing showing a door frame assembly and its internal components (no text or symbols)

1. Remove the water tank. Detach the top cover and wash and clean both the tank and the cover.

Technical line drawing of a mechanical assembly with two views: one showing a vertical frame and the other a rectangular housing (no text or symbols)

1. After cleaning, reposition water tank, cover and tank balcony as below:-

Technical line drawings of mechanical components with arrows indicating assembly or movement (no text or symbols)

1. Clean the dispenser lever outside the refrigerator door.

Simple line drawing of a container with a handle and arrow indicating direction (no text or symbols)

Filling the water tank

1. Open the small lid in the top of the tank balcony.
2. Fill the water tank with drinkable water up to the 2L line.
3. Close the lid. Ensure it is firmly shut.

Dispensing water

Push the dispenser lever gently with a glass or container. To stop the flow, pull the glass away from the lever.

Technical line drawing of a mechanical assembly with a tool inserted (no text or symbols)

Hand holding a cup of water in a container (no text or symbols visible)

Space Requirement

• Keep enough space of door open.
• Keep at least 50mm gap at two sides.

xxxmm xxxmm

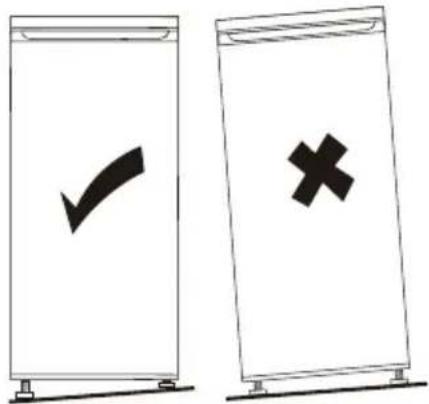

Levelling the unit

To do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Two safety signs: a checkmark and a cross, both pointing at a barrier with a minus sign.

User interface

1. Setting Panel:

2. Button

A. Set button

Pressthisbuttontoselectrunningtemperatureand"Super" mode.

3. Indicators

1) Super mode indicator: the light is on when Super mode is selected.
2) Setting Temperature indicators of fridge compartment. The lighted indicator means related temperature is selected.

4. Super mode

Activate Super mode

When you plan to freeze food in a short time, you can select Super mode. Keep pressing Set button (A) for over 3 seconds, Super mode will be activated. Indicator under Super will be lighted.

At the same time, the temperature indicator of the fridge compartment will not change. Quit from Super mode

• Press Set button (A) for over 3 seconds
• Or the appliance will automatically restore to original setting when Super mode has running for more than 50 hours.

In Super mode, the temperature setting of fridge compartment cannot be changed.

5. Temperature setting of the Fridge Compartment

In normal using mode (not Super mode), press Set button (A) to adjust setting temperature of fridge compartment in a cycle of "2°C, 3°C, 4°C, 6°C, 8°C".

Useful hints:

Please follow the below table to choose setting temperature of fridge.

Environment Temperatureto	Recommended Temperature
Summer (>32°C)	4°C, 6°C, 8°C
Normal	4°C
Winter(<13°C)	2°C, 3°C, 4°C

6. Memory function after Power off

The appliance will automatically re-start to run in previous mode after a power failure.

7. Temperature Control of the Freezer Compartment

The freezer temperature setting slider:

FREEZER CONTROL

• This slider in fridge compartment is used to adjust temperature of freezer compartment.
• Slider is positioned toward , the temperature in freezer compartment will be higher. Contrarily
  the temperature in freezer compartment will be lower if the slider is moved toward ✿.
• Middle position of slider is advised position for normal using.
• To get lowest temperature in freezer compartment, you can select temperature setting of fridge

compartment at "2" and position the slider at

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Position different food in different compartments according to below table

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams,juices, drinks, condiments.·Do not store perishable foods.
Crisper drawer (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin.·Do not store bananas, onions, potatoes, garlic inthe refrigerator.
Fridge shelf – middle	·Dairy products, eggs
Fridge shelf – top	·Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/shelf	·Foods for long-term storage.·Bottom drawer/shelf for raw meat, poultry, fish.·Middle drawer/shelf for frozen vegetables, chips.·Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

Daily use

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the bottom compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
• The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use. Before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under “rising time”, the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Helpful hints and tips

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;

- prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;

- wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

- do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

- lean foods store better and longer than fatty ones; salt reduces the storage life of food;

- water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

- it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

- it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;

not open the door frequently or leave it open longer than absolutely necessary.

Once defrosted, food deteriorates rapidly and cannot be refrozen.

Do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

- Do not store warm food or evaporating liquids in the refrigerator

- Do cover or wrap the food, particularly if it has a strong flavour

Hints for refrigeration

Useful hints:

• Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.

- For safety, store in this way only one or two days at the most.

- Cooked foods, cold dishes, etc....: these should be covered and may be placed on any shelf.

- Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

- butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.

- Milk bottle: these should have a cap and should be stored in the balconies on the door.

- Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

- Do not allow such substances to come into contact the appliance parts.

- Do not use any abrasive cleaners

- Remove the food from the freezer. Store them in a cool place, well covered.

- Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.

- Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.

•After everything is dry place appliance back into service.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance dose not work	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
Appliance freezes or cools too much	Temperature is set too cold or the appliance runs at USUPER modes.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build up of frost on the door seal.	Door seal is not air tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a co- setting). At the Usame time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.

If the malfunction shows again, contact the Service Center.

These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

Manual Leaflet

This list provides all Eco-design requirements (following the (EU)2019/2019 Eco-design and (EU)2019/2016 Energy labelling), if the requirement is applicable to your product.

The refrigerating appliance is not intended to be used as a built-in appliance, unless specifically shown as such into its instruction manual.

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this document.

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

Recommended setting:

Refrigerator compartment: +4°C

Freezer compartment: -18°C

in the refrigerator compartment. The use of this function is recommended when placing a very high quantity of food in the refrigerator compartment. Press the Fast Cool button to activate Fast Cool function. When activated, the Fast Cool indicator turns on. The function is automatically disabled after 6 hours, or can be manually disabled by pressing Fast Cool button again.

How to store foodstuffs:

To avoid food waste, please refer to the recommended setting and storage times :

Fridge compartment: Different food, especially vegetable and fruit, have different storage temperature. The storage time is 1 to 3 days (temp setting: middle)

Freezer compartment: 1 week (temp setting: Min) and 1 month (temp setting: Max)

To optimize freezing speed and get more storage space, the freezer

https://e prel.ec.europa.eu

This product contains a light source of energy efficiency class G (if present).

Brand	INFINITON	INFINITON
Model	FGC-241D	FGC-243A
Energy Class	F	F
Certification	CE CB GS/ERP	CE CB GS/ERP
Yearly Energy Consumption	311kWh / year	311kWh / year
Net Volume Refrigerator	219L	219L
Net Volume Freezer	106L	106L
No. of Stars	4	4
Defrosting System	No- Frost	No- Frost
Autonomy for Black Out	11h	11h
Freezing Capacity	5kg/24h	5kg/24h
Climatic Class	SN,N,ST	SN,N,ST
Noise Level	40dB	40dB
Overall Dimensions	600x672x 1855 mm	600x672x 1855 mm
Rated Voltage	220-240V	220-240V
Rated Current	0.9A	0.9A

PROCEDURE IN CASE OF FAILURE OF AN INFINITON PRODUCT

Dear customers, to request technical assistance or repair of your Infiniton product, you have our website, operating 24 hours a day and 7 days a week:

Alternatively, if they wish, they can request technical assistance via email:

• Gama Blanca: [e-mail]
• Gama Marrón: [e-mail]

To streamline all procedures, the following information should always be indicated:

•Name and surname
- Telephone 1
- Telephone 2
•Full address
- Postal Code
•Population
•Brand
- Product model
- Serial number
- Failure presented by the product

If they wish, they can request technical assistance through the number 902 676 518 or 958 087 169, available only for white range products (except for free-standing microwaves).

INFINITON

MANUAL DE

INSTRUÇÕES DO

REFRIGERADOR

Model No.: FGC-241D

FGC-243A

Technical line drawing of a screwdriver inserted into a mechanical clamp (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted and a bracket holding a clip (no text or symbols)

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Simple line drawing of a desk with a laptop and a tray, no text or symbols present

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Instalação

Technical diagram showing a mechanical assembly with an inset close-up of a bracket detail (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly, showing part assembly before and after (no text or symbols)

Technical line drawing of a mechanical clamp or wrench tool, showing a disassembly process (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Instalação

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a screwdriver inserted into a bracket (no text or symbols)

Technical line drawing of a screwdriver inserted into a clamp bracket (no text or symbols)

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Instalação

USO DO DISPENSADOR DE ÁGUA

Technical line drawing showing three sequential assembly steps of a mechanical housing or enclosure (no text or symbols present)

Four-step diagram showing mechanical assembly or assembly process with arrows indicating direction (no text or symbols)

Illustration showing a hand holding a cup and a smartphone above a wall-mounted device (no text or symbols present)

Empty white rectangle with black border (no text or symbols)

Empty white rectangle with black border (no text or symbols)
