USER MANUAL Profile PTDS650GMWT GE

Safety Instructions .....2-4

Operating Instructions

Control Panels....5

Control Settings 6-8

Dryer Features ....8

Loading and Using the Dryer .....10

Reversing the Door .....9

Venting the Dryer .....11

Troubleshooting Tips ... 12, 13

Consumer Support

Consumer Support 15

Warranty 14

Write the model and serial number here:

Model # ____

Serial # ____

You can find them on a label on the front of the dryer behind the door.

⚠ WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or death.

■Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

■Installation and service must be performed by a qualified installer, service agency or the gas supplier.

WHAT TO DO IF YOU SMELL GAS:

1 Do not try to light a match, or cigarette, or turn on any gas or electrical appliance.

4 Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions carefully.

2 Do not touch any electrical switch; do not use any phone in your building.

5 If you cannot reach your gas supplier, call the fire department.

3 Clear the room, building or area of all occupants.

California Safe Drinking Water and Toxic Enforcement Act

This act requires the governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm and requires businesses to warn customers of potential exposure to such substances.

Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.

Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be minimized further by properly venting the dryer to the outdoors.

PROPER INSTALLATION

This dryer must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet, you can receive one by visiting GEAppliances.com or by calling 800.GE.CARES (800.432.2737).

■Properly ground dryer to conform with all governing codes and ordinances. Follow details in Installation Instructions.

■Install or store where it will not be exposed to temperatures below freezing or exposed to the weather.

■Connect to a properly rated, protected and sized power supply circuit to avoid electrical overload.

■Remove all sharp packing items and dispose of all shipping materials properly.

Exhaust/Ducting:

1 All dryers MUSTRbe exhausted to the outside.
2 Use only rigid metal 4" diameter ductwork inside the dryer cabinet and use only rigid metal 4" diameter or UL approved transition ducting between the dryer and the home duct. USE OF PLASTIC OR OTHER COMBUSTIBLE DUCTWORK CAN CAUSE A FIRE. PUNCTURED DUCTWORK CAN CAUSE A FIRE IF IT COLLAPSES OR BECOMES OTHERWISE RESTRICTED IN USE OR DURING INSTALLATION.

For complete details, follow the Installation Instructions.

YOUR LAUNDRY AREA

■Keep the area underneath and around your appliances free of combustible materials (lint, paper, rags, etc.), gasoline, chemicals and other flammable vapors and liquids.
- Keep the floor around your appliances clean and dry to reduce the possibility of slipping.
■Close supervision is necessary if this appliance is used near children. Do not allow children play on, with or inside this or any other appliance.
- Keep all laundry aids (such as detergents, bleaches,

etc.) out of the reach of children, preferably in a locked cabinet. Observe all warnings on container labels to avoid injury.

■Never climb on or stand on the dryer top.

▲WARNING!

WHEN USING YOUR DRYER

■Never reach into the dryer while the drum is moving. Before loading, unloading or adding clothes, wait until the drum has completely stopped.
■Clean the lint filter before each load to prevent lint accumulation inside the dryer or in the room. DO NOT OPERATE THE DRYER WITHOUT THE LINT FILTER IN PLACE.
■Do not wash or dry articles that have been cleaned in, washed in, soaked in or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.). These substances give off vapors that may ignite or explode. Do not add these substances to the wash water. Do not use or place these substances around your washer or dryer during operation.
■Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a clothes load to catch fire
■Any article on which you have used a cleaning solvent or that contains flammable materials (such as cleaning cloths, mops, towels used in beauty salons, restaurants or barber shops, etc.) must not be placed in or near the dryer. There are many highly flammable items used in homes such as acetone, denatured alcohol, gasoline, kerosene, some household cleaners, some spot removers, turpentines, waxes, wax removers and products containing petroleum distillates.

■The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer's care instructions.
■Do not dry articles containing rubber, plastic, foam or similar materials such as padded bras, tennis shoes, galoshes, bath mats, rugs, bibs, baby pants, plastic bags, pillows, etc., that may melt or burn. Some rubber materials, when heated, can under certain circumstances produce fire by spontaneous combustion.
■Do not store plastic, paper or clothing that may burn or melt on top of the dryer during operation.
■ Garments labeled Dry Away from Heat or Do Not Tumble Dry (such as life jackets containing Kapok) must not be put in your dryer.
■Do not dry fiberglass articles in your dryer. Skin irritation could result from the remaining particles that may be picked up by clothing during subsequent dryer uses.
■To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the dryer at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning (except the removal and cleaning of the lint filter). NOTE:Turning the Cycle Selector knob to an off position, or pressing PAUSE does NOT disconnect the appliance from the power supply.

▲WARNING!

WHEN USING YOUR DRYER (cont.)

■Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.
■The interior of the machine and the exhaust duct connection inside the dryer should be cleaned at least once a year by a qualified technician. See the Loading and Using the Dryer section.
■If yours is a gas dryer, it is equipped with an automatic electric ignition and does not have a pilot light. DO NOT ATTEMPT TO LIGHT WITH A MATCH. Burns may result from having your hand in the vicinity of the burner when the automatic ignition turns on.

■You may wish to soften your laundered fabrics or reduce the static electricity in them by using a dryer-applied fabric softener or an anti-static conditioner. We recommend you use either a fabric softener in the wash cycle, according to the manufacturer's instructions for those products, or try a dryer-added product for which the manufacturer gives written assurance on the package that their product can be safely used in your dryer. Service or performance problems caused by use of these products are the responsibility of the manufacturers of those products and are not covered under the warranty to this appliance.

WHEN NOT USING YOUR DRYER

■Grasp the plug firmly when disconnecting this appliance to avoid damage to the cord while pulling. Place the cord away from traffic areas so it will not be stepped on, tripped over or subjected to damage.
- Do not attempt to repair or replace any part of this appliance or attempt any servicing unless specifically recommended in this Owner's Manual or in published user-repair instructions that you understand and have the skills to carry out.

■Before discarding a dryer, or removing it from service, remove the dryer door to prevent children from hiding inside.
■ Do not tamper with controls.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

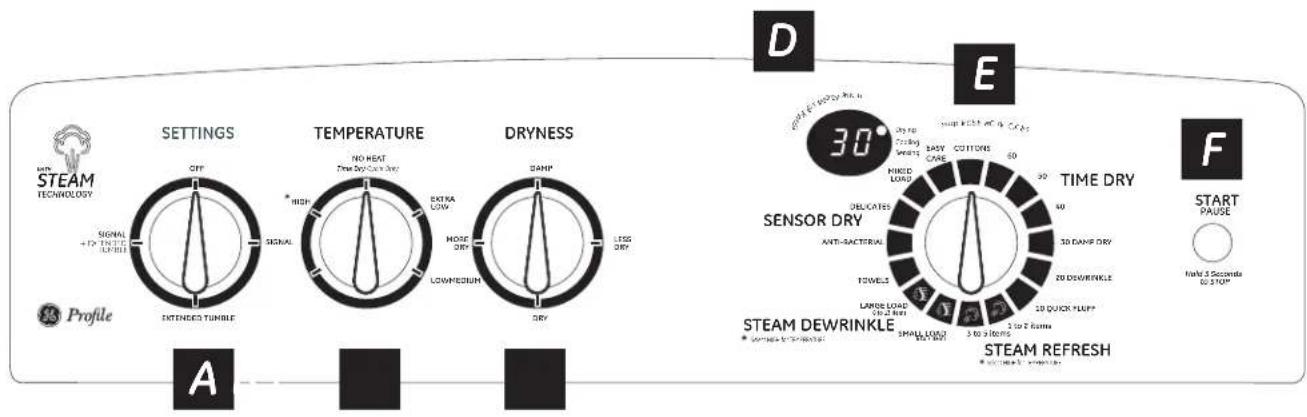

Quick Start Guide

NOTE: When making a selection with any knob, simply point the knob anywhere within the shaded range for that setting.

D E F 30° SENSOR DRY TIME DRY START PAUSE STEAM DEWRINKLE STEAM REFRESH OFF TEMPERATURE DRIYNESS NO HEAT New Dry/No Dry * HIGH * LOW/MEDIUM * LESS DRY * 100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 OFF TEMPERATURE DRIYNESS SENSUS TURPLE ATTENDED TURPLE SIGNAL +12" INTENDED TURPLE Profile A B C D E START PAUSE 3 to 5 Seconds 60-170P

SIGNAL MEDIUM OFF LTR TEMPERATURE HIGH NET LOWER FLUFF profiles A WRINKLE CARE OFF ON E EASY CARE COTTONS LESS DRY OFF MORE DRY UPPUM DRY MORE DRY OFF MORE DRY QUICK FLUFF 10 DEAMINULE 20 DAMP DRY 30 40 50 60 70 80 90 OFF TIME DRY EASY CARE EASY CARE EASY CARE START PAUSE HARD & DESAMATE 50 STOP

A End of Cycle Signal

This signal will sound just before the end of the cycle to remind you to remove the clothes.

If you select the EXTENDED TUMBLE option, the signal will sound at the end of the drying time and will sound several times during the EXTENDED TUMBLE cycle. This will remind you that it is time to remove the clothes.

NOTE:

• Remove garments promptly at the sound of signal. Place clothes on hangers so wrinkles won't set in.
• Use the END OF CYCLE SIGNAL especially when drying fabrics like polyester knits and permanent press. These fabrics should be removed so wrinkles won't set in.

Extended Tumble

Use this option to minimize the wrinkles in clothes. It provides approximately 1 hour of no-heat tumbling after the clothes are dry.

If you are using CYCLE SIGNAL and you select the EXTENDED TUMBLE option, a signal will sound at the end of the drying time and several times during the EXTENDED TUMBLE cycle. This will remind you that it is time to remove the clothes.

B Temperature

HIGH For regular to heavy cottons. NOTE: STEAM DEWRINKLE and STEAM REFRESH require the High temperature setting.
MEDIUM	For synthetics, blends, delicates and items labeled permanent press.
LOW For delicates, synthetics and items labeled tumble dry low.
EXTRA LOW For delicates, synthetics and items labeled tumble dry low.
NO HEAT	For fluffing items without heat. For use only with the TIMED DRY cycles.

C	Dryness—Selection only used for SENSOR cycles. Timed Cycles run for the selected time at the selected temperatures.
	MORE DRY Use for heavy-duty fabrics.
	DRY Use for a normal dryness level suitable for most loads. This is the preferred cycle for energy savings.
	LESS DRY Use for lighter fabrics.

DAMP For leaving items partially damp.

D Estimated Time Remaining Display

• Displays the approximate time remaining until the end of the cycle.
• If the estimated time remaining is 60 minutes or more, "1H" will flash in the display, followed by the additional remaining minutes. When the time remaining is less than 60 minutes, the timer will count down.

Message DisplayedRDescription
		The message “PAUSE” will scroll across the display when the dryer's cycle is paused. The cycle may be restarted by pressing the START button.
		The message “door” will be displayed when the door is opened during the dryer's cycle.
		The message “HEAt” will be displayed when the start button is pressed for a steam refresh or de-wrinkle cycle. Turn the temperature knob to “High” and press the start button.

Drying Cycles—Sensor cycles automatically determine fabric dryness. Timed cycles run for the selected time.

COTTONS For cottons and most linens.

EASY CARE For wrinkle-free, permanent press and delicate items, and knits.

DELICATES For delicate items, special-care fabrics and knits.

MIXED LOAD For loads consisting of cottons and poly-blends.

TIMED DRY Set the Cycle Selector at the desired drying time.

DAMP DRY For leaving items partially damp.

DEWRINKLE For removing wrinkles from items that are clean and dry or that are very lightly damp.

QUICK FLUFF For freshening or fluffing up already dry clothing, fabric, linens and pillows. Use with NO HEAT. Provides 10 minutes of no-heat tumbling.

DRYEL Designed for use with DRYEL ^® "dry-clean only" fabric care system. See product package for directions. For questions or issues related to the use and performance of DRYEL, call 1.800.214.8913, or visit the DRYEL Website at www.dryel.com.

ANTI-BACTERIAL

NSF Protocol P154 Sanitization Performance of Residential Clothes Dryers

This option reduces certain types of bacteria by 99.9%, including: Staphylococcus aureus, Pseudomonas aeruginosa and Klebsiella pneumoniae*. The anti-bacterial process occurs when high heat is used during a portion of the drying cycle.

NOTE: Do not use this cycle on delicate fabrics.

*The Anti-Bacterial Cycle is Certified by NSF International (formerly National Sanitation Foundation) to NSF Protocol P154 Sanitization Performance of Residential Clothes Dryers.

KNITS For knits with fabric care labels that say "Machine Dry".

TOWELS For most towels and linens.

STEAM REFRESH For slightly wrinkled dry garments. Significantly reduces wrinkles. After the STEAM REFRESH (on some models) Cycle, the unit will beep (if Signal is selected) and display "00."

Steam Refresh Large is recommended for 3-5 garments and Small for 1-2 garments.

NOTE: Steam cycles are not intended for use with towels.

NOTE: A single extremely light fabric item may need to have an additional item included in = the STEAM REFRESH cycle to achieve optimum results.

Important - the temperature setting must be set to HIGH and water must be turned on before running the STEAM REFRESH cycle.

STEAM DEWRINKLE (on some models) For use with larger loads than STEAM REFRESH. Ideal for loads left in dryer for an extended time. STEAM DEWRINKLE Large is recommended for 8-13 garments and Small for 6-7 garments.

NOTE: Steam cycles are not intended for use with towels

Important! - the temperature setting must be set to HIGH and water must be turned on before running the STEAM DEWRINKLE cycle.

START—Close the dryer door. Press START. Opening the door during operation will stop the dryer. To restart the dryer, close the door and press START to complete the cycle. If the dryer is running, press once to pause the cycle; press again to continue the cycle. If the dryer is paused for more than 24 hours, the cycle will be cancelled. To stop the cycle, hold the button for 3 seconds.

NOTE: Drying times will vary according to the type of heat used (Electric, Natural or LP gas), size of load, types of fabrics, wetness of clothes and condition of exhaust ducts.

About the dryer features.

Wrinkle Care

Use this option to minimize the wrinkles in clothes. It provides approximately 15 minutes of no-heat tumbling after the clothes are dry.

This option can only be used with the COTTONS, EASY CARE and DELICATES cycles. If you are using CYCLE SIGNAL and you select the WRINKLE CARE option, a signal will sound at the end of the drying time and several times during the WRINKLE CARE cycle. This will remind you that it is time to remove the clothes.

If WRINKLE CARE is not ON, the dryer will stop once the timer reaches the WRINKLE CARE mark on the cycle dial.

About the dryer features.

Sensor Dry	Sensor Dry (on some models)This feature is only activated in the COTTONS, EASY CARE and DELICATES cycles.TheSENSOR DRYRprovides greater drying accuracy than standard machines, resulting in shorter dry times and better clothes care. As the clothes tumble, they touch a moisture sensor. The sensor will stop the heating cycle as soon as the clothes have reached the selected dryness.	This dryer will adjust the initial estimated drying time of the sensor dry cycles as it "learns" its installation and usage profile. Please allow several weeks for the dryer to customize itself to "you".
	Drum LampBefore replacing the light bulb, be sure to unplug the dryer power cord or disconnect the dryer at the household distribution panel by removing the fuse or switching off the circuit breaker. Reach above dryer opening from inside the drum. Remove the bulb and replace with the same size bulb.
	Drying Rack (on some models)A handy drying rack may be used for drying delicate items such as washable sweaters.Hook the rack over the lint filter so the rack extends into the dryer drum.	NOTE:■The drying rack must be used with the TIMED CYCLE.■Do not use this drying rack when there are other clothes in the dryer.
	Stainless Steel Drum (on some models)The stainless steel used to make the dryer drum provides the highest reliability available in a GE dryer. If the dryer drum should be scratched or dented during normal	use, the drum will not rust or corrode. These surface blemishes will not affect the function or durability of the drum.

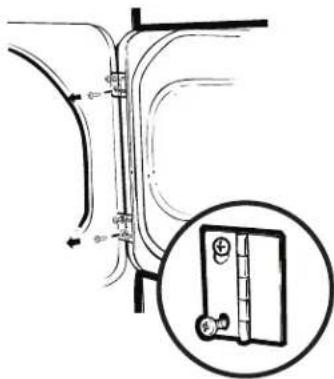

Technical diagram of a mechanical component with an inset close-up showing a detail (no text or symbols)

Reversing the Door

Tools needed:

■Standard #2 ■Tape-tipped Phillips screwdriver putty knife

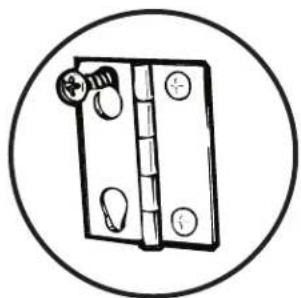

1 Open the door and remove the filler plugs opposite the hinges. With the door completely open, remove the bottom screw from each hinge on the dryer face. Insert these screws about half way into the TOP holes, for each hinge, on the opposite side (where you removed the filler plugs). Apply firm pressure to get the screw started in new holes.

Simple line drawing of a hinge with a handle and screw, enclosed in a circle (no text or symbols)

2 Loosen top screw from each hinge on the dryer face half way. With one hand holding the top of the door and the other hand holding the bottom, remove the door from the dryer by lifting it UP and OUT.

Pure mechanical diagram showing a bracket with a downward arrow, no text or symbols present

3 Rotate the door 180°. Insert it on the opposite side of the opening by moving the door IN and DOWN until the top hinge and the bottom hinge are resting on the top screws inserted in step 1.

Diagram of a door hinge with a screw and pin, showing alignment and mounting (no text or symbols)

4 Remove the remaining screws from the side of the opening from which the door was removed. With these screws, secure each hinge at the bottom. Tighten the two top screws of each hinge. Reinsert the plastic plugs on the side from which the door was removed.

Always follow the fabric manufacturer's care label when laundering.

Sorting and Loading Hints

As a general rule, if clothes are sorted properly for the washer, they are sorted properly for the dryer.

Do not add fabric softener sheets once the load has become warm. They may cause fabric softener stains. Bounce® Fabric Conditioner Dryer Sheets have been approved for use in all GE Dryers when used in accordance with the manufacturer's instructions.

Do not overload. This wastes energy and causes wrinkling.

Do not dry the following items: fiberglass items, woolens, rubber-coated items, plastics, items with plastic trim and foam-filled items.

Care and Cleaning of the Dryer

The Exterior: Wipe or dust any spills or washing compounds with a damp cloth. Dryer control panel and finishes may be damaged by some laundry pretreatment soil and stain remover products. Apply these products away from the dryer. The fabric may then be washed and dried normally. Damage to your dryer caused by these products is not covered by your warranty.

The Lint Filter: Clean the lint filter before each use. Moisten your fingers and reach into the filter opening. Run your fingers across the filter. Have a qualified technician vacuum the lint from the dryer once a year.

Line drawing of a hand holding a small electronic device on a door panel (no text or symbols)

Stainless Steel: To clean stainless steel surfaces, use a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel surfaces. Remove the cleaner residue, and then dry with a clean cloth.

The Exhaust Duct: Inspect and clean the exhaust ducting at least once a year to prevent clogging. A partially clogged exhaust can lengthen the drying time.

Follow these steps:

1 Turn off electrical supply by disconnecting the plug from the wall socket.
2 Disconnect the duct from the dryer.
3 Vacuum the duct with the hose attachment and reconnect the duct.

The Exhaust Hood: Check from the outside that the flaps of the hood move freely when operating. Make sure that there is not wildlife (birds, insects, etc.) nesting inside the duct or hood.

Fabric Care Labels

Below are fabric care label "symbols" that affect the clothing you will be laundering.

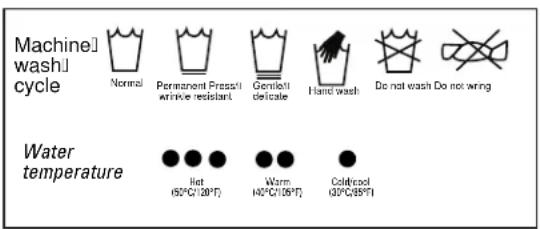

WASH LABELS

Machine wash cycle Normal Permanent Press! wrinkle resistant Gentile! delicate Hand wash Do not wash Do not wing Water temperature Hot (50°C/120°F) Warm (40°C/105°F) Cold/cool (30°C/35°F)

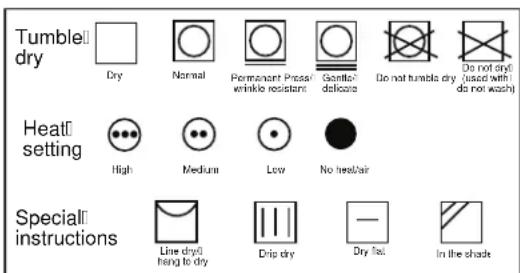

DRYRLABELS

Tumble dry Dry Normal Permanent Press wrinkle resistant Gentle delicate Do not tumble dry Do not dry (used with I do not wash) Heat setting High Medium Low No heat/air Special instructions Line dry hing to dry Drip dry Dry heat In the shade

BLEACH LABELS

For the best drying performance, the dryer needs to be properly vented. The dryer will use more energy and run longer if it is not vented to the below specifications. Carefully follow the details on Exhausting in the Installation Instructions.

■Use only rigid metal 4" diameter ductwork inside the dryer cabinet. Use only rigid metal or UL listed flexible metal 4" diameter ductwork for exhausting to the outside.
■Do not use plastic or other combustible ductwork.
■Use the shortest length possible.
■Do not crush or collapse.
■Avoid resting the duct on sharp objects.
■Venting must conform to local building codes.

Correct Venting

Pure technical line drawing of a mechanical or industrial component without any text, numbers, or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

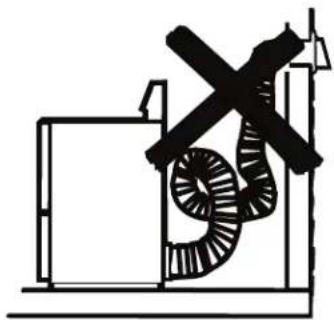

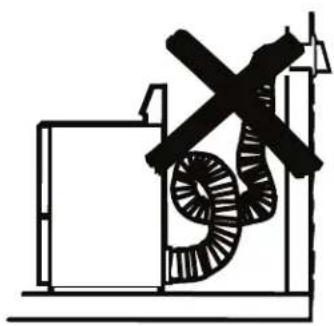

Incorrect Venting

Simple line drawing of a windmill with a cross symbol and a spiral staircase (no text or labels)

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Troubleshooting Tips

Save time and money! Review the charts on the following pages,

or visit GEAppliances.com. You may not need to call for service.

ProblemRPossible CausesRWhat To Do

Dryer doesn't start	Dryer is unplugged	Make sure the dryer plug is pushed completely into the outlet.
	Fuse is blown/circuit breaker is tripped	Check the house fuse/circuit breaker box and replace fuse or reset breaker.NOTE: Most electric dryers use two fuses/breakers.
Dryer doesn't heat	Fuse is blown/circuit breaker is tripped; the dryer may tumble but not heat if only one fuse is blown or one breaker is tripped.	Check the house fuse/circuit breaker box and replace both fuses or reset both breakers. Your dryer may tumble
	Gas service is off• Make sure gas shutoff at dryer and main shutoff are fully open.
	No heat temperature selected	Select another heat setting.
Dryer shakes or makes noise	Some shaking/noise is normal. Dryer may be sitting unevenly	Move dryer to an even floor space, or adjust leveling legs as necessary until even.
Greasy spots on clothes	Improper use of fabric softener	Follow directions on fabric softener package.
	Drying dirty items with clean ones	Use your dryer to dry only clean items. Dirty items can stain clean items and the dryer.
	Clothes were not completely clean	Sometimes stains which cannot be seen when the clothes are wet appear after drying. Use proper washing procedures before drying.
Lint on clothes	Lint filter is full	Clean lint screen before each load.
	Improper sorting	Sort lint producers (like chenille) from lint collectors (like corduroy).
	Static electricity can attract lint	See suggestions in this section underSTATIC.
	Overloading	Separate large loads into smaller ones.
	Paper, tissue, etc., left in pockets	Empty all pockets before laundering clothes.
Static occurs	No fabric softener was used	Try a fabric softener.Bounce® Fabric Conditioner Dryer Sheets have been approved for use in all GE Dryers when used in accordance with the manufacturer's instructions.
	Overdrying	Try a fabric softener.Adjust setting toLESS DRYor DAMP DRY.
	Synthetics, permanent press and blends can cause static	Try a fabric softener.
Inconsistent drying times	Type of heat	Automatic drying times will vary according to the type of heat used (electric, natural or LP gas), size of load, types of fabrics, wetness of clothes and condition of exhaust ducts.

ProblemRPossible CausesRWhat To Do

Clothes take too long to dryRa well-sorted washer load is a well-sorted dryer load.
	Improper sorting	Separate heavy items from lightweight items (generally,
	Large loads of heavy fabrics (like beach towels) longer to dry. Separate large, heavy fabrics into smaller loads to speed drying time.
	Controls improperly set Match control settings to the load you are drying.
	Lint filter is full Clean lint filter before every load.
	Improper or obstructed Check installation instructions for proper ducting ducting/venting.
		Make sure ducting is clean, free of kinks and unobstructed. Check to see if outside wall damper operates easily. Check the Installation Instructions to make sure the dryer venting is correct.
	Blown fuses or tripped circuit breaker	Replace fuses or reset circuit breakers. Since most dryers use 2 fuses/breakers, make sure both are operating.
	Overloading/combining loads	Do not put more than one washer load in the dryer at a time.
	Underloading	If you are drying only one or two items, add a few items to ensure proper tumbling.
Clothes are wrinkled	Overdrying	Select a shorter drying time.Remove items while they still hold a slight amount of moisture. Select a LESS DRY or DAMP DRY setting.
	Letting items sit in dryer after cycle ends	Remove items when cycle ends and fold or hang immediately.
	Overloading	Separate large loads into smaller ones.
Clothes shrink	Some fabrics will naturally shrink when washed. Others can be safely washed, but will shrink in the dryer	To avoid shrinkage, follow garment care labels exactly. Some items may be pressed back into shape after drying. If you are concerned about shrinkage in a particular item, do not machine wash or tumble dry it
Water seen on inside of door and top of lint filter when opening door after steam cycle	Steam condenses on these surfaces	This is normal.
Small areas on clothes are damp after steam cycle	Steam condenses on inner drum	If using the STEAM DEWRINKLE cycle, manually reduce the cycle time. If using the STEAM REFRESH cycle, add more garments to the load.

ProblemRPossible CausesRWhat To Do
Small amount of water on floor in front of dryer	Inadequate load size for steam cycle selected, excess steam condenses inside cabinet and leaks out	·If using the STEAM DEWRINKLEcycle, manually reduce time. If using the STEAM REFRESHcycle, add more garmentsto the load.
Water on floor in back of dryerRvalve	Loose water hose connection to	·Tighten connection.
	Hose missing rubber washer at connection with valve	·Install rubber washer provided with hose.
Water drips from door when opened after a Steam Cycle	Steam condenses on inner door	·This is normal.
Cannot see steam at beginning of cycle	Steam released at different time in cycle	·This is normal.
Cannot see steam at any time during the cycle	The steam nozzle might be clogged with debris from your water supply	·Call 800.GECARES to order nozzle replacement kit WE25M71 or to request a service technician to replace this for you.
Garments still wrinkled after steam cycle	Too many garments	·Load fewer garments; manually increase time.
Dryer continues to tumble after display says Complete	Extended Tumble was selected	·Ensure EXTENDED TUMBLEoption is not selected. For the STEAMREFRESHcycle, EXTENDED TUMBLESwill automatically be turned on and cannot be turned off.
Garment are wet after	lint filter not clean	·Clean lint filter
	load is children or infant garments	·Use the next smaller Steam cycle or use Steam Refresh cycle.

All warranty support provided by our Factory Service Centers, or an authorized Customer Care technician. To schedule service, on-line, 24 hours a day, visit us at GEAppliances.comRor call 800.GE.CARESR(800.432.2737). Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain support under the warranty.

For The Period Of:RGE Will Replace:

One YearFrom the date of the original purchase to replace the defective part.	Any part of the dryer which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE will also provide, free of charge, all labor and related service costs
Second YearFrom the date of the original purchase	Any part of the dryer which fails due to a defect in materials or workmanship. During this additional one-year limited warranty, you will be responsible for any labor or related service costs.
Third through Fifth Year From the date of the original purchase	The extra large or super capacity dryer drum and main electronic control board if any of these parts should fail due to a defect in materials or workmanship. During this additional three-year limited warranty, you will be responsible for any labor or related service costs.

What GE Will Not Cover:

■Service trips to your home to teach you how to use the product.
■Improper installation, delivery or maintenance.
■Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■Replacement of the light bulb.
■Replacement of house fuses or resetting of circuit breakers.

■Damage to the product caused by accident, fire, floods or acts of God.
■Incidental or consequential damage caused by possible defects with this appliance.
■Damage caused after delivery.
■Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

GE Appliances Website

GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line.

Schedule Service GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Register Your Appliance GEAppliances.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.

Instrucciones

de seguridad 2-4

Simple line drawing of a t-shirt being opened into a box (no text or symbols)

• Agregue ropa

Paso 3

Simple diagram with an oval, a circle, and arrows indicating rotation or direction (no text or symbols)

Technical diagram of a mechanical assembly with a magnified inset showing a close-up detail (no text or symbols)

Simple line drawing of a hinge with a handle and screw, enclosed in a circle (no text or symbols)

Pure mechanical diagram showing a bracket with a downward arrow, no text or symbols present

Diagram of a door hinge with a screw and pin, showing no text or symbols

Line drawing of a hand pressing down on a rectangular object (no text or symbols)

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple line drawing of a windmill with a rope and handle, no text or symbols present

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Registre su electrodoméstico GEAppliances.com
