USER MANUAL GFDS355GLMS GE

Safety Instructions.... 2-5

Operating Instructions

Control Panels 6-8

Cycle Options....9-10

Dryer Features....10

Reversing the Door Swing ....11-14

Loading and Using

the Dryer 15-16

Venting the Dryer 17

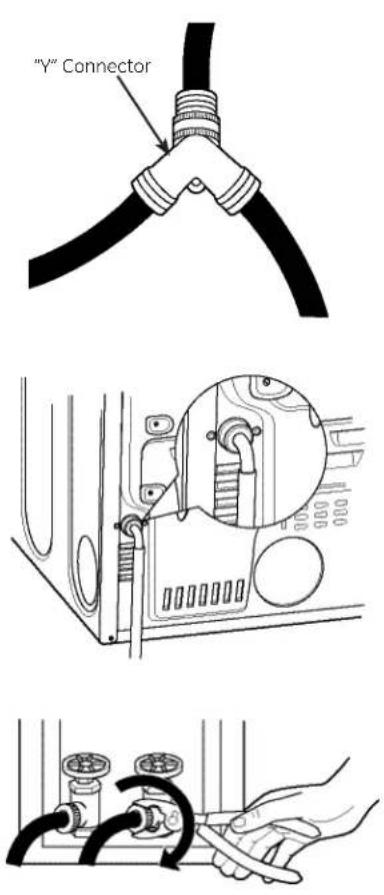

Connecting Inlet Hoses....18

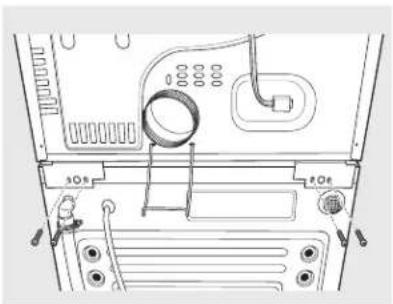

Stacking 19-22

Troubleshooting Tips ....23-26

Consumer Support

Warranty 27

Consumer Support 28

Owner's Manual

GFDS350

GFDS355

GFDN240

GFDN245

Write the model and serial numbers here:

Model # ____

Serial # ____

They are on the label on the front of the dryer behind the door.

49-90394 05/14/10 GE

234D1050P001

▲WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or death.

■ Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

■ Installation and service must be performed by a qualified installer, service agency or the gas supplier.

WHAT TO DO IF YOU SMELL GAS:

1 Do not try to light a match, or cigarette, or turn on any gas or electrical appliance.

2 Do not touch any electrical switch; do not use any phone in your building.

3 Clear the room, building or area of all occupants.

4 Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions carefully.

5 If you cannot reach your gas supplier, call the fire department.

California Safe Drinking Water and Toxic Enforcement Act

This act requires the governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm and requires businesses to warn customers of potential exposure to such substances.

Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.

Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be minimized further by properly venting the dryer to the outdoors.

PROPER INSTALLATION

This dryer must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet, you can receive one by visiting GEAppliances.com, or by calling 800.GE.CARES (800.432.2737).

■ Properly ground dryer to conform with all governing codes and ordinances. Follow details in Installation Instructions.
■ Install or store where it will not be exposed to temperatures below freezing or exposed to the weather.
■ Connect to a properly rated, protected and sized power supply circuit to avoid electrical overload.
■ Remove the colored protective film from both the control panel and the door.
■ Remove all sharp packing items and dispose of all shipping materials properly.
■ Do not remove the vent protector from the back of the dryer (on some models).
■ Pull the protector out and down to its lowest position and connect the exhaust duct to the dryer. The lowered protector will prevent the duct from getting crushed (on some models).

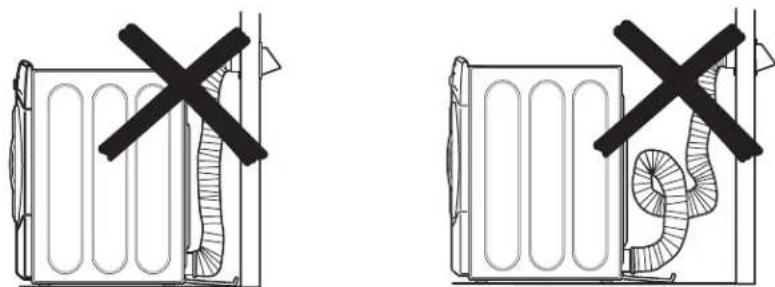

Exhaust/Ducting:

1 Dryers MUST be exhausted to the outside to prevent large amounts of moisture and lint from being blown into the room.

2 Use only rigid metal 4" diameter ductwork inside the dryer cabinet and use only UL approved transition ducting between the dryer and the home duct. USE OF PLASTIC OR OTHER COMBUSTIBLE DUCTWORK CAN CAUSE A FIRE. PUNCTURED DUCTWORK CAN CAUSE A FIRE IF IT COLLAPSES OR BECOMES OTHERWISE RESTRICTED IN USE OR DURING INSTALLATION.

For complete details, follow the Installation Instructions.

▲WARNING!

YOUR LAUNDRY AREA

• Keep the area underneath and around your appliances free of combustible materials (lint, paper, rags, etc.), gasoline, chemicals and other flammable vapors and liquids.

• Keep the floor around your appliances clean and dry to reduce the possibility of slipping.
  ■ Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with or inside this or any other appliance.

• Keep all laundry aids (such as detergents, bleaches, etc.) out of the reach of children, preferably in a locked cabinet. Observe all warnings on container labels to avoid injury.
  ■ Never climb on or stand on the dryer top.

• Keep the area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust and dirt.

WHEN USING YOUR DRYER

■ Never reach into the dryer while the drum is moving. Before loading, unloading or adding clothes, wait until the drum has completely stopped.
■ Clean the lint filter before each load to prevent lint accumulation inside the dryer or in the room. DO NOT OPERATE THE DRYER WITHOUT THE LINT FILTER IN PLACE.
■ Do not wash or dry articles that have been cleaned in, washed in, soaked in or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) which may ignite or explode. Do not add these substances to the wash water. Do not use or place these substances around your washer or dryer during operation.
■ Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a clothes load to catch fire
■ Any article on which you have used a cleaning solvent or that contains flammable materials (such as cleaning cloths, mops, towels used in beauty salons, restaurants or barber shops, etc.) must not be placed in or near the dryer until solvents or flammable materials have been removed. There are many highly flammable items used in homes such as acetone, denatured alcohol, gasoline, kerosene, some household cleaners, some spot removers, turpentines, waxes, wax removers and products containing petroleum distillates.
■ The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer's care instructions.

■ Do not dry articles containing rubber, plastic, foam or similar materials such as padded bras, tennis shoes, galoshes, bath mats, rugs, bibs, baby pants, plastic bags, pillows, etc., that may melt or burn. Some rubber materials, when heated, can under certain circumstances produce fire by spontaneous combustion.
■ Do not store plastic, paper or clothing that may burn or melt on top of the dryer during operation.
■ Garments labeled Dry Away from Heat or Do Not Tumble Dry (such as life jackets containing kapok) must not be put in your dryer.
■ Do not dry fiberglass articles in your dryer. Skin irritation could result from the remaining particles that may be picked up by clothing during subsequent dryer uses.
To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the dryer at the building's distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning (except the removal and cleaning of the lint filter). NOTE: Pressing START, STOP or POWER does NOT disconnect the appliance from the power supply.

WHEN USING YOUR DRYER (cont.)

■ Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.
■ The interior of the machine and the exhaust duct connection inside the dryer should be cleaned at least once a year by a qualified technician. See the Loading and Using the Dryer section.
If yours is a gas dryer, it is equipped with an automatic electric ignition and does not have a pilot light. DO NOT ATTEMPT TO LIGHT WITH A MATCH. Burns may result from having your hand in the vicinity of the burner when the automatic ignition turns on.

■ You may wish to soften your laundered fabrics or reduce the static electricity in them by using a dryer-applied fabric softener or an anti-static conditioner. We recommend you use either a fabric softener in the wash cycle, according to the manufacturer's instructions for those products, or try a dryer-added product for which the manufacturer gives written assurance on the package that their product can be safely used in your dryer. Service or performance problems caused by use of these products are the responsibility of the manufacturers of those products and are not covered under the warranty to this appliance.

■ Never attempt to use the STEAM DEWRINKLE or STEAM REFRESH cycles without clothes in the drum.

WHEN NOT USING YOUR DRYER

■ Grasp the plug firmly when disconnecting this appliance to avoid damage to the cord while pulling. Place the cord away from traffic areas so it will not be stepped on, tripped over or subjected to damage.
- Do not attempt to repair or replace any part of this appliance or attempt any servicing unless specifically recommended in this Owner's Manual or in published user-repair instructions that you understand and have the skills to carry out.

■ Before discarding a dryer, or removing it from service, remove the dryer door to prevent children from hiding inside.
■ Do not tamper with controls.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

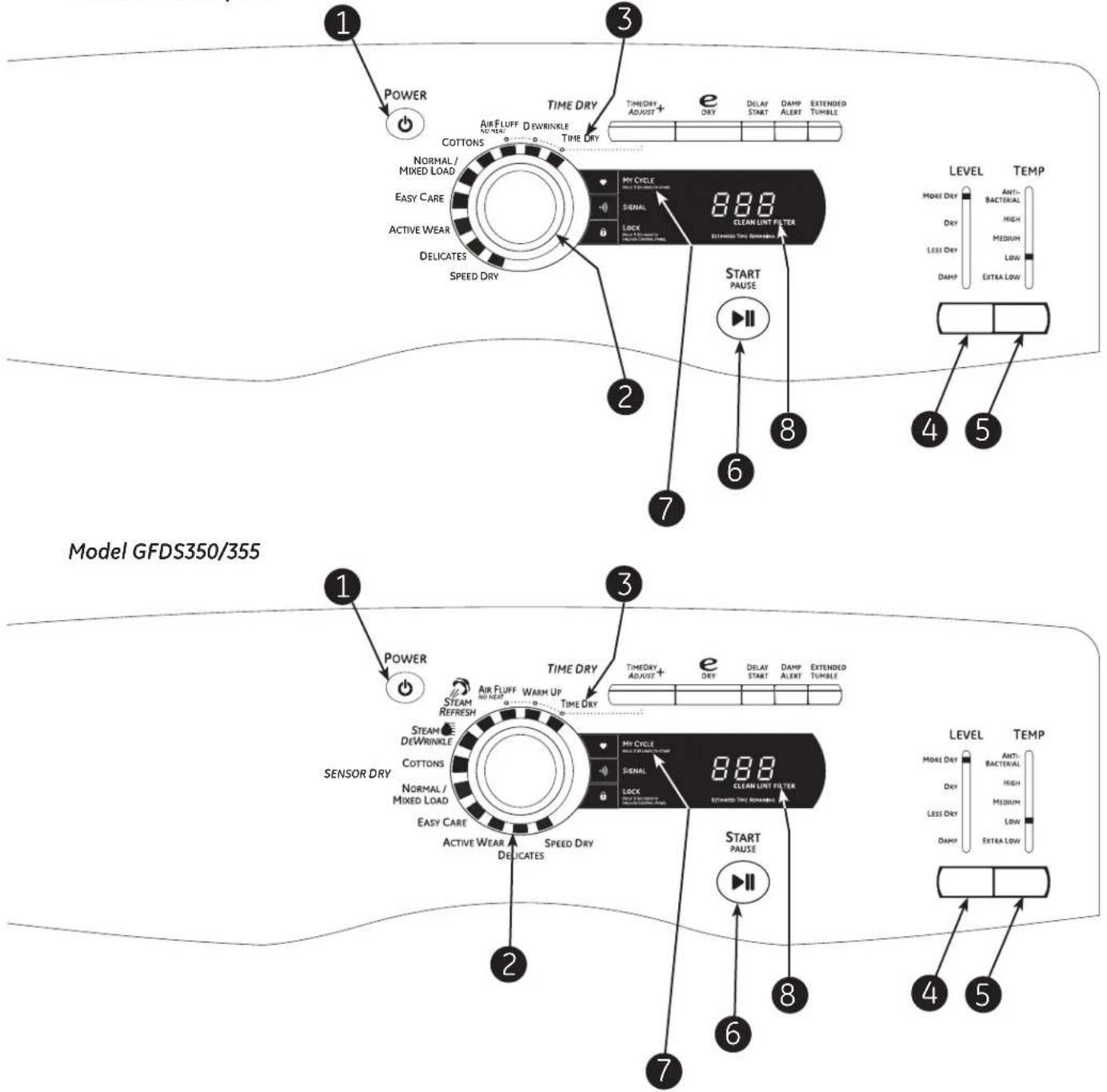

About the dryer control panel.

You can locate your model number at the top inside of the door opening.

Model GFDN240/245

1 POWER TIME DRY AIR FLUFF DEWRINKLE NO MEAT COTTONS TIME DRY TIME DRY DELAY START DAMP ALERT EXTENDED TUMBLE TIME DRY ADJUST + e DRY DELAY START DAMP ALERT EXTENDED TUMBLE 2 NORMAL / MIXED LOAD EASY CARE ACTIVE WEAR DELICATES SPEED DRY 888 GREEN LUNT FILTER STARRIED TINI BOMEMBER 8 LEVEL TEMP MAKE DRY ANTI- BACTERIAL HIGH MEDIUM LOW DAMP EXTRA LOW 4 5 Model GFDS350/355 1 POWER TIME DRY TIME DRY TIME DRY AIR FLUFF WARM UP NO MEAT STEAM REFRESH STEAM DEWRINKLE COTTONS NORMAL / MIXED LOAD EASY CARE ACTIVE WEAR DELICATES SPEED DRY 888 GREEN LUNT FILTER STARRIED TINI BOMEMBER 8 LEVEL TEMP MOAI DAY ANTI- BACTERIAL HIGH MEDIUM LOW DAMP EXTRA LOW 4 5

1 Power

Press to "wake up" the display. If the display is active, press to put the dryer in the standby mode.

NOTE: Pressing POWER does not disconnect the appliance from the power supply.

② Dry Cycles

The dry cycle controls the length and tumble speed of the drying process. The chart below will help you match the dry setting with the loads.

Sensor Cycles Description
COTTONS	For cottons and most linens.
NORMAL/MIXED LOADS	For loads consisting of cottons and poly-blends.
EASY CARE	For wrinkle-free and permanent press items.
ACTIVE WEAR	Clothing worn for active sports exercise and some casual wear. Fabrics include new technology finishes and stretch fibers such as Spandex.
DELICATES	For lingerie and special-care fabrics.
SPEED DRY	For small loads that are needed in a hurry, such as sports or school uniforms. Can also be used if the previous cycle left some items damp, such as collars or waistbands.

Timed Dry Cycles Description
WARM UP	Provides 10 minutes of warming time to warm up clothes.
AIR FLUFF	Use this feature to tumble items without heat.
DEWRINKLE(on some models)	For removing wrinkles from items that are dry or slightly damp. This cycle is not recommended for delicate fabrics.
STEAM REFRESH(on some models)	For slightly wrinkled dry garments. Significantly reduces wrinkles on up to 5 garments. After the STEAM REFRESH Cycle, the unit will beep and display “0:00.” If the unit is not turned off or if the door is not opened, the dryer will continue to tumble for 30 minutes. At the end of 30 minutes, it will display “0:00” and the cycle will be complete.Note:A single extremely light fabric item may need to have an additional item included in the STEAM REFRESH cycle to achieve optimum results.
STEAM DEWRINKLE(on some models)	For use with larger loads than STEAM REFRESH. Ideal for loads left in dryer for an extended time.

My Cycle Description
MY CYCLE	Press to use, create or modify custom dry cycles. (See page 8 for more details)

3 Timed Dry

Use to set your own dry time. TIMED DRY is also recommended for small loads

To use TIMED DRY:

1. Turn dry cycle dial to TIMED DRY.
2. Increase the drying time by pressing the TIMEDRY ADJUST + button.

Note: This button only increases the time. When max time is reached, pressing the button again will reset the counter to the lowest setting.

1. Select the TEMP.
2. Close the door.
3. Press Start

4 Sensor Dry "Level"

The sensor continuously monitors the amount of moisture in the load. When the moisture in your clothes reaches your selected dry level, the dryer will stop.

Note: Sensor dry "LEVEL" only works for COTTONS, NORMAL/MIXED LOAD, ACTIVE WEAR, DELICATES, and SPEED DRY.

5 Dry "Temp"

You can change the temperature of your dry cycle.

ANTI-BACTERIAL	This option may only be used withCOTTONSORNORMAL/MIXED LOADcycles. This option reduces (on some models) certain types of bacteria by 99.9%, including: Staphylococcus aureus, Pseudomonas aeruginosa and Klebsiella pneumoniae*. The anti-bacterial process occurs when high heat is used during a portion of this drying cycle.NOTE:Do not use this cycle on delicate fabrics.* The Anti-Bacterial Cycle is Certified by NSF International (formerly National Sanitation Foundation) to NSF Protocol P154 Sanitization Performance of Residential Clothes Dryers.NSF Protocol P154Sanitization Performance ofResidential Clothes Dryers
HIGH	For regular to heavy cottons.
MEDIUM	For synthetics, blends and items labeled permanent press.
LOW	For delicates, synthetics and items labeled Tumble Dry Low.
EXTRA LOW	For lingerie and special-care fabrics.

6 START Press to

Press to start a dry cycle. If the dryer is running, press it once and it will pause the dryer. Press it again to resume the dry cycle.

7 My Cycle

Set up your favorite combination of settings and save them here for one touch recall. These custom settings can be set while a cycle is in progress.

To store a MY CYCLE combination of settings:

1. Select your drying cycle.
2. Change DRY "TEMP", and SENSOR DRY "LEVEL" settings to fit your needs.
3. Select any drying OPTIONS you want.
4. Press and hold the pad for three seconds to store your selection. A beep will sound and the pad will light up.

To recall your stored MY CYCLE combination:

Press the MY CYCLE button before drying a load.

To change your stored MY CYCLE combination:

Follow steps 1–4 in "To store a MY CYCLE combination of settings".

8 "CLEAN LINT FILTER" (message)

(This message represents only a reminder and does not always appear when filter needs cleaning. The filter should be cleaned after every drying cycle is complete.)

This message will disappear after the START button is pressed. Even though you may have already cleaned the filter (before or after the POWER button has been pressed), the "CLEAN LINT FILTER" message will still be displayed until the START button is activated.

About cycle options.

NOTE: Not all features are available on all dryer models.

GEAppliances.com

EXTENDED TUMBLE	Extended TumbleMinimizes wrinkles by adding approximately 60 minutes of no-heat tumbling after clothes are dry. The beeper will sound every two minutes as a reminder to remove the clothes.TheESTIMATED TIME REMAININGdisplay will show00.	The Extended Tumble time does not get added to the cycle time on the display
DAMP ALERT	Damp AlertThis option causes the dryer to beep when clothes have dried to a damp level. Remove items that you wish to hang dry. The DAMP ALERTwill only beep when this option is selected.	Removing clothes and hanging them when they are damp can reduce the need to iron some items.
DELAY START	Delay StartUse to delay the start of your dryer.Choose your dry cycle and any options.PressDELAY START.You can increase the delay time in 1 hour increments using theDELAY STARTbutton.Press theSTARTpad to start the countdown.	NOTES:■ If the door is opened while the dryer is inDELAY START,the countdown time will not restart unless the door is closed andSTARThas been pressed again.
eDRY	e-DRYReduces the total energy consumption of specific dryer cycles by adjusting certain heat settings.Note:Cycle times will change when e-DRY is selected.	This feature can be used withDELICATES,ACTIVE WEAR, EASY CARE, NORMAL/MIXED LOADSandCOTTONS.
	SignalAlerts you that the cycle is complete. The beeper will continue to sound every minute for the next 5 minutes, until the clothes have been removed. The clothes should be removed when the beeper goes off so wrinkles don't set in.	Press SIGNALto select low, medium or high volume, or to turn the beeper off.

About cycle options. NOTE: Not all features are available on all dryer models.

Lock

You can lock the controls to prevent any selections from being made. You can also lock the controls after you have started a cycle.

Children cannot accidentally start the dryer by touching pads with this option selected.

To lock the dryer, press the lock icon. To unlock the dryer, press and hold the lock icon for 3 seconds.

The Lock icon next to the timer will light up when the controls are locked.

:30 ESTIMATED TIME REMAINING

Estimated Time Remaining

Displays the approximate time remaining until the end of the cycle.

As the cycle begins, you will see an initial approximate total cycle time in the display. Then lights will "race" in the display. This means the dryer is continuously monitoring

the amount of moisture in the load. The lights will continue until the dryer senses a low level of moisture in the load. At that point, the dryer will calculate and display the approximate time remaining.

My Cycle

To save a favorite cycle, set the desired settings and hold down the MY CYCLE button for 3 seconds. A beep will sound to indicate the cycle has been saved.

To use your custom cycle, press the MY CYCLE button before drying a load.

To change the saved cycle, set the desired settings and hold down the MY CYCLE button for 3 seconds.

About dryer features.

Technical line drawing of a mechanical component with circular and rectangular features (no text or symbols)

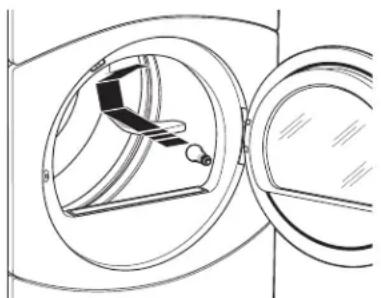

Drum Lamp

Before replacing the light bulb, be sure to unplug the dryer power cord or disconnect the dryer at the household distribution panel by removing the fuse or switching off the circuit breaker. Reach above dryer opening from inside the drum. Remove the bulb and replace with the same size bulb.

Note: Drum lamp only (and automatically) turns on when the dryer door is open.

Technical line drawing of a mechanical assembly inside a circular frame, showing internal components and directional arrows (no text or symbols)

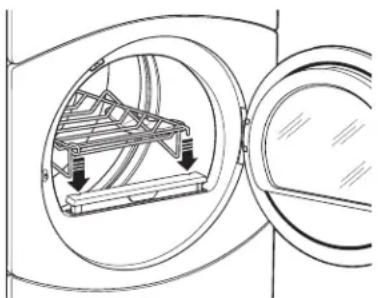

Drying Rack (on some models)

A handy drying rack may be used for drying delicate items such as washable sweaters. Place items flat on the drying rack and block such items as wool sweaters and delicate fabrics. Dry with low heat.

To install the drying rack, pull up the lint filter slightly. Insert the drying rack into the slots, then push the filter back down.

NOTE:

■ The drying rack is designed for use with the TIMED DRY cycles. Use with sensor cycles may result in damp items or extended cycle times.
■ Do not use this drying rack when there are other clothes in the dryer, that are not placed on the rack.

IMPORTANT NOTES:

■ Read the instructions all the way through before starting.
■ Handle parts carefully to avoid scratching paint.
■ Set screws down by their related parts to avoid using them in the wrong places.
■ Provide a non-scratching work surface for the door.
■ Normal completion time to reverse the door swing is 30–60 minutes.

IMPORTANT: Once you begin, do not move the cabinet until door-swing reversal is completed.

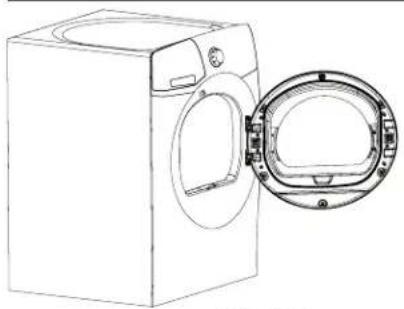

These instructions are for changing the hinges from the right side to the left side—if you ever want to switch them back to the right side, follow these same instructions and reverse all references to the left and right.

TOOLS YOU WILL NEED

Adjustable Crescent Wrench

Phillips Head Screwdriver

Putty Knife or
Thin-Blade
Screwdriver

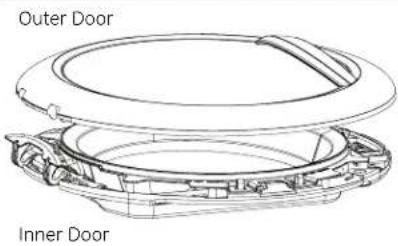

DOOR PARTS

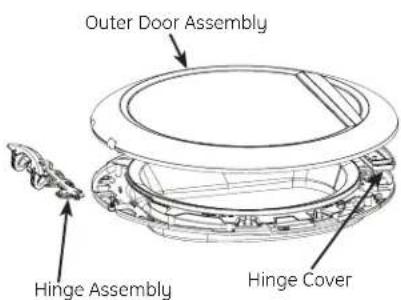

Hinge Assembly

Plastic Cover

3 - # 8 Screws (door asm and front panel)

8 - # 8 Screws (inner door, outer ring & hinge cover)

Hinge Cover

4 - # 8 Screws (strike plate)

6 - # 8 Machine Screws (inner door & hinge)

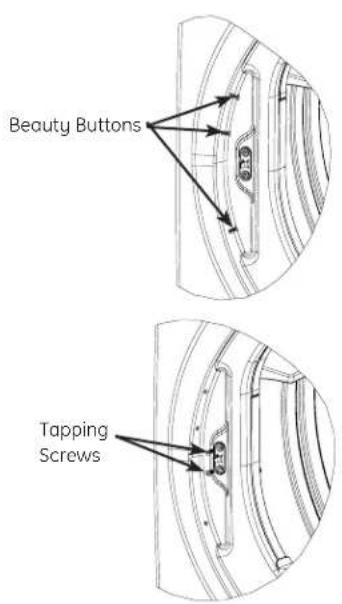

7 - Beauty Buttons

STEP-BY-STEP INSTRUCTIONS

Hand holding a plug inserted into an electrical outlet socket (no text or symbols visible)

Before You Start

1. Unplug the dryer from its electrical outlet.

STEP-BY-STEP INSTRUCTIONS (cont.)

Line drawing of a white washing machine with an open door and a circular vent, showing internal components (no text or symbols)

Remove Door Assembly

1. Open the door to approximately 130 degrees.

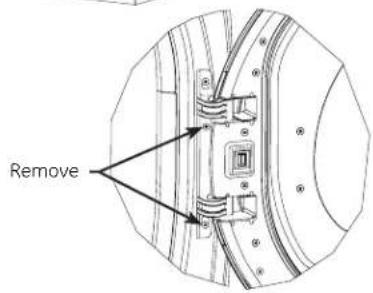

Remove

1. Remove the 2 screws starting from the bottom to the top. Make sure the door is supported while removing the screws.

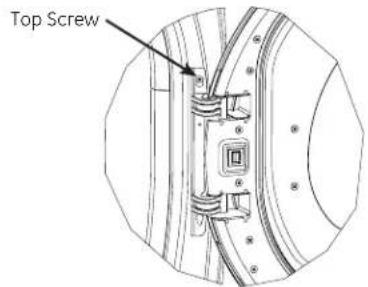

Top Screw

1. Loosen the top screw as shown. Unhook the door by lifting and pulling.

8-#8 Tapping Screws 4 Beauty Buttons 6-# 8 Machine Tapping Screws

1. Place the door on a soft protected flat surface so the inner door faces upward (door resting on handle side). Remove the 8 tapping screws located around the perimeter of the door outlining the gasket. Remove the 6 machine screws. Using a putty knife or any other flat tool, remove the 2 beauty buttons and install them on the opposite side.

Outer Door Assembly Hinge Assembly Hinge Cover

Remove Hinge and Cover

IMPORTANT: Note the location of the hinge (left or right) before removing.

1. With the screws removed, turn the door over and separate the outer door assembly and hinge cover of the door from the door frame and set aside.

STEP-BY-STEP INSTRUCTIONS (cont.)

Machine screws

Reinstall Hinge Assembly

1. Install the hinge assembly in the opposite side of the door as shown. Push the hinge assembly in place until the hinge holes align with the door holes.

2. Hold the hinge and door on their side with one hand and fasten the 6 machine screws as shown.

Hinge Cover

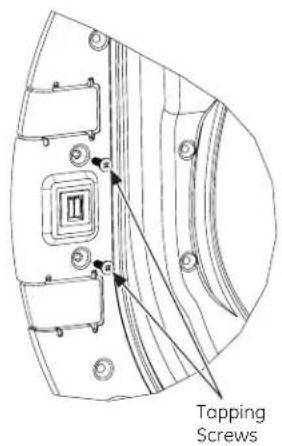

Reinstall Hinge Cover

1. Insert the hinge cover. Align the hinge cover holes with the holes in the door.

Tapping Screws

1. Secure the hinge cover with 2 taping screws.

STEP-BY-STEP INSTRUCTIONS (cont.)

Outer Door Inner Door

Reassemble Door Assembly

IMPORTANT: Make sure there is no dirt or any other foreign material in between the window panes.

1. Place the plastic outer door onto the inner door. Make sure that the handle part of the outer door is opposite the hinge as shown.

Technical line drawing of a circular mechanical component with mounting flanges and internal channels (no text or symbols)

1. Turn the door over and fasten the outer door to the inner door using the 6 tapping screws.

Beauty Buttons Tapping Screws

Move Strike Bracket

1. Using a putty knife or any other flat tool, remove the 3 beauty buttons located on the dryer where the door will be installed and install them on the opposite side.

2. Switch the strike bracket and its cover to the opposite side by removing the screws. Reinstall both on the opposite side.

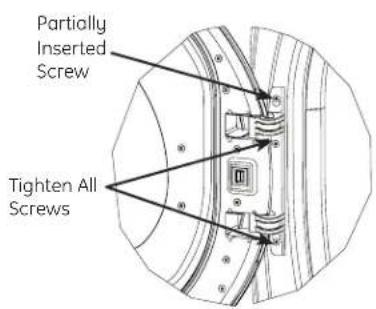

Partially Inserted Screw Tighten All Screws

Reinstall Door Assembly

1. The door is now ready to be installed on the dryer. To ease this step, the hinge has keyholes that allow a partially fastened screw to be used as a hook.

Partially fasten a screw to the uppermost screw hole. Hook the door on the partially fastened screw.

Fasten the hinge by installing the other 2 screws and tightening the partially fastened screw above.

Always follow the fabric manufacturer's care label when laundering.

Fabric Care Labels

Below are fabric care label "symbols" that affect the clothing you will be laundering.

WASH LABELS

Machine wash cycle

Normal

Permanent Press/wrinkle resistant

Gentle/ delicate

Hand wash

Do not wash Do not wring

Front load target water temperature

Target Automatic

Category Water Temperature Temperature Control

Tap Cold Inlet Water Temperature Not used

Cold 27°C/80°F Used

Warm 40°C/105°F Used

Hot 50°C/120°F Used

Sanitize 70°C/160°F Used

DRY LABELS

Tumble dry

Dry

Normal

Permanent Press/wrinkle resistant

Gentle/delicate

Do not tumble dry

Do not dry (used with do not wash)

Heat setting

High

Medium

Low

No heat/air

Special instructions

Line dry/ hang to dry

Drip dry

Dry flat

In the shade

BLEACH LABELS

Bleach symbols

Any bleach (when needed)

Only non-chlorine bleach (when needed)

Do not bleach

Sorting and Loading Hints

As a general rule, if clothes are sorted properly for the washer, they are sorted properly for the dryer. Try also to sort items according to size. For example, do not dry a sheet with socks or other small items.

Do not add fabric softener sheets once the load has become warm. They may cause fabric softener stains. Bounce® Fabric Conditioner Dryer Sheets have been approved for use in all GE Dryers when used in accordance with the manufacturer's instructions.

Do not overload. This wastes energy and causes wrinkling.

Do not dry the following items: fiberglass items, woolens, rubber-coated items, plastics, items with plastic trim and foam-filled items.

Always follow the fabric manufacturer's care label when laundering.

Care and Cleaning of the Dryer

The Exterior: Wipe or dust any spills or washing compounds with a damp cloth. Dryer control panel and finishes may be damaged by some laundry pretreatment soil and stain remover products. Apply these products away from the dryer. The fabric may then be washed and dried normally. Damage to your dryer caused by these products is not covered by your warranty.

The Lint Filter: Clean the lint filter before each use.

Pull out the lint filter. Moisten your fingers and remove the captured lint. Once clean, slide the filter back into position. Have a qualified technician vacuum the lint from the dryer once a year.

Diagram of a mechanical component inside a circular housing, showing internal components and directional arrows (no text or labels)

NEVER OPERATE THE DRYER WITHOUT ITS FILTER IN PLACE.

Stainless Steel: To clean stainless steel surfaces use a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel surfaces. Remove the cleaner residue and then dry with a clean cloth.

The stainless steel used to make the dryer drum provides the highest reliability available in a GE dryer. If the dryer drum should be scratched or dented during normal use, the drum will not rust or corrode. These surface blemishes will not affect the function or durability of the drum.

Dryer Interior and Duct: The interior of the appliance and exhaust duct should be cleaned once a year by qualified service personnel.

The Exhaust Duct: Inspect and clean the exhaust ducting at least once a year to prevent clogging. A partially clogged exhaust can lengthen the drying time.

Follow these steps:

1 Turn off electrical supply by disconnecting the plug from the wall socket.
2 Disconnect the duct from the dryer.
3 Vacuum the duct with the hose attachment and reconnect the duct.

The Exhaust Hood: Check with a mirror that the inside flaps of the hood move freely when operating. Make sure that there is no wildlife (birds, insects, etc.) nesting inside the duct or hood.

For the best drying performance, the dryer needs to be properly vented. The dryer will use more energy and run longer if it is not vented to the below specifications. Carefully follow the details on Exhausting in the Installation Instructions.

■ Use only rigid metal 4" diameter ductwork inside the dryer cabinet and use only UL approved transition ducting between the dryer and the home duct.
■ Do not use plastic or other combustible ductwork.
■ Use the shortest length possible.
■ Do not crush, kink or collapse the duct.
■ Avoid resting the duct on sharp objects.
■ Venting must conform to local building codes.
■ Do not remove the vent protector from the back of the dryer (on some models).
- Flip the protector down to its lowest position and connect the exhaust duct to the dryer. The lowered protector will prevent the duct from getting crushed (on some models).

Correct Venting

Vent protector in place (on some models)

Incorrect Venting

Two technical diagrams showing a door with a double-headed X mark and a coiled tube inside, no text or symbols present.

To produce steam, the dryer must connect to the cold water supply. Since the washer must also connect to the cold water, a "Y" connector is inserted to allow both inlet hoses to make that connection at the same time.

NOTE: Use the new inlet hoses provided; never use old hoses.

Connect to Cold Water Supply

1. Turn the cold water faucet off. Remove the washer inlet hose from the washer fill valve connector (cold).
2. Ensure the rubber flat washer is in place and screw the female coupling of the short hose onto the washer fill valve connector. Tighten by hand until firmly seated.
3. Attach the female end of the "Y" connector to the male coupling of the short hose. Ensure the rubber flat washer is in place. Tighten by hand until firmly seated.

4. Insert the filter screen in the coupling of the washer's inlet hose. If a rubber flat washer is already in place remove it before installing the filter screen. Attach this coupling to one male end of the "Y" connector. Tighten by hand until firmly seated.

5. Ensure the rubber flat washer is in place and attach the dryer's long inlet hose to the other male end of the "Y" connector. Tighten by hand until firmly seated.

6. Ensure the rubber flat washer is in place and attach the other end of the dryer's long inlet hose to the fill valve connector at the bottom of the dryer back panel. Tighten by hand until firmly seated.

7. Using pliers, tighten all the couplings with an additional two-thirds turn. NOTE: Do not overtighten. Damage to the couplings may result.

8. Turn the water faucet on.

9. Check for leaks around the "Y" connector, faucet and hose couplings.

BEFORE YOU BEGIN

Read these instructions completely and carefully.

■ IMPORTANT: Save these instructions for local electrical inspector's use.
■ IMPORTANT: Observe all governing codes and ordinances.
■ Note to Installer – Be sure to leave these instructions with the Consumer.

■ Note to Consumer – Keep these instructions for future reference.
■ Installation must be performed by a qualified installer.
■ Proper installation is the responsibility of the installer.

FOR YOUR SAFETY

▲WARNING!

■ Electric Shock Hazard. Disconnect power before installing. Failure to do so could result in serious injury or death.
■ Potential Personal Injury. When stacking the dryer, more than two people are recommended to lift the dryer into position because of its weight and size. Failure to do so could result in personal injury or death.

■ When stacking the dryer avoid tipping and rupture of utility services. Dryer must be securely attached to the washer. DO NOT place the washer on top of the dryer. Failure to do so could result in personal injury/death or property damage.
■ Mobile Home or Manufactured Home Installation – Stacking of a gas dryer is not permitted in a mobile home or manufactured home.

MINIMUM CLEARANCE OTHER THAN ALCOVE OR CLOSET INSTALLATION

Minimum clearance to combustible surfaces and for air opening are: 0" both sides, 1" front, and 3" rear. Consideration must be given to provide adequate clearance for installation and service.

ALCOVE OR CLOSET INSTALLATION

■ If your dryer is approved for installation in an alcove or closet, it will be stated on a label on the dryer back.
■ The dryer MUST be vented to the outdoors. Refer to dryer Installation Instructions for details.
■ Minimum clearance between dryer cabinet and adjacent walls or other surfaces is: 0" either side 3" front 4" rear

■ Minimum vertical space from floor to overhead cabinets, ceiling, etc. is 43" without pedestal, 55" with pedestal and 84" stacked.
■ Closet doors must be louvered or otherwise ventilated and must contain a minimum of 60 square inches of open area equally distributed. If the closet contains both a washer and a dryer, doors must contain a minimum of 120 square inches of open area equally distributed.

KIT CONTENTS (optional kit GE FL STACK)

Right Hand Bracket

4 Rubber Pads

4 #12 × 1" Screws

Left Hand Bracket

4 #8 × 1/2" Screws

TOOLS YOU WILL NEED

Phillips Screwdriver

Pliers

Gloves

Open-Ended Wrench

Level

INSTALLATION PREPARATION

Remove the packaging.

Flatten the product carton to use as a pad to lay the dryer down on its side. Continue using the carton to protect the finished floor in front of the installation location.

INSTALLING THE STACK BRACKET KIT

Line drawing of a modern washing machine with a circular vent and control buttons (no text or symbols)

1. Remove the Dryer Leveling Legs

A. Carefully lay the dryer on its side. Use the packing material so you don't scratch the finish on the dryer.
B. Use an open-end wrench or pliers to remove the dryer leveling legs.

Back out and remove all 4 leveling legs

Technical line drawing of a rectangular electronic device with mounting holes and a magnified inset showing internal components (no text or symbols)

2. Install Rubber Pads to Dryer Base

Locate the 4 rubber pads in the parts package. Remove the adhesive backing and firmly place over on the bracket where you removed the leveling legs.

Technical line drawing of a door panel with a X-shaped cutout and mounting bracket (no text or symbols)

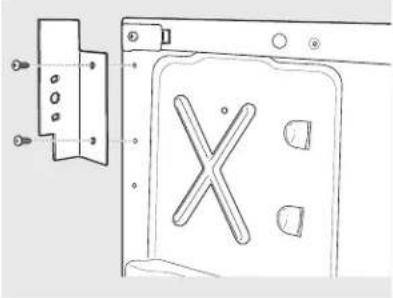

3. Install Bracket to Dryer

A. Align the holes in the left bracket with the holes in the bottom left corner of the dryer. Use a Phillips screwdriver to install the 2 #12 x 1" tapping screws.
B. Repeat the above step with the right bracket on the bottom right corner of the dryer.
C. Set the dryer upright.

NOTE: Make sure to set the dryer on a piece of packing material so the brackets that are attached to the bottom of the dryer do not damage the floor.

INSTALLING THE STACK BRACKET KIT (cont.)

Line drawing of a hand holding a tool against a curved surface (no text or symbols)

4. Prepare the Washer and Dryer

A. Place the washer in the approximate location.
B. Make sure the washer is level. Refer to washer Installation Instructions for details.
C. Remove the back portion of the control panel by removing the 3 screws.

D. Reverse dryer door swing if desired. See dryer Installation Instructions for details.

NOTE: The washer door swing is not reversible.

Top-down schematic of a computer drive bay showing rear panel, rear vent, and internal components (no text or labels)

5. Install Dryer and Bracket on Washer

A. Lift the dryer on top of the washer. Be careful not to scratch the top of the washer with the brackets. Protect the washer control panel with cardboard or other protection. Be sure to lift the dryer high enough to clear the washer control panel.

▲WARNING!

Potential Personal Injury. More than two people are recommended to lift the dryer into position because of its weight and size. Failure to do so could result in personal injury or death.

B. Align the holes in the bracket with the holes in the back of the washer. Using a Phillips screwdriver, attach the 2 #8 x 1/2" tapping screws. Repeat on both sides of the washer.

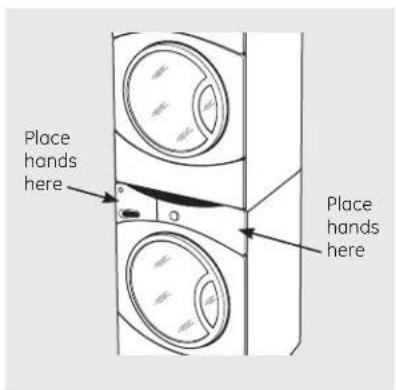

Place hands here Place hands here

6. Finalize the Installation

A. Refer to the washer Installation Instructions to complete the washer installation.
B. Refer to the dryer Installation Instructions to complete the dryer installation.
C. Carefully slide or walk the stacked washer and dryer into place. Use felt pads or other sliding device to assist moving and to protect flooring.

▲WARNING!

Potential Personal Injury. Do not push on the dryer once installed to top of the washer. Pushing on the dryer may result in pinched fingers.

Troubleshooting Tips

Save time and money! Review the charts on the following pages, or visit GEAppliances.com. You may not need to call for service.

PROBLEM Possible Causes What To Do

Dryer shakes or makes noise Dryer may be sitting unevenly as necessary until even.
Clothes take too long to dry the dryer venting is correct. Make sure ducting is clean, free of kinks and unobstructed. Check to see if outside wall damper operates easily.	Improper or obstructed ducting	·Check the Installation Instructions to make sure
	Improper sorting	·Separate heavy items from lightweight items (generally,
a well-sorted washer load is a well-sorted dryer load).	Large loads of heavy fabrics(like beach towels)	·Large, heavy fabrics contain more moisture and take longer to dry. Separate large, heavy fabrics into smaller
loads to speed drying time.	Controls improperly set	·Match control settings to the load you are drying.
	Lint filter is full	·Clean lint filter before every load.
operating.	Blown fuses or tripped circuit breaker	·Replace fuses or reset circuit breakers. Since most dryers use 2 fuses/breakers, make sure both are
a time.	Overloading/combining loads	·Do not put more than one washer load in the dryer at
	Underloading	·If you are drying only one or two items, add a few items
to ensure proper tumbling.
The DRY dryness level was chosen but load is still damp	Load consists of a mixture of heavy and light fabrics	·When combining heavy and light fabrics in a load, choose MORE DRY if you are using a sensor cycle.
	Exhaust system is blocked	·Inspect and clean exhaust system.
Control pads not responding lock mode	Controls accidentally put in service mode	·Press STOP.
	Controls accidentally put in	·Hold the LOCK button for 3 seconds to unlock the dryer.
	Controls performed an incorrect operation	·Reset the in-house breaker.
Dryer doesn't start the outlet.	Control panel is "asleep"	·This is normal. Press POWER to activate the control panel.
	Dryer is unplugged	·Make sure the dryer plug is pushed completely into
use two fuses or breakers.	Fuse is blown/circuit breaker is tripped	·Check the building's fuse/circuit breaker box and replace fuse or reset breaker. NOTE: Electric dryers
	Dryer was accidentally paused when starting Delay Start	·If the light on the DELAY START pad is flashing, the dryer is paused. Press START to restart the countdown.
No numbers displayed during cycle, only lights moisture in the clothes	Dryer is continuously monitoring the amount of remaining.	·This is normal. When the dryer senses a low level of moisture in the load, the dryer will display the dry time

Before you call for service...

PROBLEM Possible Causes What To Do
Time Remaining The estimated time may change • This is normal.jumped to a when a smaller load than usuallower number is drying
Cannot make a The DRYNESS LEVEL, TEMP • This is normal.selection and the or OPTION that you aredryer beeps twice trying to select is incompatiblewith the chosen dry cycle
Dryer is running but00 is displayed inTime Remaining	The EXTENDED TUMBLEoption was chosen	• This is normal. During extended tumble, the timeremaining is not displayed. The extended tumblingoption lasts approximately 60 minutes.
Clean Lint Filter (message)	POWER button was activateddisappear.	• Press START to begin a dry cycle and the message will
Dryer doesn't heat	Fuse is blown/circuit breakeris tripped; the dryer may tumblebut not heattripped.	• Check the building's fuse/circuit breaker box andreplace both fuses or reset both breakers. Your dryermay tumble if only one fuse is blown or one breaker
	Gas service is offfully open.	• Make sure gas shutoff at dryer and main shutoff are
	LP gas supply tank is emptyor there has been a utility	• Refill or replace tank. Dryer should heat when utilityservice is restored.
intrauption of natural gas(gas models)
Inconsistent drying times	Type of heatIf you recently changed from an electric to a gas(natural or LP) dryer, or vice versa, the drying timecould be different.	• Drying time will vary according to the type of heat used.
	Type of load anddrying conditionsdrying times.	• The load size, types of fabric, wetness of clothes and thelength and condition of the exhaust system will affect
Glow at the rearof the drum	Heaters behind the drumvisible at the rear of the drum.	• This is normal. Under certain drying conditions androom ambient lighting, the glow of the heaters may be
Clothes are still wetand dryer shut offafter a short timewithout selecting a new cycle	The door was opened mid-cycle.The load was then removed fromthe dryer and a new load put in	• A dry cycle must be reselected each time a new loadis put in.
	Small loadTIMED DRY.	• When drying 3 items or less, choose SPEED DRY or
	Load was already dry exceptfor collars and waistbands	• Choose SPEED DRY or TIMED DRY to dry damp collarsand waistbands. In the future, when drying a load withcollars and waistbands, choose MORE DRY.
	Dryer is not levelas necessary until even.	• Move dryer to an even floor space or adjust leveling legs
Clothes are wrinkled	Overdrying• Remove items while they still hold a slight amountof moisture. Select a LESS DRY or DAMP setting.
	Letting items sit in dryer aftercycle ends	• Remove items when cycle ends and fold or hangimmediately, or use the EXTENDED TUMBLE option.
24	Overloading	• Separate large loads into smaller ones.
Clothes shrinkwhen washed. Others can besafely washed, but will shrinkin the dryeritem, do not machine wash or tumble dry it.	Some fabrics will naturally shrink	To avoid shrinkage, follow garment care labels exactly.Some items may be pressed back into shape after drying.If you are concerned about shrinkage in a particular
Greasy spots on clotheswith clean ones	Improper use of fabric softener	Follow directions on fabric softener package.
	Drying dirty itemsstain clean items and the dryer.	Use your dryer to dry only clean items. Dirty items can
	Clothes were notcompletely cleanprocedures before drying.	Sometimes stains which cannot be seen when theclothes are wet appear after drying. Use proper washing
Lint on clothes	Lint filter is full	Clean lint screen before each load.
	Improper sorting(like corduroy).	Sort lint producers (like chenille) from lint collectors
	Static electricity can attract lint	See suggestions in this section underSTATIC.
	Overloading	Separate large loads into smaller ones.
	Paper, tissue, etc., left in pockets	Empty all pockets before laundering clothes.
Static occursOverdrying	No fabric softener was usedBounceaccordance with the manufacturer's instructions.	Try a fabric softener.Fabric Conditioner Dryer Sheets have beenapproved for use in all GE Dryers when used in
	Try a fabric softener.	Adjust setting toLESS DRYor DAMP.
	Synthetics, permanent pressand blends can cause static	Try a fabric softener.
Collars and waistbandsstill wet at end of cycle	The dryness monitor senses that the body of the clothes is dry	ChooseSPEED DRYor TIMED DRYto dry damp collarsand waistbands. In the future, when drying a load withcollars and waistbands, chooseMORE DRY.
Slight variationin metallic color	This is normalviewing angles and lighting conditions.	Due to the metallic properties of paint used for this uniqueproduct, slight variations of color may occur due to
Door is too foggy to seeclothes during a steamcycle	Steam condenses on inner door	This is normal.
Water seen on inside ofdoor and top of lint filterwhen opening door aftersteam cycle	Steam condenses on these surfaces	This is normal.
Small areas on clothes are damp after steam cycle	Steam condenses on inner drumgarments to the load.	If using theSTEAM DEWRINKLEcycle, manually reduce thecycle time. If using theSTEAM REFRESHcycle, add more

Before you call for service...

PROBLEM Possible Causes What To Do
Small amount of water on floor in front of dryer condenses inside cabinet and leaks out	Inadequate load size for steam cycle selected, excess steam to the load.	·If using the STEAM DEWRINKLE cycle, manually reduce cycle time. If using the STEAM REFRESH cycle, add more garments
Water on floor in back of dryer valve	Loose water hose connection to	·Tighten connection.
connection with valve	Hose missing rubber washer at	·Install rubber washer provided with hose.
Water drips from door when opened after a Steam Cycle	Steam condenses on inner door	·This is normal.
Cannot see steam at beginning of cycle	Steam released at different time in cycle	·This is normal.
Cannot see steam at any time during the cycle	The steam nozzle might be clogged with debris from your water supply	·Call 800.GE.CARES to order nozzle replacement kit WE25M71 or to request a service technician to replace this for you.
Garments still wrinkled after steam cycle	Too many garments	·Load fewer garments; manually increase time.
Dryer continues to tumble after display says Complete	Extended Tumble was selected	·Ensure EXTENDED TUMBLE option is not selected. For the STEAM REFRESH cycle, EXTENDED TUMBLE will automatically be turned on and cannot be turned off.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care technician. To schedule service, on-line, visit us at GEAppliances.com, or call 800. GE.CARES (800.432.2737).

Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: We Will Replace:

One Year

From the date of the

Any part of the dryer which fails due to a defect in materials or workmanship. During this

limited one-year warranty, GE will also provide, free of charge, all labor and related service costs

original purchase to replace the defective part.

What Is Not Covered:

■ Service trips to your home to teach you how to use the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused or used for other than the intended purpose or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.

■ Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.
■ Damage caused after delivery.
■ Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

GE Appliances Website GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line.

Schedule Service GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225

Register Your Appliance GEAppliances.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.

Secadoras

Instrucciones

Illustration of a hand holding a plug next to an electrical outlet (no text or symbols)

Antes de empezar

Line drawing of a washing machine with an open door and a close-up view of the door (no text or symbols)

Technical line drawing of a mechanical component with layered structure (no text or symbols)

Puerta interior

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a mechanical component with no visible text or symbols

Diagram of a car interior showing a steering wheel and dashboard with directional arrows indicating movement (no text or labels)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a door with a double-headed X mark and a staircase, no text or symbols present

Diagram showing a device with a coiled tube and a black X mark, no text or symbols present

"Y" Conector

Technical line drawing of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Illustration of a hand adjusting a pipe fitting with arrows indicating direction (no text or symbols)

Line drawing of a portable washing machine with a circular vent and control buttons (no text or symbols)

Technical line drawing of a rectangular electronic component with mounting holes and a magnified inset showing internal components (no text or symbols)

Technical line drawing of a door panel with a cross-shaped cutout and mounting bracket (no text or symbols)

Line drawing of a hand holding a tool against a curved surface (no text or symbols)

Top-down schematic of a computer monitor rear panel showing internal components like CPU socket, keyboard, and ventilation slots (no text or labels)

GE Appliances, Appliance Park

Louisville, KY 40225

Registre su electrodoméstico GEAppliances.com
