USER MANUAL APN08AA GE

Safety Instructions .....2, 3

Operating Instructions

About the Controls

on the Air Conditioner .....4, 5

Care and Cleaning

Air Filter 6

Case 6

Drainage/Routine Maintenance...6

Remote Control....6

Installation Instructions ....7-12

Troubleshooting Tips .....13

Consumer Support

Consumer Support .....16

Warranty ....15

Write the model and serial numbers here:

Model #

Serial # ____

You can find them on a label on the back of the air conditioner.

Owner's Manual and Installation Instructions

APN08

APH10

APN10

Stylized white logo design with a circular swirl design, resembling a stylized letter 'G' or logo (no text or symbols present)

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

⚠ WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury.

SAFETY PRECAUTIONS

When using this portable air conditioner, always follow basic safety precautions, including the following:

• Use this appliance only for its intended purpose as described in this Owner's Manual.
  ■ This portable air conditioner must be properly installed as described in this manual before it is used.
  ■ Never unplug your portable air conditioner by pulling on the power cord. Always grip plug firmly and pull straight out from the receptacle.
  ■ Repair or replace immediately all electric service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

■ Turn the portable air conditioner OFF and unplug it before cleaning.
NOTE: We strongly recommend that any servicing be performed by a qualified individual.
■ For your safety, do not store or use combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
■ All air conditioners contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old product with refrigerants, check with the company handling disposal about what to do.

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.

Use a 15 amp time delay fuse or circuit breaker.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

Where a 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The air conditioner should always be plugged into its own individual electrical outlet, which has a voltage rating matching the rating plate.

This provides the best performance and also prevents overloading house wiring circuits, which could cause a fire hazard from overheated wires.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord.

However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed, 14 gauge, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 125 volts.

USE OF ADAPTER PLUGS

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an adapter plug.

However, if you must use an adapter, where local codes permit, a temporary connection may be made to a properly grounded 2-prong wall outlet by use of a UL-listed adapter available at most local hardware stores.

The larger slot in the adapter must be aligned with the larger slot in the wall outlet to provide proper polarity in the connection of the power cord.

When disconnecting the power cord from the adapter, always hold the adapter in place with one hand while pulling the power cord plug with the other hand. If this is not done, the adapter ground terminal is very likely to break with repeated use.

If the adapter ground terminal breaks, DO NOT USE the air conditioner until a proper ground has been established.

Attaching the adapter ground terminal to a wall outlet cover screw does not ground the appliance unless the cover screw is metal, not insulated, and the wall outlet is grounded through the house wiring. You should have the circuit checked by a qualified electrician to make sure the outlet is properly grounded.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

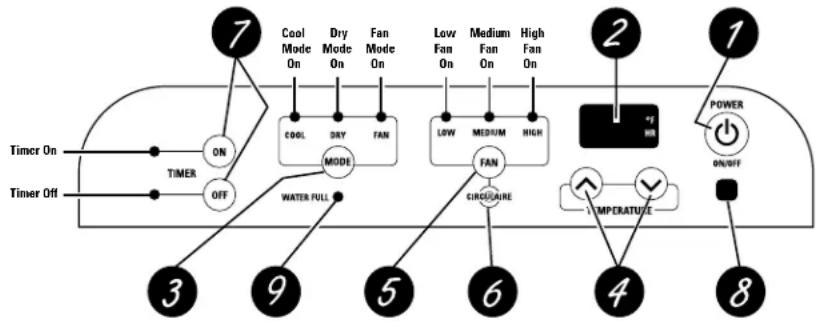

About the controls on the air conditioner.

Lights next to the touch pads on the air conditioner control panel indicate the selected settings.

Air Conditioner Control

POWER ON ON/OFF TIMER OFF TEMPERATURE MODE FAN CIRCULARE 1 7 3 4 5 6

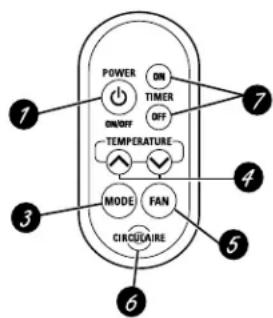

Remote Control

Controls

ON/OFF Pad

Turns the air conditioner on and off.

Display

Shows the room temperature. Also shows the set temperature while setting the temperature in COOL mode or the set time while setting TIMER ON or TIMER OFF.

NOTE: The display will change to show the room temperature after settings have been made. To recall the set cooling temperature, press the pad. To recall the timer setting, press the TIMER ON pad or the TIMER OFF pad for the timer that is set.

MODE

Use to set the air conditioner to COOL, DRY or FAN mode.

Increase ∧ /Decrease ∨ Pads

Use to set temperature when in COOL mode or to set a time with the timer feature.

FAN Pad

Use to set the fan speed to LOW, MEDIUM or HIGH.

CIRCULAIRE

Turn on to provide continuous side-to-side air circulation.

For fixed side-to-side air direction, turn on until the desired air direction is obtained, then turn it off.

TIMER Pad

ON—The air conditioner can be set to automatically come on in 1/2 (0.5) to 24 hours at its previous setting. The unit must be on while setting TIMER ON.

1. Press the POWER (ON/OFF) pad.
2. Press the TIMER ON pad. The TIMER ON light will blink.

3. Press the pad set the desired time for the unit to start. (Each time you touch the pads the set time will advance by 30 minutes between 0 and 10 hours and by one hour between 10 and 24 hours.)

4. Press the TIMER ON pad again to start the timer.

5. Press the POWER (ON/OFF) pad to turn the unit off.

TIMER Pad (cont.)

OFF—When the air conditioner is on, it can be set to automatically turn off in 1/2 (0.5) to 24 hours.

1. Press the TIMER OFF pad. The TIMER OFF light will blink.

2. Press the ✗ pad No set the desired time for the unit to stop. (Each time you touch the ✗ pad, the set time will advance by 30 minutes between 0 and 10 hours and by one hour between 10 and 24 hours.)

3. Press the TIMER OFF pad again to start the timer.

After settings have been made, the display will change back to show the room temperature.

NOTE: Both timers may be set, in combination, to turn the unit on and off as desired.

To cancel the timer, press and hold the TIMER ON or TIMER OFF pad (depending on the timer(s) set) until its indicator light goes off.

Remote Control Signal Receiver

Water Full Indicator Light

When the Water Full Indicator Light begins blinking, the unit has reached maximum water collection level.

If water level does not lower in 40 minutes, the unit will power off and it must be manually drained.

1. Unplug the power cord and roll the unit to a drain or outside.

2. Pull out the drain cap from the back bottom edge and allow water to drain from the unit.

3. Replace the drain cap and put the unit back into operation.

NOTE: The unit is designed to automatically evaporate water collected in normal settings. However, in very humid settings, the unit may occasionally need to be drained.

The display will always default to show the room temperature.

When the air conditioner is turned on, it will automatically start in the last mode and fan settings selected.

COOL Mode

Use the COOL mode for cooling.

To set the COOL mode:

1. Press the MODE pad until the COOL indicator light is lit.
2. Press the FAN pad to set HIGH, MEDIUM or LOW fan speed.
3. Press on to set the desired temperature between 64°F and 90°F in 1°F increments. After settings have been made, the display will change back to show the room temperature.
   The temperature control is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the temperature control at a lower number and the indoor air will become cooler. Set the temperature control at a higher number and the indoor air will become warmer.

NOTE: If the air conditioner is off and is then turned on while set to COOL, it will take approximately 3 minutes for the compressor to start and cooling to begin.

Cooling Descriptions

For Normal Cooling—Select the COOL mode and HIGH or MEDIUM fan speed with a middle set temperature.

For Maximum Cooling—Select the COOL mode and HIGH fan speed with a lower set temperature.

For Quieter & Nighttime Cooling—Select the COOL mode and LOW fan speed with a middle set temperature.

NOTE: If you switch from a COOL setting to OFF or to a fan setting, wait at least 3 minutes before switching back to a COOL setting.

DRY Mode—Dehumidification

Use the DRY mode to provide dehumidification only. The fan will run at a fixed speed at this setting, so a fan speed cannot be set. Keep windows and doors closed for the best dehumidifying effects. The exhaust hose must be attached to the unit when using the DRY mode.

To set the DRY mode:

- Press the MODE pad until the DRY indicator light is lit.

In the DRY mode, a set temperature will not be displayed. After DRY mode has been set, the display will change back to show the room temperature.

NOTE: If you switch from a DRY setting to OFF or to a fan setting, wait at least 3 minutes before switching back to a DRY setting.

If using the unit in the DRY mode for an extended time:

1. Unplug the power cord.
2. Roll the unit so that its drain nozzle is located over a floor drain and pull out the drain cap from the back bottom edge. A water hose (not included) may also be attached to the nozzle and led to a floor drain. Reconnect the power cord.
3. Press the MODE pad until the DRY indicator light is lit.

FAN Mode

Use the FAN mode to provide air circulation and filtering without cooling.

To set the FAN mode:

- Press the FAN pad until the desired indicator light for HIGH, MEDIUM or LOW fan speed is lit.

Since fan only settings do not provide cooling, a set temperature will not be displayed. After FAN speed has been set, the display will change back to show the room temperature.

Power Outage Recovery Feature

In the case of a power outage or interruption, the unit will automatically re-start in the settings last used after the power is restored.

NOTE: If the TIMER was set before the power outage, it will need to be reset after power is restored.

Care and cleaning of the air conditioner.

Turn the air conditioner off and remove the plug from the wall outlet before cleaning.

Case

To clean the case:

Use water and a mild detergent. Do not use bleach or abrasives.

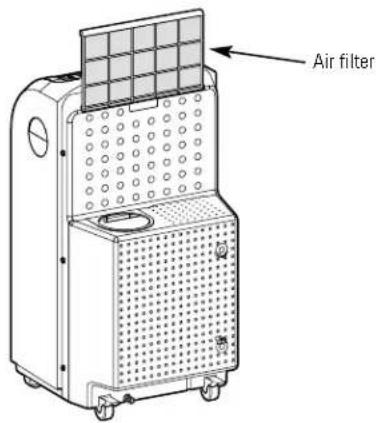

Air Filter

The air filter is on the back of the air conditioner. It should be checked and cleaned at least every 30 days or more often if necessary.

NOTE: DO NOT put the filter in an automatic dishwasher.

▲ CAUTION: DO NOT operate the air conditioner without the filter because dirt and lint will clog it and reduce performance.

To remove:

Grasp the tab and gently pull the filter up and out. Wash it in warm soapy water. Rinse and let the filter dry before replacing it.

Air filter

Drainage/Routine Maintenance

This air conditioner produces water during normal operation. The unit should be drained if it is not going to be run for an extended period of time. The unit should also be drained prior to storage at the end of the cooling season.

To drain the unit, follow the instructions below:

1. Unplug the power cord and roll the unit to a drain or outside.
2. Pull out the drain cap and allow water to drain from the unit.
3. Securely replace the drain cap.

Drain cap

Remote Control

To replace the battery:

1. Slide the battery cover open on the back edge of the remote control.
2. Insert new battery, making sure that the + is toward the bottom of the remote control.
3. Slide the cover back into position.

NOTES: Replace with a lithium CR2025 battery. Remove the battery from the remote control if the system is not going to be used for a long time.

■ To ensure proper operation, aim the remote control at the signal receiver on the air conditioner.
■ The remote control signal has a range of up to 21 feet.
■ Make sure nothing is between the air conditioner and the remote control that could block the signal.

PARTS INCLUDED

Line drawing of a rectangular electronic component with mounting holes (no text or symbols)

Rain Deflector

Window Locking Bracket (2)

Window Slider Bracket (2)

Illustration of a coiled, ribbed pipe or tube (no text or symbols)

Flexible Exhaust Hose Window Exhaust Adapter

Simple line drawing of a 3D object resembling a camera lens or optical component (no text or symbols)

Wood Screws (4)

Circular mechanical component with concentric grooves and a central hole (no text or symbols)

Window Seal (2) Foam Seal

Technical line drawing of two structural beams or panels with mounting holes (no text or symbols)

Adjustable Window Slider (3)

Gasket (2) Bolt (2) Nut (2)

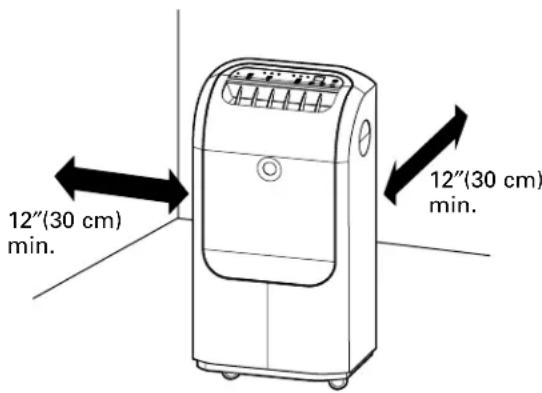

① CHOOSE A LOCATION

• Place the air conditioner on a smooth, level floor strong enough to support the unit.
• Allow at least 12 inches (30 cm) of air space on all sides of the unit for good air circulation.

12"(30 cm) min. 12"(30 cm) min.

- Place the unit in an area where the temperature will not fall below 65^ (18°C). The coils can become covered with frost at temperatures below 65^ , which may reduce performance.

NOTE: The portable air conditioner has rollers to aid placement, but it should only be rolled on smooth, flat surfaces. Do not attempt to roll the portable air conditioner on carpet or over objects.

③ INSTALL RAIN DEFLECTOR TO OUTSIDE OF ADJUSTABLE WINDOW SLIDER

- Remove the appropriate plugs (save in a secure place) from the window slider to prepare for either a double hung window installation or a slider window installation. Line up the holes on the rain deflector and the window slider. Use the bolts, gaskets and nuts to attach the rain deflector onto the window slider.

Double Hung Window Installation

Slider Window Installation

Leave these two plugs in place for double hung window installations

Outside Outside

Leave these two plugs in place for sliding window installations

② ATTACH THE EXHAUST ADAPTER TO THE WINDOW SLIDER INSIDE OPENING

• Pull the sliding arm of the window slider out until the oval opening in the slider is completely clear.
• Slide the exhaust adapter inside the end of the slider and snap it into the opening.

Technical line drawing of a mechanical component with a cylindrical housing and internal structure (no text or symbols)

NOTE: If installing slider in a sliding window or patio door, skip to step 4 on page 11 and proceed.

4 INSTALL WINDOW SLIDER IN A DOUBLE HUNG WINDOW

A To allow the window to close properly around the adjustable window slider, attach a piece of wood to the sill at the back of the window stool.

WOOD PIECE-

WIDTH: 1"

LENGTH: Long enough to fit inside the window frame.

THICKNESS: To determine the thickness, place a piece of wood on the sill behind the window stool to make it the same height as the stool.

Attach securely with nails or screws provided by the installer.

Wood (same height as stool) Stool Sill Inside

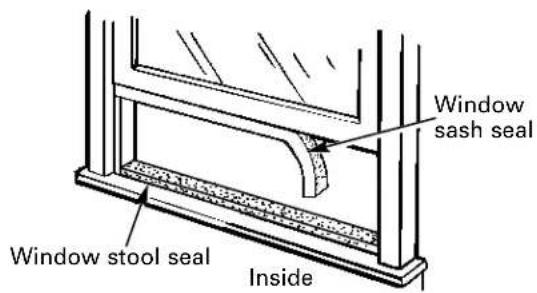

B Cut the window sash seal (adhesive-backed) to the window width and stick the adhesive side to the bottom of the sash. Cut the window stool seal (non-adhesive backed) to the window width and place on the window stool.

Window sash seal Window stool seal Inside

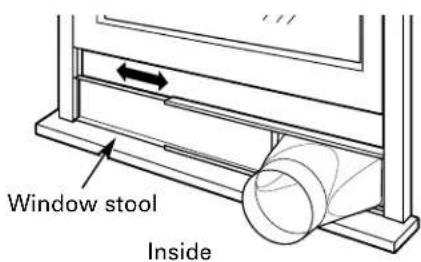

C If the window slider is shorter than the width of the window, pull the sliding arm out to the width of the window.

If the window slider is longer than the width of the window, cut the slider arm to the width of the window.

If the two-piece window slider is too short for the width of the window, attach and use the third piece of the slider.

Third piece of slider for extra wide windows

Window stool Inside

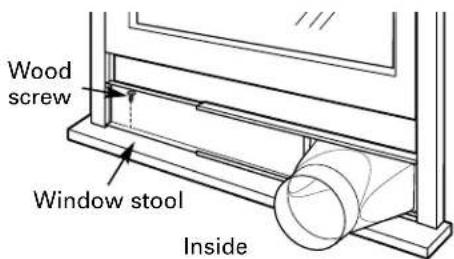

D Attach the slider to the stool through one of its holes using a wood screw (not included).

Wood screw Window stool Inside

E Pull the window down against the top of the window slider.

Window slider brackets

F Hook the two window slider brackets over the bottom edge of the window slider and attach to the window stool using two screws.

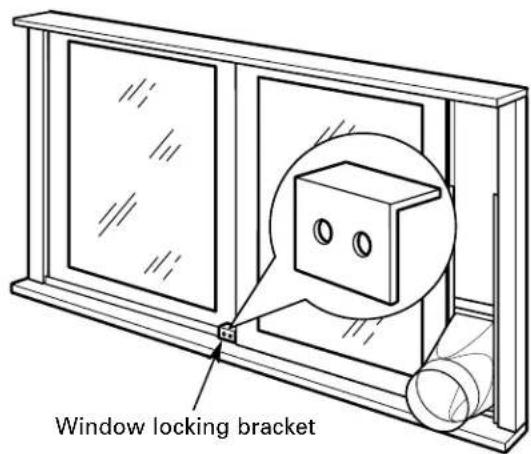

⑤ INSTALL TOP WINDOW GASKET AND WINDOW LOCKING BRACKET

A Cut the foam top window gasket to the window width.

Stuff the foam between the glass and the window to prevent air and insects from getting into the room.

Line drawing of a hand holding a tool near a window with no visible text or symbols

B Attach the window locking bracket with two screws.

Technical line drawing of a screwdriver inserted into a bracket (no text or symbols)

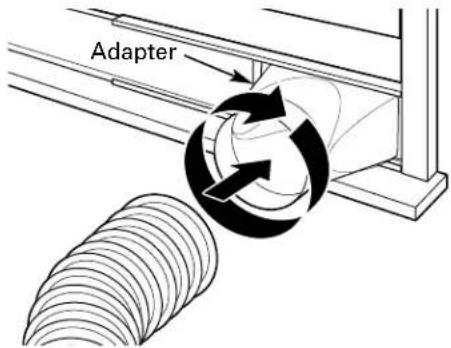

⑥ ATTACH EXHAUST HOSE TO WINDOW SLIDER

Insert the end of the hose into the adapter and rotate it several turns to thread it securely into the adapter.

Adapter

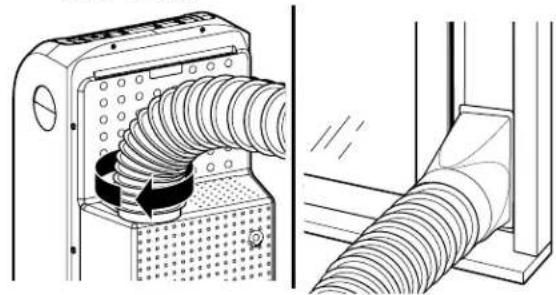

7 INSTALL EXHAUST HOSE TO UNIT

• The exhaust hose must be properly installed to the back of the unit and to the adjustable window slider, and exhausted to the outside when using the unit in the COOL mode.
• Attach the unit end of the exhaust hose to the back of the air conditioner by pushing it into the exhaust outlet and twisting to lock it in place.

Back of unit

Technical illustration of a mechanical device with coiled tubing and a side view showing internal components (no text or symbols)

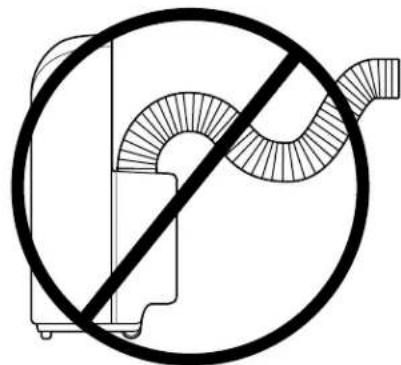

IMPORTANT: To ensure proper cooling, do not kink or pinch the duct.

No sign depicting a device with a diagonal line crossing it, no text or symbols present

An excessive number of bends in the exhaust hose may compromise the cooling performance.

Installation into a double hung window is now complete.

NOTE: If installing slider in a double hung window, go back to step 4 on page 9 and proceed.

4 INSTALL WINDOW SLIDER IN A SLIDING WINDOW OR PATIO DOOR

A If the window slider is shorter than the height of the window, pull the sliding arm out to the height of the window.

If the window slider is longer than the height of the window, cut the slider arm to the height of the window.

If the two-piece window slider is too short for the height of the window, attach and use the third piece of the slider.

Diagram showing a door frame with a pipe inside, and an external panel with an arrow indicating direction (no text or symbols)

Third piece of slider for extra long windows

B Cut the window seal (adhesive-backed) to the window height and stick the adhesive side to the inner window sliding face, as shown above.

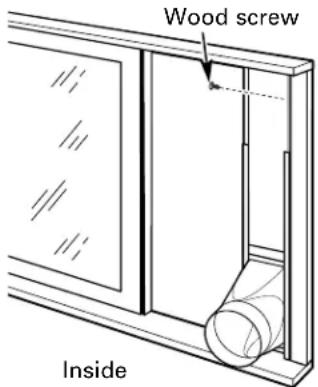

C Attach the top of the slider to the window face using a screw through one of its holes.

Wood screw Inside

D Slide the window against the edge of the window slider.

⑤ INSTALL WINDOW LOCKING BRACKET

Attach the window locking bracket with two screws.

Window locking bracket

6 ATTACH EXHAUST HOSE TO WINDOW SLIDER

Insert the end of the hose into the adapter and rotate it several turns to thread it securely into the adapter.

Adapter

7 INSTALL EXHAUST HOSE TO UNIT

• The exhaust hose must be properly installed to the back of the unit and to the adjustable window slider, and exhausted to the outside when using the unit in the COOL mode.
• Attach the unit end of the exhaust hose to the back of the air conditioner by pushing it into the exhaust outlet and twisting to lock it in place.

Back of unit

Technical illustration of a mechanical device with coiled tubing and a side view showing internal components (no text or symbols)

IMPORTANT: To ensure proper cooling, do not kink or pinch the duct.

No sign depicting a device with a diagonal line crossing it, no text or symbols present

An excessive number of bends in the exhaust hose may compromise the cooling performance.

Installation into a sliding window or patio door is now complete.

Troubleshooting Tips.

Save time and money! Review the chart below first and you may not need to call for service.

Problem Possible Causes What To Do
Air conditioner does not start is unplugged.	The air conditioner into the outlet.	Make sure the air conditioner plug is pushed completely
	The fuse is blown/circuit breaker is tripped. the fuse or reset the breaker.	Check the house fuse/circuit breaker box and replace the breaker.
	Power failure.	If a power failure occurs, turn the air conditioner OFF. When power is restored, wait 3 minutes to restart the air conditioner to prevent tripping of the compressor overload.
Air conditioner has stopped running	Power interruption or power failure occurred.	When the power is restored, wait 3 minutes to restart the air conditioner to prevent tripping of the compressor overload. Press the ON/OFF pad.
Air conditioner does not cool as it should	Airflow is restricted.	Make sure there are no curtains, blinds or furniture blocking the inlets located on the left and rear sides of the air conditioner. Make sure there are at least 12" of space on all sides of the unit.
	The temp control may not be set correctly.	In COOL mode, press the Decrease √ pad.
	The air filter is dirty.	Clean the filter at least every 30 days. See the Care and cleaning section.
	The room may have been hot.	When the air conditioner is first turned on, you need to allow time for the room to cool down.
	Cooling coils have iced up.	See "Air conditioner freezing up and control beeps" section below.
Air conditioner freezing up and control beeps	Ice blocks the air flow and stops the air conditioner from cooling the room.	Select the COOL mode and HIGH fan and set the thermostat to a higher temperature.
The remote control is not working	The battery is inserted incorrectly.	Check the position of the battery. See the Care and Cleaning section.
	The battery may be dead.	Replace the battery.
Noise or vibration	The floor is not level.	Place unit on a flat, level surface.
Gurgling sound	This is normal.
TIMER feature not working properly	A power outage or interruption occurred.	If the TIMER was set before the power outage, it will need to be reset after power is restored.
WATER FULL indicator light is blinking and the unit is still operating	The unit has reached maximum water collection level.	The unit will resume its set operation once the collected water is sufficiently evaporated.
WATER FULL indicator light stays on and the unit shuts off	The unit is designed to automatically evaporate water collected in normal settings. However, in very humid settings, the unit may occasionally need to be drained.	Unplug the power cord and roll the unit to a drain or outside.Pull out the drain cap from the back bottom edge and allow water to drain from the unit.Replace the drain cap and put the unit back into operation.

Consumer Support Troub Technology Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Tips Bitsunsections

Notes.

Air Conditioner Warranty.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, 24 hours a day, visit us at www.GEAppliances.com, or call 800.GE.CARES (800.432.2737). For service in Canada, call 1.800.361.3400.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: GE Will Replace:

One YearFrom the date of the original purchase service	Any part of the air conditioner which fails due to a defect in materials or workmanship.During this full one-year warranty, GE will also provide, free of charge, all labor and in-home to replace the defective part.
Five YearsFrom the date of the original purchase	Any part of the sealed refrigerating system (the compressor, condenser, evaporator and all connecting tubing) which fails due to a defect in materials or workmanship. During this additional four-year limited warranty, GE will also provide, free of charge, all labor and in-home service to replace the defective part.

What GE Will Not Cover:

■ Service trips to your home to teach you how to use the product.
Improper installation, delivery or maintenance. If you have an installation problem, or if the air conditioner is of improper cooling capacity for the intended use, contact your dealer or installer. You are responsible for providing adequate electrical connecting facilities.
Failure of the product resulting from modifications to the product or due to unreasonable use including failure to provide reasonable and necessary maintenance.
In commercial locations, labor necessary to move the unit to a location where it is accessible for service by an individual technician.

Replacement of house fuses or resetting of circuit breakers.
Failure due to corrosion on models not corrosion-protected.
Damage to the product caused by improper power supply voltage, accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this air conditioner.
Damage caused after delivery.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA and Canada. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

GE Appliances Website

www.GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts, catalogs, or even schedule service on-line. You can also "Ask Our Team of Experts" your questions, and so much more...

Schedule Service www.GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio www.GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties www.GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories www.GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us www.GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Register Your Appliance www.GEAppliances.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.

Control remoto ....6

Stylized white logo design with a circular swirl design (no text or symbols)

Line drawing of a rectangular electronic component with mounting holes (no text or symbols)

Deflector de Iluvia

Illustration of a coiled, ribbed pipe or tube (no text or symbols)

Simple line drawing of a 3D object resembling a camera lens or optical component (no text or symbols)

Circular mechanical component with concentric grooves and a central hole (no text or symbols)

Technical line drawing of two rectangular metal brackets with cutouts, no text or symbols present

Technical line drawing of a mechanical component with an arrow indicating assembly or transformation (no text or symbols present)

③ INSTALE EL DEFLECTOR DE LLUVIA A LA PARTE EXTERIOR DEL DESLIZADOR DE VENTANA

Repisa Antepecho Interior

Technical line drawing of a window frame with a cylindrical component inserted, showing alignment arrows (no text or symbols)

Line drawing of a hand holding a tool near a window with a grid pattern (no text or symbols)

Technical line drawing of a screwdriver inserted into a bracket (no text or symbols)

Technical illustration of a mechanical device with coiled tubing and a side-view view showing internal components (no text or symbols)

Nozzles symbol crossed out by a diagonal line, indicating nozzles crossed out of the circle (no text or numbers present)

Technical illustration of a mechanical device with coiled tubing and a side-view view of its internal structure (no text or symbols)

Symbolic illustration of a refrigerator with a diagonal line crossing through it, no text or labels present.

Garante: General Electric Company. Louisville, KY 40225

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Registre su electrodoméstico www.GEAppliances.com
