| Product Type | Window Air Conditioner |
| Brand | GE |
| Model | AHH10AQ |
| Cooling Capacity | 10,000 BTU |
| Room Coverage | Up to 450 sq. ft. |
| Energy Efficiency Ratio (EER) | 10.9 |
| Power Supply | 115V / 60Hz |
| Cooling Amps | 8.5 A |
| Dimensions (W x H x D) | 21.5" x 14.0" x 17.5" |
| Weight | 58 lbs |
| Control Type | Remote Control and Manual |
| Fan Speeds | 2 (High/Low) |
| Modes | Cool, Fan, Energy Saver |
| Dehumidification | Yes |
| Air Direction | Adjustable horizontal louvers |
| Filter Type | Washable foam filter |
| Filter Access | Slide-out front panel |
| Installation | Window mounting kit included |
| Refrigerant | R-32 |
| Noise Level (High Cool) | 52 dB |
| Additional Features | 24-hour timer, auto restart |
| Certifications | ENERGY STAR |
Frequently Asked Questions - AHH10AQ GE
User questions about AHH10AQ GE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Air-conditioner in PDF format for free! Find your manual AHH10AQ - GE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AHH10AQ by GE.
USER MANUAL AHH10AQ GE
Room Air Conditioners
Safety Instructions....2,3
Operating Instructions
Controls 4-6
Care and Cleaning
Air Filter ....6 Outdoor Coils ....6
Installation Instructions.....7-10
Troubleshooting Tips ..... 1 1
Normal Operating Sounds .... 1 1
Consumer Support
Consumer Support ....B ack Cover Ownership Registration for Customers in Canada only .....13, 14 Warranty for Customers in Canada .....16 Warranty for Customers in the U.S.A. .....15
*ENERGY STAR® labeled product
Write the model and serial numbers here:
Model #
Serial #
Find these numbers on a label on the side of the air conditioner.
In Canada, contact us at:
www.GEAppliances.ca
Owner's Manual and Installation Instructions
AHH08*
AHH10*
AHH12*
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury.
SAFETY PRECAUTIONS
Use this appliance only for its intended purpose as described in this Owner's Manual.
This air conditioner must be properly installed in accordance with the Installation Instructions before it is used.
Never unplug your air conditioner by pulling on the power cord. Always grip plug firmly and pull straight out from the receptacle.
Replace immediately all electric service cords that have become frayed or otherwise damaged. A damaged power supply cord must be replaced with a new power supply cord obtained from the manufacturer and not repaired. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.
■ Turn the unit OFF and unplug your air conditioner before cleaning.
GE does not support any servicing of the air conditioner. We strongly recommend that you do not attempt to service the air conditioner yourself.
For your safety...do not store or use combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
All air conditioners contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old product with refrigerants, check with the company handling disposal about what to do.
If the receptacle does not match the plug, the receptacle must be changed out by a qualified electrician.
These R410A air conditioning systems require contractors and technicians to use tools, equipment and safety standards approved for use with this refrigerant. DO NOT use equipment certified for R22 refrigerant only.
HOW TO CONNECT ELECTRICITY
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.
DO NOT use an adapter plug with this appliance.
The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.
Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button while plugged into the outlet. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
Where a 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.
The air conditioner should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.
This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.
See the Installation Instructions, Electrical Requirements section for specific electrical connection requirements.
WARNING!
USE OF EXTENSION CORDS
RISK OF FIRE. Could cause serious injury or death.
- DO NOT use an extension cord with this Window Air Conditioner.
- DO NOT use surge protectors or multi-outlet adaptors with this Window Air Conditioner.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY. SAVE THESE INSTRUCTIONS

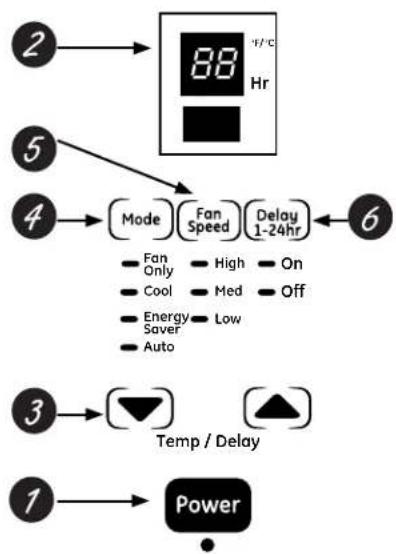

About the controls on the air conditioner
Features and appearance will vary.
Lights next to the touch pads on the air conditioner control panel indicate the selected settings.
NOTE: The display always shows the room temperature except when setting the Set temperature or the Delay timer.


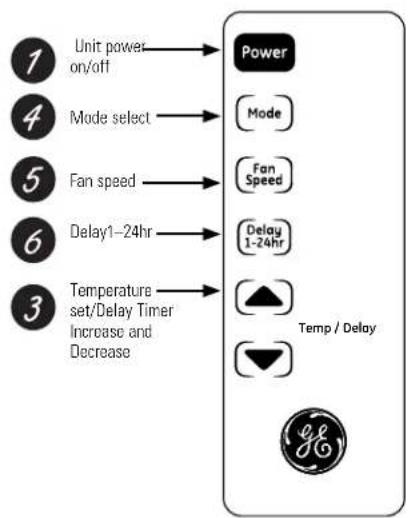

Air Conditioner Controls
Controls
1 Power Pad
Turns air conditioner on and off. When turned on, the display will show the room temperature.
2 Display
Shows the room temperature or time remaining on the Delay timer. Shows the Set temperature while setting the temperature in Cool or Energy Saver modes. The Set light will turn on while setting.
3 Temp and Delay Increase ▲ /Decrease ▼ Pads
Use to set temperature or delay time. Temperature can be set in Cool, Energy Saving and Auto mode.
4 Mode Pad
Use to set the air conditioner to Fan Only, Cool, Energy Saver or Auto mode.
5 Fan Speed Pads
Use to set the fan speed to Low, Med, or High on the unit.
6 Delay Pad
Delay ON—When the air conditioner is off, it can be set to automatically come on in 1 to 24 hours at its previous mode and fan settings.
Delay OFF—When the air conditioner is on, it can be set to automatically turn off in 1 to 24 hours.
How to set:
Press the Delay 1–24hr pad on the unit or the remote control. Each touch of the Increase ▲ / Decrease ▼ pads on the unit or the Increase + / Decrease – pads on the remote control will set the timer in 1-hour intervals.
To review the remaining time on the Delay 1–24hr timer, press the Delay 1–24hr pad on the unit or the remote control. Use the Increase ▲ / Decrease ▼ pads on the unit or the Increase + / Decrease – pads on the remote control to set a new time if desired.
To cancel the timer, press the Delay 1-24hr pad until the light on the Delay 1-24hr pad goes off.
| Do Not Operate in Freezing Outdoor ConditionsThis cool-only air conditioner was not designed for freezing outdoor conditions. It must not be used in freezing outdoor conditions. | |
| Remote ControlTo ensure proper operation, aim the remote control at the signal receiver on the air conditioner.The remote control signal has a range of up to 20 feet. | Make sure nothing is between the air conditioner and the remote control that could block the signal.Make sure batteries are fresh and installed correctly as indicated on the remote control. |
| Cool ModeUse the Cool mode at Low, Med, High or Speed for cooling. Use the Temperature Increase ▲ / Decrease▼ pads to set the desired temperature between 61°F and 86°F in 1°F increments.An electronic thermostat is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will become cooler. Set the thermostat at a higher number and the indoor air will become warmer.NOTE: If the air conditioner is off and is then turned on while set to a Cool setting or if turned from a fan setting to a Cool setting, it may take approximately 3 minutes for the compressor to start and cooling to begin. | Cooling DescriptionsFor Normal Cooling—Select the Cool mode and High or Med fan with a middle set temperature.For Maximum Cooling—Select the Cool mode and High fan with a lower set temperature.For Quieter and Nighttime Cooling—Select the Cool mode and Low fan with a middle set temperature. |
| Energy Saver ModeControls the fan.ON—The fan will cycle on and off with the compressor. This results in wider variations of room temperature and humidity. Normally used when the room is unoccupied. NOTE: The fan may continue to run for a short time after the compressor cycles off. | OFF—The fan runs all the time, while the compressor cycles on and off. |
| Fan Only ModeUse the Fan Only Mode at Low, Med or High fan speed to provide air circulation and filtering without cooling. Since fan-only settings do not provide cooling, a Set temperature cannot be entered. The room temperature will appear in the display. | |
| Auto Fan SpeedSet to Auto for the fan speed to automatically set to the speed needed to provide optimum comfort settings with the set temperature.If the room needs more cooling, the fan speed will automatically increase. If the room needs less cooling, the fan speed will automatically decrease. | |
About the controls on the air conditioner
Additional important information.

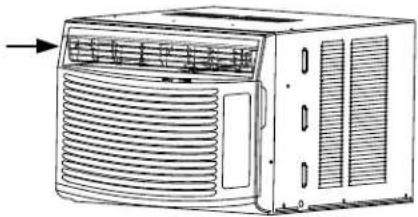

Air Direction
Use the lever to adjust the air direction left, right, up and down.
Grille and Case
Turn the air conditioner off and remove the plug from the wall outlet before cleaning.
To clean, use water and a mild detergent. Do not use bleach or abrasives.
Air Filter
The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary.
To remove:
Open the inlet grille by pulling downward on the tabs at the top upper corners of the inlet grille until the grille is in a 45° position. Remove the filter.
Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it. Do not clean the filter in a dishwasher.


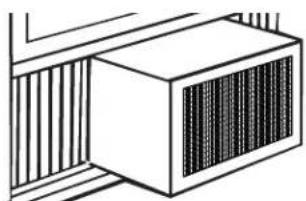

Outdoor Coils
The coils on the outdoor side of the air conditioner should be checked regularly. If they are clogged with dirt or soot, they may be professionally cleaned.
1 Remove the battery cover by twisting it according to the arrow direction. A coin can be used to twist the cover.
2 Insert new battery, making sure that the (+) and (-) of battery are installed correctly.
3 Reattach the cover by twisting it back into position.
NOTES:
Use one CR 2025 (3V) Lithium battery.
Remove the batteries from the remote control if the system is not going to be used for a long time.
Installation Instructions
Air Conditioner
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com In Canada, call 1.800.561.3344 or visit www.GEAppliances.ca
BEFORE YOU BEGIN
Read these instructions completely and carefully.
- IMPORTANT — Save these instructions for local inspector's use.
- IMPORTANT — Observe all governing codes and ordinances.
- Note to Installer – Be sure to leave these instructions with the Consumer.
- Note to Consumer – Keep these instructions for future reference.
- Skill level – Installation of this appliance requires basic mechanical skills.
• Completion time –Approximately 1 hour
• We recommend that two people install this product. - Proper installation is the responsibility of the installer.
- Product failure due to improper installation is not covered under the Warranty.
- You MUST use all supplied parts and use proper installation procedures as described in these instructions when installing this air conditioner.
ELECTRICAL REQUIREMENTS
Some models require a 115/120-volt AC, 60-Hz grounded outlet protected with a 15-amp time-delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.
Some models require 230/208-volt AC, protected with a time-delay fuse or circuit breaker. These models should be installed on their own single branch circuit for best performance and to prevent overloading house or apartment wiring circuits, which could cause a possible fire hazard from overheating wires.
CAUTION:
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
Do not change the plug on the power cord of this air conditioner.
Aluminum house wiring may present special problems—consult a qualified electrician.
TOOLS YOU WILL NEED
Drill and 1/8" drill bit
Ruler or tape measurePend
Level
Scissors or knife
Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button while plugged into the outlet. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.


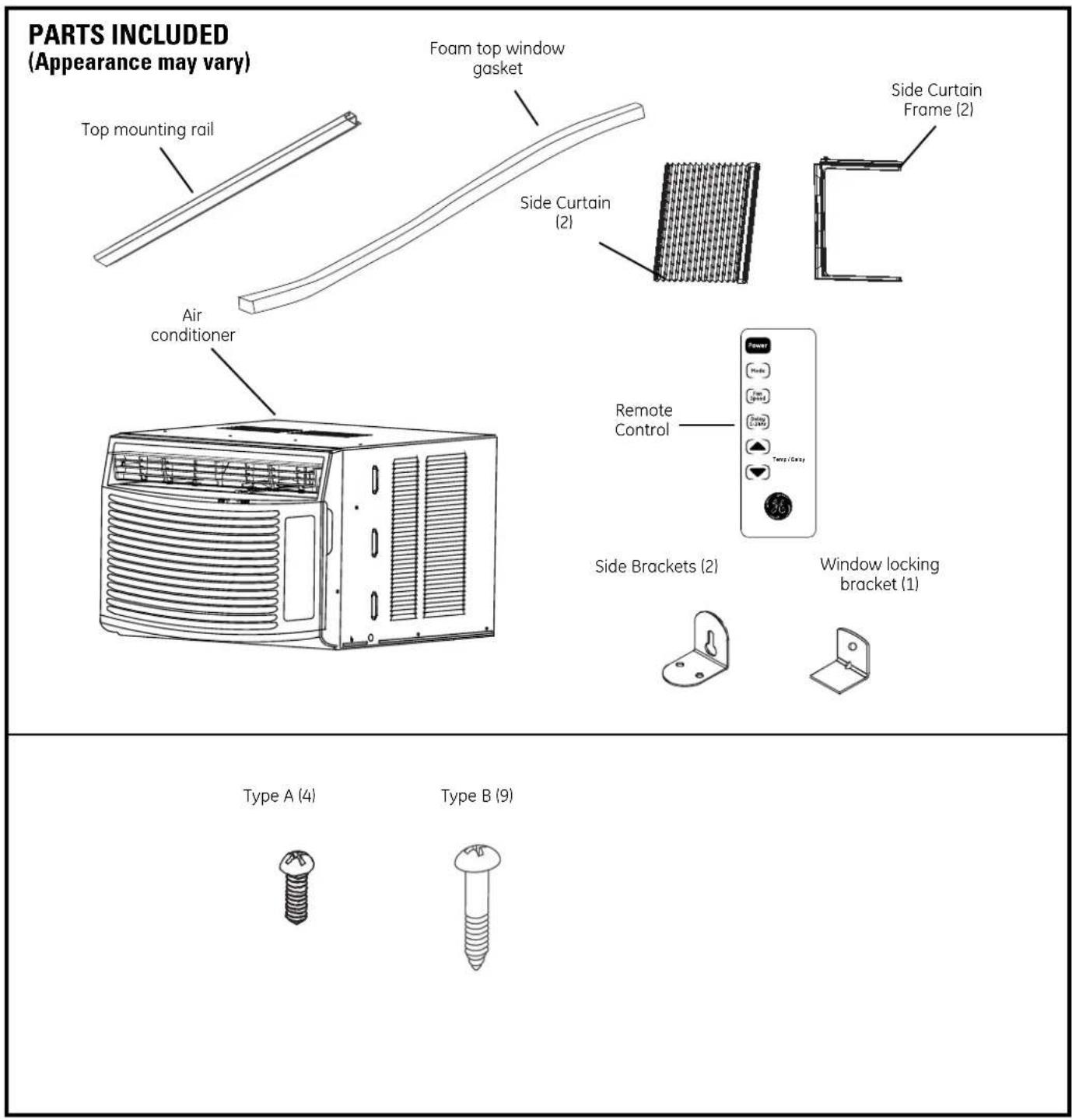

PARTS INCLUDED (Appearance may vary) Top mounting rail Air conditioner Foam top window gasket Side Curtain (2) Side Curtain Frame (2) Remote Control Side Brackets (2) Window locking bracket (1) Type A (4) Type B (9)1 WINDOW REQUIREMENTS
• These instructions are for a standard double-hung window. You will need to modify them for other types of windows.
- The air conditioner can be installed without the side curtain panels if needed to fit in a narrow window. See the window opening dimensions.
- All supporting parts must be secured to firm wood, masonry or metal.
- The electrical outlet must be within reach of the power cord.
- Follow the dimensions in the table and illustration for your model.
| Models A B | ||
| AHH08LP | 13 3/8" min. | 25"- 36" |
| AHH10AP,AHH12AP | 14 9/16" min. | 24 1/2"- 38" |
A storm window frame will not allow the air conditioner to tilt toward the outside, and will keep it from draining properly. To adjust for this, attach a piece of wood to the sill.
WOOD PIECES
WIDTH: 2"
LENGTH: Long enough to fit inside the window frame.
THICKNESS: To determine the thickness, place a piece of wood on the sill to make it 1/2" higher than the top of the storm window frame or the vinyl frame.
Attach securely with nails or screws provided by the installer.


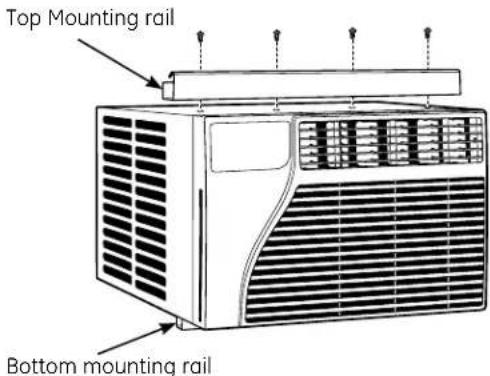

A Install the top moutning rail with Type A screws, 4 for AHH12 and AHH10 and 3 for AHH08 from the outside of the case.


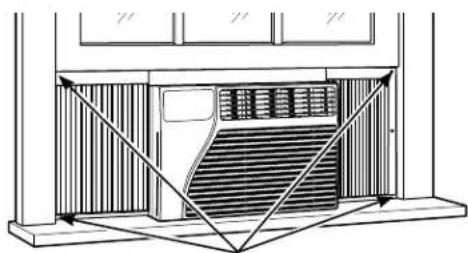

Top left Top mounting rail Top right Bottom mounting rail4 INSTALL THE AIR CONDITIONER IN THE WINDOW
A Mark the center of the window. Set the air conditioner in the window so that is it centered. Place the air conditioner so that front edge of the bottom mounting rail is against the back edge of the sill.
B Bring the window down so that the front edge of the top mounting is in front of the window. Make sure that the air conditioner is level or tilting slightly to the outside.


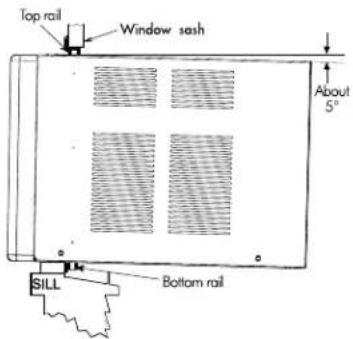

Top rail Window sash About 5° SILL Bottom railC Extend the curtain panels until they fill the window. Mark the location of the holes in each corner. Use the drill and 1/8" drill bit to drill pilot holes. Use 4 type B screws to secure the side panels in place.


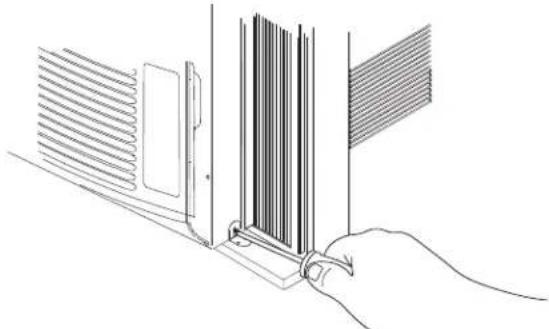

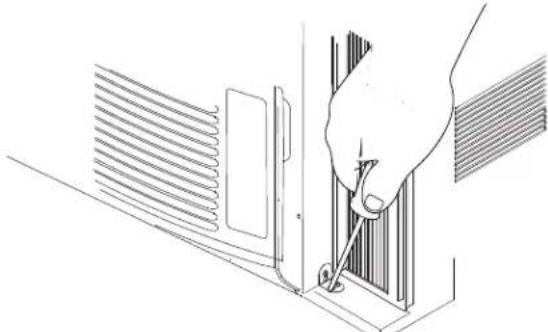

5 SECURE AIR CONDITIONER
A Loosen the screw on the right hand side of the air conditioner near the bottom.
D Repeat the side bracket installation on the left side.
6 INSTALL SUPPORT BRACKET AND FOAM TOP WINDOW GASKET
Use type B screw to install the window lock bracket on top of bottom window.
A CAUTION:
To prevent broken glass or damage to windows, on vinyl or other similarly constructed windows, attach the window locking bracket to the window side jamb with one Type B screw.
C Stuff the foam between the glass and the window to prevent air and insects from getting into the room.
Troubleshooting Tips.
| Problem Possible Causes What To Do | ||
| Air conditioner does not start breaker is tripped. | The air conditioner is unplugged. | Make sure the air conditioner plug is pushed completely into the outlet. |
| The fuse is blown/circuit the fuse or reset the breaker. | Check the house fuse/circuit breaker box and replace | |
| Power failure. used after the power is restored.There is a protective time delay (approximately 3 minutes) to prevent tripping of the compressor overload. For this reason, the unit may not start normal cooling for 3 minutes after it is turned back on. | ||
| The current interrupter device is tripped. use of the air conditioner and contact a qualified service technician. | Press the RESET button located on the power cord plug.If the RESET button will not stay engaged, discontinue | |
| Air conditioner does not cool as it should not be set correctly. | Airflow is restricted. | Make sure there are no curtains, blinds or furniture blocking the front of the air conditioner. |
| The temp control may | Turn the temperature knob to a higher number. | |
| The air filter is dirty.See the Care and Cleaning section. | Clean the filter at least every 30 days. | |
| The room may have been hot.to allow time for the room to cool down. | When the air conditioner is first turned on, you need to cool down. | |
| Cold air is escaping. | Check for open furnace registers and cold air returns. | |
| Cooling coils have iced up. | See “Air conditioner freezing up” below. | |
| Air conditioner freezing up | Ice blocks the air flow and stops the air conditioner from cooling the room. | On models with control knobs, set the mode control at High Fan or High Cool with the Temp at 1 or 2. |
| Water drips outside | Hot, humid weather. | This is normal. |
| Water drips indoors | The air conditioner is not tilted to the outside. | For proper water disposal, make sure the air conditioner slants slightly from the case front to the rear. |
| Water collects in base pan | Moisture removed from air and drains into base pan. | This is normal for a short period in areas with little humidity; normal for a longer period in very humid areas. |
Normal Operating Sounds
You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency.
You may hear the thermostat click when the compressor cycles on and off.
Water will collect in the base pan during high humidity or on rainy days. The water may overflow and drip from the outdoor side of the unit.
The fan may run even when the compressor does not.
Staple your receipt here.
Proof of the original purchase date is
needed to make a warranty claim.
| For The Period Of: | We Will Replace: |
| One YearFrom the date of the original purchase warranty period. | Replacement unit for any product which fails due to a defect in materials or workmanship.The replacement unit is warranted for the remainder of your product's original one-year |
In Order to Make a Warranty Claim:
■ Properly pack your unit. We recommend using the original carton and packing materials.
- Return the product to the retail location where it was purchased.
■ Include in the package a copy of the sales receipt or other evidence of date of original purchase. Also print your name and address and a description of the defect.
What Is Not Covered:
- Customer instruction. This owner's manual provides information regarding operating instructions and user controls.
Improper installation, delivery or maintenance. If you have an installation problem, or if the air conditioner is of improper cooling capacity, contact your dealer or installer. You are responsible for providing adequate electrical, plumbing and other connecting facilities.
Failure of the product resulting from modifications to the product or due to unreasonable use, including failure to provide reasonable and necessary maintenance.
■ Replacement of house fuses or resetting of circuit breakers.
- Failure due to corrosion on models not corrosion-protected.
■ Damage to the product caused by improper power supply voltage, accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this air conditioner.
■ Damage caused after delivery.
EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product replacement as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.
Exclusion of implied warranties: Except where prohibited or restricted by law, there are no warranties, whether express, oral or statutory which extend beyond the description on the face hereof, including specifically the implied warranties of merchantability or fitness for a particular purpose.
GE Appliances Website
In the U.S.A.: GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, or even order parts on-line. In Canada: www.GEAppliances.ca
Real Life Design Studio In the U.S.A.: GEAppliances.com
GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD. GEAC (800.833.4322).
In Canada, contact: Manager, Consumer Relations, Mabe Canada Inc. Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3
Parts and Accessories In the U.S.A.: GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. GE does not support any servicing of the air conditioner. We strongly recommend that you do not attempt to service the air conditioner yourself.
Customers in Canada should consult the yellow pages for the nearest Mabe service center, or call 1.800.561.3344.
Contact Us In the U.S.A.: GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
In Canada: www.GEAppliances.ca, or write to: Director, Consumer Relations, Mabe Canada Inc. Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3
Line drawing of a computer air conditioner unit with ventilation slots and fan (no text or symbols)natural_image
Simple line drawing of a cabinet with vertical bars on the side (no text or symbols)natural_image
Diagram of a screwdriver with a magnified view of the tip (no text or symbols)natural_image
Line drawing of an air conditioner unit with ventilation grilles and a side panel (no text or symbols)natural_image
Architectural diagram of a building facade with slatted walls and a central door, showing structural beams (no text or symbols)Tipo B tornillos
⑤ ASEGURE EL ACONDICIONADOR DE AIRE
Illustration of a hand using a tool to adjust or install a panel with a coiled spring (no text or symbols present)natural_image
Line drawing of a hand holding a book with a ribbon, no text or symbols presentGeneral Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
