USER MANUAL ASW06LB GE

Safety Instructions .....2, 3

Operating Instructions

Controls—Control Knobs .....6, 7

Controls—Touch Pads .....4, 5

Care and Cleaning

Air Filter 8

Batteries 8

Front Grille 9

Grille and Case ....8

Outdoor Coils ....8

Installation Instructions ...10-13

Troubleshooting Tips .....14

Normal Operating Sounds .....14

Consumer Support

Consumer Support .....16

Warranty....15

Write the model and serial numbers here:

Model # ____

Serial # ____

Find these numbers on a label on the side of the air conditioner.

Owner's Manual and Installation Instructions

ASR05

ASH06

ASW06

Abstract decorative swirl design with no text or symbols

DB98-15881A 49-7480 11-03 JR

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

⚠ WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury.

SAFETY PRECAUTIONS

Use this appliance only for its intended purpose as described in this Owner's Manual.
This air conditioner must be properly installed in accordance with the Installation Instructions before it is used.
■ Never unplug your air conditioner by pulling on the power cord. Always grip plug firmly and pull straight out from the receptacle.
- Replace immediately all electric service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

■ Turn the mode control OFF and unplug your air conditioner before cleaning.
■ GE does not support any servicing of the air conditioner. We strongly recommend that you do not attempt to service the air conditioner yourself.
For your safety...do not store or use combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
All air conditioners contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old product with refrigerants, check with the company handling disposal about what to do.

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

Where a 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The air conditioner should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.

This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

See the Installation Instructions, Electrical Requirements section for specific electrical connection requirements.

⚠ WARNING!

USE OF EXTENSION CORDS—115-Volt models only

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord.

However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed, 14 gauge, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 125 volts.

▲ CAUTION:

DO NOT use an extension cord with any of the 230/208 volt models.

USE OF ADAPTER PLUGS—115-Volt models only

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an adapter plug.

However, if you must use an adapter, where local codes permit, a temporary connection may be made to a properly grounded 2-prong wall outlet by use of a UL-listed adapter available at most local hardware stores.

The larger slot in the adapter must be aligned with the larger slot in the wall outlet to provide proper polarity in the connection of the power cord.

When disconnecting the power cord from the adapter, always hold the adapter in place with one hand while pulling the power cord plug with the other hand. If this is not done, the adapter ground terminal is very likely to break with repeated use.

If the adapter ground terminal breaks, DO NOT USE the air conditioner until a proper ground has been established.

Attaching the adapter ground terminal to a wall outlet cover screw does not ground the appliance unless the cover screw is metal, and not insulated, and the wall outlet is grounded through the house wiring. You should have the circuit checked by a qualified electrician to make sure the outlet is properly grounded.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

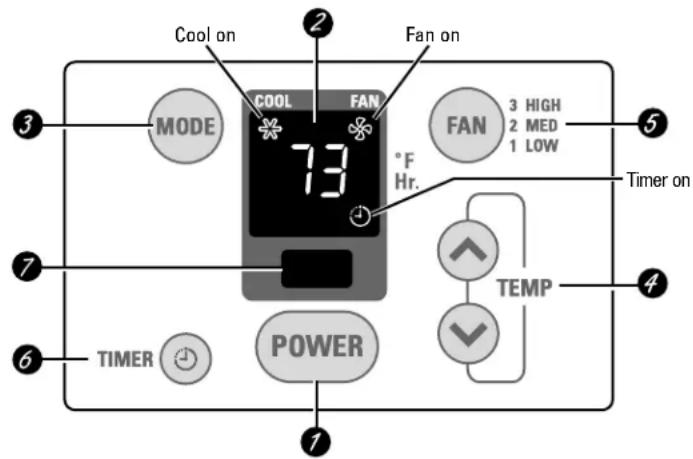

About the controls on the air conditioner—models with touch pads.

Features and appearance will vary.

Cool on COOL FAN 73 °F Hr. MODE FAN 3 HIGH 2 MED 1 LOW Timer on TEMP POWER TIMER 1

Air Conditioner Controls

6 TIMER FAN MODE COOL 4 TEMP 3 HIGH MED LOW FAN 5 1

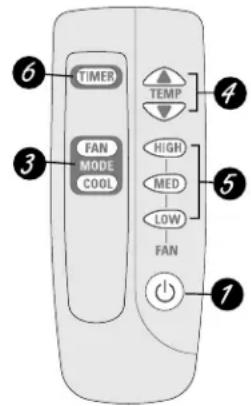

Remote Control

ON/OFF

7 Turns air conditioner on and off.

2 Display

2 Shows the set temperature, time remaining on timer or fan speed (1–LOW, 2–MED or 3–HIGH).

2 MODE

Use to set the air conditioner to COOL or FAN mode.

Increase ▲/Decrease ▼ Pads

4 Use to set temperature when in COOL mode.

FAN

Use to set the fan speed to LOW (1), MED (2) or HIGH (3).

6 TIMER ON WD

ON-When the air conditioner is off, it can be set to automatically turn on in 1 to 12 hours at its previous setting. Each touch will set the time in hours.

OFF-When the air conditioner is on, it can be set to automatically turn off in 1 to 12 hours. Each touch will set the time in hours.

To cancel the timer, press the TIMER pad until the display time disappears.

Remote Control Signal Receiver

Power Outage Recovery Feature

In the case of a power outage or interruption, the unit will automatically re-start in the settings last used after the power is restored. The TIMER feature

will reset to the original setting. You may need to set a new time if desired.

Remote Control

To ensure proper operation, aim the remote control at the signal receiver on the air conditioner.
■ The remote control signal has a range of up to 21 feet.

■ Make sure nothing is between the air conditioner and the remote control that could block the signal.
■ Make sure batteries are fresh and installed correctly—see the Care and Cleaning section.

When the air conditioner is turned on, it will automatically start in the setting last used.

COOL Mode

Use the COOL mode with HIGH (3), MED (2) or LOW (1) fan for cooling. Use the INCREASE ▲ / DECREASE ▼ pads to set the desired temperature between 64°F and 86°F in 1°F increments.

A thermostat is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will become cooler. Set the thermostat at a higher number and the indoor air will become warmer.

NOTE: If the air conditioner is off and is then turned on while set to COOL, it will take approximately 3 minutes for the compressor to start and cooling to begin.

Cooling Descriptions

For Normal Cooling—Select the COOL mode and HIGH (3) or MED (2) fan with a middle set temperature.

For Maximum Cooling—Select the COOL mode and HIGH (3) fan with a lower set temperature.

For Quieter & Nighttime Cooling—Select the COOL mode and LOW (1) fan with a middle set temperature.

NOTE: If you switch from a COOL setting to OFF or to a fan setting, wait at least 3 minutes before switching back to a COOL setting.

FAN Mode

Use the FAN at HIGH (3), MED (2) or LOW (1) to provide air circulation and filtering without cooling. Since fan only settings do not provide cooling, a temperature setting will not be displayed.

Vent Control (on some models)

The vent control is located on the inside of the air louvers in the lower right corner.

When set at CLOSE, only the air inside the room will be circulated and conditioned. When set at OPEN, some inside air is exhausted outside.

Pure diagram of layered rectangular blocks with a central slot, no text or symbols present

To open the vent, push the lever to the right. To close it, push it to the left.

Air Direction—Up and Down (on some models)

Fingertip pressure on the horizontal louvers adjusts the air direction up or down.

Diagram showing two views of an air conditioner unit with a handle and ventilation grille (no text or symbols)

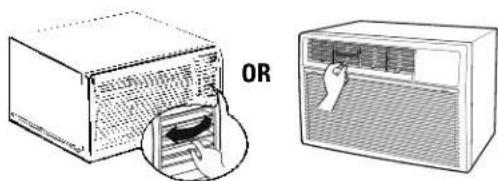

Air Direction—Side-to-Side (on some models)

On some models, the side-to-side air direction is adjusted by the louver levers or by grasping and moving the inner vertical louvers.

Illustration of a computer with an open door and a separate view of the air conditioner unit (no text or symbols present)

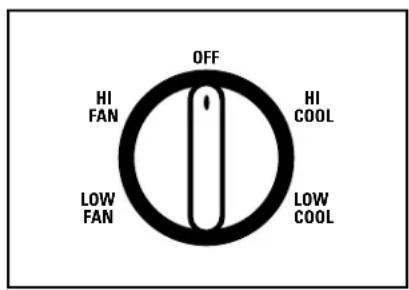

About the controls on the air conditioner—models with control knobs.

Features and appearance will vary.

LOW FAN OFF HI FAN LOW COOL HI COOL MED COOL

OFF HIGH FAN HIGH COOL LOW FAN MED COOL LOW COOL

OFF HI FAN HI COOL LOW FAN LOW COOL

1 MODE CONTROLS

Your model will have one of the above type controls.

5 6 4 7 3 8 2 9 1 10 COOLEST

4 5 3 6 2 7 1 8 COOLEST

1 2 3 4 5 6 COOLEST

2 TEMP CONTROLS

Your model will have one of the above type controls.

Controls

Mode Controls

HIGH COOL, MED COOL and LOW COOL provide cooling with different fan speeds.

LOW FAN or HIGH FAN provides air circulation and filtering without cooling.

NOTE: If you move the switch from a cool setting to OFF or to a fan setting, wait at least 3 minutes before switching back to a cool setting.

Cooling Descriptions

For Normal Cooling-Select HIGH COOL or MED COOL with the temp control at midpoint.

For Maximum Cooling-Select HIGH COOL with the temp control at the highest number available on your knob.

For Quieter & Nighttime Cooling-Select LOW COOL with the temp control at midpoint.

Temp Controls

The temp control is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the same level of comfort. When you turn the knob to a higher number, the indoor air will become cooler. Turn the knob to a lower number and the indoor air will become warmer.

Additional controls and important information.

Vent Control (on some models)

The vent control is located on the inside of the air louvers in the lower right corner.

When set at CLOSE, only the air inside the room will be circulated and conditioned. When set at OPEN, some inside air is exhausted outside.

To open the vent, push the lever to the right. To close it, push it to the left.

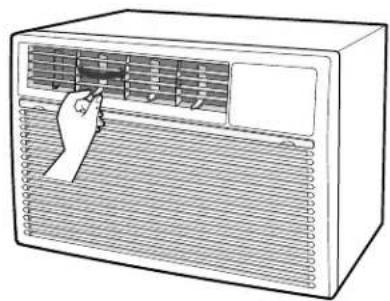

Air Direction—Side-to-Side

On some models, the side-to-side air direction is adjusted by the louver levers or by grasping and moving the inner vertical louvers.

Line drawing of a server rack with a hand pointing to the front panel (no text or symbols)

OR

Illustration of a hand inserting a fan into an air conditioner unit (no text or symbols)

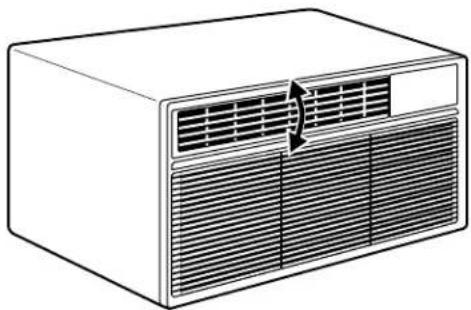

Air Direction—Up and Down (on some models)

Fingertip pressure on the horizontal louvers adjusts the air direction up or down.

Line drawing of a computer tower with ventilation grilles and a hand pointing to the right side (no text or symbols)

OR

Line drawing of a portable air conditioner unit with ventilation grilles and airflow arrow (no text or symbols)

Care and cleaning of the air conditioner.

How to Insert the Batteries

1 Remove the battery cover by sliding it according to the arrow direction.
2 Insert new batteries making sure that the (+) and (−) of battery are installed correctly.
3 Reattach the cover by sliding it back into position.

Grille and Case

Turn the air conditioner off and remove the plug from the wall outlet before cleaning.

NOTES:

Use 2 "AAA" (1.5 volt) batteries. Do not use rechargeable batteries.
■ Remove the batteries from the remote control if the system is not going to be used for a long time.

To clean, use water and a mild detergent. Do not use bleach or abrasives.

Outdoor Coils

The coils on the outdoor side of the air conditioner should be checked regularly. If they are clogged with dirt or soot, they may be professionally steam cleaned, a service available through your GE service outlet.

Line drawing of a wall-mounted air conditioner unit with ventilation slots (no text or symbols)

Air Filter

The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary.

Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it.

⚠️ CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint will clog it and reduce performance.

To remove (on some models):

1 Open the inlet grille upward by pulling out the bottom of the inlet grille.
2 Using the tab, pull up slightly on the filter to release it and pull it down.

Line drawing of a microwave oven with hands inserting a fan into the rack (no text or symbols)

To remove (on some models):

1 Open the inlet grille downward by pulling out the upper corners of the inlet grille. Lift it up and off.
2 Grasp the filter at the top center and slide it out.

To remove (on some models):

Diagram of an air conditioner unit with airflow direction indicated by an arrow (no text or symbols)

Grab the tabs on the filter and pull it up and out.

To remove (on some models):

Simple line drawing of a window with a hand pointing to the right pan (no text or symbols)

Grab the tab on the filter and pull it to the right.

Front Grille and Case

Turn the air conditioner off and remove the plug from the wall outlet before cleaning.

To clean, use water and a mild detergent. Do not use bleach or abrasives.

To remove the front grille:

On some models, remove the knobs and the screw behind the left knob.

Simple line drawing of a room with horizontal slats and a window, no text or symbols present

On some models, remove the knobs, filter and screw behind the filter bottom.

Technical line drawing of a computer tower with ventilation grilles and a side panel (no text or symbols)

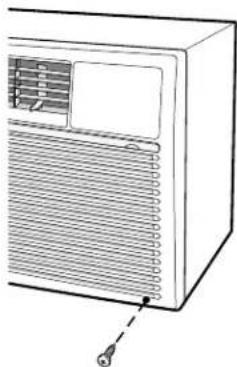

On some models, remove the bottom right grille screw.

Line drawing of a portable air conditioner unit with cooling fins and a handle (no text or symbols)

On some models, open the inlet grille from the sides and remove it. Remove the screw from the lower right corner if present.

Line drawing of a hand holding a cable attached to an air conditioner unit (no text or symbols)

Gently but firmly grasp the lower grille corners and pull forward to release.

Illustration of hands holding a rectangular object with a directional arrow indicating movement (no text or symbols)

Lift the top of the grille up and off to release from the tabs.

Line drawing of two hands holding a folded or folded object, no text or symbols present

To replace the grille:

A Hook the front of the grille onto the tabs on the top of the case.

B Snap the bottom sides of the grille into the case slots.

C Replace the screw and attach the knobs.

Installation Instructions

Air Conditioner

Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: www.GEAppliances.com

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT — Save these instructions for local inspector's use.
  • IMPORTANT — Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical skills.
• Completion time – Approximately 1 hour
• We recommend that two people install this product.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

ELECTRICAL REQUIREMENTS

Some models require a 115/120-volt a.c., 60 Hz grounded outlet protected with a 15-amp time delay fuse or circuit breaker.

The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.

Some models require 230/208-volt a.c., protected with a time delay fuse or circuit breaker. These models should be installed on their own single branch circuit for best performance and to prevent overloading house or apartment wiring circuits, which could cause a possible fire hazard from overheating wires.

▲CAUTION:

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

Do not change the plug on the power cord of this air conditioner.

Aluminum house wiring may present special problems—consult a qualified electrician.

TOOLS YOU WILL NEED

Line drawing of a screwdriver with a magnified inset showing the tip (no text or symbols)

Phillips head screwdriver

Pencil

Scissors or knife

Level

PARTS INCLUDED

INCLUDED Top mounting rail Top mounting rail seal strip Foam top window gasket Window sash seal Air conditioner Left accordion panel Right accordion panel

Type A (9)

Type B (8)

Security bracket (3)

Simple line drawing of a 3D rectangular frame with two circular holes, no text or symbols present.

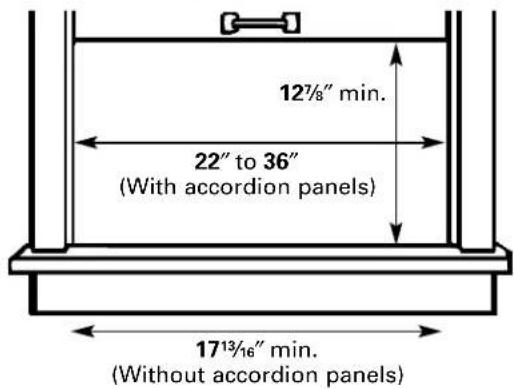

① WINDOW REQUIREMENTS

• These instructions are for a standard double-hung window. You will need to modify them for other types of windows.
- The air conditioner can be installed without the accordion panels if needed to fit in a narrow window. See the window opening dimensions.
- All supporting parts must be secured to firm wood, masonry or metal.
- The electrical outlet must be within reach of the power cord.

12½/8" min. 22" to 36" (With accordion panels) 17½/16" min. (Without accordion panels)

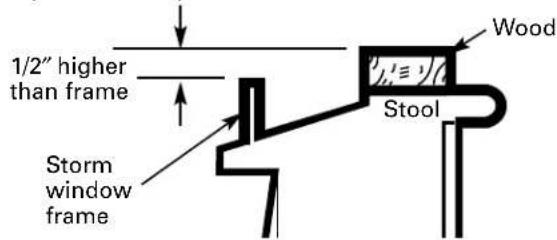

② STORM WINDOW REQUIREMENTS

A storm window frame will not allow the air conditioner to tilt toward the outside, and will keep it from draining properly. To adjust for this, attach a piece of wood to the stool.

WOOD PIECES-

WIDTH: 2"

LENGTH: Long enough to fit inside the window frame.

THICKNESS: To determine the thickness, place a piece of wood on the stool to make it 1/2" higher than the top of the storm window frame.

Attach securely with nails or screws provided by the installer.

1/2" higher than frame Storm window frame Wood Stool

③ PREPARE AIR CONDITIONER

A Remove the backing from the top mounting rail seal strip and attach it to the bottom of the top mounting rail.

Technical line drawing of two mechanical components with arrows indicating assembly or alignment (no text or symbols)

B Install the top mounting rail with 3 type A screws from the outside of the case.

Top mounting rail Bottom mounting rail

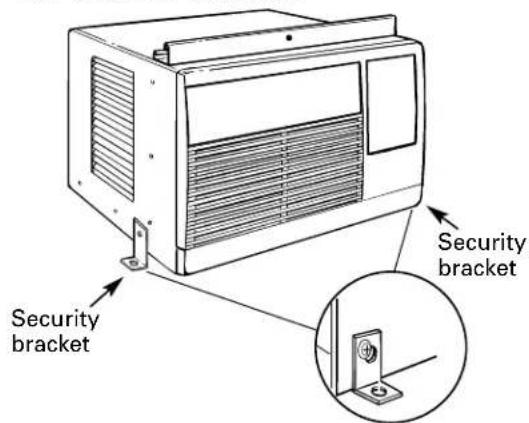

C Loosen the lower screw on each side of the case and hook a security bracket on each side. Tighten the screws to secure the brackets in place.

Security bracket Security bracket

③ PREPARE AIR CONDITIONER (CONT.)

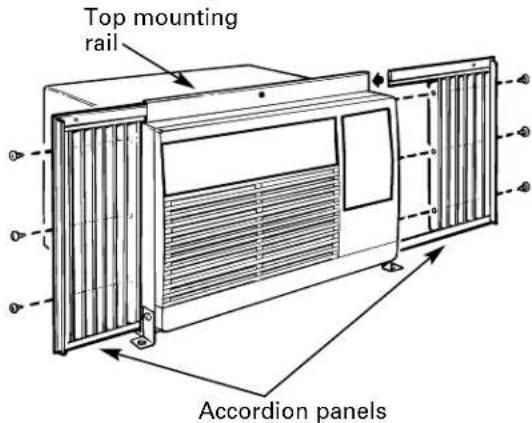

D Insert the frames of the accordion panels into the top and bottom mounting rails. Attach the accordion panels to the side of the case using 6 type A screws.

Top mounting rail Accordion panels

④ INSTALL AIR CONDITIONER IN WINDOW

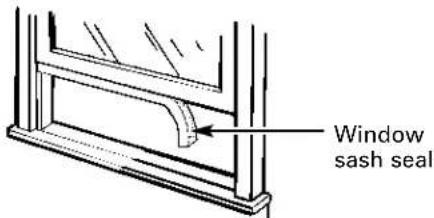

A Cut the window sash seal to the window width and stick the adhesive side to the bottom of the sash.

Window sash seal

B Place the air conditioner on the stool with the bottom mounting rail against its back edge. Center it and close the window securely behind the top mounting rail. It should be level or slightly tilted to the outside. Use a level; about a 1/3 bubble will be the correct case slant to the outside.

④ INSTALL AIR CONDITIONER IN WINDOW (CONT.)

C Extend the left and right accordion panels to the vertical window sashes and attach with 4 type B screws. Attach the top mounting rail to the sash with a type B screw.

Type B screw Type B screws Type B screws Type B screw

Attach the brackets to the stool on both sides using two type B screws.

⑤ INSTALL SECURITY BRACKET AND FOAM TOP WINDOW GASKET

A Attach a security bracket with a type B screw.

Line drawing of a screwdriver inserted into a socket on a wall, no text or symbols present

B Cut the foam top window gasket to the window width.

C Stuff the foam between the glass and the window to prevent air and insects from getting into the room.

Line drawing of a hand holding a tool above a window with liquid, no text or symbols present

The installation is now complete.

Troubleshooting Tips...

Troubleshooting Tips: Save time and money!

Problem Possible Causes What To Do

Air conditioner does not start is unplugged.	The air conditioner completely into the outlet.	Make sure the air conditioner plug is pushed
	The fuse is blown/circuit breaker is tripped. the fuse or reset the breaker.	Check the house fuse/circuit breaker box and replace the breaker.
	Power failure.	If power failure occurs, turn the air conditioner OFF. When power is restored, wait 3 minutes to restart the air conditioner to prevent tripping of the compressor overload.
Air conditioner does not cool as it should	Airflow is restricted.	Make sure there are no curtains, blinds or furniture blocking the front of the air conditioner.
	The temp control may not be set correctly.	On models with touch pads: In COOL mode, press the DECREASE ▼ pad.On models with control knobs, turn the temperature knob to a higher number.
	The air filter is dirty.	Clean the filter at least every 30 days.See the Operating Instructions section.
	The room may have been hot.	When the air conditioner is first turned on, you need to allow time for the room to cool down.
	Cold air is escaping.	Check for open furnace registers and cold air returns.Set the air conditioner's vent to the closed position.
	Cooling coils have iced up.	See “Air conditioner freezing up” below.
Air conditioner freezing up	Ice blocks the air flow and stops the air conditioner from cooling the room.	On models with control knobs, set the mode control at HIGH FAN or HIGH COOL with the temp at 1 or 2.On models with touch pads, set the controls at HIGH FAN or HIGH COOL and set the thermostat to a higher temperature.
The remote control is not working	The batteries are inserted incorrectly.	Check the position of the batteries. They should be inserted in the opposite (+) and (−) direction.
	The batteries may be dead.	Replace the batteries.
Water drips outside	Hot, humid weather.	This is normal.
Water drips indoors	The air conditioner is not tilted to the outside.	For proper water disposal, make sure the air conditioner slants slightly from the case front to the rear.
Water collects in base pan	Moisture removed from air and drains into base pan.	This is normal for a short period in areas with little humidity; normal for a longer period in very humid areas.
“E1” appears in the display	Function error code.	Unplug the air conditioner. Wait 3 minutes and plug it back in.
TIMER feature not working properly	A power outage or interruption occurred.	In the case of a power outage or interruption, the unit TIMER feature will reset to the original setting. You may need to set a new time if desired.

Normal Operating Sounds

You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency.

- You may hear the thermostat click when the compressor cycles on and off.

Water will collect in the base pan during high humidity or on rainy days. The water may overflow and drip from the outdoor side of the unit.

The fan may run even when the compressor does not.

GE Air Conditioner Warranty—One Year Limited Warranty.

Staple your receipt here. Proof of the original purchase date is needed to make a warranty claim.

For The Period Of: We Will Replace:

One Year

From the date of the original purchase warranty

Replacement unit for any product which fails due to a defect in materials or workmanship. The exchange unit is warranted for the remainder of your product's original one-year period.

In Order to Make a Warranty Claim:

■Properly pack your unit. We recommend using the original carton and packing materials.

■ Return the product to the retail location where it was purchased.

Include in the package a copy of the sales receipt or other evidence of date of original purchase. Also print your name and address and a description of the defect.

What Is Not Covered:

- Customer instruction. This owner's manual provides information regarding operating instructions and user controls.

Improper installation, delivery or maintenance. If you have an installation problem, or if the air conditioner is of improper cooling capacity for the intended use, contact your dealer or installer. You are responsible for providing adequate electrical connecting facilities.

Failure of the product resulting from modifications to the product or due to unreasonable use including failure to provide reasonable and necessary maintenance.

■ Replacement of house fuses or resetting of circuit breakers.

Damage to the product caused by improper power supply voltage, accident, fire, floods or acts of God.

■ Incidental or consequential damage caused by possible defects with this air conditioner.

Damage caused after delivery.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Exclusion of implied warranties: Except where prohibited or restricted by law, there are no warranties, whether express, oral or statutory which extend beyond the description on the face hereof, including specifically the implied warranties of merchantability or fitness for a particular purpose.

Warrantor: General Electric Company. Louisville, KY 40225

GE Appliances Website

www.GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, or even order parts and catalogs on-line. You can also "Ask Our Team of Experts" your questions, and so much more...

Real Life Design Studio www.GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Parts and Accessories www.GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. GE does not support any servicing of the air conditioner. We strongly recommend that you do not attempt to service the air conditioner yourself.

Contact Us www.GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Abstract decorative swirl design with no text or symbols

DB98-15881A 49-7480 11-03 JR

Pure diagram of layered structures with a central component, no text or symbols present

Diagram of a rectangular device with internal grid and a handle, no visible text or symbols

O BIEN

Illustration of a computer monitor with an open screen and a magnified view of the screen (no text or symbols)

O BIEN

OFF HI FAN HI COOL LOW FAN LOW COOL

1 CONTROLES DE MODO

Line drawing of an air conditioner unit with a hand pointing to the front panel (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation grilles and airflow direction arrow (no text or symbols)

Line drawing of a wall-mounted air conditioner unit with ventilation slots (no text or symbols)

Filtro de aire

Line drawing of a computer oven with hands inserting or removing the lid (no text or symbols)

Diagram of a rectangular air vent with a black arrow indicating upward flow (no text or symbols)

Simple line drawing of a window with a directional arrow indicating flow or movement (no text or symbols)

Simple line drawing of a room with horizontal slats and a window, no text or symbols present

Technical line drawing of a computer tower with ventilation grilles and a side panel (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation grilles and a small sensor attached (no text or symbols)

Line drawing of a wall-mounted air conditioner unit with a hand holding the cable (no text or symbols)

Illustration of hands holding a wooden plank with a directional arrow indicating movement (no text or symbols)

Illustration of two hands holding a wooden book, no text or symbols visible

Simple line drawing of a 3D rectangular frame with two circular holes and a curved top (no text or symbols)

Technical line drawing of a mechanical component with two parallel grooves and a central shaft (no text or symbols)

Line drawing of a screwdriver inserted into a socket on a shelf, with no text or symbols present.

Line drawing of a hand holding a knife above a window with liquid lines (no text or symbols)

In Order to Make a Warranty Claim:

Garante: General Electric Company. Louisville, KY 40225

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225
