USER MANUAL SHG 501 X SAUTER

GUIDE D'INSTALLATION & D'UTILISATION

INSTRUCTIONS FOR INSTALLATION AND USE

Hotte de cuisine

Cooker Hood

SHG501

fauter

Chere Cllente, Cher Client

Option Ref. AK214AP1

- UTILISATION EN VERSION EVACUATION

- RELATIONS CONSOMMATEURS

• Safety recommendations 18
• Environmental protection 19
  Description of your appliance 20

2 / INSTALLING YOUR APPLIANCE

• Using the evacuation mode 21
• Using the recycling mode 21
• Electrical connections 22
  Assembling the hood 23
• Filtering mode 23
  Ducting mode 24
  Device disassembly 25

3 / USING YOUR APPLIANCE

Description of the control panel 26

4 / CARING FOR AND CLEANING YOUR APPLIANCE

• Cleaning the grease filter 27
• Changing the charcoal filter 27
• Cleaning and caring of the casing 28
• Changing the light bulb 28
• Maintaining your appliance 29

5/TROUBLESHOOTING 30
6/ AFTER SALES SERVICE 30

Attention

Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your oven. They were written for your safety and the safety of others.

SAFETY RECOMMENDATIONS

• This oven was designed for use by private persons in their homes.
• This appliance is to be used by adults.

Make sure that children do not touch and that they do not treat it as a toy. Make sure that they do not touch the appliance's control panel.

• When you receive the appliance, unpack or have it unpacked immediately. Give it an over-all general inspection. Make note of any concerns or reservations on the delivery slip and make sure to keep a copy of this form.
• Your appliance is intended for standard household use. Do not use it for commercial or industrial purposes or for any other purpose than that for which it was designed.
• Do not modify or attempt to modify any of the characteristics of this appliance. This would be dangerous to your safety.
• Repairs must only be carried out by an approved specialist.
• Always unplug the hood before cleaning it or performing other maintenance acts.
• Provide adequate ventilation for the room in the case of simultaneous use of the hood and other appliances powered by an energy source other than electricity. This will prevent the hood from aspirating the combustion gases.
• You should never "flambé" dishes under the hood or operate gas rings under the hood without placing cookware on them (the flames sucked up into the hood can damage the appliance).
• When frying food under the appliance, you must carefully monitor the preparation at all times.
  Oils and grease brought to very high temperatures can catch fire.

• Respect the recommended frequency of cleanings and filter replacements. The accumulation of grease deposits may cause a fire.

• The hood should never be used over a combustible fuel burning stove (wood, coal, etc.).

• Never use steam or high-pressure devices to clean your appliance (requirement imposed by electrical safety).
• With a view to constantly improving our products, we reserve the right to modify their technical, functional or aesthetic characteristics, making any changes to their features considered necessary or desirable in view of technical progress.
• In order to easily locate the reference information for your appliance, we recommend that you note these data on the "After-Sales Service Department and Customer Relations" page.

(This page also explains to you where to find this information on your appliance.)

-Carefully follow the instructions contained in this user guide. The manufacturer declines all responsibility for any problems, damage or fire caused by the appliance if failing to observe the instructions contained in this user guide.

Warning

In the case of a kitchen heated by a device connected to a chimney (a stove, for example) the "filtering" version of the hood should be installed. Do not use the hood without grease filters.

Suitable ventilation should be provided in the room when the hood is used at the same time as appliances operated by gas or another combustible fuel.

ENVIRONMENTAL PROTECTION

• This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.
• Your appliance also contains a great amount of recyclable material. It is marked with this label to

indicate the used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home.
- We thank you doing your part to protect the environment.

Warning

Installation should only be performed by installers and qualified technicians

Warning

Remove the protective film from the grease filter before use.

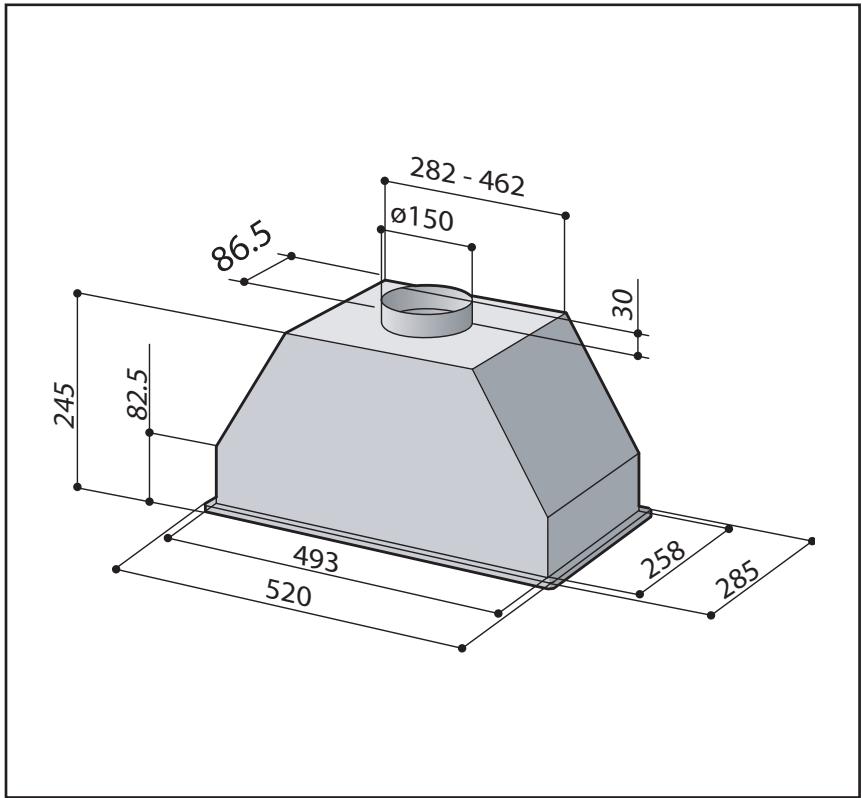

DESCRIPTION OF YOUR APPLIANCE

• The appliance must be unplugged during installation or when any repairs or maintenance work is being performed.
• Ensure that the network voltage corresponds to the voltage noted on the identification plate located inside the hood.
• If the electrical installation at your residence requires any changes in order to hook up your Appliance, call upon a professional electrician.
• If the hood is being used in evacuation mode, do not connect the appliance to a combustion gas exhaust duct (boiler, chimney, etc.) or to a CMV (controlled mechanical ventilation) system.
• Under no circumstances should the exhaust duct empty into the attic.
• Install the hood at safe distance of at least 65~cm from an cooking hob.

This appliance can be installed in either duction version or filtering version.

The appliance is supplied in the filtering version, the charcoal filter is installed:

Ref. AK214AP1

- USING THE DUCTING MODE

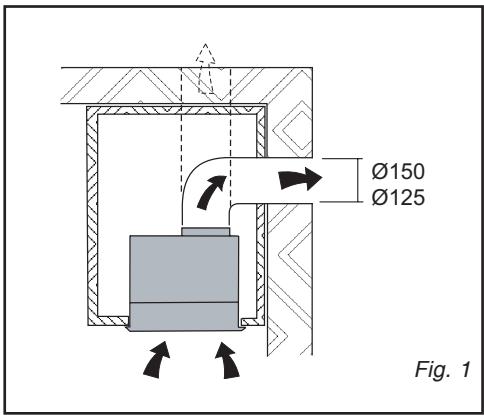

If you posses an outlet to the exterior (fig. 1)

Your hood can be connected to this outlet using a flue (Ø 125mm that is enamelled, in aluminium, flexible or made of inflammable material).

Your cooker hood is a filtering version. All you need to do is to remove the charcoal filter first.

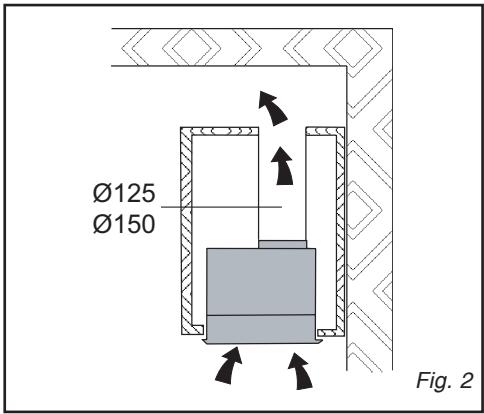

USING THE FILTERING MODE

If you do not posses an oulet to the exterior (fig. 2)

All of our appliances can be used in recycling mode.

The air and steam taken up by the unit are purified with charcoal filter and returned to the environment through the aeration grids on the front of the hood.

ELECTRICAL CONNECTIONS

During installation and maintenance operations, the appliance must be unplugged from the electrical grid; fuses must be cut off or removed. The electrical connections are made before the appliance is installed in its housing.

Ensure that

• the electrical installation has sufficient voltage,
• the electrical wires are in good condition,
• the diameter of the wires complies with the installation requirements.

Warning

If the electrical installation at your residence requires any changes in order to hook up your appliance, call upon a professional electrician.

Warning

If the hood displays any malfunctions, unplug the appliance or remove the fuse corresponding to the electrical socket where your appliance is plugged in.

Warning

This appliance must be grounded.

We cannot be held responsible for any accident resulting from an inexistent, defective or incorrect ground lead.

In case your appliance is not furnished with a non separating flexible cable and has no plug, or has not got any other device ensuring omnipolar disconnection from the electricity main, with a contact opening distance of at least 3mm such separating device ensuring disconnection from the main must be included in the fixed installation. This appliance is delivered with a H05VVF power cord that has three- 0.75mm^2 conductors (neutral, phase and ground). It must be connected to the main power supply (which should be a 230-240V single phase current) via a CE160083 standardised socket that should remain accessible after installation, in keeping with installation guidelines.

If the power cable is damaged, call the after-sales service department in order to avoid danger.

ASSEMBLING THE HOOD

Warning

The hood must be installed in compliance with all applicable regulations concerning the ventilation of premises. In France these regulations are described in DTU 61.1 from the CSTB. In particular, the evacuated air should never be conveyed to a duct used to evacuate smoke from appliances that use gas or other combustible fuels. Unused ducts may only be used after approval from a competent specialist.

The distance between the supporting surface for the cooking vessels on the hob and the lower part of the hood must be at least 650~mm . If the instructions for installation for the hob specify a greater distance, this has to be taken into account.

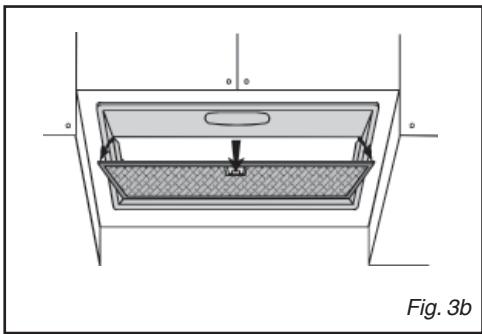

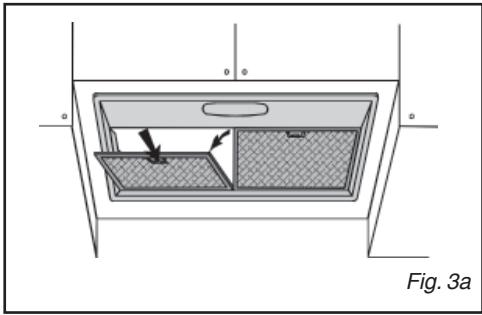

To facilitate installation, before starting remove the grease filter /s: press inward on the clamp at the handle and pull the filter downward (Fig. a/3b).

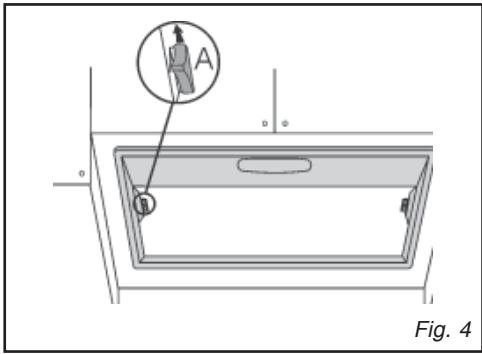

Take the filters support away moving the 2 lateral locks A (Fig. 4).

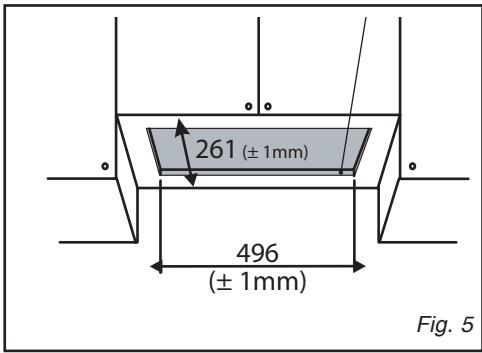

Cut a hole in the bottom of the pensile cupboard in order to settle the appliance (Fig. 5). The pensile cupboard bottom hob must be between 15 and 18 mm thick.

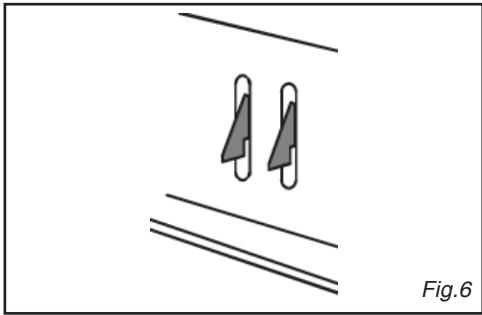

Check that the fixing tabs (Fig. 6) to the wall unit are positioned at a height suited to the thickness of the bottom of the wall unit. If this distance is less than the thickness, increase it by unscrewing the 2 corresponding screws inside the hood.

- Filtering mode

Install the wiring system. Insert the appliance in the hole (Fig. 5). Cut the air evacuation hole on the top of the pensile cupboard.

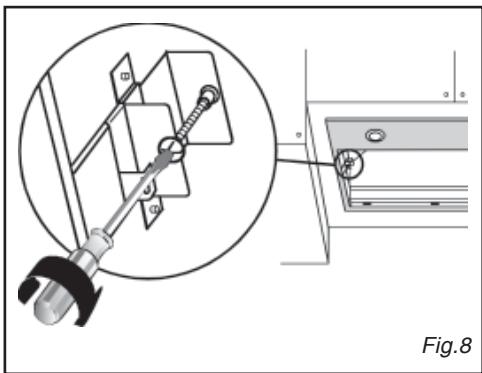

Tighten the 2 screws inside the appliance (Fig. 8) until it fits snug on the bottom of the wall unit. Do not tighten the 2 screws strongly to maintain the metallic clamps in the right position.

Connect a tube to the device air outlet, on such a height to reach the top of the pensile cupboard (the tube is not provided). Install the filters support (Fig. 4) and the grease filters again. Make the electrical connection of the hood by means of the power supply cable.

- Ducting mode

Install the wiring system and prepare the air venting hole.

Insert the appliance in the hole (Fig. 5).

Tighten the 2 screws inside the appliance (Fig. 8) until it fits snug on the bottom of the wall unit. Do not tighten the 2 screws strongly, to maintain the metallic clamps in the right position.

Connect the air evacuation tube with the device air outlet: use a flexible tube and block it in the device air outlet through a metallic clamp (the tube and the clamp are not provided).

Make the electrical connection of the hood by means of the power supply cable.

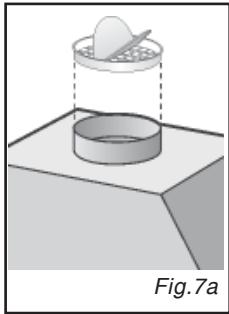

Non-return valve

If installing the ducting version, fitting the non-return valve hinders air intake and return. Before securing the valve, check that the tabs can move freely (Fig. 7).

Warning

This is the filtering version of your cooker hood; you must first remove the charcoal filter.

Tip

For optimal use of your appliance, we recommend that you connect the hood to a 150~mm diameter flue (not delivered with the appliance). Minimise the number of angles and bends and the lengths of the flue. In the event that the hood will be operated using out-door evacuation, you should ensure a sufficient inflow of fresh air to avoid a pressure deficiency in the room.

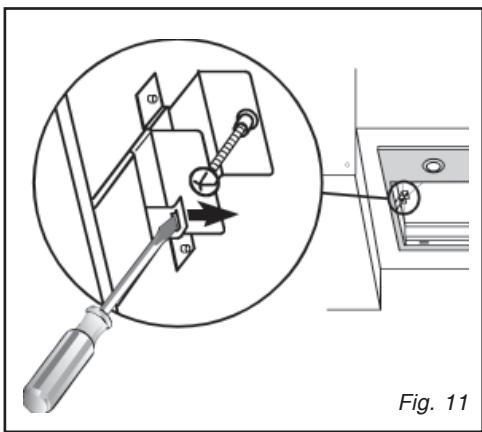

- DEVICE DISASSEMBLY

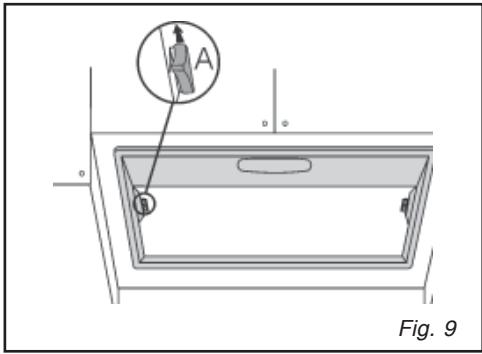

Remove the grease filters.Take away the filters support moving the two lateral locks A (Fig. 9). During the following operations always sustain the device.

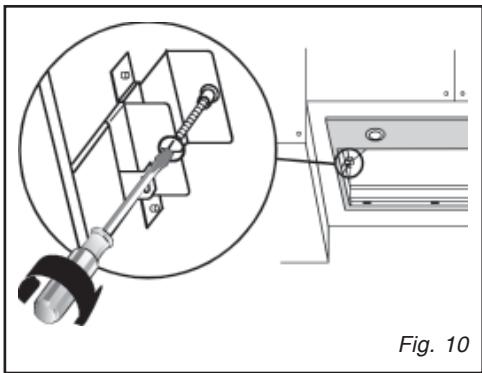

Tighten the two screws inside the device (Fig.10); move the 2 tangs toward the device inside using the right carvings (Fig.11); extract the device from its side.

- DESCRIPTION OF CONTROL PANEL

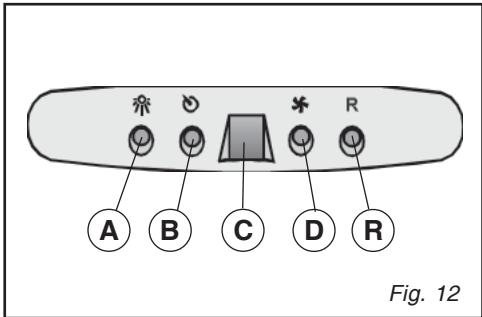

CONTROL PANEL (Fig. 12):

Key A = turns the lights on/off.

Key B = turns the TIMER on/off: press once to turn the timer on, therefore, after 5 minutes, the motor cuts out (at the same time the selected speed blinks on the display); the timer remains on if the motor speed is changed.

Display C =

• indicates the selected motor speed (from 1 to 4);
• indicates Timer On when the number blinks;
• indicates Filter Alarm when the central segments is on or blinking.

Key D = makes the motor work (at the last speed selected); pushing the button again, the speeds of the motor are sequentially selected from 1 to 4; keeping this button pressed for about 2 seconds shuts down the motor.

Key R = resets the grease filters or charcoal filters; when the filter alarm appears (i.e. when the central segment on the display goes on), the grease filters must be cleaned (30 hours of operation); when the central segment starts blinking, the grease filters must be cleaned and the charcoal filters replaced (120 hours of operation). Obviously, if the hood is not a filtering model and does not have a charcoal filter, clean the grease filters both when the central segment goes on and when it starts blinking. The filter alarm can be seen when the motor is off and for about 30 seconds. To reset the hour counter, keep the button pressed for 2 seconds while the alarm can be seen.

Warning

Always unplug the hood before cleaning it or performing other maintenance acts.

Regular maintenance of your appliance is a guarantee of proper functioning, good performance and durability.

Warning

Failure to respect the guidelines for cleaning the appliance and filters may cause fires.

Please carefully adhere to the maintenance recommendations.

- CLEANING THE GREASE FILTER

Pay special attention to the grease filter, that must be cleaned at regular intervals.

Filter cleaning frequency:

The grease filter must be cleaned depending on extent of operation (at least every two months).

Wash the filters with a commercial household cleanser, then rinse fully and dry. They may be cleaned in a dishwasher making sure that the filter does not come into contact with dirty dishes or silver tableware.

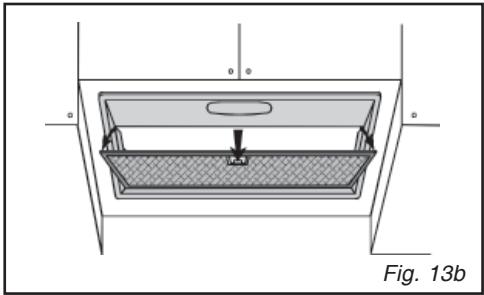

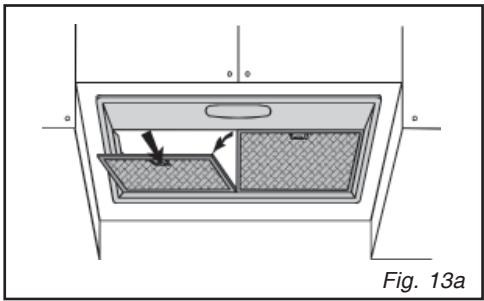

• Removing the grease filter (fig.13a-13b)

To remove the filter, push it backward using the grip and lower it towards you.

CHANGING THE CHARCOAL FILTER

If using the hood in the filtering version, the charcoal filter will periodically have to be replaced.

Frequency of filter replacement:

The charcoal filter must be replaced depending on extent of operation (at least every six months).

CHANGING THE CHARCOAL FILTER

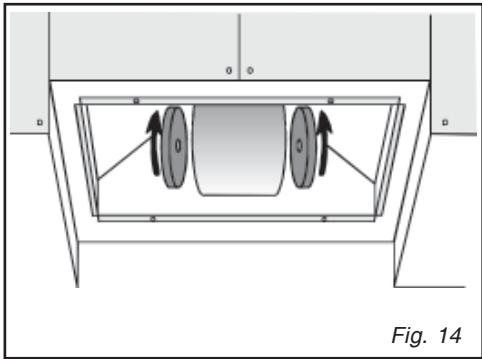

- Replacing the charcoal filter (Fig.14)

Remove the grease filter by pushing the catch towards the rear of the hood and turning the filter outwards.

Then remove the charcoal filter (fig. 14):

Remove the charcoal filter by turning clockwise.

Charcoal filter ref. no. AK214AP1

- CLEANING AND CARING OF THE CASING

Avoid products containing abrasives when cleaning the casing.

CHANGING THE LIGHT BULB

Warning

Before carrying out any work, the other supply to the hood must be turned either by unplugging it or by using the exit breaker switch.

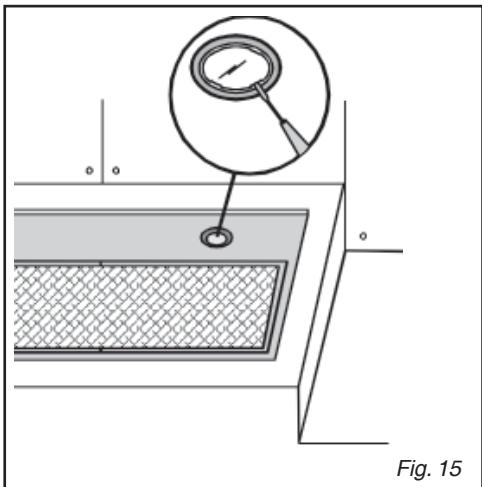

To change the halogen bulbs open the coverlevering from the proper slots (Fig.15). Change with a lamp of the same kind.

Warning

Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch.

MAINTAINING YOUR APPLIANCE

MAINTENANCE...	WHAT TO DO ?	PRODUCTS/ACCESSORIES TO USE
Top surface and accessories	Never use metal scouring pads, abrasive products or excessively stiff brushes.	To clean the body and the lighting port, you should use only commercial household cleaning products diluted in water and then rinse using clean water, drying with a soft cloth.
Grease filter	This filter traps fatty vapours and dust. This component plays an important role in ensuring the effectiveness of your hood. In the event of tough stains, use a non-abrasive cream, then rinse with clean water.	Use a commercial household cleaning product then rinse abundantly and dry. These filters can be cleaned in a vertical position in your dishwasher. (Do not allow them touch dirty dishes or silverware).
Charcoal filter	This filter traps odours and must be changed at least once every 6 months depending on your level of use. You should order these filters from your dealer (quoting the reference shown on the identification plate located inside the hood) and note the date the filter was changed.

To keep your appliance in good working order, we recommend that you use Clearit household products.

Professional expertise for the general public

Clearit offers you professional products and adapted solutions for the daily upkeep of your household and kitchen appliances.

You may find them in conventional retail outlets, along with a complete line of by-products and consumables.

SYMPTOMS	SOLUTIONS
The hood is not working...	Ensure that: · The power is not cut off. · A speed has been selected.
The hood is not operating effectively...	Ensure that: · The selected motor speed is sufficient for the quantity of smoke and vapours to be cleared. · The kitchen is sufficiently ventilated to allow une for fresh air intake. · The charcoal filter is not worn (hood operating in filtering mode). · The grease filters are cleaned.
The hood stopped working	Ensure that: · The power is not cut off. · The single-pole cut-off device was not activated.

EN

6 / AFTER SALES SERVICE

Any maintenance on your equipment should be undertaken by:

• either your dealer,
• or another qualified mechanic who is an authorized agent for the brand appliances.

When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.
