USER MANUAL Aurora AAR2 ALIENWARE

AGIENWARE® AURORA SERVICE MANUAL

∞/01

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

The contents herein are subject to change without notice.

©2009-2010 Dell Inc. All rights reserved.

Reproduction of these materials in any manner whatsoever without the prior written permission of Dell Inc. is strictly prohibited.

Trademarks used in this manual: Alienware is a registered trademark of Alienware Corporation; Dell and the DELL logo are trademarks of Dell Inc.; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license; Microsoft, Windows, and the Windows start button logo are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries; Intel and SpeedStep are registered trademarks of Intel Corporation in the U.S. and other countries.

Other trademarks and trade names may be used in this manual to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Model: DOIM Type: DOIM001; DOIM002 Rev. A01 FEBRUARY 2010

∞/02

CONTENTS

CONTENTS

CHAPTER 1: BEFORE YOU BEGIN....6

Recommended Tools 7

Turning Off Your Computer 7

Before Working Inside Your Computer 8

CHAPTER 2: LEFT SIDE-PANEL 9

Removing the Left Side-Panel 11

Replacing the Left Side-Panel....11

CHAPTER 3: TECHNICAL OVERVIEW....12

Inside View of Your Computer 13

System Board Components.... 14

Master I/O Board Components 15

CHAPTER 4: SHROUDS ...... 16

Opening the PCI Shroud 18

Closing the PCI Shroud 18

Removing the Drive-Bay Shroud 19

Replacing the Drive-Bay Shroud.... 19

CHAPTER 5: DRIVE(S) ......20

Removing the Hard Drive(s) 22

Replacing the Hard Drive(s)....24

Removing the Optical Drive(s) 25

Replacing the Optical Drive(s)....26

Removing the Media Card Reader 27

Replacing the Media Card Reader 29

CHAPTER 6: PCI-EXPRESS CARD(S) 30

Removing the PCI-Express Card(s) 32

Replacing the PCI-Express Card(s)....3 3

CHAPTER 7: MEMORY MODULE(S)....35

Removing the Memory Module(s) 37

Replacing the Memory Module(s) 38

CHAPTER 8: FANS....40

Removing the Hard-Drive Fan Assembly....42

Replacing the Hard-Drive Fan Assembly 43

Removing the PCI-Fan Assembly....4 4

Replacing the PCI-Fan Assembly 45

CHAPTER 9: PROCESSOR LIQUID-COOLING ASSEMBLY....46

Removing the Processor Liquid-Cooling Assembly 48

Replacing the Processor Liquid-Cooling Assembly 49

CHAPTER 10: PROCESSOR .... 50

Removing the Processor....52

Replacing the Processor 53

CHAPTER 11: POWER SUPPLY .... 55

Removing the Power Supply 57

Replacing the Power Supply 59

CHAPTER 12: BATTERY 60

Removing the Coin-Cell Battery 62

Replacing the Coin-Cell Battery 63

Removing the Theater-Lighting Batteries 64

Replacing the Theater-Lighting Batteries....65

CONTENTS

CHAPTER 13: SYSTEM BOARD....66

Removing the System Board....68

Replacing the System Board 69

CHAPTER 14: MASTER I/O BOARD ....70

Removing the Master I/O Board....72

Replacing the Master I/O Board 73

CHAPTER 15: TOP LIGHTING-BOARD....74

Removing the Top Lighting-Board 76

Replacing the Top Lighting-Board....76

CHAPTER 16: RIGHT SIDE-PANEL(S) ......77

Removing the Right Side-Panel(s) 79

Replacing the Right Side-Panel(s)....81

CHAPTER 17: ACTIVE-VENTING ASSEMBLY 82

Removing the Active-Venting Assembly 84

Replacing the Active-Venting Assembly 87

CHAPTER 18: FRONT BEZEL ....88

Removing the Front Bezel 90

Replacing the Front Bezel 92

CHAPTER 19: BACK BEZEL 93

Removing the Back Bezel....95

Replacing the Back Bezel 97

CHAPTER 20: BLUETOOTH ASSEMBLY....98

Removing the Bluetooth Assembly....100

Replacing the Bluetooth Assembly.... 101

CHAPTER 21: TOP I/O PANEL 102

Removing the Top I/O Panel 104

Replacing the Top I/O Panel....105

CHAPTER 22: SYSTEM SETUP ....106

Configuring the BIOS 107

Clearing Forgotten Passwords and CMOS Settings 114

APPENDIX A: CONTACTING ALIENWARE 117

CHAPTER 1: BEFORE YOU BEGIN

2013年1月1日

CHAPTER 1: BEFORE YOU BEGIN

This manual provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the following conditions exist:

You have performed the steps in "Turning Off Your Computer" on page 7 and "Before Working Inside Your Computer" on page 8.

You have read the safety information that shipped with your computer.

A component can be replaced or—if purchased separately—installed by performing the removal procedure in reverse order.

∞/06

Recommended Tools

The procedures in this document may require the following tools:

Small flat-blade screwdriver

Phillips screwdriver

BIOS executable update program available at • support.dell.com

CHAPTER 1: BEFORE YOU BEGIN

Turning Off Your Computer

CAUTION: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer.

Save and close all open files and exit all open programs.1.

Click 2. Start → Shut Down.

The computer turns off after the operating system shutdown process 3. finishes.

Ensure that the computer is turned off. If your computer did not 4.

automatically turn off when you shut down the operating system, press and hold the power button until the computer turns off.

Before Working Inside Your Computer

Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your own personal safety.

WARNING: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not covered by your warranty.

CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have connectors with lockir tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep them evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and aligned.

CAUTION: To avoid damaging the computer, perform the following steps before you begin working inside the computer.

Ensure that the work surface is flat and clean.1.

Turn off your computer (see "Turning Off Your Computer" on page 2. 7).

CAUTION: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device.

Disconnect all telephone or network cables from the computer.3.

Disconnect your computer and all attached devices from their electrical 4. outlets.

Disconnect all attached devices from your computer.5.

Press and eject any installed cards from the Media Card Reader.6.

Press and hold the power button to ground the system board.7.

CAUTION: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back of the computer. While you work, periodically touch an unpainted metal surface to dissipate static electricity, which could harm internal components.

NOTE: For better access to components within your computer, lay your computer on its side.

CHAPTER 2: LEFT SIDE-PANEL

3024.10.18: 10V7XX-

CHAPTER 2: LEFT SIDE-PANEL

∞/09

CHAPTER 2: LEFT SIDE-PANEL

Left Side-Panel

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against likelihood of electric shock, laceration by moving fan blades, or other unexpected injuries, always unplug your computer from the electrical outlet before removing the side panel(s).
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.) removed.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell ^™ is not covered by your warranty.

Removing the Left Side-Panel

Follow the instructions in "Before You Begin" on page 1. 6.

NOTE: Ensure that you remove the security cable from the security cable slot (if applicable).

Slide the latch to unlock the release panel.2.

Lift the release panel to open the left-side panel.3.

Place the left side-panel in a secure location.4.

NOTE: Theater lighting (available only in Alienware Aurora ALX) turns on automatically when the left side-panel is removed.

Replacing the Left Side-Panel

Follow the instructions in "Before You Begin" on page 1. 6.

Align the tabs on the left side-panel with the slots on the side of the 2. computer and push the panel in place.

Slide the latch to lock the release panel.3.

CHAPTER 2: LEFT SIDE-PANEL

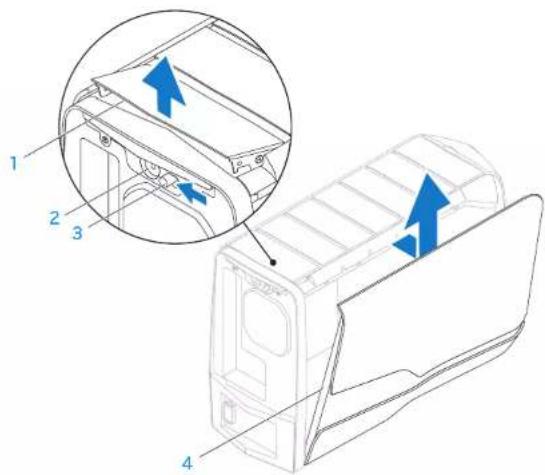

Technical diagram of a vehicle air vent with numbered components and directional arrows indicating flow or movement.

1 release panel 2 security cable slot

3 latch 4 left side-panel

cos/011

CHAPTER 3: TECHNICAL OVERVIEW

Inside View of Your Computer

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CHAPTER 3: TECHNICAL OVERVIEW

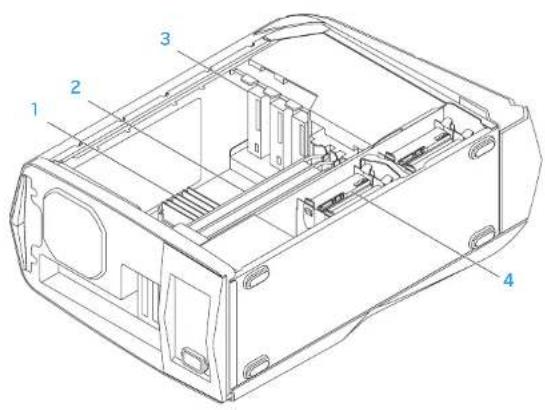

Technical diagram of a device casing with numbered components for identification

1 memory module(s) 2 graphic cards (2) 3 optical drives (3) 4 hard drives (4)

008/013

System Board Components

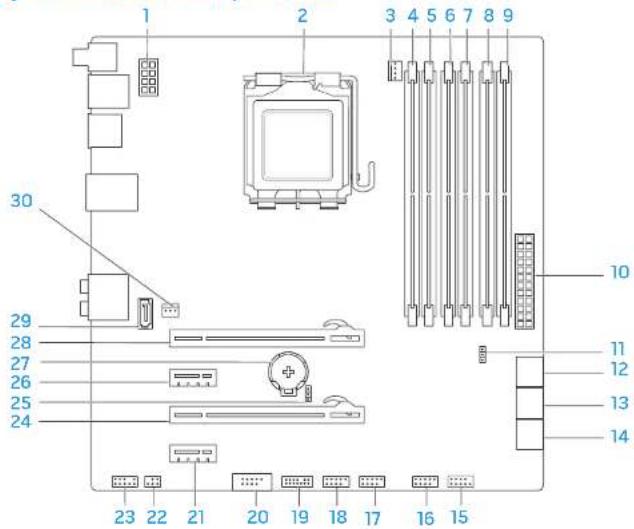

1 2 3 4 5 6 7 8 9 30 29 28 27 26 25 24 10 11 12 13 14 23 22 21 20 19 18 17 16 15

CHAPTER 3: TECHNICAL OVERVIEW

1 processor power connector (PWR2) 2 processor socket (CPU)
3 processor fan connector (MB_CPU_FAN) 4 memory-module connector (DIMM2) (Aurora and Aurora ALX) memory-module connector (DIMM3) (Aurora-R2)
5 memory-module connector (DIMM1) 6 memory-module connector (DIMM4)
7 memory-module connector (DIMM3) 8 memory-module connector (DIMM6) (Aurora and Aurora ALX) (Aurora and Aurora ALX only) memory-module connector (DIMM2) (Aurora-R2)
9 memory-module connector (DIMM5) 10 main power connector (PWR1) (Aurora and Aurora ALX only)

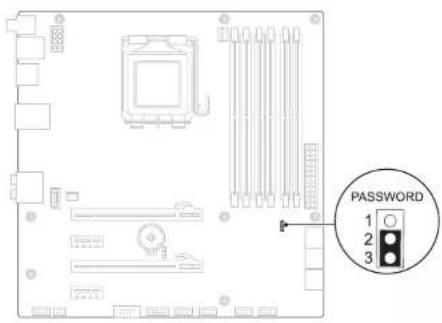

11 password jumper (PASSWORD) 12 serial ATA drive connectors (SATA1_2)
13 serial ATA drive connectors (SATA3_4) 14 serial ATA drive connectors (SATA5_6)
15 front panel connector (FRONT_PANEL) 16 USB connector (USB1)
17 USB connector (USB2) 18 USB connector (USB3)
19 Low pin count debug header (LPC1) 20 IEEE 1394 connector (1394)
21 PCI-Express x1 connector (SLOT4) 22 S/PDIF connector (SPDIF) (Aurora and Aurora ALX only)
23 front audio connector (FRONT AUDIO) 24 PCI-Express x16 connector (SLOT3)

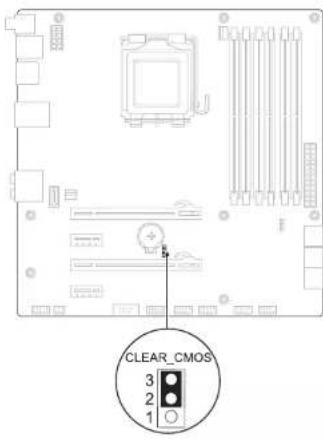

25 CMOS jumper (CLEAR_CMOS) 26 PCI-Express x1 connector (SLOT2)
27 battery socket (BAT1) 28 PCI-Express x16 connector (SLOT1)
29 eSATA connector (ESATA) 30 processor cooling assembly connector (CHIPSET_FAN) 000/014

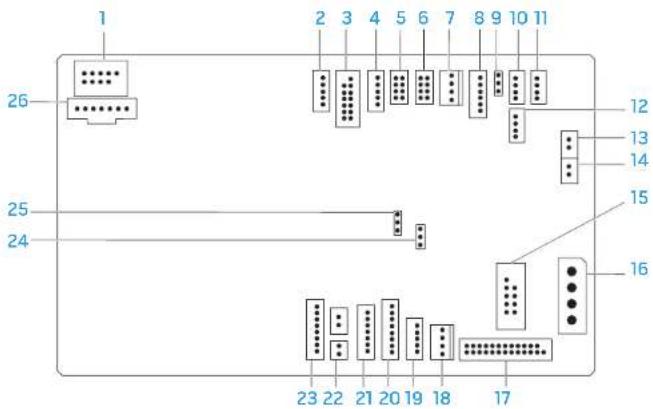

Master I/O Board Components

1 2 3 4 5 6 7 8 9 10 11 26 25 24 12 13 14 15 16 23 22 21 20 19 18 17

CHAPTER 3: TECHNICAL OVERVIEW

1 flexbay connector (FLEXBAY)
2 drive-bay shroud battery connector (FRONT_BEZEL)
3 active-vent connector (ACTIVE_VENT)
4 AlienHead connector (HEAD1)
5 front-bezel right connector (FRONT_RIGHT)
6 front-bezel left connector (FRONT_LEFT)
7 PCI-fan connector (FAN_PCI) 8 left side-panel contact board connector (SIDE_L)
9 power-select connector (PWR_SEL) 10 Bluetooth ^8 connector (BLUETOOTH)
11 power-LED board connector (BLINK) 12 wireless connector (WIRELESS)
13 hard-drive LED connector (HDD_LED1)
14 hard-drive LED connector (HDD_LED2)
15 USB connector (MB_USB)
16 main-power connector (PWR1)
17 system-board lighting (MB_MIO)
18 hard-drive fan connector (FAN_HDD)
19 right side-panel connector (SIDE_R)
20 vent-motor connector (VENT_MOTOR1)
21 vent sensors (VENT_SW)
22 ODD sensors (ODD_SW)
23 vent-motor sensor connector (VENT_MOTOR2)
24 internal theater-lighting connector (BAT2)
25 front-default connector (FACTORY_DEFAULT)
26 graphics-pump connector (GFX_PUMP)

098/015

CHAPTER 4: SHROUDS

-XXVCA013:XXU3705

CHAPTER 4: SHROUDS

038/016

CHAPTER 4: SHROUDS

Shrouds

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.) removed.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the side panel(s).
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™ is not covered by your warranty.

Opening the PCI Shroud

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2.11).

Press the release button and rotate the PCI shroud away from the chassis.3.

Closing the PCI Shroud

Follow the instructions in "Before You Begin" on page 1. 6.

Lower the PCI shroud into the chassis until it clicks into place.2.

Replace the left side-panel (see "Replacing the Left Side-Panel" on page 3.11).

Connect your computer and devices to electrical outlets and then turn 4.

them on.

CHAPTER 4: SHROUDS

Technical diagram of a device casing with labeled components and directional arrows indicating motion or movement.

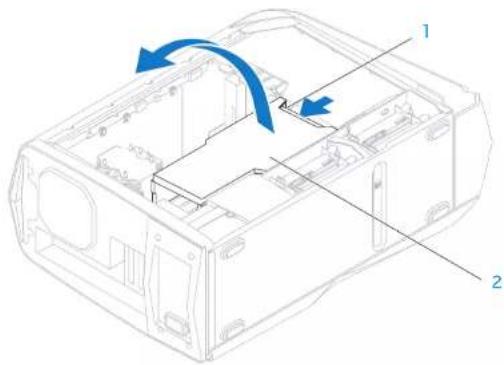

1 release button 2 PCI shroud

028/018

CHAPTER 4: SHROUDS

Removing the Drive-Bay Shroud

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2. 11).

Open the PCI shroud (see "Opening the PCI Shroud" on page 3.18).

Press the tabs and slide the drive-bay shroud towards the back of the 4. chassis.

Disconnect the drive-bay shroud battery cable from the connector on the 5. master I/O board.

Replacing the Drive-Bay Shroud

Follow the instructions in "Before You Begin" on page 1. 6.

Connect the drive-bay shroud battery cable to the connector on the master 2. I/O board.

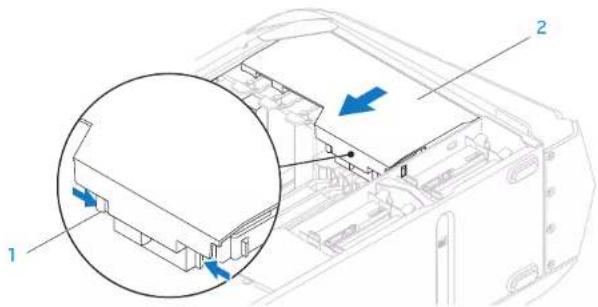

1. Align the drive-bay shroud with the slots on the chassis.

2. Slide the drive-bay shroud toward the front of the chassis until it clicks into place.

3. Close the PCI shroud (see "Closing the PCI Shroud" on page 18).

4. Replace the left side-panel (see "Replacing the Left Side-Panel" on page 11).

5. Connect your computer and devices to electrical outlets and then turn them on.

Technical diagram of a computer case with labeled components and directional arrows indicating movement or flow

1 tabs (2) 2 drive-bay shroud

091/019

CHAPTER 5: DRIVE(S)

-###

CHAPTER 5: DRIVE(S)

020/020

CHAPTER 5: DRIVE(S)

Drive(s)

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.) removed.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the side panel(s).
WARNING: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing of the hard drive.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell ^™ is not covered by your warranty.
CAUTION: To prevent data loss, turn off your computer (see "Turning Off Your Computer" on page 7) before removing the hard drive. Do not remove the hard drive while the computer is on or in Sleep state.
CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on the back of the computer).
NOTE: Dell does not guarantee compatibility or provide support for hard drives from sources other than Dell or Alienware.
NOTE: If you are installing a hard drive from a source other than Dell or Alienware, you need to install an operating system, drivers, and utilities on the new hard drive.

Removing the Hard Drive(s)

CAUTION: If you are replacing a hard drive that contains data you want to keep, back up your files before you begin this procedure.

Follow the instructions in "Before You Begin" on page 1. 6. Remove the left side-panel (see "Removing the Left Side Panel" on page 2. 11). Disconnect the power and data cables from the hard-drive assembly 3. (if applicable).

CHAPTER 5: DRIVE(S)

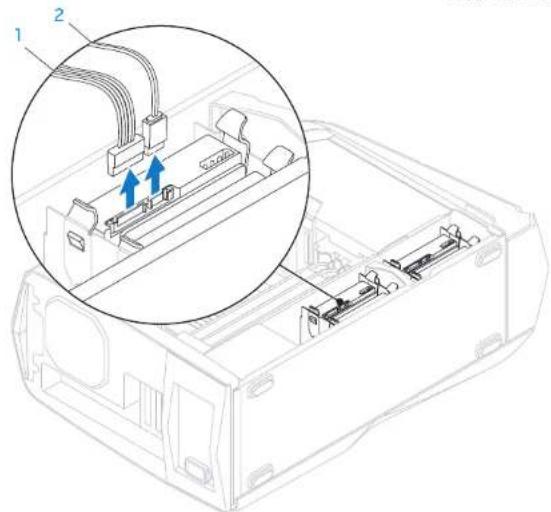

Technical diagram of a computer chassis showing internal components with labeled parts and directional arrows indicating movement or assembly.

1 power cable 2 data cable

008/022

Press the release tabs and slide the hard-drive assembly out of the hard-4. drive cage.

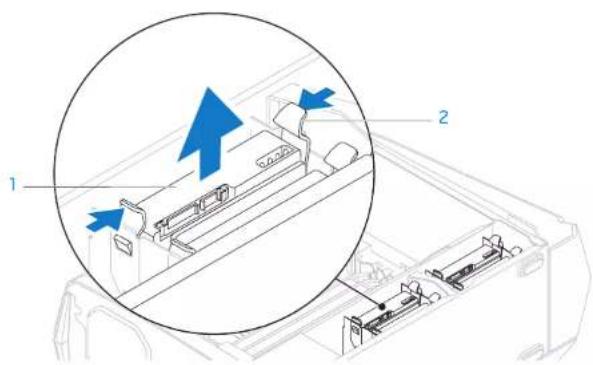

Technical diagram of a printer internal structure with labeled parts and directional arrows indicating movement or flow.

1 hard-drive assembly 2 release tabs (2)

CHAPTER 5: DRIVE(S)

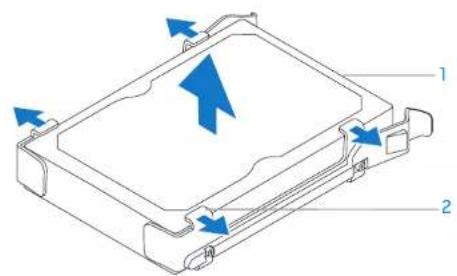

Remove the hard drive out of the hard-drive bracket by releasing the tabs 5, and lifting the hard drive out of the bracket (if applicable).

Technical diagram of a mechanical component with labeled parts (1 and 2), showing directional arrows indicating movement or flow (no text or symbols beyond labels)

1 hard drive 2 tabs (4)

023

CHAPTER 5: DRIVE(S)

Replacing the Hard Drive(s)

Follow the instructions in "Before You Begin" on page 1. 6.

See the documentation that shipped with your new hard drive and ensure 2. that the jumper positioning is correct.

Snap the hard-drive bracket on to the new hard drive (if applicable).3.

Slide the hard-drive assembly into the hard-drive cage until the release tabs 4. snap into place.

Connect the power and data cables to the hard-drive assembly 5. (if applicable).

Replace the left side-panel (see "Replacing the Left Side-Panel" on page 6. 11).

Connect your computer and devices to electrical outlets and then turn 7. them on.

Removing the Optical Drive(s)

Follow the instructions in "Before You Begin" on page 1. 6.

Press the AlienHead on the front of your computer to lower the drive panel.2.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 3. 11).

Open the PCI shroud (see "Opening the PCI Shroud" on page 4. 18).

Disconnect the power and data cables from the optical drive (if applicable).5.

1. Lift the securing tab and slide the optical drive out through the front of the computer.

CHAPTER 5: DRIVE(S)

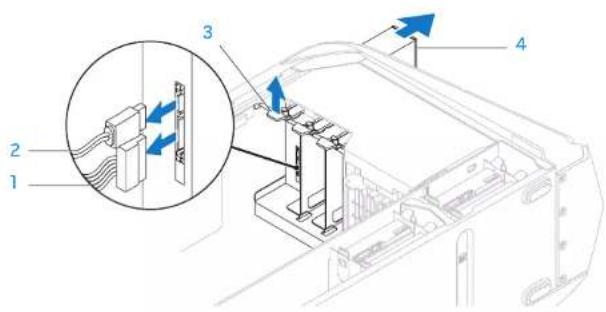

Technical diagram showing a device with labeled components and directional arrows indicating movement or assembly.

1 power cable 2 data cable

3 securing tab 4 optical drive

038/025

CHAPTER 5: DRIVE(S)

Replacing the Optical Drive(s)

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the new optical drive from its packaging. Save the original 2.

packaging for storing or shipping the optical drive.

Remove the optical-drive bay filler (if applicable).3.

Lift the securing tab and slide the optical drive through the front of the 4.

computer until the securing tab snaps into place.

Connect the power and data cables to the optical drive (if applicable).5.

Close the PCI shroud (see "Closing the PCI Shroud" on page 6. 18).

Replace the left side-panel (see "Replacing the Left Side-Panel" on page 7. 11).

Lift the drive panel towards the top of your computer.8.

Connect your computer and devices to electrical outlets and then turn 9.

them on.

CHAPTER 5: DRIVE(S)

Removing the Media Card Reader

Follow the instructions in "Before You Begin" on page 1. 6.

Press the AlienHead on the front of your computer to lower the drive panel.2.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 3. 11).

Open the PCI shroud (see "Opening the PCI Shroud" on page 4. 18).

Disconnect the FlexBay USB cable from the connector on the master I/O 5.

board.

Lift the securing tab and slide the FlexBay dock out through the front of the 6. computer.

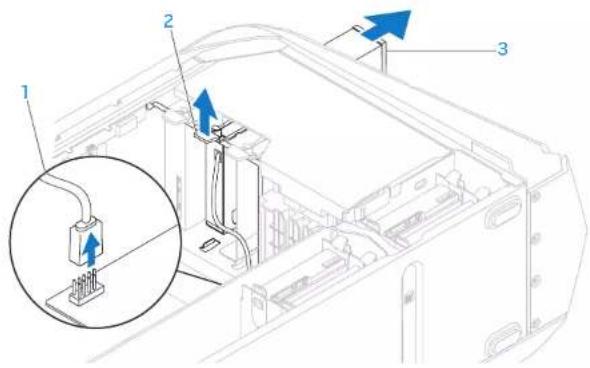

Technical diagram of a device rear panel with labeled components and an inset showing a cable connector detail.

1 FlexBay USB cable 2 securing tab

3 FlexBay dock

098/027

Remove the four screws that secure the Media Card Reader to the FlexBay 7. dock.

Slide the Media Card Reader out of the FlexBay dock.8.

CHAPTER 5: DRIVE(S)

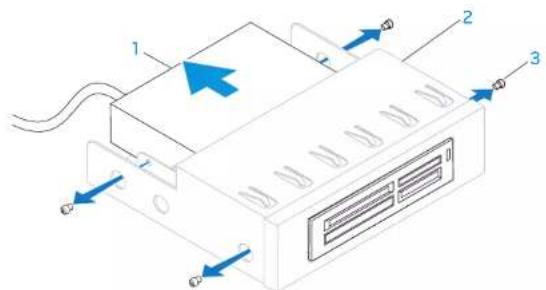

Diagram of a computer drive with labeled ports and directional arrows indicating movement or flow

1 Media Card Reader 2 FlexBay dock 3 screws (4)

028/028

CHAPTER 5: DRIVE(S)

Replacing the Media Card Reader

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the new Media Card Reader from its packaging. Save the original 2. packaging for storing or shipping the Media Card Reader.

Slide the Media Card Reader into the FlexBay dock.3.

Replace the four screws that secure the Media Card Reader to the FlexBay 4. dock.

Lift the securing tab and slide the FlexBay dock through the front of the 5. computer until the securing tab snaps into place.

Connect the FlexBay USB cable to the connector on the master I/O board.6. Close the PCI shroud (see "Closing the PCI Shroud" on page 7. 18).

Replace the left side-panel (see "Replacing the Left Side-Panel" on page 8. 11). Lift the drive panel towards the top of your computer.9.

Connect your computer and devices to electrical outlets and then turn 10, them on.

CHAPTER 6: PCI-EXPRESS CARD(S)

-XXVX013: [A] OFELO -XXV

CHAPTER 6: PCI-EXPRESS CARD(S)

030/030

CHAPTER 6: PCI-EXPRESS CARD(S)

PCI-Express Card(s)

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.) removed.

WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the side panel(s).

CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell ^™ is not covered by your warranty.

CHAPTER 6: PCI-EXPRESS CARD(S)

Removing the PCI-Express Card(s)

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2.11).

Open the PCI shroud (see "Opening the PCI Shroud" on page 3. 18).

Locate the PCI-Express card on the system board (see "System Board 4. Components" on page 14).

Disconnect any cables connected to the card (if applicable). 5.

Remove the screw that secures the card to the chassis.6.

1. Remove the card.

2. For a PCI-Express x1 card, grasp the card by its top corners, and ease it out the card connector.

3. For a PCI-Express x16 card, press the securing tab on the card connector as you grasp the card by its top corners, and then ease the card out of the card connector.

NOTE: If you are not replacing a card, install a filler bracket in the empty card-slot opening.

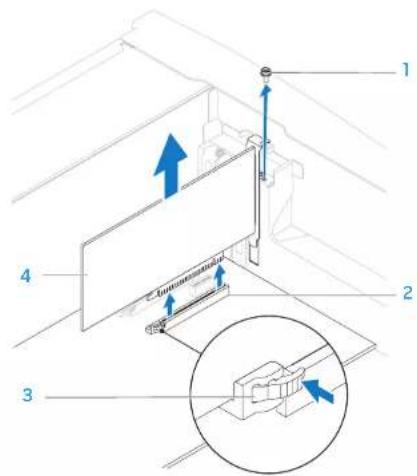

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or force.

1 screw 2 card connector

3 securing tab 4 card

038/032

Replacing the PCI-Express Card(s)

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the filler bracket to create a card-slot opening (if applicable).2.

CHAPTER 6: PCI-EXPRESS CARD(S)

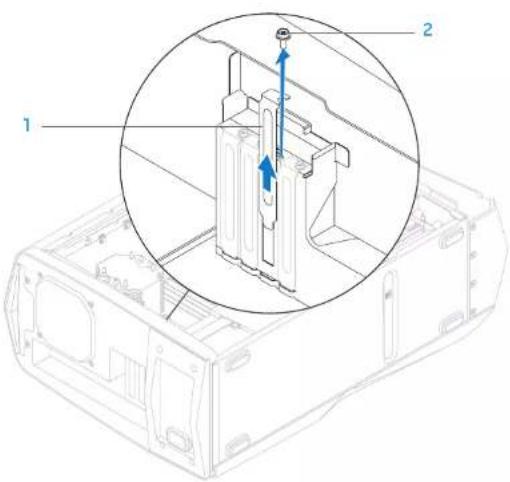

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating movement or force.

1 filler bracket 2 screw

038/033

CHAPTER 6: PCI-EXPRESS CARD(S)

CAUTION: To prevent damage to the PCI-Express card ensure that the memory module securing clips are in the closed position.

Align the card with the card connector on the system board. 3.

Place the card in the connector and press down firmly. Ensure that the card 4 is firmly seated in the slot. If you are installing the PCI-Express x16 card, push the securing tab and insert the card in the connector.

Connect any cables that should be attached to the card (if applicable). 5. For information about the card's cable connections, see the documentation that shipped with the card.

Replace the screw that secures the card to the chassis.6.

Close the PCI shroud (see 'Closing the PCI Shroud' on page 7. 18).

1. Replace the left side-panel (see "Replacing the Left Side-Panel" on page 11).

2. Connect your computer and devices to electrical outlets and then turn them on.

Diagram showing two mechanical components with labeled parts and a magnified inset highlighting a disassembled component.

1 securing tab 2 card connector

034

CHAPTER 7: MEMORY MODULE(S)

You can increase your computer memory by installing memory modules on the system board. See the specifications in your Desktop Manual at support.dell.com/manuals for information on the type of memory supported by your computer. Install only memory modules that are supported by your computer.

NOTE: Memory modules purchased from Dell or Alienware are covered under your computer warranty.

038/035

CHAPTER 7: MEMORY MODULE(S)

Memory Module(s)

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.) removed.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the side panel(s).
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™ is not covered by your warranty.

CHAPTER 7: MEMORY MODULE(S)

Removing the Memory Module(s)

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2.11).

Locate the memory-module connectors on the system board (see "System 3.

Board Components" on page 14).

WARNING: The memory module(s) may become very hot during normal operation. Allow the memory module(s) to cool before touching them.

NOTE: For better access to the memory module(s), remove the graphics

card if the card is full length.

To remove the graphics card, see "Removing the PCI-Express Card(s)" on 4. page 32.

Spread apart the securing clips at both ends of the memory-module 5. connector.

Lift the memory module off the memory-module connector. If the memory 6. module is difficult to remove, gently ease the memory module back and forth to remove it from the memory-module connector.

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

1 memory-module connector 2 securing clips (2)

CHAPTER 7: MEMORY MODULE(S)

Replacing the Memory Module(s)

Follow the instructions in "Before You Begin" on page 1. 6.

Recommended memory configuration:

Aurora/Aurora ALX

Diagram of a multi-layered mechanical or electrical component with numbered parts labeled 1 through 9.

Aurora-R2

Technical line drawing of a mechanical component with numbered parts (1, 2, 3, 4) and no visible text or symbols.

Type Slots

1066 MHz and 1333 MHz DDR3 Slots 1, 3, and 5 or slots 1—6 1600 MHz XMP Slots 1, 3, and 5

Type Slots

1066 MHz and 1333 MHz DDR3 Slots 1 and 2 or slots 1—4

038/038

Align the notch on the bottom of the memory module with the tab on the Z. memory-module connector.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating flow or movement.

1 cutouts 2 memory-module connector

3 tab 4 notch

5 securing clips (2) 6 memory module

CAUTION: To avoid damage to the memory module, press the memory module straight down into the memory-module connector while you apply equal force to each end of the memory module.

CHAPTER 7: MEMORY MODULE(S)

Insert the memory module into the memory-module connector until the 3. memory module snaps into position.

If you insert the memory module correctly, the securing clips snap into the cutouts at each end of the memory module.

NOTE If the memory module is not installed properly, the computer may not boot.

To replace the graphics card, see "Replacing the PCI-Express Card(s)" on 4. page 33. Replace the left side-panel (see "Replacing the Left Side-Panel" on page 5. 11). Connect your computer and devices to electrical outlets and then turn 6. them on.

As the computer boots, it detects the additional memory and automatically updates the system configuration information.

To confirm the amount of memory installed in the computer:

Click Start → Control Panel→ System and Security→ System.

CHAPTER 8: FANS

- XVX018: MVD

CHAPTER 8: FANS

030/040

CHAPTER 8: FANS

Fans

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the side panel(s).
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.) removed.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™ is not covered by your warranty.

Removing the Hard-Drive Fan Assembly

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2. 11). Open the PCI shroud (see "Opening the PCI Shroud" on page 3. 18).

Remove the drive-bay shroud (see "Removing the Drive-Bay Shroud" on 4. page 19).

Disconnect the hard-drive fan assembly cable from the connector on the 5 master I/O board. Make note of the cable routing before disconnecting the cable.

Lift the hard-drive fan assembly out of the chassis.6.

CHAPTER 8: FANS

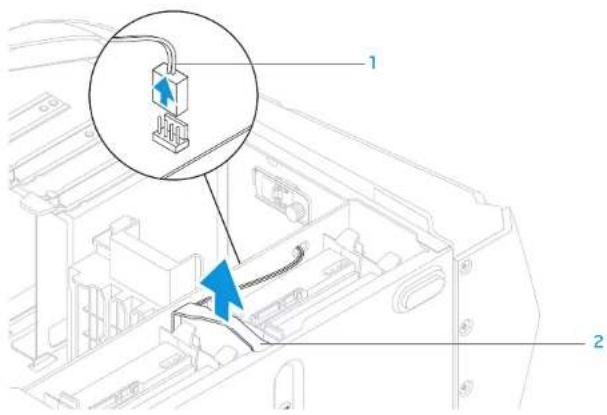

Technical diagram showing a component with labeled parts and an inset magnified view highlighting a connector or connection.

1 hard-drive fan assembly cable 2 hard-drive fan assembly

028/042

CHAPTER 8: FANS

Replacing the Hard-Drive Fan Assembly

Follow the instructions in "Before You Begin" on page 1. 6.

Push the hard-drive fan assembly into the hard-drive fan assembly bay.2.

Route the cable through the slot in the hard-drive bay.3.

Connect the hard-drive fan assembly cable to the connector on the master 4. I/O board.

Replace the drive-bay shroud (see "Replacing the Drive-Bay Shroud" on 5. page 19).

Close the PCI shroud (see "Closing the PCI Shroud" on page 6. 18).

Replace the left side-panel (see "Replacing the Left Side-Panel" on page 7. 11).

Connect your computer and devices to electrical outlets and then turn 8. them on.

CHAPTER 8: FANS

Removing the PCI-Fan Assembly

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2. 11).

Open the PCI shroud (see "Opening the PCI Shroud" on page 3. 18).

Remove the drive-bay shroud (see "Removing the Drive-Bay Shroud" on 4. page 19).

Remove full-length PCI-Express cards, if any (see "Removing the PCI-Express 5. Card(s)" on page 32).

Disconnect the PCI-fan assembly cable from the connector on the master 6. I/O board.

1. Press the tabs and lift the PCI-fan assembly out of the chassis.

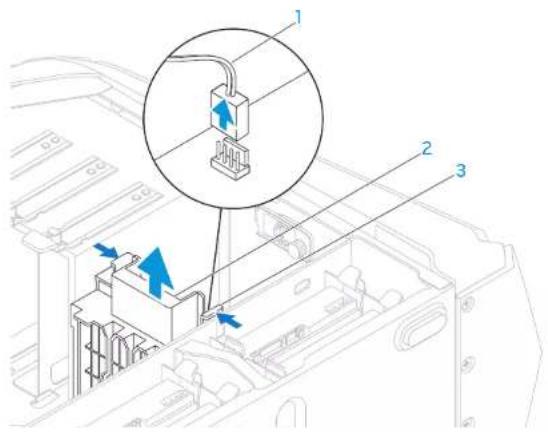

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating flow or movement.

1 PCI-fan assembly cable 2 PCI-fan assembly

3 tabs (2)

023/044

CHAPTER 8: FANS

Replacing the PCI-Fan Assembly

Follow the instructions in "Before You Begin" on page 1. 6.

Align the PCI-fan assembly with the metal bracket on the chassis.2.

Slide the PCI-fan assembly into the chassis.3.

Connect the PCI-fan assembly cable to the connector on the master 4. I/O board.

Replace full-length PCI-Express cards, if any (see "Replacing the PCI-Express 5. Card(s)" on page 33).

Replace the drive-bay shroud (see "Replacing the Drive-Bay Shroud" on 6, page 19).

Close the PCI shroud (see "Closing the PCI Shroud" on page 7. 18).

Replace the left side-panel (see "Replacing the Left Side-Panel" on page 8. 11).

Connect your computer and devices to electrical outlets and then turn 9. them on.

CHAPTER 9: PROCESSOR LIQUID-COOLING ASSEMBLY

-XXVX013:6A不A" - 336A7V2D7X6

CHAPTER 9: PROCESSOR LIQUID-COOLING

ASSEMBLY

028/046

CHAPTER 9: PROCESSOR LIQUID-COOLING ASSEMBLY

Processor Liquid-Cooling Assembly

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the side panel(s).
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.) removed.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™ is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on the back of the computer).

CHAPTER 9: PROCESSOR LIQUID-COOLING ASSEMBLY

Removing the Processor Liquid-Cooling Assembly

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2.11).

WARNING: Despite having a plastic shield, the processor liquid-cooling assembly may be very hot during normal operation. Ensure that it has had sufficient time to cool before you touch it.

Disconnect the processor liquid-cooling assembly cable from the connectors 3. (SYS FAN and CPU PUMP) on the top-lighting board.

Loosen the four captive screws that secure the processor liquid-cooling 4. assembly to the system board.

1. Remove the four screws that secure the processor liquid-cooling assembly to the chassis rear wall.

2. Slide and lift the processor liquid-cooling assembly away from the chassis.

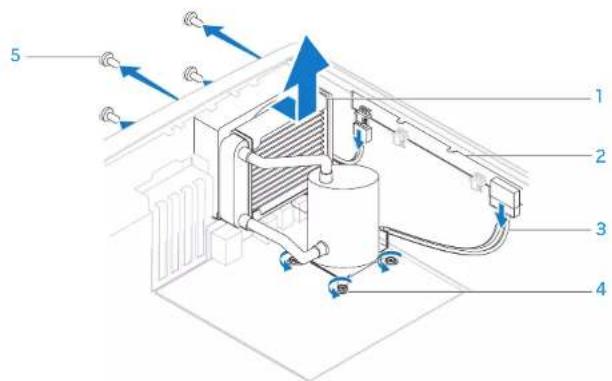

1 2 3 4 5

1 processor liquid-cooling assembly 2 top lighting-board

3 cables (2) 4 captive screws (4)

5 screws (4)

028/048

CHAPTER 9: PROCESSOR LIQUID-COOLING ASSEMBLY

Replacing the Processor Liquid-Cooling Assembly

Follow the instructions in "Before You Begin" on page 1. 6.

Align the screw holes on the processor liquid-cooling assembly with the 2. screw holes on the chassis rear wall.

Replace the four screws that secure the processor liquid-cooling assembly 3. to the chassis rear wall.

Tighten the four captive screws that secure the processor liquid-cooling 4. assembly to the system board.

Connect the processor liquid-cooling assembly cables to the connectors 5. (SYS FAN and CPU PUMP) on the top lighting-board.

Replace the left side-panel (see "Replacing the Left Side-Panel" on page 6. 11).

Connect your computer and devices to electrical outlets and then turn 7. them on.

CHAPTER 10: PROCESSOR

-XXVCA01 3: [13-00]

CHAPTER 10: PROCESSOR

000/050

CHAPTER 10: PROCESSOR

Processor

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the side panel(s).
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell ^™ is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on the back of the computer).

Removing the Processor

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2. 11).

WARNING: Despite having a plastic shield, the processor liquid-cooling assembly may be very hot during normal operation. Ensure that it has had sufficient time to cool before you touch it.

Remove the processor liquid-cooling assembly (see "Removing the 3. Processor Liquid-Cooling Assembly" on page 48).

1. Press and push the release lever down and out and release it from the tab that secures it.

CAUTION: When removing the processor, do not touch any of the pins inside the socket or allow any objects to fall on the pins in the socket.

1. Open the processor cover and gently lift the processor to remove it from the socket.

2. Leave the release lever extended in the release position so that the socket is ready for the new processor.

CHAPTER 10: PROCESSOR

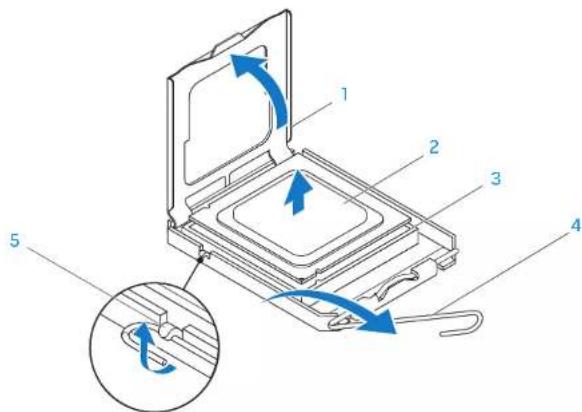

Diagram of a device with numbered components and blue arrows indicating rotation or movement, including an inset view of the component.

1 processor cover 2 processor

3 socket 4 release lever

5 tab

008/052

CHAPTER 10: PROCESSOR

Replacing the Processor

CAUTION: When replacing the processor, do not touch any of the pins inside the socket or allow any objects to fall on the pins in the socket.
CAUTION: Ground yourself by touching an unpainted metal surface on the back of the computer.

Follow the instructions in "Before You Begin" on page 1. 6.

Unpack the new processor. Ensure that you do not to touch the underside of 2. the processor.

CAUTION: You must position the processor correctly in the socket to avoid permanent damage to the processor and the computer when you turn on the computer.
3. Extend the release lever on the processor socket if it is not fully extended.
CAUTION: Socket pins are delicate. To avoid damage, ensure that the processor is aligned properly with the socket, and do not use excessive force when you replace the processor. Be careful not to touch or bend the pins on the system board.
4. Align the pin-1 corners of the processor and socket.
5. Set the processor lightly in the socket and ensure that the processor is positioned correctly.

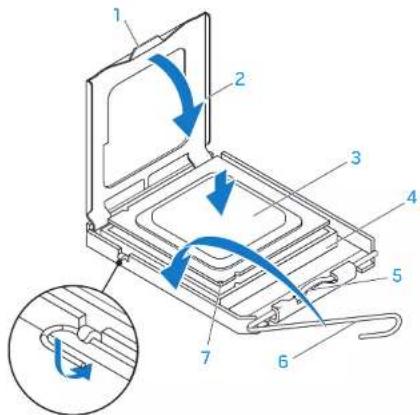

Diagram of a refrigerator interior with numbered parts and blue arrows indicating rotation or movement, plus an inset showing a mechanical component.

1 tab 2 processor cover
3 processor 4 socket
5 center-cover latch 6 release lever
7 processor pin-1 indicator

008/053

When the processor is fully seated in the socket, close the processor cover.6. Ensure that the tab on the processor cover is positioned underneath the center-cover latch on the socket.

Pivot the socket release lever back towards the socket, and snap it into place 7. to secure the processor.

Clean the thermal grease from the bottom of the processor liquid-cooling 8. assembly.

CAUTION: Ensure that you apply new thermal grease. New thermal grease is critical for ensuring adequate thermal bonding, which is a requirement for optimal processor operation.

Apply the new thermal grease to the top of the processor. 9.

Replace the processor liquid-cooling assembly (see "Replacing the Processor 10. Liquid-Cooling Assembly" on page 49).

CAUTION: Ensure that the processor liquid-cooling assembly is correctly seated and secured.

Replace the left side-panel (see "Replacing the Left Side-Panel" on page 11. 11).

Connect your computer and devices to electrical outlets, and then turn 12. them on.

CHAPTER 11: POWER SUPPLY

9.107 TO 3C: [3]01JOTG6

CHAPTER 11: POWER SUPPLY

008/055

CHAPTER 11: POWER SUPPLY

Power Supply

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the side panel(s).
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.) removed.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™ is not covered by your warranty.

Removing the Power Supply

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2. 11).

Lift the tab and slide the power-supply cover towards the back of the 3.

chassis.

Lift the power-supply cover away from the chassis.4.

CHAPTER 11: POWER SUPPLY

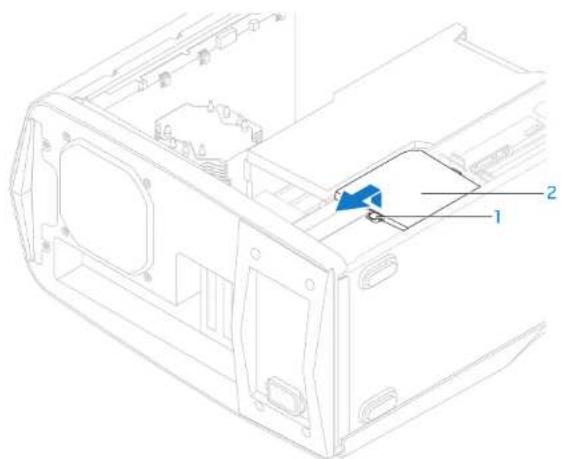

Technical diagram of a device casing with labeled components 1 and 2, showing internal structure and assembly.

1 tab 2 power-supply cover

038/057

CHAPTER 11: POWER SUPPLY

Disconnect the DC wire harness and the AC power cable from the power 5. supply.

Loosen the four captive screws that secure the power supply to the back of 6. the chassis.

Slide the power supply through the back of the chassis.7.

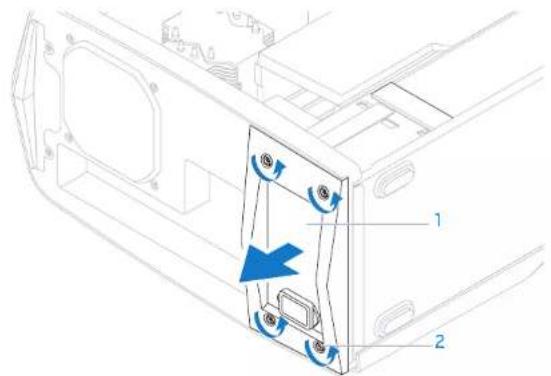

Technical diagram of a device rear panel with labeled components and directional arrows indicating movement or flow.

1 power supply 2 captive screws (4)

Remove the four screws that secure the power supply to the bezel.8. Remove the bezel from the power supply.9.

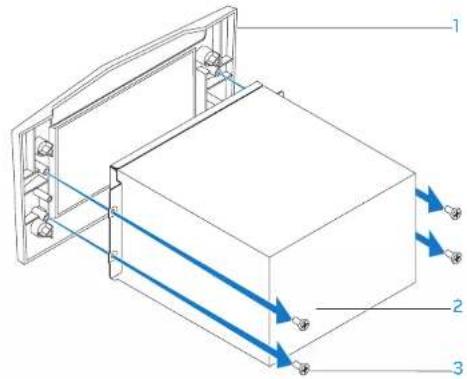

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force vectors.

1 bezel 2 power supply 3 screws (4)

038/058

CHAPTER 11: POWER SUPPLY

Replacing the Power Supply

Follow the instructions in "Before You Begin" on page 1. 6.

Replace the four screws that secure the power supply to the bezel.2.

Slide the power supply into the chassis through the back of the computer.3.

Tighten the four captive screws that secure the power supply to the back of 4. the chassis.

Connect the DC wire harness and the AC power cable to the power supply.5.

Align the tabs on the power-supply cover with the slots on the power supply.6.

Slide the power-supply cover towards the slots until it locks in place.7.

Replace the left side-panel (see "Replacing the Left Side-Panel" on page 8. 11).

Connect your computer and devices to electrical outlets, and then turn 9. them on.

CHAPTER 12: BATTERY

-XXVX01 33: -AAG -VGE XXVX016

CHAPTER 12: BATTERY

000/060

CHAPTER 12: BATTERY

Battery

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.) removed.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the side panel(s).
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™ is not covered by your warranty.

CHAPTER 12: BATTERY

Removing the Coin-Cell Battery

Record all the screens in system setup (see "System Setup" on page 1. 107) so that you can restore the correct settings after the new battery has been installed.

Follow the instructions in "Before You Begin" on page 2. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 3. 11).

Open the PCI shroud (see "Opening the PCI Shroud" on page 4. 18).

Remove any PCI-Express cards (see "Removing the PCI-Express Card(s)" on 5, page 32).

Locate the battery socket (see "System Board Components" on page 6. 14).

Diagram showing a blue upward arrow over a circular object with a box and cross, no text or symbols present

CAUTION: If you pry the battery out of its socket with a blunt object, be careful not to touch the system board with the object. Ensure that the object is inserted between the battery and the socket before you attempt to pry out the battery. Otherwise, you may damage the system board by prying off the socket or by breaking circuit traces on the system board.

1 battery release lever

1. Press the battery release lever to remove the battery.

Replacing the Coin-Cell Battery

Follow the instructions in "Before You Begin" on page 1. 6. Insert the new battery (CR2032) into the socket with the side labeled "+" 2. facing up, and press the battery into place.

Diagram of a mechanical component with a circular base and directional arrows indicating motion (no text or symbols)

Replace the PCI-Express cards (see "Replacing the PCI-Express Card(s)" on 3. page 33). Close the PCI shroud (see "Closing the PCI Shroud" on page 4. 18). Replace the left side-panel (see "Replacing the Left Side-Panel" on page 5. 11).

CHAPTER 12: BATTERY

Connect your computer and devices to electrical outlets and then turn 6, them on. Enter system setup (see "Entering System Setup" on page 7. 107) and restore the settings you recorded before removing the battery.

Removing the Theater-Lighting Batteries

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2.11).

Open the PCI shroud (see "Opening the PCI Shroud" on page 3. 18).

Remove the drive-bay shroud (see "Removing the Drive-Bay Shroud" on 4.

page 19).

Turn the drive-bay shroud over.5.

Open the theater-lighting battery compartment door.6.

Remove the two batteries (AA rechargeable) from the theater-lighting 7.

battery compartment.

CHAPTER 12: BATTERY

Isometric technical diagram of a mechanical housing or enclosure with labeled components (no text or symbols present)

1 theater-lighting

battery-compartment door

2 drive-bay shroud

002/064

Replacing the Theater-Lighting Batteries

Follow the instructions in "Before You Begin" on page 1. 6.

Insert the two new batteries (AA rechargeable) in the theater-lighting 2. battery compartment.

Close the theater-lighting battery-compartment door. 3.

Replace the drive-bay shroud (see "Replacing the Drive-Bay Shroud" on 4. page 19).

Close the PCI shroud (see "Closing the PCI Shroud" on page 5. 18).

Replace the left side-panel (see "Replacing the Left Side-Panel" on page 6. 11).

Connect your computer and devices to electrical outlets, and then turn 7, them on.

CHAPTER 12: BATTERY

CHAPTER 13: SYSTEM BOARD

-###133:###7###

CHAPTER 13: SYSTEM BOARD

000/066

CHAPTER 13: SYSTEM BOARD

System Board

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.) removed.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the side panel(s).
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™ is not covered by your warranty.

CHAPTER 13: SYSTEM BOARD

Removing the System Board

Record all the screens in system setup (see "System Setup" on page 1. 107) so that you can restore the correct settings.

Follow the instructions in "Before You Begin" on page 2. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 3.11).

Open the PCI shroud (see "Opening the PCI Shroud" on page 4. 18).

Remove any PCI-Express cards (see "Removing the PCI-Express Card(s)" on 5. page 32).

WARNING: Despite having a plastic shield, the processor liquid-cooling assembly may be very hot during normal operation. Ensure that it has had sufficient time to cool before you touch it.

Remove the processor liquid-cooling assembly (see "Removing the 6. Processor Liquid-Cooling Assembly" on page 48).

Remove the processor (see "Removing the Processor" on page 7.

1. Remove the memory modules (see "Removing the Memory Module(s)" on page 37).

CAUTION: Carefully note the routing and location of each cable before you disconnect it, so that you are sure to re-route the cables correctly. An incorrectly routed or a disconnected cable could lead to computer problems.

1 2 52

1 latch

2 screws (2)

008/068

1. Disconnect all cables from the system board.
2. Remove the two screws that secure the system board to the chassis.
3. Slide the system board towards the front of the chassis to disengage it from the latches that secure it to the chassis.
4. Lift the system board out of the chassis.

Replacing the System Board

Follow the instructions in "Before You Begin" on page 1. 6.

Slide the system board towards the back of the chassis and engage the 2. latches that secure it to the chassis.

Replace the two screws that secure the system board to the chassis.3.

Route and connect the cables that you disconnected from the system board. 4.

NOTE: For information on system board connectors, see "System Board Components" on page 14.

Replace the memory modules (see "Replacing the Memory Module(s)" on 5. page 38).

Replace the processor (see "Replacing the Processor" on page 6. 53).

Replace the processor liquid-cooling assembly (see "Replacing the Processor 7. Liquid-Cooling Assembly" on page 49).

Replace the PCI-Express cards (see "Replacing the PCI-Express Card(s)" on 8. page 33).

Close the PCI shroud (see "Closing the PCI Shroud" on page 9. 18).

1. Replace the left side-panel (see "Replacing the Left Side-Panel" on page 11).
2. Connect your computer and devices to electrical outlets, and then turn them on.

CHAPTER 14: MASTER I/O BOARD

-###:###

CHAPTER 14: MASTER I/O BOARD

000/070

CHAPTER 14: MASTER I/O BOARD

Master I/O Board

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the side panel(s).
WARNING: Do not operate your equipment with any cover(s) (including side panels, bezels, filler brackets, front-panel inserts, etc.) removed.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™ is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on the back of the computer).

Removing the Master I/O Board

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2. 11).

Open the PCI shroud (see "Opening the PCI Shroud" on page 3. 18).

Remove the drive-bay shroud (see "Removing the Drive-Bay Shroud" on 4. page 19).

Remove the PCI-fan assembly (see "Removing the PCI-Fan Assembly" on 5. page 44).

Disconnect all cables from the connectors on the master I/O board. Note 6, the routing of all cables as you remove them so that you can re-route them correctly after installing the new master I/O board.

Remove the four screws that secure the master I/O board to the chassis.7.

Remove the master I/O board out of the chassis.8.

Floor plan diagram with room labels and directional indicators, including a central room labeled '1'

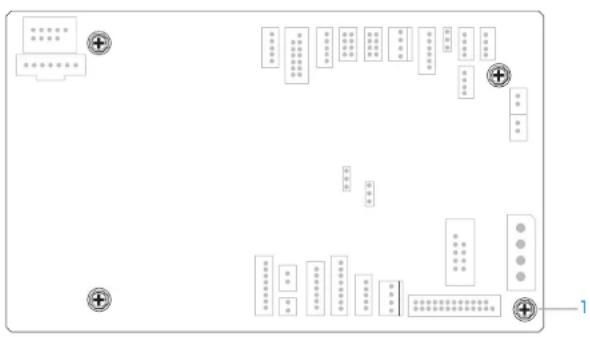

1 screws (4)

CHAPTER 14: MASTER I/O BOARD

Replacing the Master I/O Board

Follow the instructions in "Before You Begin" on page 1. 6.

Place the master I/O board in the chassis.2.

Replace the four screws that secure the master I/O board to the chassis.3.

Route and connect the cables that you removed from the connectors on the 4.

master I/O board.

NOTE: For information on master I/O board connectors, see "Master I/O Board Components" on page 15.

Replace the PCI-fan assembly (see "Replacing the PCI-Fan Assembly" on 5, page 45).

Replace the drive-bay shroud (see "Replacing the Drive-Bay Shroud" on 6. page 19).

Close the PCI shroud (see 'Closing the PCI Shroud' on page 7. 18).

Replace the left side-panel (see "Replacing the Left Side-Panel" on page 8.11).

Connect your computer and devices to electrical outlets, and then turn 9. them on.

CHAPTER 15: TOP LIGHTING-BOARD

-XXVCA01 33: A5C GAVXAM7 X34V

CHAPTER 15: TOP LIGHTING-BOARD

033/074

CHAPTER 15: TOP LIGHTING-BOARD

Top Lighting-Board

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the side panel(s).
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™ is not covered by your warranty.
CAUTION: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.) removed.

CHAPTER 15: TOP LIGHTING-BOARD

Removing the Top Lighting-Board

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2.11).

Disconnect all cables from the connectors on the top lighting-board.3.

Remove the four screws that secure the top lighting-board to the chassis.4.

Pull the top lighting-board away from the chassis.5.

Replacing the Top Lighting-Board

Follow the instructions in "Before You Begin" on page 1. 6.

Replace the four screws that secure the top lighting-board to the chassis.2.

Connect the cables to the connectors on the top lighting-board.3.

1. Replace the left side-panel (see "Replacing the Left Side-Panel" on page 11).

2. Connect your computer and devices to electrical outlets and then turn them on.

Technical diagram showing airflow or ventilation system with labeled components and directional arrows

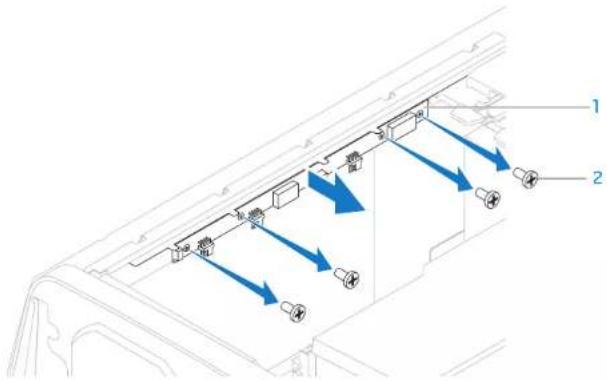

1 top lighting-board 2 screws (4)

038/076

CHAPTER 16: RIGHT SIDE-PANEL(S)

-XXVX01 33: INXXA DAVID CYCDE

CHAPTER 16: RIGHT SIDE-PANEL(S)

038/077

CHAPTER 16: RIGHT SIDE-PANEL(S)

Right Side-Panel(s)

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.) removed.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the side panel(s).
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™ is not covered by your warranty.

CHAPTER 16: RIGHT SIDE-PANEL(S)

Removing the Right Side-Panel(s)

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2. 11).

Open the PCI shroud (see "Opening the PCI Shroud" on page 3. 18).

Remove the drive-bay shroud (see "Removing the Drive-Bay Shroud" on 4. page 19).

Remove the power-supply cover (see "Removing the Power Supply" on 5. page 57).

Remove the hard-drive fan assembly (see "Removing the Hard-Drive Fan 6. Assembly" on page 42).

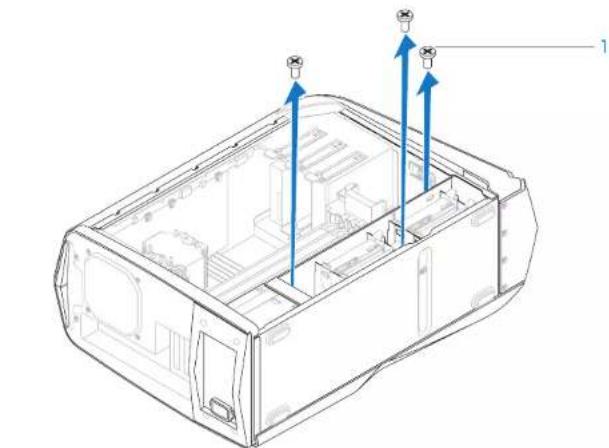

Remove the three screws that secure the right side-panel(s) to the chassis.7.

Technical line drawing of a mechanical housing or enclosure with internal compartments and blue directional arrows indicating movement (no text or symbols present)

1 screws (3)

CSC/079

Place the chassis in an upright position.8.

Slide and pull the right top-panel away from the chassis.9.

Isometric line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

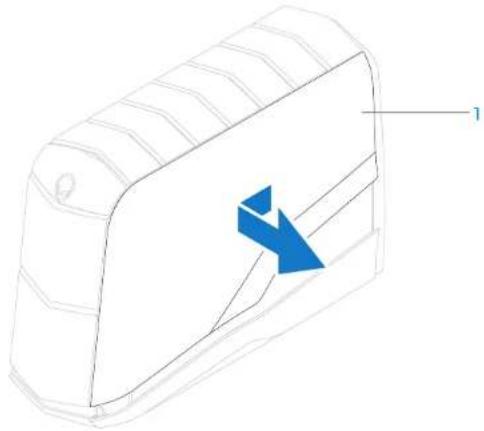

1 right top-panel

CHAPTER 16: RIGHT SIDE-PANEL(S)

Disconnect the lighting-board cable from the connector on the master I/O 10. board.

Remove the two screws that secure the lighting board to the chassis.11.

Lift the lighting board up and away from the chassis. 12.

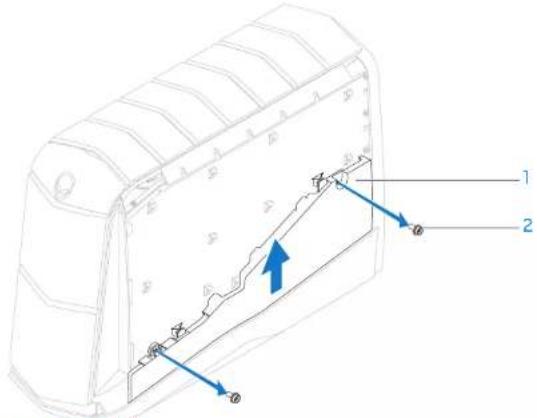

Technical diagram of a mechanical component with labeled parts and directional arrows indicating movement or force.

1 lighting board 2 screws (2)

080/080

1. Slide and pull the right bottom-panel away from the chassis.

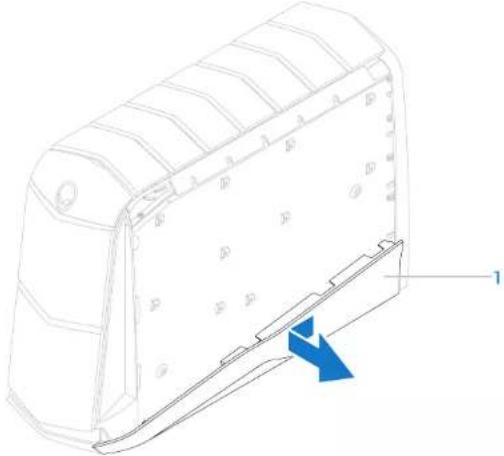

Technical line drawing of a mechanical component with a blue arrow indicating a specific feature (no text or symbols present)

1 right bottom-panel

CHAPTER 16: RIGHT SIDE-PANEL(S)

Replacing the Right Side-Panel(s)

Follow the instructions in "Before You Begin" on page 1. 6.

Align the right bottom-panel to the bottom of the computer and slide it into 2. position.

Slide the lighting board into position and replace the two screws that secure 3, the lighting board to the chassis.

Connect the lighting-board cable to the connector on the master I/O board. 4. Slide the right top-panel into position.5.

Place the chassis on its side.6.

Replace the three screws that secure the right side-panel(s) to the chassis.7. Replace the power-supply cover (see "Replacing the Power Supply" on 8. page 59).

Replace the hard-drive fan assembly (see "Replacing the Hard-Drive Fan 9. Assembly" on page 43).

Replace the drive-bay shroud (see "Replacing the Drive-Bay Shroud" on 10, page 19).

Close the PCI shroud (see 'Closing the PCI Shroud' on page 11. 18).

1. Replace the left side-panel (see "Replacing the Left Side-Panel" on page 11).

2. Connect your computer and devices to electrical outlets and then turn them on.

038/081

CHAPTER 17: ACTIVE-VENTING ASSEMBLY

-XXVX01 33: Y-VX70 30XVX67 VX207X66

CHAPTER 17: ACTIVE-VENTING ASSEMBLY

083/082

CHAPTER 17: ACTIVE-VENTING ASSEMBLY

Active-Venting Assembly

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.) removed.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the side panel(s).
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™ is not covered by your warranty.

Removing the Active-Venting Assembly

NOTE: Active-venting assembly is available only in Alienware Aurora ALX.

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2. 11).

Open the PCI shroud (see "Opening the PCI Shroud" on page 3. 18).

Remove the drive-bay shroud (see "Removing the Drive-Bay Shroud" on 4, page 19).

Remove the screw that secures the right top-panel to the chassis.5.

CHAPTER 17: ACTIVE-VENTING ASSEMBLY

Technical line drawing of a computer chassis casing with internal compartments and mounting holes (no text or symbols)

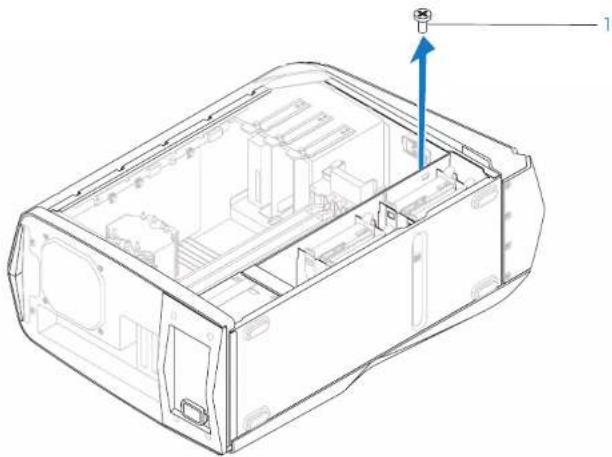

1 screw

033/084

CHAPTER 17: ACTIVE-VENTING ASSEMBLY

Remove the top lighting-board (see "Removing the Top Lighting-Board" on 6, page 76).

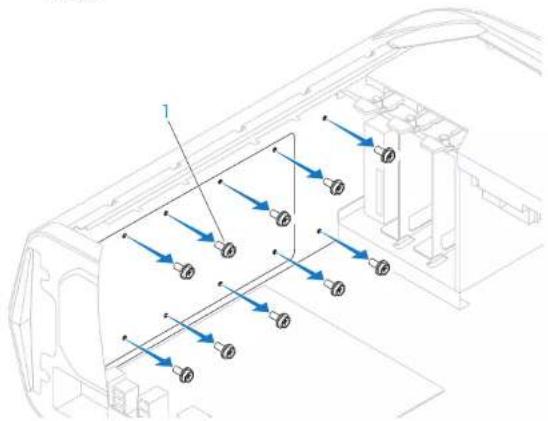

Remove the ten screws that secure the active-venting assembly to the 7.chassis.

Technical diagram showing directional arrows and labeled components in a mechanical or electrical assembly layout

1 screws (10)

Place the chassis in an upright position.8. Remove the right top-panel.9.

Isometric line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

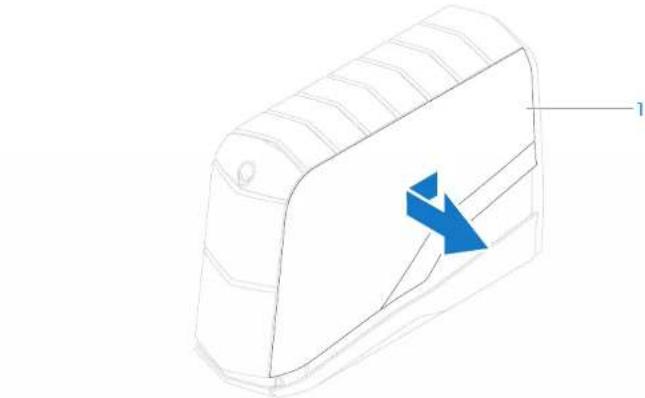

I right top-panel

083/085

Remove the two screws that secure the top panel to the chassis.10.

Lift the top panel away from the chassis.11.

Remove the three screws that secure the active-venting assembly to the 12.chassis.

Disconnect the cables that connect the active-venting assembly to the 13 connectors on the master I/O board.

Lift the active-venting assembly away from the chassis.14.

CHAPTER 17: ACTIVE-VENTING ASSEMBLY

Technical diagram of a vehicle air vent assembly with numbered components and directional arrows indicating flow or movement.

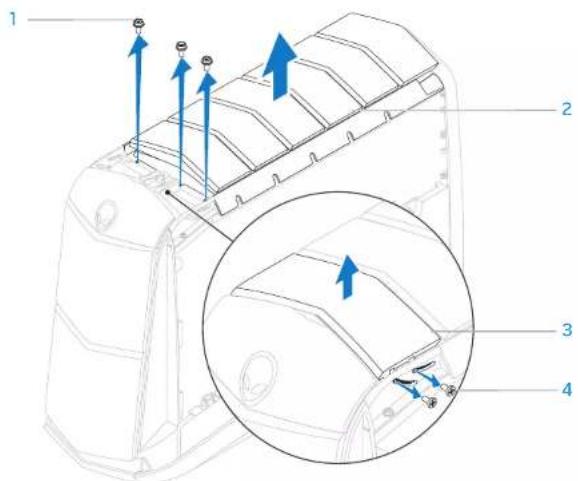

1 screws (3) 2 active-venting assembly
3 top panel 4 top-panel screws (2)

083/086

Replacing the Active-Venting Assembly

Follow the instructions in "Before You Begin" on page 1. 6.

Place the active-venting assembly on the top of the chassis.2.

Connect the active-venting assembly cables to the connectors on the 3. master I/O board.

Replace the three screws that secure the active-venting assembly to the 4. chassis.

Align the top panel with the slots in the chassis and replace the two screws 5. that secure the top panel to the chassis.

1. Replace the right top-panel.
2. Lay the chassis on its side.
3. Replace the ten screws that secure the active-venting assembly to the top of the chassis.
4. Replace the top lighting-board (see "Replacing the Top Lighting-Board" on page 76).

Replace the screw that secures the right top-panel to the chassis.10.

Replace the drive-bay shroud (see "Replacing the Drive-Bay Shroud" on 11. page 19).

Close the PCI shroud (see "Closing the PCI Shroud" on page 12. 18).

Replace the left side-panel (see "Replacing the Left Side-Panel" on page 13. 11).

Connect your computer and devices to electrical outlets and then turn 14. them on.

CHAPTER 18: FRONT BEZEL

300X100

CHAPTER 18: FRONT BEZEL

088/088

CHAPTER 18: FRONT BEZEL

Front Bezel

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.) removed.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the side panel(s).
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™ is not covered by your warranty.

CHAPTER 18: FRONT BEZEL

Removing the Front Bezel

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2.11).

Open the PCI shroud (see "Opening the PCI Shroud" on page 3. 18).

Remove the drive-bay shroud (see "Removing the Drive-Bay Shroud" on 4. page 19).

Remove the right side-panel(s) (see "Removing the Right Side-Panel(s)" on 5. page 79).

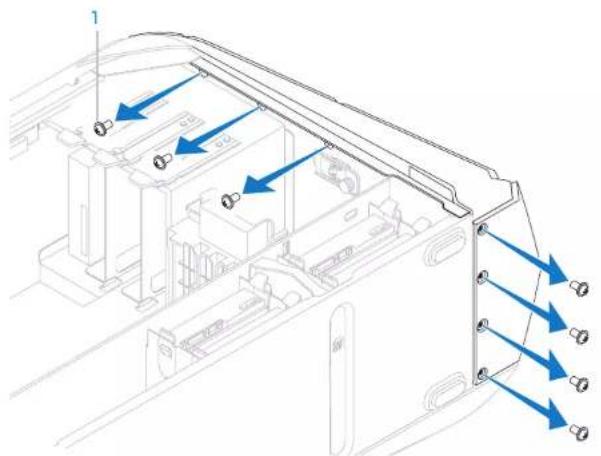

Remove the seven screws that secure the front bezel to the chassis.6.

Disconnect the front bezel cables from the connectors on the master I/O 7, board. Note the cable routing before disconnecting the cables.

Technical line drawing of a vehicle interior with directional arrows indicating flow or movement (no text or symbols present)

1 screws (7)

000/090

Place the chassis in an upright position.8.

Remove the three screws on the right side that secure the front bezel to the 9. chassis.

Pull the front bezel away from the chassis.10.

CHAPTER 18: FRONT BEZEL

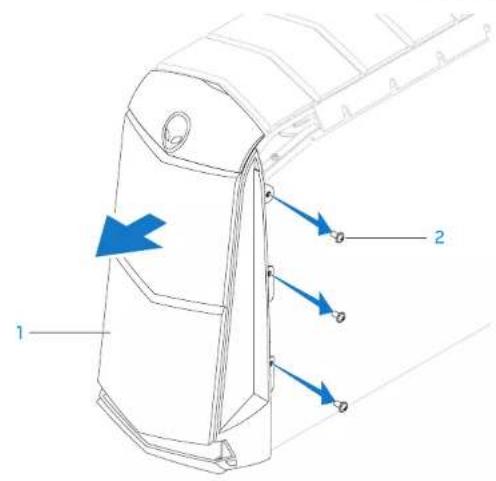

Technical diagram of a mechanical component with labeled parts and directional arrows indicating flow or movement.

1 front bezel 2 screws (3)

028/091

CHAPTER 18: FRONT BEZEL

Replacing the Front Bezel

Follow the instructions in "Before You Begin" on page 1. 6.

Align the front bezel with the front of the chassis.2.

Replace the three screws on the right side that secure the front bezel to the 3. chassis.

Lay the chassis on its side.4.

Connect the front-bezel cables to the connectors on the master I/O board. 5.

Replace the seven screws that secure the front bezel to the chassis.6.

Replace the right side-panel(s) (see "Replacing the Right Side-Panel(s)" on 7, page 81).

Replace the drive-bay shroud (see "Replacing the Drive-Bay Shroud" on 8. page 19).

Close the PCI shroud (see 'Closing the PCI Shroud' on page 9. 18).

Replace the left side-panel (see "Replacing the Left Side-Panel" on page 10. 11).

1. Connect your computer and devices to electrical outlets and then turn them on.

CHAPTER 19: BACK BEZEL

-XXVNO133:XX-U DXYOE

CHAPTER 19: BACK BEZEL

028/093

CHAPTER 19: BACK BEZEL

Back Bezel

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.) removed.

WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the side panel(s).

CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™ is not covered by your warranty.

Removing the Back Bezel

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2.11).

Remove the power supply (see "Removing the Power Supply" on page 3. 57).

WARNING: Despite having a plastic shield, the processor liquid-cooling assembly may be very hot during normal operation. Ensure that it has had sufficient time to cool before you touch it.

Remove the processor liquid-cooling assembly (see "Removing the 4.

Processor Liquid-Cooling Assembly* on page 48).

Remove the two screws that secure the security lock panel to the chassis. 5.

Pull the security lock panel away from the chassis.6.

CHAPTER 19: BACK BEZEL

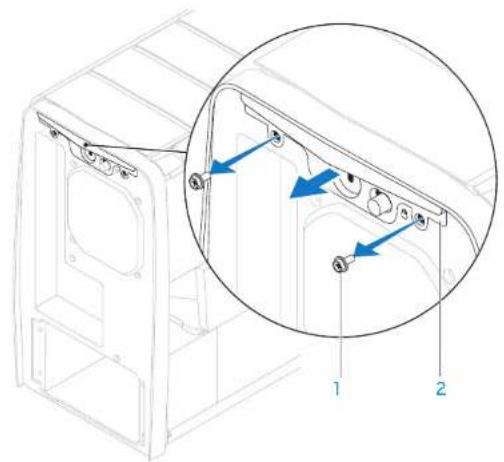

Technical diagram of a mechanical component with labeled parts and an inset magnified view showing internal structure.

1 screws (2) 2 security lock panel

Remove the two screws that secure the back bezel to the chassis.7, Release the tabs that secure the back bezel to the chassis.8, Pull the back bezel away from the chassis.9.

CHAPTER 19: BACK BEZEL

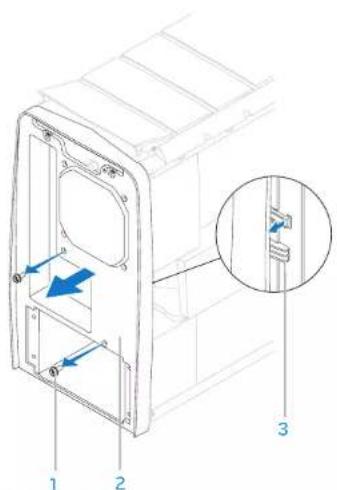

Technical diagram of a mechanical component with labeled parts and directional arrows indicating movement or force

1 screws (2) 2 back bezel 3 tabs

003/096

CHAPTER 19: BACK BEZEL

Replacing the Back Bezel

Follow the instructions in "Before You Begin" on page 1. 6.

Align the tabs on the back bezel with the slots on the chassis.2.

Push the back bezel into place.3.

Replace the two screws that secure the back bezel to the chassis.4.

Replace the two screws that secure the security lock panel to the chassis.5.

Replace the processor liquid-cooling assembly (see "Replacing the Processor 6.

Liquid-Cooling Assembly' on page 49).

Replace the power supply (see "Replacing the Power Supply" on page 7. 59).

Replace the left side-panel (see "Replacing the Left Side-Panel" on page 8. 11).

Connect your computer and devices to electrical outlets, and then turn 9.

them on.

CHAPTER 20: BLUETOOTH ASSEMBLY

-XXVX01 38: 6137X1090E

CHAPTER 20: BLUETOOTH ASSEMBLY

038/098

CHAPTER 20: BLUETOOTH ASSEMBLY

Bluetooth Assembly

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.) removed.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the side panel(s).
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™ is not covered by your warranty.

Removing the Bluetooth Assembly

NOTE: The Bluetooth ^® assembly is available on your computer only if you ordered it while purchasing your computer.

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2.11).

Open the PCI shroud (see "Opening the PCI Shroud" on page 3.18).

Remove the drive-bay shroud (see "Removing the Drive-Bay Shroud" on 4. page 19).

Disconnect the Bluetooth assembly cable from the connector on the master 5. I/O board.

Loosen the thumbscrew that secures the Bluetooth assembly to the 6.chassis.

Slide and pull the Bluetooth assembly away from the front of the chassis.7.

CHAPTER 20: BLUETOOTH ASSEMBLY

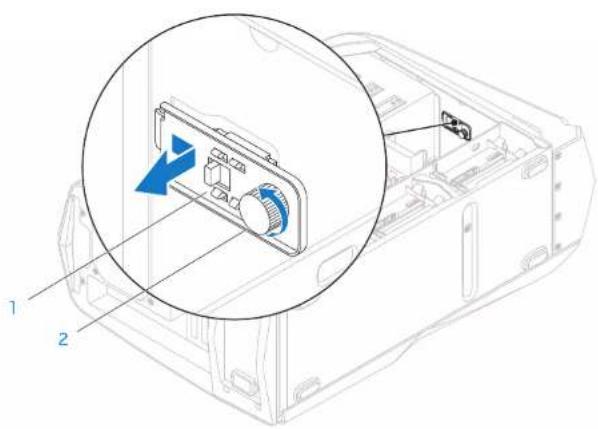

Technical diagram of a computer monitor with labeled parts and a magnified inset showing the internal component.

1 Bluetooth assembly 2 thumbscrew

000/0100

CHAPTER 20: BLUETOOTH ASSEMBLY

Replacing the Bluetooth Assembly

Follow the instructions in "Before You Begin" on page 1. 6.

Align the tabs on the Bluetooth assembly with the slots on the chassis.2.

Tighten the thumbscrew that secures the Bluetooth assembly to the 3.chassis.

Connect the Bluetooth assembly cable to the connector on the master I/O 4. board.

Replace the drive-bay shroud (see "Replacing the Drive-Bay Shroud" on 5. page 19).

Close the PCI shroud (see 'Closing the PCI Shroud' on page 6. 18).

Replace the left side-panel (see "Replacing the Left Side-Panel" on page 7. 11).

Connect your computer and devices to electrical outlets and then turn 8. them on.

CHAPTER 21: TOP I/O PANEL

-XXVAN130: A35 A/3

CHAPTER 21: TOP I/O PANEL

0008/0102

CHAPTER 21: TOP I/O PANEL

Top I/O Panel

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.) removed.
WARNING: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the side panel(s).
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™ is not covered by your warranty.

CHAPTER 21: TOP I/O PANEL

Removing the Top I/O Panel

Follow the instructions in "Before You Begin" on page 1. 6.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2.11).

Open the PCI shroud (see "Opening the PCI Shroud" on page 3. 18).

Remove the drive-bay shroud (see "Removing the Drive-Bay Shroud" on 4. page 19).

1. Remove the PCI-fan assembly (see "Removing the PCI-Fan Assembly" on page 44).
2. Remove any PCI-Express cards (see "Removing the PCI-Express Card(s)" on page 32).
3. Remove the active-venting assembly (see "Removing the Active-Venting Assembly" on page 84).
4. Remove the right side-panel(s) (see "Removing the Right Side-Panel(s)" on page 79).
5. Remove the front bezel (see "Removing the Front Bezel" on page 90).
6. Pull the panel insert away from the chassis.
7. Remove the four screws that secure the top I/O panel to the chassis.
8. Disconnect the top I/O panel cables from the connectors on the system board and master I/O board.
9. Remove the top I/O panel.

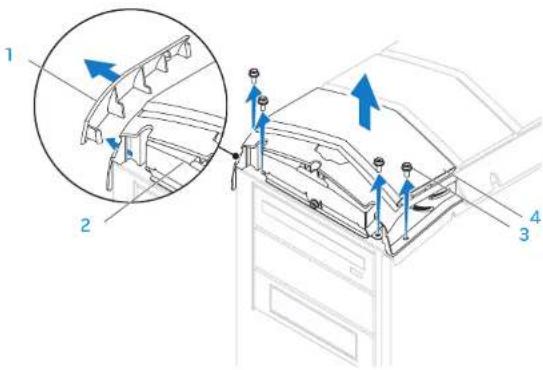

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force vectors.

1 panel insert 2 top I/O panel

3 screws (4) 4 top panel

CHAPTER 21: TOP I/O PANEL

Replacing the Top I/O Panel

Follow the instructions in "Before You Begin" on page 1. 6.

Align and replace the top I/O panel.2.

Connect the top I/O panel cables to the connectors on the system board and 3. master I/O board.

Replace the four screws that secure the top I/O panel to the chassis.4.

Push the panel insert into position.5.

1. Replace the front bezel (see "Replacing the Front Bezel" on page 92).
2. Replace the active-venting assembly (see "Replacing the Active-Venting Assembly" on page 87).
3. Replace the right side-panel(s) (see "Replacing the Right Side-Panel(s)" on page 81).
4. Replace the PCI-Express cards (see "Replacing the PCI-Express Card(s)" on page 33).

Replace the PCI-fan assembly (see "Replacing the PCI-Fan Assembly" on 10, page 45).

Replace the drive-bay shroud (see "Replacing the Drive-Bay Shroud" on 11. page 19).

Close the PCI shroud (see "Closing the PCI Shroud" on page 12. 18).

Replace the left side-panel (see "Replacing the Left Side-Panel" on page 13. 11).

Connect your computer and devices to electrical outlets and then turn 14. them on.

CHAPTER 22: SYSTEM SETUP

-10000133:20007000

CHAPTER 22: SYSTEM SETUP

0303/0106

Configuring the BIOS

System Setup

The System Setup options allow you to:

Change the system configuration information after you add, change, or

remove any hardware in your computer.

Set or change a user-selectable option.

View the amount of memory installed.

Set the type of hard drive installed.

Before you change the System Setup settings, it is recommended that you write down the current System Setup information for future reference.

CAUTION: Do not change the settings in System Setup unless you are an expert computer user. Certain changes can cause your computer to work incorrectly.

CHAPTER 22: SYSTEM SETUP

Entering System Setup

Turn on (or restart) your computer.1.

NOTE: Keyboard failure may result when a key on the keyboard is held down for extended periods of time. To avoid possible keyboard failure, press and release in even intervals until the System Setup screen appears.

While the computer is booting, press immediately before the operating 2. system logo appears to access the BIOS Setup Utility.

NOTE: If an error occurs during POST (Power On Self Test), press when the prompt appears to enter the BIOS Setup Utility.

NOTE: If you wait too long and the operating system logo appears, continue to wait until you see the Microsoft ^® Windows ^® desktop, then shut down your desktop and try again.

System Setup Screens

The BIOS Setup Utility displays current or changeable configuration information for your desktop.

Key functions appear at the bottom of the BIOS Setup Utility screen and lists keys and their functions within the active field.

System Setup Options

NOTE: The items listed in this section may or may not appear exactly as listed depending on your computer model and installed devices.

System Information

Product Name	Displays the product name.
BIOS Version	Displays the BIOS version number and date information.
Service Tag	Displays the service tag of the computer.
Asset Tag	Displays the asset tag of the computer.
Memory Installed	Displays the amount of memory installed on the computer.
Memory Available	Displays the amount of memory available on the computer.
Memory Technology	Displays the type of memory technology used.
Memory Speed	Displays the memory speed.
CPU ID/u Code ID	Displays the processor type.
CPU Speed	Displays the processor speed.

CHAPTER 22: SYSTEM SETUP

System Information

Current (QPI) Speed(available on Aurora and Aurora ALX only)	Displays the QPI speed.
Current (DMI) Speed(available on Aurora-R2 only)	Displays the DMI speed.
Cache L2	Displays the processor L2 cache size.
Cache L3	Displays the processor L3 cache size.

Standard CMOS Features

System Time (hh:mm:ss)	Displays the current time.
System Date (mm:dd:yy)	Displays current date.
SATA 1	Displays the SATA 1 drive integrated in the computer.
SATA 2	Displays the SATA 2 drive integrated in the computer
SATA 3	Displays the SATA 3 drive integrated in the computer.
SATA 4	Displays the SATA 4 drive integrated in the computer.

CHAPTER 22: SYSTEM SETUP
Standard CMOS Features

SATA 5	Displays the SATA 5 drive integrated in the computer
SATA 6	Displays the SATA 6 drive integrated in the computer.
Wait for 'F1' If Errors	If enabled, the system will HALT during boot to display system errors.

Advanced BIOS Features

NumLock Status	Select power-on state for num-lock.
ACPI APIC support	Include ACPI APIC table pointer to RSDT pointer list.
OptionROM Display Screen	Allows you to enable or disable the RAID Option ROM screen during POST.

Boot Configuration Features

1st Boot Device	Displays the first boot device.
2nd Boot Device	Displays the second boot device.
Hard Disk Drives	Sets the hard drive boot priority. The items displayed are dynamically updated according to the hard drives detected.
CD/DVD Drives	Sets the CD/DVD drive boot priority.

CPU Configuration

XD Bit Capability	Enable XD Bit Capability to allow the processor to distinguish between the bits of code that can be executed and the ones that cannot be executed.
Intel® Speedstep® tech	If enabled, the processor clock speed and core voltage are adjusted dynamically based on the processor load.
Intel® C State Tech	If enabled, C State: Processor idle is set to C2/C3/C4.
Intel® HT Technology (available on Aurora-R2 only)	If disabled only one thread per enabled core is active.

Integrated Devices

USB Functions	Allows you to enable or disable the integrated USB controller.
HD Audio Controller	Allows you to enable or disable the integrated audio controller.
Onboard IEEE1394 Controller	Allows you to enable or disable the onboard IEEE 1394 controller.
LAN1 BCM5784 Device (available on Aurora and Aurora ALX only)	Allows you to enable or disable the onboard LAN controller.
Onboard LAN Controller (available on Aurora-R2 only)	Allows you to enable or disable the onboard LAN controller.
LAN1 Option ROM (available on Aurora and Aurora ALX only)	Allows you to enable and disable the network controller's boot option.
Onboard LAN Boot ROM (available on Aurora-R2 only)	Allows you to enable and disable the network controller's boot option.
SiL3132 E-Sata Device (available on Aurora and Aurora ALX only)	Allows you to enable and disable the e-SATA controller.
JMicron-362 E-SATA Device (available on Aurora-R2 only)	Allows you to enable and disable the e-SATA controller.

Integrated Devices

Configure SATA#1-6 as (available on Aurora and Aurora ALX only)	Allows you to configure the integrated hard drive controller to AHCI or RAID.
SATA Mode (available on Aurora-R2 only)	Allows you to configure the integrated hard drive controller to AHCI or RAID.
AHCI CD/DVD Boot Time out	Allows you to set the wait time for SATA or CD/DVD in AHCI mode.

Power Management Setup

Suspend Mode	Sets the energy-saving mode of the ACPI function.
AC Recovery	Sets what action the computer takes when power is restored.
Remote Wakeup (available on Aurora and Aurora ALX only)	Sets the system to wake up from an onboard LAN, PCIE-XI LAN card, or a PCI LAN card.
Auto Power On	Allows the computer to start up at a certain time.

Frequency/Voltage Control

CPU Speed	Displays the current processor speed.
Memory Speed	Displays the current memory speed.
Current QPI Speed(available on Aurora and Aurora ALX only)	Displays current QPI speed.
Current DMI Speed(available on Aurora-R2 only)	Displays current DMI speed.
QPI Frequency(available on Aurora and Aurora ALX only)	Allows you to change the QPI frequency.
DMI Frequency(available on Aurora-R2 only)	Allows you to change the DMI frequency.
Memory Ratio	Allows you to change the memory ratio.
Core (Non-Turbo) Ratio	Displays the ratio between the processor core clock and the FSB frequency.
Advance DRAM Configuration	Allows you to access the advance DRAM configuration submenu
Overclock Configuration	Allows you to access the overclock configuration submenu

Frequency/Voltage Control

Overvoltage Configuration	Allows you to access the overvoltage configuration submenu
Load Level1 CC Setting	Allows you to restore the Level1 overclocking settings that were shipped from the factory (only displayed with an XE processor).
Advance DRAM Configuration Submenu
Memory-Z	Opens submenu to display the SPD configuration for each memory module.
Advanced Memory Settings	Allows you to toggle to Manual mode and set all of the timing parameters.
tCL	Displays the Column Address Strobe Latency (editable in Manual Mode).
tRCD	Displays timing of RAS to CAS delay (editable in Manual Mode).
tRP	Displays timing of RAS Precharge (editable in Manual Mode).
tRAS	Displays timing of Row Address Strobe (editable in Manual Mode).

CHAPTER 22: SYSTEM SETUP
Advance DRAM Configuration Submenu

tRFC	Displays timing of Refresh to Archive/Refresh cycle time (editable in Manual Mode).
tWR	Displays timing of Write Recover (editable in Manual Mode).
tWTR	Displays Write to Read delay (editable in Manual Mode).
tRRD	Displays RAS to RAS Delay (editable in Manual Mode).
tRTP	Displays Read to Precharge command delay (editable in Manual Mode).
1T/2T Timing	Displays the Command Rate (editable in Manual Mode).

Overclock Configuration Submenu

Adjust CPU BClk (MHz)	Allows you to adjust BClk of processor.
Spread Spectrum	Enable/disable spread spectrum modulation.
Adjust PCI Frequency (MHz)(available on Aurora and Aurora ALX only)	Allows you to adjust PCI frequency.
Adjust PCI-E Frequency (MHz)	Allows you to adjust PCI-E frequency.
Intel® TurboMode tech	If enabled, allows processor to run at faster frequencies than marked.
[1-4] Core CPU Turbo Ratio Limit(available on Aurora and Aurora ALX only)	Limit ratio for cores 1-4(XE processors only).
Turbo Mode TDC LimitOverride	Allows you to program the current thresholds for the processor while in turbo mode.
Turbo Mode TDP LimitOverride	Allows you to program the power thresholds for the processor while in turbo mode.

CHAPTER 22: SYSTEM SETUP
Overvoltage Configuration Submenu

CPU Temperature Sensor	Displays the processor temperature in Celsius and Fahrenheit.
VCore	Displays processor core voltage.
Dynamic CPU VCore Offset	Processor core voltage offset.
DDR3 Memory Voltage	Adjust the DDR3 memory voltage.
IOH Voltage	Adjust the IOH voltage.
QPI and Uncore Voltage (available on Aurora and Aurora ALX only)	Adjust QPI and uncore voltage.
DMI and Uncore Voltage (available on Aurora-R2 only)	Adjust DMI and uncore voltage.

BIOS Security Features

Change Supervisor Password	Allows you to change the supervisor password.
Change User Password	Allows you to change the user password. You cannot use the user password to enter the BIOS setup, during POST.
Exit
Exit Options	Provides options to Save Changes and Exit, Discard Changes and Exit, Load Optimal Defaults, and Discard Changes.

Clearing Forgotten Passwords and CMOS Settings

CMOS:

Follow the instructions in "Before You Begin" on page 1. 6.

WARNING: The computer must be disconnected from the electrical outlet to clear the CMOS setting.

Remove the left side-panel (see "Removing the Left Side-Panel" on page 2. 11).

Reset the current password and CMOS settings: 3.

Locate the 3-pin CMOS or password-reset jumper on the system board a. (see "System Board Components" on page 14).

Remove the jumper plug from the CMOS or password-reset jumper b, pins 2 and 3.

Place the jumper plug on the CMOS or password-reset jumper c. pins 1 and 2 and wait for approximately five seconds.

Remove the jumper plug and replace it on the CMOS or password reset d. jumper pins 2 and 3.

CHAPTER 22: SYSTEM SETUP

CLEAR_CMOS 3 2 1

0003/0114

PASSWORD:

CHAPTER 22: SYSTEM SETUP

PASSWORD 1 2 3

Replace the left side-panel (see "Replacing the Left Side-Panel" on page 4.11). Connect your computer and devices to electrical outlets and then turn 5. them on.

0000/0115

Flashing the BIOS

The BIOS may require flashing when an update is available or when replacing the system board. To flash the BIOS:

Turn on the computer.1.

Go to 2. support.dell.com/support/downloads.

Locate the BIOS update file for your computer:3.

- If you have your computer's Service Tag:

Click a. Enter a Service Tag.

Enter your computer's Service Tag in the b. Enter a service tag: field, click Go, and proceed to step 6.

- If you do not have your computer's Service Tag:

a. Click Select Your Product Model in the Select Your Entry Method list.
b. Select the type of product in the Select Your Product Family list.
c. Select the product brand in the Select Your Product Line list.
d. Select the product model number in the Select Your Product Model list.

NOTE: If you have selected a different model and want to start over again, click Start Over on the top right of the menu.

Click e. Confirm.

A list of results appear on the screen. Click 4. BIOS.

Click 5. Download Now to download the latest BIOS file.

The File Download window appears.

Click 6. Save to save the file on your desktop. The file downloads to your desktop.

Click 7. Close if the Download Complete window appears.

The file icon appears on your desktop and is titled the same as the downloaded BIOS update file.

Double-click the file icon on the desktop and follow the procedures that 8. appear on the screen.

APPENDIX A: CONTACTING ALIENWARE

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Because availability varies by country and product, some services may not be available in your area.

To contact Dell for sales, technical support, or customer service issues:

1. Visit www.dell.com/contactdell.

2. Select your country or region.

3. Select the appropriate service or support link based on your need.

4. Choose the method of contacting Dell that is convenient for you.

NOTE: For telephone support in the United States, call 1-800-Alienware.

Websites

You can learn about Alienware® products and services on the following websites:

www.dell.com.

www.dell.com/ap· (Asian/Pacific countries only)

www.dell.com/jp· (Japan only)

www.euro.dell.com• (Europe only)

www.dell.com/la• (Latin American and Caribbean countries)

www.dell.ca· (Canada only)

You can access Alienware Support through the following websites:

support.dell.com

- support.jp.dell.com (Japan only)

- support.euro.dell.com (Europe only)

• support.la.dell.com (Argentina, Brazil, Chile, Mexico)
