Product Type	IP PTZ Dome Security Camera
Model	Spectra Enhanced S7818L-EB0
Resolution	4K (3840x2160)
Optical Zoom	18x
Form Factor	Pendant, Environmental, Black Smoked Bubble
Image Sensor	1/2.5-inch CMOS
Minimum Illumination	Color: 0.05 lux; B/W: 0.01 lux (typical)
Day/Night	Automatic IR cut filter removal
Wide Dynamic Range	True WDR (120 dB typical)
Pan/Tilt Range	360° continuous pan; -10° to 90° tilt
Preset Positions	Up to 512 presets
Video Compression	H.265, H.264, MJPEG
Network Protocols	IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SNMP, ONVIF Profile S/G/Q/T
Power Supply	PoE 802.3bt (60W) or 24VAC/48VDC
Power Consumption	≤ 60W (PoE) or 48V/1.9A DC
Ethernet	RJ-45 10/100/1000 Mbps with PoE; SFP slot for fiber
Ingress Protection	IP66, IP67, NEMA Type 4X
Impact Rating	IK10
Housing Material	Aluminum with polycarbonate bubble
Operating Temperature	-40°C to 60°C (-40°F to 140°F)
Dimensions (Diameter x Height)	Approx. 193 mm x 280 mm (7.6 in x 11 in)
Weight	Approx. 2.5 kg (5.5 lb)
Mounting Options	Pendant mount (compatible with Pelco mounts), wall mount, ceiling mount with back box
Accessories Included	Back box, lower dome with trim ring, dome drive, mounting template, terminal blocks, safety bracket, rubber grommet (environmental)
Warranty	Refer to Pelco warranty policy

Frequently Asked Questions - Spectra Enhanced S7818L-EB0 Pelco

What is the resolution of the Pelco Spectra Enhanced S7818L-EB0 camera?

The camera offers 4K resolution (3840x2160 pixels) for ultra-high-definition video.

What type of zoom does this camera have?

It features an 18x optical zoom with autofocus, allowing detailed close-ups while maintaining image clarity.

Is the camera suitable for outdoor use?

Yes, it is an environmental model with IP66, IP67, and NEMA Type 4X ratings, making it weatherproof and dust-tight. It also has an IK10 impact rating for vandal resistance.

How is the camera powered?

It can be powered via PoE 802.3bt (60W) or an external 24VAC/48VDC power supply. The RJ-45 port supports Power over Ethernet.

Can I use the camera with third-party software?

Yes, it conforms to ONVIF Profile S, G, Q, and T, ensuring compatibility with a wide range of video management systems. Pelco also provides an API and SDK for integration.

What is the pan/tilt range of this dome camera?

It offers 360° continuous pan and a tilt range from -10° to 90°, allowing full coverage with preset positions.

Does the camera support audio?

Yes, it has an 18-pin connector with audio input and output, plus alarm and relay connections.

How do I reset the camera to factory defaults?

Press and hold the Reset button (recessed) for 10 seconds while the camera is powered. This restores factory settings.

What is the recommended browser for accessing the camera?

The latest versions of Internet Explorer, Microsoft Edge, Google Chrome, or Mozilla Firefox are recommended for web interface access.

Where can I find additional resources like firmware and manuals?

All supplemental resources are available at www.pelco.com/spectra-enhanced-7, including firmware, documentation, and tools.

USER MANUAL Spectra Enhanced S7818L-EB0 Pelco

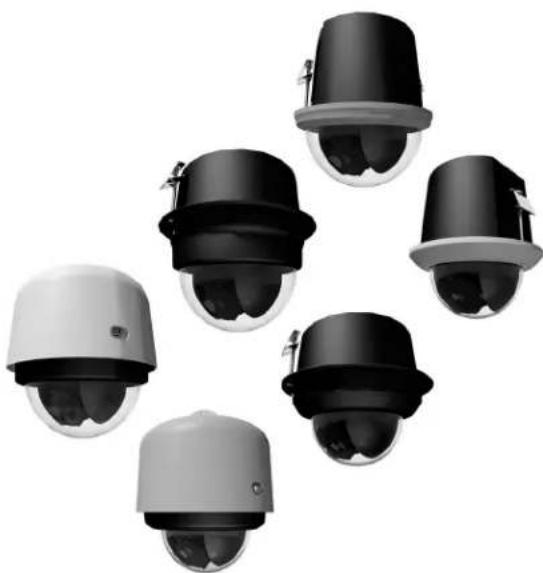

SpectraEnhanced Series7Domes

Six black-and-white security camera modules arranged in a cluster (no text or symbols visible)

Dome(S7230LandS7818L)Models

C6648M-A(5/20)

Contents

Contents....3

Important Notices 7

Legal Notice 7

Regulatory Notices 7

Warranty Statement 7

Video Quality Caution 7

Open Source Software Notice 7

Description....10

Getting Started 10

System Model Numbers 11

Component Model Numbers 11

Recommended Mounts 11

Dome Camera Models....12

Supplied Parts List: In-Ceiling system 12

User-Supplied Parts List: In-Ceiling System....12

Supplied Parts List: Pendant system 12

User-Supplied Parts List: Pendant 12

Product Overview....13

Installation Methods....13

Installation (Back Box) 14

Installing the Back Box (In-Ceiling)....14

Installing the Back Box (Pendant)....15

Installation (Dome Drive)....17

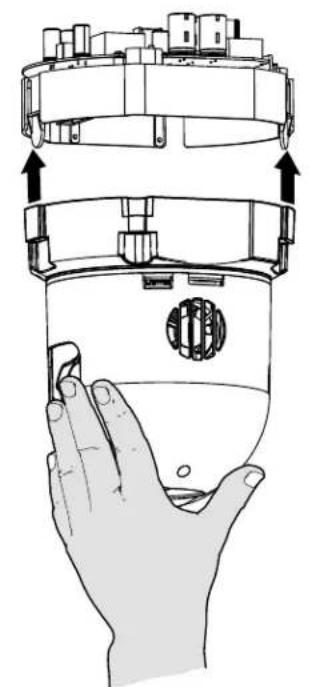

Installing the Dome Drive (In-Ceiling)....17

Installing the Dome Drive (Pendant)....18

Installation (Lower Dome) 20

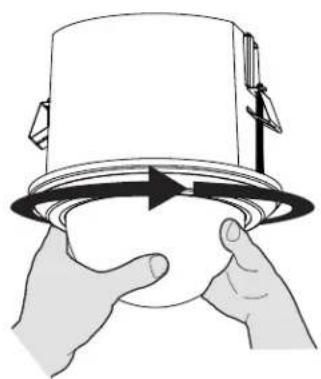

Installing the Lower Dome (In-Ceiling/Indoor) 20

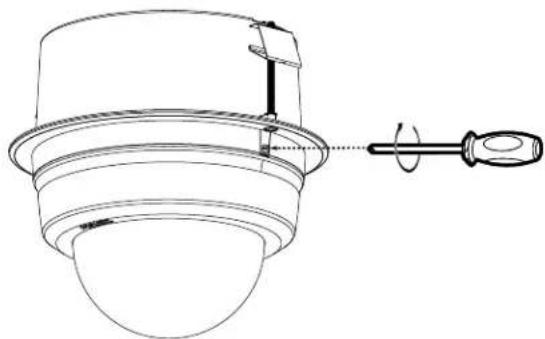

Installing the Lower Dome (In-Ceiling/Environmental) 20

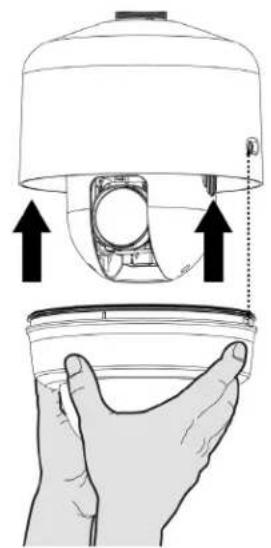

Installing the Lower Dome (Environmental Pendant) 21

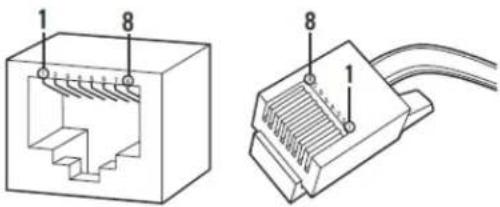

Ethernet Wiring Requirement for POE 802.3bt 23

Accessing the Camera 24

Supplemental Resources 24

Pelco Troubleshooting contact information 24

LEGALNOTICE

SOMEPELCOEQUIPMENTCONTAINS,ANDTHESOFTWAREENABLES,AUDIO/VISUALANDRECORDINGCAPABILITIES,THEIMPROPERUSEOF WHICHMAYSUBJECTYOUTOCIVILANDCRIMINALPENALTIES.APPLICABLELAWSREGARDINGTHEUSEOFSUCHCAPABILITIESVARY BETWEENJURISDICTIONSANDMAYREQUIRE,AMONGOTHERTHINGS,EXPRESSWRITTENCONSENTFROMRECORDEDSUBJECTS.YOU ARESOLELYRESPONSIBLEFORINSURINGSTRICTCOMPLIANCEWITHSUCHLAWSANDFORSTRICTADHERENCETOANY/ALLRIGHTSOF PRIVACYANDPERSONALTY.USEOFTHISEQUIPMENTAND/ORSOFTWAREFORILLEGALSURVEILLANCEORMONITORINGSHALLBEDEEMED UNAUTHORIZEDUSEINVIOLATIONOFTHEENDUSERSOFTWAREAGREEMENTANDRESULTINTHEIMMEDIATETERMINATIONOFYOUR LICENSERIGHTSTHEREUNDER.

REGULATORYNOTICES

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RADIOANDTELEVISIONINTERFERENCE

This equipment has been tested and found to comply with the limits of a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at this own expense.

Changes and Modifications not expressly approved by the manufacturer or registrant of this equipment can void your authority to operate this equipment under Federal Communications Commission's rules.

CANICES-3(A)/NMB-3(A)

KOREANCLASSAEMC

For information about Pelco's product warranty and thereto related information, refer to www.pelco.com/warranty.

VIDEOQUALITYCAUTION

FrameRateNoticeRegardingUser-SelectedOptions

Pelco systems are capable of providing high quality video for both live viewing and playback. However, the systems can be used in lower quality modes, which can degrade picture quality, to allow for a slower rate of data transfer and to reduce the amount of video data stored. The picture quality can be degraded by either lowering the resolution, reducing the picture rate, or both. A picture degraded by having a reduced resolution may result in an image that is less clear or even indiscernible. A picture degraded by reducing the picture rate has fewer frames per second, which can result in images that appear to jump or move more quickly than normal during playback. Lower frame rates may result in a key event not being recorded by the system.

Judgment as to the suitability of the products for users' purposes is solely the users' responsibility. Users shall determine the suitability of the products for their own intended application, picture rate and picture quality. In the event users intend to use the video for evidentiary purposes in a judicial proceeding or otherwise, users should consult with their attorney regarding any particular requirements for such use.

OPENSOURCESOFTWARENOTICE

This product includes certain open source or other software originated from third parties that is subject to the GNU General Public License (GPL), GNU Library/Lesser General Public License (LGPL) and different and/or additional copyright licenses, disclaimers, and notices.

The exact terms of GPL, LGPL, and some other licenses are provided to you with this product. Please refer to the exact terms of the GPL and LGPL at http://www.fsf.org (Free Software Foundation) or http://www.opensource.org (Open Source Initiative) regarding your rights under said license. You may obtain a complete corresponding machine-readable copy of the source code of such software under the GPL or LGPL by sending your request to [e-mail]; the subject line should read Source Code Request. You will then receive an email with a link for you to downloadthesourcecode.

This offer is valid for a period of three (3) years from the date of the distribution of this product by Pelco.

NOTE: This product is intended to be supplied by a Listed Power Adapter or DC power source marked "L.P.S." (or "Limited Power Source"), rated 48Vdc, 1.9A, 24Vac(50/60Hz), 4.8AorPOEBT, 1.3AorPOEAT, 0.5Aforindoormodelsonlyandambient temperatures above -10°C; Tma = 60°C, and the altitude of operation = 2000m. If you need further assistance with purchasing the powersource, pleasecontacttoPELCO, INCforfurtherinformation.

Description

The Spectra Enhanced Series 7 high speed IP PTZ dome cameras provide top tier image quality, performance, and intelligent embedded features for state-of-the-art surveillance solutions. There are several different form factors including in-ceiling and pendant domes with different configurations (e.g. indoor, environmental). All environmental models feature a robust design with aluminum construction and an IK10 rated housing and polycarbonate bubble. The environmental models feature worry-free use in harsh environments with IP66, IP67, and Type 4X ratings, and awiderangeofoperatingtemperatures.

The Spectra Enhanced Series 7 dome camera is easy to install, offers flexible mounting options, and uses a standard Web browser for easy remotesetupandadministration.

The Spectra Enhanced Series 7 dome camera easily connects to Pelco IP and hybrid systems such as VideoXpert and Digital Sentry version 7.3 (or later). The camera also conforms with ONVIF Profile S, Profile G, Profile Q, and Profile T for connection with third-party software. Pelco offers an ApplicationProgrammingInterface(API)andSoftwareDeveloper'sKit(SDK)forinterfacingwithPelco'sIPcameras.

This document describes the installation and initial setup procedures to begin operating the camera. For more information about operating your camera, refertotheoperationmanualspecifictotheproduct.

NOTE: For additional information about Spectra Enhanced Series 7 dome product documentation in English and other languages, go to www.pelco.comandnavigatetotheSpectraEnhancedSeries7website.

GETTINGSTARTED

• Before installing your device, thoroughly familiarize yourself with the information in the installation section of this manual.
• Pelco recommends connecting the device to a network that uses a Dynamic Host Configuration Protocol (DHCP) server to address devices.
- Donotuseanetworkhubwhenconfiguringthenetworksettingsforthedevice.
- Toensuresecureaccess, placethedevicebehindafirewallwhenitisconnectedtoanetwork.

SYSTEMMODELNUMBERS

Type	Back Box Color	Trim Ring Color	Lower Dome	System Resolution	ModelNumberDescription
In-ceiling,IndoorBlackWhite			Smoked2MP30XS7230L-FW1	WOSpectraEnh71080p30XIndoorIn-CeilingWhiteSmokedBubble
			Clear2MP30XS7230L-FW1	SpectraEnh71080p30XIndoorIn-CeilingWhiteClearBubble
In-ceiling,Environmental	BlackBlack		Smoked2MP30XS7230L-YB1	BOSpectraEnh71080p30XEnvIn-CeilingBlackSmokedBubble
			Clear2MP30XS7230L-YB1	SpectraEnh71080p30XEnvIn-CeilingBlackClearBubble
Pendant,Environmental	WhiteBlack		Smoked2MP30XS7230L-EW1	WOSpectraEnh71080p30XEnvPendantWhiteSmokedBubble
			Clear2MP30XS7230L-EW1	SpectraEnh71080p30XEnvPendantWhiteClearBubble
Pendant,Environmental	BlackBlack		Smoked2MP30XS7230L-EB1	BOSpectraEnh71080p30XEnvPendantBlackSmokedBubble
			Clear2MP30XS7230L-EB1	SpectraEnh71080p30XEnvPendantBlackClearBubble
In-ceiling,Indoor4K	BlackWhite		Smoked4K18XS7818L-FW1	DOSpectraEnh74K18XIndoorIn-CeilingWhiteSmokedBubble
			Clear4K18XS7818L-FW1	SpectraEnh74K18XIndoorIn-CeilingWhiteClearBubble
In-ceiling,Environmental4K	BlackBlack		Smoked4K18XS7818L-YB1	SpectraEnh74K18XEnvIn-CeilingBlackSmokedBubble
			Clear4K18XS7818L-YB1	SpectraEnh74K18XEnvIn-CeilingBlackClearBubble
Pendant Environmental4K	WhiteBlack		Smoked4K18XS7818L-EW1	DOSpectraEnh74K18XEnvPendantWhiteSmokedBubble
			Clear4K18XS7818L-EW1	SpectraEnh74K18XEnvPendantWhiteClearBubble
Pendant,Environmental4K	BlackBlack		Smoked4K18XS7818L-FB1	SpectraEnh74K18XEnvPendantBlackSmokedBubble
			Clear4K18XS7818L-EB1	SpectraEnh74K18XEnvPendantBlackClearBubble

COMPONENTMODELNUMBERS

BackBox		HighDefinition(HD)LowerDome*		DomeDrive
B7-F	In-ceiling Indoor	LD7F-0	Indoor, White, Smoked, 1080p	D7230L	1080p 30X
B7-F-E	In-ceiling Environmental	LD7F-1	Indoor, White, Clear, 1080p	D7818L	4K 18X
B7-PW-E	Pendant Environmental, White	LD7PB-0	Environmental, Black, Smoked, 1080p
B7-PB-E	Pendant Environmental, Black	LD7PB-1	Environmental, Black, Clear, 1080p
		LD7AF-0	Indoor,White,Smoked,4K
		LD7AF-1	Indoor,White,Clear,4K
		LD7APB-0	Environmental,Black,Smoked,4K
		LD7APB-1	Environmental,Black,Clear,4K

*Usetheenvironmentallowerdomeswiththeenvironmentalin-ceilingandenvironmentalpendantbackboxes.

RECOMMENDEDMOUNTS

PendantDomes
IWM Series	Wall mount, white or black finish; can be adapted for corner, parapet, or pole application
IWM-MKIT	Marine kit is designed to protect the Spectra Series dome system mounted to the IWM arm from galvanic corrosion.
IWM24Series	Parapetwall/roofmount
SWMSeries	Wallmount,withintegral24VAC,100VAtransformer;whiteorblackfinish;canbeadaptedforcorner,parapetorpole application
PP350/PP351	Parapetwall/roofmount
SWM Series	Compact wall mount, white or black finish; can be adapted for corner or pole applications
IDM4012SS-SWMountarmfeed-thru,stainlesssteel,RAL9003
IDM4018-SW	Mountarmfeed-thru,white,RAL9003

SUPPLIEDPARTSLIST:IN-CEILINGSYSTEM

QtyDescription

1Backboxwithmountinghardware

1Lowerdome(includestrimringandbubble)

1Domedrive

1Mountingtemplate

118-pinterminalblock

12-pinterminalblock

1Metalplugandnut

1 Safetybracket

1Rubbergrommet(Environmentalln-Ceilingmodelsonly)

1 Installationmanual

1 Important Safety Instructionsdocument

USER-SUPPLIEDPARTSLIST:IN-CEILINGSYSTEM

In addition to the standard tools and cables required for a video security installation, you will need to provide the following items:

QtyDescription

1 Safetychain

1Conduitfittingandnut

1Cat5e(orhigher)cable

SUPPLIEDPARTSLIST:PENDANTSYSTEM

QtyDescription

1Pendantbackbox

1Lowerdome(includestrimringandbubble)

1Domedrive

118-pinterminalblock

12-pinterminalblock

1Waterproofgland

1 Anti-seizelubricant

1 Installationmanual

1 Important Safety Instructionsdocument

USER-SUPPLIEDPARTSLIST:PENDANT

In addition to the standard tools and cables required for a video security installation, you will need to provide the following items:

QtyDescription

1PendantMount

1Cat5e(orhigher)cable

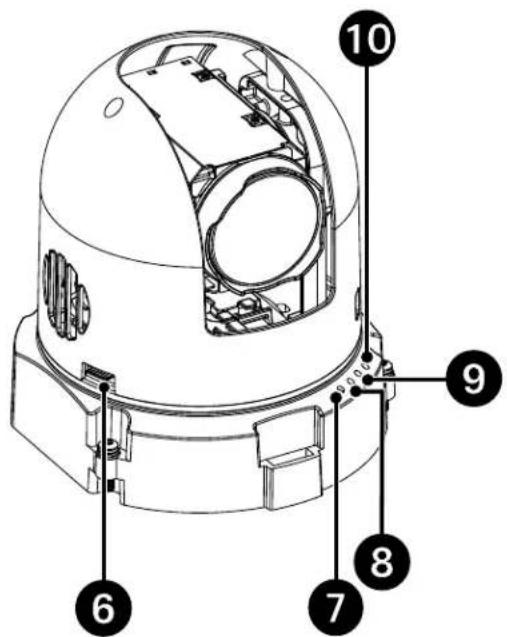

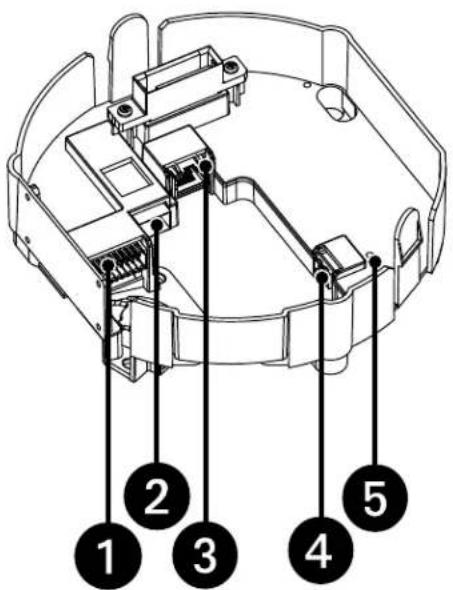

Figure1.SpectraEnhancedSeries7DomeCamera

#Connection/FeatureDescription
1Alarm,Relay,andAudio In/Out	An18-pinconnectorwithfoulararms,tworelay,andaudioinandout.
2SFPPort	ConnectstheSFPmodule.Theportwillauto-detecteither100Mbpsor1Gbpsspeeds.EnsurethesameSFPmodule isbeingusedontheothersideofthelink.
3 RJ-45 Network Port	Connects the camera to the IP network and supplies power to the camera through the network using Power overEthernet802.3btor802.3atforindoormodelsonlyandambienttemperaturesabove-10°C.
4PowerTerminal	The port is used to connect with either a 48 VDC or 24 VAC power supply. Use 16 to 20 AWG gage wire. NOTE: There isnopolarityforthepowerconnection.
5PowerLEDThisLEDglowssolidgreenwhenthepowerison.TheLEDisoffwhenthereisnopower.
6MicroSDCardSlotSlotforremovableMicroSDCardforflashmemory.
7 Reset Button	Reboots the camera or restores the camera's factory default settings. This button is recessed. Using a small tool,suchasapaperclip,pressandreleasetheResetbuttonfor1secondtorebootthecamera.Pressandhold theResetbuttonfor10secondstorestorethecameratothefactorydefaultsettings.
8 Status LED	Powers up solid amber. Blinks green when motors start to calibrate and during boot-up. Blinks amber during a firmwareupdate.Solidgreenduringnormaloperation(ifLEDsareONintheuserinterface).
9 Ethernet Link/Activity LED	LED blinks green while the camera boots and link is active. After boot completed the LED is OFF.
10SFP/ActivityLEDBlinksgreenwhilethecamerabootsandlinkisactive.AfterbootcompletedtheLEDisOFF.

INSTALLATIONMETHODS

YoucaninstalltheSpectraEnhancedSeriesdomesystemusingoneofthefollowingmethods:

• Installationinasuspendedceilingorafixedceiling.
• Installation using apendantmount(not supplied).

INSTALLINGTHEBACKBOX(IN-CEILING)

1. Locatethecenterpointofthemountinglocation.

2. Use the supplied mounting template to attach to the ceiling.

3.Cutoutaroundthemountingtemplate.

1. Attachaconduitfitting(notsupplied)andlocknut(notsupplied).

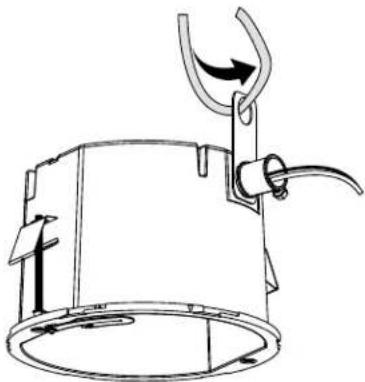

2. Install a safety chain/cable (not supplied) to the safety chain bracket. The safety chain/cable should be capable of supporting up to 7.3 kg (16lb).

Technical line drawing of a mechanical device with a curved hook and lever mechanism (no text or symbols)

Figure2.SafetyChain

1. Pull the wiring into the back box through the conduit fitting. NOTE: For environmental in-ceiling models installed in air handling spaces, use the supplied metal plug and nut. All other installation environments may use either the supplied rubber grommet plug or metal plug with nut.

2. Installthebackbox:

a. Compresssthespringclipsandpushthebackboxthroughthehole.

b.Tightenthescrewsuntilyouhearaclickingnoise.

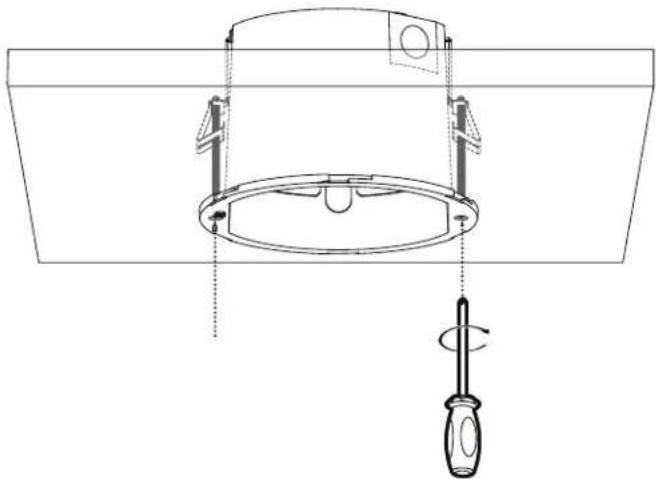

Technical line drawing of a ceiling lamp with screwdriver and mounting bracket (no text or symbols)

Figure3. InstallingtheBackBox: In-CeilingModels

1. Connect the power wiring. Referto the figure below and the Wiring topic form more information.

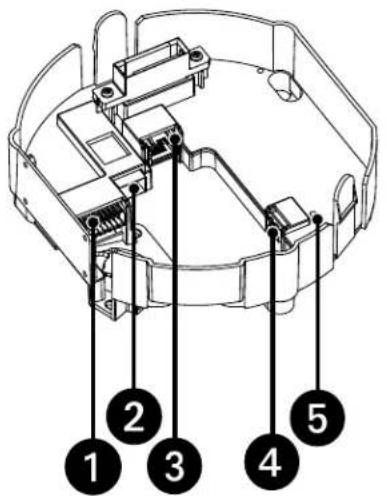

Figure4.WiringConnections

#Connection/FeatureDescription
1Alarm,Relay,andAudio In/Out	An18-pinconnectorwithfouralarms,tworelays,andaudioinandout.
2SFPPort	ConnectstheSFPmodule.Theportwillauto-detecteither100Mbpsor1Gbpsspeeds.EnsurethesameSFPmodule isbeingusedontheothersideofthelink.
3 RJ-45 Network Port	Connects the camera to the IP network and supplies power to the camera through the network using Power overEthernet802.3btor802.3atforindoormodelsonlyandambienttemperaturesabove-10°C.
4PowerTerminal	Theportisusedtoconnectwitheithera48VDCor24VACpowersupply.Use16to20AWGgagewire.NOTE:Thereisnopolarityforthepowerconnection.
5PowerLEDThisLEDglowssolid	greenwhenthepowerison.TheLEDisoffwhenthereisnopower.

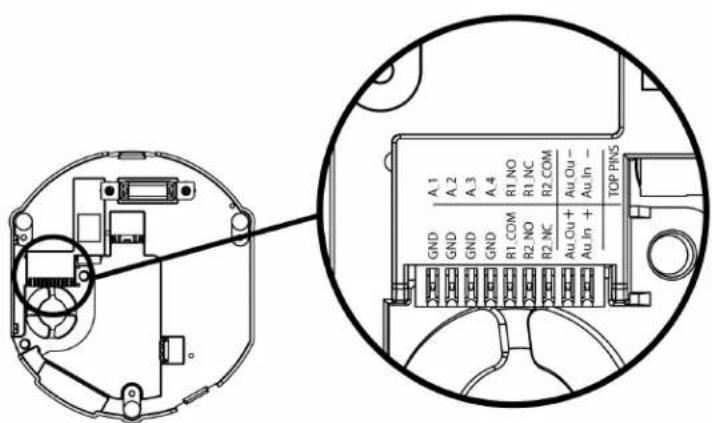

Figure5. Alarm, Relays, and Audio Pins

1. Install the pendant mount (not supplied). Referto the instruction supplied with themount.

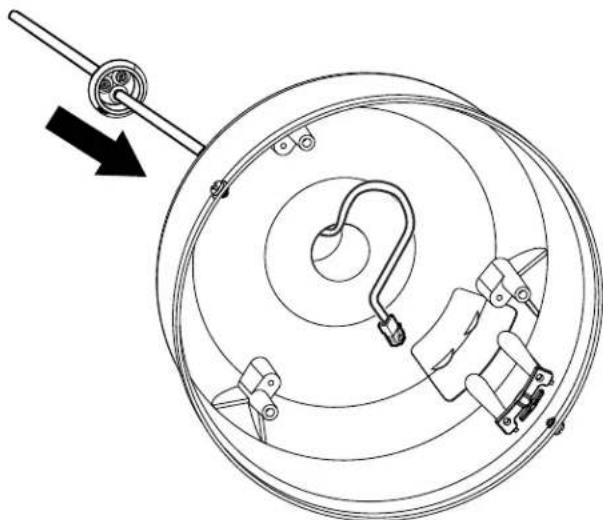

2. Pull the wiring into the backbox and through the supplied waterproof gland.

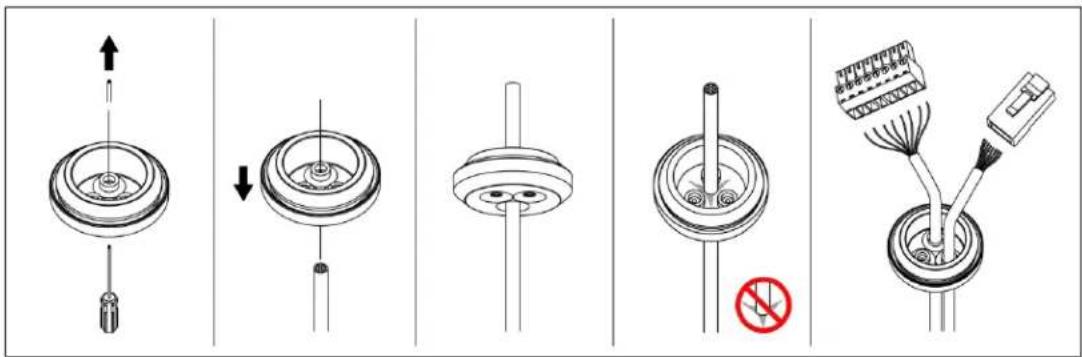

Figure6.Grommet

Technical diagram of a mechanical assembly with concentric circles and a lever, showing no text or symbols.

Figure7.PullingtheWiringintotheBackBox

1. Screwthebackboxontothependantmountandapplythreadcompound(supplied)tothethreadsonthebackbox.

NOTE: Thread compound must be applied on both standard and environmental pendants. Not doing so may prevent the units from being separated in the future.

1. Connect the power wiring. Referto Figure 4 and the Wiring section form more information.

INSTALLINGTHEDOMEDRIVE(IN-CEILING)

1. Lineuptheedgesofthedomedrivewiththeinsideofthebackbox.

2. Push the dome drive into the clips until both sides click into place. The clips temporarily hold the dome drive in place.

Illustration of a hand holding a transparent container with a circular component, showing mechanical components above (no text or symbols)

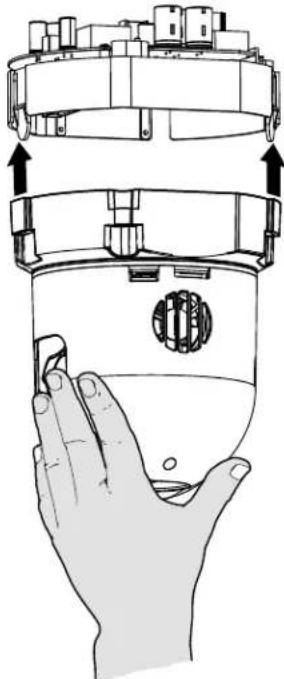

Figure8. InstallingtheDomeDrive

1. Placeonehandonorunderthedomeuntilthefastenersaresecure.

2. Screwin the threee captive fasteners until they are secure.

Illustration of hands assembling or adjusting a cylindrical device with a circular component (no text or symbols visible)

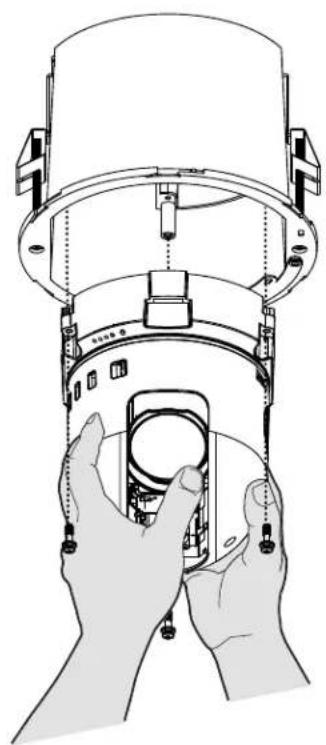

Figure9. Installing the Dome Drive: In-Ceiling Models

Diagram of a mechanical device with a lever and clamping mechanism, no text or symbols present

Figure10. DomeDrivewithGrommetInstalledonBack

1. Lineuptheedgesofthedomedrivewiththeinsideofthebackbox.

2. Push the dome drive into the clips until both sides click into place. The clips temporarily hold the dome drive in place.

Illustration of a hand holding a device with a circular component, showing mechanical components and directional arrows (no text or symbols)

Figure11.InstallingtheDomeDrive

1. Placeonehandonorunderthedomeuntilthefastenersaresecure.
2. Screwin the threee captive fasteners until they are secure.

Line drawing of hands assembling or adjusting a mechanical device with a circular component (no text or symbols)

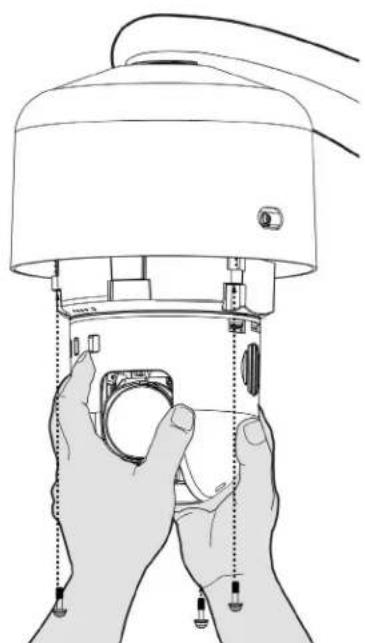

Figure12. Installing the Dome Drive: Pendant Models

INSTALLINGTHELOWERDOME(IN-CEILING/INDOOR)

1. Attachthebackboxleashtothelowerdome.
2. Turn counter clockwise until the dome is nestled into the gaps in the back box. Then turn a little clockwise to secure.
3. Alignthedomearrowswiththearrowsonthebaseandthenusea15to20degreeclockwiseturntosecure.

Diagram showing a hand holding a device with arrows indicating upward motion (no text or symbols present)

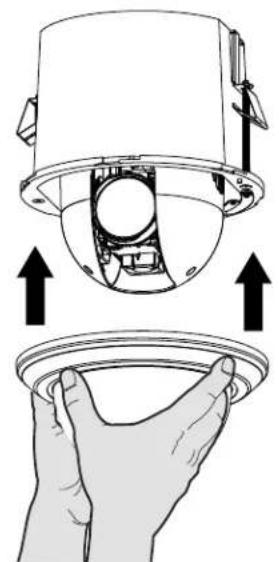

Figure13. Placing the Lower Dome: In-Ceiling Indoor Models

Illustration of hands holding a cup with a circular arrow indicating rotation (no text or symbols)

Figure14. Tightening the Lower Dome: In-Ceiling Indoor Models

1. Applypowertothedome. Thedomesystemwillcompleteaconfigurationsequence.

INSTALLINGTHELOWERDOME(IN-CEILING/ENVIRONMENTAL)

1. Attachthebackboxleashtothelowerdome.
2. Alignthebackboxscrewswiththeslotsonthelowerdome.

Diagram showing a hand holding a camera lens and a sensor or camera module, with arrows indicating assembly or installation (no text or symbols present)

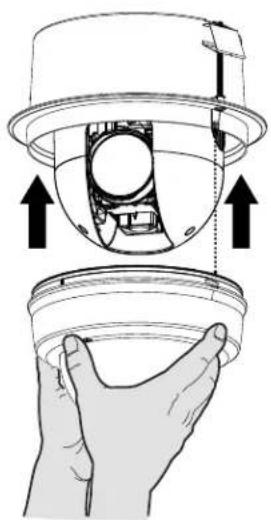

Figure15. Placing the Lower Dome: In-Ceiling Environmental Models

1. Pushthelowerdomeontothebackbox.
2. Tightenthescrewstosecurethelowerdometothebackbox.

Technical line drawing of a mechanical component with a rotating shaft and housing (no text or symbols)

Figure16. Tightening the Lower Dome: In-Ceiling Environmental Models

1. Applypowertothedome. Thedomesystemwillcompleteaconfigurationsequence.

INSTALLINGTHELOWERDOME(ENVIRONMENTALPENDANT)

1. Attachthebackboxleashtothelowerdome.
2. Alignthebackboxescrewswiththeslotsonthelowerdome.

Illustration of a hand holding a container with an upward arrow indicating motion or force (no text or symbols present)

Figure17.PlacingtheLowerDome:PendantModels

Line drawing of a mechanical component with a screwdriver inserted, no text or symbols present

Figure18. Tightening the Lower Dome: Pendant Models

1. Applypowertothedome. Thedomesystemwillcompleteaconfigurationsequence.

EthernetWiringRequirementforPOE802.3bt

Connect a CAT5e or higher cable or higher cable (not supplied) to the RJ-45 network connector. the 8-pin port includes video over Ethernet, and PoE 802.3bt for the camera. PoE 802.3bt injects power over the same cabling that carries the network data, eliminating the need for a separate powersupply. This simplifies the installation and operation of the camera without affecting network performance.

Figure19.PinNumbering

Figure20.PinFunctions

PairsPair1Pair2Pair3Pair4
Pins1and23and64and57and6
SignalAssignmentBI_DA+/BI_DA-BI_DB+/BI_D	B-BI_DC+/BI_DC-BI_DD+/BI_DD-
Valid4-pairPowerConfigurations	N	P		N
	N	P	P
	P	N		N
	P	N		P
Ndenotesapairconnectedtonegativepotential.Pdenotesapairconnectedtopositivepotential.

N

NOTE: For security purposes, it is required that you create a user account when you access the camera for the first time.

- In its out-of-the-box configuration, the camera has no user name and password assigned. In this state the camera does not allow for video to stream or configurations to change. It is required that you set an administrative user name and password at this time. Creation of an administrative user changes the state of the camera to its "operational mode," where credentials must be provided in order to view live videoorchangeitsconfiguration. ThisfirstuserconfigurationcanalsobedoneinVxToolboxsoftware.

- There is no provision for recovering a forgotten administrator user name or password. The camera can be restored to its out-of-the-box, no user name and password configuration by powering down, depressing the Factory Defaults button, and holding the button down for at least foursecondswhilepowerthecamerabackup.

- If a username and password exist, a Login page is presented when the camera is accessed.

The recommended browsers for your camera are the latest version of Internet Explorer®, Microsoft™ Edge™, Google Chrome™ browser, or Mozilla® Firefox®. Forsupportedbrowserservers, refertothespecificationsheet.

1.Openawebbrowser.

1. Typethecamera'sIPaddress(192.168.0.20)orhostnameinyourbrowser'saddressbar,andthepressEnter.

NOTE: You can obtain your camera's IP address or access the camera using the Pelco Device Utility or VxToolbox software. If DHCP is enabled but a DHCP server is not on the network, the camera automatically assigns itself both an IPv4 link local address (169.254.x.x, where the lower two octets are random) and a 192.168.0.20 address. Additional cameras will assign themselves different IPv4 link local addresses and the next available 192.168.0xIP addresses in sequential order. For example, if three cameras are connected to a network without a DHCP server, the first camera to connect assigns itself the IP address 192.168.0.20, the second camera assigns itself 192.168.0.21, and the third camera assigns itself 192.168.0.22.

1. Entercredentials for the camera.

4.ClickLogIn.

SUPPLEMENTALRESOURCES

All Spectra Enhanced Series 7 supplemental resources (e.g. firmware, documentation, VxToolbox, and Device Utility) are available in one location: www.pelco.com/spectra-enhanced-7

PELCOTROUBLESHOOTINGCONTACTINFORMATION

If the instructions provided fail to solve your problem, contact Pelco Product Support at 1-800-289-9100 (USA and Canada) or [phone] (international)forassistance.Besuretohavetheserialnumberavailablewhencalling.

Donottrytorepairtheunityyourself.Leavemaintenanceandrepairstoqualifiedtechnicalpersonnelonly.

REVISIONHISTORY

Manual#DateComments

C6648M12/19Originalversion.

C6648M-A5/20Added4Kmodels

Pelco, the Pelco logo, and other trademarks associated with Pelco products referred to in this publication are trademarks of Pelco, Inc. or its affiliates.

ONVIF and the ONVIF logo are trademarks of ONVIF Inc. All other product names and services are the property of their respective companies.

Productspecificationsandavailabilityaresubjecttochangewithoutnotice.

© Copyright 2020, Palco, Inc.

All rights reserved.

PELCO®

Pelco,Inc.625W.AlluvialFresno,California93711UnitedStates

USA&CanadaTel(800)289-9100Fax[phone]

InternationalTel+1(559)292-1981Fax[phone]

www.pelco.com
